Integration Strategy Newcastle Robert Shaw The Newcastle Upon Tyne Hospitals NHS Trust

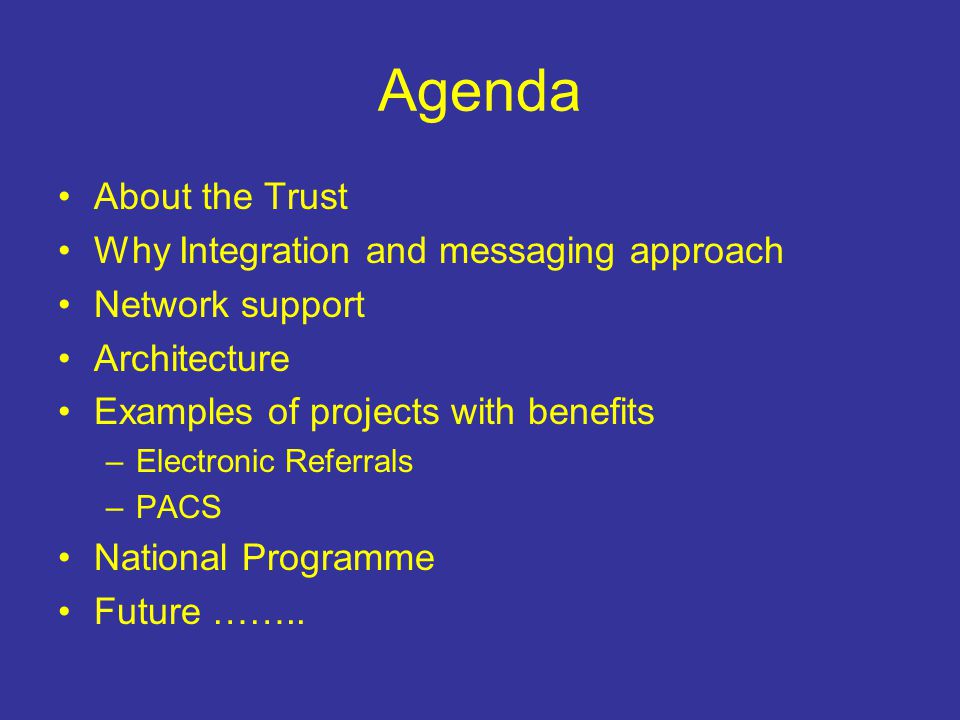

Agenda About the Trust Why Integration and messaging approach Network support Architecture Examples of projects with benefits –Electronic Referrals –PACS National Programme Future ……..
Who are we Dr Foster Hospital of the Year Large Teaching, Tertiary Acute Trust –£0.5 Billion turn over –12,000 employees –Over 2,000 beds, 58 theatres –120 specialities and sub specialties –Local, Regional and National services

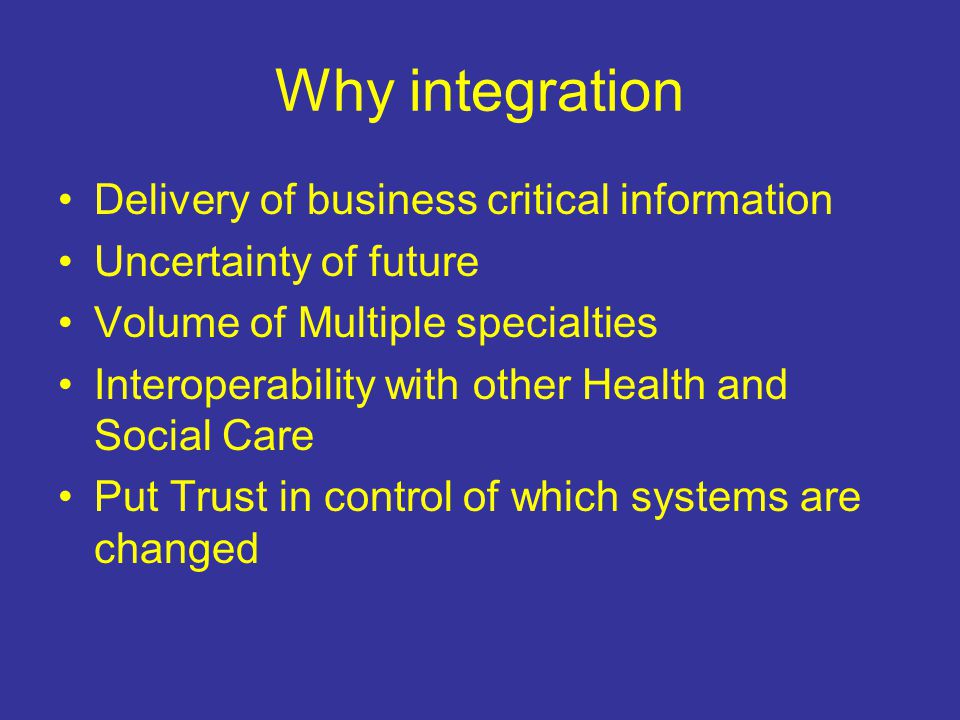

Why integration Delivery of business critical information Uncertainty of future Volume of Multiple specialties Interoperability with other Health and Social Care Put Trust in control of which systems are changed

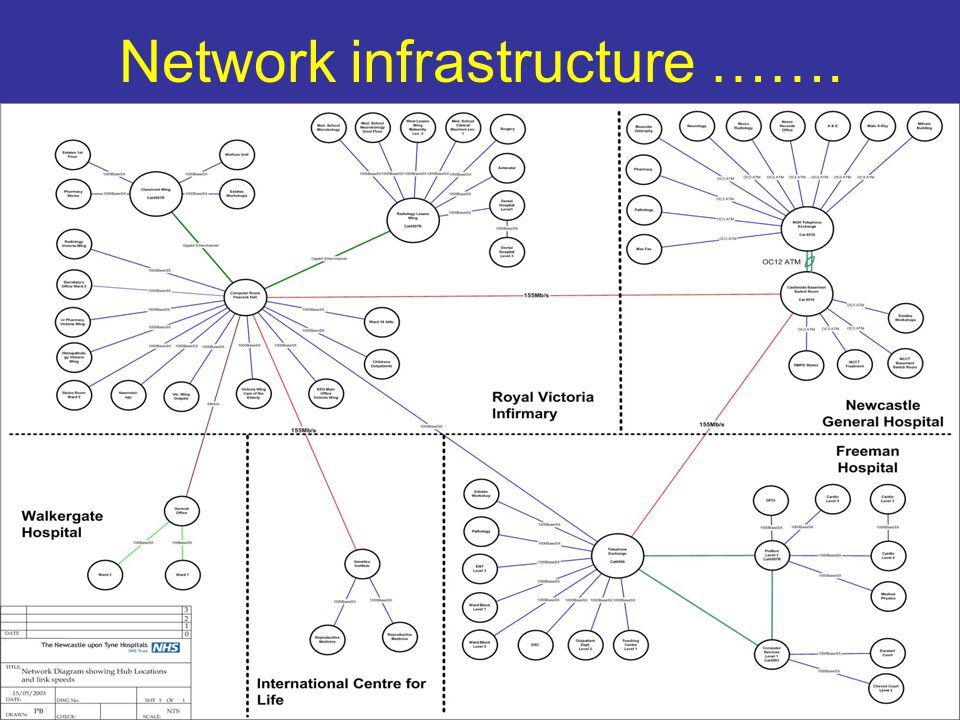

Network infrastructure …….
Summary Architecture P.A.S. Pathology PACS/RIS Casemix Order CommsTheatre Audit Web ClinicalMgt Middleware Primary Care Pharmacy MPI Integration Engine LANTIS
Master Patient Index PAS MPI (SQL Server) Biz Talk Server 30 + systems Patient Identification NHS Number Hospital Number System Number Migration “Back room” system but the most system critical 40,000 per day 1.8 million records in MPI

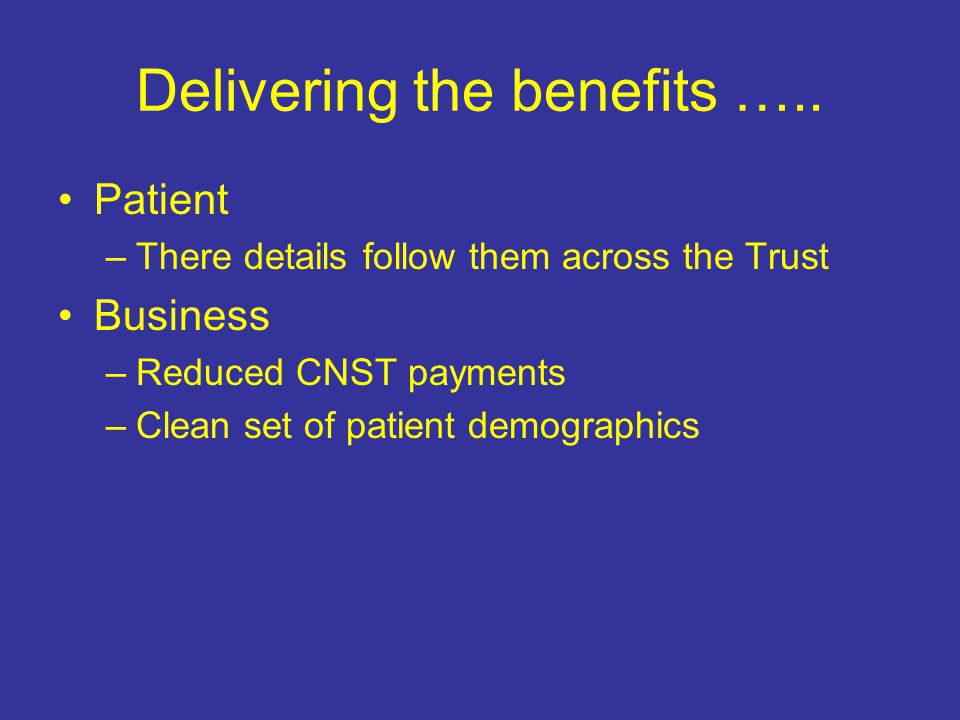

Delivering the benefits ….. Patient –There details follow them across the Trust Business –Reduced CNST payments –Clean set of patient demographics

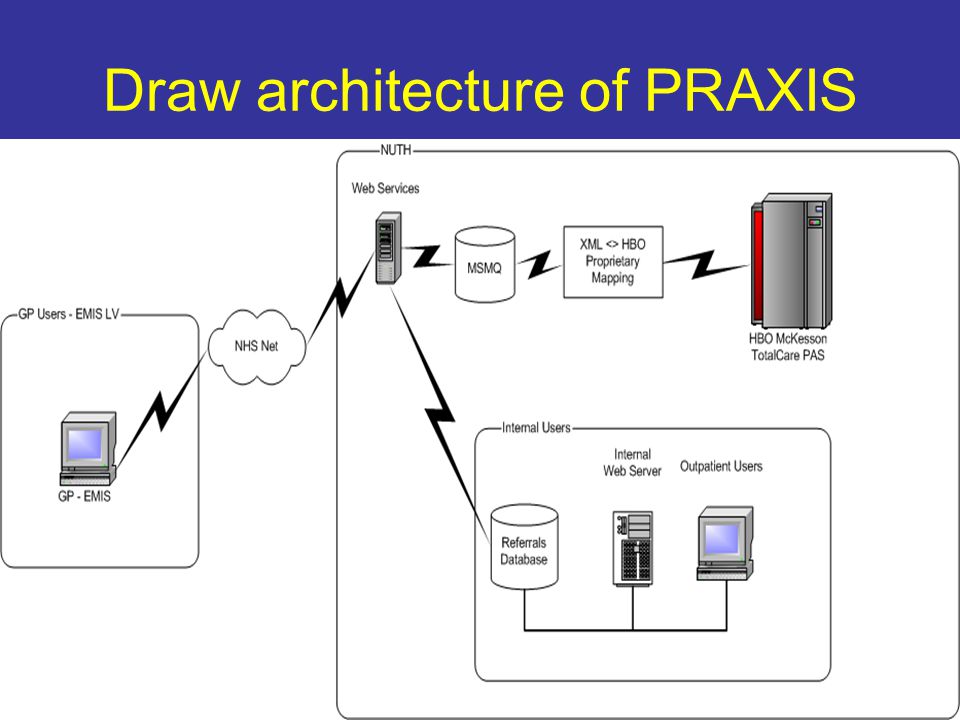

Draw architecture of PRAXIS
Delivering the benefits ….. Patient –Know what is happening –Information Clinician –Speed of access of referral –Integrated into record Administration –Rich source of data
Integrated PACS/RIS project
Architecture of PACS Switch Fabric SAN Temporal Web viewer DICOM Message Handling Validation and Integration Multiple Modalities and Manufactures
DICOM / Integration of all existing modalities DICOM Conformance “Compliance” or “Conformance” to a standard doesn’t always mean that it will work
Metrics 5.4 Million images since May 04 Estimate 8.5 Million Radiology p.a. 3,582 users, approx 1,400 concurrent Hardware –48 Tb stretch SAN - HP –Fx Channel Disks –2 Gbps average access rate from SAN
Delivering the benefits …… Patient –Quicker access to diagnosis –Quicker through the system Clinician –More than one clinician can access the same picture –Delivery in all clinical environments Business –Financial

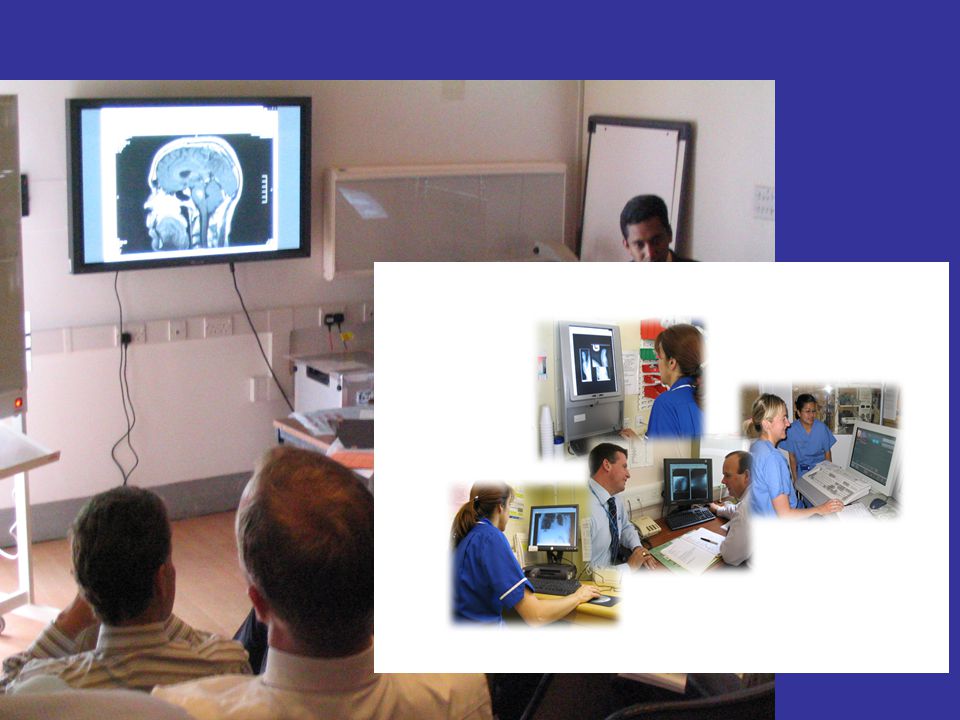

Integrated into Pathology Radiology Clinical Notation Becoming the clinical front end 3,000 letters per day Future Link to clinical document archive Integrate Digital Dictation with Telecoms switch
National Programme …… Vision & Values Delivery …… ? Only 40% of Trust systems –Version 2.x ………. Not going away !!! Inter operability …….
