Physical Property Analysis

3
Physical Properties A physical property is a property that can be observed or measured without changing the identity of the matter. Examples of Physical Properties: Volume DensityColor Surface AreaCentroidMoment of Inertia MassOdorTemperature Melting PointViscosityElectric Charge

4

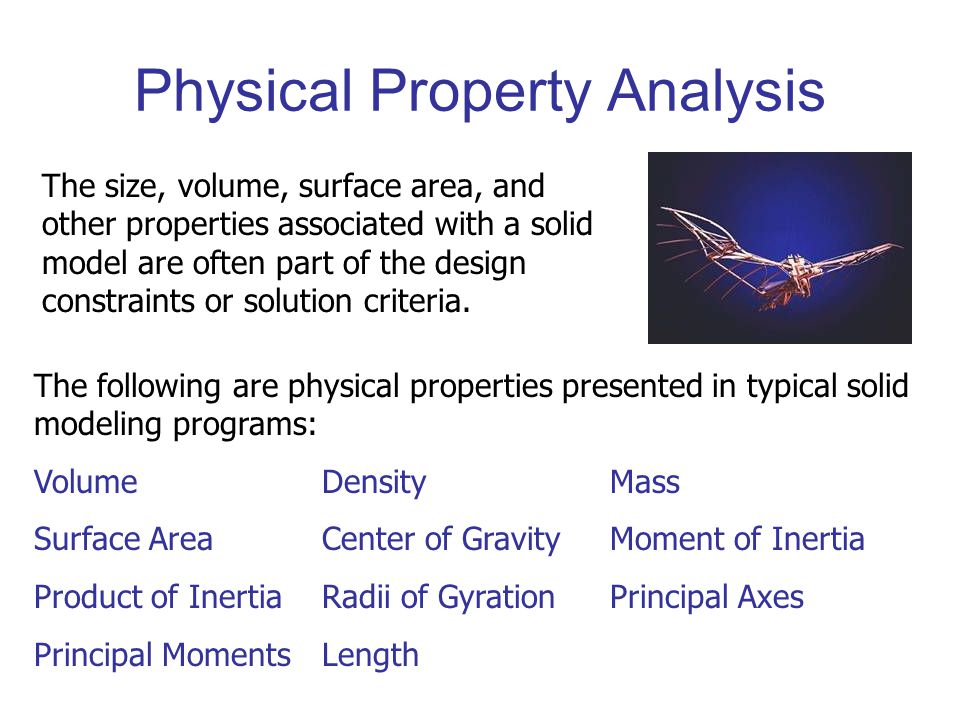

Physical Property Analysis The size, volume, surface area, and other properties associated with a solid model are often part of the design constraints or solution criteria. The following are physical properties presented in typical solid modeling programs: Volume DensityMass Surface AreaCenter of GravityMoment of Inertia Product of InertiaRadii of GyrationPrincipal Axes Principal MomentsLength

5

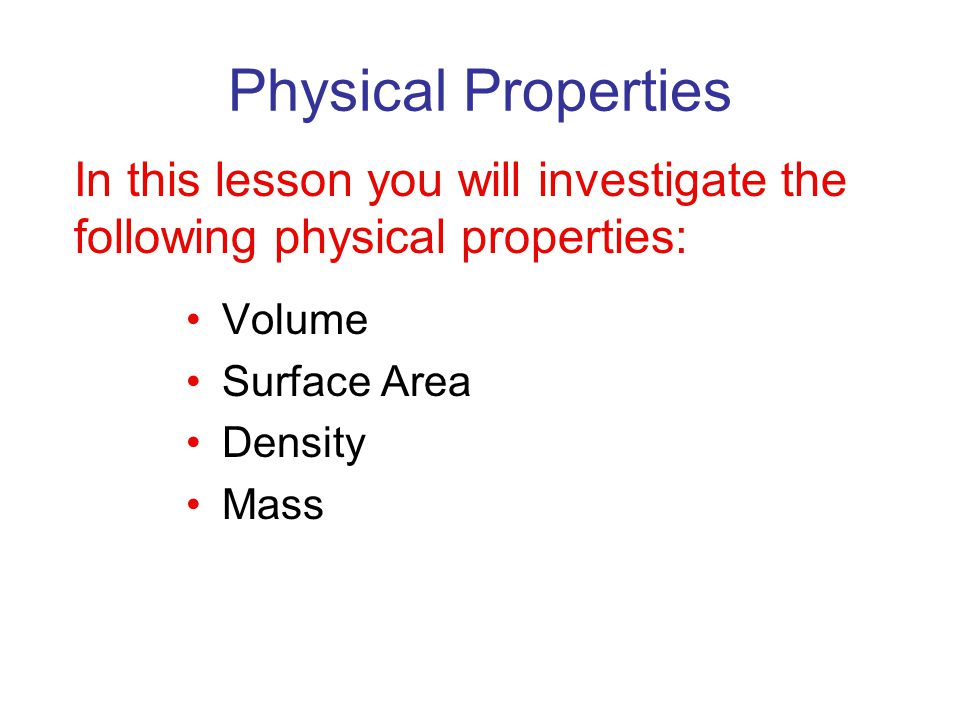

Physical Properties Volume Surface Area Density Mass In this lesson you will investigate the following physical properties:

6

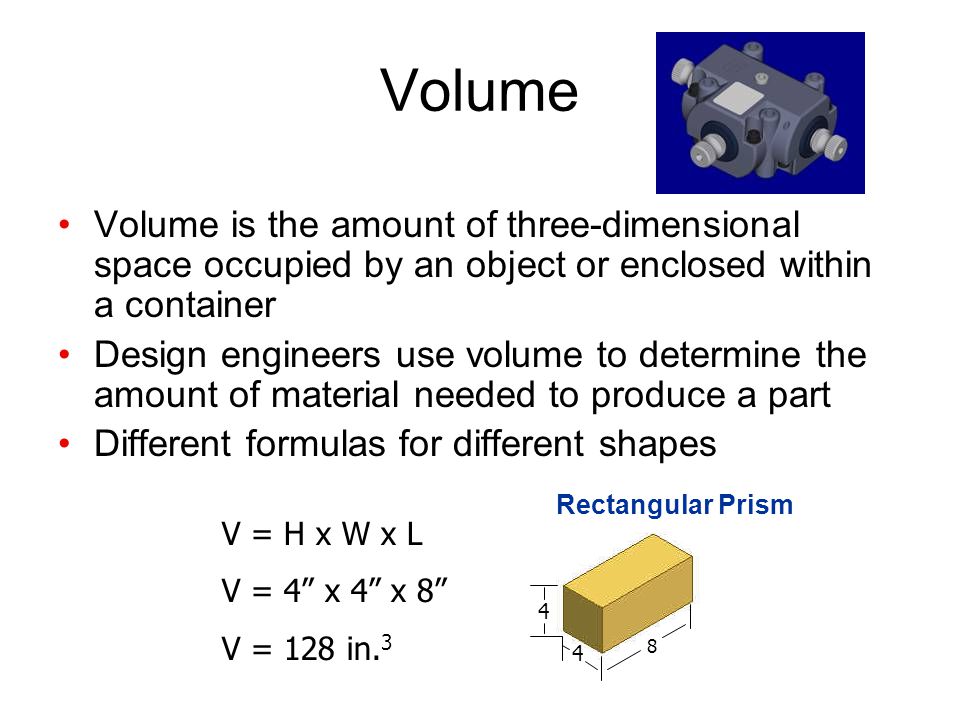

Volume Volume is the amount of three-dimensional space occupied by an object or enclosed within a container Design engineers use volume to determine the amount of material needed to produce a part Different formulas for different shapes V = H x W x L V = 4” x 4” x 8” V = 128 in. 3 8 4 4 Rectangular Prism

7

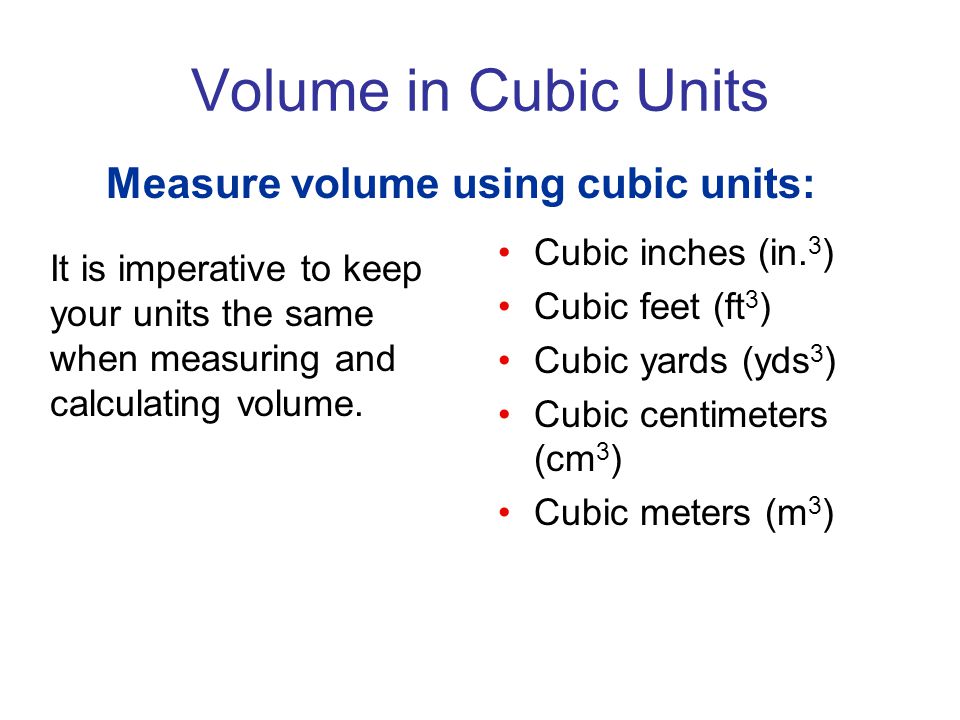

Volume in Cubic Units It is imperative to keep your units the same when measuring and calculating volume. Cubic inches (in. 3 ) Cubic feet (ft 3 ) Cubic yards (yds 3 ) Cubic centimeters (cm 3 ) Cubic meters (m 3 ) Measure volume using cubic units:

8

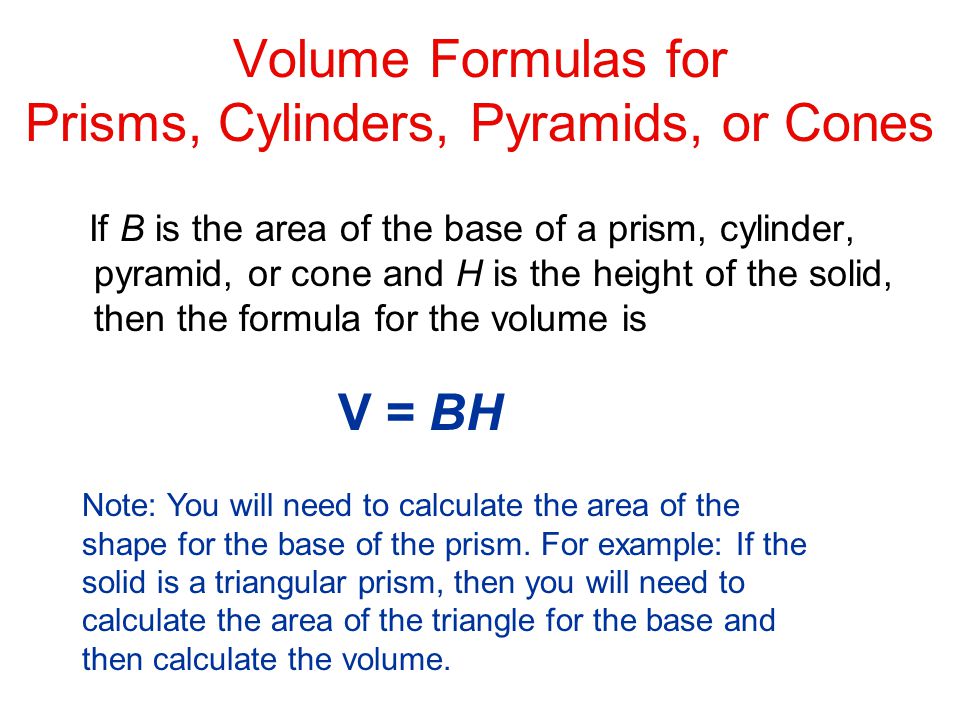

Volume Formulas for Prisms, Cylinders, Pyramids, or Cones If B is the area of the base of a prism, cylinder, pyramid, or cone and H is the height of the solid, then the formula for the volume is V = BH Note: You will need to calculate the area of the shape for the base of the prism. For example: If the solid is a triangular prism, then you will need to calculate the area of the triangle for the base and then calculate the volume.

9
Area Formulas for Bases of Prisms, Cylinders, and Pyramids Rectangular Prism – base is rectangle, therefore A = length * width or A = lw Cylinder – base is a circle, therefore A = pi * radius of circle squared or A = πr 2 Square Pyramid – base is a square, therefore A = length * width or A = lw or side squared since the sides are the same on a square or A = s 2

10
Volume of a Cone A Special Case A cone is 1/3 of a cylinder The base of a cylinder is a circle The area of a circle is A=πr 2 Therefore, the formula for the volume of a cone is V= 1/3Ah where A=πr 2 and h is the height of the cone

11

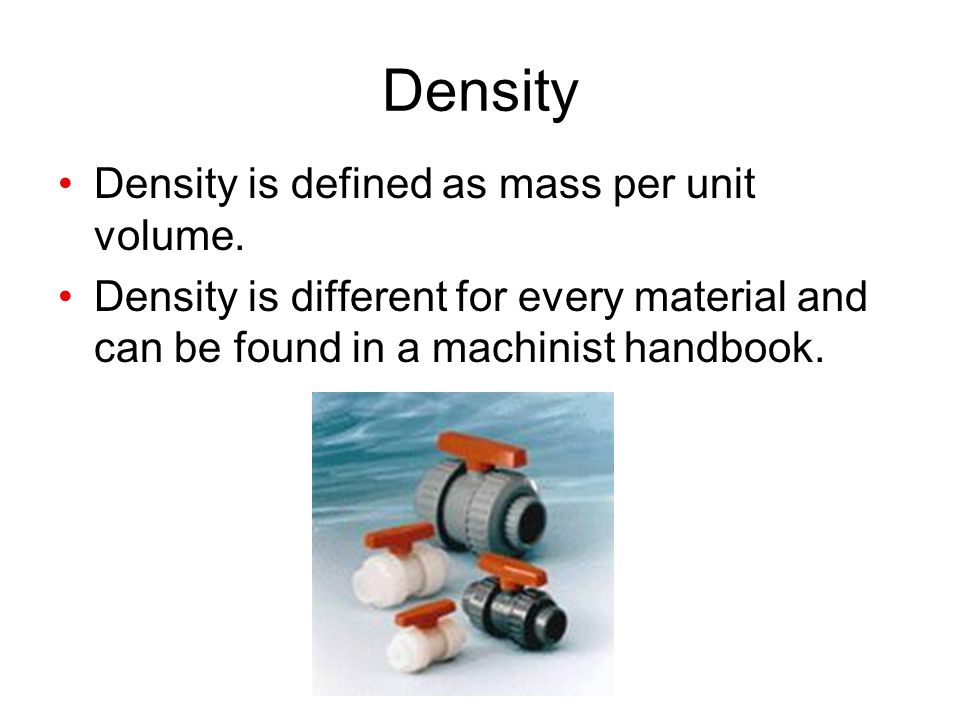

Density Density is defined as mass per unit volume. Density is different for every material and can be found in a machinist handbook.

12
Mass Mass is the amount of matter in an object or the quantity of the inertia of the object. Many materials are purchased by weight; to find weight, you need to know the mass. Mass = Volume x Density Using the volume from the previous example: V = 128 in. 3 Mass = 128 in. 3 x.035 lb/in. 3 Mass = 4.48 lb Polypropylene has a density of.035 lb/in. 3 and

13
Surface Area Surface area is the squared dimensions of the exterior surface. Surface area is important when determining coatings and heat transfer of a part. B C D E F A A= 4in. x 4in. = 16 in. 2 B= 4in. x 8in. = 32 in. 2 C= 4in. x 8in. = 32 in. 2 D= 4in. x 8in. = 32 in. 2 E= 4in. x 8in. = 32 in. 2 F= 4in. x 4in. = 16 in. 2 A + B+ C + D+ E + F = 160 in. 2

14

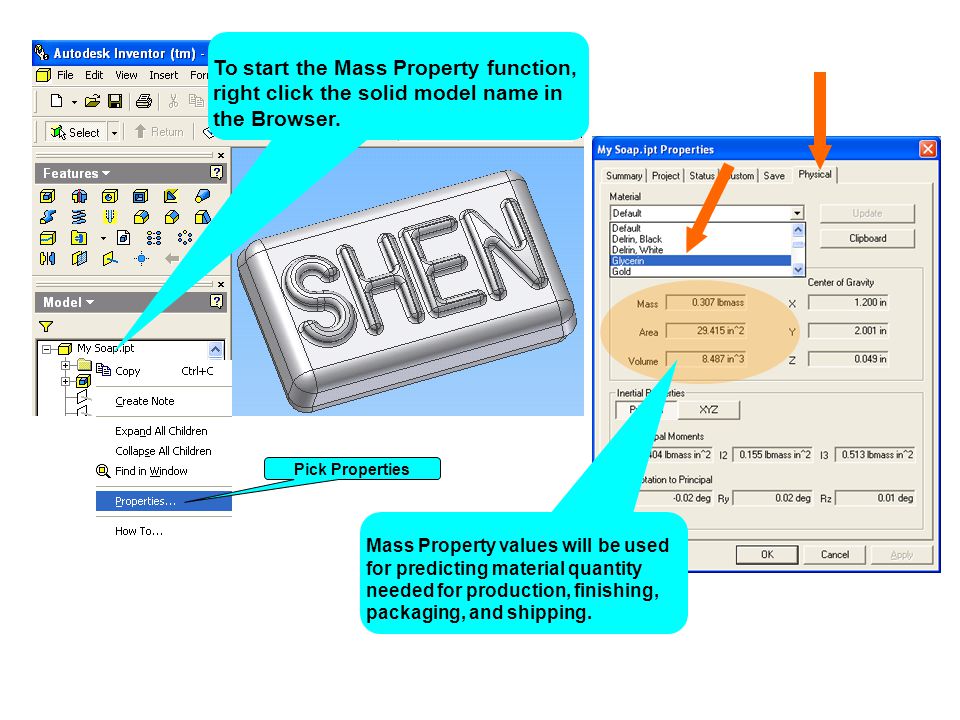

To start the Mass Property function, right click the solid model name in the Browser. Pick Properties Mass Property values will be used for predicting material quantity needed for production, finishing, packaging, and shipping.

15
Additional Physical Properties

16

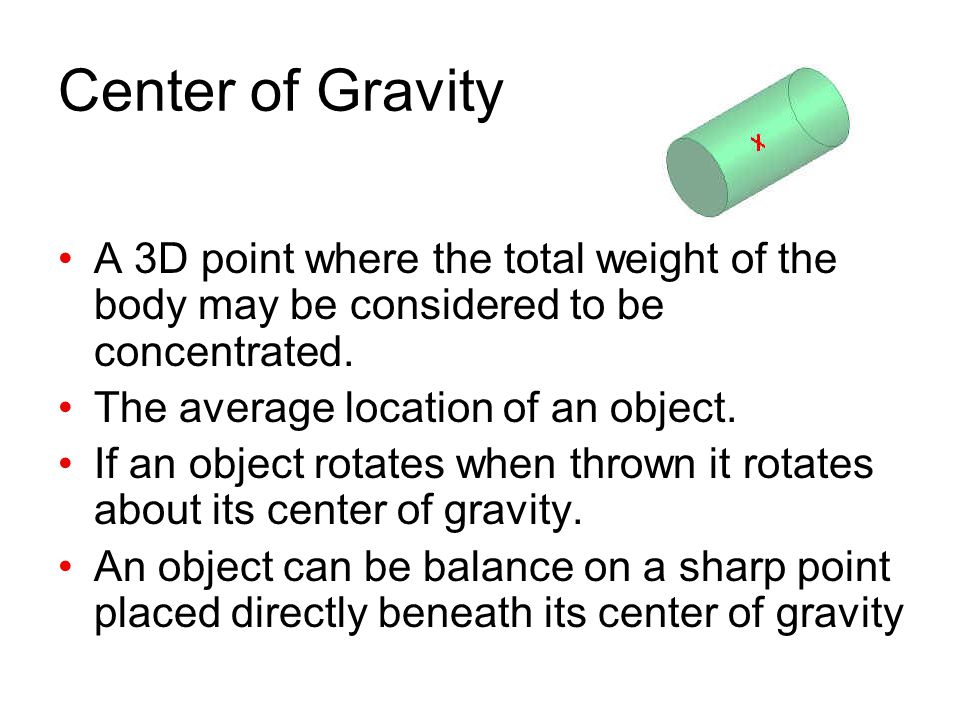

Center of Gravity A 3D point where the total weight of the body may be considered to be concentrated. The average location of an object. If an object rotates when thrown it rotates about its center of gravity. An object can be balance on a sharp point placed directly beneath its center of gravity

17

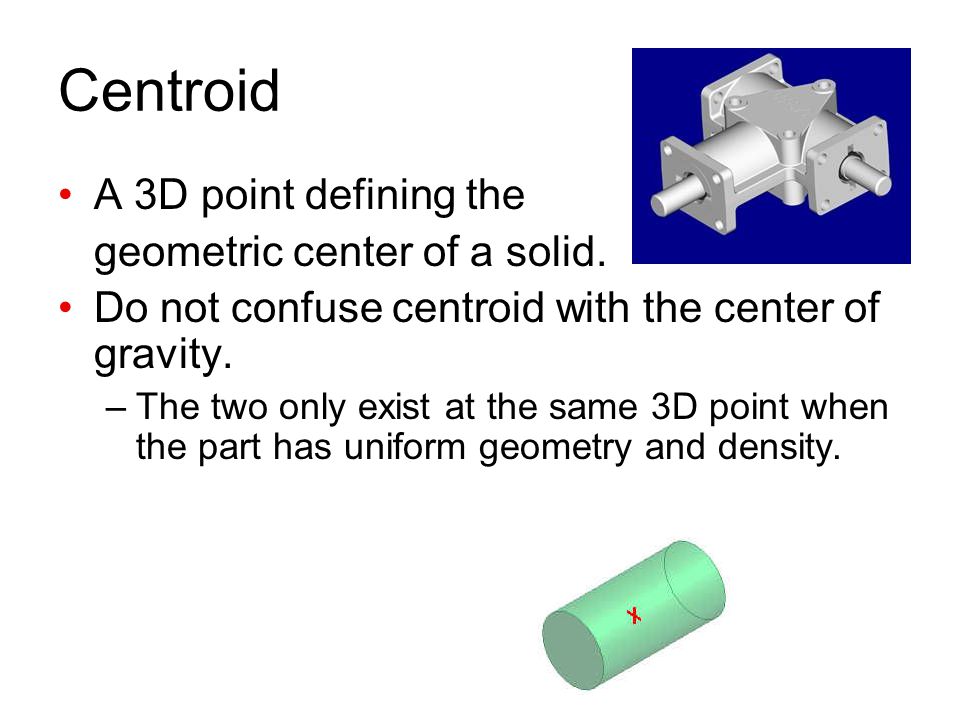

Centroid A 3D point defining the geometric center of a solid. Do not confuse centroid with the center of gravity. –The two only exist at the same 3D point when the part has uniform geometry and density.

18

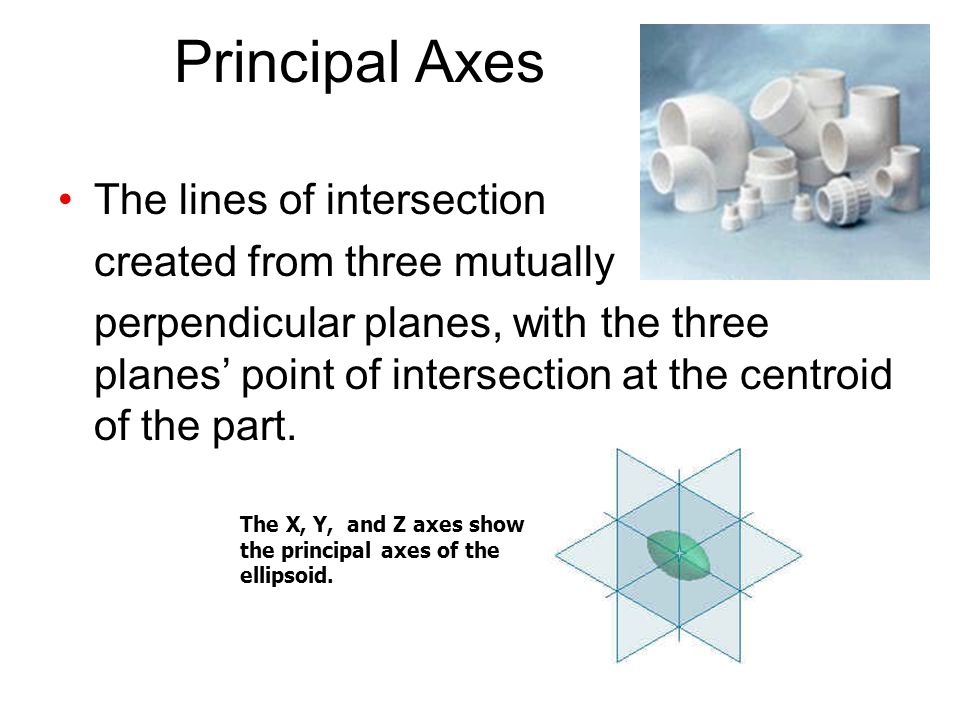

Principal Axes The lines of intersection created from three mutually perpendicular planes, with the three planes’ point of intersection at the centroid of the part. The X, Y, and Z axes show the principal axes of the ellipsoid.

19
Brodinski, K. G. (1989). Engineering materials properties and selection. Prentice Hall, Inc.: Englewood Cliffs, NJ. Budinski, K. G. (1992). Engineering materials (4th Ed.). Prentice Hall, Inc.: Englewood Cliffs, NJ. Gere, J. M., & Timoshenko, S. P. (1997). Mechanics of materials. PWS Publishing Company: Boston. Lockhart, S. D., & Johnson, C. M. (1999). Engineering design communication: Conveying design through graphics (Preliminary Ed.). Addison Wesley Longman, Inc.: Reading, MA. Madsen, D. A., Shumaker, T. M., Turpin, J. L., & Stark, C. (1994). Engineering design and drawing (2nd Ed.). Delmar Publishers Inc.: Albany. Sources
