1 Unclassified / Distribution Statement A: Distribution Approved for Public Release 1 PMA 208 Industry Day

2 Unclassified / Distribution Statement A: Distribution Approved for Public Release 2 Agenda Opening RemarksCAPT Walter Program OverviewDave Williams PMA 208 Supersonic Targets Threat D Technical Constraints TAAS Acquisition Activities Funding RFI Considerations Points of Contact Q&A

3 Unclassified / Distribution Statement A: Distribution Approved for Public Release 3 Purpose of RFI Improve Industry’s understanding of the Navy’s requirement. Help Navy understand Industry’s capabilities. –Industry approaches to provide capability. –Price information. –Schedule information.

4 Unclassified / Distribution Statement A: Distribution Approved for Public Release 4 DOD/Navy Interest in Threat D TDWG stood up by OSD AT&L –Defense Systems, Operational Test and Evaluation, and the Navy will establish a Threat D Target Working Group to explore the area of target availability and present alternatives to the Overarching Integrated Product Team (OIPT) by January 2005

5 Unclassified / Distribution Statement A: Distribution Approved for Public Release 5 DOD/Navy Interest in Threat D OSD AT&L tasking to DSB (22 Oct 2004) “Alternatives for replication of supersonic, sea- skimming threats, such as Threat D.”

6 Unclassified / Distribution Statement A: Distribution Approved for Public Release 6 DOD/Navy Interest in Threat D DOT&E Line in the sand –Dec 2001 Memo to ASN(RD&A) “threat representative (Including Threat D) ASCM targets must be available” –March 2002 Memo to SECNAV Concerns that budget does not contain funding for Threat D target.

7 Unclassified / Distribution Statement A: Distribution Approved for Public Release 7 Help Needed What’s possible. What’s it going to cost. What’s the required schedule to field a solution.

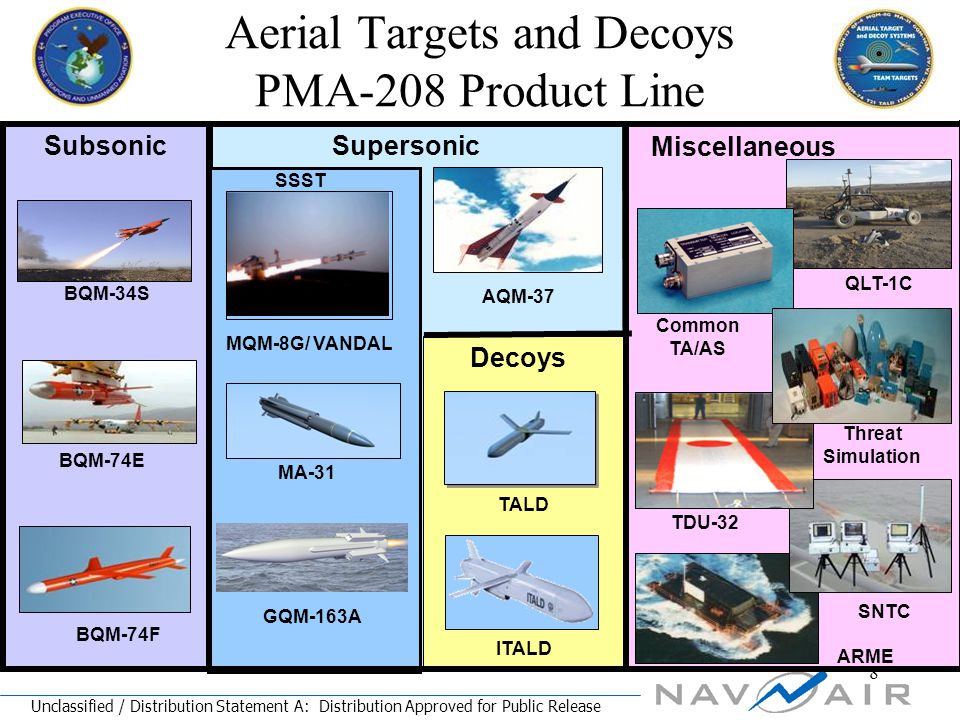

8 Unclassified / Distribution Statement A: Distribution Approved for Public Release 8 Aerial Targets and Decoys PMA-208 Product Line BQM-34S Supersonic BQM-74E BQM-74F AQM-37 Decoys Subsonic MQM-8G/ VANDAL GQM-163A SSST MA-31 ARME TDU-32 TALD ITALD Miscellaneous SNTC Common TA/AS QLT-1C Threat Simulation ARME

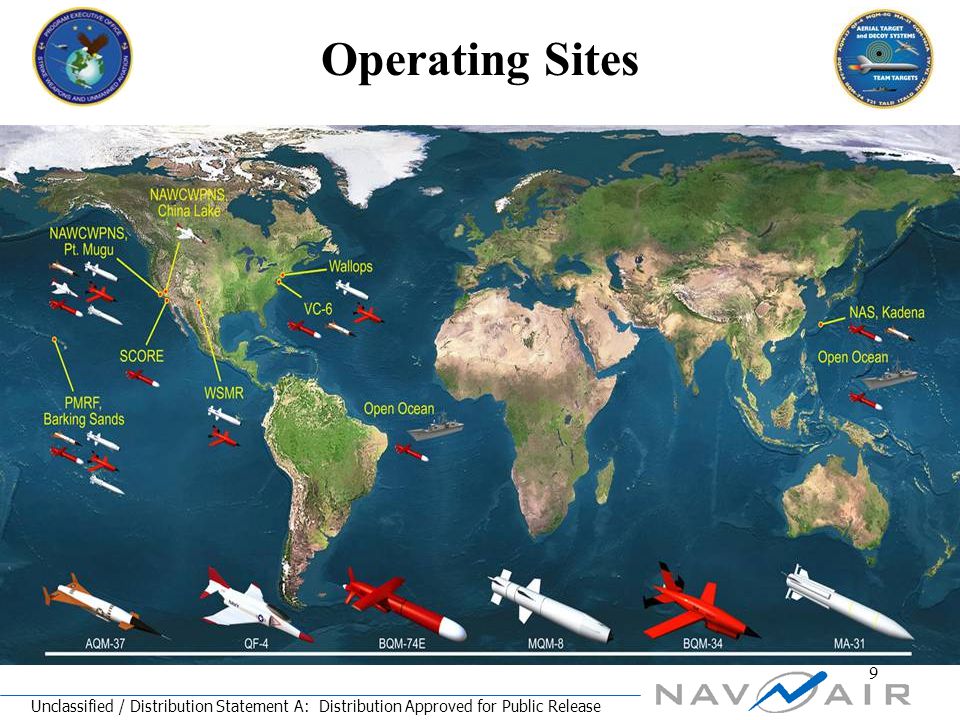

9 Unclassified / Distribution Statement A: Distribution Approved for Public Release 9 Operating Sites

10 Unclassified / Distribution Statement A: Distribution Approved for Public Release 10 SSST ORD (# ) identifies requirements to replicate a family of ASCM Threats called Threats A, B, C and D Threat A: Currently fielded and exported. – Vandal (Out of Production) – Converted TALOS missile – Orbital Sciences Corporation supporting operations –Threat B. Currently fielded and exported. – MA-31 – Boeing Corporation (Integration/Support Operations) Threat C : Never entered production. – GQM-163 represents Threat A, B and C – GQM-163 finishing development (DT phase) – Orbital Sciences Corporation (Production/Support Operations) Threat D : Currently fielded and exported. – Currently no representative target. – Capabilities Development Document (CDD) in Draft Operational Requirements Supersonic Sea-Skimming Targets (SSST)

11 Unclassified / Distribution Statement A: Distribution Approved for Public Release 11 Supersonic High Altitude/ TBM Profile Targets AQM-37 Medium to high altitude supersonic cruise with dive –Mach 2.0 – 4.0 –Range 100 mi –Altitude 1000ft – 100Kft –Demonstrated TBM profiles (300Kft, 120 nmi downrange) Out of Production since Dec 01 –Raytheon Corporation –T&E and FMS use Govt Operational & Logistic Support FY02 OPS & Expenditures - 21 FY03 OPS & Expenditures – 15 FY04 OPS & Expenditures - 11 FY05 OPS & Expenditures -11

12 Unclassified / Distribution Statement A: Distribution Approved for Public Release 12 MQM-8G ER/EER (Vandal) Converted Talos Missiles: Orbital Sciences Inc. Limited inventory Inventory depletion now projected in FY05 Contractor Operational & Logistic Support FY02 OPS & Expenditures – 10 FY03 OPS & Expenditures – 10 FY04 OPS & Expenditures - 3 FY05 OPS & Expenditures - 5

13 Unclassified / Distribution Statement A: Distribution Approved for Public Release 13 Acquisition Approach to Meet Threat A,B, & C Two Solutions Being Pursued MA-31 − Produced by Boeing from Russian Kh-31 missile − Available for fleet use in calendar year 2006 − Adding F-16 launch capability − Contractor Logistic Support − Government assist Operational Support GQM-163 − In EMD with Orbital Sciences Corporation − Successful EMD-1/2/3 − MS III scheduled 3rd qtr FY05 − Available for fleet use 2005 − Contractor Logistic Support − Government assist Operational Support

14 Unclassified / Distribution Statement A: Distribution Approved for Public Release 14 1a b 1) Launch from a) ship or b) submarine. 2) Solid booster separation. 3) Cruise at Mach , 20 meter altitude. 4) Ascend to extend radar horizon, search for target, detection range up to 65 km. 5) Descend, subsonic cruise toward target. 6) Combat stage separation 20 km from target, spent bus falls away, Combat stage accelerates up to Mach 3 at 5-10 m altitude. 6 3M-54E

15 Unclassified / Distribution Statement A: Distribution Approved for Public Release 15 Range (NM) – 35 min cruise (108 desired)/11 min (terminal) Speed (mach) – 0.7 min cruise/ acc to 2.8 min terminal Altitude (feet absolute) – 50 cruise/16 terminal Terminal Maneuvers (g’s) – 6.5 min (+15 desired) Payload – RF/ECM/ECCM, range safety Body length (ft) – 28 max (total Sprint + Cruise w/o booster) Diameter (ft) – 1.7 max Wingspan (ft) – 9.9 max Endpoint accuracy (ft) - +/- 100 (moving endpoint) Integrate in current Navy Ranges Shipping commensurate with standard commercial shipping by land, air, and sea Technical Constraints

16 Unclassified / Distribution Statement A: Distribution Approved for Public Release 16 Target Auxiliary/Augmentation Systems Flight Termination System Radar Tracking Transponder Scoring System EA/EW Threat System Data Telemetry System RCC-319 Compliant –(Dual / Redundant Command Destruct Receivers) G or I–Band Beacon (GFE) –(AN/DPN-90) Scalar/Vector Scorer (GFE) – (AN/DSQ-50A / VDOPS) Threat Simulator (GFE) –(AN/ULQ-21, AN/DPT-2) Telemetry Transmitter –(Navigation, Flight Data, Scoring Telemetry) AN/DSQ-50A AN/DPN-90

17 Unclassified / Distribution Statement A: Distribution Approved for Public Release 17 Acquisition Strategy in development –Multiple approaches being considered Domestic hybrid approach Foreign Material Acquisition Other? Threat Representative target needed in FY-10 –FY06 Milestone B decision –FY06 Contract award –Average 10 presentations per year Threat D Acquisition Activities

18 Unclassified / Distribution Statement A: Distribution Approved for Public Release 18 Funding FY06FY07FY08 RDT&E 10.5M22.9M10.6M Requirement for SM-6 OT, FY10

19 Unclassified / Distribution Statement A: Distribution Approved for Public Release 19 Engineering Information Design Approach for Target Address Critical Areas –Vehicle Separation – Acceleration to Supersonic Flight Concept of Operations –Include Buildup, Test, Launch, Mission Profile, Propulsion, Navigation/Guidance, Termination Demonstrated Target/Missile Systems Design, Integration, Test, & Manufacturing Capability

20 Unclassified / Distribution Statement A: Distribution Approved for Public Release 20 Logistics/Supportability Demonstrated Logistics Capability Maintenance Concept Data Management and Depository Concepts Supply Support Concept Package, Handling, Storage & Transportation Concepts Test and Support Equipment Concept

21 Unclassified / Distribution Statement A: Distribution Approved for Public Release 21 Dawyn JohnsonContracts(301) David Williams Project Lead(301) Points of Contact WEBSITE:

22 Unclassified / Distribution Statement A: Distribution Approved for Public Release 22 Questions & Answers
