1 CLEAN GENOME E. COLI – MULTIPLE DELETION STRAINS Gulpreet Kaur Microbial Biotechnology, Fall 2011

2 A bit of history… Fredrick Blattner:  published complete genome of E.coli-K12 strain  engineered reduced E. coli genome -developed Scarab Genomics  emergent properties of reduced genome E. coli

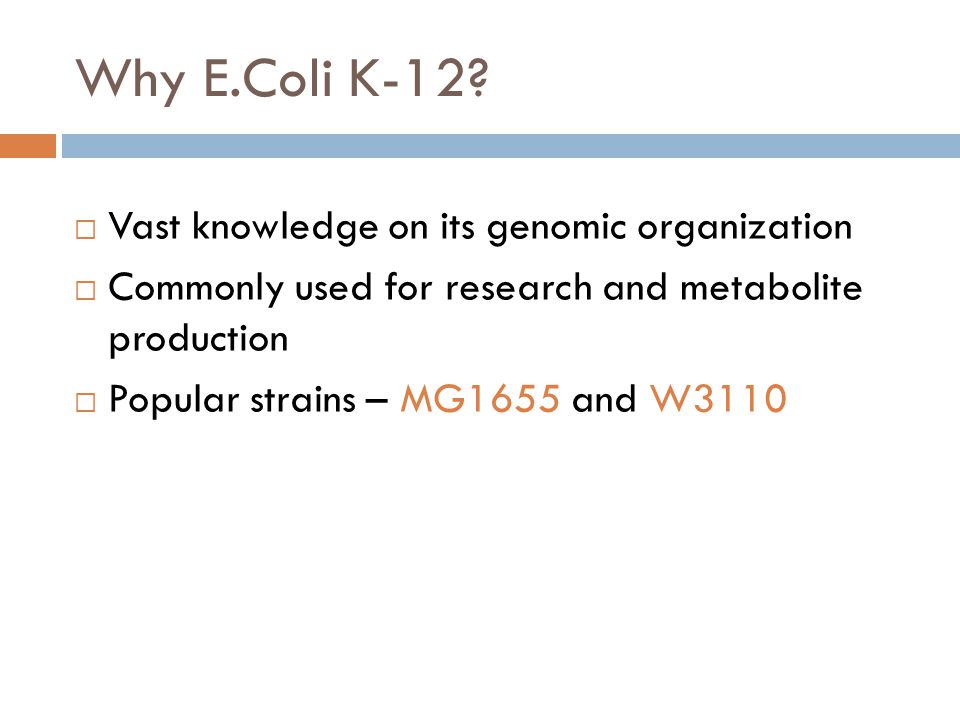

3 Why E.Coli K-12?  Vast knowledge on its genomic organization  Commonly used for research and metabolite production  Popular strains – MG1655 and W3110

4 Why reduce the genome?  Problems in using E. coli K-12 strains:  Loss of desired gene over time  Mutation of desired gene  Low protein productivity  Lack of purity in product  Batch-to-batch variations  High production costs

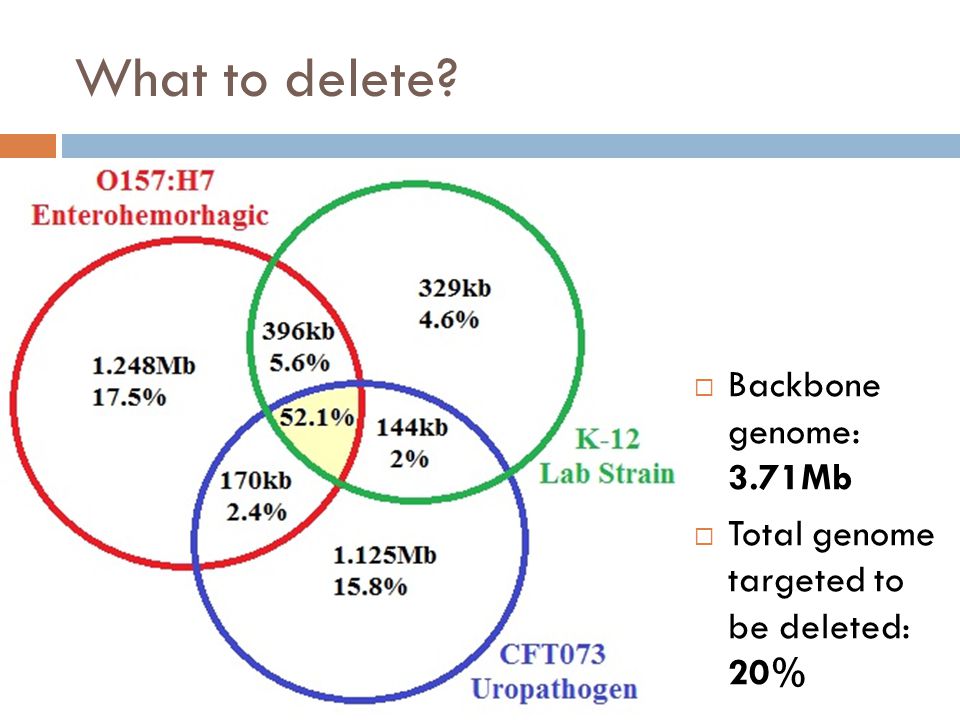

5 What to delete?  Backbone genome: 3.71Mb  Total genome targeted to be deleted: 20%

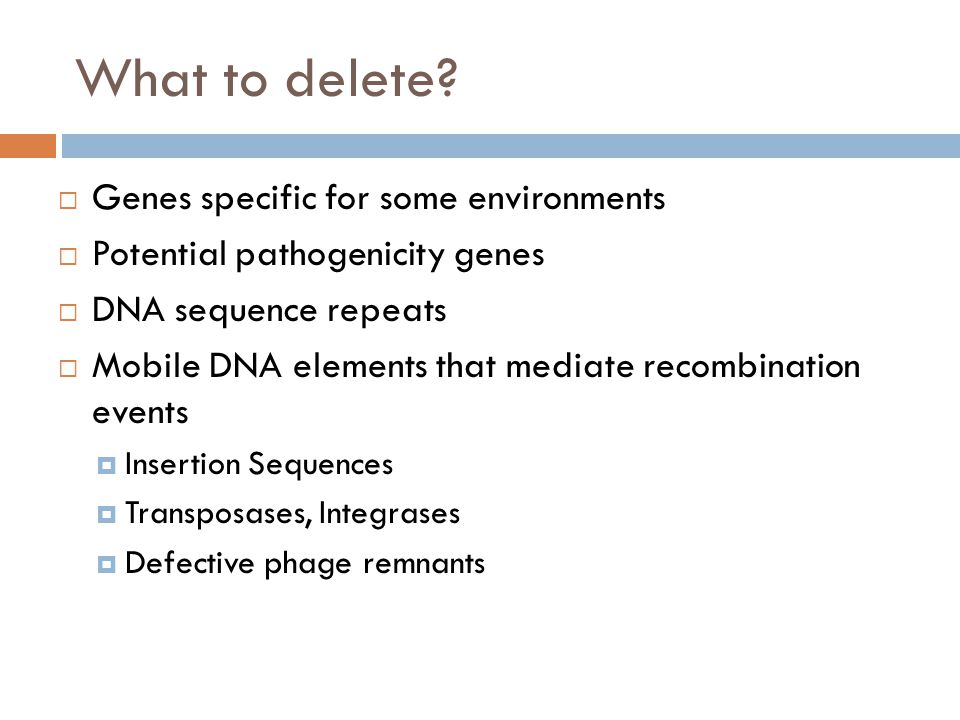

6 What to delete?  Genes specific for some environments  Potential pathogenicity genes  DNA sequence repeats  Mobile DNA elements that mediate recombination events  Insertion Sequences  Transposases, Integrases  Defective phage remnants

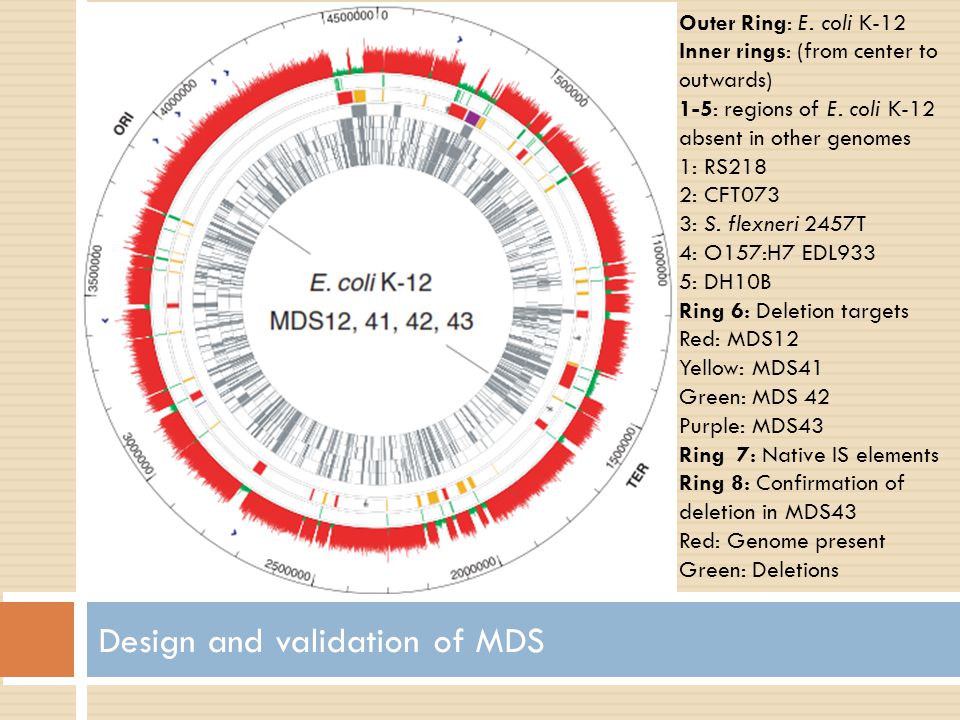

7 Design and validation of MDS Outer Ring: E. coli K-12 Inner rings: (from center to outwards) 1-5: regions of E. coli K-12 absent in other genomes 1: RS218 2: CFT073 3: S. flexneri 2457T 4: O157:H7 EDL933 5: DH10B Ring 6: Deletion targets Red: MDS12 Yellow: MDS41 Green: MDS 42 Purple: MDS43 Ring 7: Native IS elements Ring 8: Confirmation of deletion in MDS43 Red: Genome present Green: Deletions

8 Comparison among strains

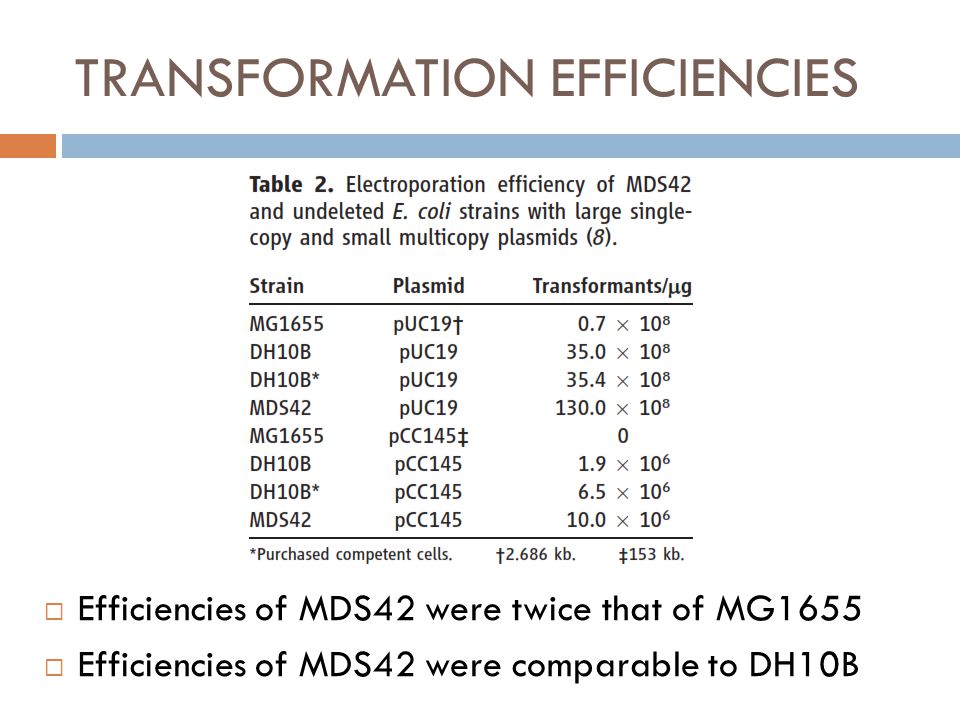

9 TRANSFORMATION EFFICIENCIES  Efficiencies of MDS42 were twice that of MG1655  Efficiencies of MDS42 were comparable to DH10B

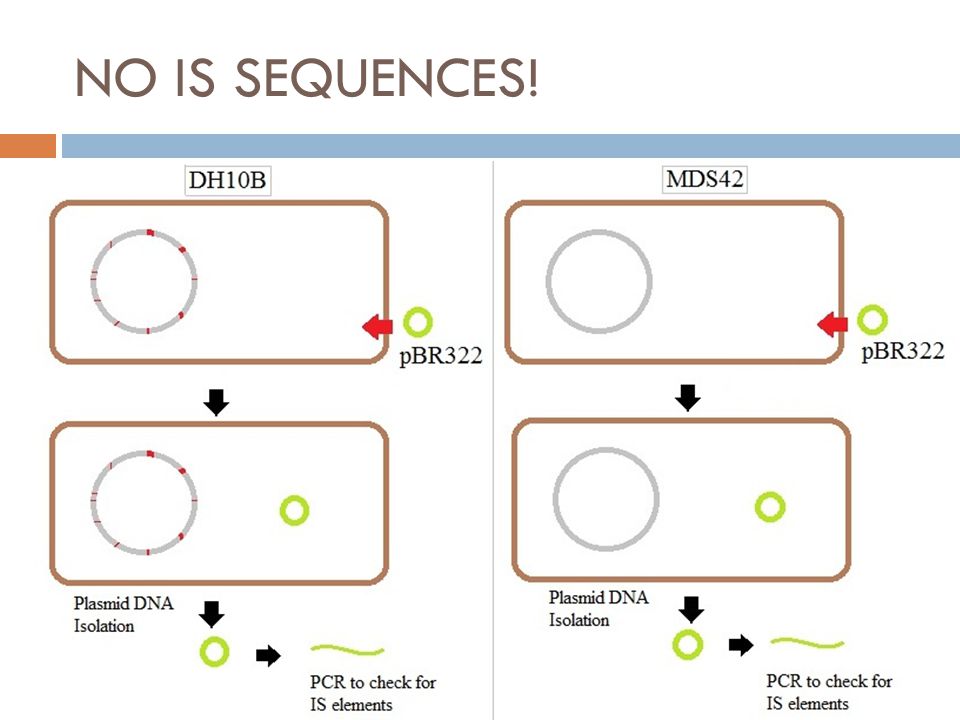

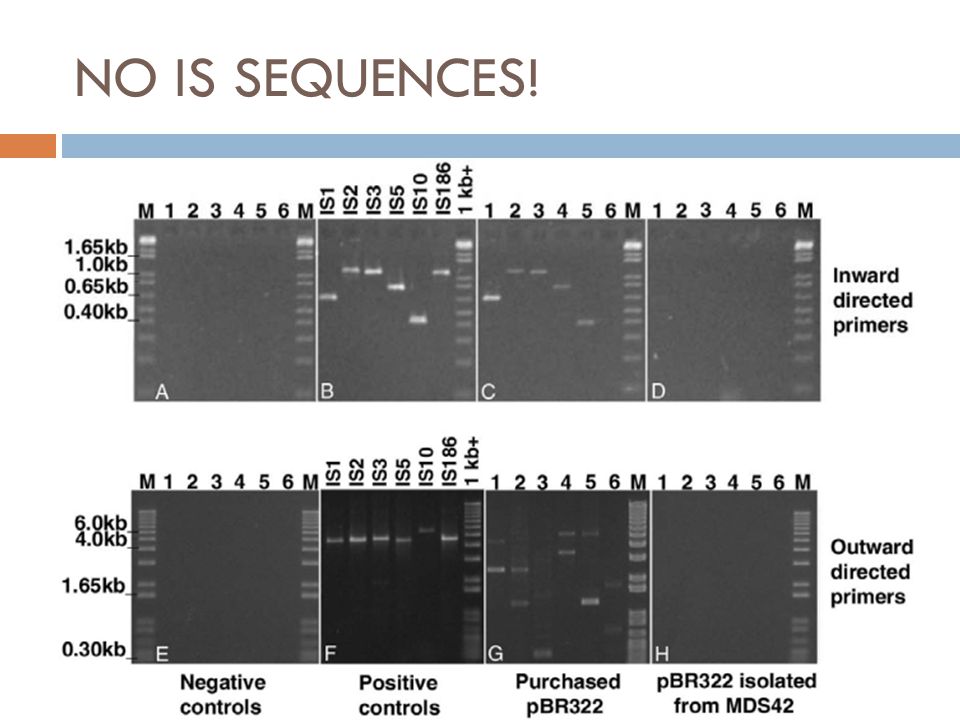

10 NO IS SEQUENCES!

11

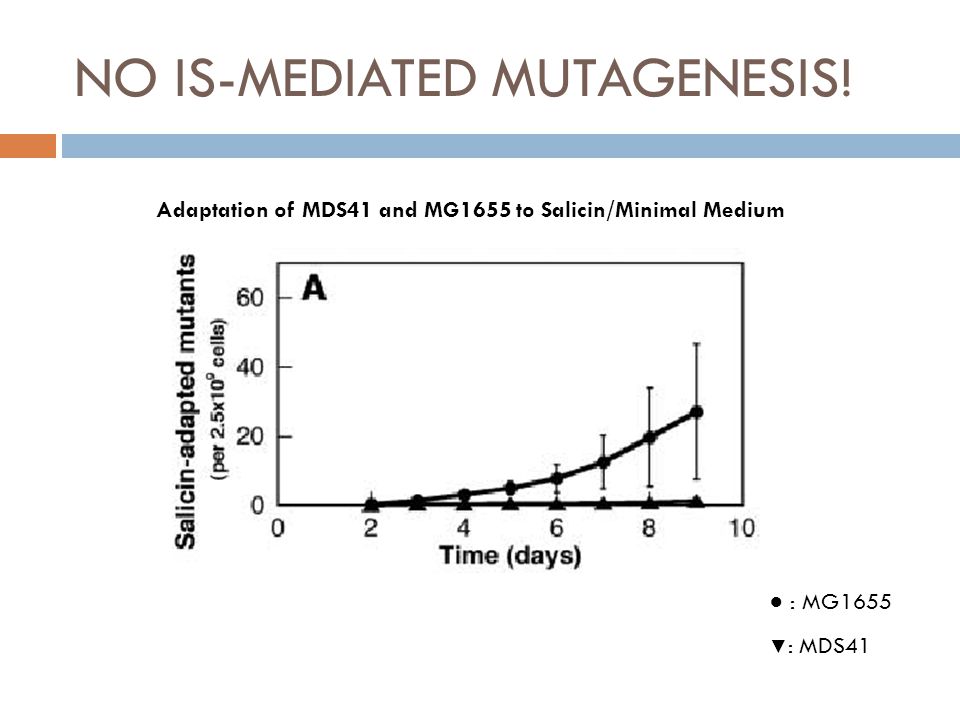

12 NO IS-MEDIATED MUTAGENESIS! ● : MG1655 ▼ : MDS41 Adaptation of MDS41 and MG1655 to Salicin/Minimal Medium

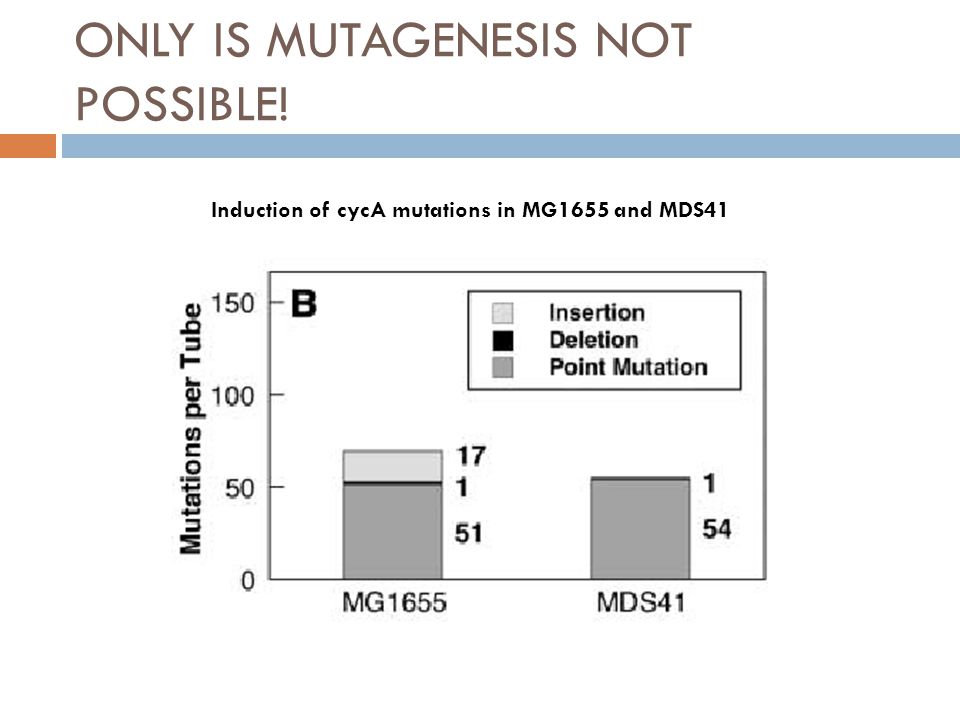

13 ONLY IS MUTAGENESIS NOT POSSIBLE!

14 Induction of cycA mutations in MG1655 and MDS41

15 PLASMID STABILITY – pCTXVP60

16 PLASMID STABILITY – pT-ITR

17 PLASMID STABILITY

18 GROWTH RATES ■ : optical density (left scale) ● : DCW (left scale) ▼ : glucose concentration (right scale) ■ : MG1655 ● and ▼ : MDS41 duplicates A. MDS41 in minimal growth medium B. CAT expression in MDS41 and MG1655

19 CONCLUSIONS The strains have the following:  Enhanced transformation efficiency  Reduced mutability  Increased plasmid stability  Normal growth rates  Can me used as ‘chassis’ for metabolite production

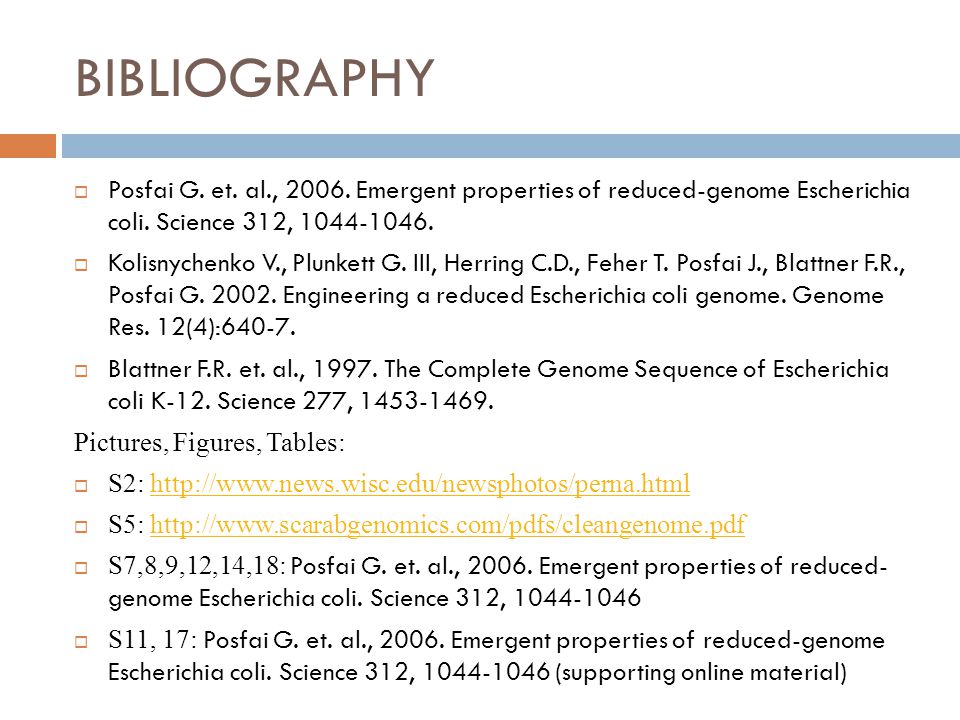

20 BIBLIOGRAPHY  Posfai G. et. al., Emergent properties of reduced-genome Escherichia coli. Science 312,  Kolisnychenko V., Plunkett G. III, Herring C.D., Feher T. Posfai J., Blattner F.R., Posfai G Engineering a reduced Escherichia coli genome. Genome Res. 12(4):  Blattner F.R. et. al., The Complete Genome Sequence of Escherichia coli K-12. Science 277, Pictures, Figures, Tables:  S2:  S5:  S7,8,9,12,14,18: Posfai G. et. al., Emergent properties of reduced- genome Escherichia coli. Science 312,  S11, 17: Posfai G. et. al., Emergent properties of reduced-genome Escherichia coli. Science 312, (supporting online material)

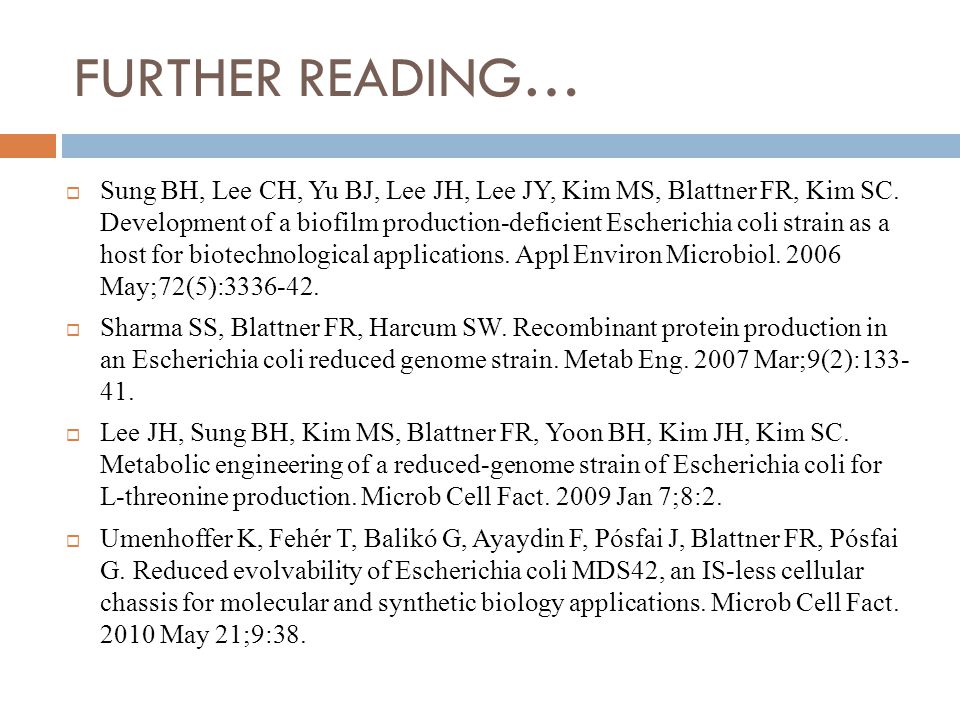

21 FURTHER READING…  Sung BH, Lee CH, Yu BJ, Lee JH, Lee JY, Kim MS, Blattner FR, Kim SC. Development of a biofilm production-deficient Escherichia coli strain as a host for biotechnological applications. Appl Environ Microbiol May;72(5):  Sharma SS, Blattner FR, Harcum SW. Recombinant protein production in an Escherichia coli reduced genome strain. Metab Eng Mar;9(2):  Lee JH, Sung BH, Kim MS, Blattner FR, Yoon BH, Kim JH, Kim SC. Metabolic engineering of a reduced-genome strain of Escherichia coli for L-threonine production. Microb Cell Fact Jan 7;8:2.  Umenhoffer K, Fehér T, Balikó G, Ayaydin F, Pósfai J, Blattner FR, Pósfai G. Reduced evolvability of Escherichia coli MDS42, an IS-less cellular chassis for molecular and synthetic biology applications. Microb Cell Fact May 21;9:38.

22 QUESTIONS?

23 THANK YOU!

24 Referencec :
