Fundamentals of GIS Lecture 17: Public Data II: Other Data Sources Lecture notes by Austin Troy, University of Vermont © 2008 ------Using GIS--
Fundamentals of GIS ©2009 Austin Troy Comes from both the USGS and the EPA Surface water features: lakes, ponds, streams, rivers, springs Nationally consistent Order of linkages coded to allow for flow path analysis Background info at http://nhd.usgs.gov/http://nhd.usgs.gov/ Resolutions from 1:100k to 1:24k National Hydrography Dataset (NHD)
Fundamentals of GIS NHD Many analysis tools designed for this data. For instance: can find the path upstream or downstream from any point using NHD data and network analyst; flow reaches are numbered sequentially in order of flow to allow path analysis Stream reaches encoded like addresses on a street Connections encoded using topology Download data –http://viewer.nationalmap.gov/viewer/nhd.html?p=nhdhttp://viewer.nationalmap.gov/viewer/nhd.html?p=nhd Other tools available at http://nhd.usgs.gov/tools.html http://nhd.usgs.gov/tools.html Lecture notes by Austin Troy & Brian Voigt, University of Vermont © 2011
Fundamentals of GIS ©2009 Austin Troy NHD Data Viewer Lecture notes by Austin Troy & Brian Voigt, University of Vermont © 2011
Fundamentals of GIS ©2009 Austin Troy NHD Contents of Geodatabase: many feature classes with different purposes Many will often be empty

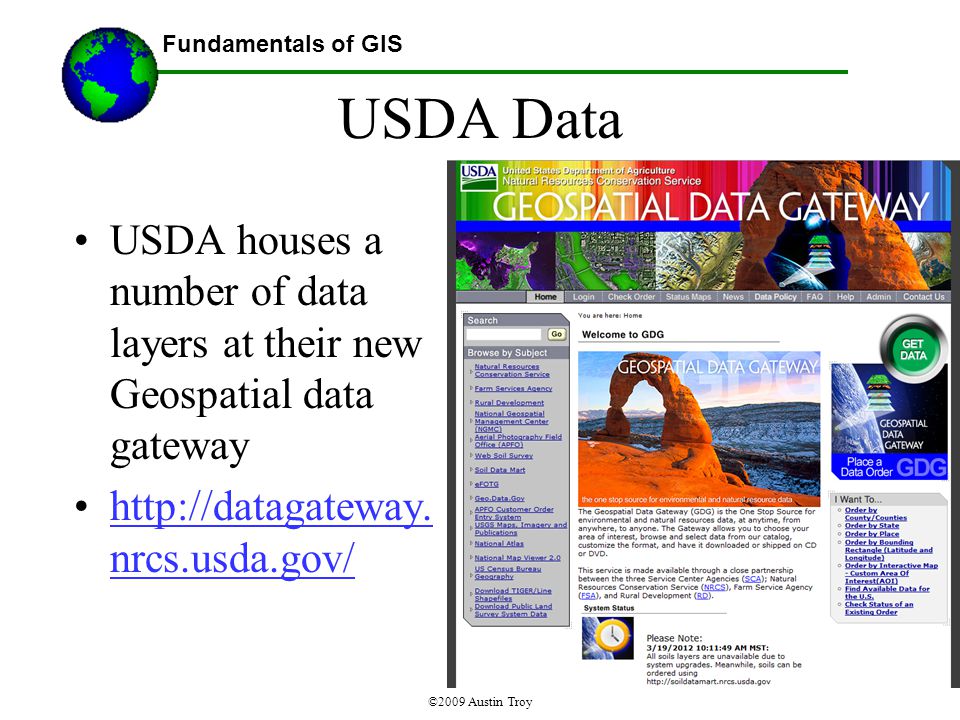

Fundamentals of GIS ©2009 Austin Troy USDA Data USDA houses a number of data layers at their new Geospatial data gateway http://datagateway. nrcs.usda.gov/http://datagateway. nrcs.usda.gov/
Fundamentals of GIS ©2009 Austin Troy USDA Gateway Includes CLU farm boundaries (not any longer, but Spatial Analysis Lab has it for VT) Hydrologic Units (8 and 12 digit) NED elevation Digital Raster Graphics (DRG) High resolution color orthophotos from 2003, 2004, 2006 (National Agricultural Imagery Program) Geographic Names Cropland data layer (for some areas) NRCS Soils data and soils tables Climate Data (precipitation and temperature)

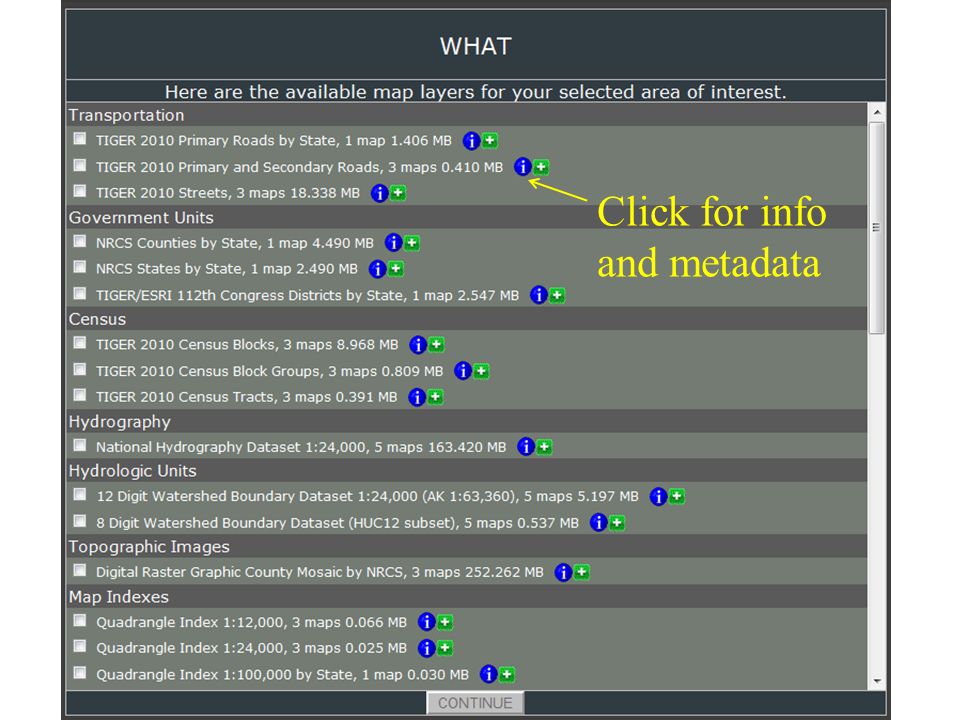

Fundamentals of GIS ©2009 Austin Troy USDA Gateway Includes Click for info and metadata

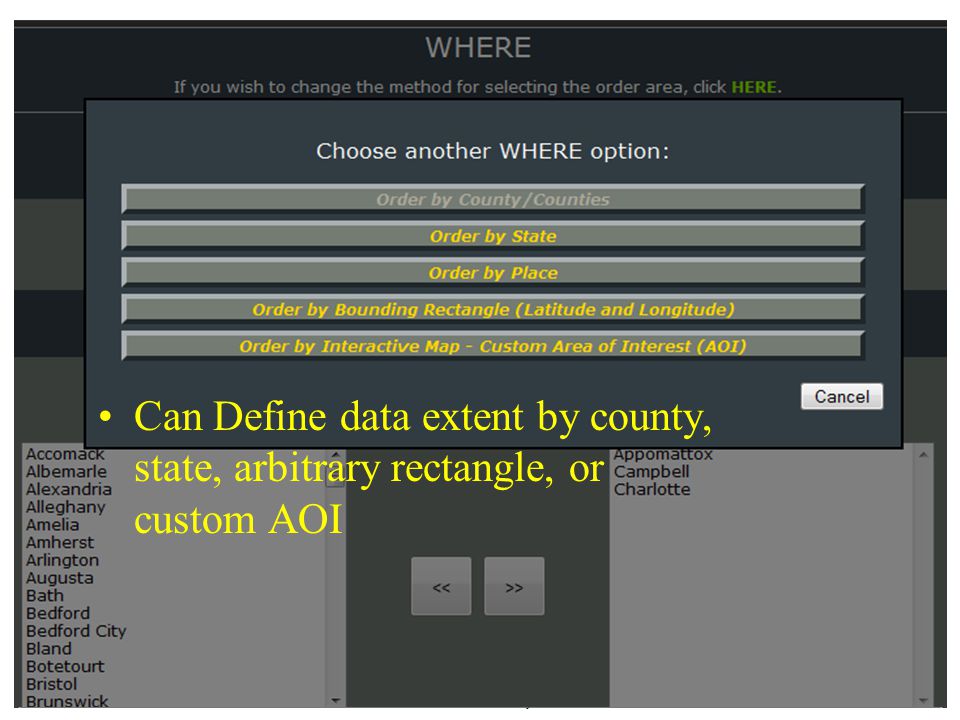

Fundamentals of GIS ©2009 Austin Troy Can Define data extent by county, state, arbitrary rectangle, or custom AOI
Fundamentals of GIS ©2009 Austin Troy Common Land Units (CLU) Farm field boundaries representing smallest contiguous unit of cultivated land For farms in USDA programs Much more accurate than “agriculture” category in NLCD land cover Type of crop is unknown
Fundamentals of GIS ©2009 Austin Troy NAIP National Agricultural Imagery Program Digital Imagery, mosaiced by county, used by the NRCS and FSA to look at compliance with subsidy programs Ortho-rectified Color, 1:40,000 scale 2003, 2004, 2006, 2008, 2009

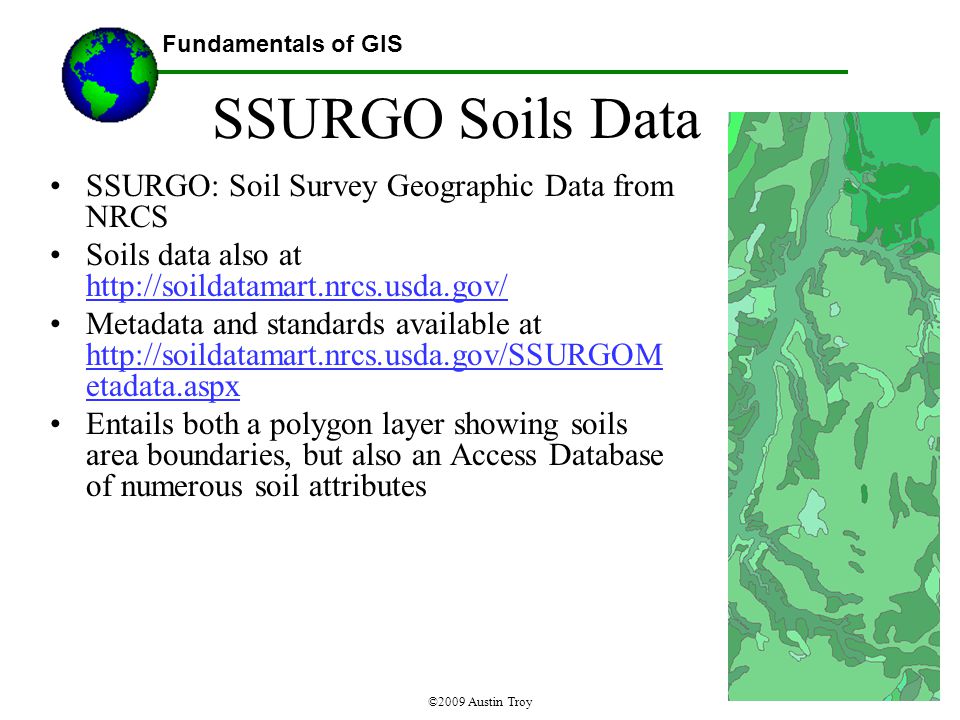

Fundamentals of GIS ©2009 Austin Troy SSURGO Soils Data SSURGO: Soil Survey Geographic Data from NRCS Soils data also at http://soildatamart.nrcs.usda.gov/ http://soildatamart.nrcs.usda.gov/ Metadata and standards available at http://soildatamart.nrcs.usda.gov/SSURGOM etadata.aspx http://soildatamart.nrcs.usda.gov/SSURGOM etadata.aspx Entails both a polygon layer showing soils area boundaries, but also an Access Database of numerous soil attributes
Fundamentals of GIS ©2009 Austin Troy SSURGO Soil Data Mart interface Access—sample tables; there are dozens
Fundamentals of GIS USDA Forest Service Data Gateway For each National Forest includes layers like: boundaries, trails, roads, ranges for certain tree and animal species, and ecological regions ©2009 Austin Troy http://fsgeodata.fs.fed.us/vector/index.html

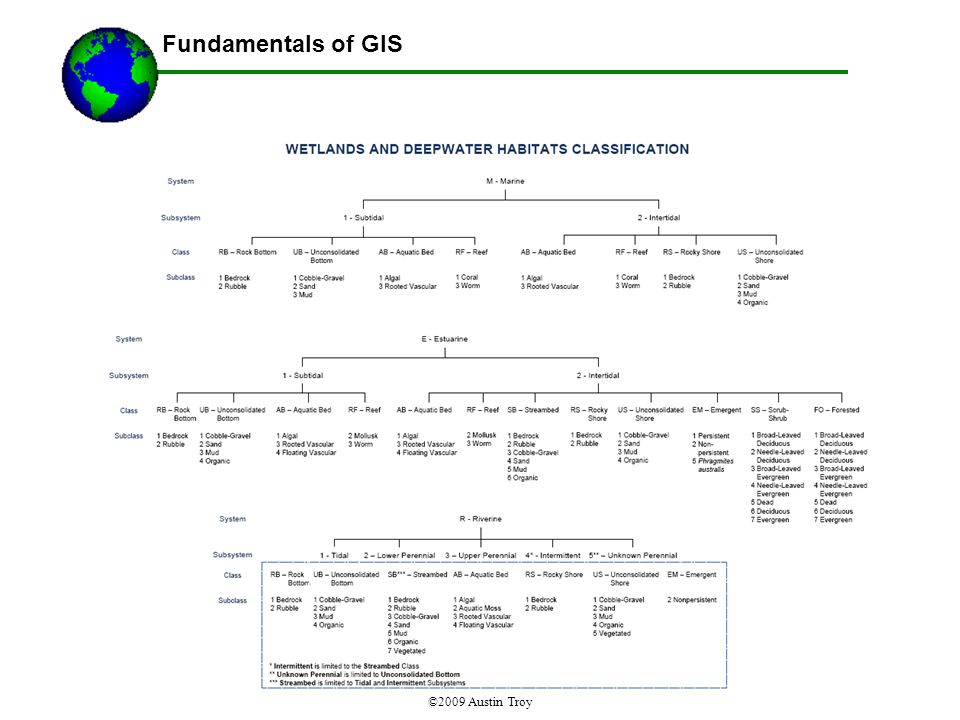

Fundamentals of GIS ©2009 Austin Troy National Wetlands Inventory (NWI) From U. S. Fish and Wildlife Service Maps all class 1 and 2 major wetlands Available digitally for much of the country 1:24,000 or smaller Involves a complex taxonomy of wetlands codes available at http://www.fws.gov/wetlands/Data/Wetla ndCodes.html http://www.fws.gov/wetlands/Data/Wetla ndCodes.html Includes marine, estuarine, riverine, lacustrine and palustrine types
Fundamentals of GIS ©2009 Austin Troy
Fundamentals of GIS ©2009 Austin Troy NWI Wetlands map interface at http://www.fws.gov/wetlands/Data/Mapper.htmlhttp://www.fws.gov/wetlands/Data/Mapper.html Allows you to view availability status and to view/download data
Fundamentals of GIS ©2009 Austin Troy NWI Can make PDFs easily
Fundamentals of GIS ©2009 Austin Troy NWI NWI by wetland type overlaid on NHD streams layer
Fundamentals of GIS ©2009 Austin Troy Topologically Integrated Geographic Encoding and Reference System Automates the mapping and related geographic activities required to support the decennial census and sample survey programs of the census bureau starting with the 1990 decennial census. The Census TIGER ® system supports: Creation and maintenance of the digital geographic data base that includes complete coverage of the United States and its territories TIGER
Fundamentals of GIS ©2009 Austin Troy The TIGER system provides support for: Creation and maintenance of a nation wide digital geographic data base Production of maps from the TIGER ® data base for all Census Bureau enumeration and publication programs Allows for address geocoding Can be integrated with Census attribute databases easily
Fundamentals of GIS ©2009 Austin Troy Accuracy and Attribution: TIGER has good attribution, but poor accuracy They are based partially on 1:100,000 DLG Are often conflated This is often used to assign the attributes from TIGER ® data to 1:24,000 DLG data TIGER

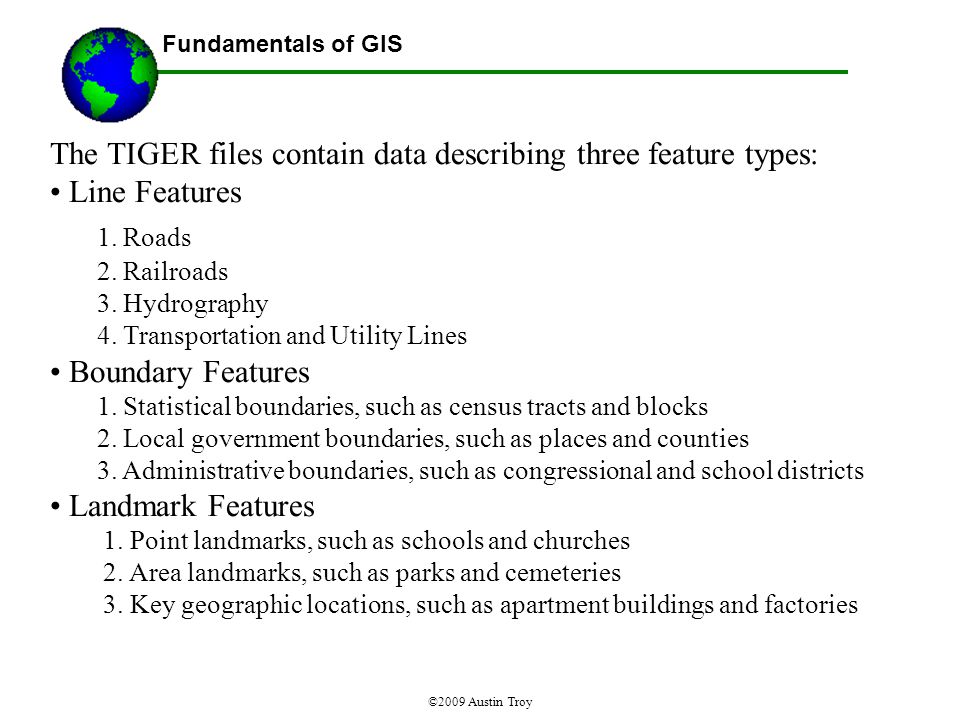

Fundamentals of GIS ©2009 Austin Troy The TIGER files contain data describing three feature types: Line Features 1. Roads 2. Railroads 3. Hydrography 4. Transportation and Utility Lines Boundary Features 1. Statistical boundaries, such as census tracts and blocks 2. Local government boundaries, such as places and counties 3. Administrative boundaries, such as congressional and school districts Landmark Features 1. Point landmarks, such as schools and churches 2. Area landmarks, such as parks and cemeteries 3. Key geographic locations, such as apartment buildings and factories
Fundamentals of GIS ©2009 Austin Troy TIGER line files and the demographic files Direct linkage using keys built up from: State FIPS code County FIPS code Tract number Block group number Block number
Fundamentals of GIS ©2009 Austin Troy For geographic files ESRI: http://www.esri.com/data/download/census2000_tigerline/index.html Download 2000 U.S. Census TIGER lines files and demographic data UC Berkeley Tiger Server: http://sunsite.Berkeley.EDU/GovData/info/tiger.html For attributes to 2000 and 1990 Census http://factfinder.census.gov For data in intermediate years via the American Community Survey http://www.census.gov/acs/www/

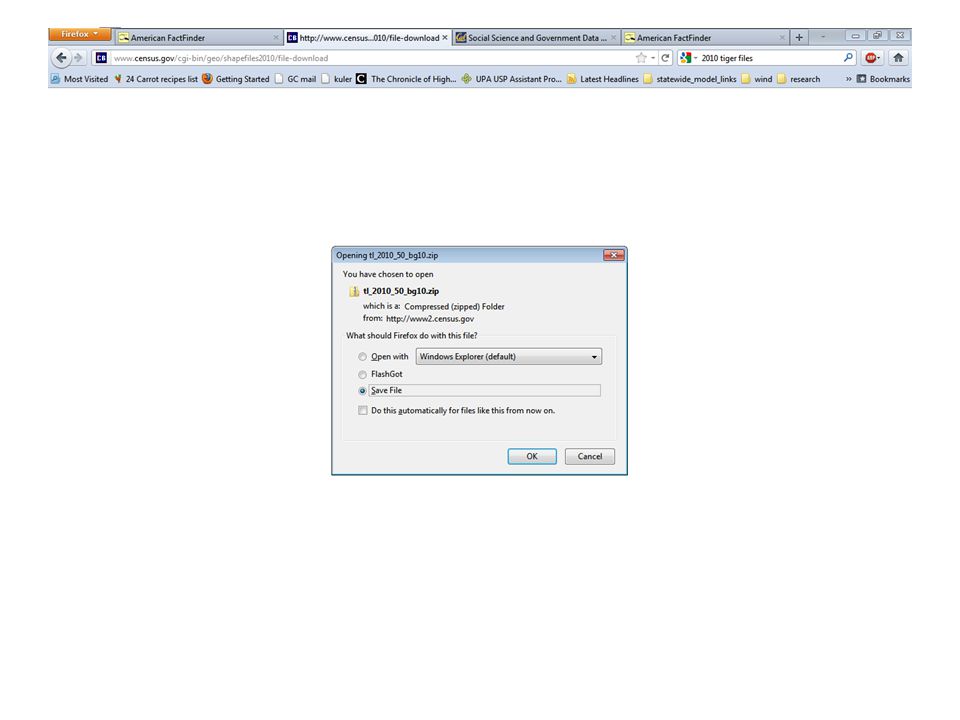

Fundamentals of GIS Lecture notes by Austin Troy & Brian Voigt, University of Vermont © 2011 TIGER Files & Census Data For geographic files US Census: http://www.census.gov/geo/www/tiger/tgrshp2010/tgrshp2010. html http://www.census.gov/geo/www/tiger/tgrshp2010/tgrshp2010. html ESRI: http://www.esri.com/data/download/census2000_tigerline/inde x.html http://www.esri.com/data/download/census2000_tigerline/inde x.html Download 2000 U.S. Census TIGER lines files and demographic data For Census data Decennial Census (2010, 2000,….) and intermediate year surveys (American Community Survey) http://factfinder2.census.gov/faces/nav/jsf/pages/index.xhtml
Fundamentals of GIS ©2009 Austin Troy
Fundamentals of GIS
VCGI State-level data –http://www.vcgi.org/http://www.vcgi.org/ Includes special access page for Irene-related data –http://www.vcgi.org/Irene/http://www.vcgi.org/Irene/ Lecture notes by Austin Troy & Brian Voigt, University of Vermont © 2011
Fundamentals of GIS ©2009 Austin Troy
Fundamentals of GIS Includes an interactive map browser for “clipping and zipping” data Lecture notes by Austin Troy & Brian Voigt, University of Vermont © 2011

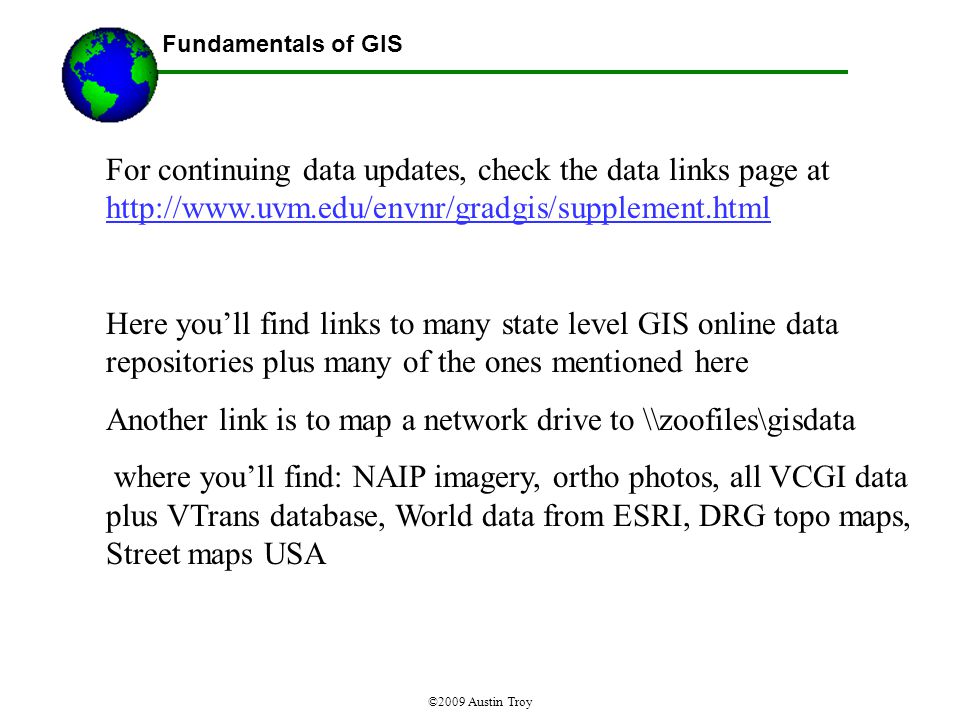

Fundamentals of GIS ©2009 Austin Troy For continuing data updates, check the data links page at http://www.uvm.edu/envnr/gradgis/supplement.html http://www.uvm.edu/envnr/gradgis/supplement.html Here you’ll find links to many state level GIS online data repositories plus many of the ones mentioned here Another link is to map a network drive to \\zoofiles\gisdata where you’ll find: NAIP imagery, ortho photos, all VCGI data plus VTrans database, World data from ESRI, DRG topo maps, Street maps USA
Fundamentals of GIS ©2009 Austin Troy Other sources for USGS data www.mapmart.com –Allows users to choose tiles and layers with a geographic interface –Most public data are free, but many others available for a price –Gives status maps –Can also buy bulk public data for a fee data.geocomm.com –Not as user friendly –Just a plain old interface that is hard to navigate –However, many free data layers and lots of scripts and extensions
