1 Drill The complete combustion of ethanol produces carbon dioxide and water according to the following chemical equation: C2H5OH(l) + 3O2(g) → 2CO2(g) + 3H2O(l) How many moles of oxygen are necessary to produce 18.0 moles of carbon dioxide?

2 Objective The student will be able to: Complete an experiment in order to illustrate the concept of a limiting reagent in a chemical reaction.

3 SAT/HSA Enrichment 175.6g of NH3 gas is stored at STP. The volume of the gas at those conditions is… a liters b liters c liters d liters e liters

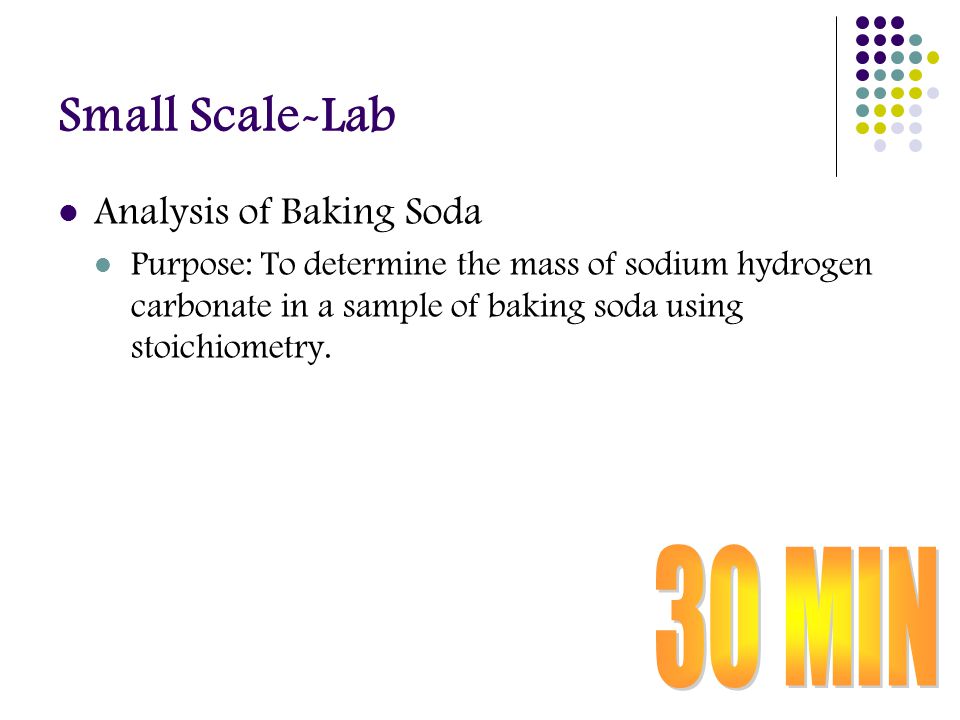

4 Small Scale-Lab Analysis of Baking Soda Purpose: To determine the mass of sodium hydrogen carbonate in a sample of baking soda using stoichiometry.

5 Limiting Reagent and Percent Yield

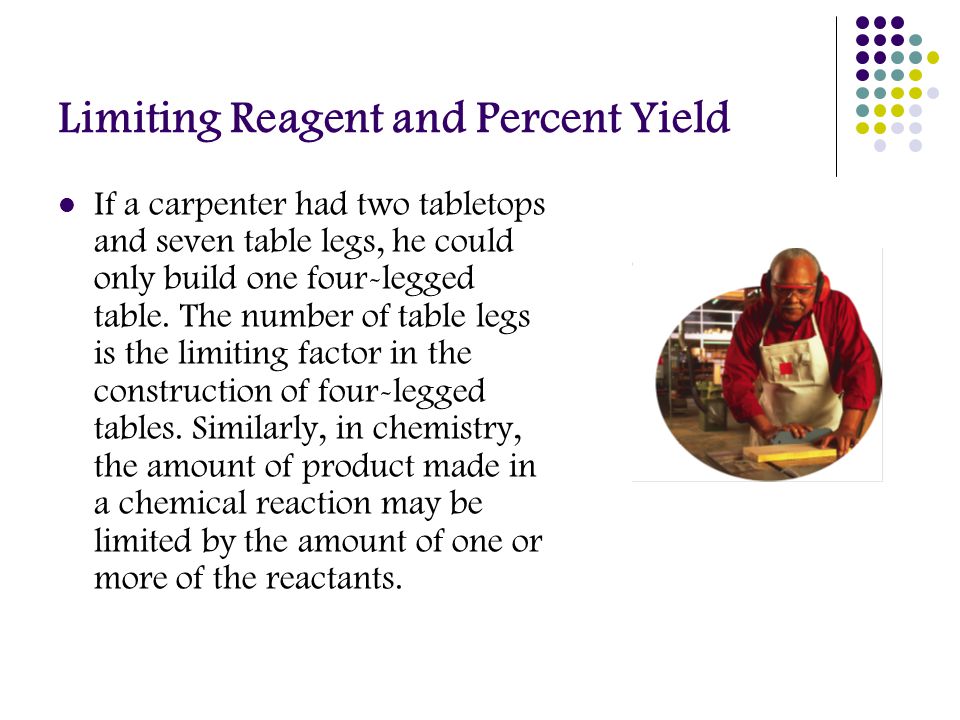

6 If a carpenter had two tabletops and seven table legs, he could only build one four-legged table. The number of table legs is the limiting factor in the construction of four-legged tables. Similarly, in chemistry, the amount of product made in a chemical reaction may be limited by the amount of one or more of the reactants.

7 Limiting and Excess Reagents In a chemical reaction, an insufficient quantity of any of the reactants will limit the amount of product that forms. The limiting reagent is the reagent that determines the amount of product that can be formed by a reaction.

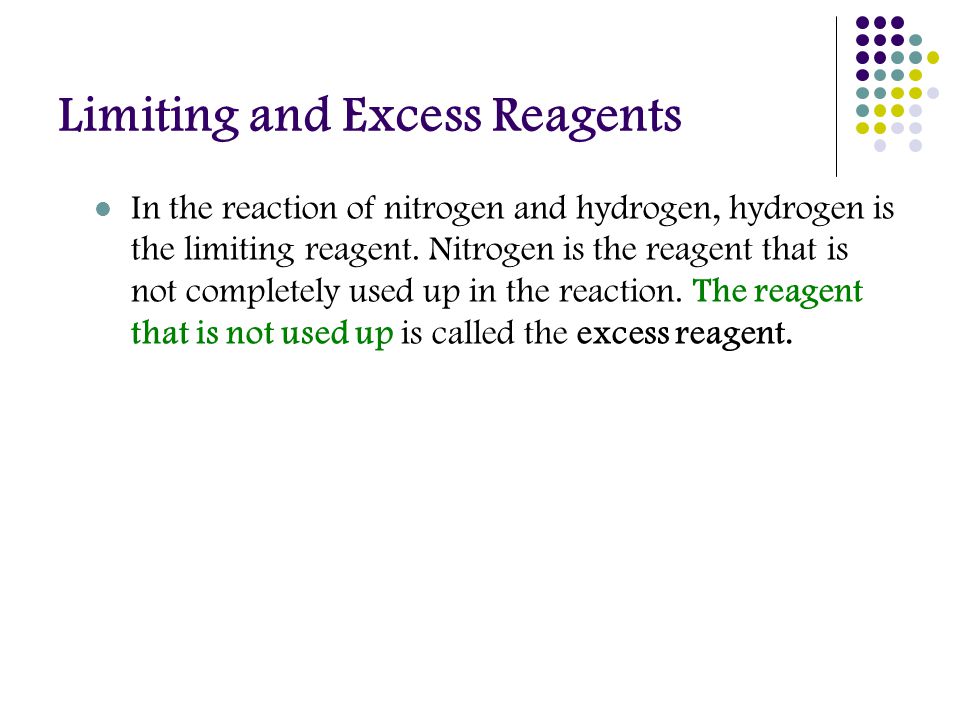

8 Limiting and Excess Reagents In the reaction of nitrogen and hydrogen, hydrogen is the limiting reagent. Nitrogen is the reagent that is not completely used up in the reaction. The reagent that is not used up is called the excess reagent.

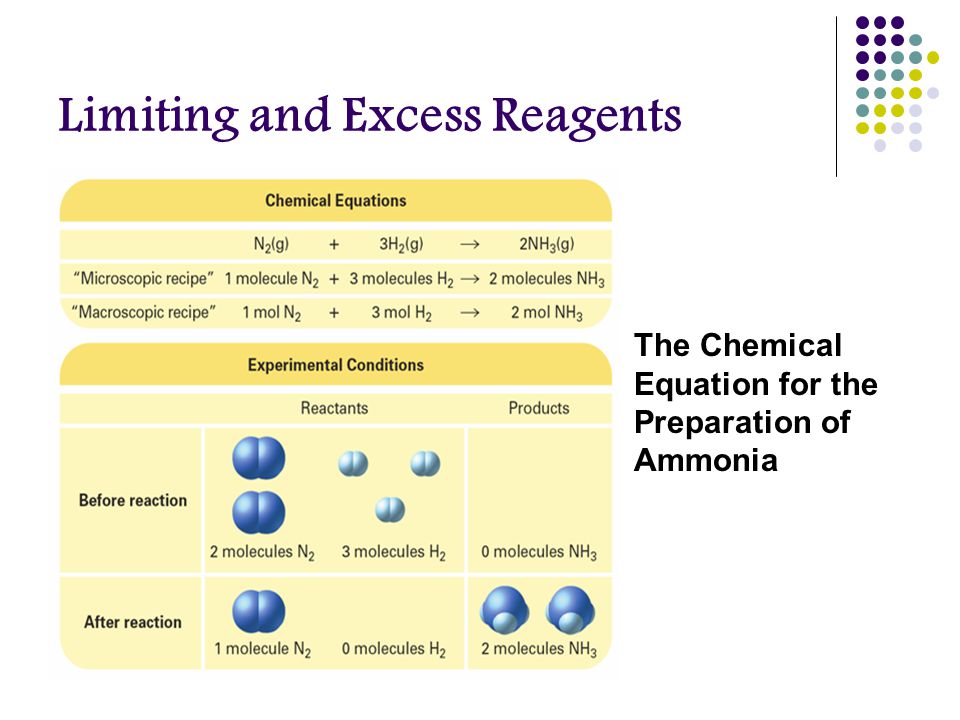

9 Limiting and Excess Reagents The Chemical Equation for the Preparation of Ammonia

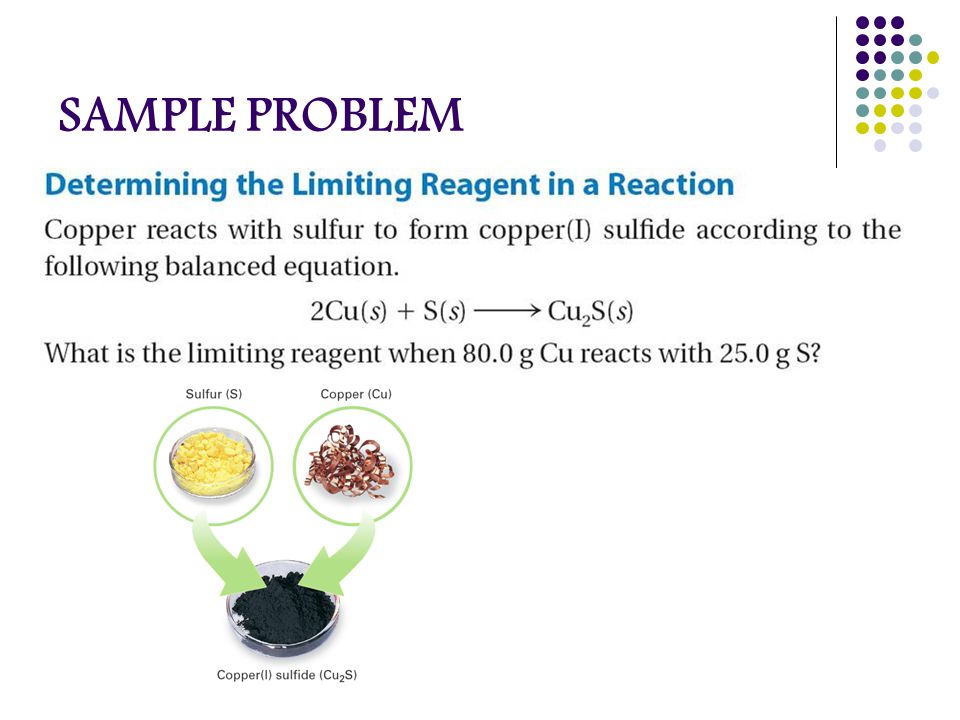

10 SAMPLE PROBLEM

11

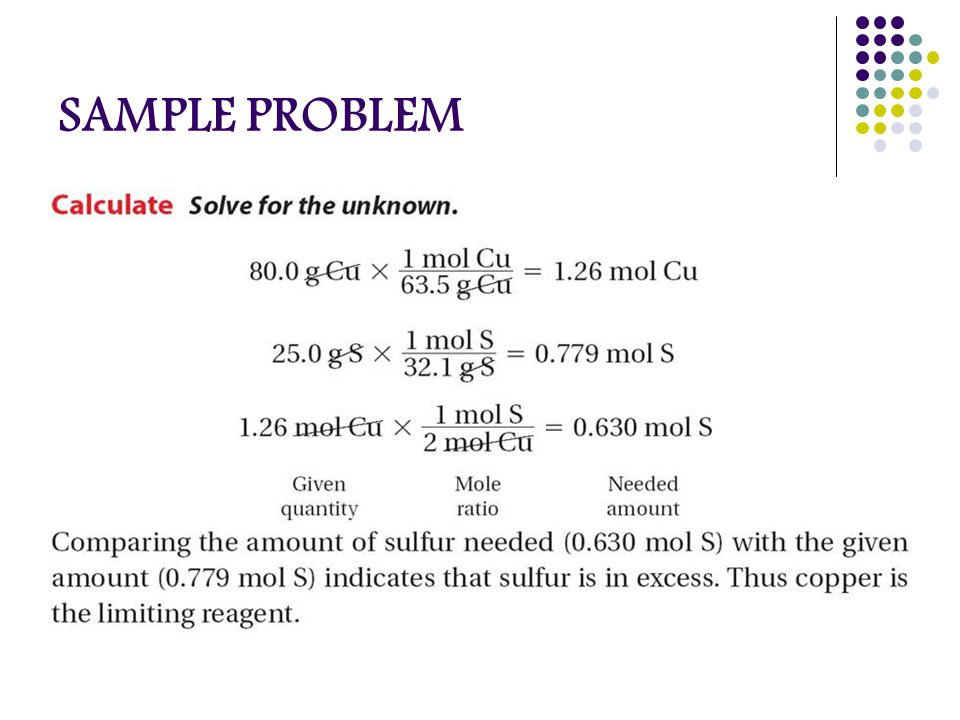

12

13

14 SAMPLE PROBLEM 2

15

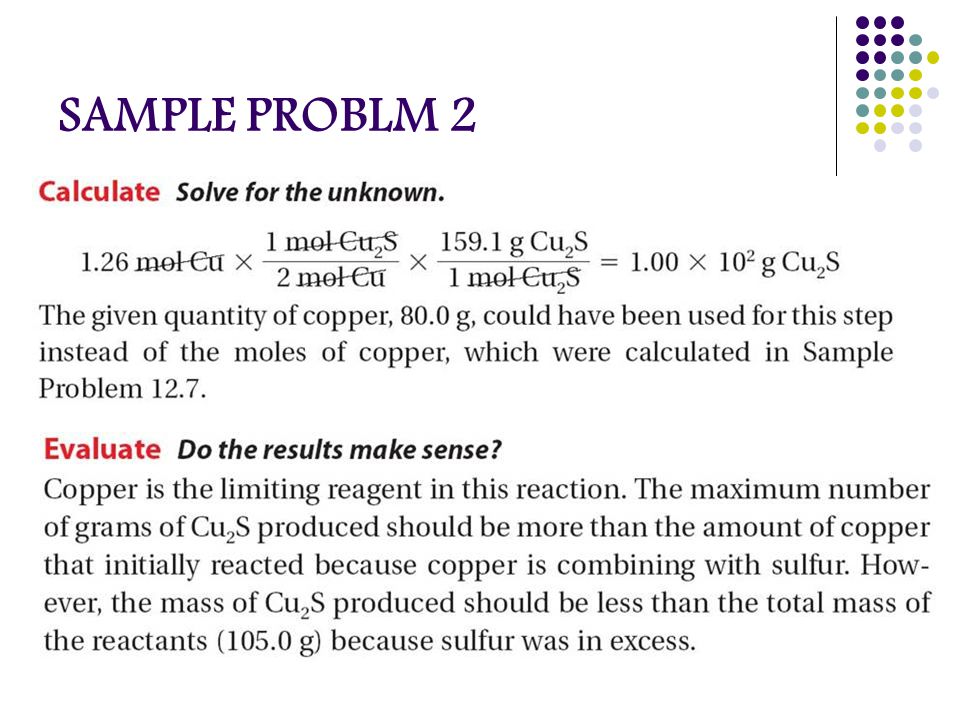

16 SAMPLE PROBLM 2

17 Percent Yield The percent yield is a measure of the efficiency of a reaction carried out in the laboratory. A batting average is actually a percent yield.

18 Percent Yield The theoretical yield is the maximum amount of product that could be formed from given amounts of reactants. In contrast, the amount of product that actually forms when the reaction is carried out in the laboratory is called the actual yield. The percent yield is the ratio of the actual yield to the theoretical yield expressed as a percent.

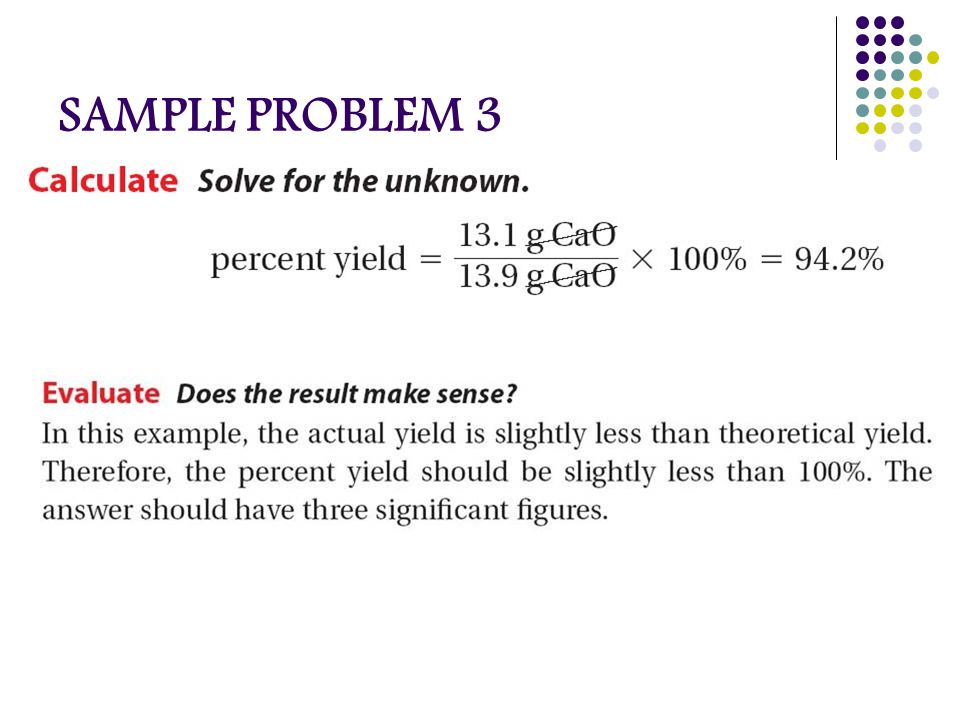

19 SAMPLE PROBLEM 3

20

21

22 Quick Lab Limiting Reagents Purpose: To illustrate the concept of a limiting reagent in a chemical reaction.

23 Summary Did we accomplish the objective? Explain. In a chemical reaction, how does an insufficient quantity of a reactant affect the amount of a product formed? Insufficient quantity of any reactants will limit the amount of product. How can you gauge the efficiency of a reaction carried out in the lab? Can be measured by calculating the percent yield.

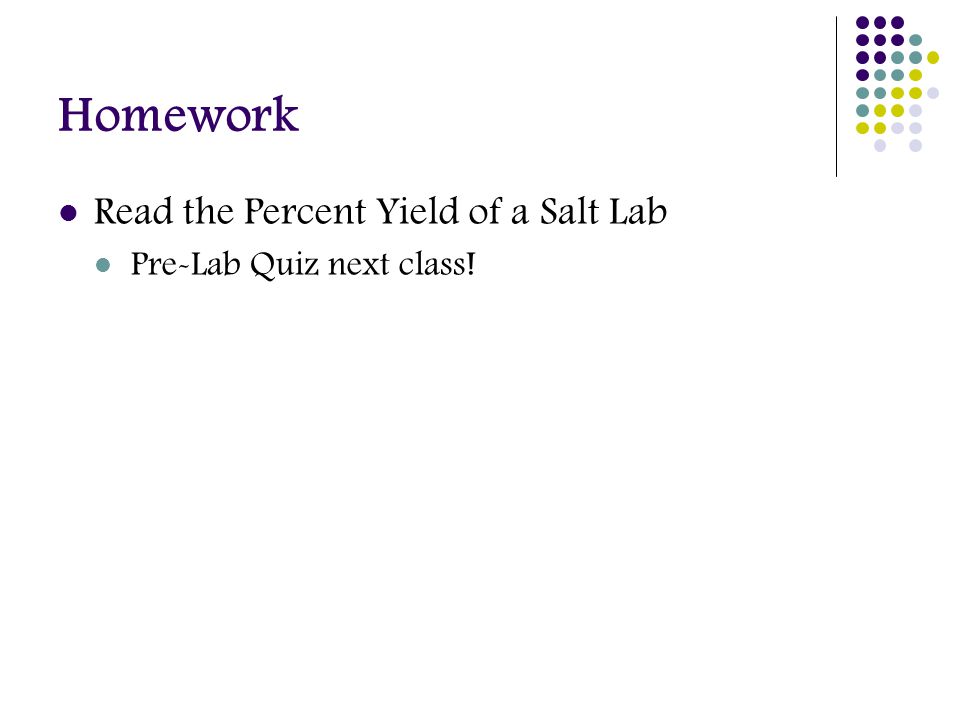

24 Homework Read the Percent Yield of a Salt Lab Pre-Lab Quiz next class!
