Presentation on theme: "The VKR Group’s eight DEMO houses #1 Sustainable House of the Future – Active House 2020 Gitte Gylling Sørensen Industrial PhD at the VKR Group’s eight."— Presentation transcript:
The VKR Group’s eight DEMO houses #1 Sustainable House of the Future – Active House 2020 Gitte Gylling Sørensen Industrial PhD at the VKR Group’s eight DEMO houses

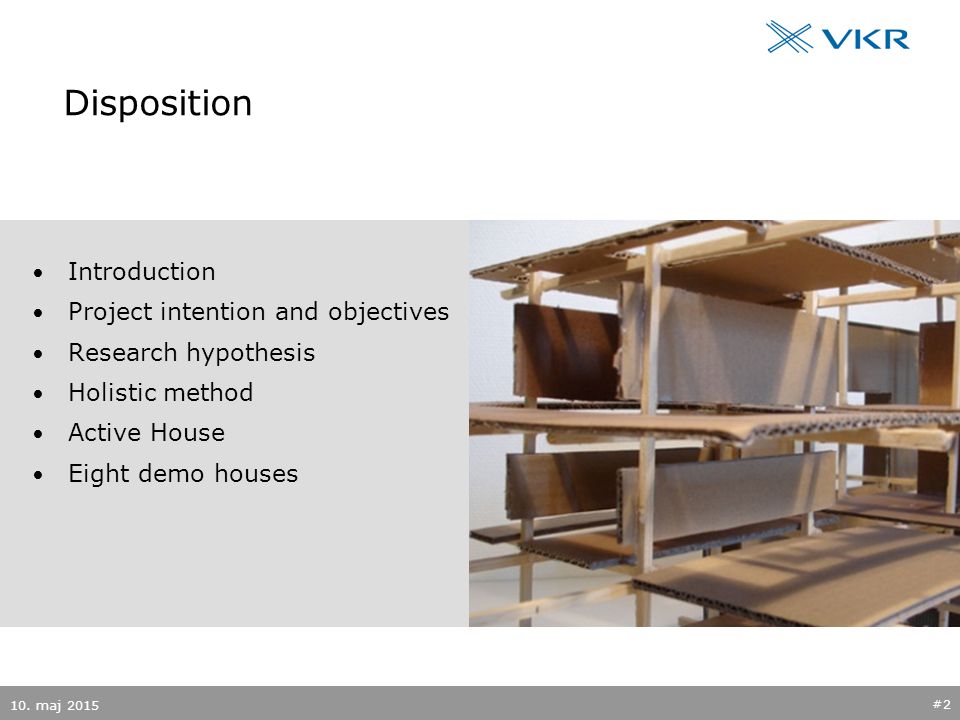

Disposition Introduction Project intention and objectives Research hypothesis Holistic method Active House Eight demo houses 10. maj 2015 #2

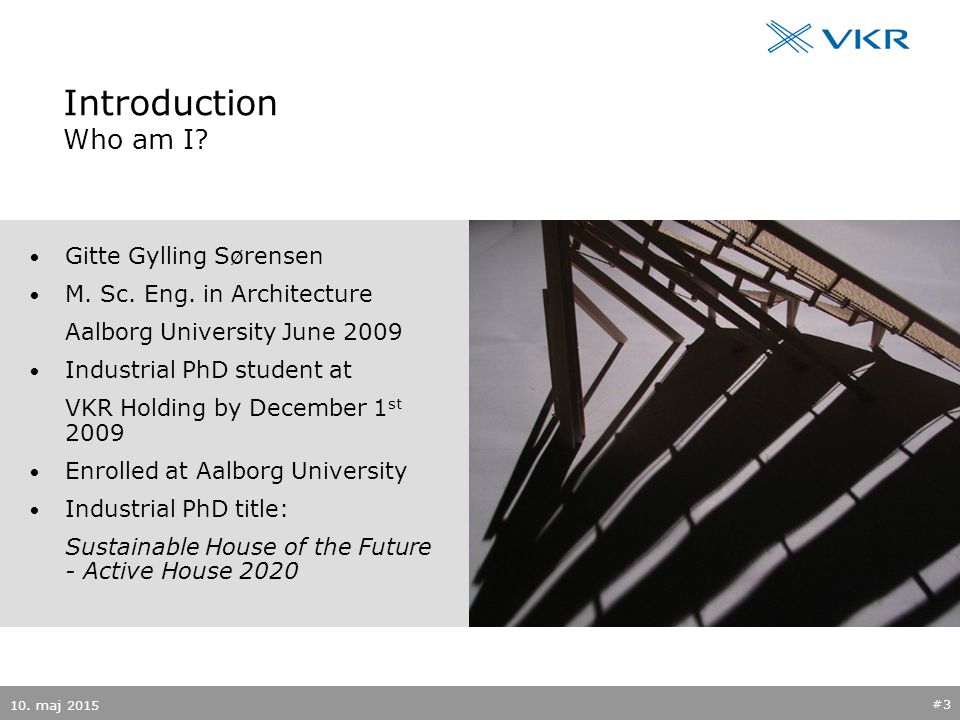

Introduction Who am I? Gitte Gylling Sørensen M. Sc. Eng. in Architecture Aalborg University June 2009 Industrial PhD student at VKR Holding by December 1 st 2009 Enrolled at Aalborg University Industrial PhD title: Sustainable House of the Future - Active House 2020 10. maj 2015 #3

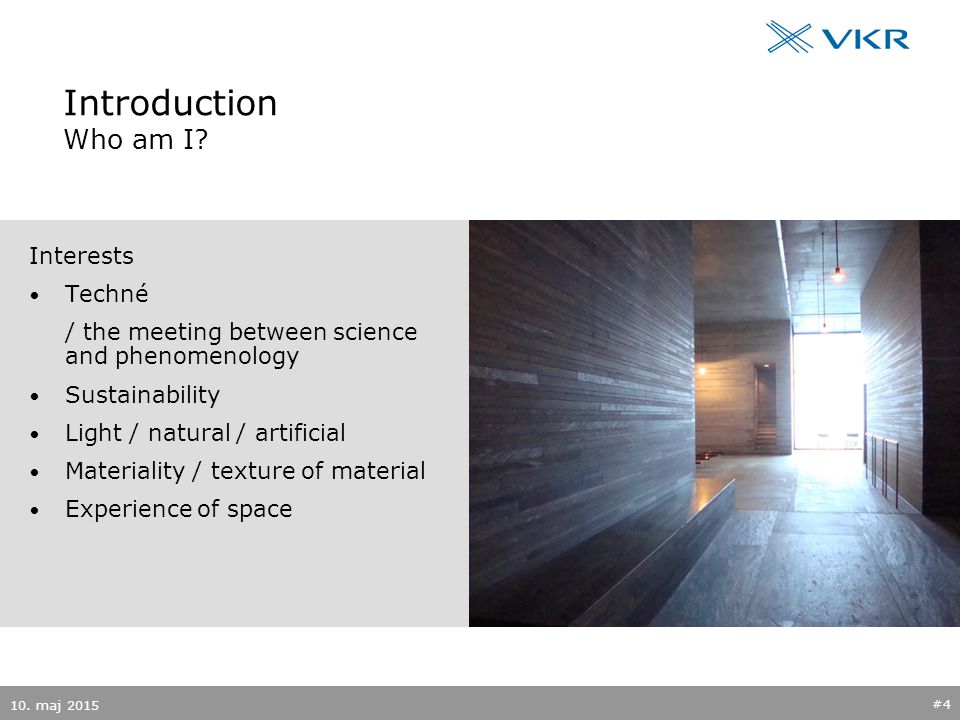

Introduction Who am I? Interests Techné / the meeting between science and phenomenology Sustainability Light / natural / artificial Materiality / texture of material Experience of space 10. maj 2015 #4
Intention and objectives of PhD project To develop a suggestion for a common European standard for future energy and CO 2 -neutral Active Houses. Developing knowledge about the holistic approach to integrating fresh air, plenty of daylight and healthy indoor climate into a sustainable way of living. Developing a method for integrating quantitative and qualitative parameters in developing buildings. 10. maj 2015 #5
Research Hypothesis Besides being energy neutral it is of great importance to human beings that their home is adapted into the surrounding environment and possess a high level of comfort, where daylight and fresh air are important parameters. 10. maj 2015 #6 Through development of a scientific method buildings can be defined and measured in accordance with both quantitative and qualitative values within the parameters Energy, Indoor Climate and Environment. By taking a holistic approach to future buildings on both quantitative and qualitative levels better buildings are created.
10. maj 2015 #7 ENERGY By project manager Quantitative measurements: Energy behaviour, energy balance, measurements of indoor climate Qualitative measurements: End-users’ real behaviour and experience of the house Suggestion for a common European standard for future energy and CO 2 - neutral Active Houses. Method Holistic evaluation Measurement data input Analysis of input Comparative studies Result New knowledge Definition of method for analysis Definition of Quantitative measurement methods and matrixes Definition of Qualitative measurement methods and matrixes INDOOR CLIMATE By project manager ENVIRONMENT By project manager
Design phase Calculated/preconditions Construction phase Measuring uninhabited Operation Phase Measuring inhabited Energy Space heating Hot utility water Electricity consumption: Lighting, Appliances, Technical installations Energy production by solar collectors, solar heat pump, solar cells Passive solar heat U-value for roof, external walls and ground deck Energy features of windows, U-, g- value, U eff Thermographic investigation Blower Door test Space heating Hot utility water Electricity consumption: Lighting, Appliances, Technical installations Energy production by solar collectors, solar heat pump, solar cells Passive solar heat CO 2 from operation (calculations) Indoor Climate Window area Daylight factor Timer for overheat temperature Temperature Mechanical and natural ventilation Calibration, functional test and adjustment of the technical installations Daylight factor Lighting level Air temperature CO 2 -concentration Air humidity Environment Energy used for production of materials/CO 2 content of materials CO 2 footprint Relation to local energy supply Relation to incident solar radiation and wind Local building tradition Adaptation to the surroundings and the landscape Solar intensity Air temperature Air humidity Wind speed CO 2 footprint Quantitative measurements Data matrix 10. maj 2015 #8
Energy e.g. the measured solar thermal energy production [WindowMaster measured values] Indoor climate e.g. measured lighting level [How could this be measured?] Environment e.g. site solar intensity [How could this be measured?] Quantitative measurements Data matrix 10. maj 2015 #9
Design phase Calculated/preconditions Construction phase Measuring uninhabited Operation Phase Measuring inhabited Energy What effects are applied into the design to attract attention to energy? Is focus in creating a feeling of balance between energy and living in the building? Is the building created with attention to energy or has been subsequently applied? How is the experience in creating shape with energy objectives for the designer? How has the interdisciplinary collaboration been carried out? How is energy considered in relation to erecting the building? How is the interdisciplinary collaboration unfolded during construction? Measured energy when new? Experience of living a plus energy life? Experience of balanced relation between life and nature? Effect on everyday life? Awareness of human consumption? Experienced changes in position to nature and energy consumption? Infect on other people? Indoor Climate How is the daylight access integrated in the design? What factors are prioritised when designing the good indoor climate? Has the circumstances for creating been integrated in the process of designing the building? Immediate experience of daylight? Immediate experience of air quality? Experience of living a plus energy life? Experience of daylight effect on interior space? Experience of the influence of fresh air and daylight inside the building and different spaces? Environment How is the local building tradition integrated in the design? Adaptation to the surroundings and the landscape? Creating relation between place and architecture? Situation and location in landscape? Consideration to environment during construction phase? Experience of relations between indoors and out doors? Relation between environment and sustainable architecture? Experience of daylight inside and outside at the site? Qualitative measurements Data matrix 10. maj 2015 #10
Qualitative measurements Data matrix 10. maj 2015 #11 Energy e.g. the experience of living in a plus energy house? [Qualitative methods - Interview] Indoor climate e.g. experience of daylight effect on interior space? [How could this be measured?] Environment e.g. experience of on site? [How could this be measured?]
Active House What is an Active House? 10. maj 2015 #12 ENERGY ENVIRONMENTINDOOR CLIMATE An Active House is CO 2 -neutral. By using renewable energy sources it has an exceptionally low level of energy consumption and procduces more energy than it concumes. An Active House has a healthy indoor climate, allowing. people to express themselves and live their lives in comfort. An Active House is designed, situated and constructed to interact with its environment.
Active House Design Parameters 1. A house that interacts with its environment 2. An open house that lets in nature 3. An intelligent house, controlled according to the weather and personal needs 4. An energy producing house 10. maj 2015 #13
Eight unique demonstration houses - in five European contries 10. maj 2015 #14
Home for Life Lystrup, Denmark 10. maj 2015 #15 Single-family house of 190m 2 50m 2 photovoltaic modules 6,7m 2 solar thermal collectors 40% window to floor area Calculated energy consumption - 9,4 kWh/m 2 /year http://www.solar-aktivhaus.com/solaraktivhaus/en/haustechnikkonzept.asp
Green Lighthouse Copenhagen, Denmark 10. maj 2015 #16 Public Office house of 950m 2 Calculated energy consumption 3 kWh/m 2 /year http://greenlighthouse.ku.dk/
House of the Future (Haus der Zukunft) Germany 10. maj 2015 #17 Single-family house of 175m 2 55m 2 photovoltaic modules 35m 2 solar thermal collectors Calculated energy consumption 0 kWh/m 2 /year http://www.solar-aktivhaus.com/solaraktivhaus/en/haustechnikkonzept.asp
Solar Active House (Solar Akivhaus) Austria 10. maj 2015 #18 http://www.solar-aktivhaus.com/solaraktivhaus/en/das_solar_aktivhaus.asp Single-family house of 150m 2 Calculated energy consumption 0 kWh/m 2 /year
First ground breaking Test period Project startOfficial opening Home for Life DENMARK Sale DESIGNCONSTRUCTIONDEMONSTRATIONTEST PERIODEVALUATION Green Lighthouse DENMARK Haus der Zukunft GERMANY Austrian Project AUSTRIA Solar Aktivhaus AUSTRIA French Project FRANCE British Project GREAT BRITTAIN German House GERMANY Eight demonstration houses status Updated december 2009 10. maj 2015 #19
The VKR Group’s eight DEMO houses #20 Sustainable House of the Future – Active House 2020 Gitte Gylling Sørensen Industrial PhD at the VKR Group’s eight DEMO houses firstname.lastname@example.org tel. +45 29 42 02 81
