Presentation on theme: "Leader in Next Generation Ethernet. 2 Outline Where is iWARP Today? Some Proof Points Conclusion Questions."— Presentation transcript:

1 Leader in Next Generation Ethernet

2 2 Outline Where is iWARP Today? Some Proof Points Conclusion Questions

3 3 Latency in Multi-Processor/Multi-Core Systems

4 4 Industry Leading Multiple Connection Throughput Predominant RDMA Command for; Intel MPI, MVAPICH2, HP MPI, Scali MPI, OpenMPI, MPICH2 and iSER

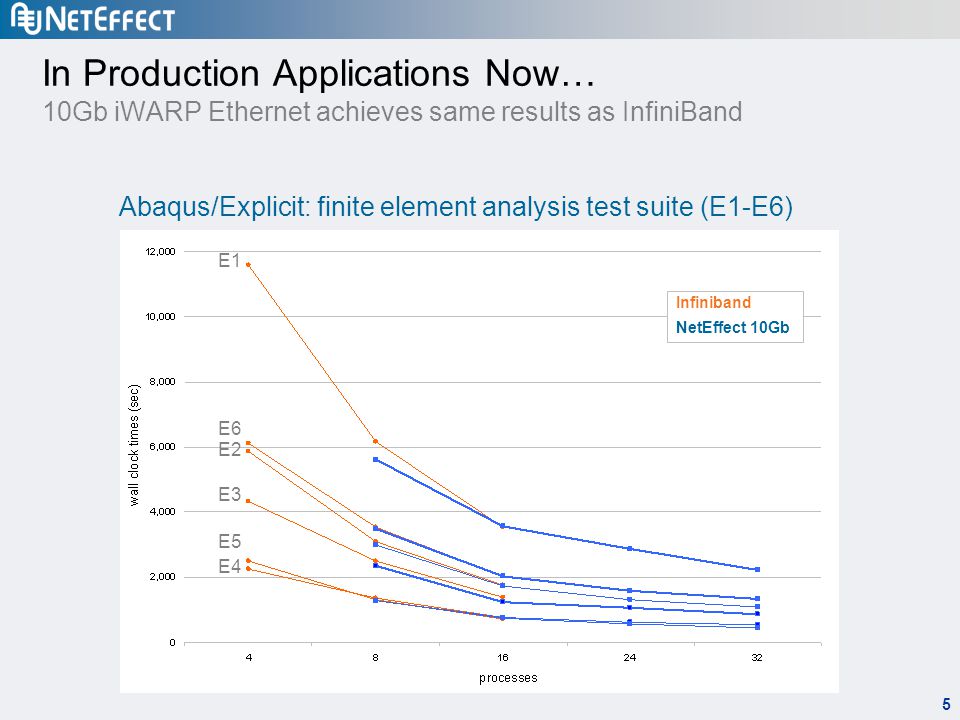

5 5 In Production Applications Now… 10Gb iWARP Ethernet achieves same results as InfiniBand E1 E2 E3 E4 E5 E6 Infiniband NetEffect 10Gb Abaqus/Explicit: finite element analysis test suite (E1-E6)

6 6 In Production Applications Now… 10Gb iWARP Ethernet achieves same results as InfiniBand –Unmodified –Automatically scaled across nodes –Wall-clock times equal to or better than 20-Gbps InfiniBand DDR Infiniband (20Gbps) NetEffect NE020 10GbE PAM-CRASH crash simulation

7 7 Fluent rating In Production Applications Now… 10Gb iWARP Ethernet achieves same results as InfiniBand FL5L1FL5L2FL5L Infiniband NE020 10GbE Fluent ‘rating’: the number of benchmarks that can be run (in sequence) in a 24 hour period. A higher rating means faster performance. Fluent FL5Lx Benchmarks: Computational Fluid Dynamics (CFD)

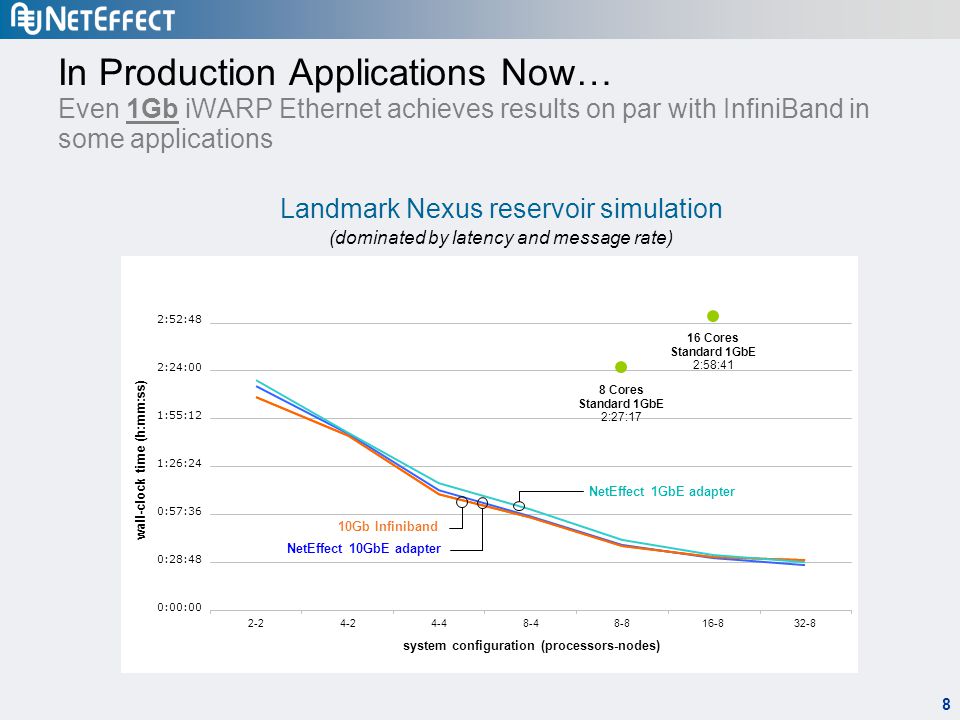

8 8 Landmark Nexus Performance Results 0:00:00 0:28:48 0:57:36 1:26:24 1:55:12 2:24:00 2:52: system configuration (processors-nodes) wall-clock time (h:mm:ss) 0:00:00 0:28:48 0:57:36 1:26:24 1:55:12 2:24:00 2:52: system configuration (processors-nodes) wall-clock time (h:mm:ss) In Production Applications Now… Even 1Gb iWARP Ethernet achieves results on par with InfiniBand in some applications Landmark Nexus reservoir simulation (dominated by latency and message rate) NetEffect 1GbE adapter 8 Cores Standard 1GbE 2:27:17 16 Cores Standard 1GbE 2:58:41 NetEffect 10GbE adapter 10Gb Infiniband

9 9 Conclusion We joined forces 2.5 years ago to make the concept of a single RDMA API work on multiple fabrics from multiple vendors and be interoperable InfiniBand & Ethernet Working Together –Multiple IB Vendors –Multiple iWARP Vendors It is now a Reality!

10 iWARP has moved “from benchmarks to applications”

11 Questions

12 Thank You!
