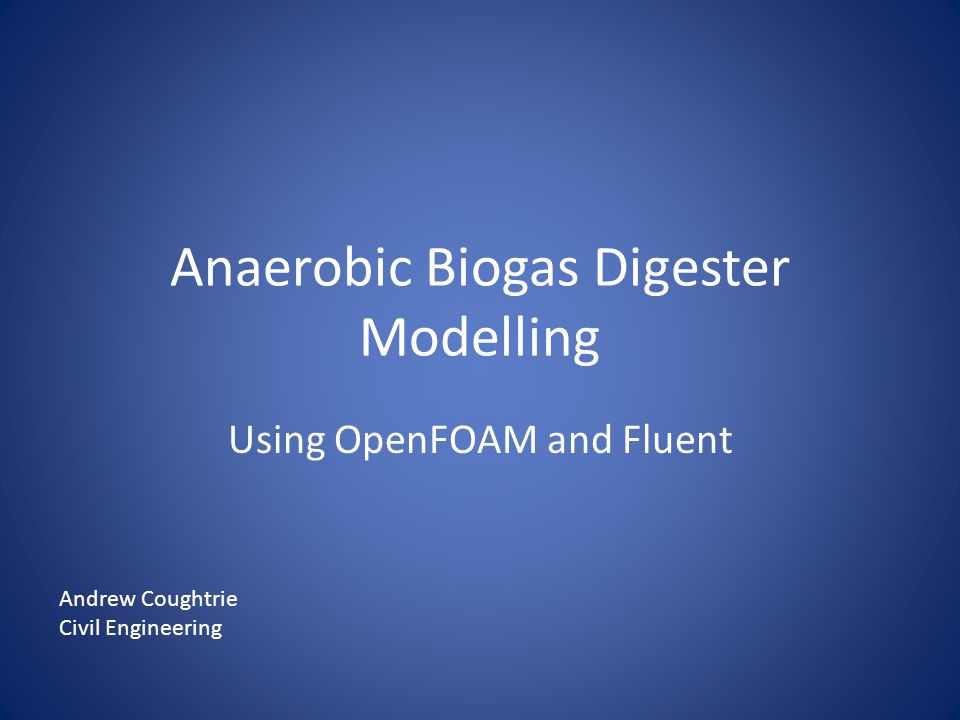

Anaerobic Biogas Digester Modelling Using OpenFOAM and Fluent Andrew Coughtrie Civil Engineering

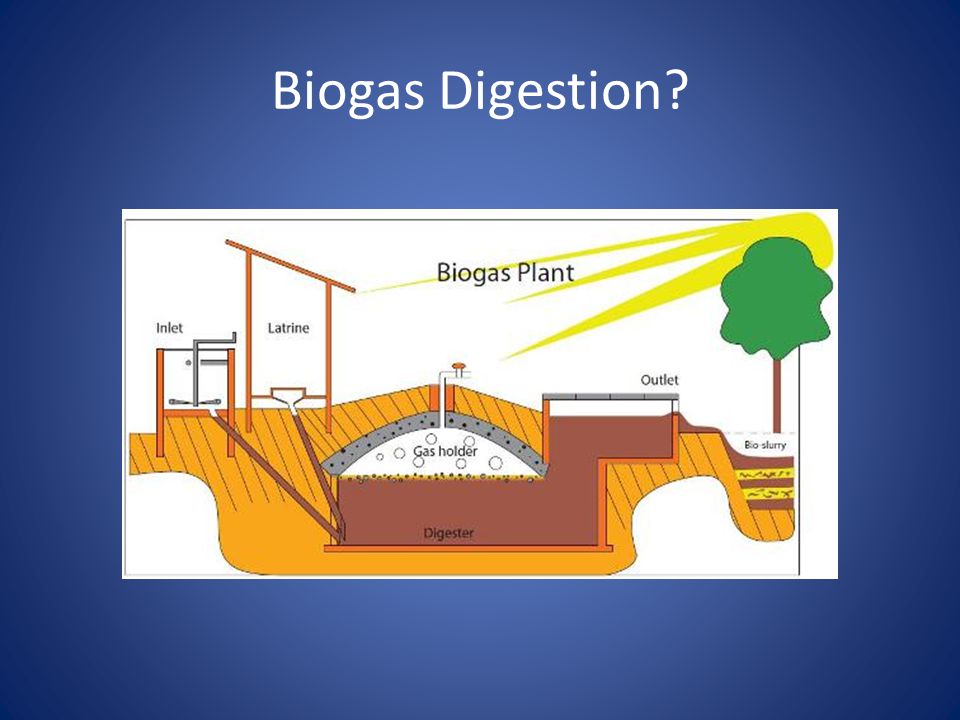

Problem Definition Waste Treatment Mixing effectiveness Failure when scaled up Difficult to monitor experimentally * Karim k. et al.  Gas-lift Digester Configuration Effects on Mixing Effectiveness Experimental bench scale internal airlift loop biogas digester.*

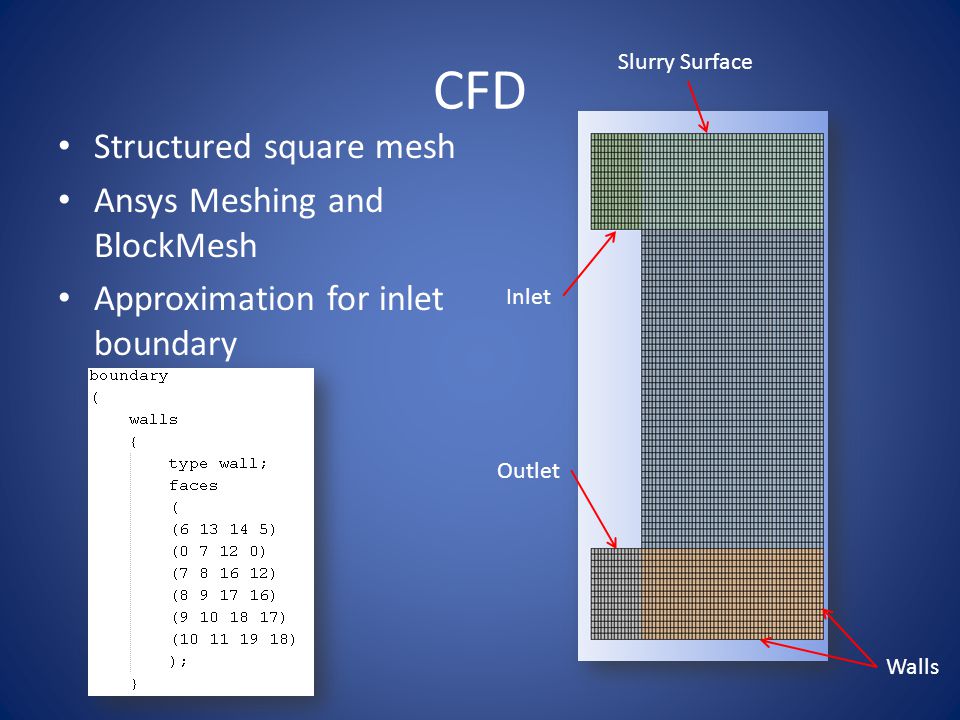

CFD Structured square mesh Ansys Meshing and BlockMesh Approximation for inlet boundary Inlet Slurry Surface Outlet Walls

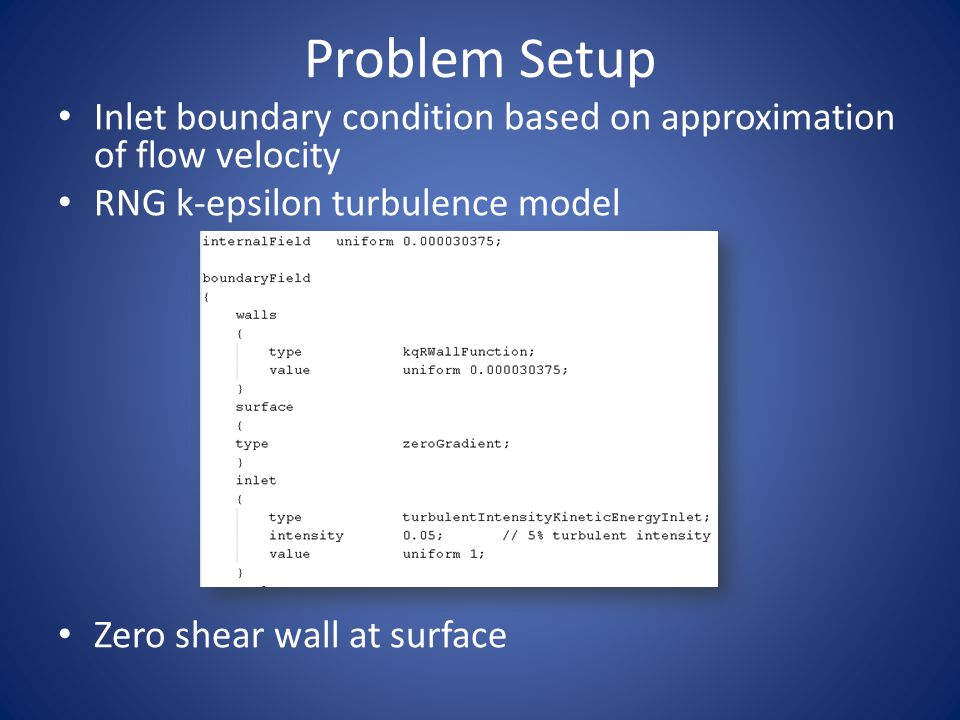

Problem Setup Inlet boundary condition based on approximation of flow velocity RNG k-epsilon turbulence model Zero shear wall at surface

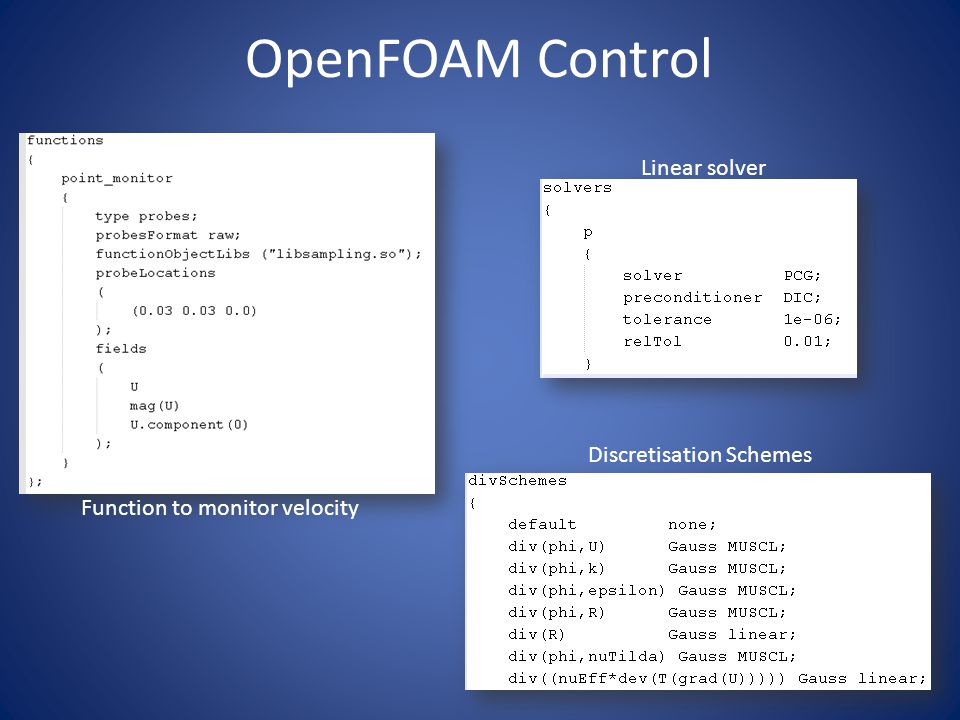

OpenFOAM Control Function to monitor velocity Discretisation Schemes Linear solver
Fluent Wall Treatment Standard Wall Functions Scalable Wall Functions Enhanced Wall Treatment
Fluent vs. OpenFOAM OpenFOAMFluent *Karim k. et al.  Flow Pattern Visualization of a Simulated Digester

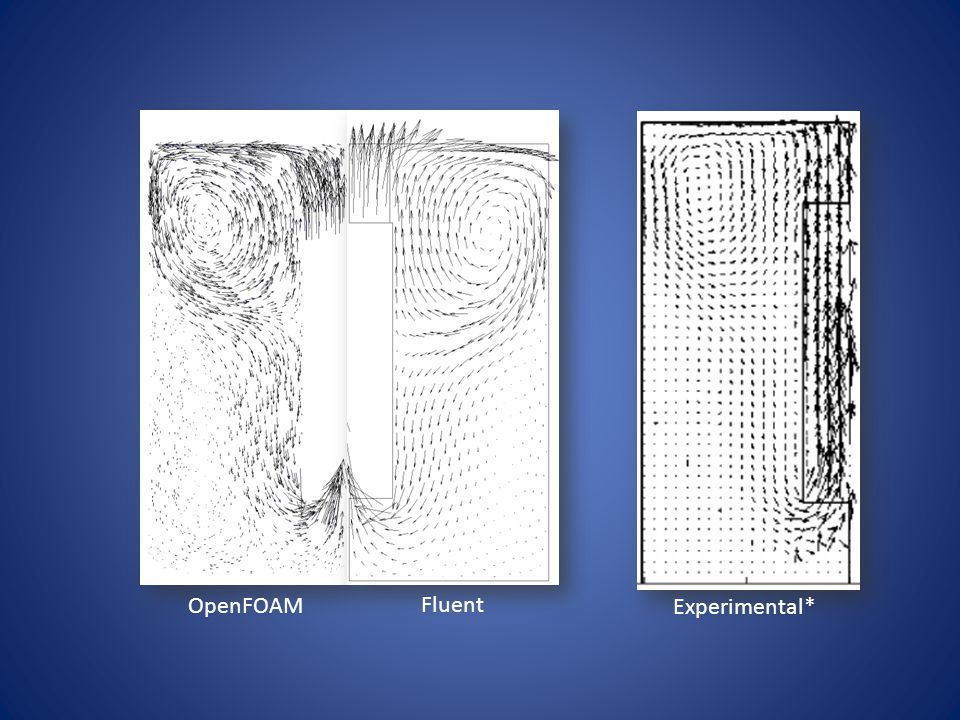

OpenFOAM Fluent Experimental*

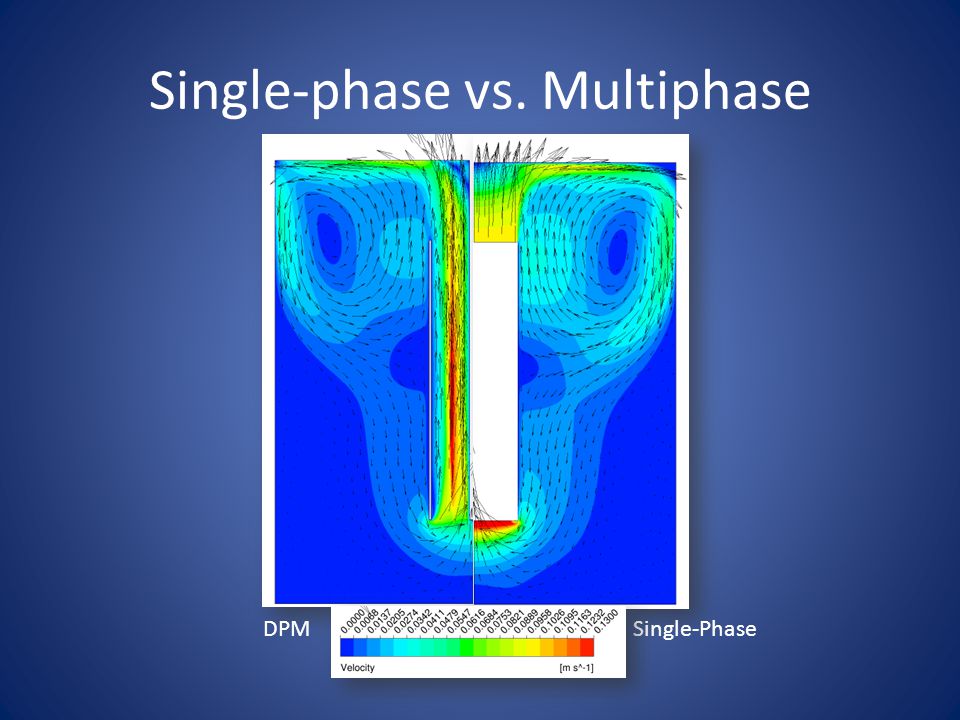

Single-phase vs. Multiphase DPMSingle-Phase

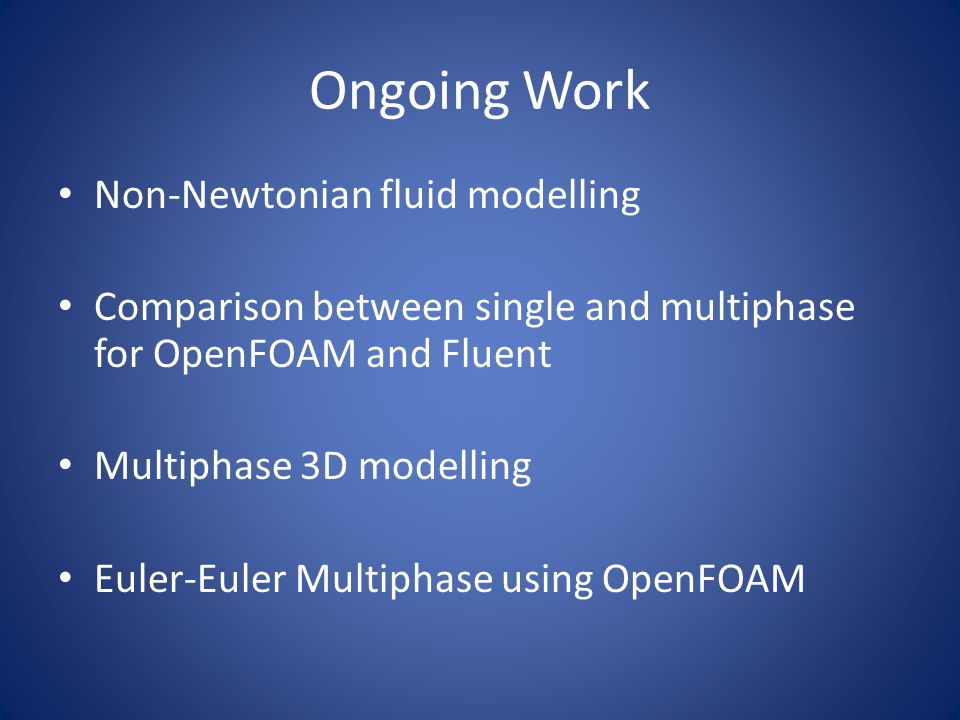

Ongoing Work Non-Newtonian fluid modelling Comparison between single and multiphase for OpenFOAM and Fluent Multiphase 3D modelling Euler-Euler Multiphase using OpenFOAM

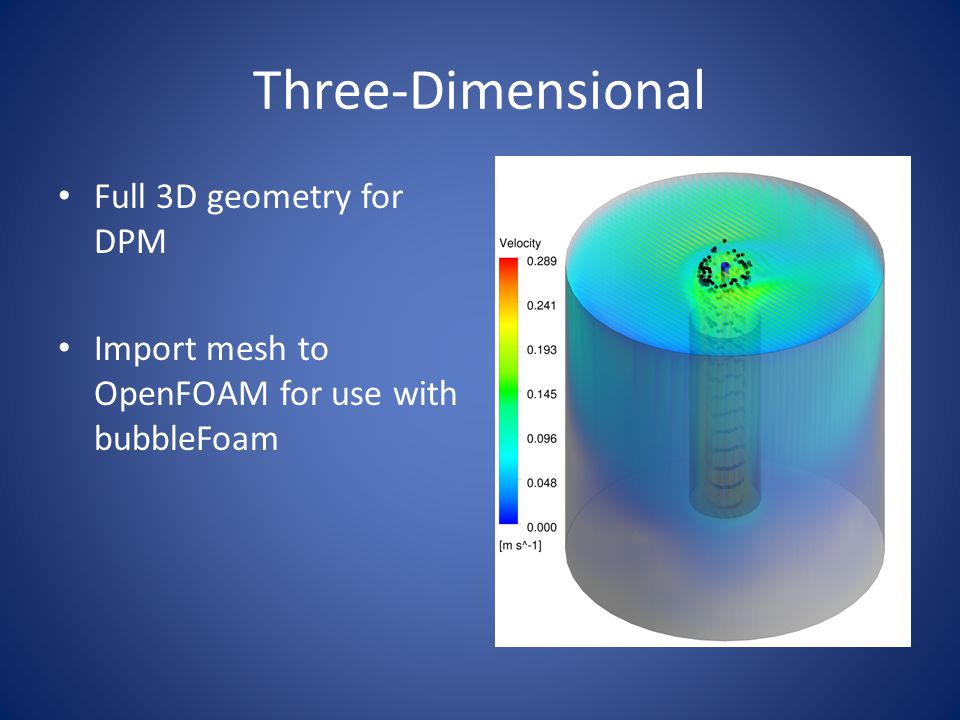

Three-Dimensional Full 3D geometry for DPM Import mesh to OpenFOAM for use with bubbleFoam
