1 Conformance Verification of Privacy Policies Xiang Fu Assistant Professor Department of Computer Science Hofstra University

2 Outline Motivation PV Framework Privacy Properties in Temporal Logic Verification using Alloy Conclusion

3 Introduction

4 Web App: Consumer and Producer of INFORMATION Web App SSN Credit Card Medical Record Address Shopping Preference Online Marketing Identity Collection SSN Business Partners Shopping Habits

5 Privacy Verification Problem Web App Your SSN never be forwarded CC destroyed after transaction Function as PROMISED?

6 Challenges Business Procedures DB Ops Servlets P3P Privacy Policy Model Checker

7 PV Framework P rivacy V erification Framework 1. Servlet Control/Data Flow 2. Information Flow 3. Data Operations

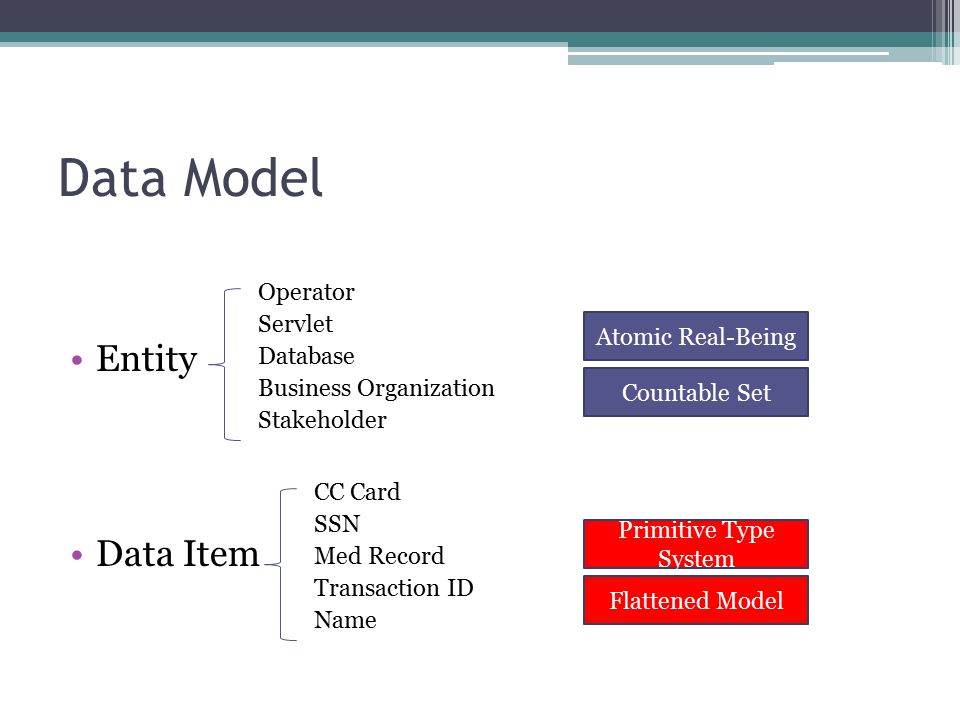

8 Data Model Entity Data Item Operator Servlet Database Business Organization Stakeholder Atomic Real-Being Countable Set CC Card SSN Med Record Transaction ID Name Primitive Type System Flattened Model

9 Example: Bookstore App Entities

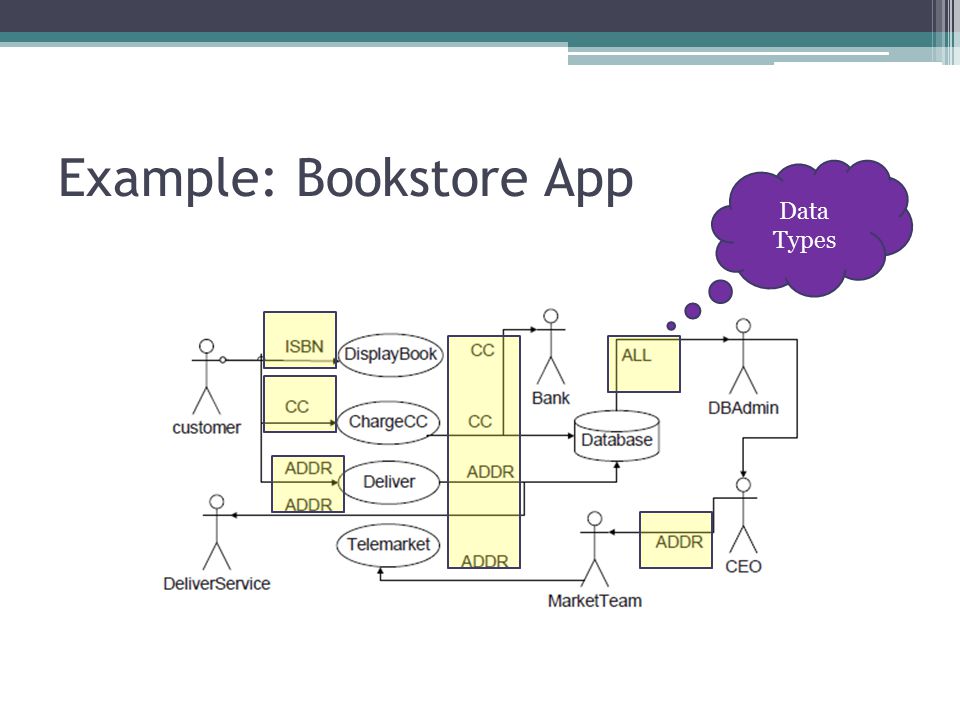

10 Example: Bookstore App Data Types

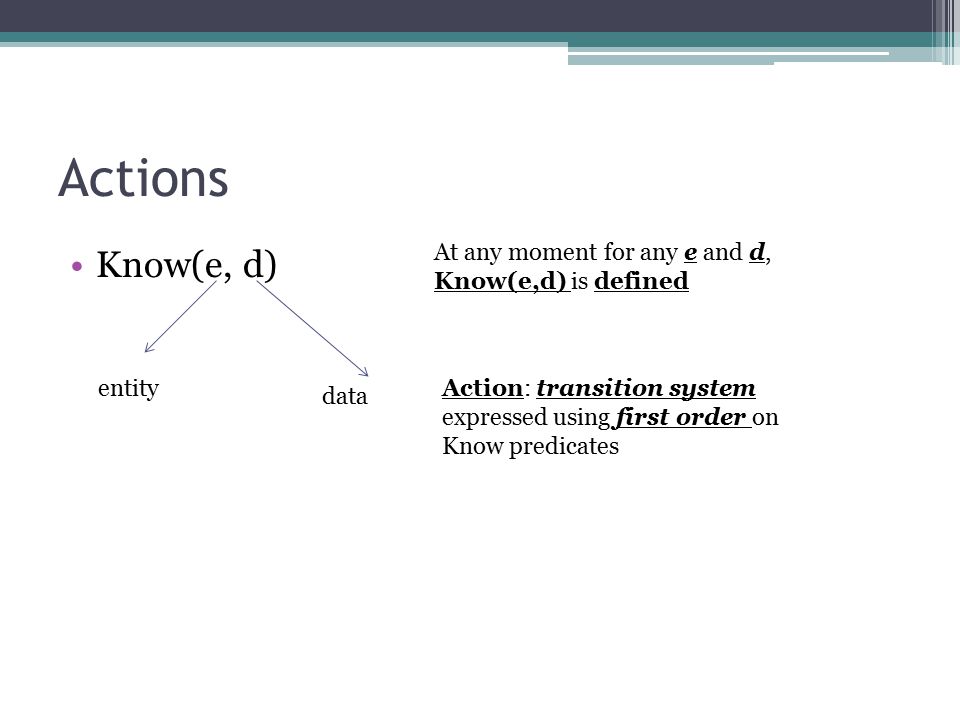

11 Actions Know(e, d) entity data At any moment for any e and d, Know(e,d) is defined Action: transition system expressed using first order on Know predicates

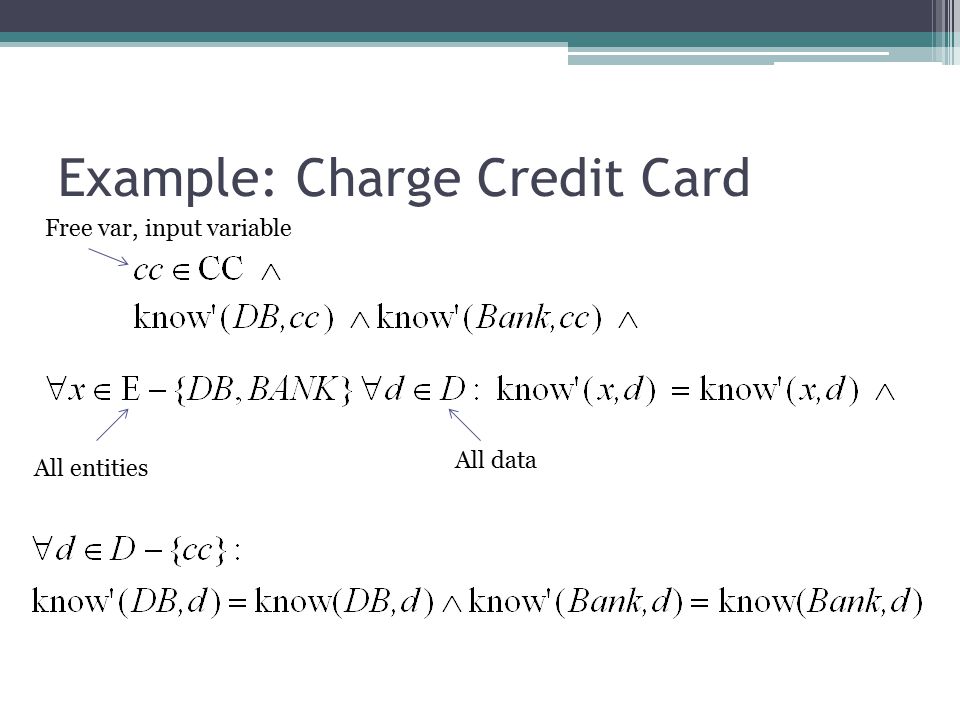

12 Example: Charge Credit Card Free var, input variable All entities All data

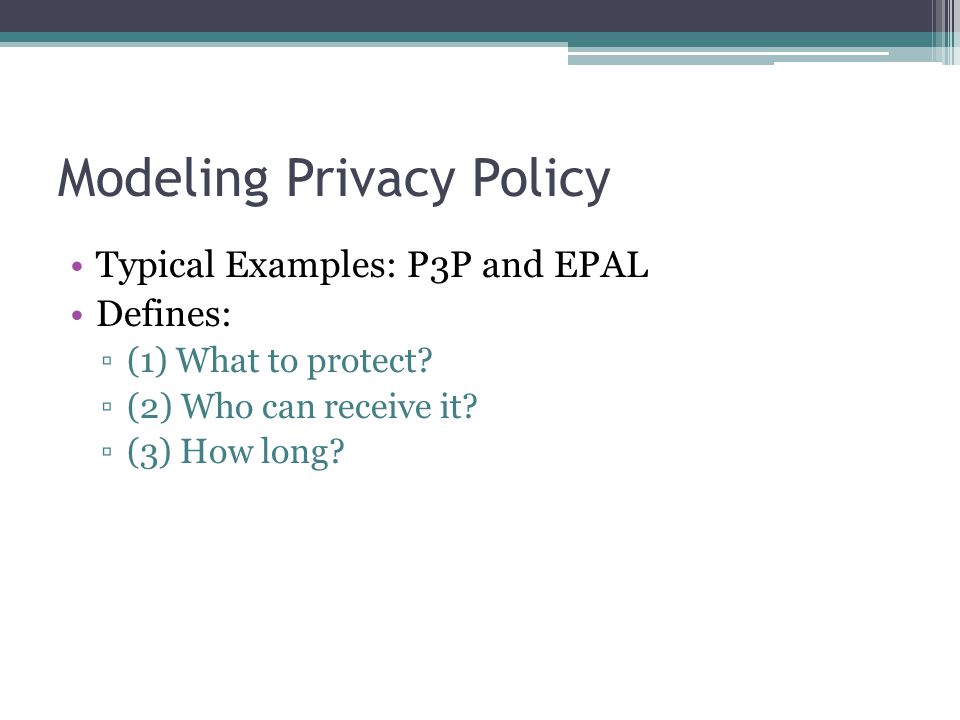

13 Modeling Privacy Policy Typical Examples: P3P and EPAL Defines: ▫(1) What to protect? ▫(2) Who can receive it? ▫(3) How long?

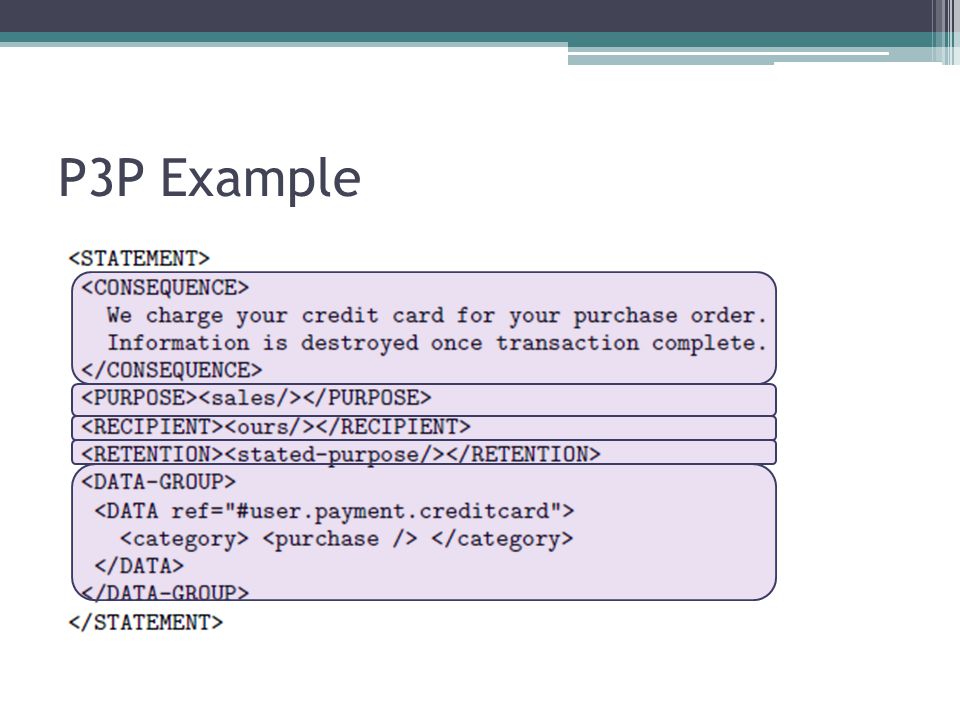

14 P3P Example

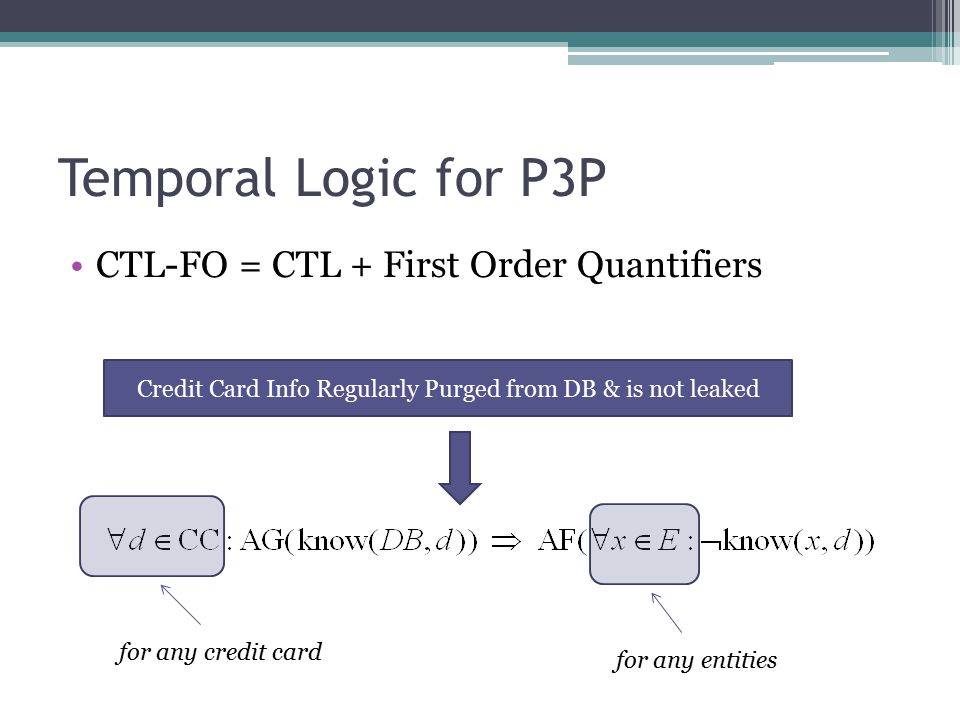

15 Temporal Logic for P3P CTL-FO = CTL + First Order Quantifiers Credit Card Info Regularly Purged from DB & is not leaked for any credit cardfor any entities

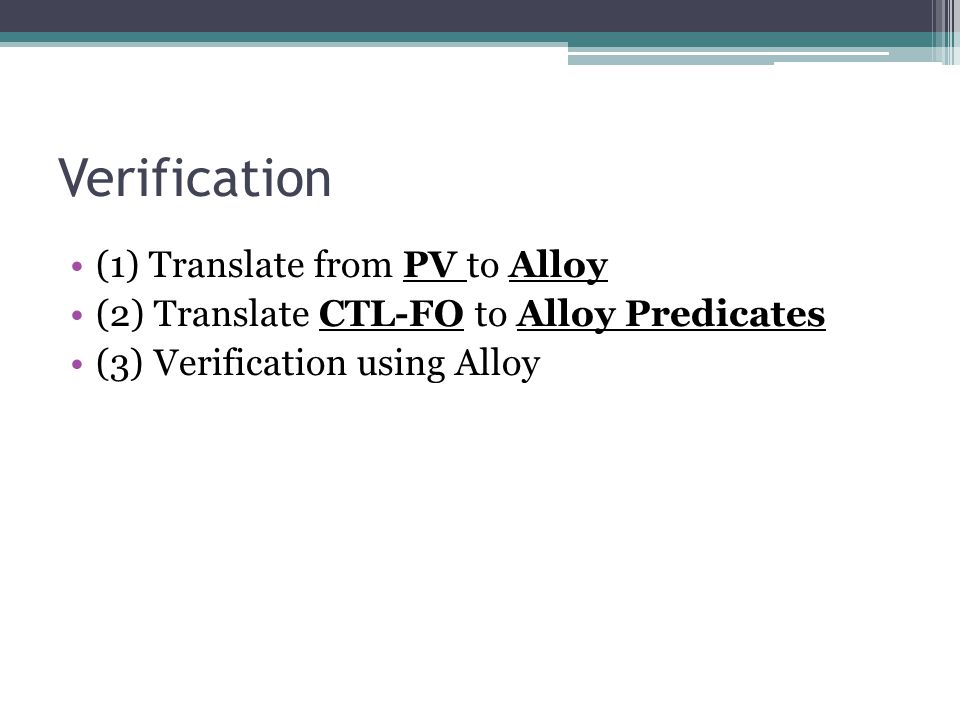

16 Verification (1) Translate from PV to Alloy (2) Translate CTL-FO to Alloy Predicates (3) Verification using Alloy

17 Modeling World Schema module bookstore //1. world schema abstract sig Object {} abstract sig WA, Env, Data extends Object {} abstract sig Actions, Entities extends WA {} … Web App. Set of All Data Items Servlets

18 Modeling System State Model the transition relation sig State{ know: (WA + Env) -> Data, prev: one State, actstate: Actions -> actionStatus }{ all x: Actions | some status: actionStatus | x -> status in actstate }

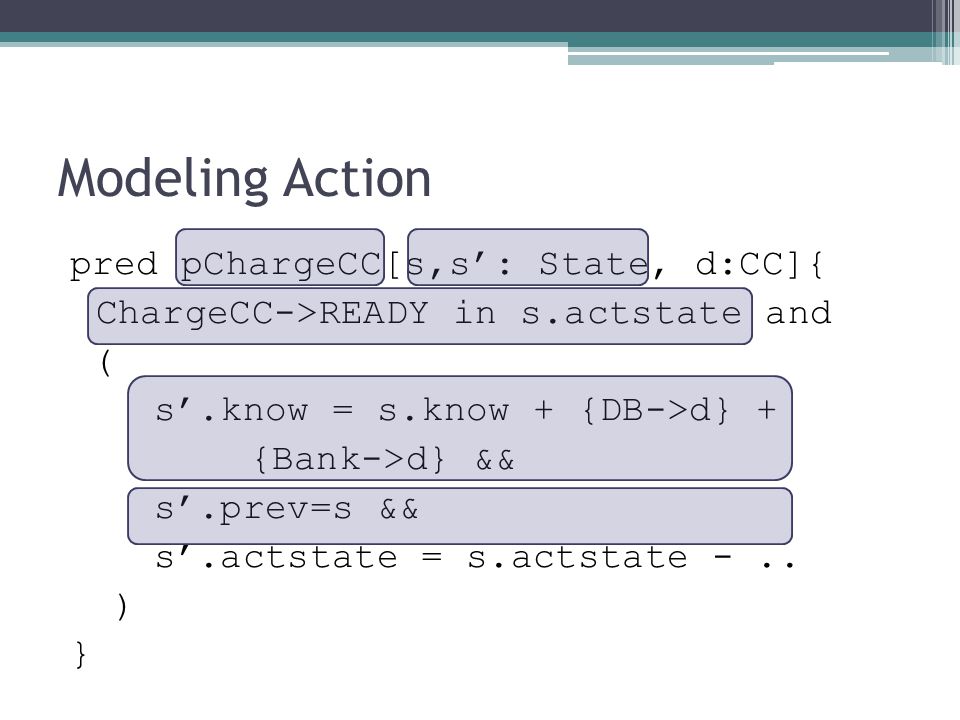

19 Modeling Action pred pChargeCC[s,s’: State, d:CC]{ ChargeCC->READY in s.actstate and ( s’.know = s.know + {DB->d} + {Bank->d} && s’.prev=s && s’.actstate = s.actstate -.. ) }

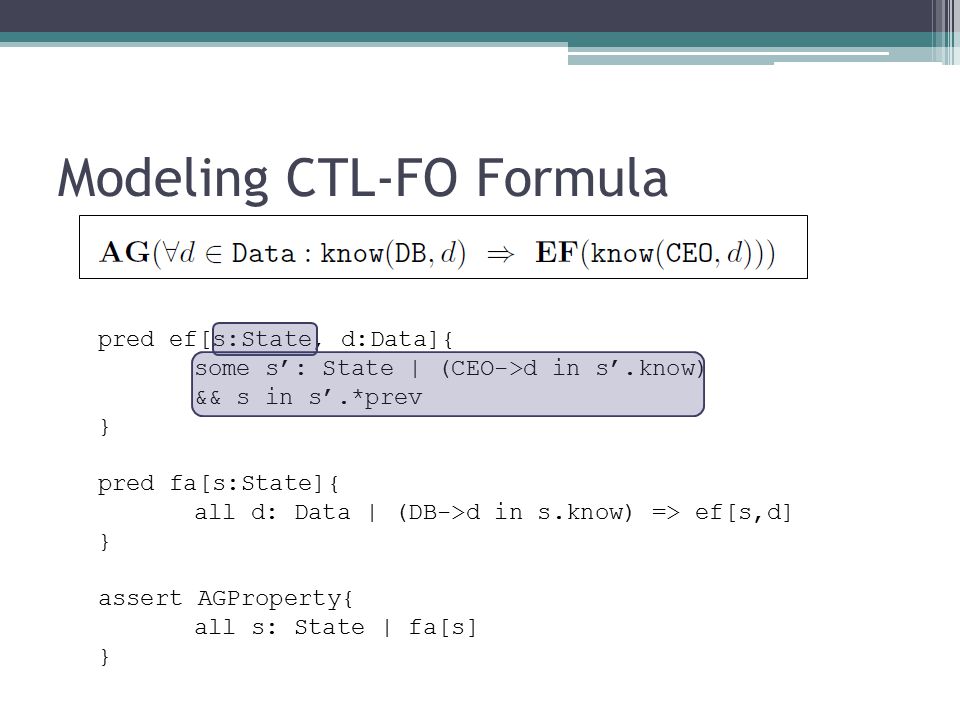

20 Modeling CTL-FO Formula pred ef[s:State, d:Data]{ some s’: State | (CEO->d in s’.know) && s in s’.*prev } pred fa[s:State]{ all d: Data | (DB->d in s.know) => ef[s,d] } assert AGProperty{ all s: State | fa[s] }

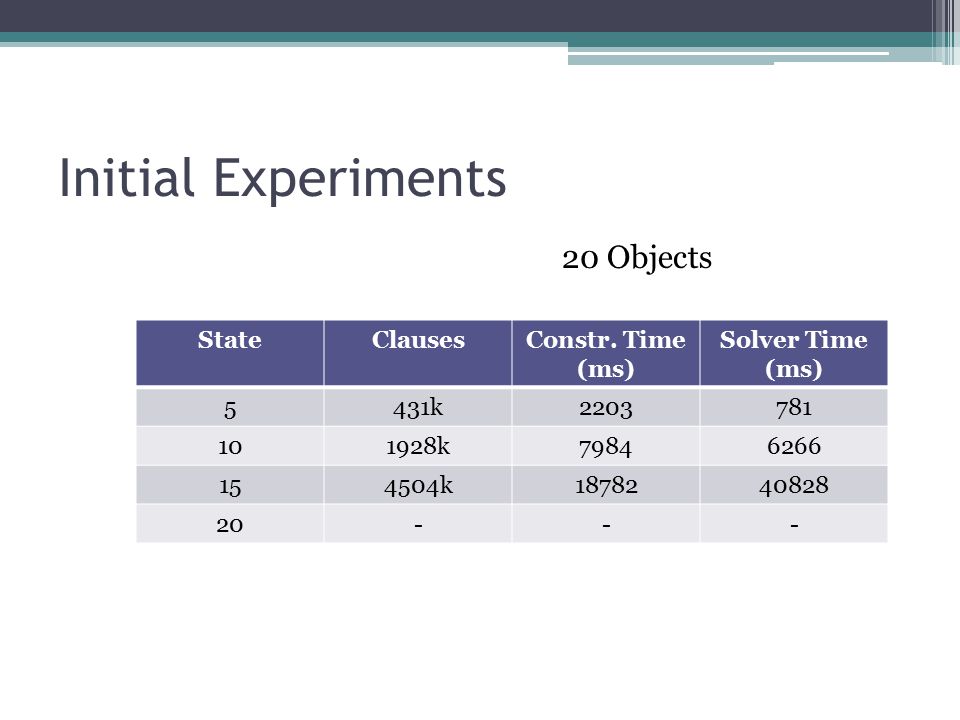

21 Initial Experiments StateClausesConstr. Time (ms) Solver Time (ms) 5431k k k Objects

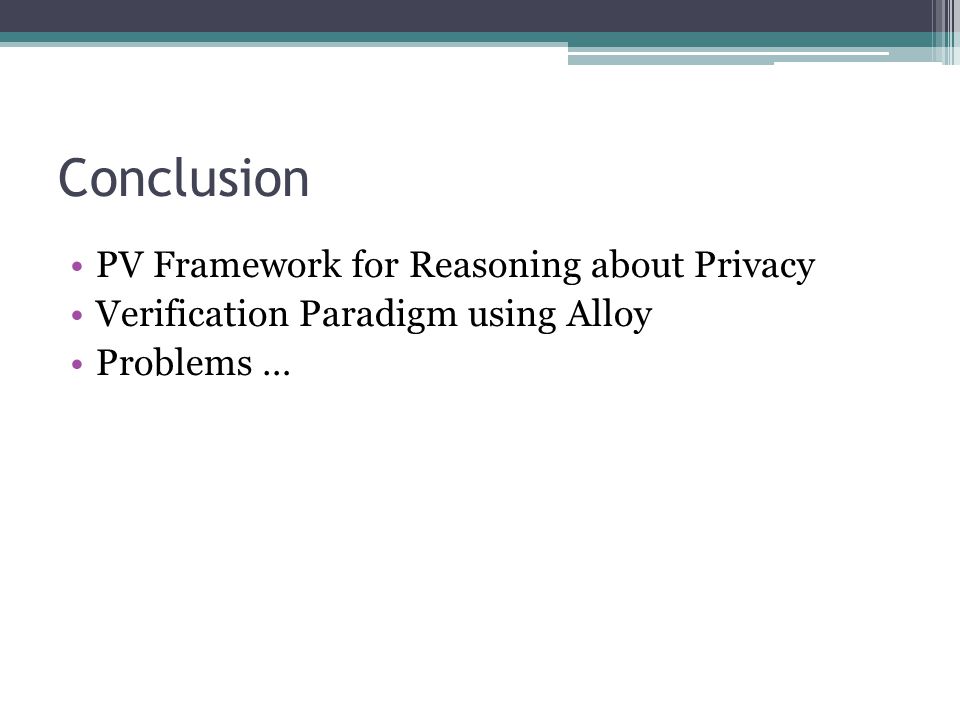

22 Conclusion PV Framework for Reasoning about Privacy Verification Paradigm using Alloy Problems …

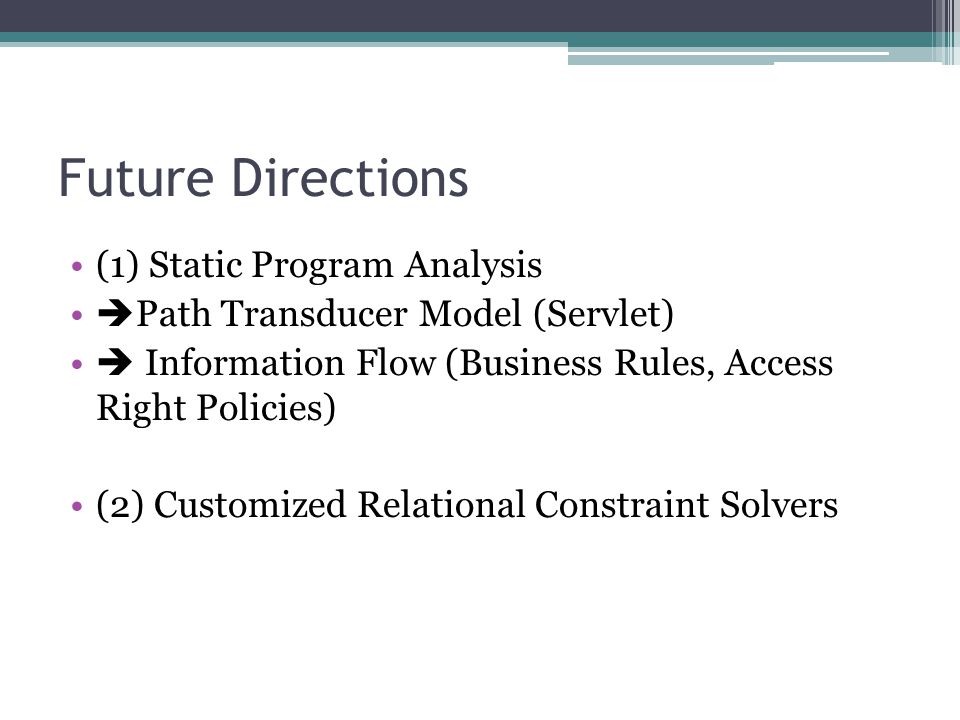

23 Future Directions (1) Static Program Analysis  Path Transducer Model (Servlet)  Information Flow (Business Rules, Access Right Policies) (2) Customized Relational Constraint Solvers
