Riso Digital Education Center Appendix for SRC Training Basic Course 1.

Similar presentations


Presentation on theme: "Riso Digital Education Center Appendix for SRC Training Basic Course 1."— Presentation transcript:

1 Riso Digital Education Center Appendix for SRC Training Basic Course 1

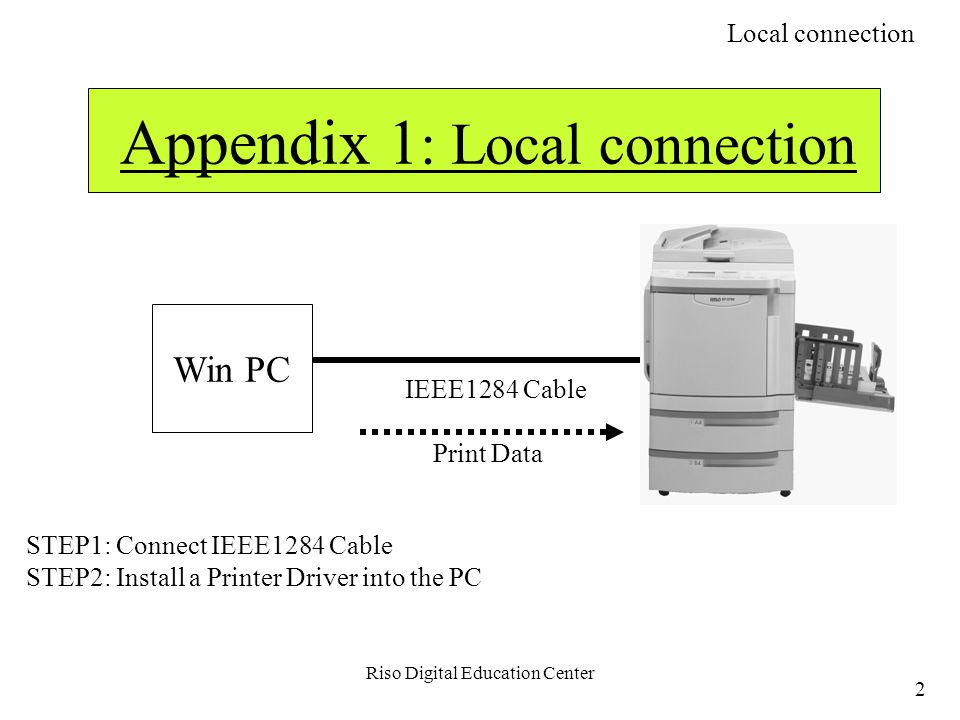

2 Riso Digital Education Center Local connection Win PC IEEE1284 Cable STEP1: Connect IEEE1284 Cable STEP2: Install a Printer Driver into the PC Print Data Appendix 1 : Local connection 2

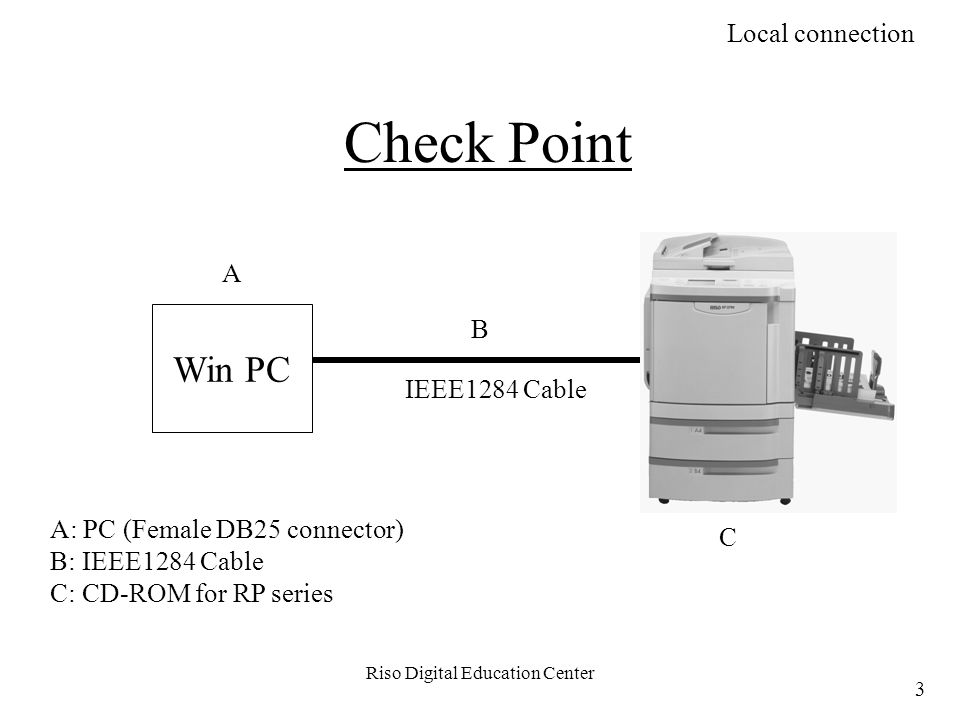

3 Riso Digital Education Center Check Point Local connection Win PC IEEE1284 Cable A: PC (Female DB25 connector) B: IEEE1284 Cable C: CD-ROM for RP series A B C 3

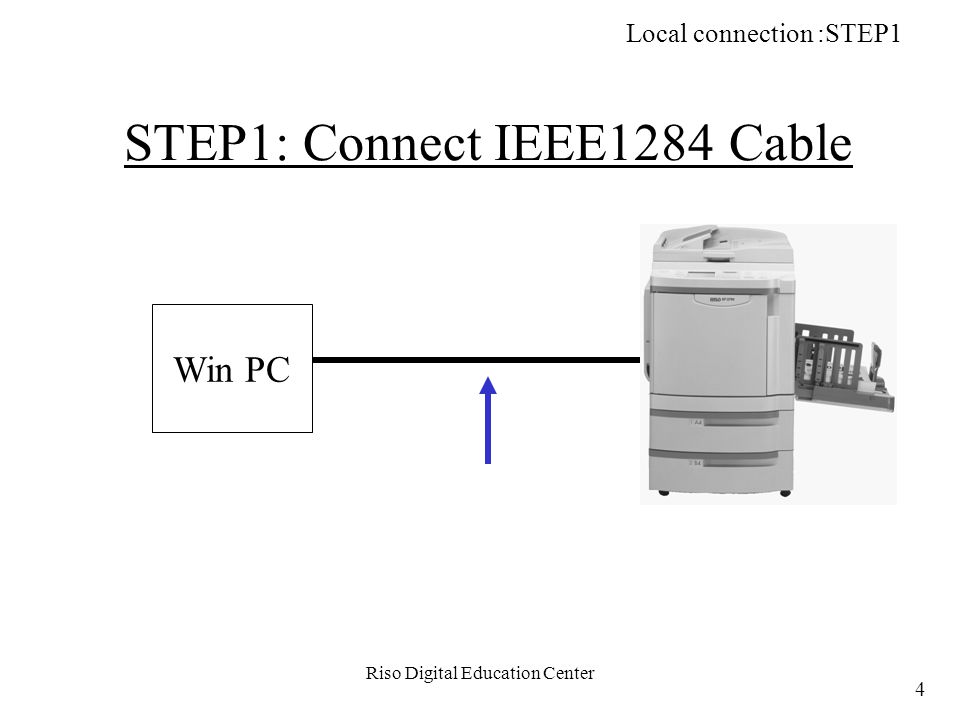

4 Riso Digital Education Center STEP1: Connect IEEE1284 Cable Local connection :STEP1 Win PC 4

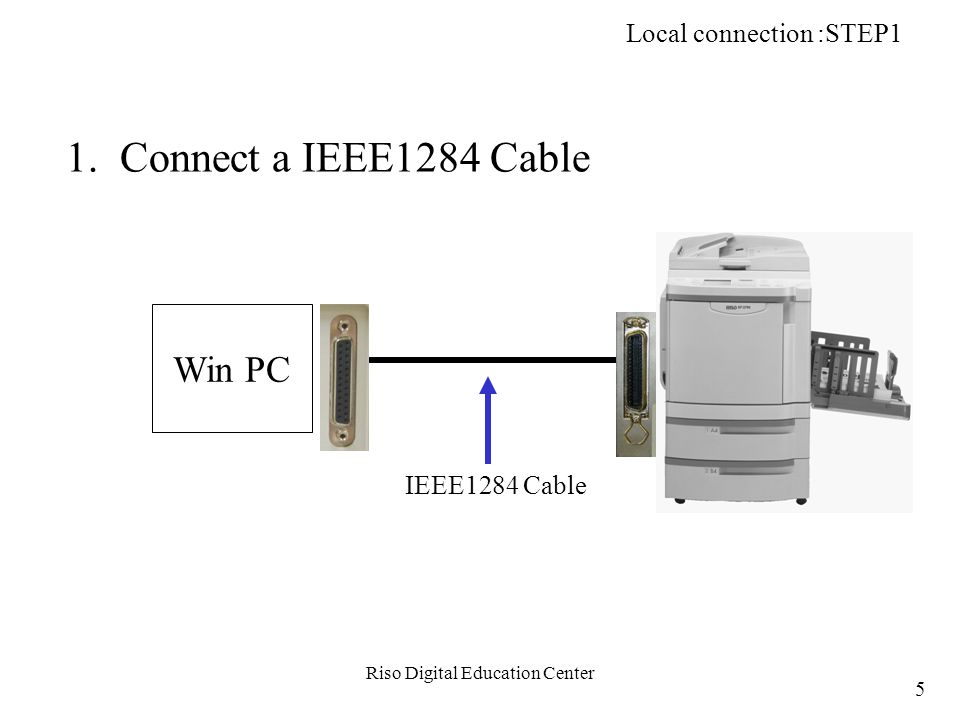

5 Riso Digital Education Center 1. Connect a IEEE1284 Cable Local connection :STEP1 Win PC IEEE1284 Cable 5

6 Riso Digital Education Center STEP2: Install a Printer Driver Local connection :STEP2 Win PC IEEE1284 Cable 6

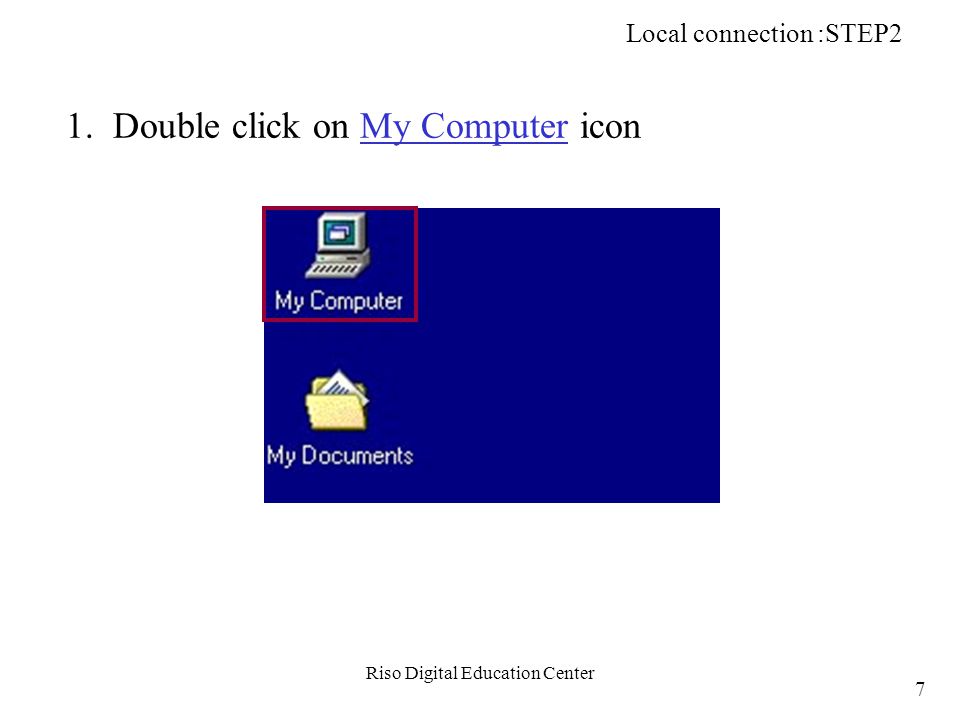

7 Riso Digital Education Center 1. Double click on My Computer icon Local connection :STEP2 7

8 Riso Digital Education Center 2. Double click on Printers icon Local connection :STEP2 8

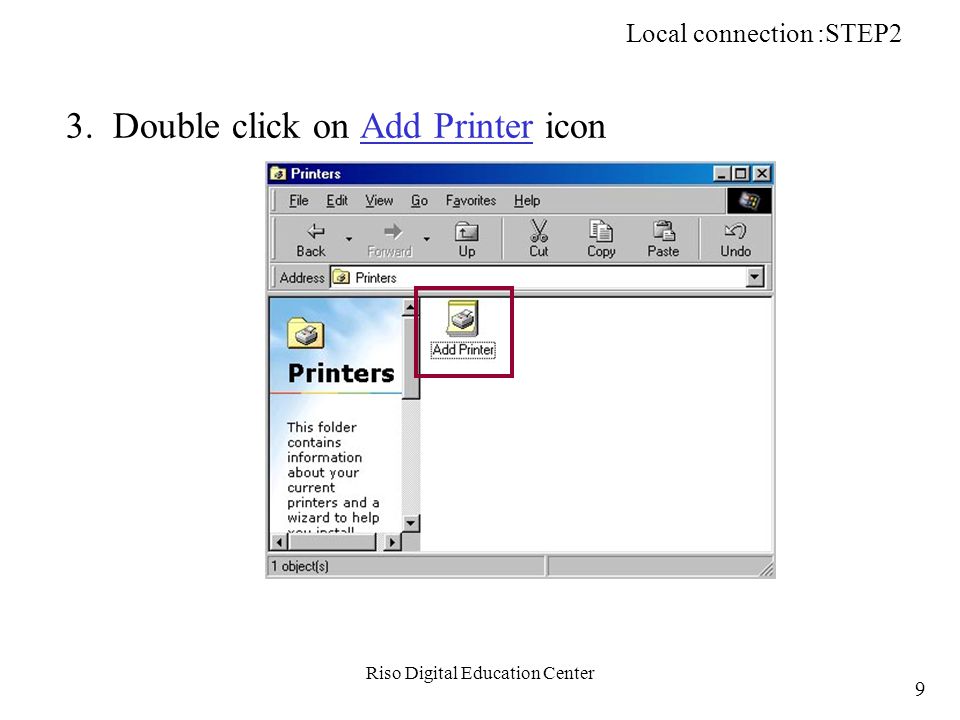

9 Riso Digital Education Center 3. Double click on Add Printer icon Local connection :STEP2 9

10 Riso Digital Education Center 4. Click on Next button Local connection :STEP2 10

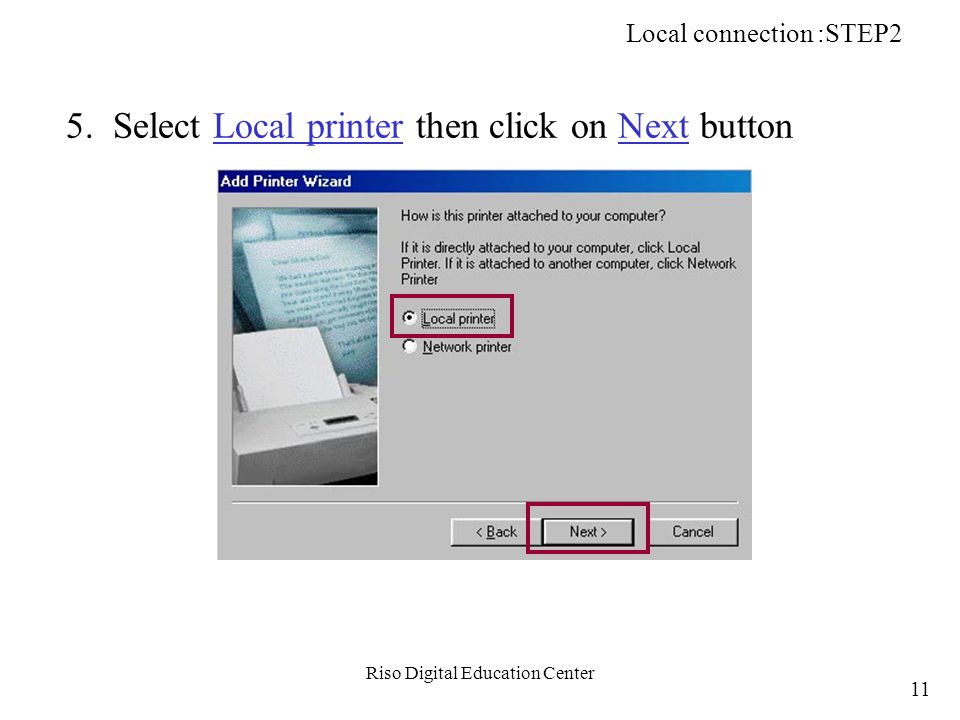

11 Riso Digital Education Center 5. Select Local printer then click on Next button Local connection :STEP2 11

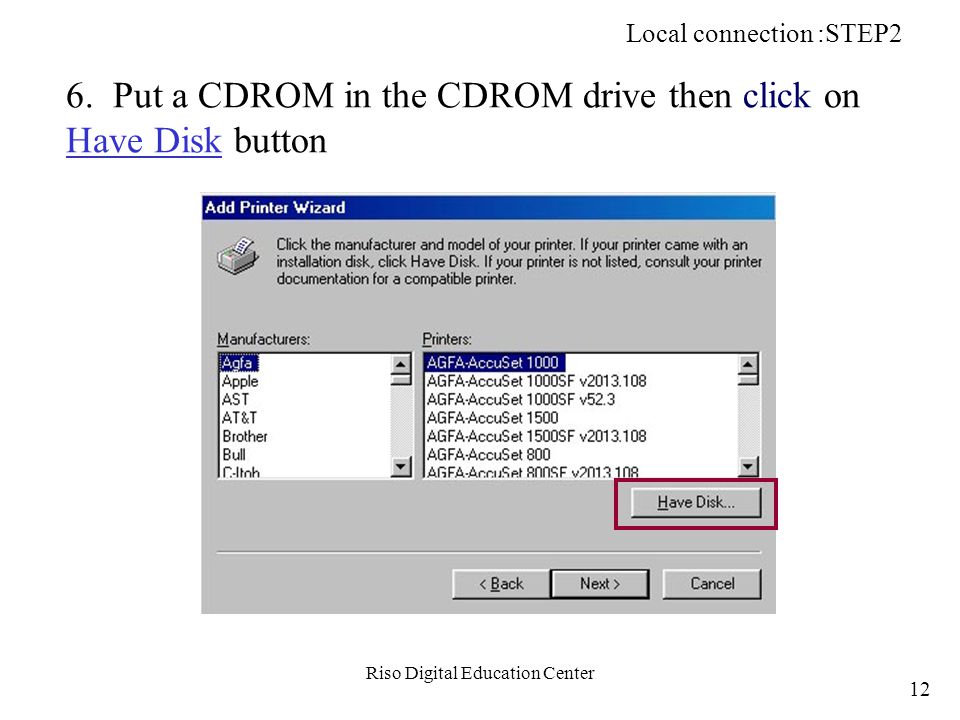

12 Riso Digital Education Center 6. Put a CDROM in the CDROM drive then click on Have Disk button Local connection :STEP2 12

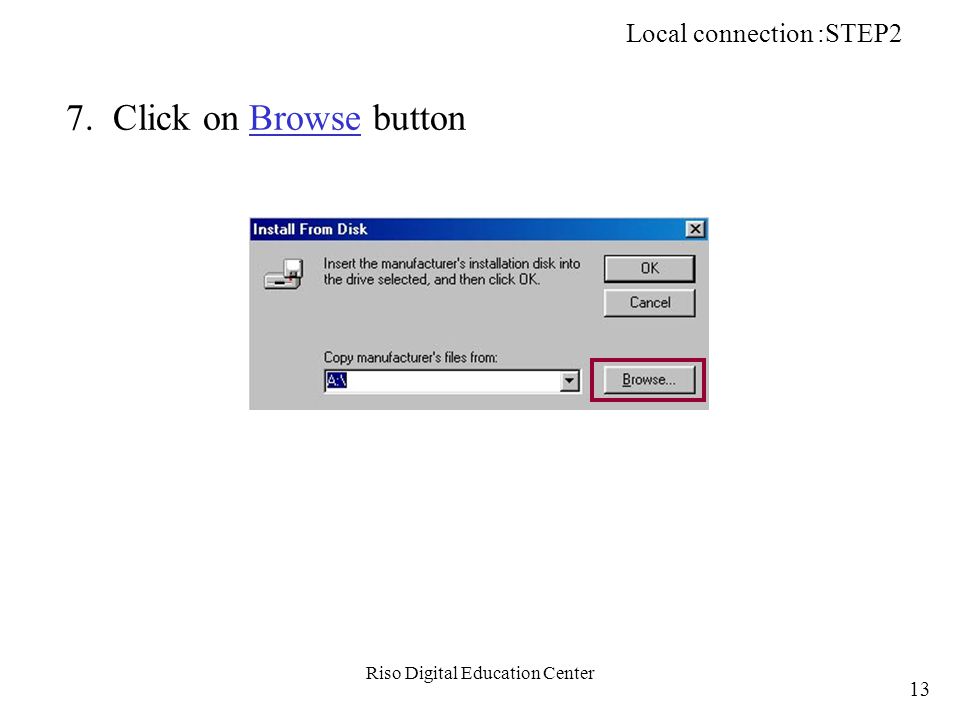

13 Riso Digital Education Center 7. Click on Browse button Local connection :STEP2 13

14 Riso Digital Education Center 8. Click arrow button then select CD-ROM drive Local connection :STEP2 14

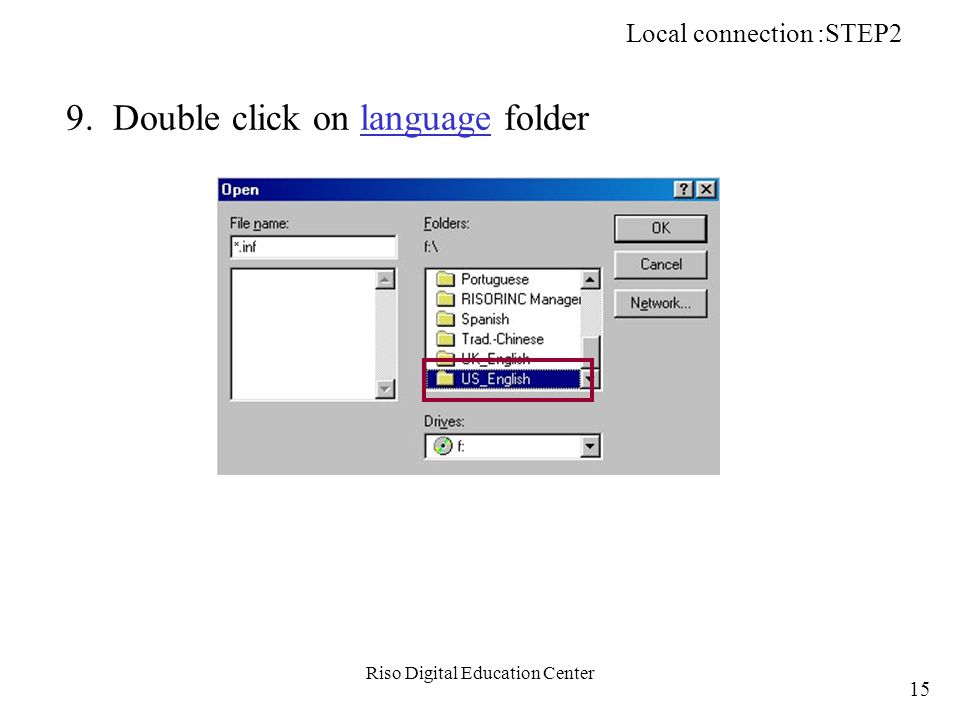

15 Riso Digital Education Center 9. Double click on language folder Local connection :STEP2 15

16 Riso Digital Education Center 10. Double click on OS (Operating system) folder Local connection :STEP2 16

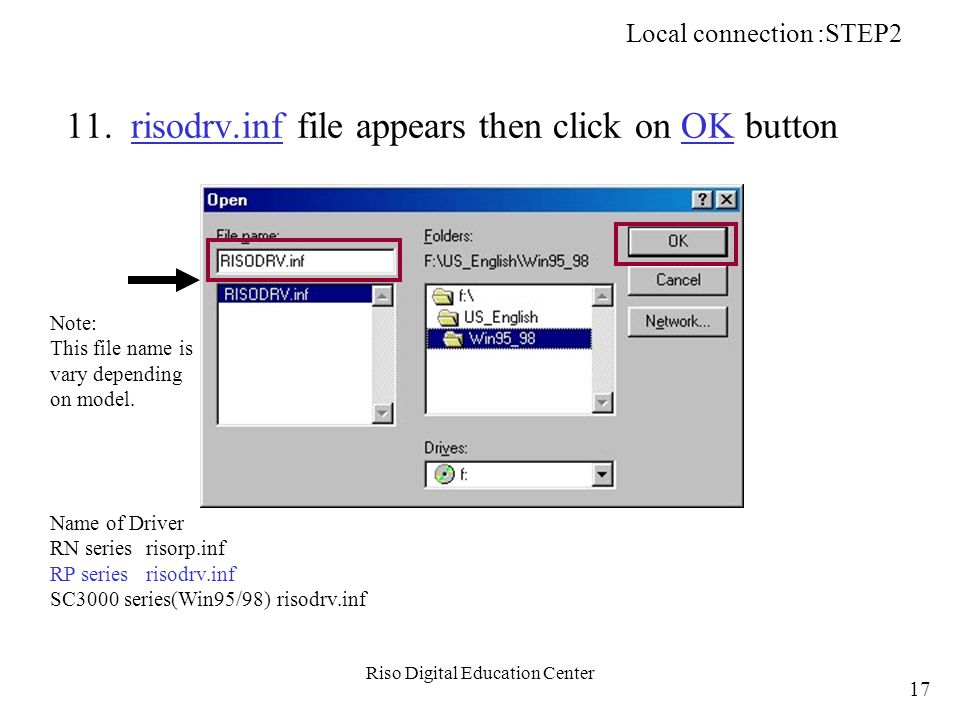

17 Riso Digital Education Center 11. risodrv.inf file appears then click on OK button Local connection :STEP2 Note: This file name is vary depending on model. Name of Driver RN seriesrisorp.inf RP seriesrisodrv.inf SC3000 series(Win95/98) risodrv.inf 17

18 Riso Digital Education Center 12. Click on OK button Local connection :STEP2 18

19 Riso Digital Education Center 13. Select RP model name then click on Next button Local connection :STEP2 19

20 Riso Digital Education Center 14. Select LPT1 then click on Next button Local connection :STEP2 20

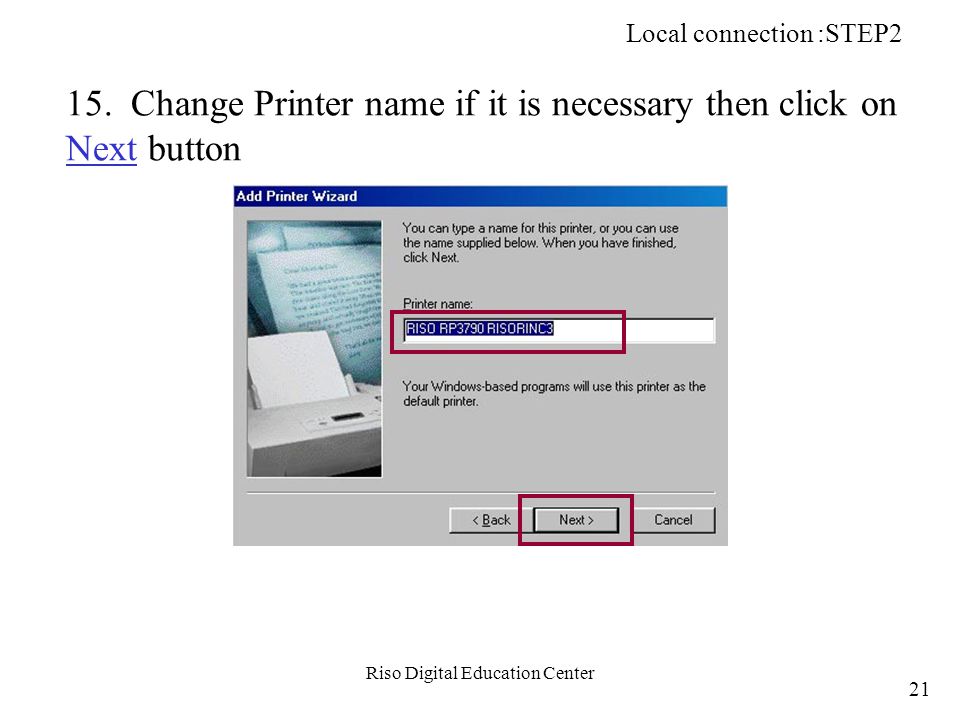

21 Riso Digital Education Center 15. Change Printer name if it is necessary then click on Next button Local connection :STEP2 21

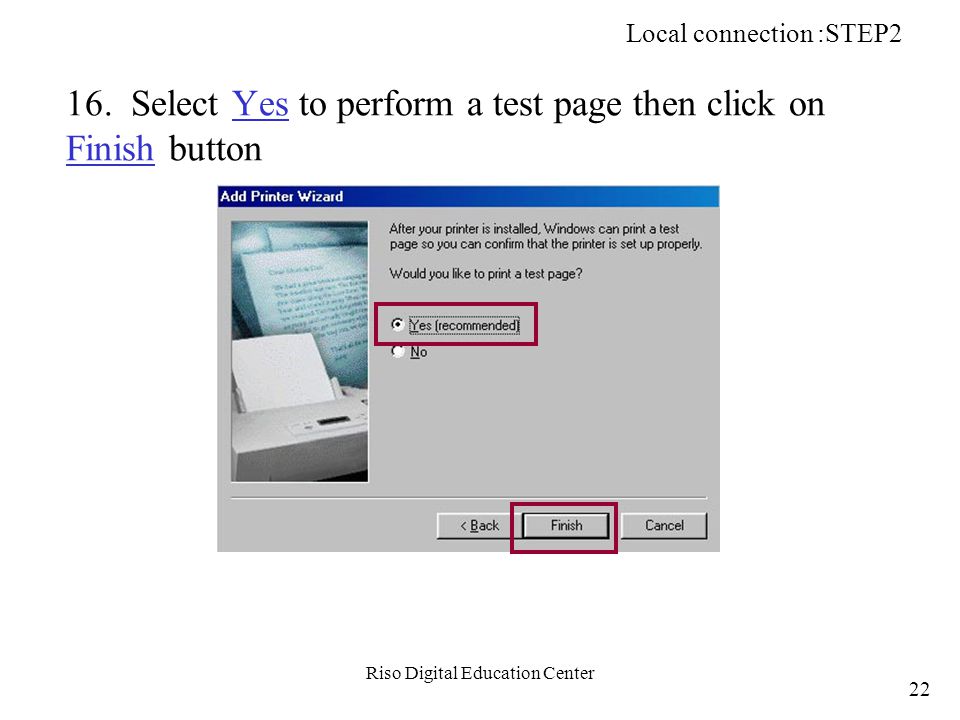

22 Riso Digital Education Center 16. Select Yes to perform a test page then click on Finish button Local connection :STEP2 22

23 Riso Digital Education Center 17. Click on Yes button Local connection :STEP2 23

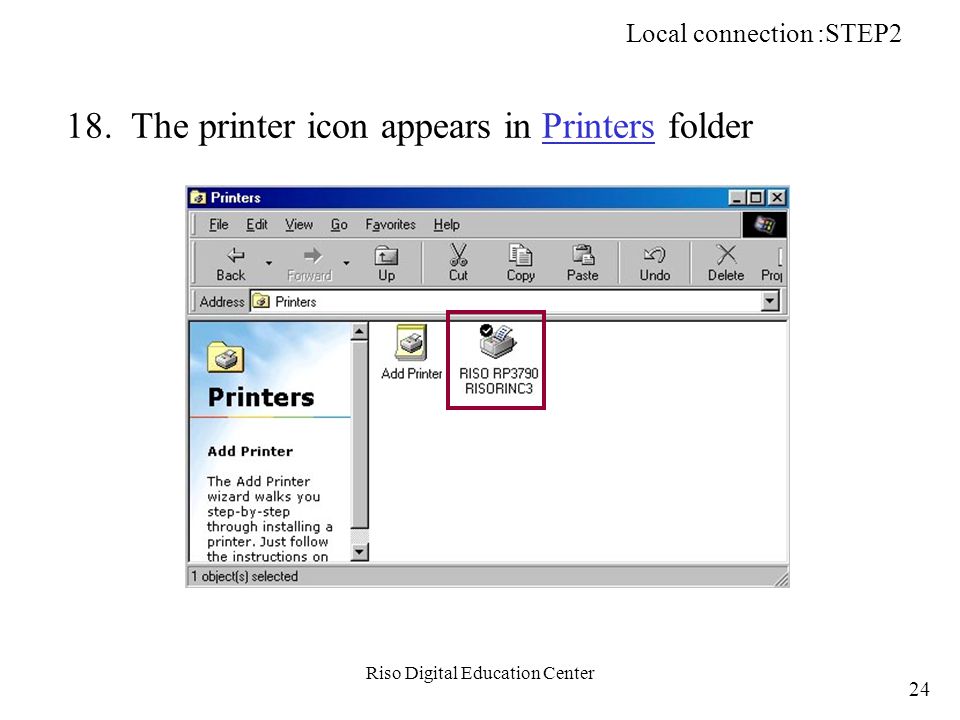

24 Riso Digital Education Center 18. The printer icon appears in Printers folder Local connection :STEP2 24

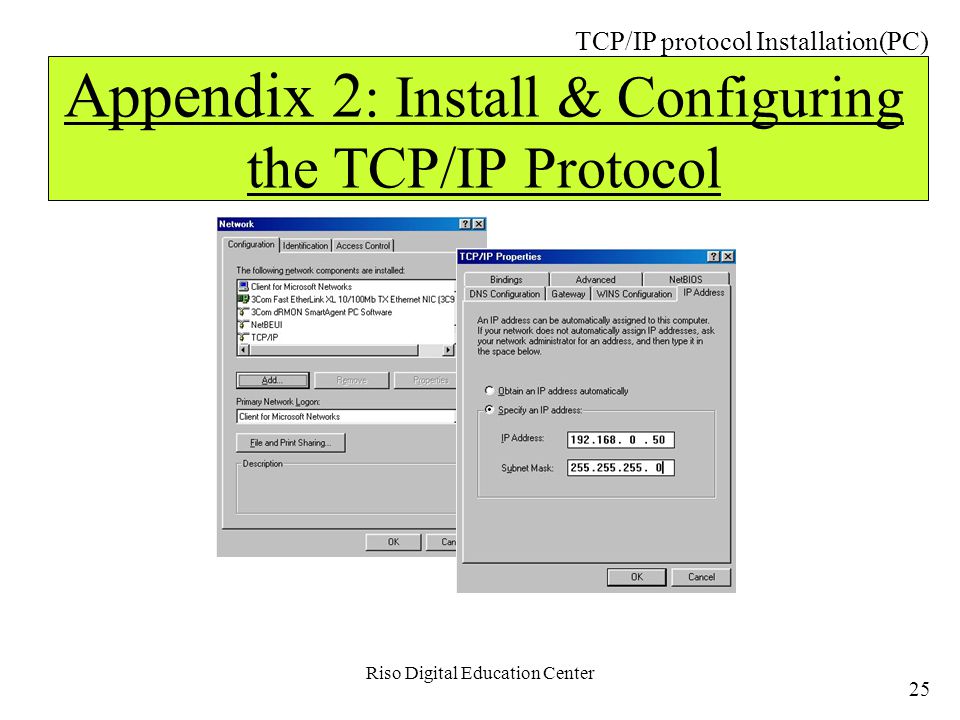

25 Riso Digital Education Center TCP/IP protocol Installation(PC) Appendix 2 : Install & Configuring the TCP/IP Protocol 25

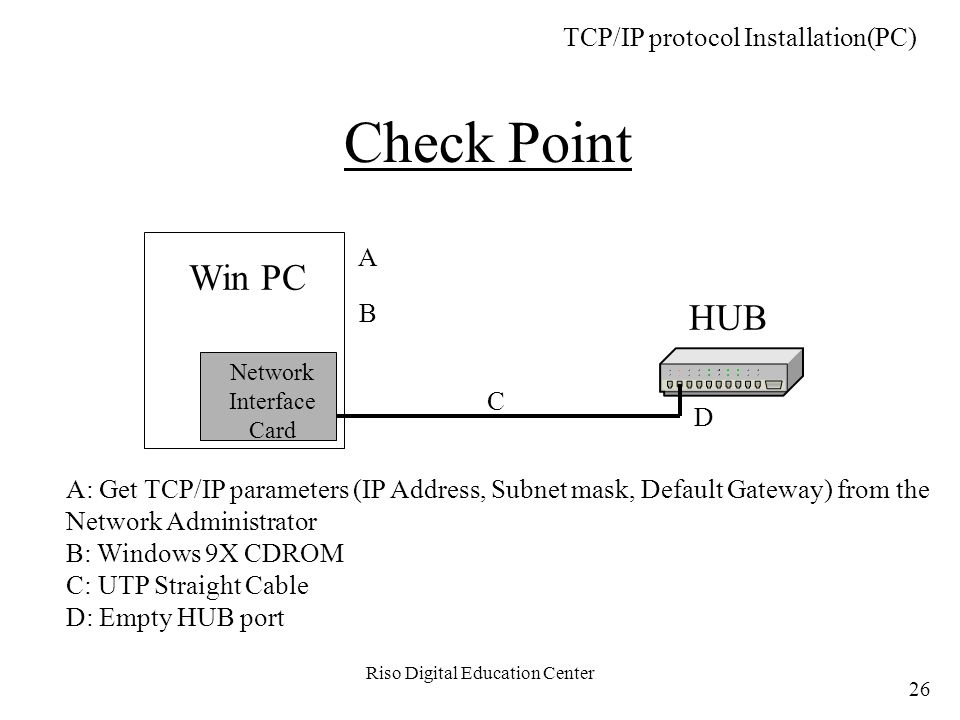

26 Riso Digital Education Center Check Point TCP/IP protocol Installation(PC) A B A: Get TCP/IP parameters (IP Address, Subnet mask, Default Gateway) from the Network Administrator B: Windows 9X CDROM C: UTP Straight Cable D: Empty HUB port D Win PC Network Interface Card C HUB 26

27 Riso Digital Education Center Install & Configuring TCP/IP Protocol TCP/IP protocol Installation(PC) 27

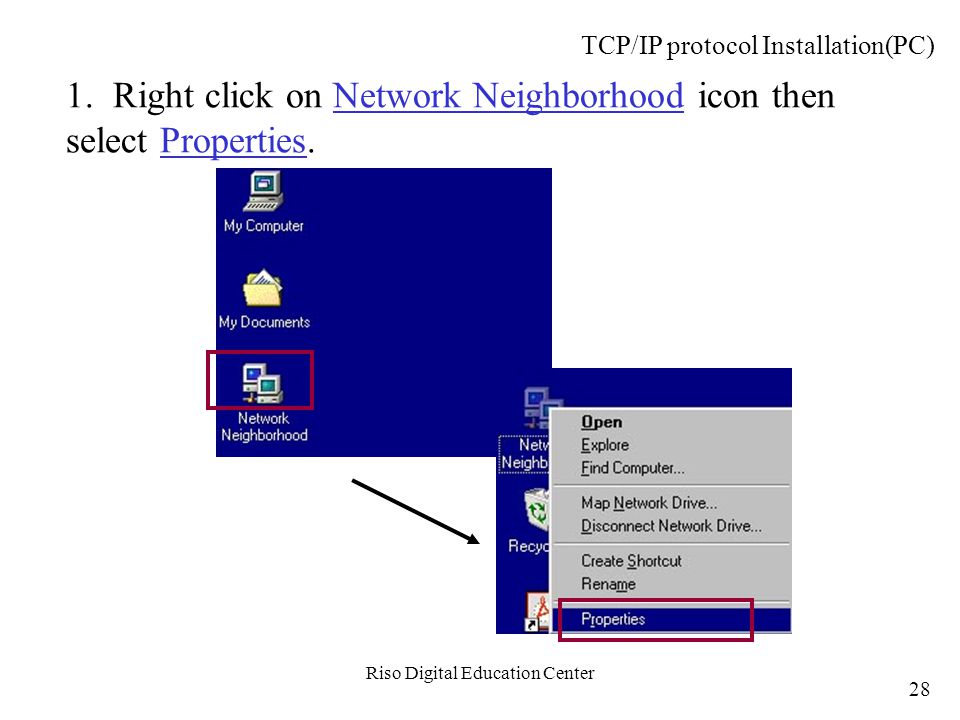

28 Riso Digital Education Center 1. Right click on Network Neighborhood icon then select Properties. TCP/IP protocol Installation(PC) 28

29 Riso Digital Education Center 2. Make sure No TCP/IP protocol is exist in the list. Then click on Add button. TCP/IP protocol Installation(PC) Note: If TCP/IP protocol is exist, jump to 5. 29

30 Riso Digital Education Center 3. Select Protocol then click on Add button. TCP/IP protocol Installation(PC) 30

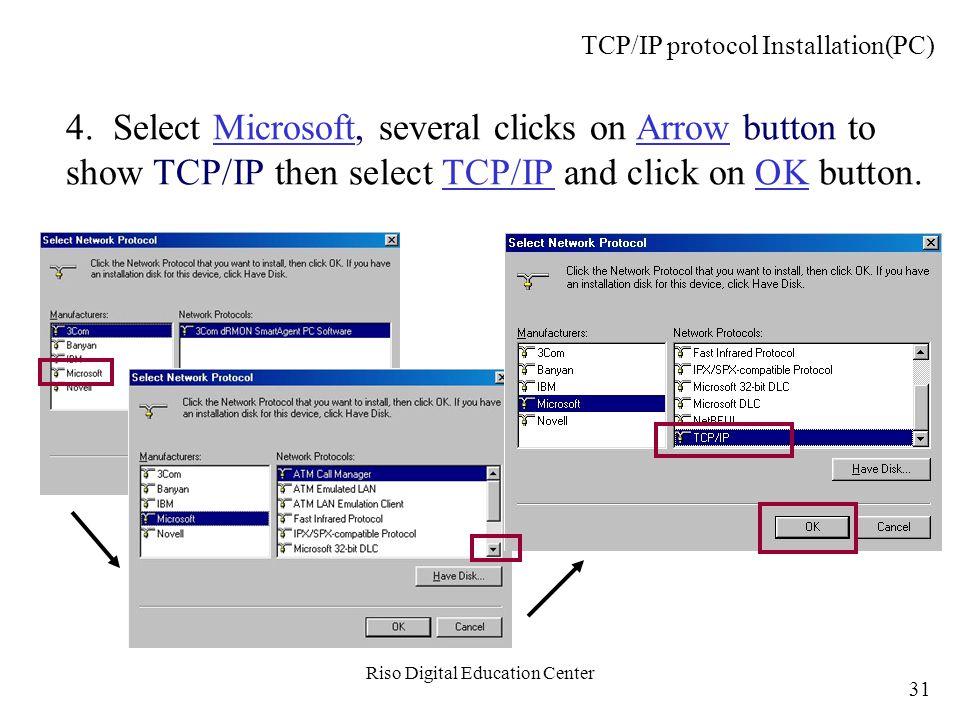

31 Riso Digital Education Center 4. Select Microsoft, several clicks on Arrow button to show TCP/IP then select TCP/IP and click on OK button. TCP/IP protocol Installation(PC) 31

32 Riso Digital Education Center 5. Select TCP/IP protocol then click on Properties button. TCP/IP protocol Installation(PC) 32

33 Riso Digital Education Center 6. Change radio button from Obtain an IP address automatically to Specify an IP address. TCP/IP protocol Installation(PC) 33

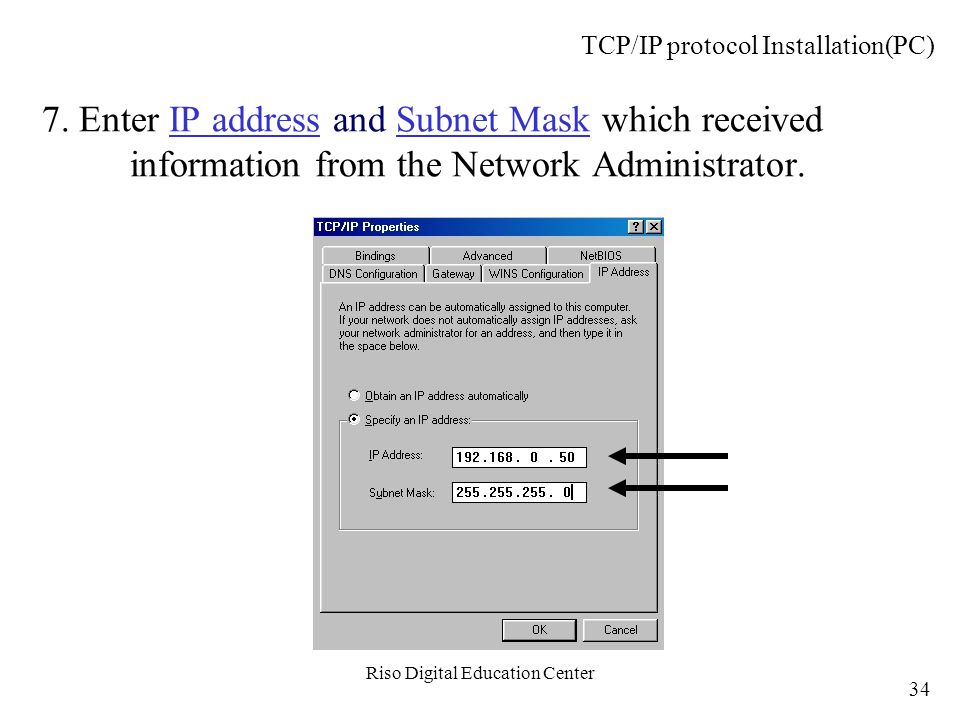

34 Riso Digital Education Center 7. Enter IP address and Subnet Mask which received information from the Network Administrator. TCP/IP protocol Installation(PC) 34

35 Riso Digital Education Center 8. Open Gateway tab. Enter Default Gateway received information from the Network Administrator and click Add button. Click on OK button. TCP/IP protocol Installation(PC) 35

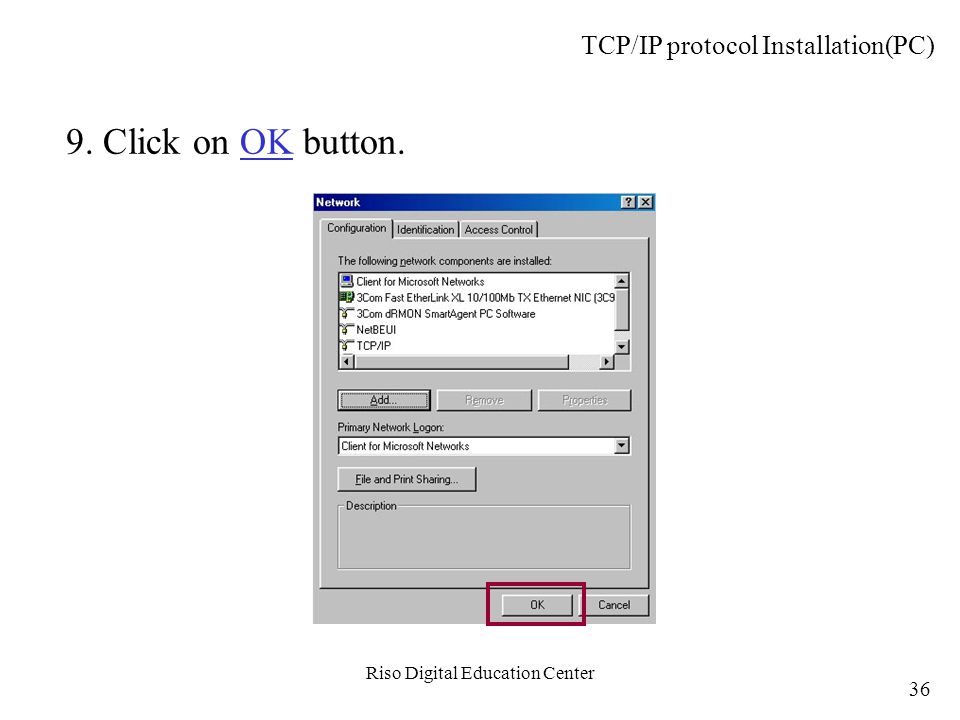

36 Riso Digital Education Center 9. Click on OK button. TCP/IP protocol Installation(PC) 36

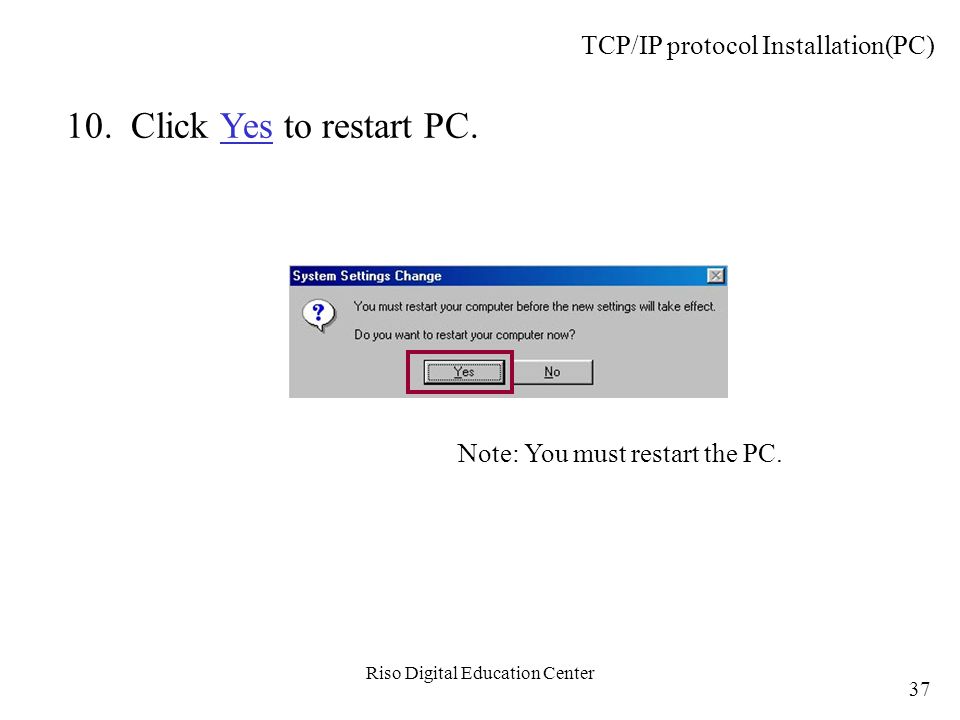

37 Riso Digital Education Center 10. Click Yes to restart PC. Note: You must restart the PC. TCP/IP protocol Installation(PC) 37

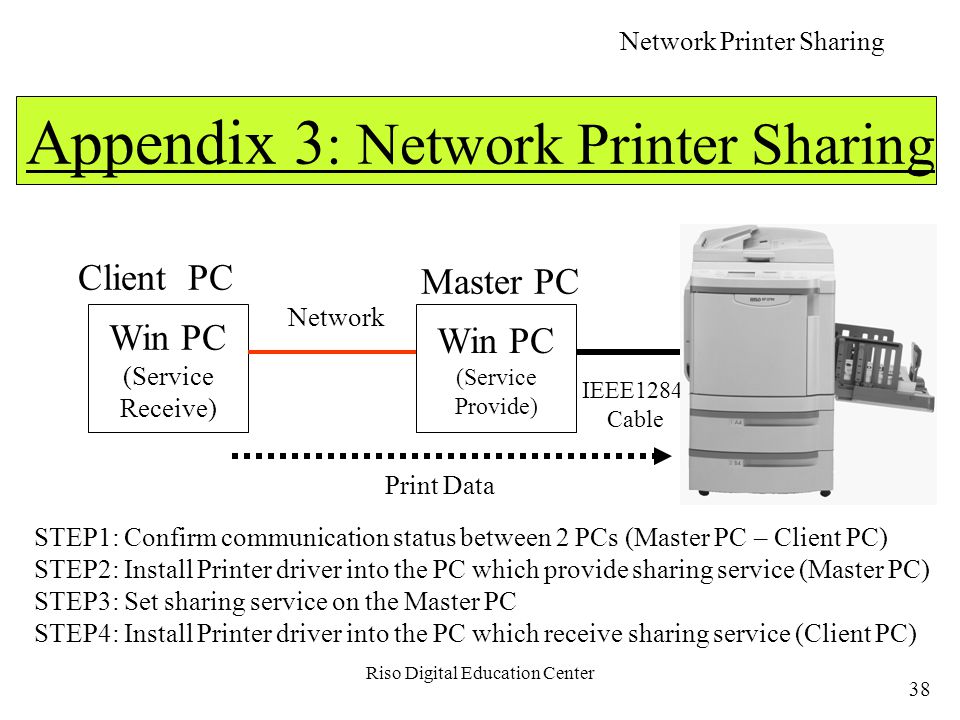

38 Riso Digital Education Center Network Printer Sharing STEP1: Confirm communication status between 2 PCs (Master PC – Client PC) STEP2: Install Printer driver into the PC which provide sharing service (Master PC) STEP3: Set sharing service on the Master PC STEP4: Install Printer driver into the PC which receive sharing service (Client PC) Win PC (Service Receive) IEEE1284 Cable Print Data Win PC (Service Provide) Network Client PC Master PC Appendix 3 : Network Printer Sharing 38

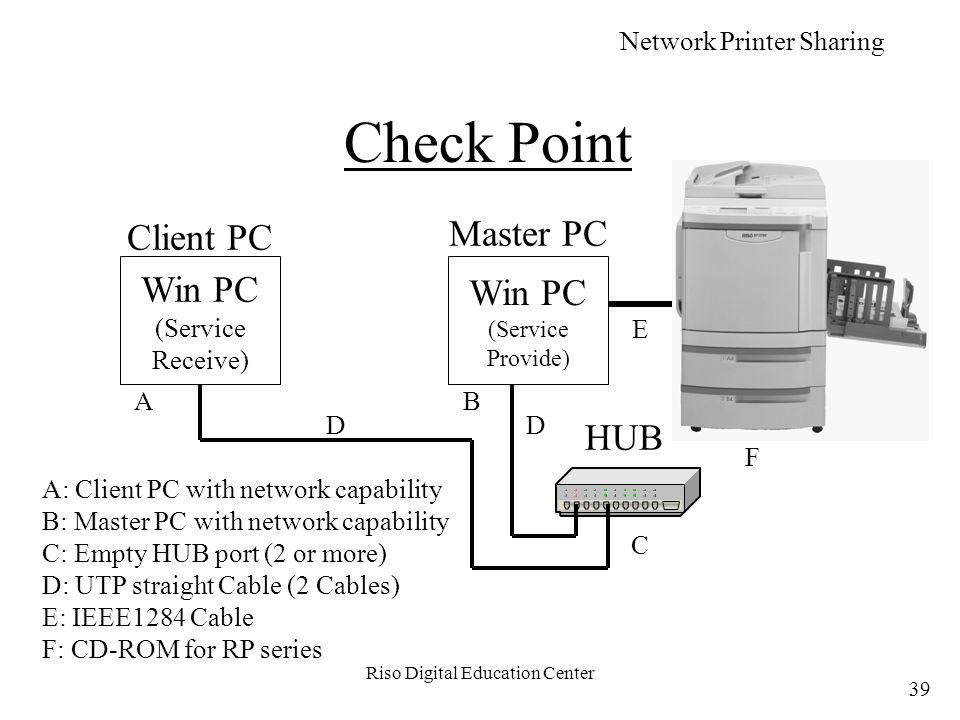

39 Riso Digital Education Center Network Printer Sharing Win PC (Service Receive) Win PC (Service Provide) Check Point A HUB A: Client PC with network capability B: Master PC with network capability C: Empty HUB port (2 or more) D: UTP straight Cable (2 Cables) E: IEEE1284 Cable F: CD-ROM for RP series B C DD E F Client PC Master PC 39

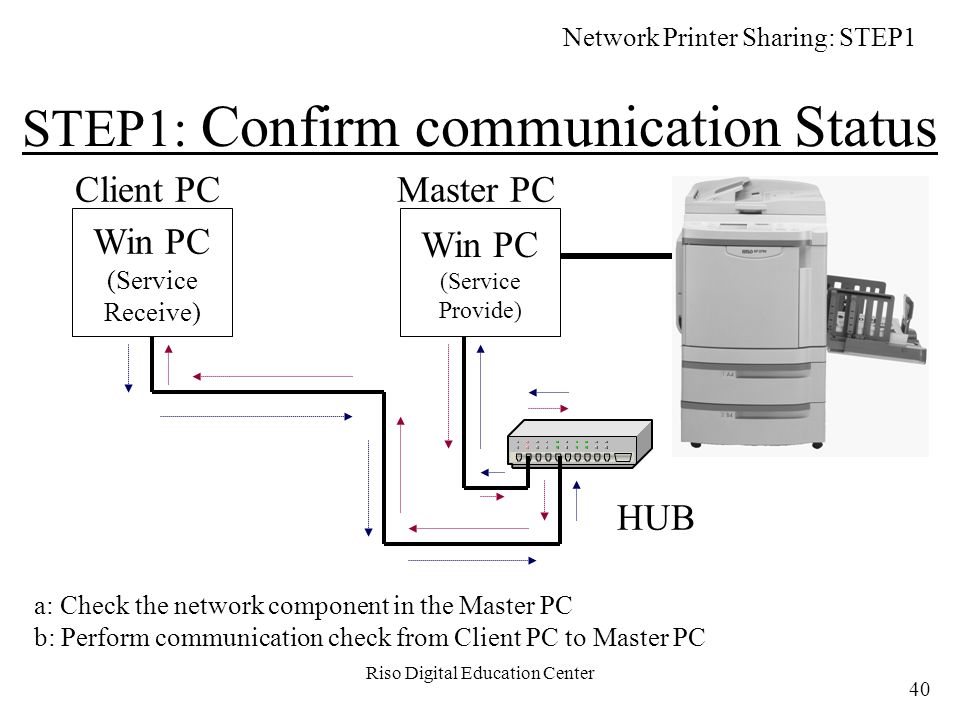

40 Riso Digital Education Center STEP1: Confirm communication Status Network Printer Sharing: STEP1 a: Check the network component in the Master PC b: Perform communication check from Client PC to Master PC Win PC (Service Receive) Win PC (Service Provide) HUB Client PCMaster PC 40

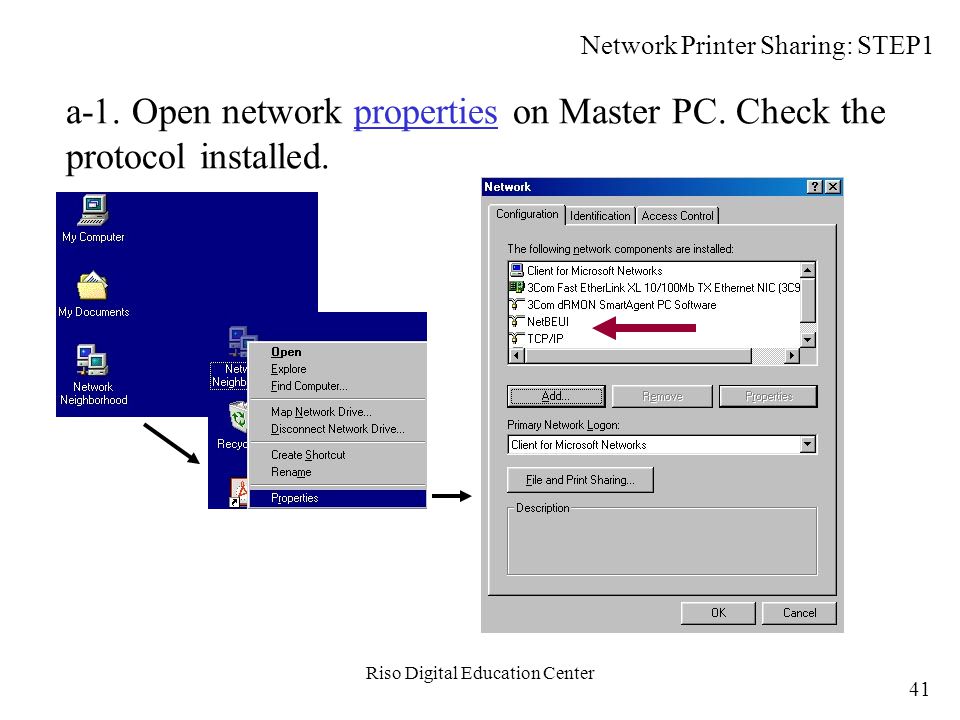

41 Riso Digital Education Center a-1. Open network properties on Master PC. Check the protocol installed. Network Printer Sharing: STEP1 41

42 Riso Digital Education Center a-2. Click on File and Print Sharing button. Network Printer Sharing: STEP1 42

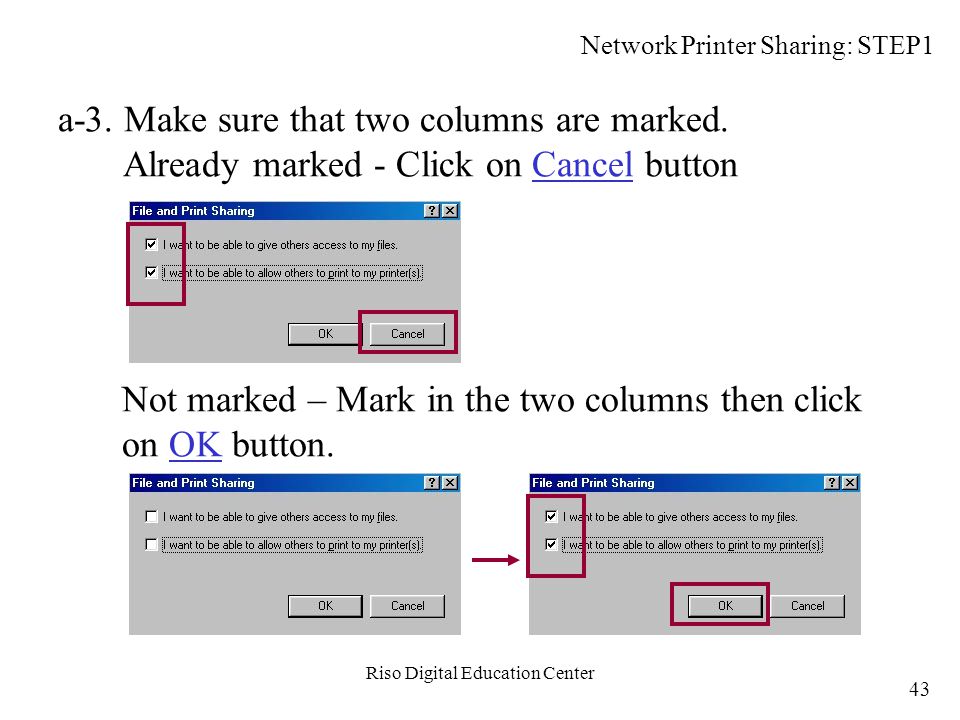

43 Riso Digital Education Center a-3. Make sure that two columns are marked. Already marked - Click on Cancel button Network Printer Sharing: STEP1 Not marked – Mark in the two columns then click on OK button. 43

44 Riso Digital Education Center a-4. Make sure that File and Printer sharing…. exist. Then Click on OK button Network Printer Sharing: STEP1 44

45 Riso Digital Education Center a-5. Click Yes to restart PC. Note: You must restart the PC. Network Printer Sharing: STEP1 45

46 Riso Digital Education Center b-1. Open network properties on Master PC. Open Identification tab. Network Printer Sharing: STEP1 46

47 Riso Digital Education Center b-2. Check and note Computer name & Workgroup. Network Printer Sharing: STEP1 47

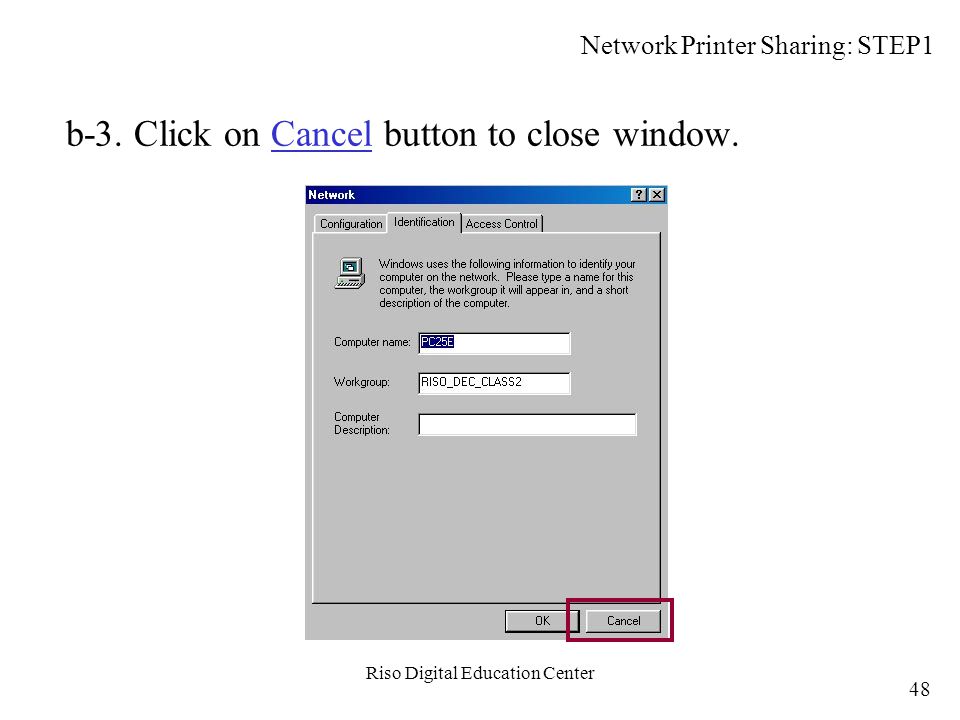

48 Riso Digital Education Center b-3. Click on Cancel button to close window. Network Printer Sharing: STEP1 48

49 Riso Digital Education Center b-4. Check the installed protocol on Client PC. Network Printer Sharing: STEP1 Either of protocol must be same as Master PC. For Example, NetBEUI TCP/IP 49

50 Riso Digital Education Center b-5. On the Client PC, Select Start – Find – Computer Network Printer Sharing: STEP1 50

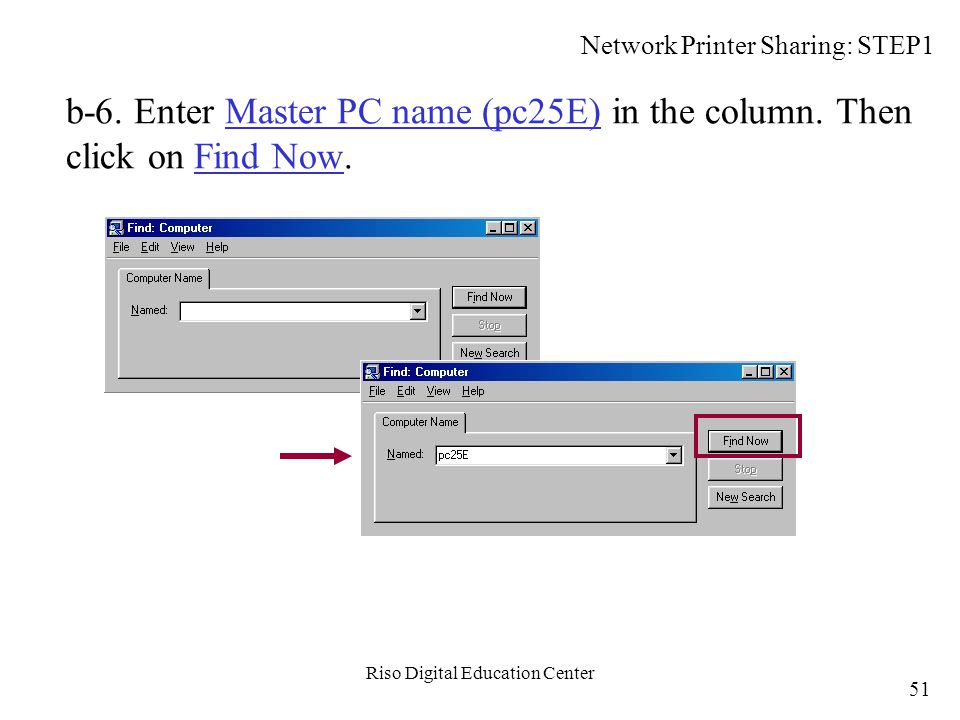

51 Riso Digital Education Center b-6. Enter Master PC name (pc25E) in the column. Then click on Find Now. Network Printer Sharing: STEP1 51

52 Riso Digital Education Center b-7. Confirm PC name (pc25E) in the list below. Then close the window. Network Printer Sharing: STEP1 52

53 Riso Digital Education Center STEP2: Install Printer into the PC which provide sharing service (Master PC) Network Printer Sharing: STEP2 53

54 Riso Digital Education Center 1. Double click on My Computer icon Network Printer Sharing: :STEP2 54

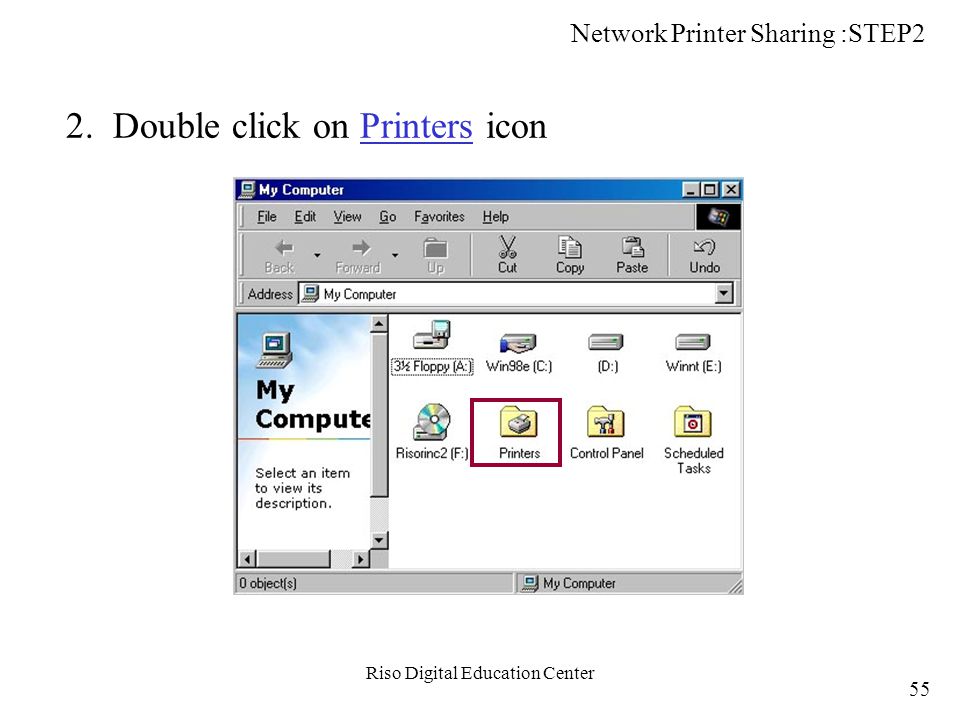

55 Riso Digital Education Center 2. Double click on Printers icon Network Printer Sharing :STEP2 55

56 Riso Digital Education Center 3. Double click on Add Printer icon Network Printer Sharing :STEP2 56

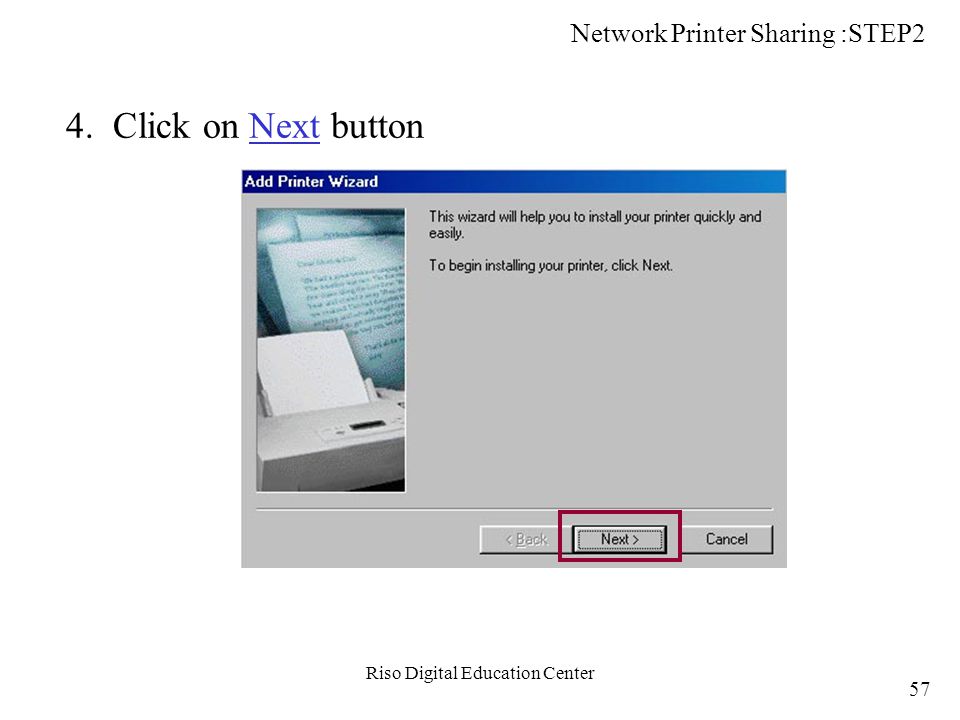

57 Riso Digital Education Center 4. Click on Next button Network Printer Sharing :STEP2 57

58 Riso Digital Education Center 5. Select Local printer then click on Next button Network Printer Sharing :STEP2 58

59 Riso Digital Education Center 6. Put a CDROM in the CDROM drive then click on Have Disk button Network Printer Sharing :STEP2 59

60 Riso Digital Education Center 7. Click on Browse button Network Printer Sharing :STEP2 60

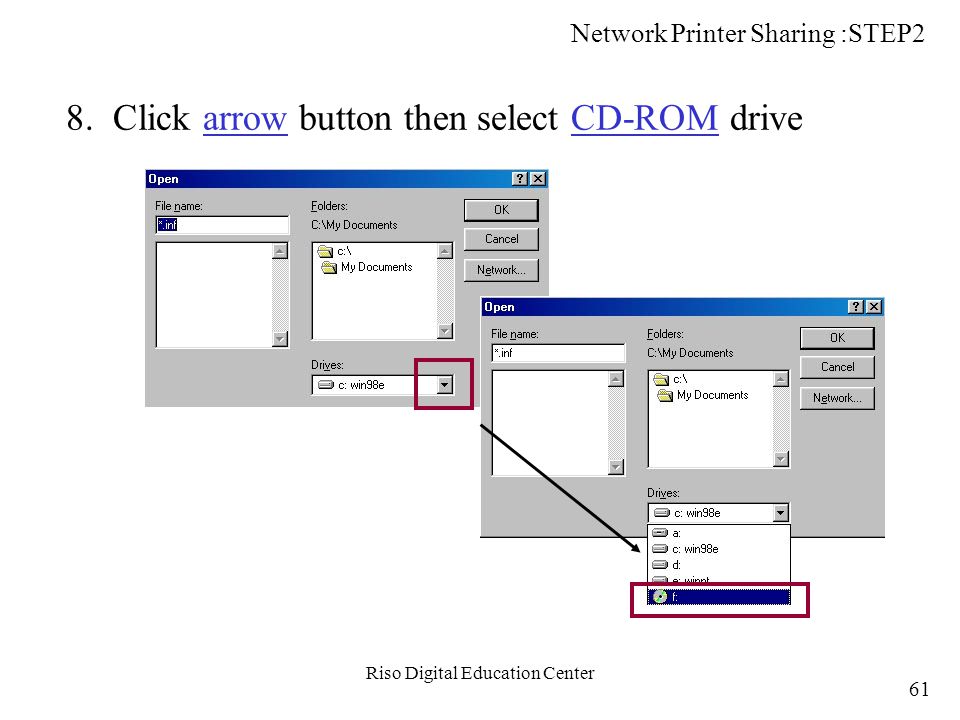

61 Riso Digital Education Center 8. Click arrow button then select CD-ROM drive Network Printer Sharing :STEP2 61

62 Riso Digital Education Center 9. Double click on language folder Network Printer Sharing :STEP2 62

63 Riso Digital Education Center 10. Double click on OS (Operating system) folder Network Printer Sharing :STEP2 63

64 Riso Digital Education Center 11. risodrv.inf file appears then click on OK button Network Printer Sharing :STEP2 Name of Driver RN seriesrisorp.inf RP seriesrisodrv.inf SC3000 series(Win95/98) risodrv.inf Note: This file name is vary depending on model. 64

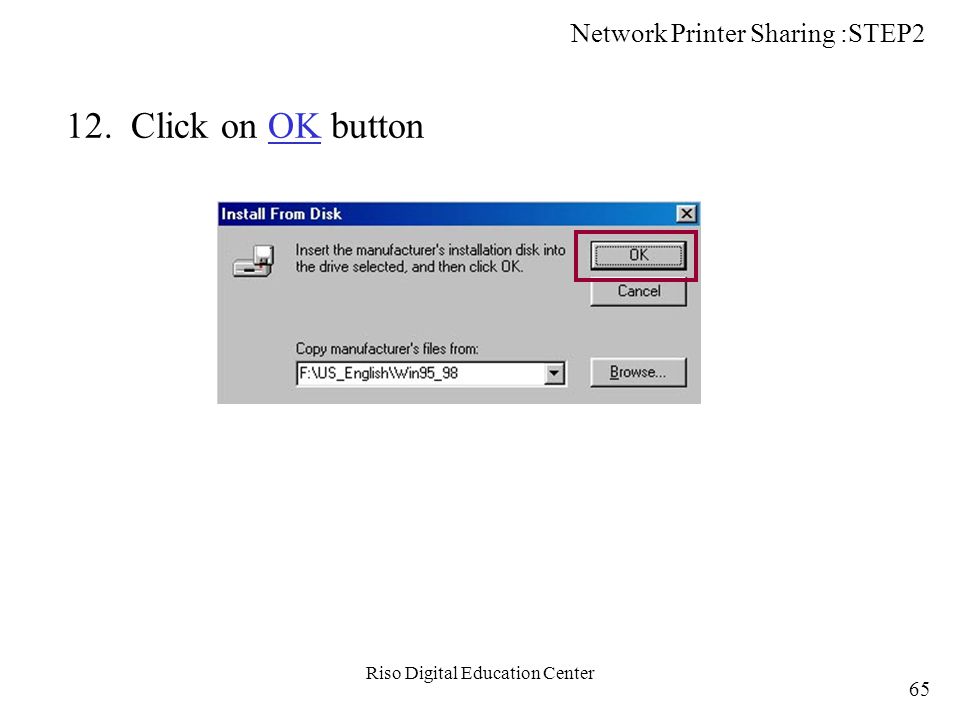

65 Riso Digital Education Center 12. Click on OK button Network Printer Sharing :STEP2 65

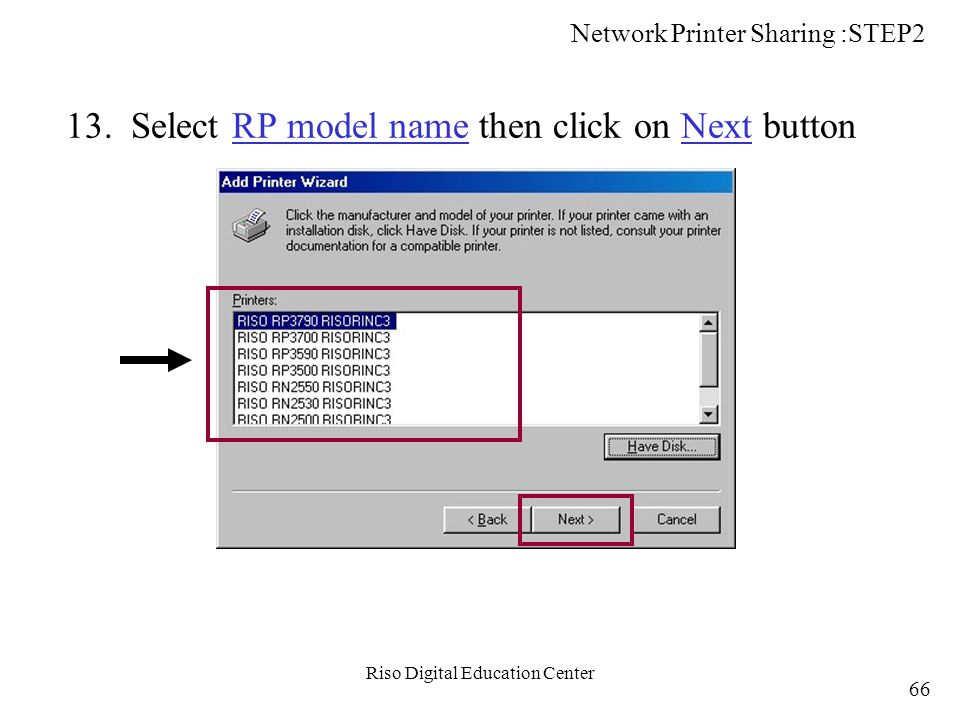

66 Riso Digital Education Center Network Printer Sharing :STEP2 13. Select RP model name then click on Next button 66

67 Riso Digital Education Center 14. Select LPT1 then click on Next button Network Printer Sharing :STEP2 67

68 Riso Digital Education Center 15. Change Printer name if it is necessary then click on Next button Network Printer Sharing :STEP2 68

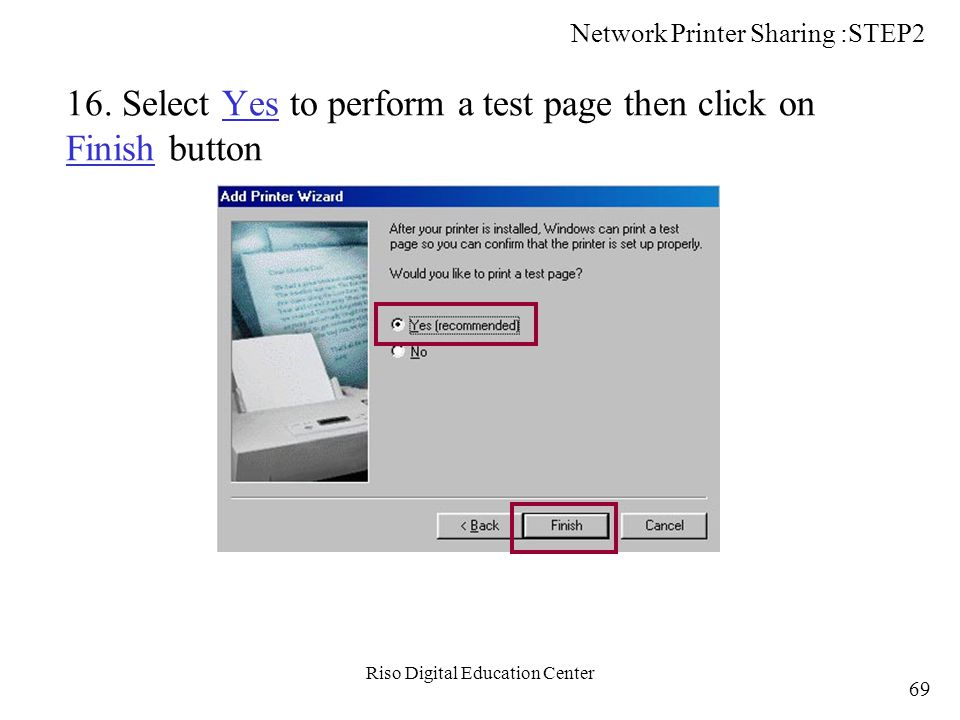

69 Riso Digital Education Center 16. Select Yes to perform a test page then click on Finish button Network Printer Sharing :STEP2 69

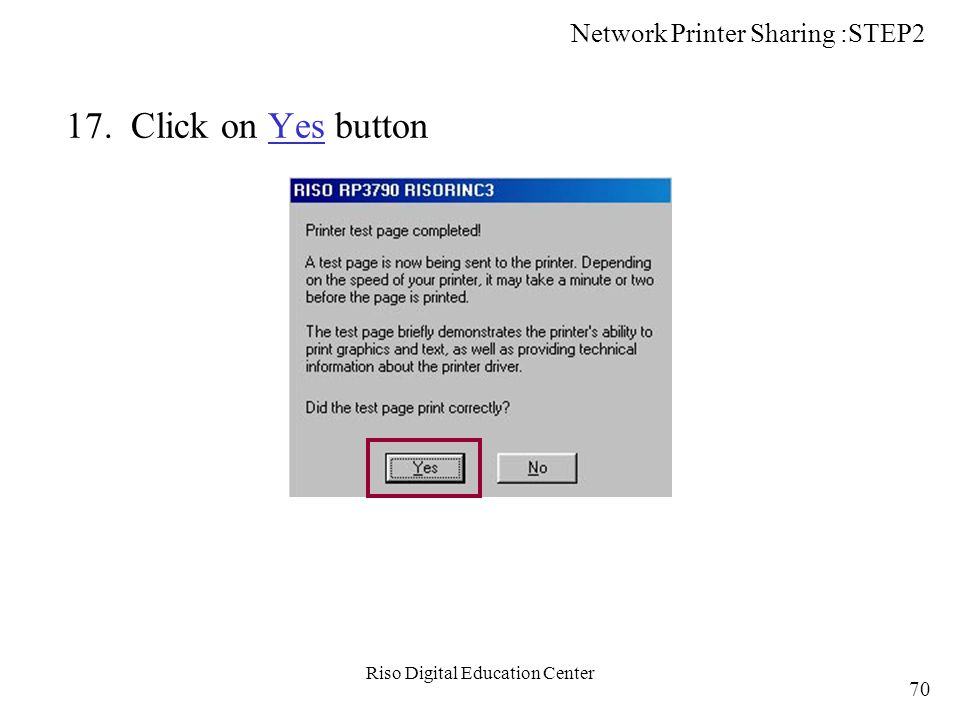

70 Riso Digital Education Center 17. Click on Yes button Network Printer Sharing :STEP2 70

71 Riso Digital Education Center 18. Printer icon appears in Printers folder Network Printer Sharing :STEP2 71

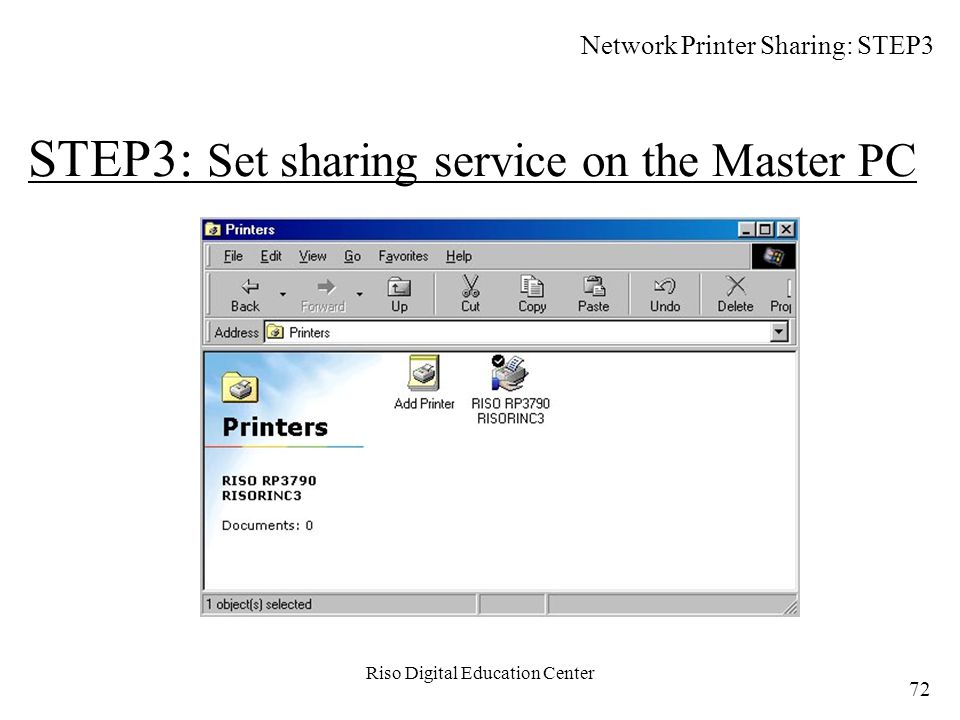

72 Riso Digital Education Center STEP3: Set sharing service on the Master PC Network Printer Sharing: STEP3 72

73 Riso Digital Education Center 1. Right click on the printer icon then select Properties. Network Printer Sharing: :STEP3 73

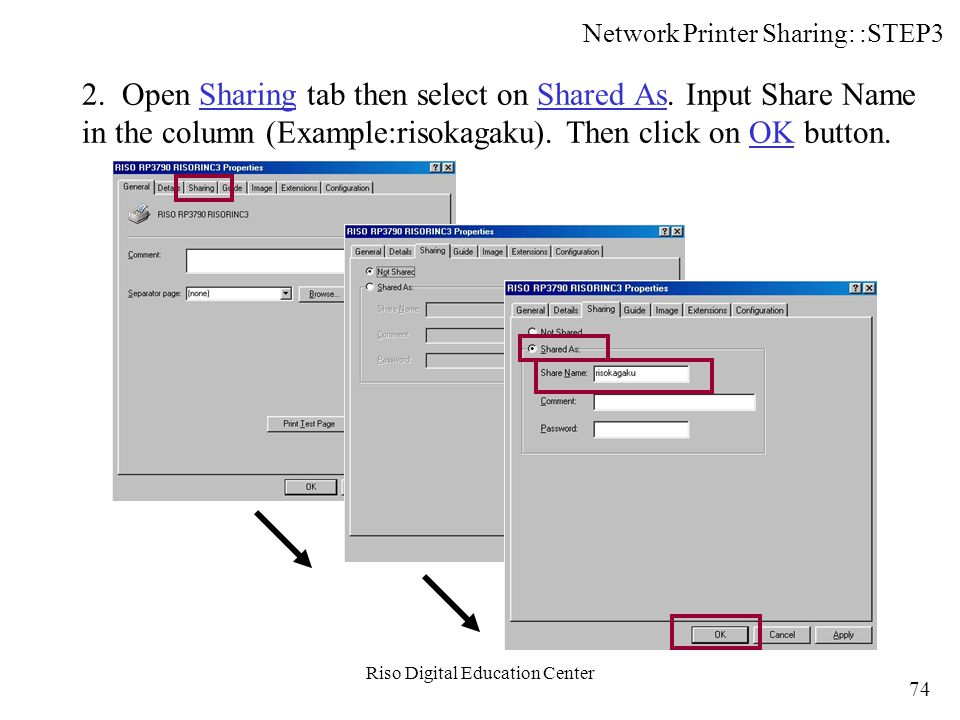

74 Riso Digital Education Center 2. Open Sharing tab then select on Shared As. Input Share Name in the column (Example:risokagaku). Then click on OK button. Network Printer Sharing: :STEP3 74

75 Riso Digital Education Center 3. A hand illustration appears on the printer icon. Network Printer Sharing: :STEP3 75

76 Riso Digital Education Center STEP4: Install Printer into the PC which receive sharing service (Client PC) Network Printer Sharing: STEP4 76

77 Riso Digital Education Center 1. Double click on My Computer icon Network Printer Sharing: :STEP4 77

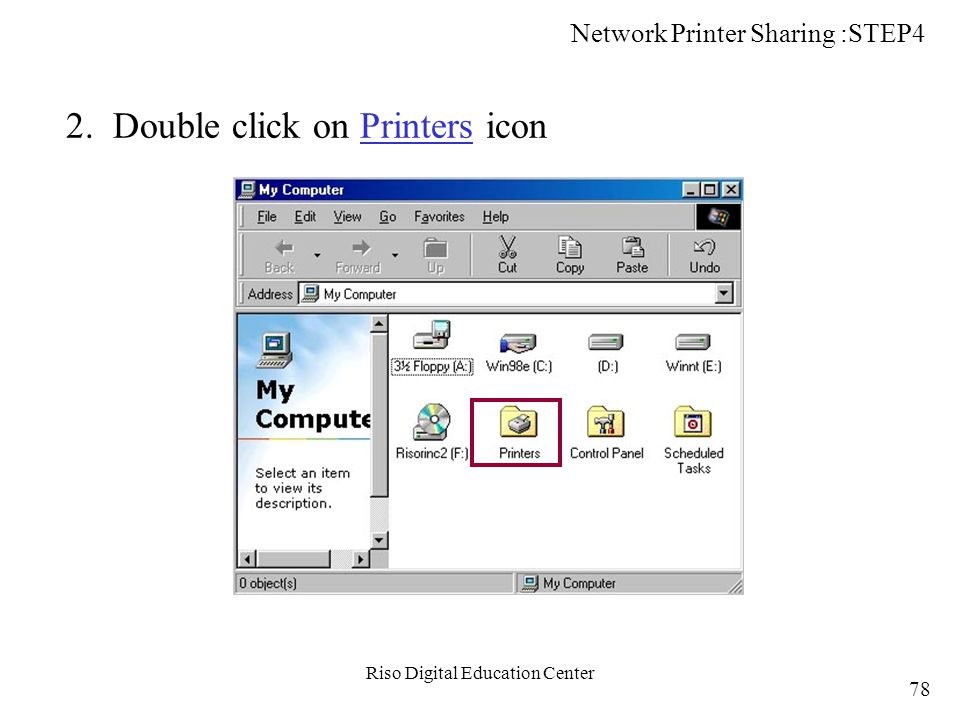

78 Riso Digital Education Center 2. Double click on Printers icon Network Printer Sharing :STEP4 78

79 Riso Digital Education Center 3. Double click on Add Printer icon Network Printer Sharing :STEP4 79

80 Riso Digital Education Center 4. Click on Next button Network Printer Sharing :STEP4 80

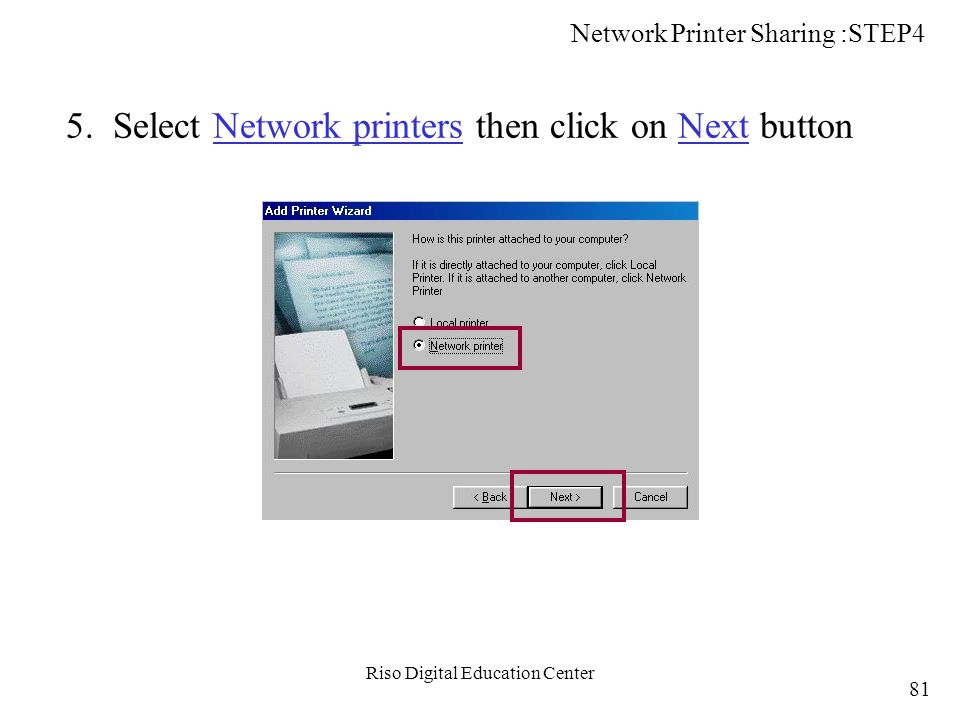

81 Riso Digital Education Center 5. Select Network printers then click on Next button Network Printer Sharing :STEP4 81

82 Riso Digital Education Center 6. Click on Browse button. Network Printer Sharing :STEP4 82

83 Riso Digital Education Center 7. Double click on PC25e icon then click on risokagaku printer icon. Click on OK button. Move to No.9. Network Printer Sharing :STEP4 If the target PC will not appear, move to No.8 83

84 Riso Digital Education Center 8. Enter the sharing port name in the column directly. Then click on Next button. Move to No.10. Network Printer Sharing :STEP4 84

85 Riso Digital Education Center 9. The sharing port name appears in the column. Then click on Next button. Move to No.10. Network Printer Sharing :STEP4 85

86 Riso Digital Education Center 10. Change Printer name if it is necessary then click on Next button Network Printer Sharing :STEP4 86

87 Riso Digital Education Center 11. Select Yes to perform a test page then click on Finish button Network Printer Sharing :STEP4 87

88 Riso Digital Education Center 12. Click on Yes button Network Printer Sharing :STEP4 88

89 Riso Digital Education Center 13. Printer icon with under bar appears in Printers folder. Network Printer Sharing :STEP4 89

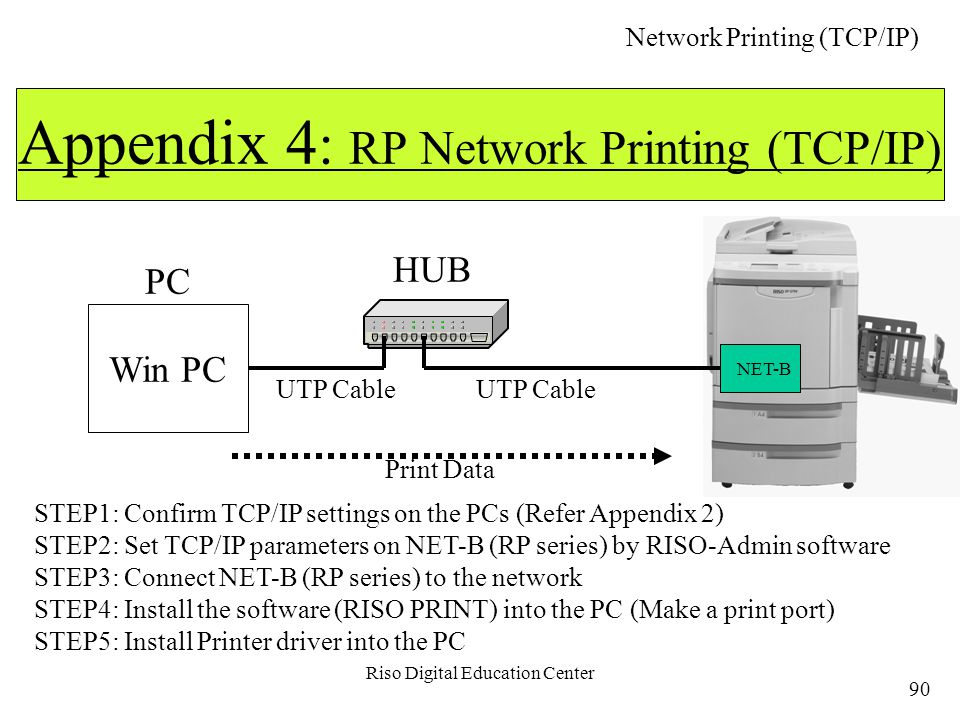

90 Riso Digital Education Center Network Printing (TCP/IP) STEP1: Confirm TCP/IP settings on the PCs (Refer Appendix 2) STEP2: Set TCP/IP parameters on NET-B (RP series) by RISO-Admin software STEP3: Connect NET-B (RP series) to the network STEP4: Install the software (RISO PRINT) into the PC (Make a print port) STEP5: Install Printer driver into the PC Win PC Print Data UTP Cable PC HUB UTP Cable NET-B Appendix 4 : RP Network Printing (TCP/IP) 90

91 Riso Digital Education Center Win PC PC HUB Check Point A: PC with network capability B: Empty HUB port (2 or more) C: UTP straight Cable (2 Cables) D: NET-B CD-ROM E: RP series CD-ROM A B C D E C NET-B Network Printing (TCP/IP) 91

92 Riso Digital Education Center STEP1: Confirm TCP/IP settings on the PCs Please refer Appendix 2 for TCP/IP protocol installation and parameter settings Win PC PC HUB NET-B Network Printing (TCP/IP): STEP1 92

93 Riso Digital Education Center STEP2: Set TCP/IP parameters on NET-B (RP series) Win PC PC HUB a: Preparation for settings b: Install RISO-Admin software into the PC c: TCP/IP parameter settings to the NET-B (RP series) Network Printing (TCP/IP): STEP2 NET-B 93

94 Riso Digital Education Center a-1. Prepare the RISORINC-NET-B CD-ROM. Network Printing (TCP/IP): STEP2 94

95 Riso Digital Education Center a-2. Connect PC and RP series (NET-B) via HUB. Win PC PC HUB Only one PC and RP series connected via HUB Please reset to factory default (Refer a-3) if somebody set TCP/IP settings in the past. Network Printing (TCP/IP): STEP2 NET-B 95

96 Riso Digital Education Center a-3. Perform System configuration Data Output from the RP series. 1.Power OFF. 2.Depress [ ] and [ ] buttons together then Power ON. 3.Select [0. SYSTEM/CNTRL PANEL] from Test mode. 4.Perform [0064-U System Configuration Data Output]. 5.Reset RP. TCP/IP Parameters Network Printing (TCP/IP): STEP2 96

97 Riso Digital Education Center a-4. Reset to Factory default. 1.Power OFF. 2.DIP Switch No.2 to ON position. 3.Power ON. 4.Power OFF again after RP becomes ready mode. 5.DIP Switch No.2 to OFF position. 6.Power ON. IP Address Subnet Mask Default Gateway Factory Default Network Printing (TCP/IP): STEP2 97

98 Riso Digital Education Center b-1. Double click on My Computer icon. Install RISO-ADMIN software – TCP/IP settings on NET-B PC must have TCP/IP protocol installed in advance to use RISO-ADMIN software Network Printing (TCP/IP): STEP2 98

99 Riso Digital Education Center b-2. Double click on Risorinc-net-b icon. Network Printing (TCP/IP): STEP2 99

100 Riso Digital Education Center b-3. Double click on Setup icon. Network Printing (TCP/IP): STEP2 100

101 Riso Digital Education Center b-4. Click on Language icon. Network Printing (TCP/IP): STEP2 101

102 Riso Digital Education Center b-5. Click on Setup icon. Network Printing (TCP/IP): STEP2 102

103 Riso Digital Education Center b-6. Mark in RISO-ADMIN column, then click on Next button. Network Printing (TCP/IP): STEP2 103

104 Riso Digital Education Center b-7. Click on Yes button. Network Printing (TCP/IP): STEP2 104

105 Riso Digital Education Center b-8. Click on Next button. Network Printing (TCP/IP): STEP2 105

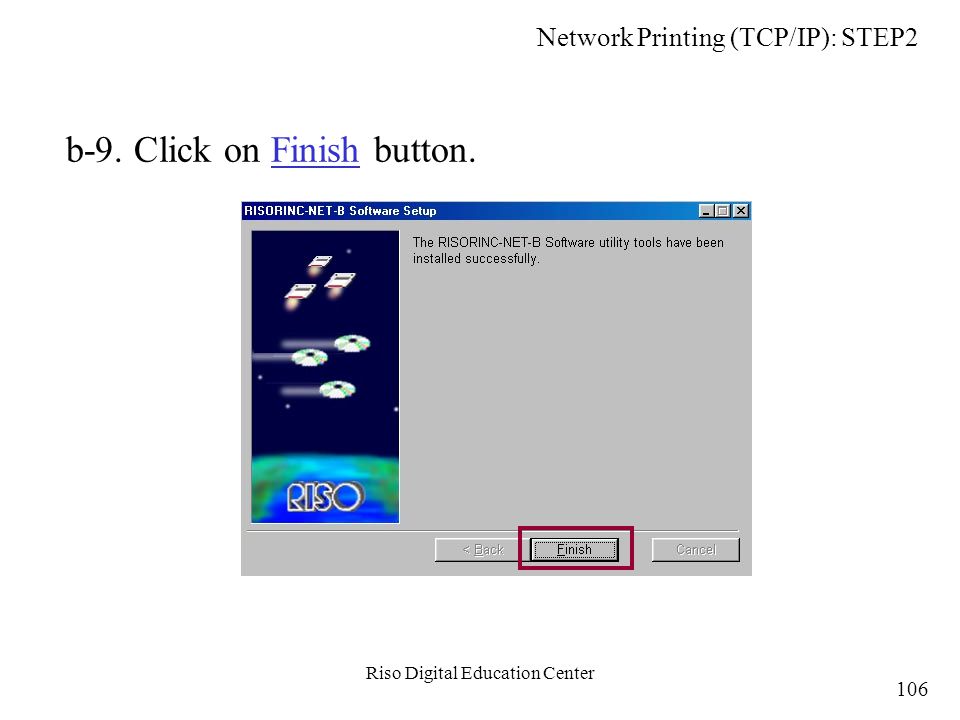

106 Riso Digital Education Center b-9. Click on Finish button. Network Printing (TCP/IP): STEP2 106

107 Riso Digital Education Center c-1. Select Start - Programs – RISORINC-NET-B – RISO-ADMIN. Network Printing (TCP/IP): STEP2 107

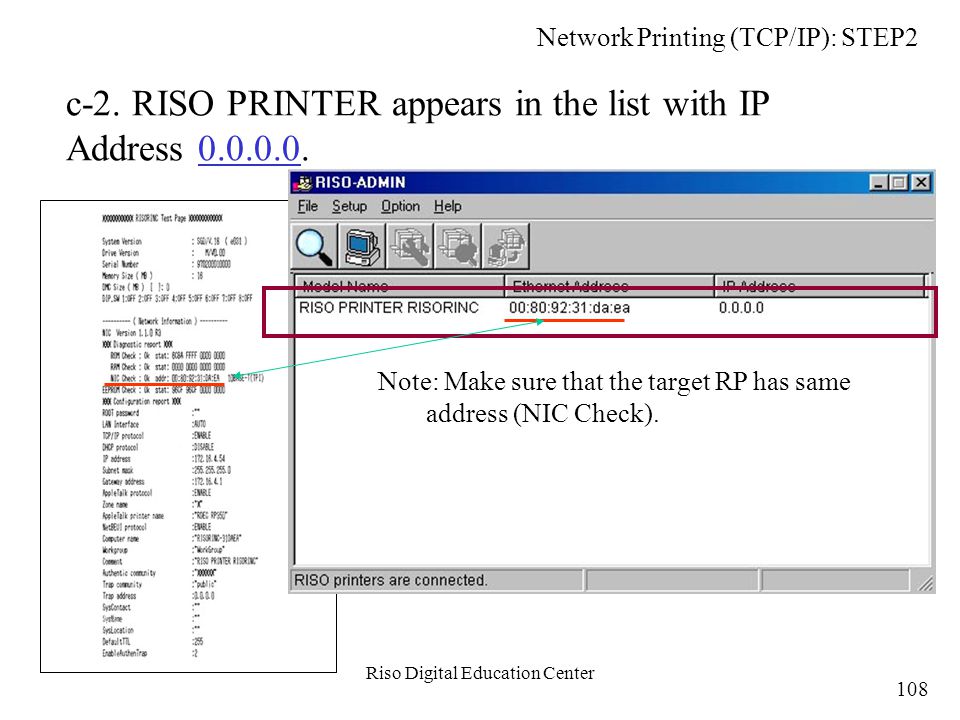

108 Riso Digital Education Center c-2. RISO PRINTER appears in the list with IP Address Network Printing (TCP/IP): STEP2 Note: Make sure that the target RP has same address (NIC Check). 108

109 Riso Digital Education Center c-3. Click on Target RISO PRINTER then click on Network Parameters icon. Network Printing (TCP/IP): STEP2 109

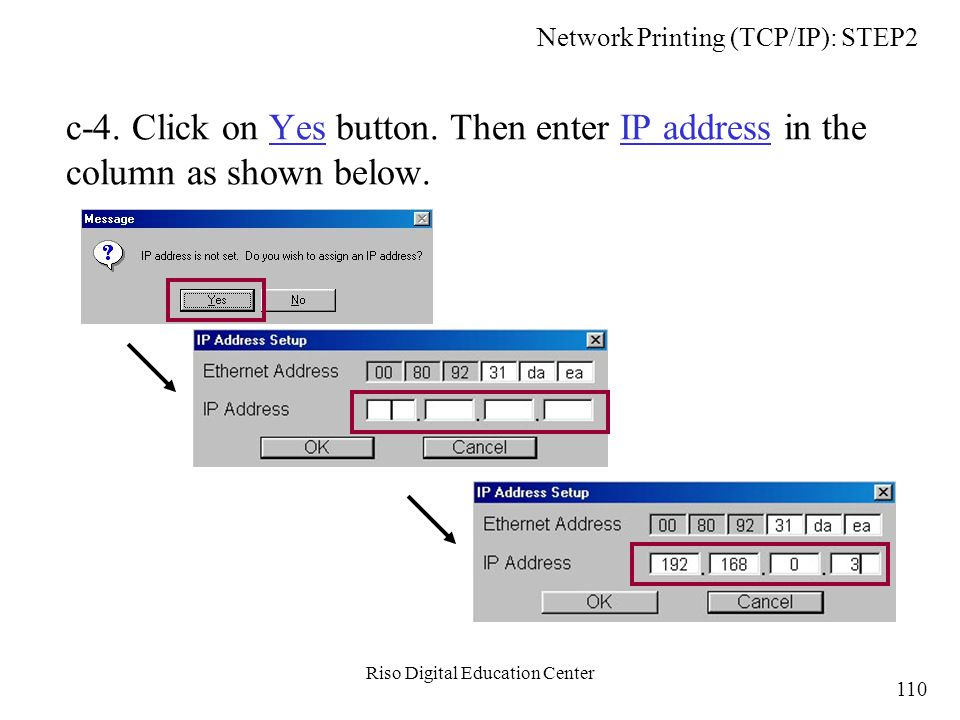

110 Riso Digital Education Center c-4. Click on Yes button. Then enter IP address in the column as shown below. Network Printing (TCP/IP): STEP2 110

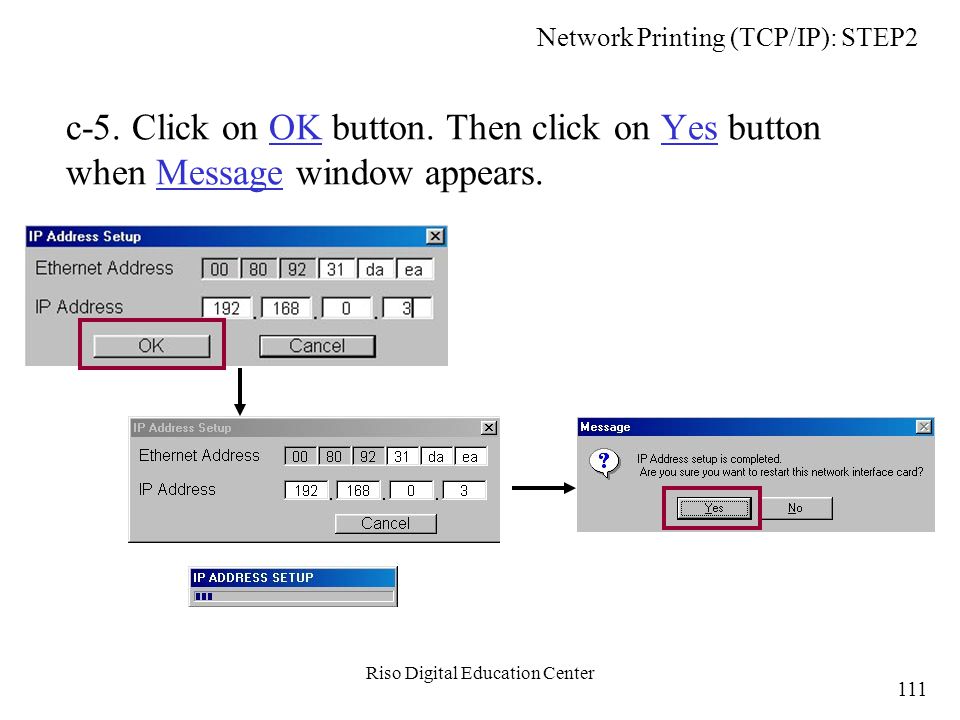

111 Riso Digital Education Center c-5. Click on OK button. Then click on Yes button when Message window appears. Network Printing (TCP/IP): STEP2 111

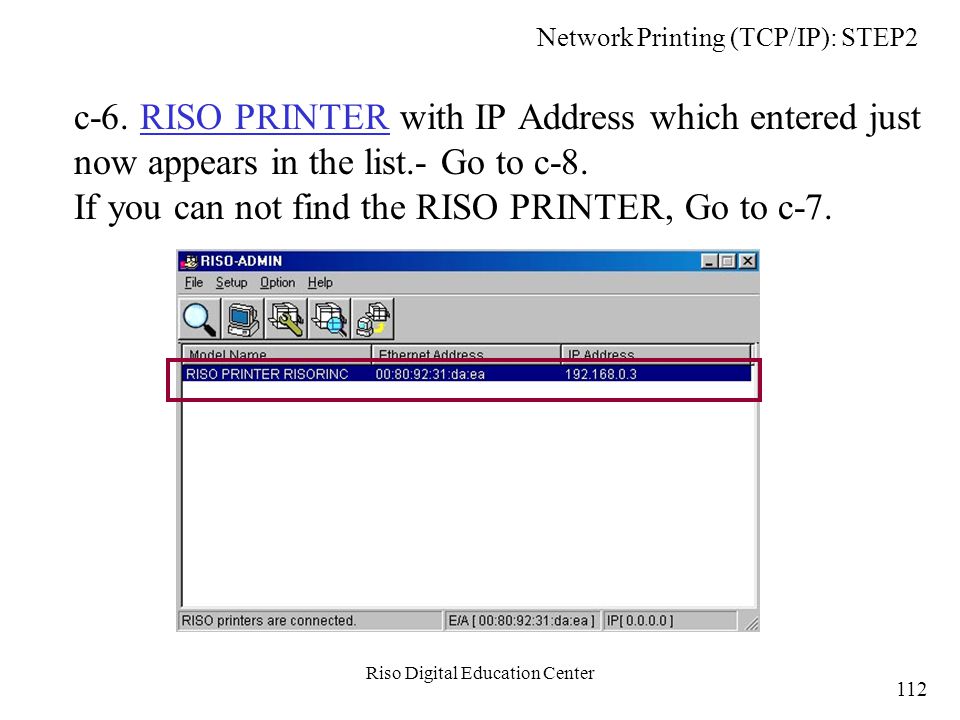

112 Riso Digital Education Center c-6. RISO PRINTER with IP Address which entered just now appears in the list.- Go to c-8. If you can not find the RISO PRINTER, Go to c-7. Network Printing (TCP/IP): STEP2 112

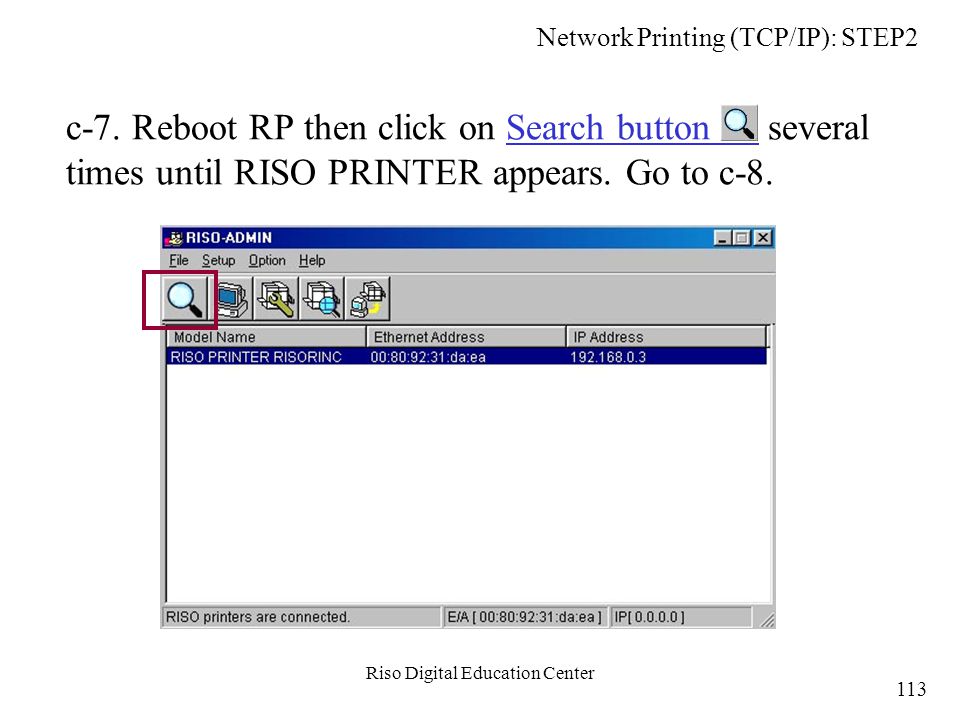

113 Riso Digital Education Center c-7. Reboot RP then click on Search button several times until RISO PRINTER appears. Go to c-8. Network Printing (TCP/IP): STEP2 113

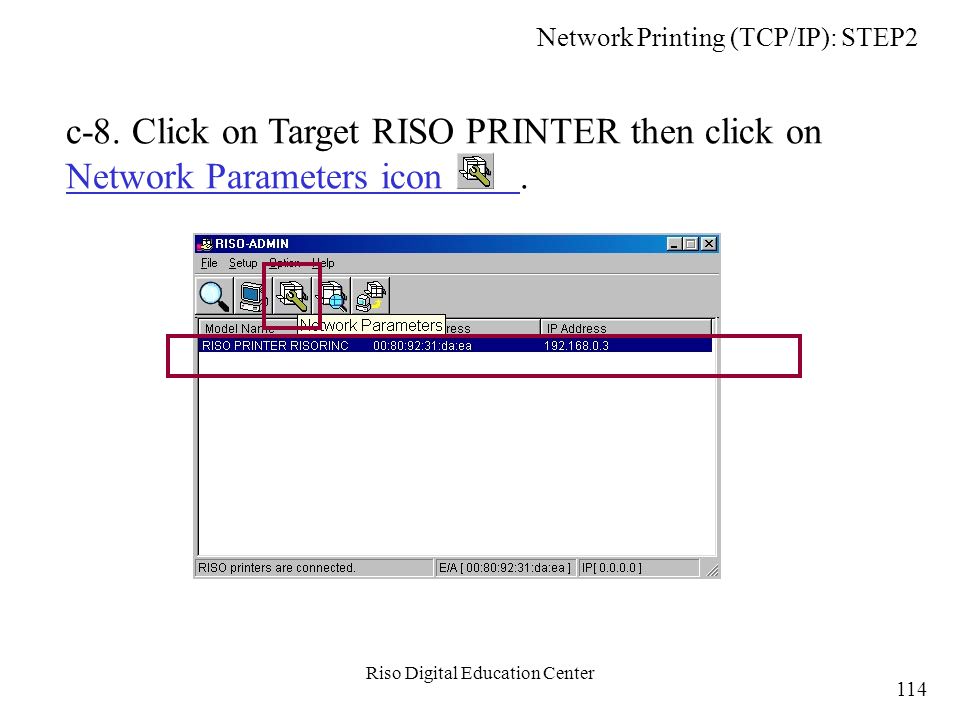

114 Riso Digital Education Center Network Printing (TCP/IP): STEP2 c-8. Click on Target RISO PRINTER then click on Network Parameters icon. 114

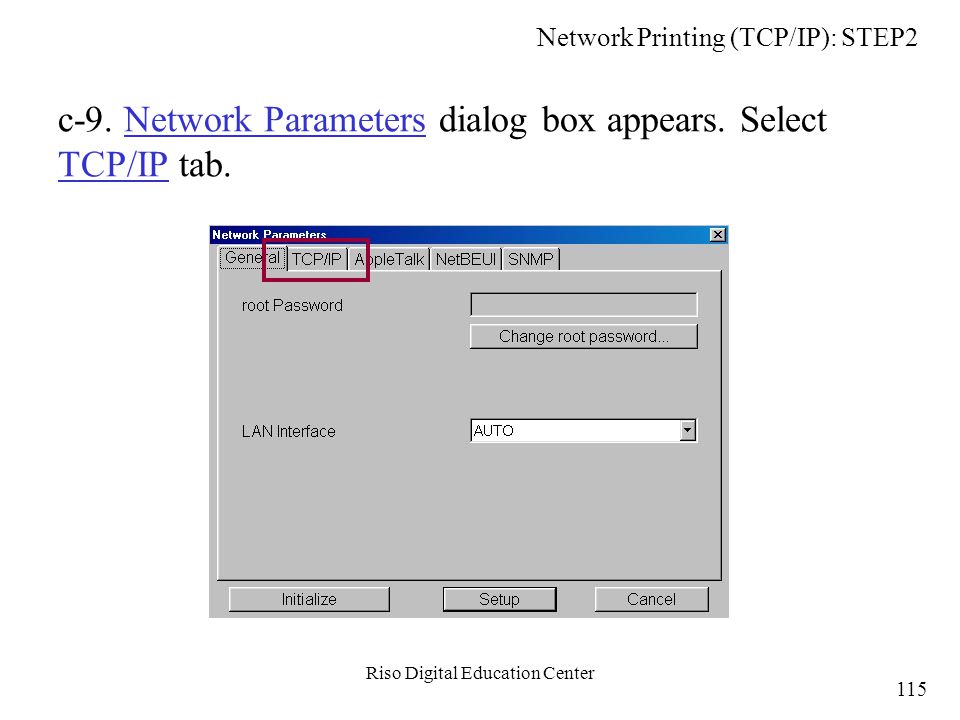

115 Riso Digital Education Center c-9. Network Parameters dialog box appears. Select TCP/IP tab. Network Printing (TCP/IP): STEP2 115

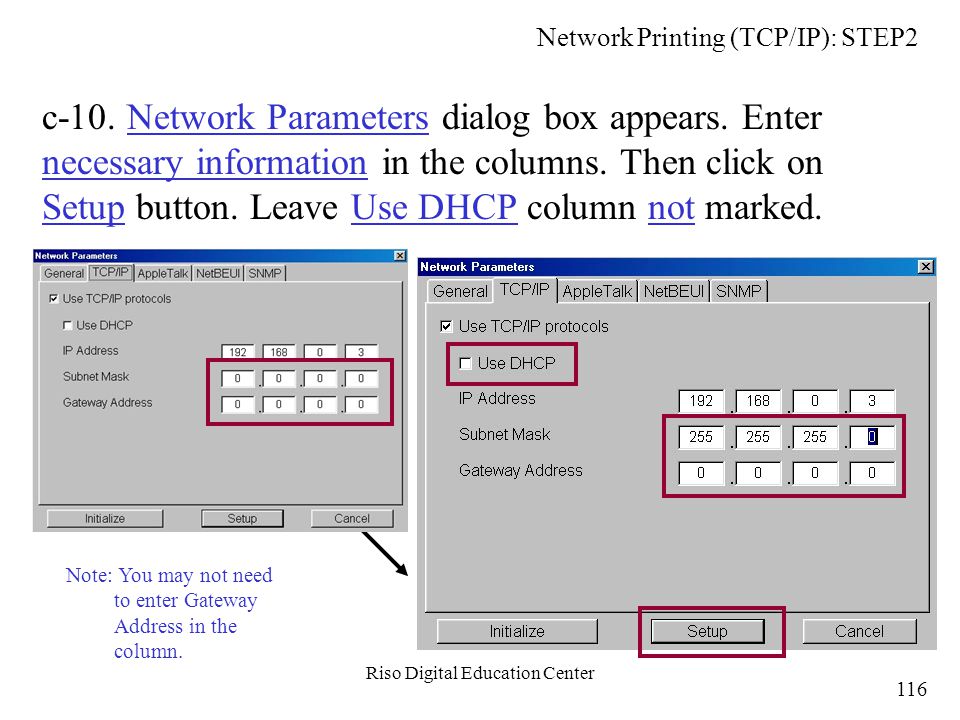

116 Riso Digital Education Center c-10. Network Parameters dialog box appears. Enter necessary information in the columns. Then click on Setup button. Leave Use DHCP column not marked. Note: You may not need to enter Gateway Address in the column. Network Printing (TCP/IP): STEP2 116

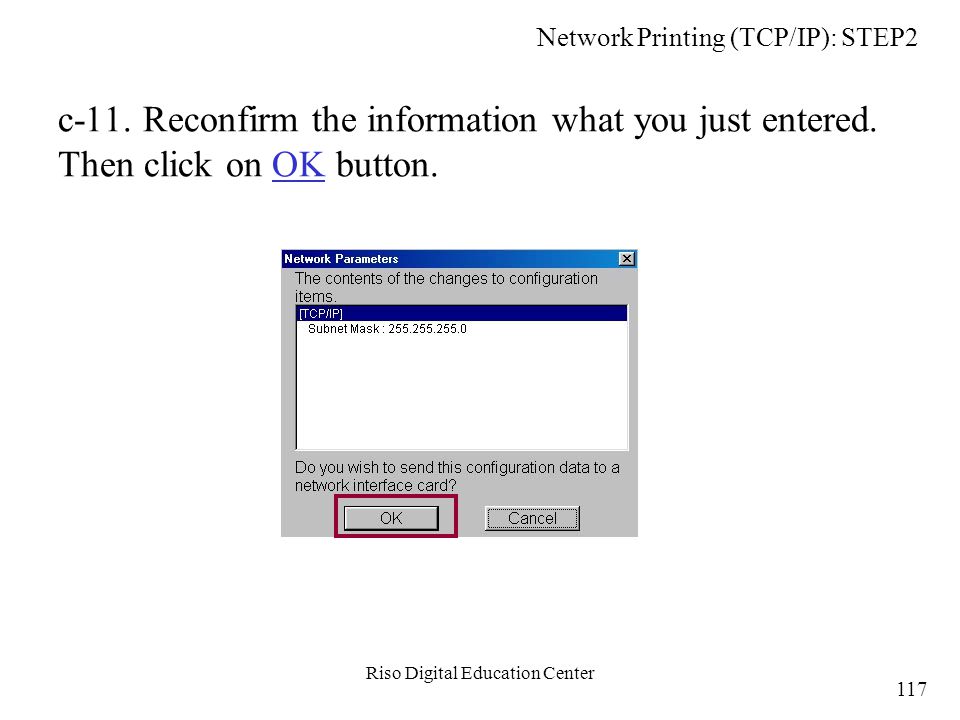

117 Riso Digital Education Center c-11. Reconfirm the information what you just entered. Then click on OK button. Network Printing (TCP/IP): STEP2 117

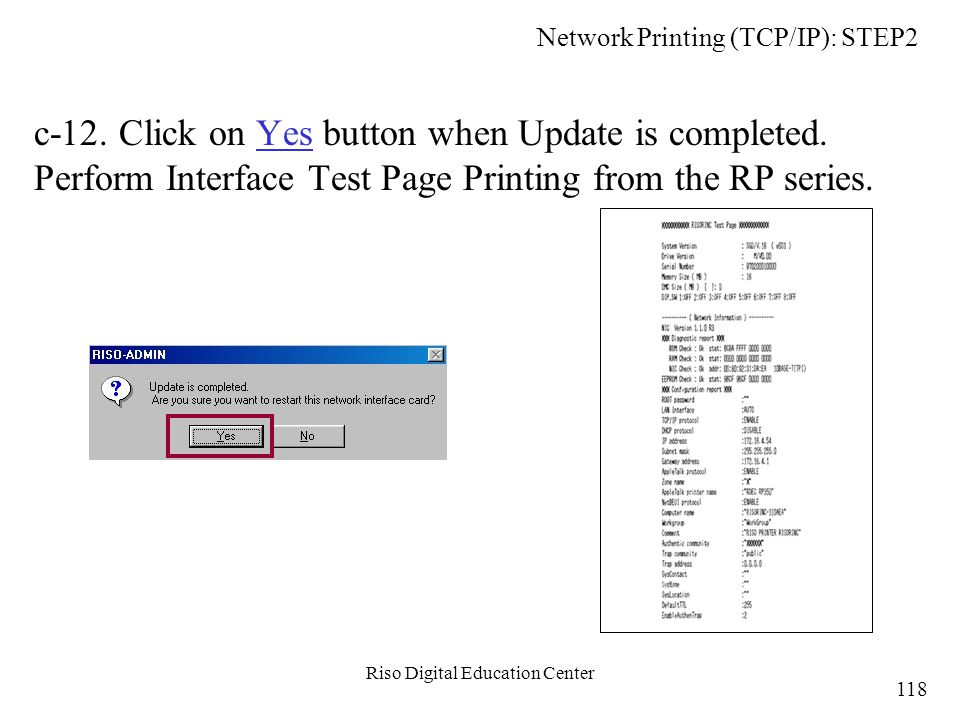

118 Riso Digital Education Center c-12. Click on Yes button when Update is completed. Perform Interface Test Page Printing from the RP series. Network Printing (TCP/IP): STEP2 118

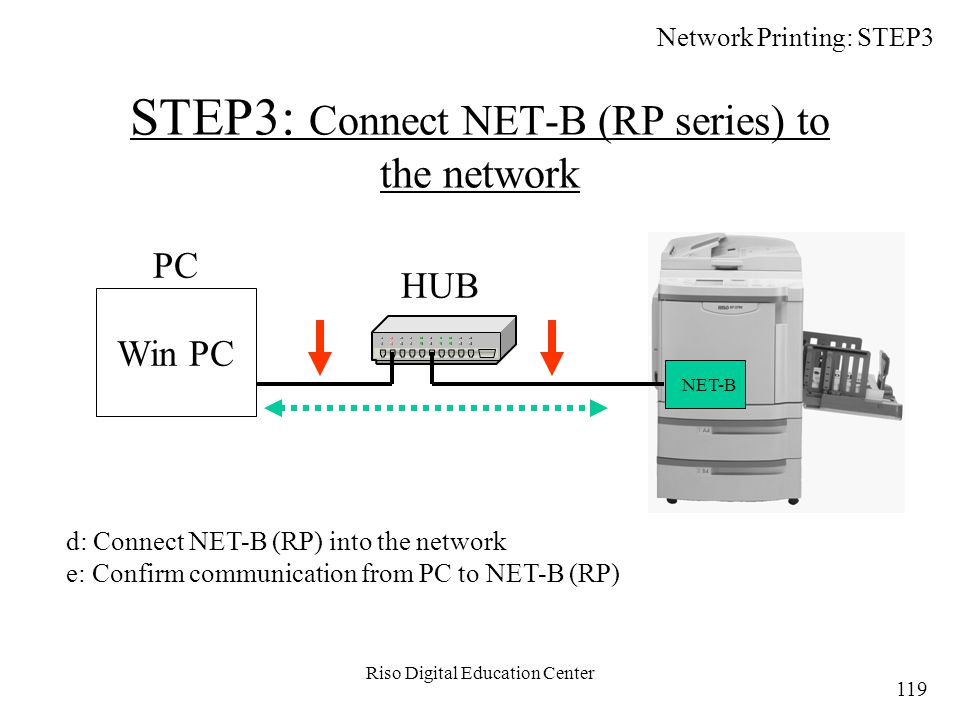

119 Riso Digital Education Center STEP3: Connect NET-B (RP series) to the network Network Printing: STEP3 Win PC PC HUB d: Connect NET-B (RP) into the network e: Confirm communication from PC to NET-B (RP) NET-B 119

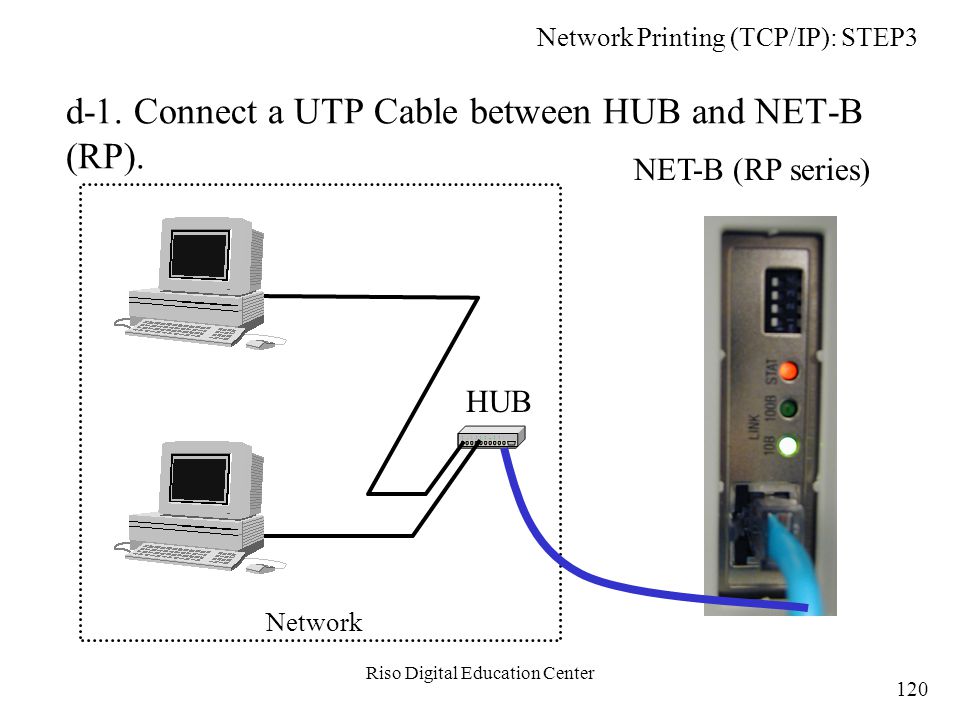

120 Riso Digital Education Center d-1. Connect a UTP Cable between HUB and NET-B (RP). NET-B (RP series) HUB Network Network Printing (TCP/IP): STEP3 120

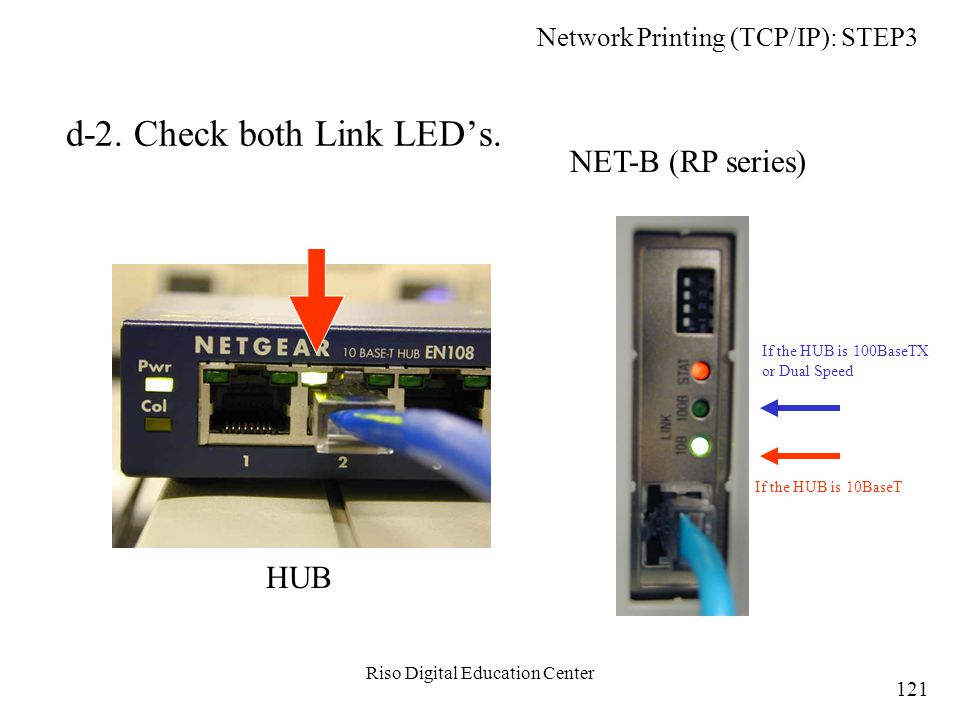

121 Riso Digital Education Center d-2. Check both Link LED’s. HUB Network Printing (TCP/IP): STEP3 NET-B (RP series) If the HUB is 10BaseT If the HUB is 100BaseTX or Dual Speed 121

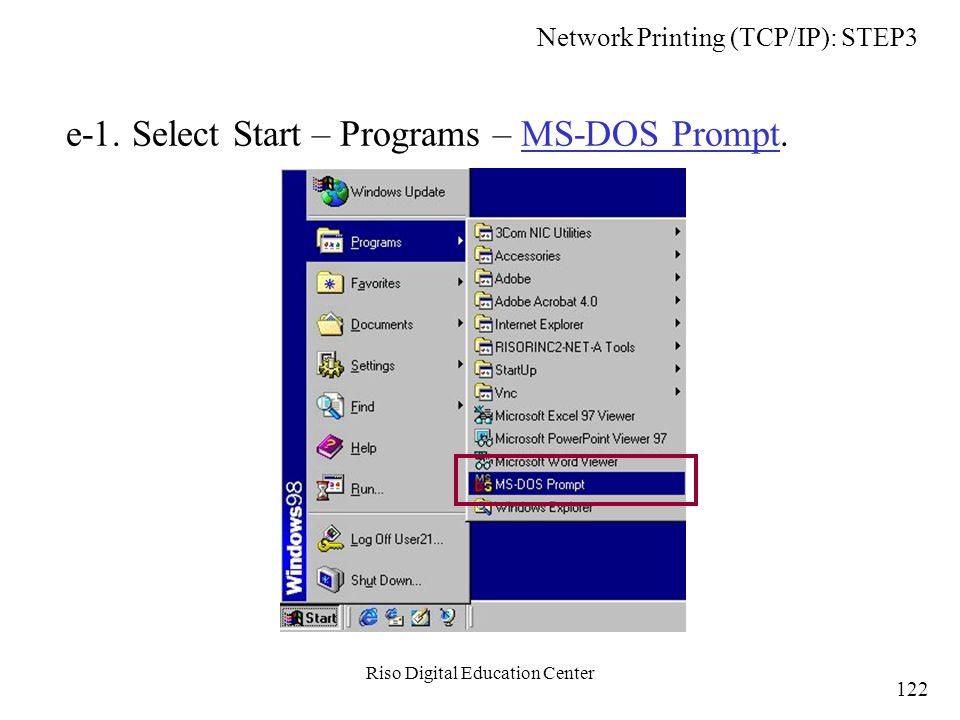

122 Riso Digital Education Center e-1. Select Start – Programs – MS-DOS Prompt. Network Printing (TCP/IP): STEP3 122

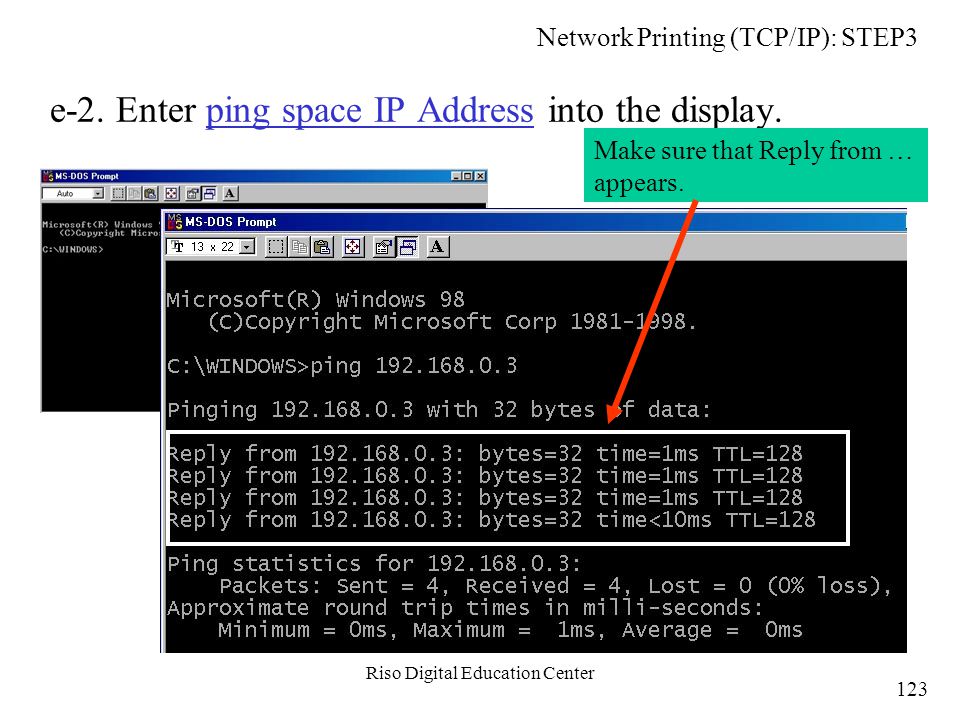

123 Riso Digital Education Center e-2. Enter ping space IP Address into the display. Make sure that Reply from … appears. Network Printing (TCP/IP): STEP3 123

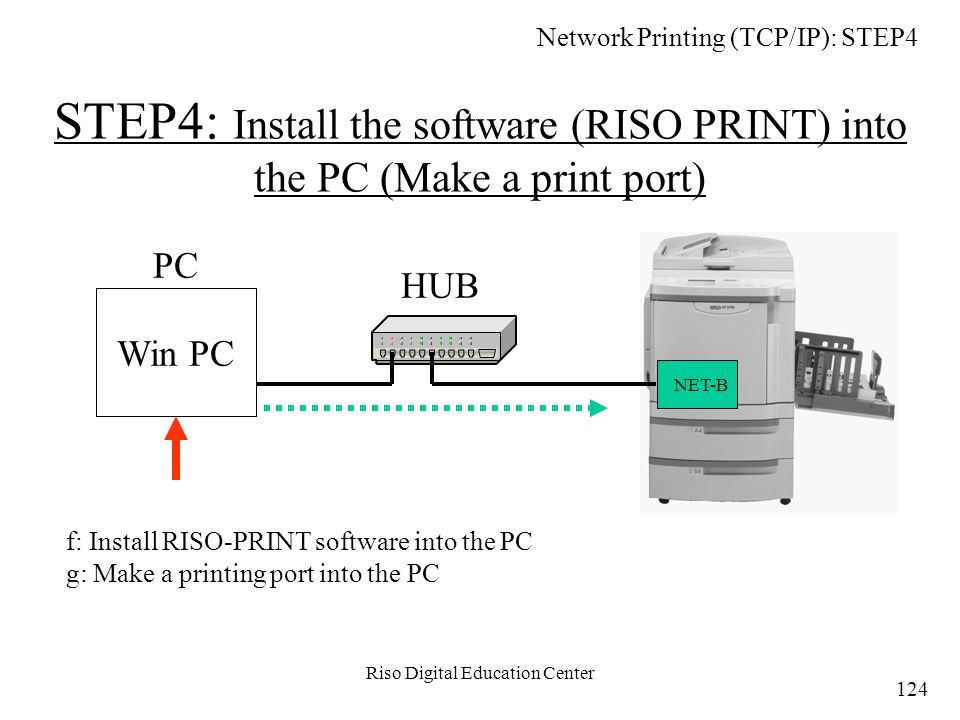

124 Riso Digital Education Center STEP4: Install the software (RISO PRINT) into the PC (Make a print port) Win PC PC HUB f: Install RISO-PRINT software into the PC g: Make a printing port into the PC Network Printing (TCP/IP): STEP4 NET-B 124

125 Riso Digital Education Center f-1. Double click on My Computer icon. Install RISO-PRINT software Network Printing (TCP/IP): STEP4 125

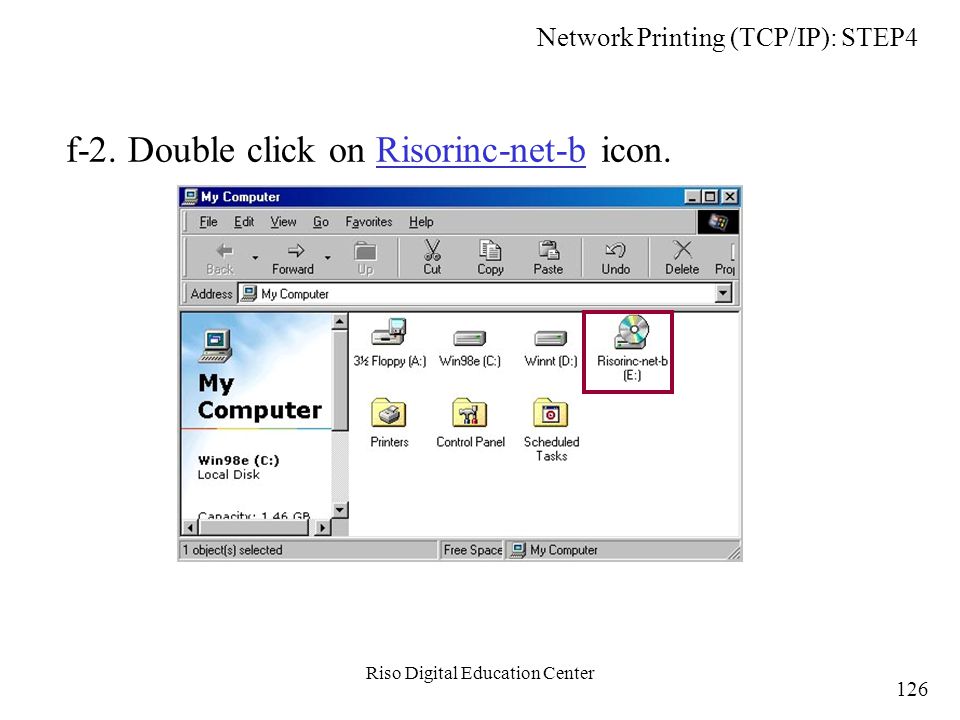

126 Riso Digital Education Center f-2. Double click on Risorinc-net-b icon. Network Printing (TCP/IP): STEP4 126

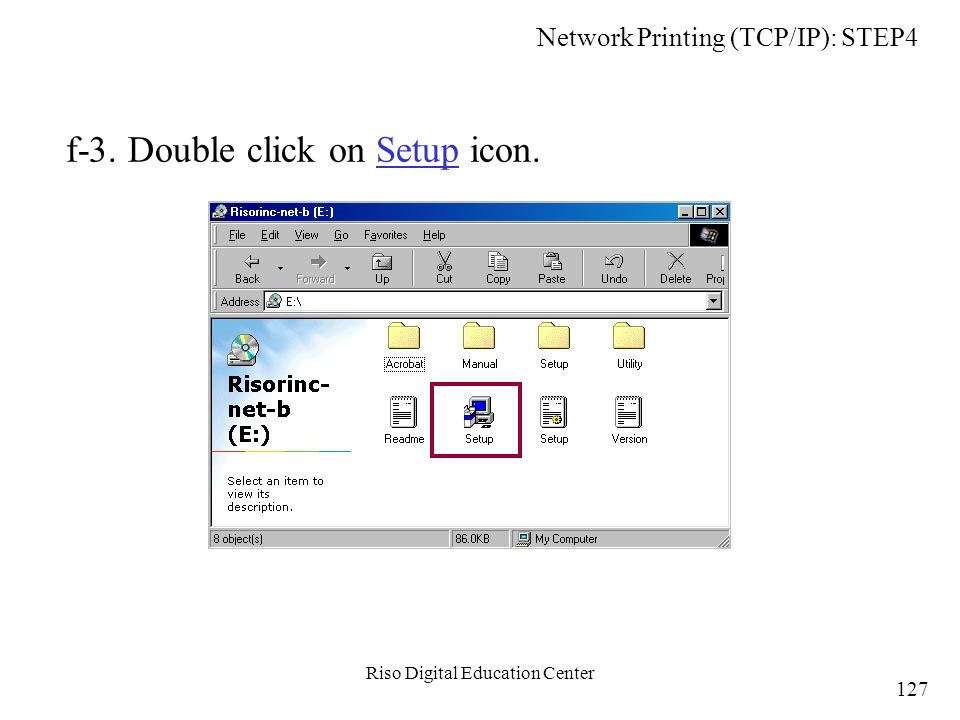

127 Riso Digital Education Center f-3. Double click on Setup icon. Network Printing (TCP/IP): STEP4 127

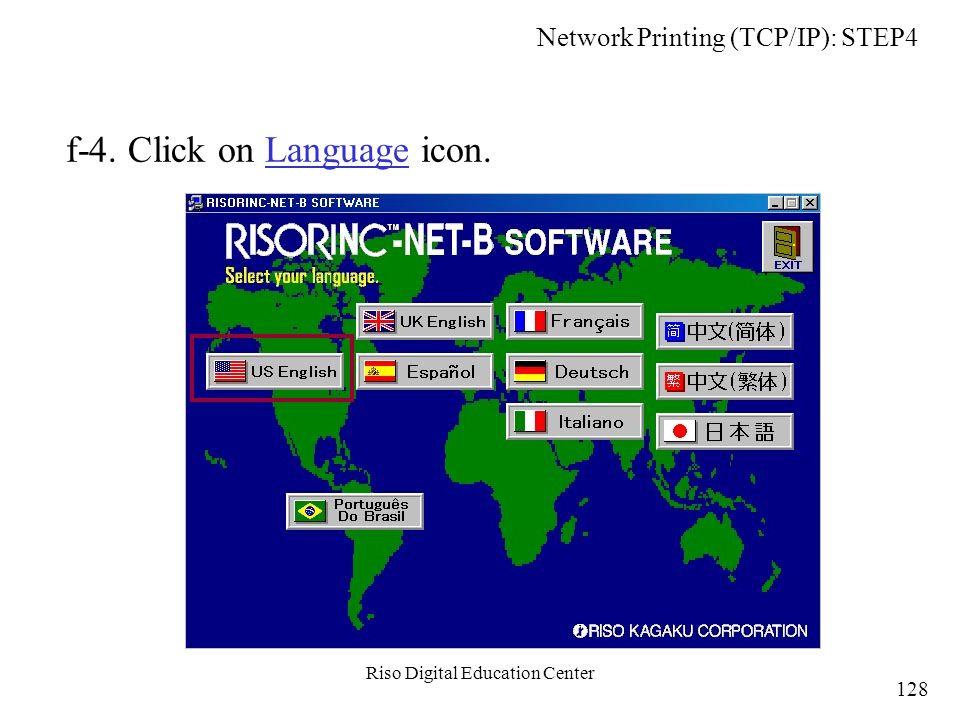

128 Riso Digital Education Center f-4. Click on Language icon. Network Printing (TCP/IP): STEP4 128

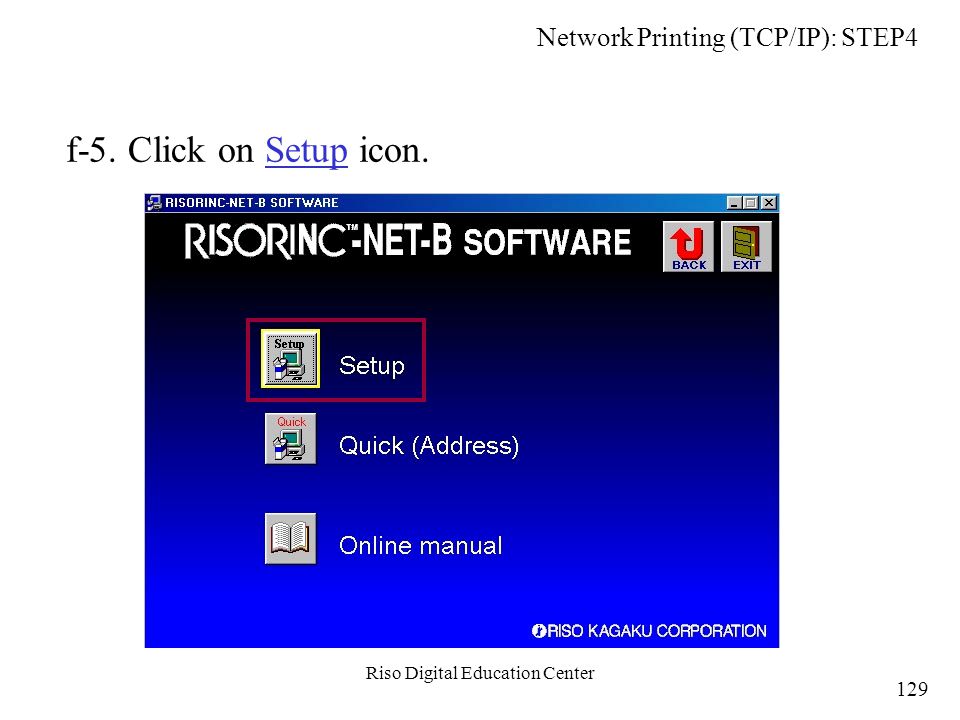

129 Riso Digital Education Center f-5. Click on Setup icon. Network Printing (TCP/IP): STEP4 129

130 Riso Digital Education Center f-6. Mark in RISO-PRINT column, then click on Next button. Network Printing (TCP/IP): STEP4 130

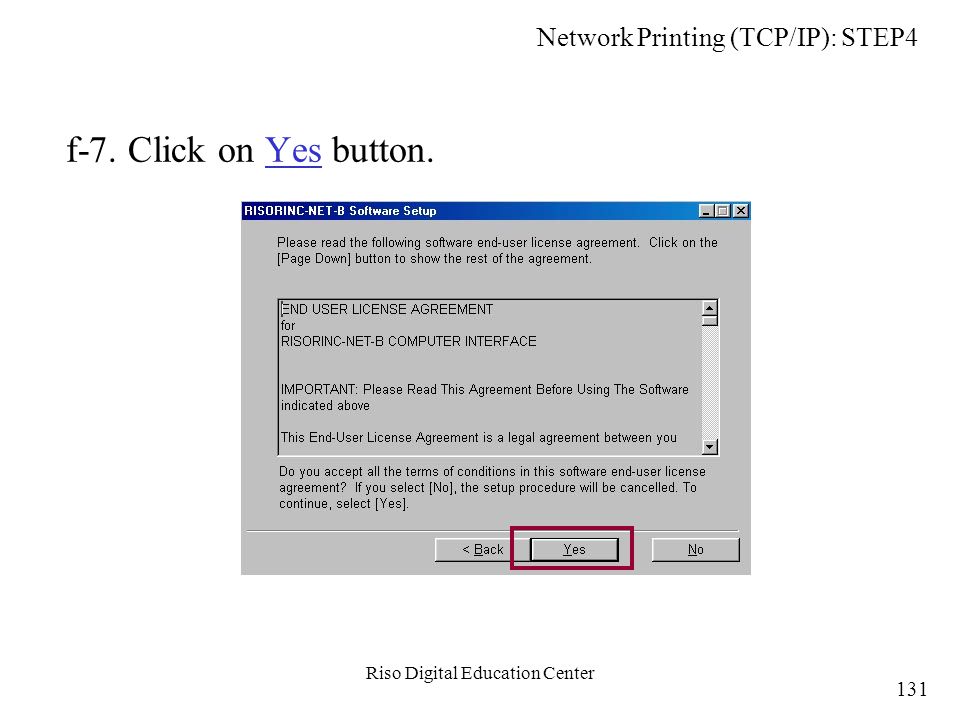

131 Riso Digital Education Center f-7. Click on Yes button. Network Printing (TCP/IP): STEP4 131

132 Riso Digital Education Center f-8. Click on Next button. Network Printing (TCP/IP): STEP4 132

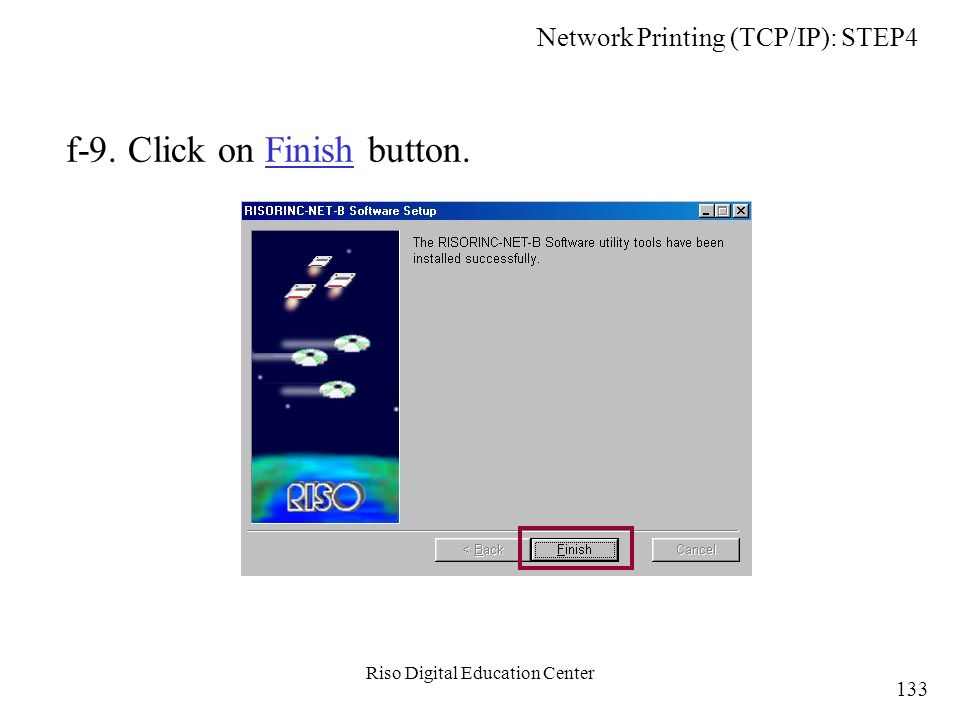

133 Riso Digital Education Center f-9. Click on Finish button. Network Printing (TCP/IP): STEP4 133

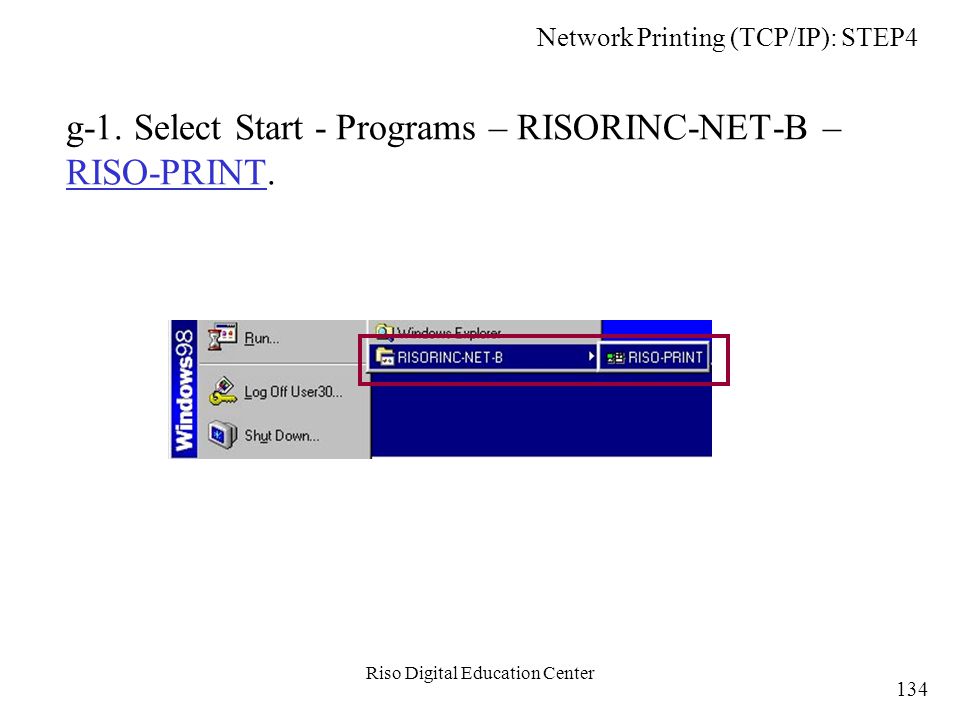

134 Riso Digital Education Center g-1. Select Start - Programs – RISORINC-NET-B – RISO-PRINT. Network Printing (TCP/IP): STEP4 134

135 Riso Digital Education Center g-2. Click on Search button. Network Printing (TCP/IP): STEP4 135

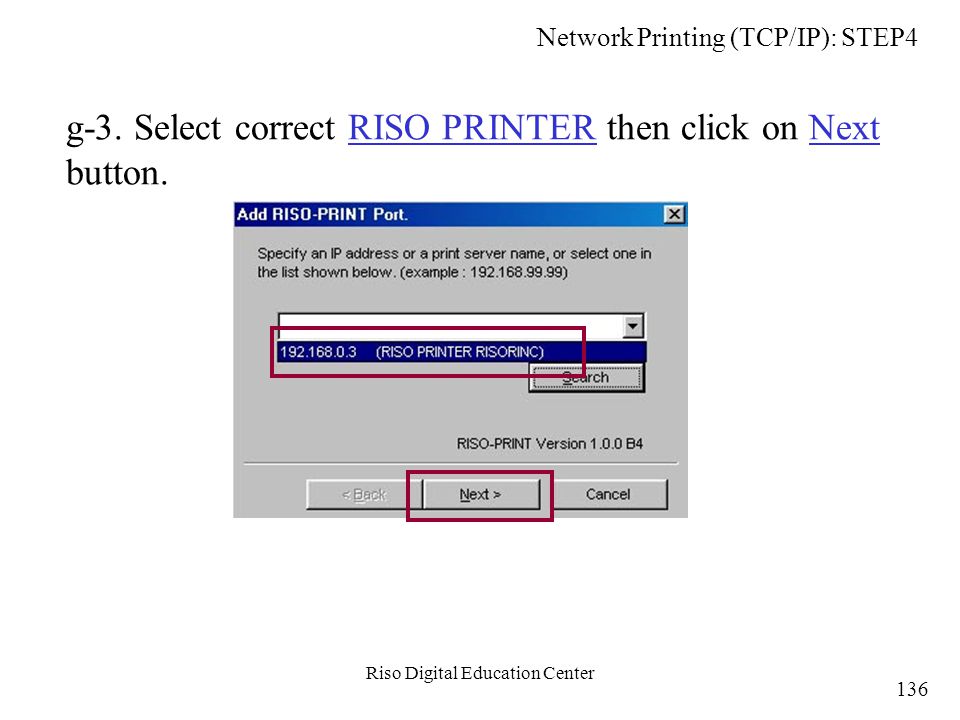

136 Riso Digital Education Center g-3. Select correct RISO PRINTER then click on Next button. Network Printing (TCP/IP): STEP4 136

137 Riso Digital Education Center g-4. Click on Next button. Network Printing (TCP/IP): STEP4 137

138 Riso Digital Education Center g-5. Click on Finish button. Network Printing (TCP/IP): STEP4 RISO-PRINT port name just assigned 138

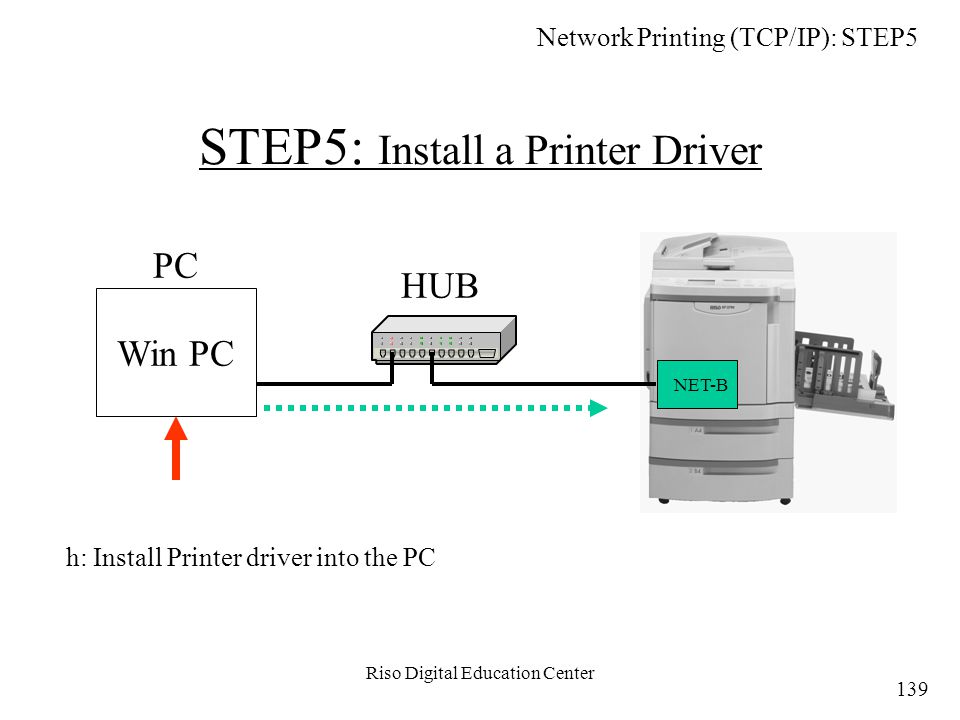

139 Riso Digital Education Center STEP5: Install a Printer Driver Win PC PC HUB h: Install Printer driver into the PC Network Printing (TCP/IP): STEP5 NET-B 139

140 Riso Digital Education Center h-1. Double click on My Computer icon Network Printing (TCP/IP): STEP5 140

141 Riso Digital Education Center h-2. Double click on Printers icon Network Printing (TCP/IP): STEP5 141

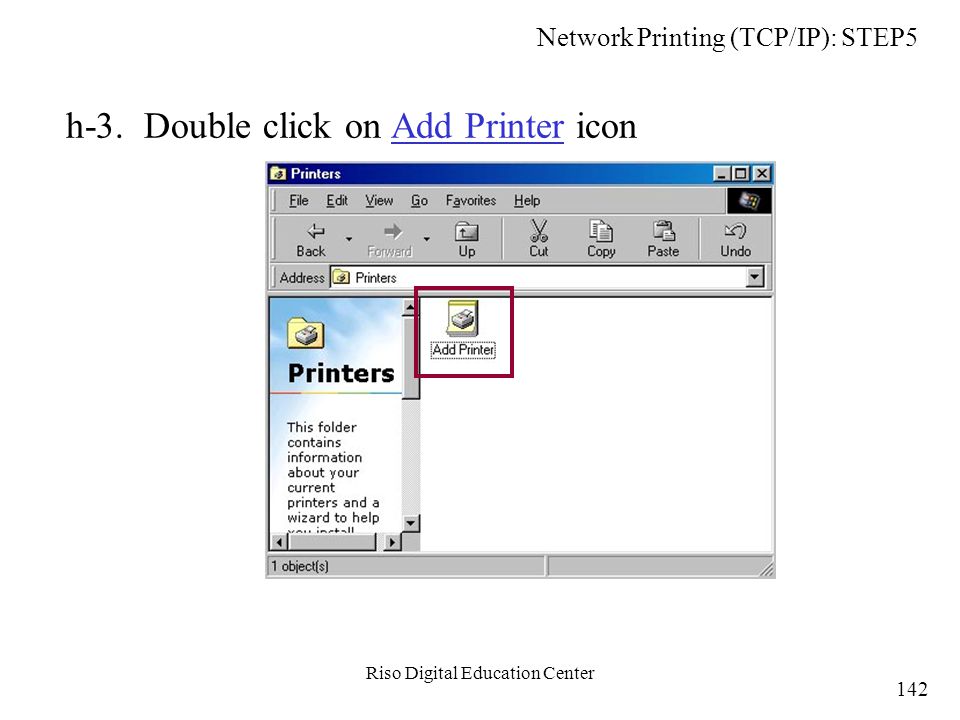

142 Riso Digital Education Center h-3. Double click on Add Printer icon Network Printing (TCP/IP): STEP5 142

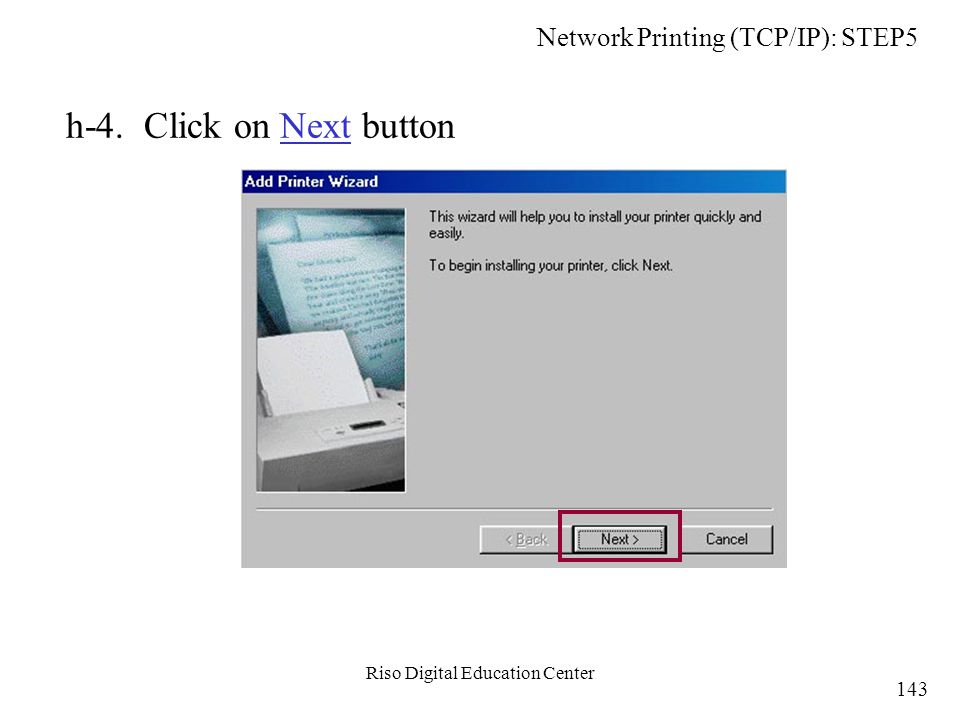

143 Riso Digital Education Center h-4. Click on Next button Network Printing (TCP/IP): STEP5 143

144 Riso Digital Education Center h-5. Select Local printer then click on Next button Network Printing (TCP/IP): STEP5 144

145 Riso Digital Education Center h-6. Put a CDROM in the CDROM drive then click on Have Disk button Network Printing (TCP/IP): STEP5 145

146 Riso Digital Education Center h-7. Click on Browse button Network Printing (TCP/IP): STEP5 146

147 Riso Digital Education Center h-8. Click arrow button then select CD-ROM drive Network Printing (TCP/IP): STEP5 147

148 Riso Digital Education Center h-9. Double click on language folder Network Printing (TCP/IP): STEP5 148

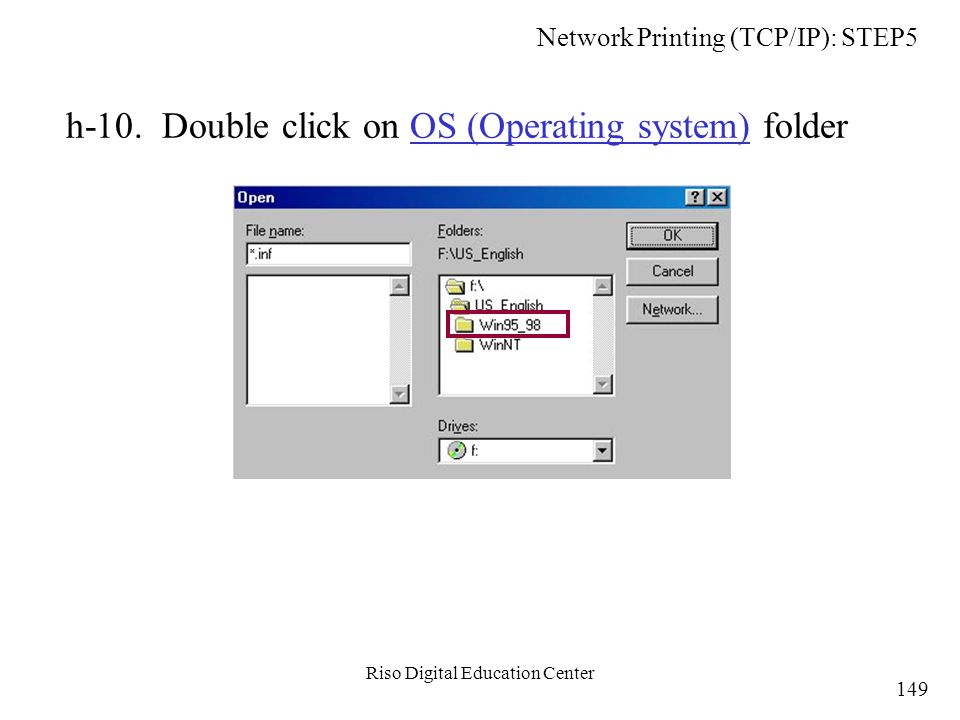

149 Riso Digital Education Center h-10. Double click on OS (Operating system) folder Network Printing (TCP/IP): STEP5 149

150 Riso Digital Education Center h-11. risodrv.inf file appears then click on OK button Name of Driver RN seriesrisorp.inf RP seriesrisodrv.inf SC3000 series(Win95/98) risodrv.inf Network Printing (TCP/IP): STEP5 Note: This file name is vary depending on model. 150

151 Riso Digital Education Center h-12. Click on OK button Network Printing (TCP/IP): STEP5 151

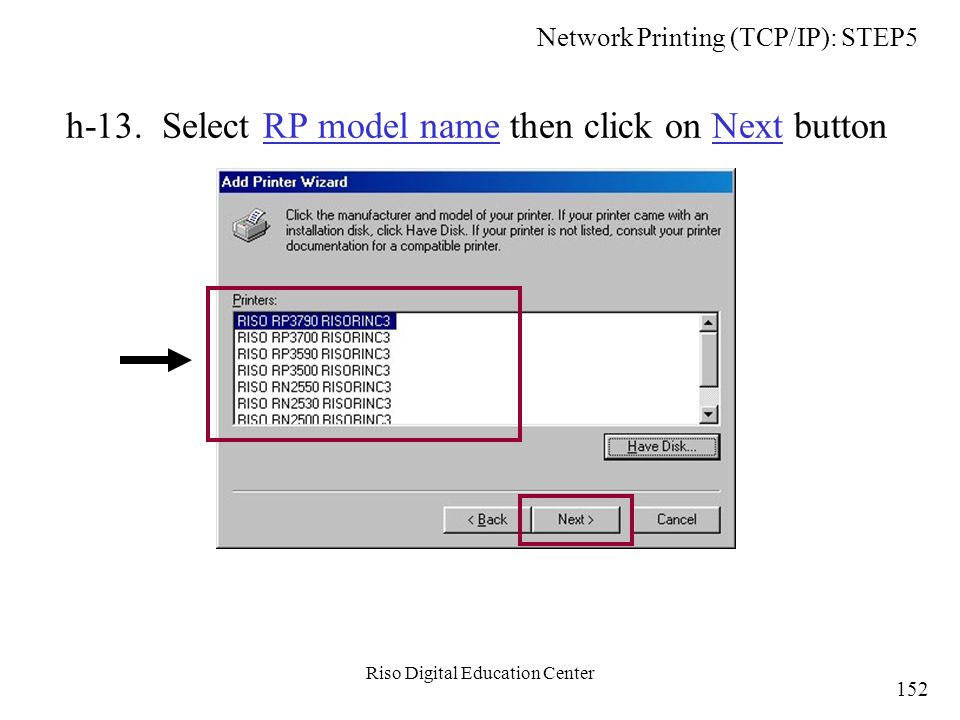

152 Riso Digital Education Center h-13. Select RP model name then click on Next button Network Printing (TCP/IP): STEP5 152

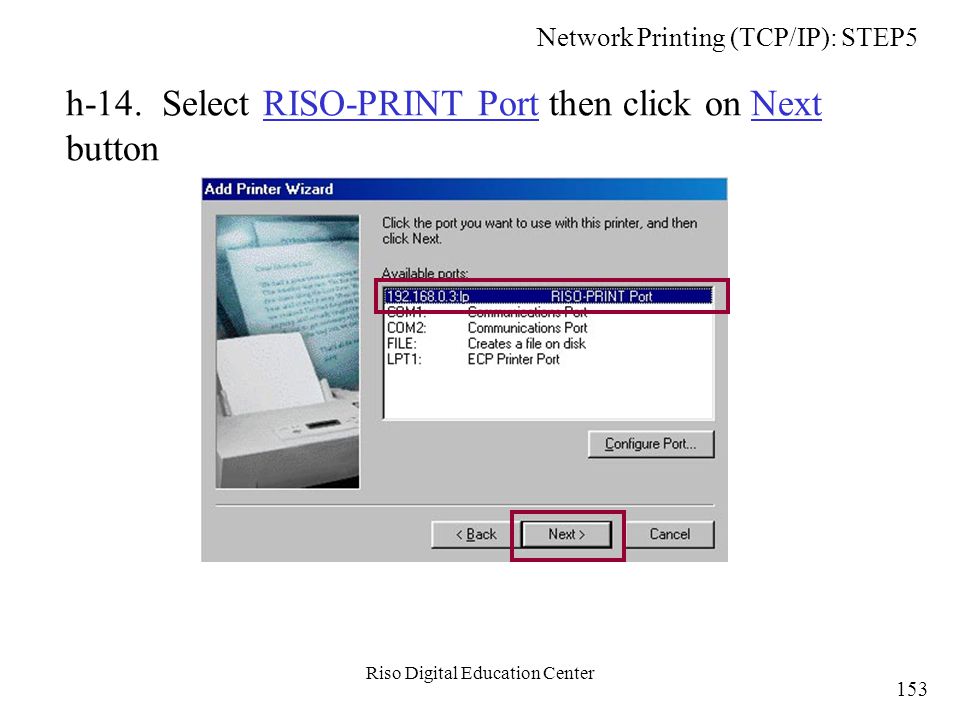

153 Riso Digital Education Center h-14. Select RISO-PRINT Port then click on Next button Network Printing (TCP/IP): STEP5 153

154 Riso Digital Education Center h-15. Change Printer name if it is necessary then click on Next button Network Printing (TCP/IP): STEP5 154

155 Riso Digital Education Center h-16. Select Yes to perform a test page then click on Finish button Network Printing (TCP/IP): STEP5 155

156 Riso Digital Education Center h-17. Click on Yes button Network Printing (TCP/IP): STEP5 156

157 Riso Digital Education Center h-18. The printer icon appears in Printers folder Network Printing (TCP/IP): STEP5 157

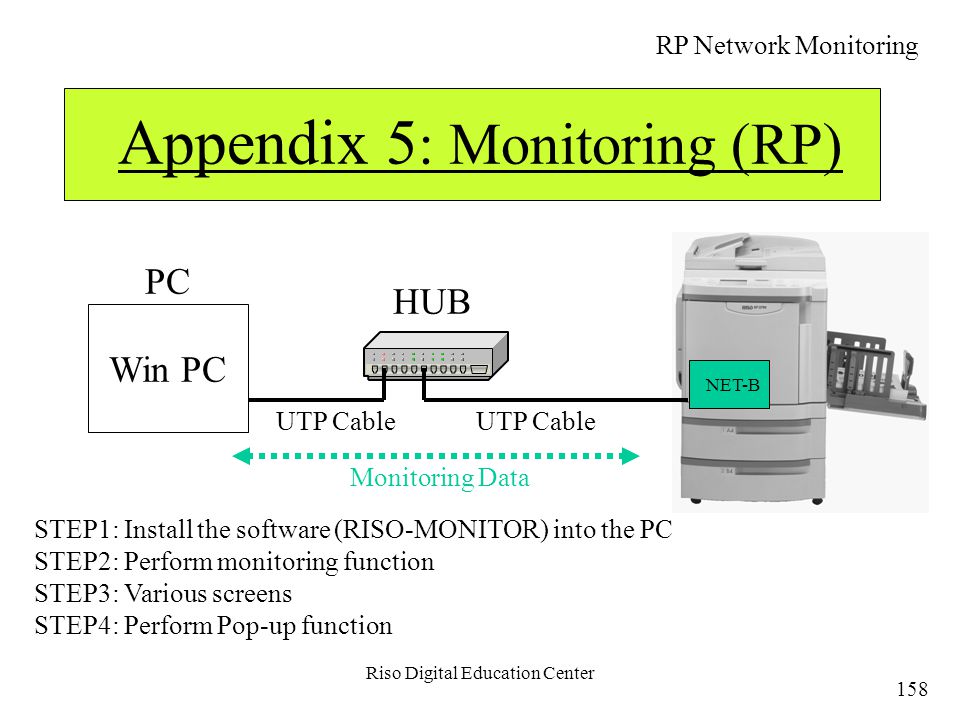

158 Riso Digital Education Center RP Network Monitoring STEP1: Install the software (RISO-MONITOR) into the PC STEP2: Perform monitoring function STEP3: Various screens STEP4: Perform Pop-up function Win PC Monitoring Data UTP Cable PC Appendix 5 : Monitoring (RP) HUB UTP Cable NET-B 158

159 Riso Digital Education Center Win PC PC HUB Check Point A: PC with network capability B: Empty HUB port (2 or more) C: UTP straight Cable (2 Cables) D: NET-B CD-ROM A B C D C NET-B RP Network Monitoring 159

160 Riso Digital Education Center STEP1: Install the software (RISO-MONITOR) into the PC Win PC PC HUB RP Network Monitoring: STEP1 NET-B 160

161 Riso Digital Education Center 1. Double click on My Computer icon. Install RISO-MONITOR software RP Network Monitoring: STEP1 161

162 Riso Digital Education Center 2. Double click on Risorinc-net-b icon. RP Network Monitoring: STEP1 162

163 Riso Digital Education Center 3. Double click on Setup icon. RP Network Monitoring: STEP1 163

164 Riso Digital Education Center 4. Click on Language icon. RP Network Monitoring: STEP1 164

165 Riso Digital Education Center 5. Click on Setup icon. RP Network Monitoring: STEP1 165

166 Riso Digital Education Center 6. Mark in RISO-MONITOR column, then click on Next button. RP Network Monitoring: STEP1 166

167 Riso Digital Education Center 7. Click on Yes button. RP Network Monitoring: STEP1 167

168 Riso Digital Education Center 8. Click on Next button. RP Network Monitoring: STEP1 168

169 Riso Digital Education Center 9. Click on Finish button. RP Network Monitoring: STEP1 169

170 Riso Digital Education Center STEP2: Perform monitoring function Win PC PC HUB NET-B RP Network Monitoring: STEP2 170

171 Riso Digital Education Center 1. Select Start - Programs – RISORINC-NET-B – RISO-MONITOR. RP Network Monitoring: STEP2 171

172 Riso Digital Education Center 2. To select RISO PRINTER for monitoring, click on Options…. button. RP Network Monitoring: STEP2 172

173 Riso Digital Education Center 3. Select RISO PRINTER, then click on OK button. RP Network Monitoring: STEP2 173

174 Riso Digital Education Center 4. Ready display appears. RP Network Monitoring: STEP2 174

175 Riso Digital Education Center Monitoring function can be performed on several Riso Printers in the Network RP Network Monitoring: STEP Monitoring for Monitoring for

176 Riso Digital Education Center STEP3: Various screens Win PC PC HUB RP Network Monitoring: STEP3 NET-B 176

177 Riso Digital Education Center During print job RP Network Monitoring: STEP3 177

178 Riso Digital Education Center Various Message (1) Riso Printer Power OFF Check Volume… window RP Network Monitoring: STEP3 No paper on Multipurpose Tray 178

179 Riso Digital Education Center Various Message (2) Front cover open, etc. Paper Jam RP Network Monitoring: STEP3 179

180 Riso Digital Education Center STEP4: Perform Pop-up function HUB Event! RP Network Monitoring: STEP4 NET-B 180

181 Riso Digital Education Center 1. To select Pop-up function, click on Options button. RP Network Monitoring: STEP4 181

182 Riso Digital Education Center 2. Select on Windows tab. RP Network Monitoring: STEP4 182

183 Riso Digital Education Center 3. Mark on Open Windows on the top. Then click on OK button. RP Network Monitoring: STEP4 183

184 Riso Digital Education Center 4. Select Pop-up Configuration tab. RP Network Monitoring: STEP4 184

185 Riso Digital Education Center 5. Select item from Events list want to be Pop-up, then click on >> button. RP Network Monitoring: STEP4 185

186 Riso Digital Education Center 6. Click on OK button. RP Network Monitoring: STEP4 186

187 Riso Digital Education Center 7. Close RISO-MONITOR window by click on Close button. RP Network Monitoring: STEP4 187

188 Riso Digital Education Center 8. A window pop-up when selected event occurs. RP Network Monitoring: STEP4 188

189 Riso Digital Education Center 9. If you want not to be Pop-up on some Events anymore, select item from Pop-up Notice list then click on << button. RP Network Monitoring: STEP4 189

190 Riso Digital Education Center Finishing Monitoring function. RP Network Monitoring 190 Press to finish Monitoring function or

191 Riso Digital Education Center Network Printing (NetBEUI) STEP1: Confirm NetBEUI protocol in the PCs STEP2: Connect NET-B (RP series) to the network STEP3: Communication check with RP series STEP4: Install Printer driver into the PC Win PC NetBEUI Print Data UTP Cable PC Appendix 6 : RP Network Printing (NetBEUI) HUB UTP Cable NET-B 191

192 Riso Digital Education Center Win PC NetBEUI PC HUB Check Point A: PC with network capability (NetBEUI protocol installed) B: Empty HUB port (2 or more) C: UTP straight Cable (2 Cables) D: RP series CD-ROM A B C D E C NET-B Network Printing (NetBEUI) 192

193 Riso Digital Education Center Reset Net-B (RP3790). If we do not take this procedure, you may not find RP series in the network. 1.Power OFF. 2.DIP Switch No.2 to ON position. 3.Power ON. 4.Power OFF again after RP becomes ready mode. 5.DIP Switch No.2 to OFF position. 6.Power ON. IP Address Subnet Mask Default Gateway Network Printing (NetBEUI) 193

194 Riso Digital Education Center STEP1: Confirm NetBEUI protocol in the PCs Win PC NetBEUI PC HUB NET-B Network Printing (NetBEUI): STEP1 194

195 Riso Digital Education Center 1.Open network properties in the PC. Check the protocol installed. If NetBEUI protocol is exist, do nothing and click on Cancel button to STEP1 finished. If no NetBEUI protocol exist, go to next page. Network Printing (NetBEUI): STEP1 195

196 Riso Digital Education Center 2. Right click on Network Neighborhood icon then select Properties. Network Printing (NetBEUI): STEP1 196

197 Riso Digital Education Center 3. Make sure no NetBEUI protocol is exist in the list. Then click on Add button. Network Printing (NetBEUI): STEP1 197

198 Riso Digital Education Center 4. Select Protocol then click on Add button. Network Printing (NetBEUI): STEP1 198

199 Riso Digital Education Center 5. Select Microsoft, several clicks on Arrow button to show NetBEUI then select NetBEUI and click on OK button. Network Printing (NetBEUI): STEP1 199

200 Riso Digital Education Center 6. Confirm if NetBEUI protocol appears in the list then click on OK button. Network Printing (NetBEUI): STEP1 200

201 Riso Digital Education Center 7. Click Yes to restart PC. Note: You must restart the PC. Network Printing (NetBEUI): STEP1 201

202 Riso Digital Education Center STEP2: Connect NET-B (RP series) to the network Win PC PC HUB NET-B Network Printing (NetBEUI): STEP2 202

203 Riso Digital Education Center NET-B (RP series) HUB Network 1. Connect a UTP Cable between HUB and NET-B (RP). Network Printing (NetBEUI): STEP2 203

204 Riso Digital Education Center HUB NET-B (RP series) If the HUB is 10BaseT If the HUB is 100BaseTX or Dual Speed 2. Check both Link LED’s. Network Printing (NetBEUI): STEP2 204

205 Riso Digital Education Center STEP3: Communication check with RP series Win PC NetBEUI PC HUB NET-B Network Printing (NetBEUI): STEP3 205

206 Riso Digital Education Center 1. Perform System configuration Data Output from the RP series. Check Computer name. 1.Power OFF. 2.Depress [ ] and [ ] buttons together then Power ON. 3.Select [0. SYSTEM/CNTRL PANEL] from Test mode. 4.Perform [0064-U System Configuration Data Output]. 5.Reset RP. Default settings out of factory (Example) NetBEUI protocol:ENABLE Computer name:”RISORINC-31DAEA” Workgroup:”Workgroup” Network Printing (NetBEUI): STEP3 Note: All RP series (NET-B) has unique number as default. Computer name and Workgroup can be changed by using RISO-ADMIN software. 206

207 Riso Digital Education Center 2. On the PC, Select Start – Find – Computer Network Printing (NetBEUI): STEP3 207

208 Riso Digital Education Center 3. Enter RP Computer name in the column. Then click on Find Now. Network Printing (NetBEUI): STEP3 208

209 Riso Digital Education Center 4. Confirm RP Computer name in the lower column. Then close the window. Network Printing (NetBEUI): STEP3 209

210 Riso Digital Education Center STEP4: Install a Printer Driver Win PC PC HUB NET-B Network Printing (NetBEUI): STEP4 210

211 Riso Digital Education Center 1. Double click on My Computer icon Network Printing (NetBEUI): STEP4 211

212 Riso Digital Education Center 2. Double click on Printers icon Network Printing (NetBEUI): STEP4 212

213 Riso Digital Education Center 3. Double click on Add Printer icon Network Printing (NetBEUI): STEP4 213

214 Riso Digital Education Center 4. Click on Next button Network Printing (NetBEUI): STEP4 214

215 Riso Digital Education Center 5. Select Network printers then click on Next button Network Printing (NetBEUI): STEP4 215

216 Riso Digital Education Center 6. Click on Browse… button. Network Printing (NetBEUI): STEP4 216

217 Riso Digital Education Center 7. Double click on Entire Network icon then double click on Workgroup icon, then double click on RP Computer name icon, and double click on risorinc icon. Finally click on OK button. Move to No.9. If the target RP will not appear, move to No.8 Network Printing (NetBEUI): STEP4 217

218 Riso Digital Education Center 8. Enter the path name in the column directly. Then click on Next button. Move to No.10. Network Printing (NetBEUI): STEP4 Path name: \\Risorinc-31daea\risorinc RP Computer name 218

219 Riso Digital Education Center 9. The path name appears in the column. Then click on Next button. Move to No.10. Network Printing (NetBEUI): STEP4 Path name: \\Risorinc-31daea\risorinc RP Computer name 219

220 Riso Digital Education Center 10. Change Printer name if it is necessary then click on Next button Network Printing (NetBEUI): STEP4 220

221 Riso Digital Education Center 11. Select Yes to perform a test page then click on Finish button Network Printing (NetBEUI): STEP4 221

222 Riso Digital Education Center 12. Click on Yes button Network Printing (NetBEUI): STEP4 222

223 Riso Digital Education Center 13. Printer icon with under bar appears in Printers folder. Network Printing (NetBEUI): STEP4 223


Download ppt "Riso Digital Education Center Appendix for SRC Training Basic Course 1."

Similar presentations


Ads by Google
