Enhanced Vision controllers SD Cards Utilities
What can I do with an SD card? Use SD Ladder functions to: Log data to OS defined file - up to 2 millions logs in 1G SD card! Copy data from DT to SD and from SD to DT Make Excel (*.csv or *.txt) files and store them direct to SD Make your own Data base on SD and read/write any kind of data there Store any kind of files – web pages, pictures, documents and then upload them via advanced WEB server

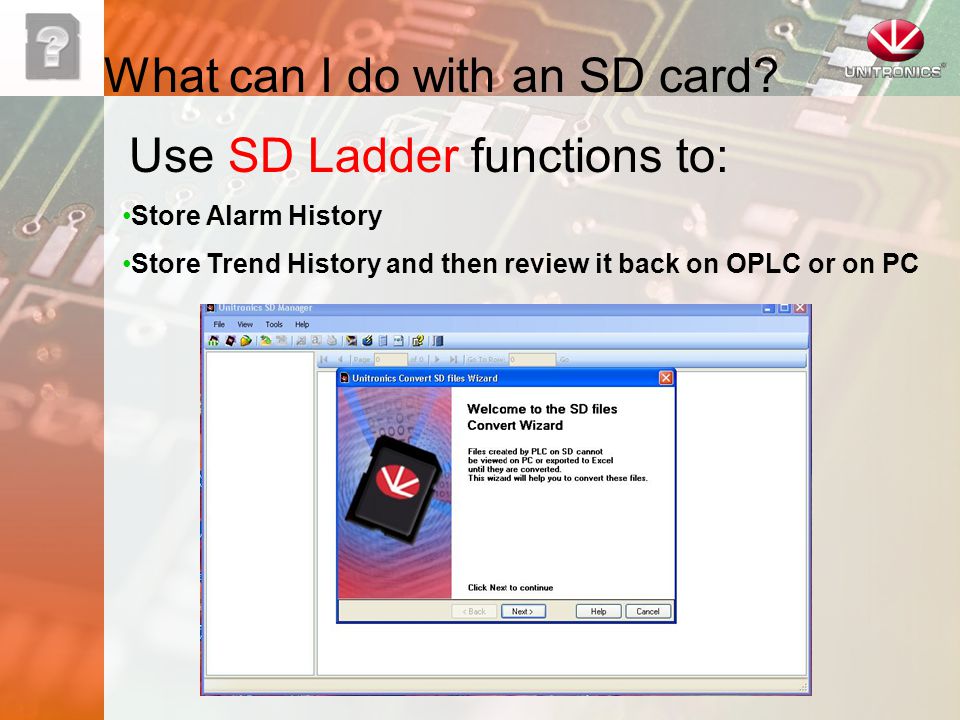

What can I do with an SD card? Use SD Ladder functions to: Store Alarm History Store Trend History and then review it back on OPLC or on PC
What can I do with an SD card? Use Information Mode to upload/download : OS firmware VisiLogic applications, Data Tables and operand values Clone OPLC

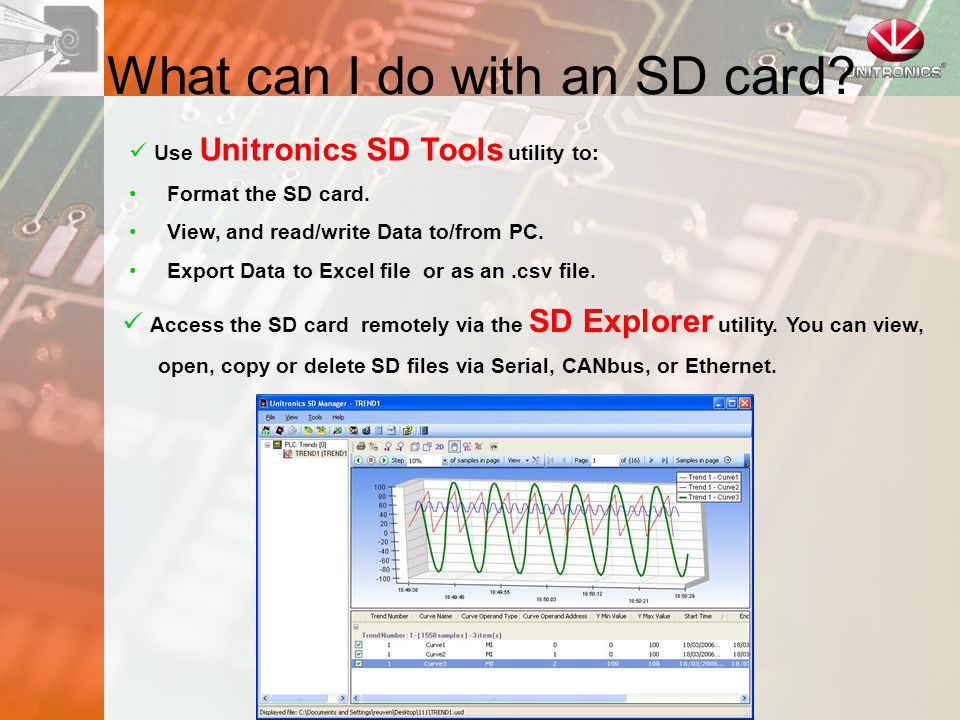

What can I do with an SD card? Use Unitronics SD Tools utility to: Format the SD card. View, and read/write Data to/from PC. Export Data to Excel file or as an.csv file. Access the SD card remotely via the SD Explorer utility. You can view, open, copy or delete SD files via Serial, CANbus, or Ethernet.
SD Cards Utilities
Before you begin Format the SD card in your PC with the SD Card Manager utility. This operation will structure the SD card creating necessary folder structure.
SD Card: Folders and File Types You can save DT lines into a log file on an SD card. The communication is: write only. LOG DT You can use an SD Card to Expend Data Tables memory. Save recipes. Save logs. Manage, import and export recipes. Creating continuous log process. Note: PLC can read only a full DT. Part of DT can be read only by the SD Card Manager. The communication is: read & write
SD Card: Folders and File Types EXCEL The Ladder function Create Line of PLC data, including text strings, and saves it to a vector of operands. The function Write Delimited Line uses this data to build either a.csv or.txt line, and can write it to an Excel file in this folder, or in one of four sub-folders. When the Ladder function Write.cvs or text Line to SD, it appends data lines to the specified file. The communication is: write only. SDBLOCKS Your Ladder application can create up to 4 SD Data Block files in this folder (Random access files). SD Block functions read/write blocks of raw data between operands and these files.

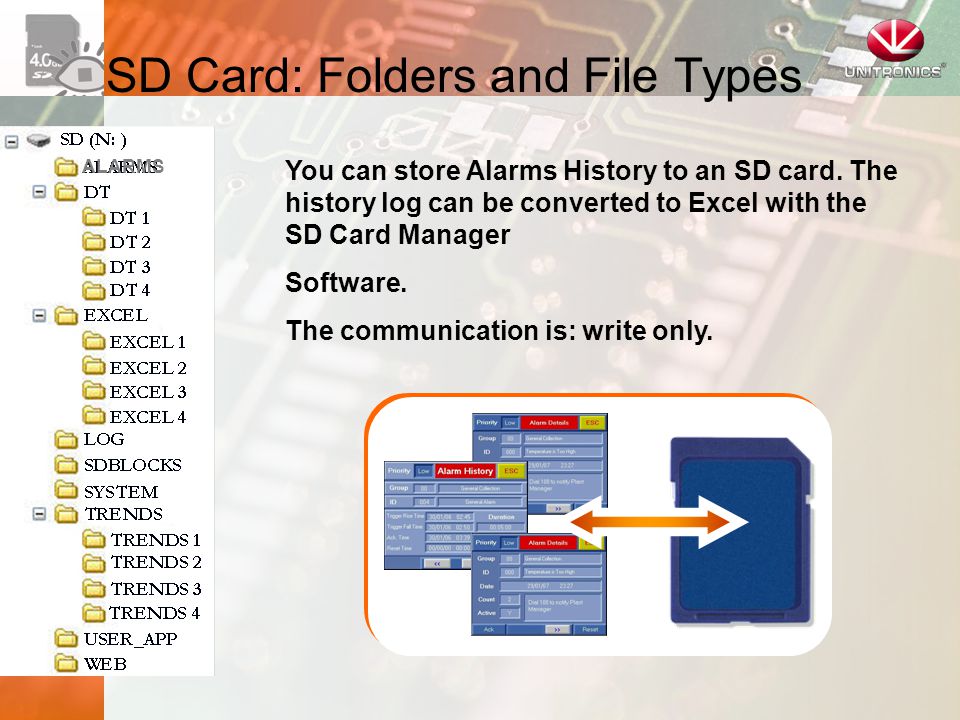

SD Card: Folders and File Types You can store Alarms History to an SD card. The history log can be converted to Excel with the SD Card Manager Software. The communication is: write only. ALARMS
SD Card: Folders and File Types TRENDS You can documents Trends history, browse back and forwards. Opened and convert the Trend files with the SD Card Manager software.
SD Card: Folders and File Types You can upload an OS from an SD card, or download it from the PLC, using Information Mode, via this folder. You can clone PLC. And create a file via Information Mode. the file is stored in this folder. When you install Clone file from an SD card to a PLC, Information Mode looks in this folder for the appropriate file SYSTEM USER_APP User Application can be downloaded/uploads to/from an SD card via Information mode.
