**Foundations of Physics**

Chapter 20

2
**Electricity and Magnetism**

Electric Circuits and Power 20 Series and Parallel Circuits 20 Analysis of Circuits 20 Electric Power, AC, and DC Electricity

3
Objectives Recognize and sketch examples of series and parallel circuits. Describe a short circuit and why a short circuit may be a dangerous hazard. Calculate the current in a series or parallel circuit containing up to three resistances. Calculate the total resistance of a circuit by combining series or parallel resistances. Describe the differences between AC and DC electricity. Calculate the power used in an AC or DC circuit from the current and voltage.

4
**Vocabulary Terms series circuit parallel circuit short circuit**

network circuit circuit analysis power Kirchhoff’s voltage law voltage drop direct current (DC) alternating current (AC) kilowatt Kirchhoff’s current law horsepower power factor circuit breaker watt kilowatt-hour

5

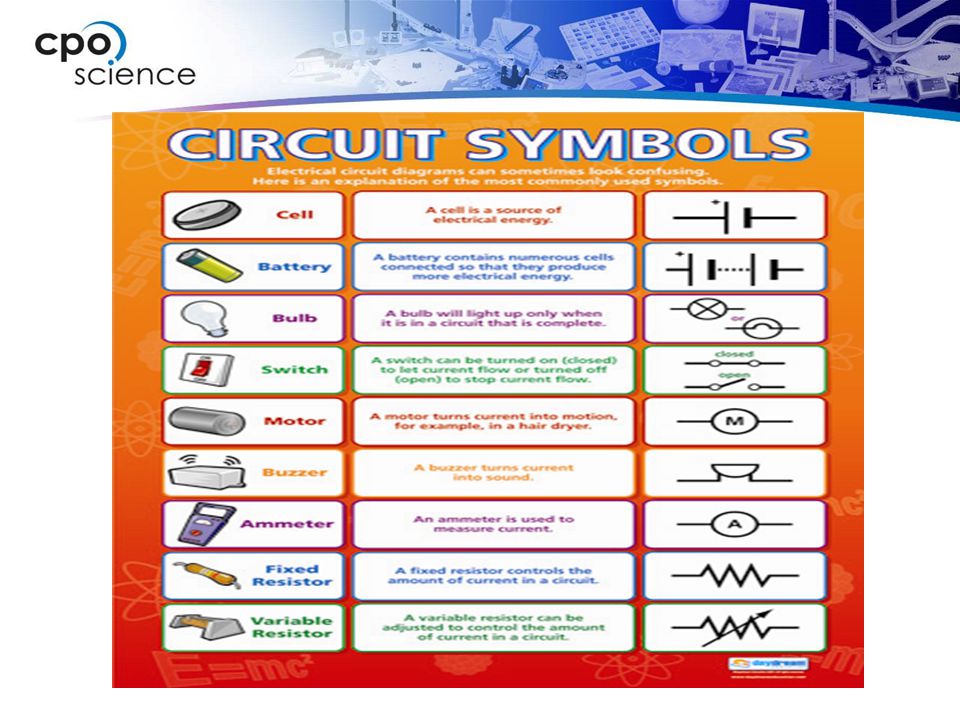

**Test questions What are the circuit symbols for a**

a. Battery f. Fixed resistor b. Light bulb g. Capacitor c. Motor h. Buzzer d. Switch i. Ammeter e. Variable resistor

8
Test Questions 2. Define a series circuit 3. Show the formula depicting five resistors in a series circuit 4. Describe Ohm’s Law 5. Draw and Calculate the total resistance in a series circuit containing two 1.5 ohm light bulbs, a battery, a 1 ohm buzzer, a switch, and a 5 ohm motor

9
**Series and Parallel Circuits**

Key Question: How do series and parallel circuits work? *

10
**Series and Parallel Circuits**

In series circuits, current can only take one path. The amount of current is the same at all points in a series circuit.

12

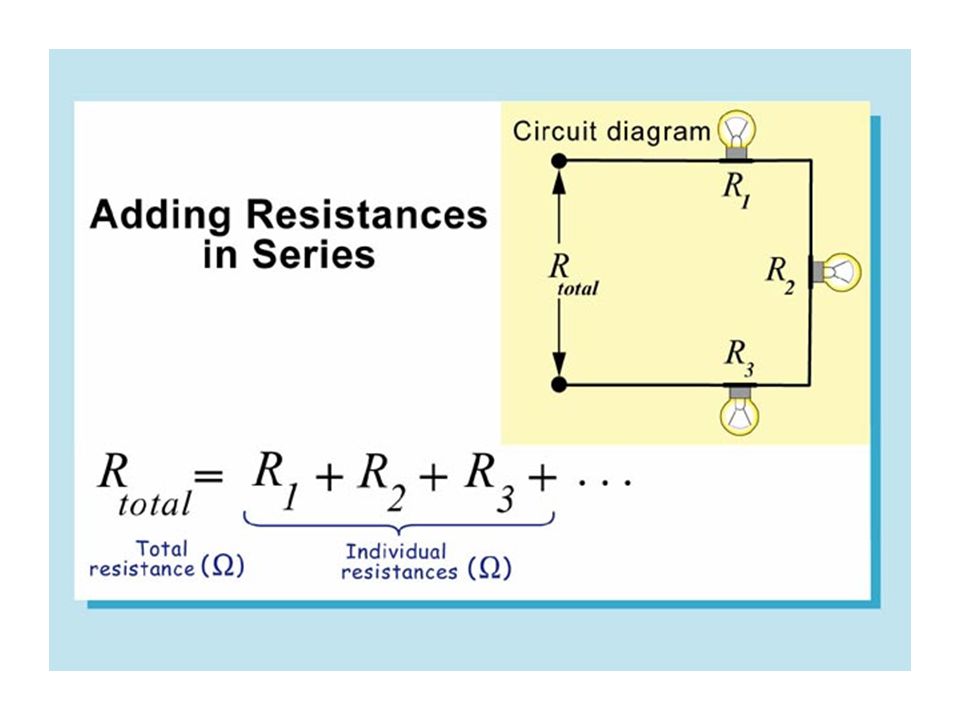

**Adding resistances in series**

Each resistance in a series circuit adds to the total resistance of the circuit. Rtotal = R1 + R2 + R3... Total resistance (ohms) Individual resistances (W)

14
**Total resistance in a series circuit**

Light bulbs, resistors, motors, and heaters usually have much greater resistance than wires and batteries.

16
Calculate current 1) You are asked to calculate current. 2) You are given the voltage and resistances. 3) Use Ohm’s law, I = V÷R, and add the resistance in series. 4) Solve: Resistance = R1 + R2 + R3 = 1Ω + 1Ω + 1Ω = 3Ω Current, I = (1.5 V) ÷ (3Ω)=0.5 A How much current flows in a circuit with a 1.5-volt battery and three 1 ohm resistances (bulbs) in series?

17
**Practice Draw a series circuit containing 3 light bulbs and a switch.**

If each light bulb has a resistance of 1.5 ohms what is the current in the circuit run by a 3.0V battery? What happens to the total resistance as the current passes through each light? What do you predict will happen to the brightness of the bulbs as each additional bulb is added to the circuit?

18
**Voltage in a series circuit**

Each separate resistance creates a voltage drop as the current passes through. As current flows along a series circuit, each type of resistor transforms some of the electrical energy into another form of energy Ohm’s law is used to calculate the voltage drop across each resistor.

20
If three 1.5 ohm light bulbs are wired in series what necessary voltage would be required to push .5amps of current through the circuit? Define parallel circuit Describe the current and voltage in a parallel circuit Describe Kirchoff’s current law How is current calculated in a parallel circuit What determines the current in each branch?

21
**Series and Parallel Circuits**

In parallel circuits the current can take more than one path. Because there are multiple branches, the current is not the same at all points in a parallel circuit.

23
**Series and Parallel Circuits**

Sometimes these paths are called branches. The current through a branch is also called the branch current. When analyzing a parallel circuit, remember that the current always has to go somewhere. The total current in the circuit is the sum of the currents in all the branches. At every branch point the current flowing out must equal the current flowing in. This rule is known as Kirchhoff’s current law.

25
**Voltage and current in a parallel circuit**

In a parallel circuit the voltage is the same across each branch because each branch has a low resistance path back to the battery. The amount of current in each branch in a parallel circuit is not necessarily the same. The resistance in each branch determines the current in that branch.

26
**16. What are the two advantages of a parallel circuit. 17**

16. What are the two advantages of a parallel circuit? 17. Describe a short circuit

27
**Advantages of parallel circuits**

Parallel circuits have two big advantages over series circuits: 1. Each device in the circuit sees the full battery voltage. 2. Each device in the circuit may be turned off independently without stopping the current flowing to other devices in the circuit.

28
Short circuit A short circuit is a parallel path in a circuit with zero or very low resistance. Short circuits can be made accidentally by connecting a wire between two other wires at different voltages. Short circuits are dangerous because they can draw huge amounts of current.

29
18. Calculate current 1) You are asked for the current. 2) You are given the voltage and resistance. 3) Use Ohm’s law: I = V ÷ R. 4) For the 3Ω bulb: I = (3 V) ÷ (3 Ω) = 1 A. For the 0.5 Ω bulb: I = (3 V) ÷ (0.5 Ω) = 6 A. The battery must supply the current for both bulbs, which adds up to 7 amps. Two bulbs with different resistances are connected in parallel to batteries with a total voltage of 3 volts. Calculate the total current supplied by the battery.

30
l 19. Describe the resistance in a parallel circuit 20. Write the formula for calculating total resistance in a parallel circuit

31
**Resistance in parallel circuits**

Adding resistance in parallel provides another path for current, and more current flows. When more current flows for the same voltage, the total resistance of the circuit decreases. This happens because every new path in a parallel circuit allows more current to flow for the same voltage.

33
**Adding resistance in parallel circuits**

1) You are asked for the resistance. 2) You are given the circuit diagram and resistances. 3) Use the rule for parallel resistances. 4) Solve: 1/R total = 1/2 Ω + 1/4 Ω = 2/4 Ω +1/4 Ω = 3/4 Ω R= 4/3 Ω = Ω 21. A circuit contains a 2 ohm resistor and a 4 ohm resistor in parallel. Calculate the total resistance of the circuit.

34
**Analysis of Circuits Key Question: How do we analyze network circuits?**

*

35
**What are the three primary laws for circuit analysis**

Define network circuit What are the steps for solving circuit problems

36

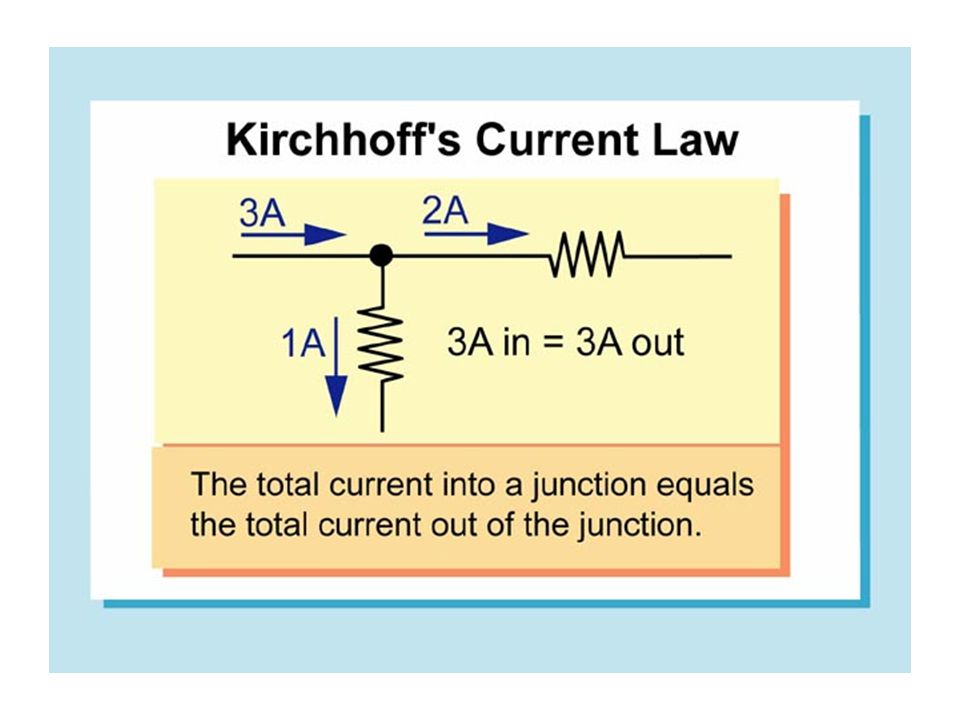

Analysis of Circuits All circuits work by manipulating currents and voltages. The process of circuit analysis means figuring out what the currents and voltages in a circuit are, and also how they are affected by each other. Three basic laws are the foundation of circuit analysis.

37
Three circuit laws

38
**Voltage divider circuit**

The total resistance of this circuit is 10 ohms (9Ω + 1Ω). The total current is 1 amp from Ohm’s law (10V ÷ 10Ω). What is the voltage at point (A)? We can use Kirchhoff’s voltage law to find the answer. Assume the current flows according to the light blue loop. The battery starts at +10V. Resistor R1 drops the voltage by 9V. This voltage drop is calculated from Ohm’s law and the resistance, V = 1A × 9Ω. Resistor R2 drops the voltage by 1V (1A × 1Ω). Around the whole loop the sum of the voltage gains and drops is zero ( = 0).

39
**Voltage divider V0 = R1 Vi R1 + R2**

A circuit divides any supplied voltage by a ratio of the resistors. V0 = R Vi R1 + R2 Input voltage (volts) Output voltage (volts) resistor ratio (W)

40
**Solving circuit problems**

Identify what the problem is asking you to find. Assign variables to the unknown quantities. Make a large clear diagram of the circuit. Label all of the known resistances, currents, and voltages. Use the variables you defined to label the unknowns. You may need to combine resistances to find the total circuit resistance. Use multiple steps to combine series and parallel resistors.

41
**Solving circuit problems**

If you know the total resistance and current, use Ohm’s law as V = IR to calculate voltages or voltage drops. If you know the resistance and voltage, use Ohm’s law as I = V ÷ R to calculate the current. An unknown resistance can be found using Ohm’s law as R = V ÷ I, if you know the current and the voltage drop through the resistor. Use Kirchhoff’s current and voltage laws as necessary.

42
**Solving circuit problems**

A bulb with a resistance of 1Ω is to be used in a circuit with a 6-volt battery. The bulb requires 1 amp of current. If the bulb were connected directly to the battery, it would draw 6 amps and burn out instantly. To limit the current, a resistor is added in series with the bulb. What size resistor is needed to make the current 1 amp? 1) You are asked to calculate the resistance. 2) You are told it is a series circuit and given the voltage, total current, and one resistance. 3) Use Ohm’s law, R = V ÷ I, and add the resistance in series. 4) Solve: Total resistance = 6V ÷ 1A = 6Ω. SInce the bulb is 1Ω, the additional resistor must be 5Ω to get a total 6Ω of resistance.

43
Network circuits In many circuits, resistors are connected both in series and in parallel. Such a circuit is called a network circuit. There is no single formula for adding resistors in a network circuit. For very complex circuits, electrical engineers use computer programs that can rapidly solve equations for the circuit using Kirchhoff’s laws.

44
**Calculate using network circuits**

25. Three bulbs, each with a resistance of 3Ω, are combined in the circuit in the diagram Three volts are applied to the circuit. Calculate the current in each of the bulbs. 26.From your calculations, do you think all three bulbs will be equally bright? 1) You are asked to calculate the currents. 2) You are given the circuit diagram, voltages, and resistances. 3) Use Ohm’s law, R = V ÷ I, and the series and parallel resistance formulas. 4) First, reduce the circuit by combining the two parallel resistances. 1/R total = 1/3 Ω + 1/3 Ω = 2/3 Ω R= 3/2 Ω = 1.5 Ω 5) Calculate the total resistance of 4.5Ω by adding up the remaining series resistances. Calculate the total current using Ohm’s law: I = 3V ÷ 4.5Ω = 0.67A. The two bulbs in parallel have the same resistance, so they divide the current equally; each one gets 0.33 amps. The single bulb in series gets the full current of 0.67 amps, but the other two bulbs get only 0.33 amps each. That means the bulbs in parallel will be much dimmer since they only get half the current.

45
**27. Describe Power in reference to electricity 28**

27.Describe Power in reference to electricity 28. How is power calculated? 29. What is the unit for power? 30. Describe a kilowatt 31. Describe horsepower

46
**Electric Power, AC, and DC Electricity**

Key Question: How much does electricity cost and what do you pay for? *

47
**Electric Power, AC, and DC Electricity**

The watt (W) is a unit of power. Power is the rate at which energy moves or is used. Since energy is measured in joules, power is measured in joules per second. One joule per second is equal to one watt.

48
Reviewing terms

49
**Power in electric circuits**

One watt is a pretty small amount of power. In everyday use, larger units are more convenient to use. A kilowatt (kW) is equal to 1,000 watts. The other common unit of power often seen on electric motors is the horsepower. One horsepower is 746 watts.

50
Power Voltage (volts) P = VI Power (watts) Current (amps)

51
32. Calculate power A light bulb with a resistance of 1.5Ω is connected to a 1.5-volt battery in the circuit shown at right. Calculate the power used by the light bulb. 1) You are asked to find the power used by the light bulb. 2) You are given the voltage of the battery and the bulb’s resistance. 3) Use Ohm’s law, I = V/R, to calculate the current; then use the power equation, P=VI, to calculate the power. 4) Solve: I = 1.5V ÷ 1.5Ω = 1A P = 1.5V × 1A = 1.5 W; the bulb uses 1.5 watts of electric power.

52
**Paying for electricity**

Electric companies charge for the number of kilowatt-hours used during a set period of time, often a month. One kilowatt-hour (kWh) means that a kilowatt of power has been used for one hour. Since power multiplied by time is energy, a kilowatt-hour is a unit of energy. One kilowatt-hour is 3.6 x 106 joules.

53
33. Calculate power Your electric company charges 14 cents per kilowatt-hour. Your coffee maker has a power rating of 1,050 watts. How much does it cost to use the coffee maker one hour per day for a month? 1) You are asked to find the cost of using the coffee maker. 2) You are given the power in watts and the time. 3) Use the power formula P = VI and the fact that 1 kWh = 1kW x 1h. 4) Solve: Find the number of kilowatts of power that the coffee maker uses. 1,050 W × 1 kW/1,000 W = 1.05 kW Find the kilowatt-hours used by the coffee maker each month. 1.05 kW × 1 hr/day x 30 days/month = 31.5 kWh per month. Find the cost of using the coffee maker. 31.5 kWh/month × $0.14/kWh = $4.41 per month.

54
**34. Define direct current 35. Define alternating current 36**

34. Define direct current 35. Define alternating current 36. What is meant by 60Hz alternating current?

55
**Alternating and direct current**

The current from a battery is always in the same direction. One end of the battery is positive and the other end is negative. The direction of current flows from positive to negative. This is called direct current, or DC.

56
**Alternating and direct current**

If voltage alternates, so does current. When the voltage is positive, the current in the circuit is clockwise. When the voltage is negative the current is the opposite direction. This type of current is called alternating current, or AC.

57
**Alternating and direct current**

AC current is used for almost all high-power applications because it is easier to generate and to transmit over long distances. The 120 volt AC (VAC) electricity used in homes and businesses alternates between peak values of +170 V and -170 V at a frequency of 60 Hz. AC electricity is usually identified by the average voltage, (120 VAC) not the peak voltage.

59
Power in AC circuits For a circuit containing a motor, the power calculation is a little different from that for a simple resistance like a light bulb. Because motors store energy and act like generators, the current and voltage are not in phase with each other. The current is always a little behind the voltage.

60
**Power for AC circuits P = VI x pf**

Electrical engineers use a power factor (pf) to calculate power for AC circuits with motors Avg. voltage (volts) Avg. current (amps) P = VI x pf Power (watts) power factor 0-100%

61
**Application: Wiring in Homes and Buildings**

62
**Application: Wiring in Homes and Buildings**
