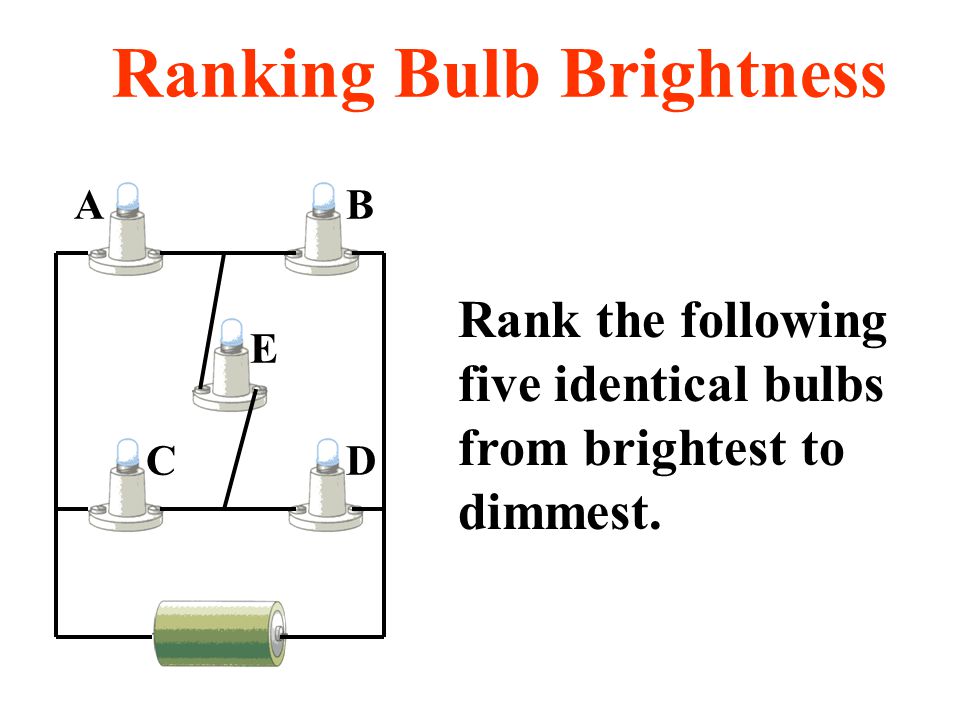

DC E AB Rank the following five identical bulbs from brightest to dimmest. Ranking Bulb Brightness

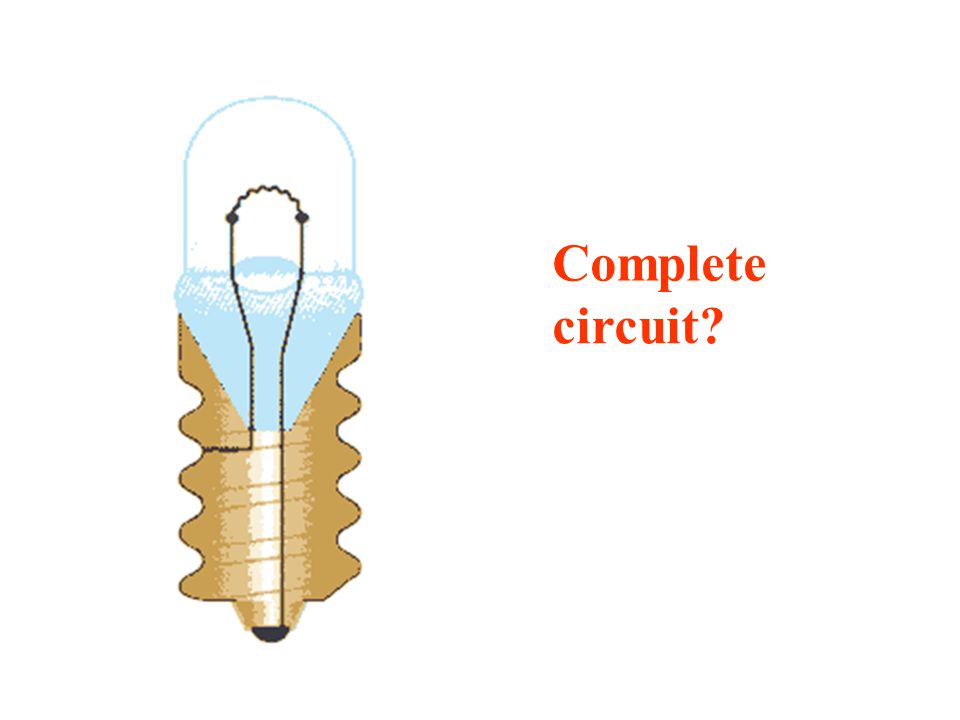

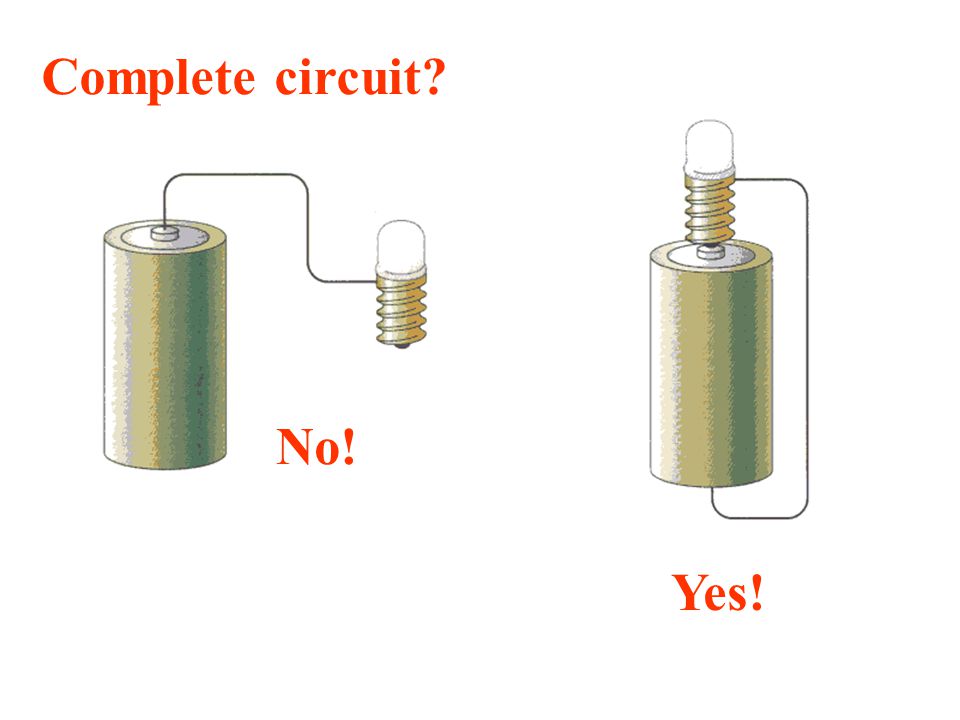

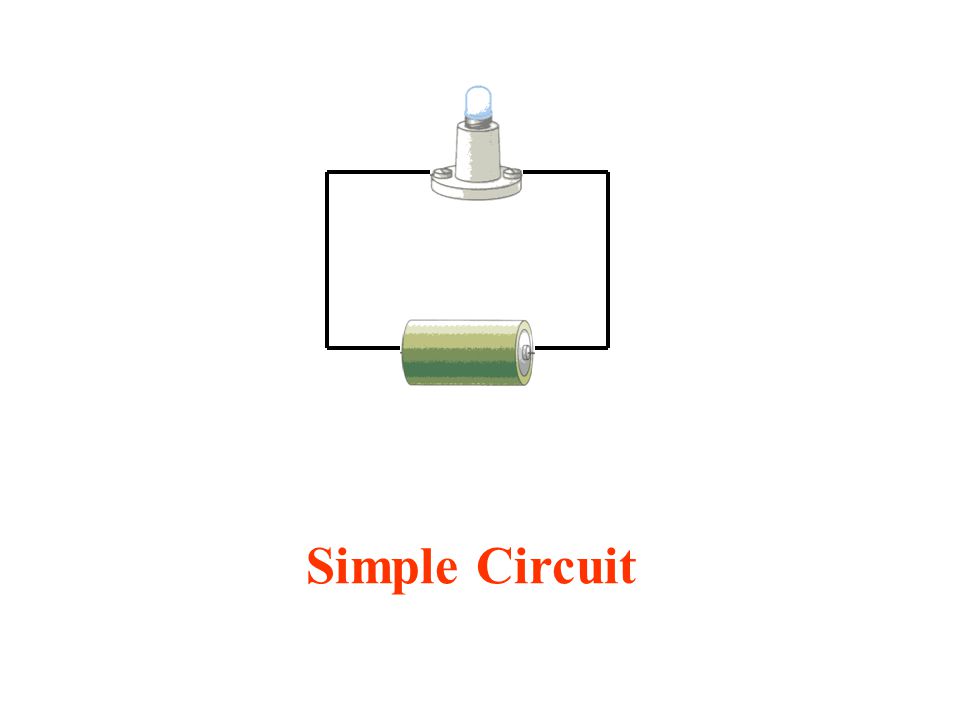

Complete circuit? No! Yes!

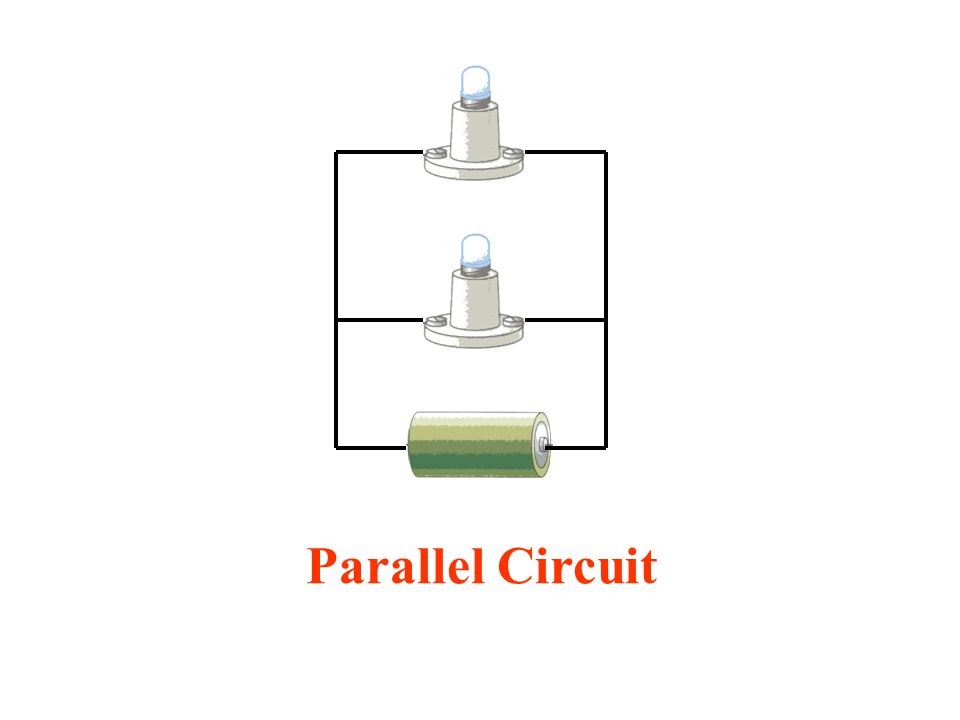

Compare bulb brightness. vs. Brighter bulbs
Rank the brightness of the bulbs … C > A = B A B C 1

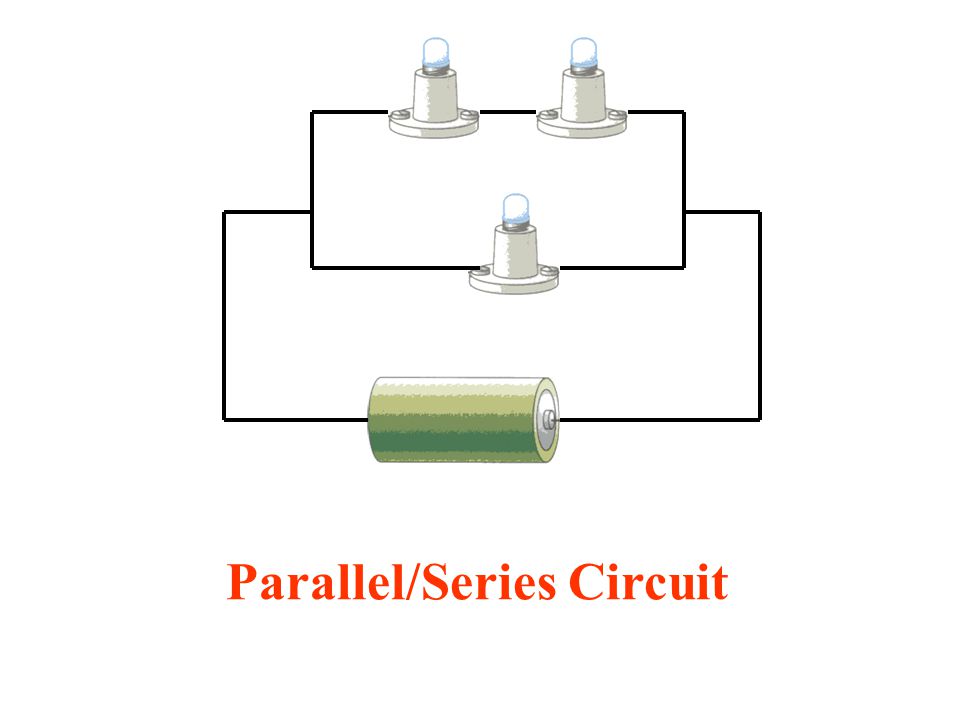

Rank the brightness of the bulbs … A > B = C A BC 2

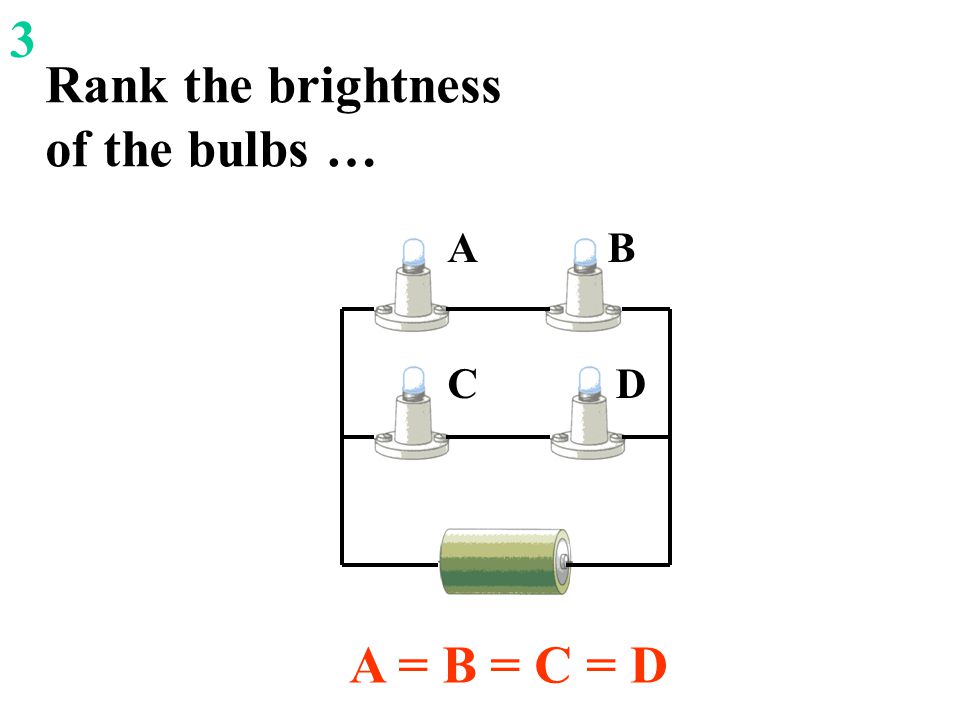

Rank the brightness of the bulbs … A = B = C = D D B C A 3

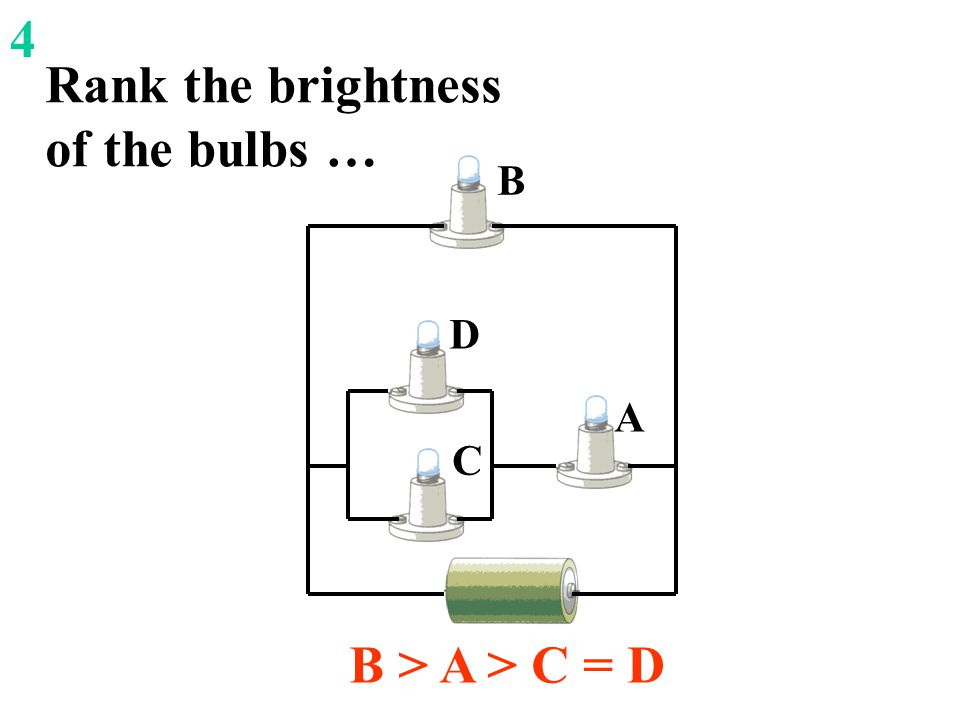

Rank the brightness of the bulbs … B > A > C = D A B C D 4

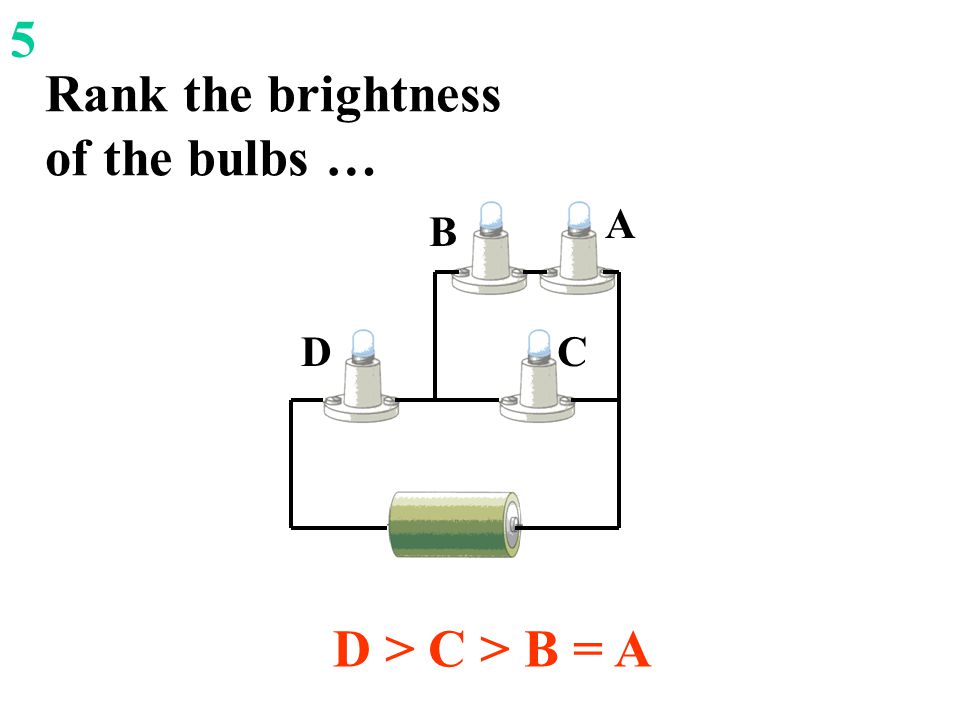

C A D B Rank the brightness of the bulbs … D > C > B = A 5
The following problem is a modification of one of the questions on the exam given to select the members of the 2000 US Physics Team.

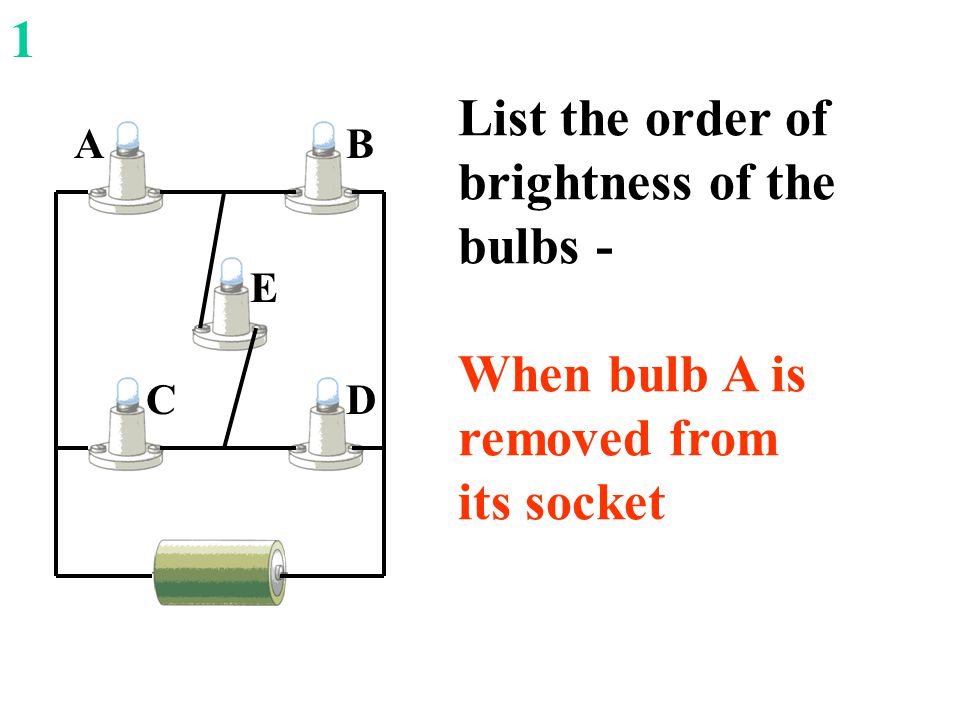

DC E AB List the order of brightness of the bulbs - When bulb A is removed from its socket 1
D B C E DC E BA C > D > E = B 1

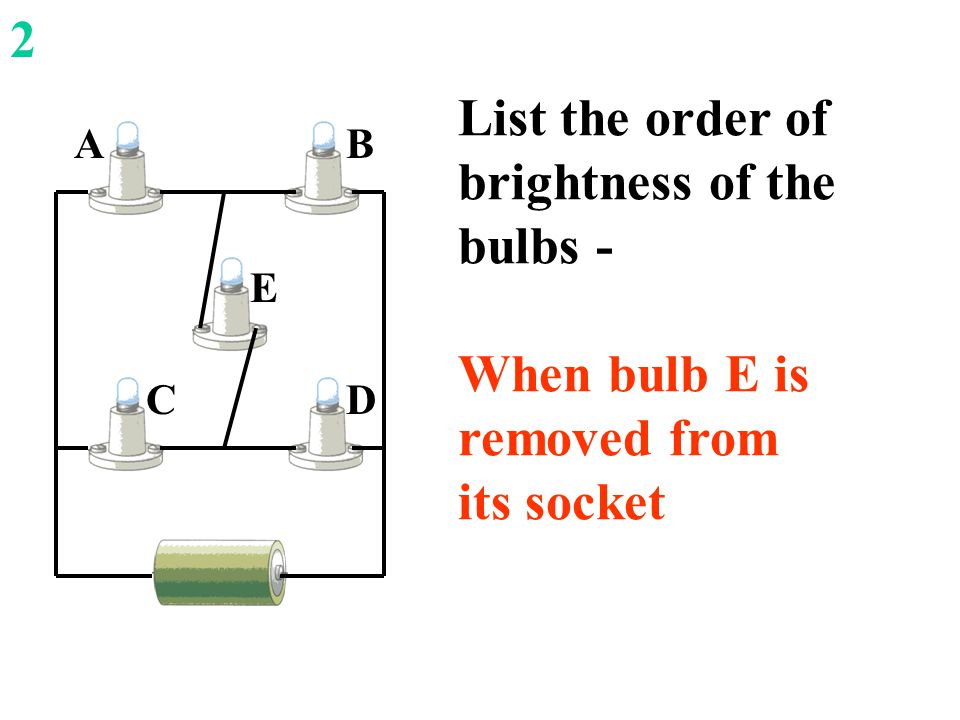

DC E AB List the order of brightness of the bulbs - When bulb E is removed from its socket 2
DC AB E 2 A = B = C = D D B C A

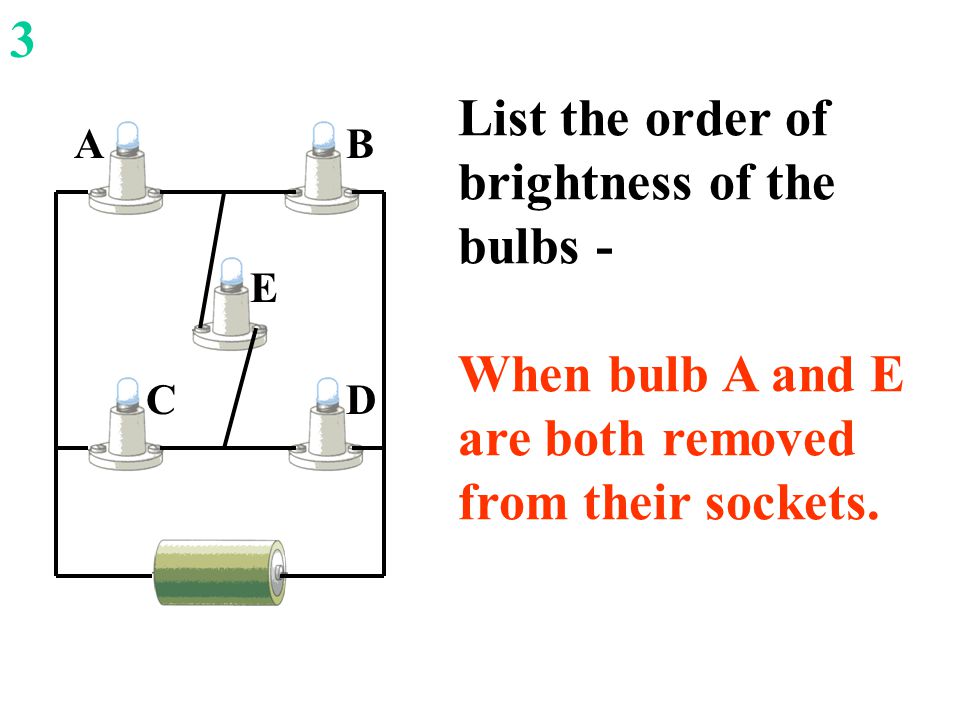

DC E AB List the order of brightness of the bulbs - When bulb A and E are both removed from their sockets. 3
DC BA E DC 3 C = D

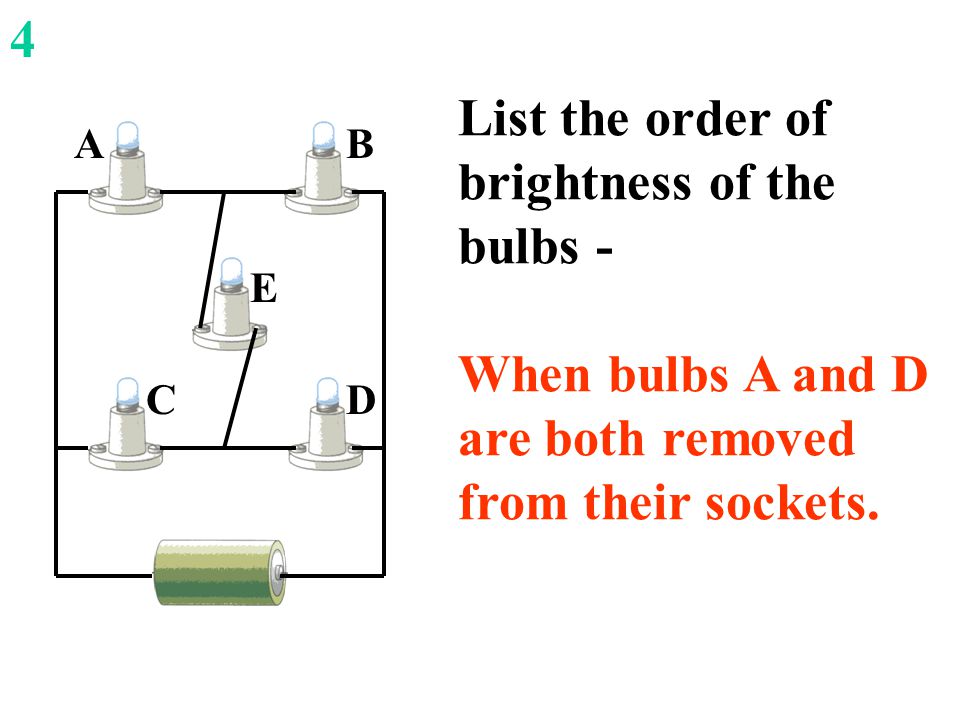

DC E AB List the order of brightness of the bulbs - When bulbs A and D are both removed from their sockets. 4
C E B D A BCE 4 C = E = B
DC E AB List the order of brightness of the bulbs - When a wire is connected across the terminals of socket A. 5
DC E AB D B C E 5 B > D > E = C

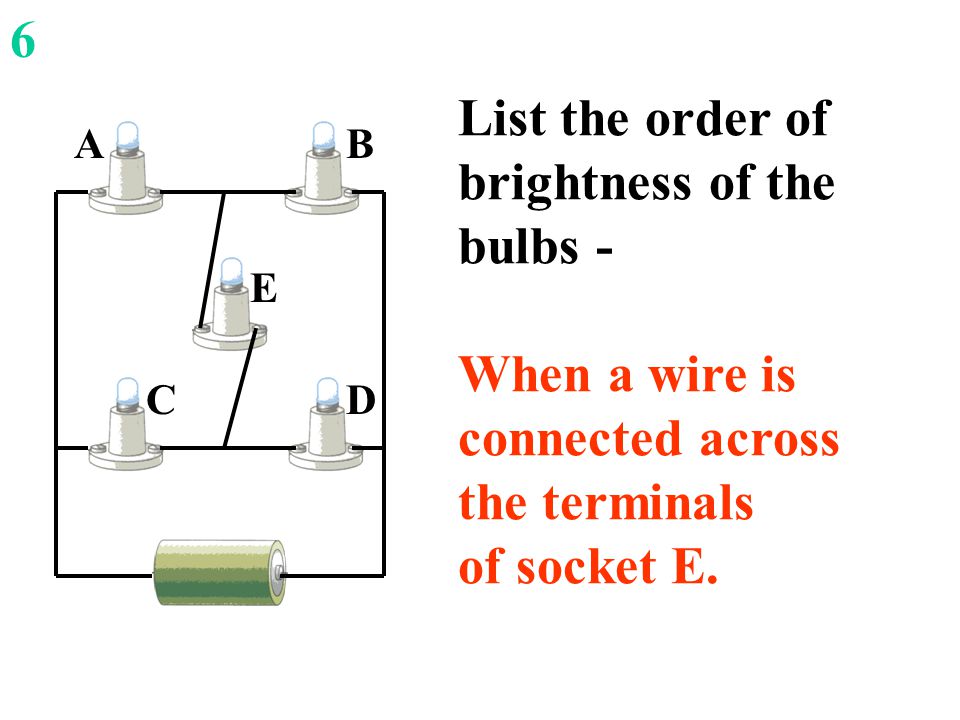

DC E AB List the order of brightness of the bulbs - When a wire is connected across the terminals of socket E. 6
DC E AB 6 A = B = C = D D B C A
DC E AB List the order of brightness of the bulbs - When wires are connected across the terminals of sockets C and E. 7
DC E AB D B 7 B = D

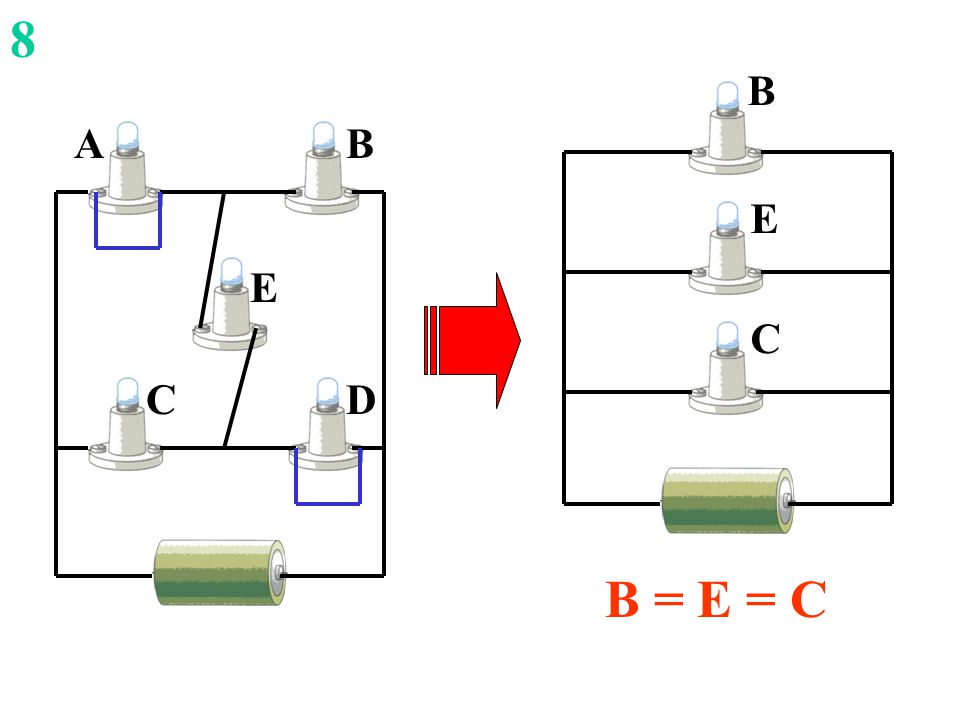

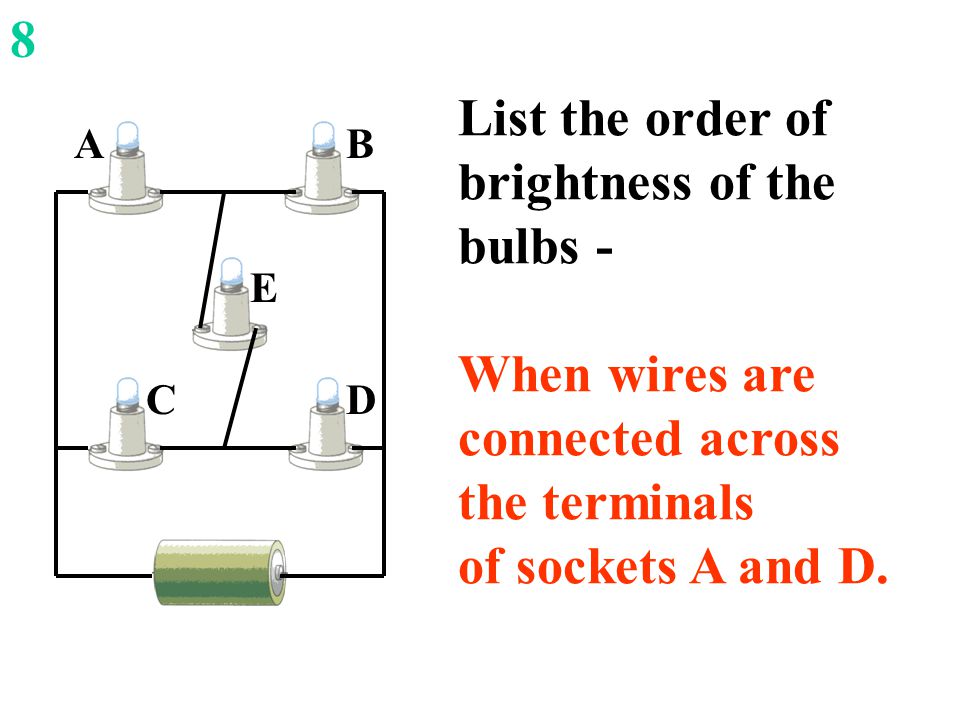

DC E AB List the order of brightness of the bulbs - When wires are connected across the terminals of sockets A and D. 8
DC E AB B C E 8 B = E = C
