Ionic and Covalent Compounds Review

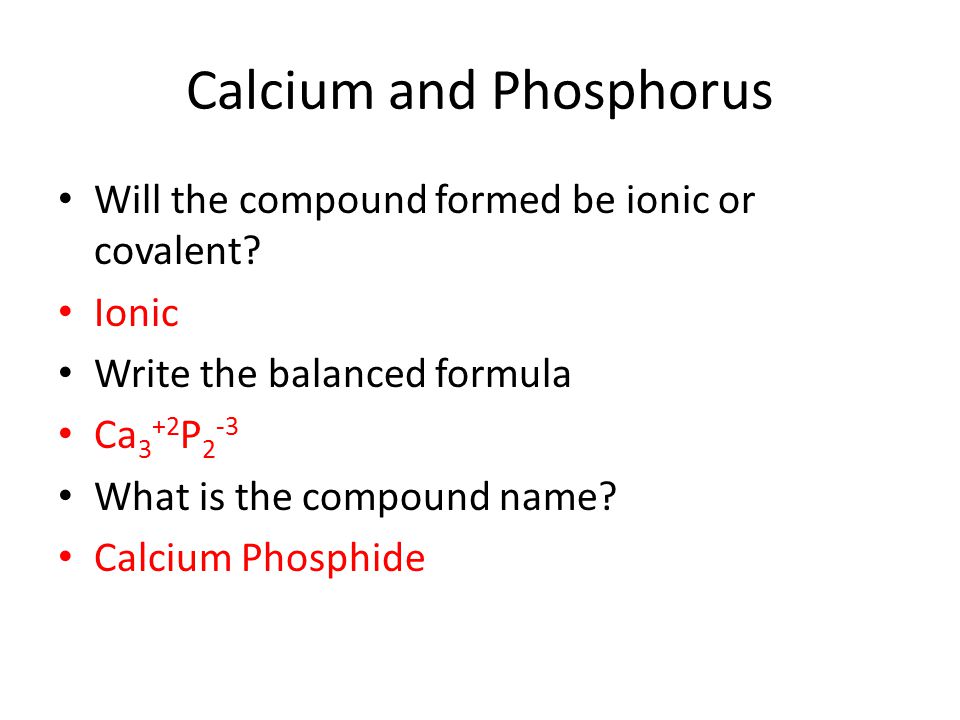

Calcium and Phosphorus Will the compound formed be ionic or covalent? Ionic Write the balanced formula Ca 3 +2 P 2 -3 What is the compound name? Calcium Phosphide
Fe +3 and (NO 3 ) -1 Will the compound formed be ionic or covalent? Ionic Write the balanced formula Fe +3 (NO 3 ) 3 -1 What is the compound name? Iron (III) Nitrate
Carbon and Fluoride Will the compound formed be ionic or covalent? Covalent Draw the Lewis dot diagram What is the chemical formula? CF 4 What is the chemical name? Carbon tetrafluoride
Sodium and Oxygen Will the compound formed be ionic or covalent? ionic Draw the Lewis dot diagram What is the chemical formula? Na 2 +1 O -2 What is the chemical name? Sodium Oxide
Copper +2 and Sulfur Will the compound formed be ionic or covalent? ionic Draw the Lewis dot diagram What is the chemical formula? Cu +2 S -2 What is the chemical name? Copper (II) Sulfide
Triphosphorus hexachloride Will the compound formed be ionic or covalent? Covalent What is the chemical formula? P 3 Cl 6
Manganese (IV) Bromide Will the compound formed be ionic or covalent? Ionic What is the chemical formula? Mn +4 Br -1 4 Draw the Lewis dot diagram.
Trihydrogen mononitride Will the compound formed be ionic or covalent? Covalent What is the chemical formula? H 3 N Draw the Lewis dot diagram.
Beryllium Phosphate Will the compound formed be ionic or covalent? Ionic What is the chemical formula? Be 3 +2 (PO 4 ) 2 -3

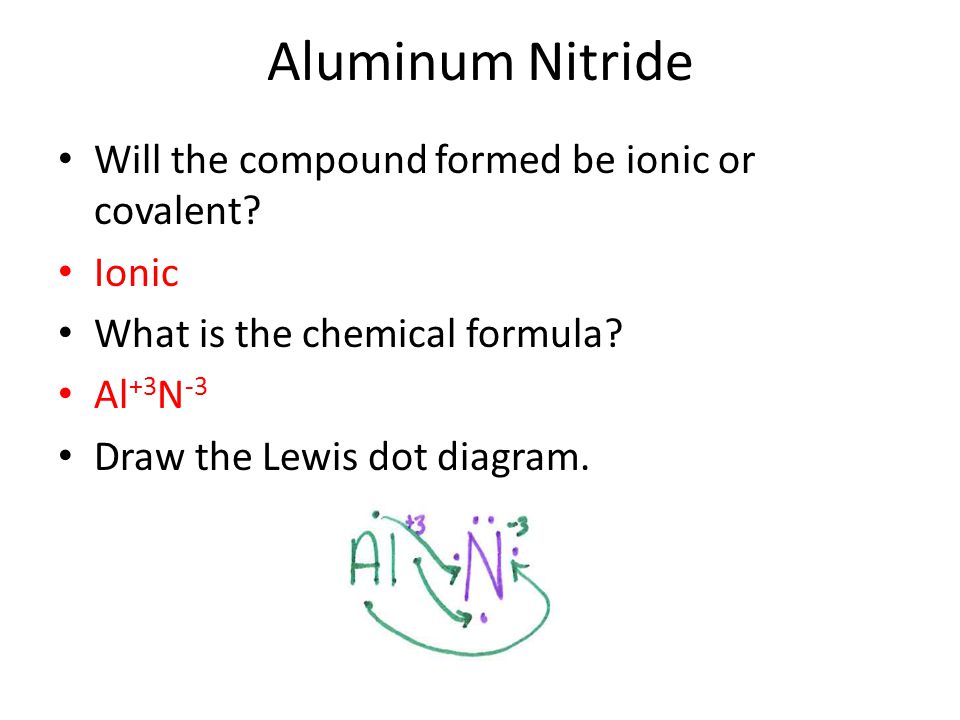

Aluminum Nitride Will the compound formed be ionic or covalent? Ionic What is the chemical formula? Al +3 N -3 Draw the Lewis dot diagram.
Ammonium and Oxygen Will the compound formed be ionic or covalent? Ionic What is the chemical formula? (NH 4 ) 2 +1 O -2
