1 ECHO BASICS - II 2D ECHO AND M – MODE BASIC VIEWS Dr. BENNY JOSE P. SENIOR RESIDENT DEPT OF CARDIOLOGY MEDICAL COLLEGE, KOZHIKODE.

2 2D ECHO

3 OPTIMIZATION OF 2D IMAGES TRANSDUCER SELECTIONDEPTHZOOMFOCUSGAINTIME GAIN COMPENSATIONDYNAMIC RANGEPREPROCESSINGPERSISTENCEPOSTPROCESSINGB COLOR

4

5

6 OTHER VIEWS CONGENITAL HEART DISEASES ASCENDING AORTA AORTIC VALVE VELOCITIES RIGHT LATERAL DECUBITUS CONGENITAL HEART DISEASES RIGHT APICAL VIEW PROBE ON THE BACK FOR DESCENDING THORACIC AORTA (DISSECTIONS) LARGE LEFT PLEURAL EFFUSION

7 PATIENT POSITIONING

8 PARASTERNAL AND APICAL VIEWS

9 SUBCOSTAL VIEW

10 SUPRASTERNAL VIEW

11

12 IMAGING PLANES

13 TRANSDUCER TERMINOLOGY MOVEMENT SUPERIORINFERIORLATERALMEDIAL TILTING SUPERIORINFERIORANTERIORPOSTERIOR ANGULATION MEDIALLATERAL ROTATION PIVOTING OR TWISTING IMAGE INDEX MARKER ON THE OBSERVER’S RIGHT SIDE

14 2D ECHO VIEWS

15 PARASTERNAL LONG AXIS

16

17 PARASTERNAL LONG AXIS VIEW

18 PLAX DEPICTING CORONARY SINUS AND DESCENDING THORACIC AORTA

19 PARASTERNAL LONG AXIS – RV INFLOW VIEW

20

21

22 CHIARI NETWORK

23 PARASTERNAL LONG AXIS – RV OT VIEW

24

25 PARASTERNAL SHORT AXIS

26 PARASTERNAL SHORT AXIS - AT PULMONARY ARTERY BIFURCATION LEVEL

27 PSAX – LMCA AND RCA VISIBLE

28

29

30

31

32

33

34

35 APICAL 4 CHAMBER VIEW

36

37

38 LV FALSE TENDON

39 MODERATOR BAND

40 APICAL 5 CHAMBER VIEW

41 APICAL 2 CHAMBER VIEW

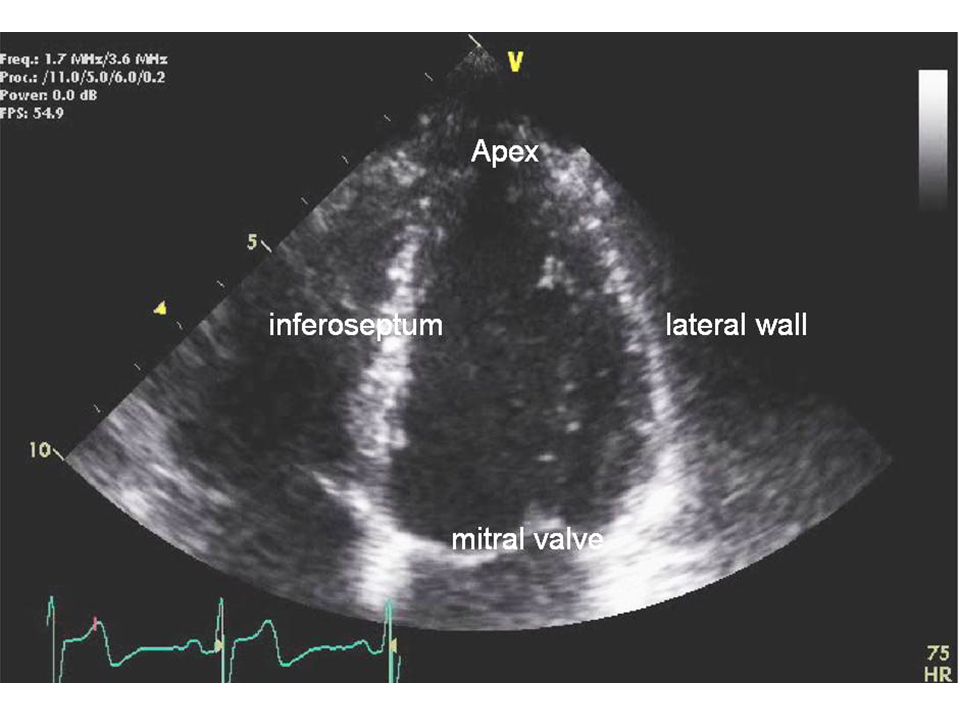

42

43 APICAL 2 CHAMBER VIEW – OFF AXIS POSTERIOR TILT, MEDIAL ANGULATION, COUNTERCLOCKWISE ROTATION

44 APICAL 2 CHAMBER VIEW LA APPENDAGE

45 APICAL LONG AXIS VIEW

46

47 SUBCOSTAL LONG AXIS

48 SUBCOSTAL 4 CHAMBER VIEW

49 SUBCOSTAL SHORT AXIS

50

51 SUBCOSTAL GREAT VESSEL VIEW

52

53 SUPRASTERNAL LONG AXIS

54 SUPRASTERNAL SHORT AXIS

55

56

57 M – MODE SCAN

58

59

60

61

62

63 PULMONARY VALVE M MODE
