1 ‘How I do’ CMR in HCM Dr Sanjay Prasad, Royal Brompton Hospital London, UK. For SCMR August 2006 This presentation is posted for members of scmr as an educational guide – it represents the views and practices of the author, and not necessarily those of SCMR.

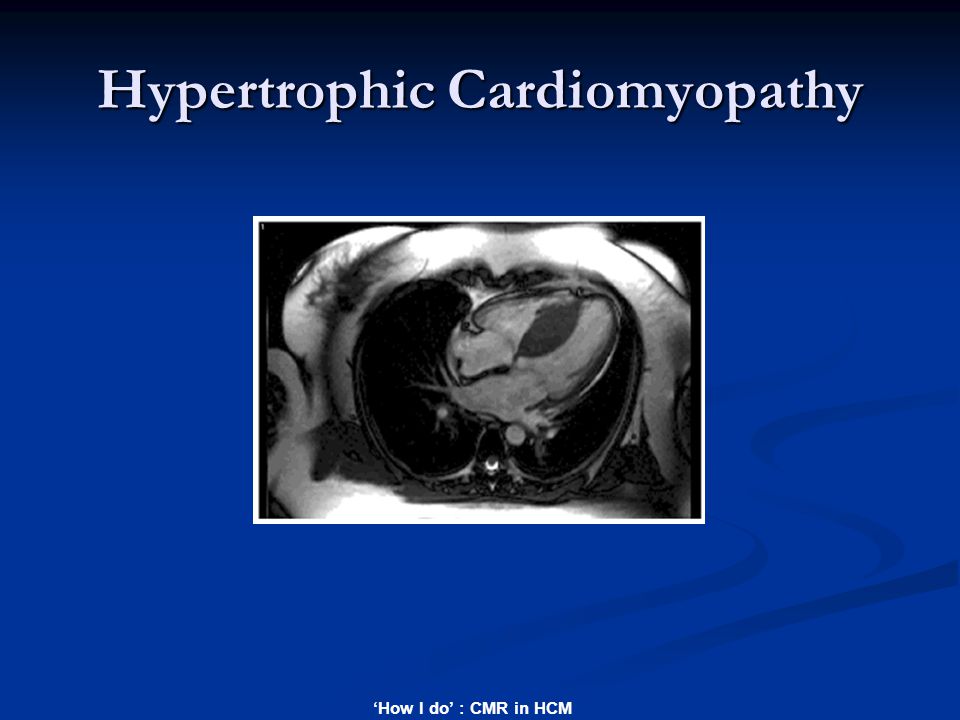

2 ‘How I do’ : CMR in HCM Hypertrophic Cardiomyopathy

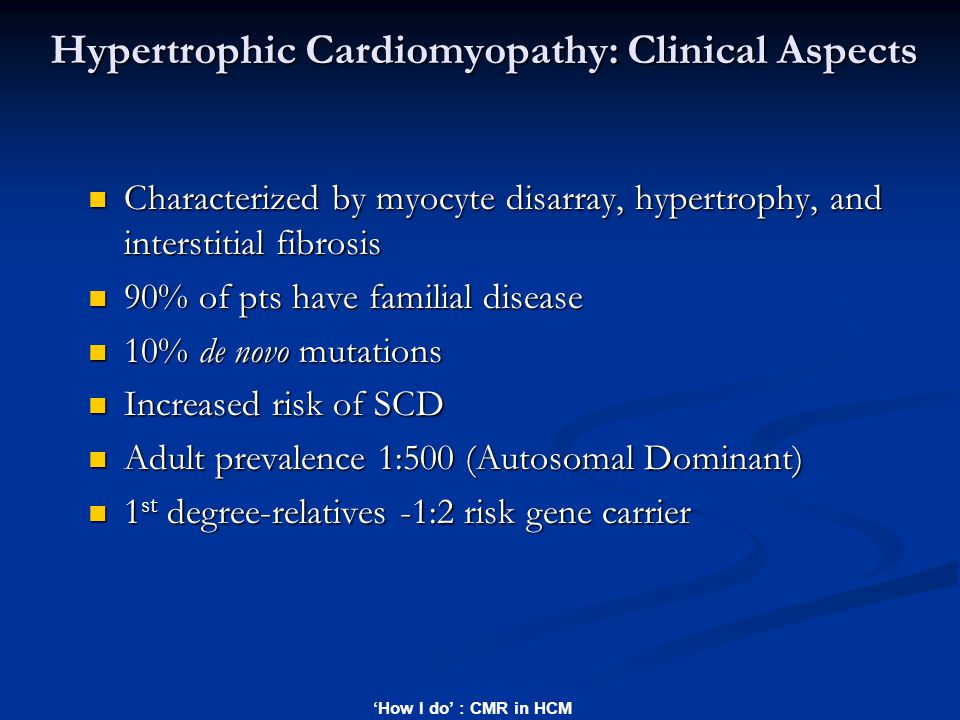

3 ‘How I do’ : CMR in HCM Hypertrophic Cardiomyopathy: Clinical Aspects Characterized by myocyte disarray, hypertrophy, and interstitial fibrosis Characterized by myocyte disarray, hypertrophy, and interstitial fibrosis 90% of pts have familial disease 90% of pts have familial disease 10% de novo mutations 10% de novo mutations Increased risk of SCD Increased risk of SCD Adult prevalence 1:500 (Autosomal Dominant) Adult prevalence 1:500 (Autosomal Dominant) 1 st degree-relatives -1:2 risk gene carrier 1 st degree-relatives -1:2 risk gene carrier

4 ‘How I do’ : CMR in HCM HCM: Diagnosis Unexplained hypertrophy Unexplained hypertrophy Measured wall thickness exceeds 2SD for gender-,age-, and BSA-matched populations Measured wall thickness exceeds 2SD for gender-,age-, and BSA-matched populations ≥ 1.5cm in absence of a recognized cause ≥ 1.5cm in absence of a recognized cause There may be associated systolic anterior motion of the mitral valve leaflets and outflow tract obstruction There may be associated systolic anterior motion of the mitral valve leaflets and outflow tract obstruction Multiple causative mutations in at least 10 different sarcomeric proteins Multiple causative mutations in at least 10 different sarcomeric proteins Variable phenotype and clinical outcome Variable phenotype and clinical outcome Seidman et al 2002; Chien 2003

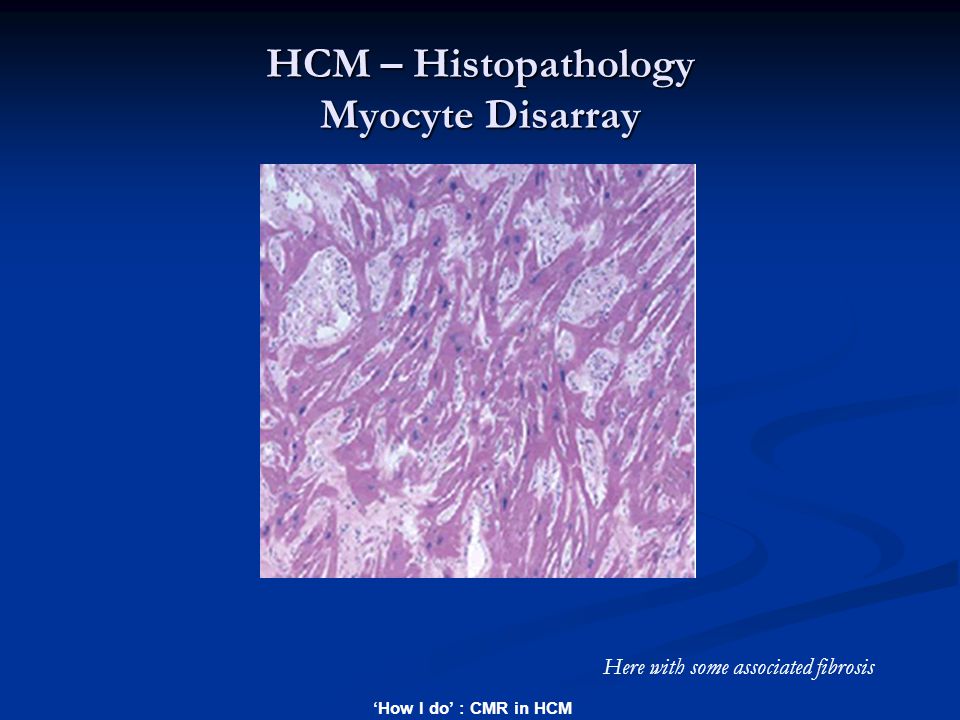

5 ‘How I do’ : CMR in HCM HCM – Histopathology Myocyte Disarray Here with some associated fibrosis

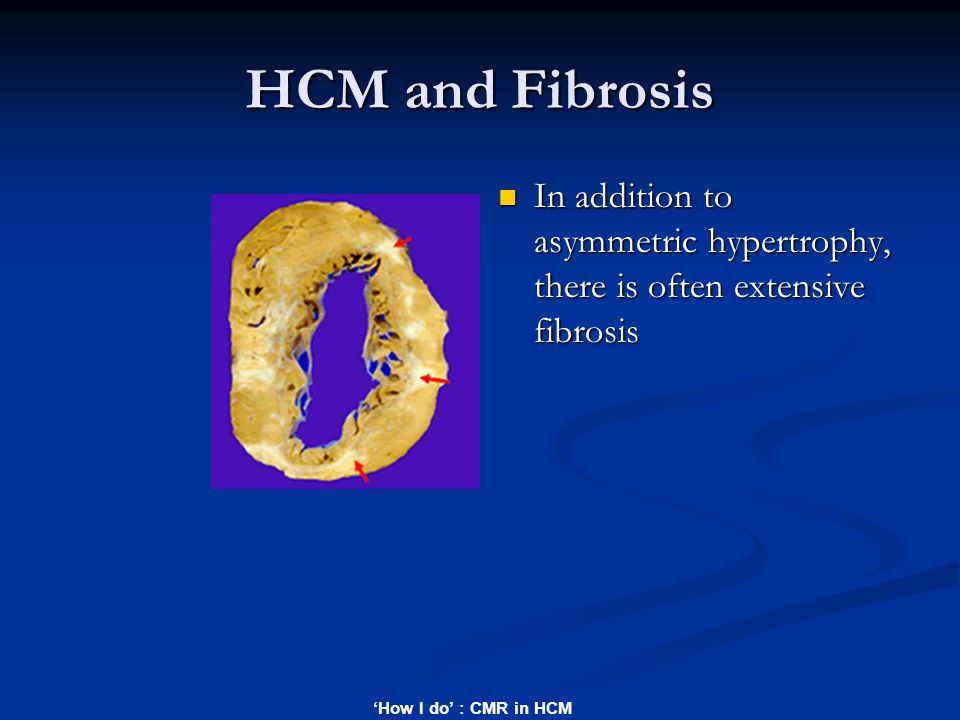

6 ‘How I do’ : CMR in HCM HCM and Fibrosis In addition to asymmetric hypertrophy, there is often extensive fibrosis

7 ‘How I do’ : CMR in HCM HCM: SAM + LVOTO

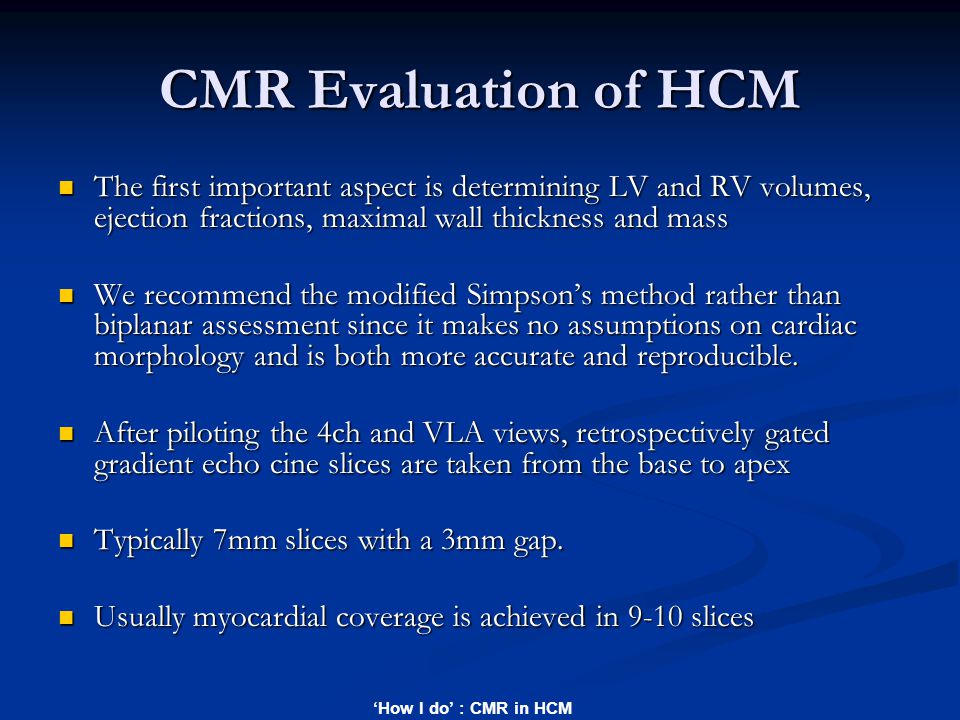

8 ‘How I do’ : CMR in HCM CMR Evaluation of HCM The first important aspect is determining LV and RV volumes, ejection fractions, maximal wall thickness and mass The first important aspect is determining LV and RV volumes, ejection fractions, maximal wall thickness and mass We recommend the modified Simpson’s method rather than biplanar assessment since it makes no assumptions on cardiac morphology and is both more accurate and reproducible. We recommend the modified Simpson’s method rather than biplanar assessment since it makes no assumptions on cardiac morphology and is both more accurate and reproducible. After piloting the 4ch and VLA views, retrospectively gated gradient echo cine slices are taken from the base to apex After piloting the 4ch and VLA views, retrospectively gated gradient echo cine slices are taken from the base to apex Typically 7mm slices with a 3mm gap. Typically 7mm slices with a 3mm gap. Usually myocardial coverage is achieved in 9-10 slices Usually myocardial coverage is achieved in 9-10 slices

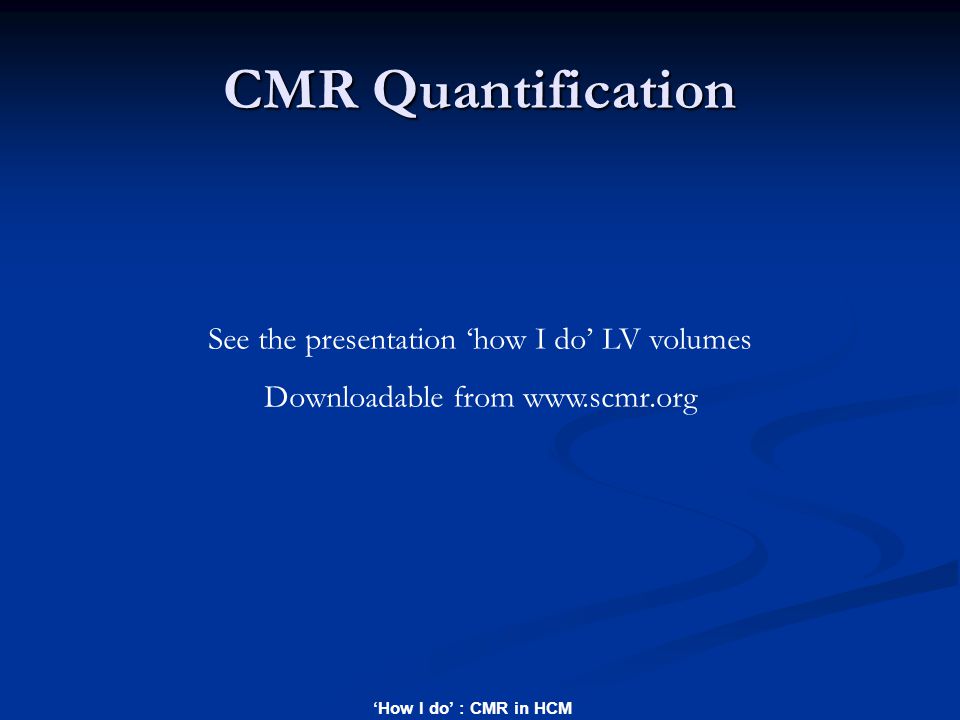

9 ‘How I do’ : CMR in HCM CMR Quantification See the presentation ‘how I do’ LV volumes Downloadable from

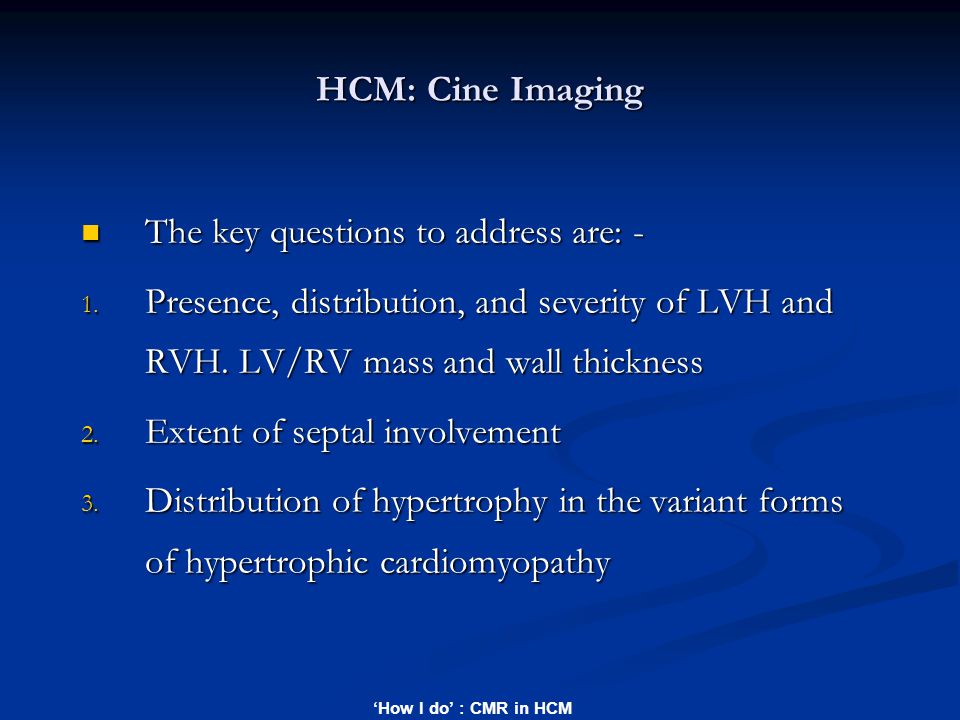

10 ‘How I do’ : CMR in HCM HCM: Cine Imaging The key questions to address are: - The key questions to address are: - 1. Presence, distribution, and severity of LVH and RVH. LV/RV mass and wall thickness 2. Extent of septal involvement 3. Distribution of hypertrophy in the variant forms of hypertrophic cardiomyopathy

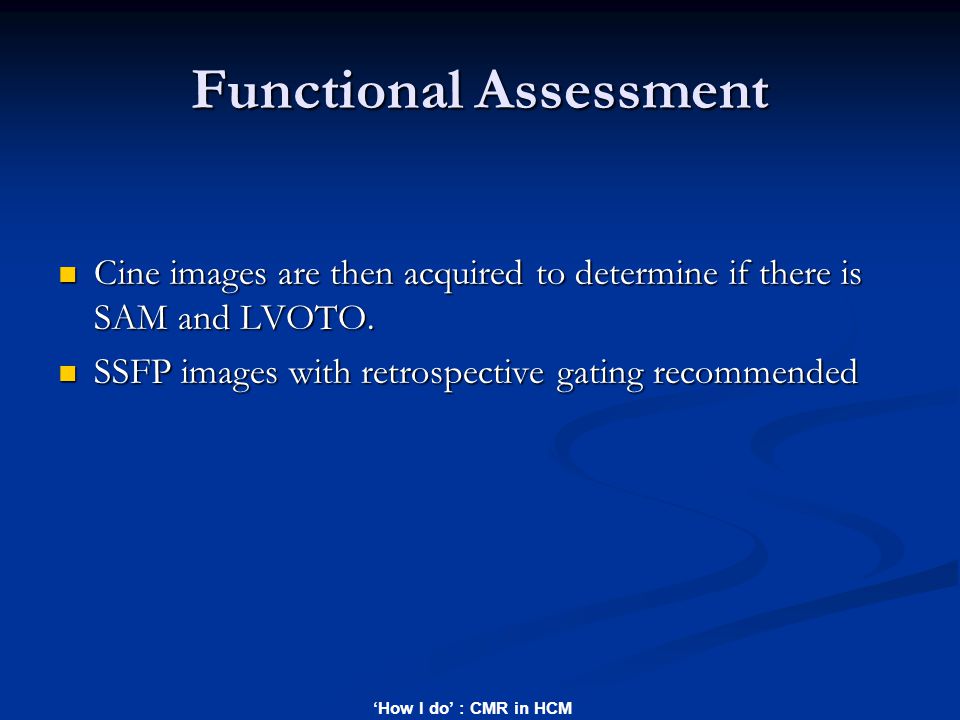

11 ‘How I do’ : CMR in HCM Functional Assessment Cine images are then acquired to determine if there is SAM and LVOTO. Cine images are then acquired to determine if there is SAM and LVOTO. SSFP images with retrospective gating recommended SSFP images with retrospective gating recommended

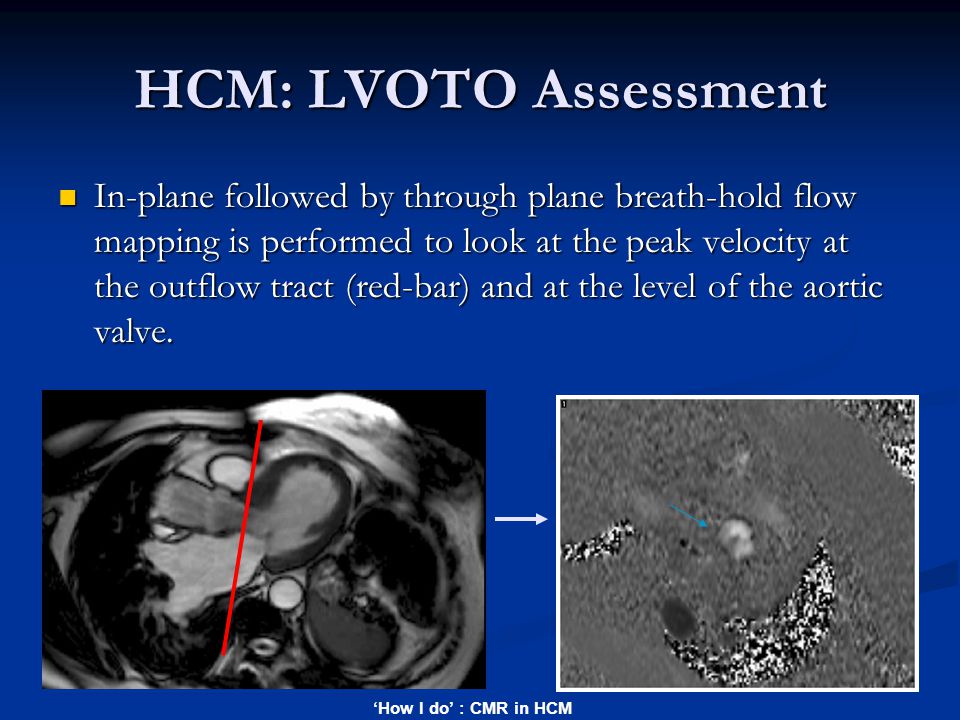

12 ‘How I do’ : CMR in HCM HCM: LVOTO Assessment In-plane followed by through plane breath-hold flow mapping is performed to look at the peak velocity at the outflow tract (red-bar) and at the level of the aortic valve. In-plane followed by through plane breath-hold flow mapping is performed to look at the peak velocity at the outflow tract (red-bar) and at the level of the aortic valve.

13 ‘How I do’ : CMR in HCM Assessment of Fibrosis The presence of replacement fibrosis can be detected using the inversion recovery late enhancement technique following gadolinium-DTPA administration. The presence of replacement fibrosis can be detected using the inversion recovery late enhancement technique following gadolinium-DTPA administration. After all, fibrosis is the main component of chronic MI which is visible with the late enhancement technique After all, fibrosis is the main component of chronic MI which is visible with the late enhancement technique

14 ‘How I do’ : CMR in HCM Gd infarct imaging Fibrosis imaging in HCM HCM fibrosis imaging?

15 ‘How I do’ : CMR in HCM HCM – a wide variety of scar 2 patients. For the lower patient, scar is present and invisible without Gd-DTPA. Many patients have no detectable scar

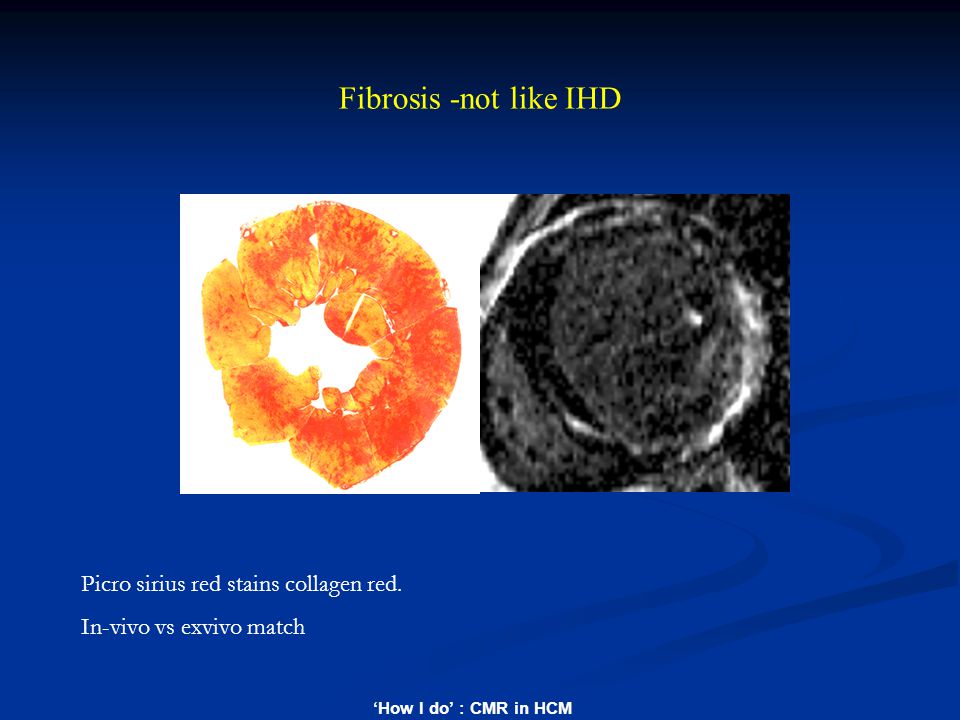

16 ‘How I do’ : CMR in HCM Fibrosis -not like IHD Picro sirius red stains collagen red. In-vivo vs exvivo match

17 ‘How I do’ : CMR in HCM Detection of Fibrosis: Inversion Recovery Sequence Dosage of Gd-DTPA: mmol/kg Dosage of Gd-DTPA: mmol/kg At 0.1mmol/kg, images are usually acquired after about 5 minutes with a TI starting at ~340ms (every other heart beat). At 0.1mmol/kg, images are usually acquired after about 5 minutes with a TI starting at ~340ms (every other heart beat). At 0.2 mmol/kg, scans are acquired after about 15 minutes with a TI starting at ~250ms. At 0.2 mmol/kg, scans are acquired after about 15 minutes with a TI starting at ~250ms.

18 ‘How I do’ : CMR in HCM HCM: Detection of Fibrosis LGE is predominantly seen in a patchy distribution and correlates with wall thickness. LGE is predominantly seen in a patchy distribution and correlates with wall thickness. Unlike in IHD, the subendocardium is not necessarily affected. Unlike in IHD, the subendocardium is not necessarily affected. Unlike DCM, the distribution is typically more diffuse and not specific to mid-wall circumferential fibres. Unlike DCM, the distribution is typically more diffuse and not specific to mid-wall circumferential fibres.

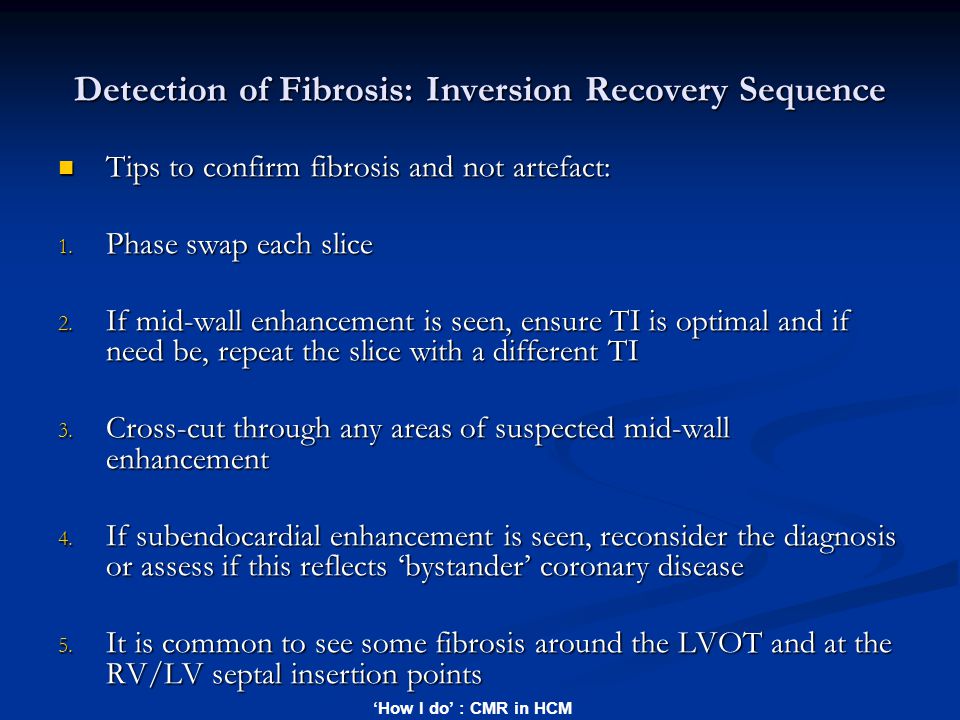

19 ‘How I do’ : CMR in HCM Detection of Fibrosis: Inversion Recovery Sequence Tips to confirm fibrosis and not artefact: Tips to confirm fibrosis and not artefact: 1. Phase swap each slice 2. If mid-wall enhancement is seen, ensure TI is optimal and if need be, repeat the slice with a different TI 3. Cross-cut through any areas of suspected mid-wall enhancement 4. If subendocardial enhancement is seen, reconsider the diagnosis or assess if this reflects ‘bystander’ coronary disease 5. It is common to see some fibrosis around the LVOT and at the RV/LV septal insertion points

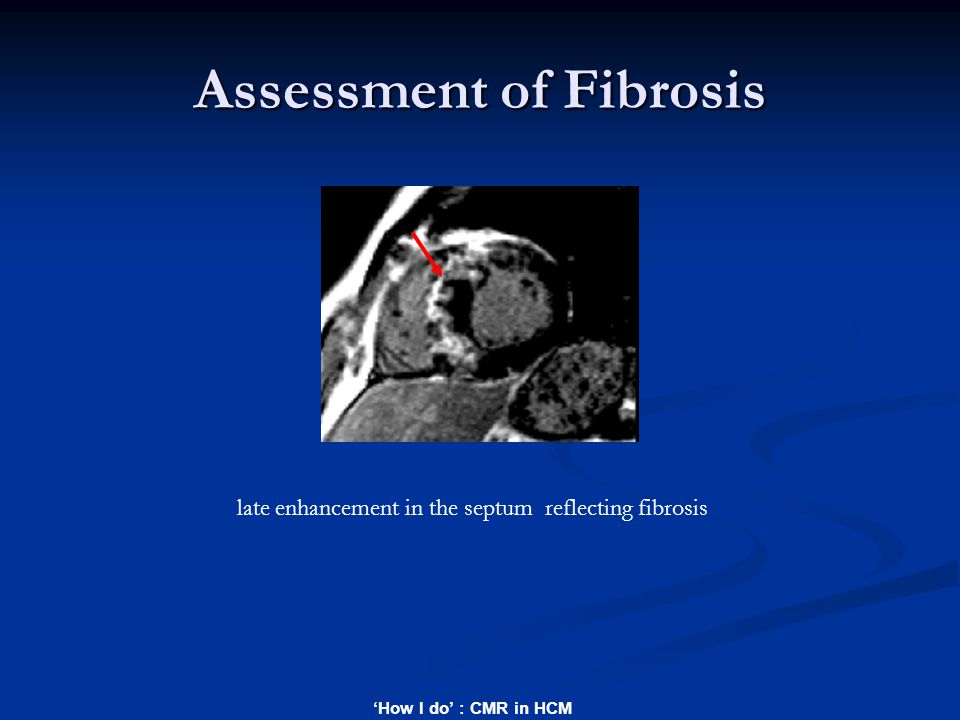

20 ‘How I do’ : CMR in HCM Assessment of Fibrosis late enhancement in the septum reflecting fibrosis

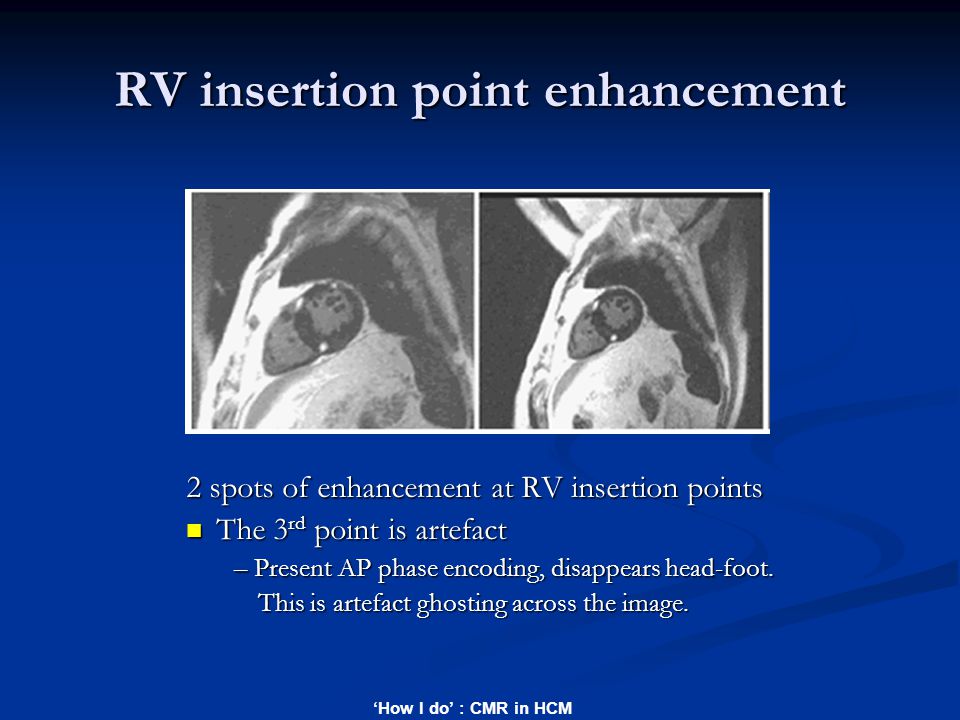

21 ‘How I do’ : CMR in HCM RV insertion point enhancement 2 spots of enhancement at RV insertion points The 3 rd point is artefact The 3 rd point is artefact – Present AP phase encoding, disappears head-foot. This is artefact ghosting across the image.

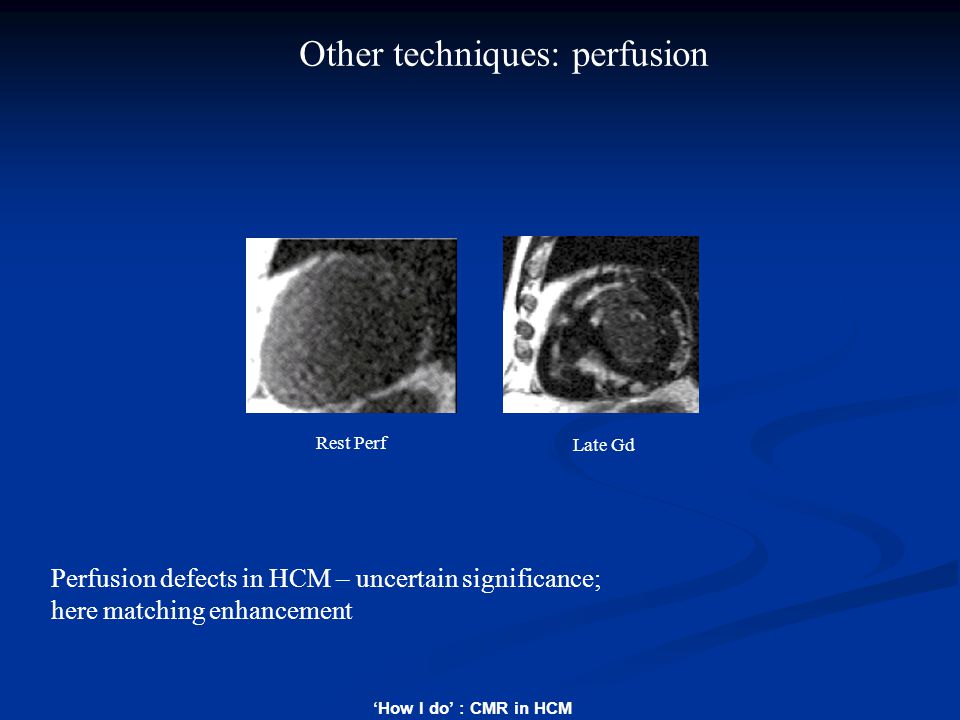

22 ‘How I do’ : CMR in HCM Other techniques: perfusion Perfusion defects in HCM – uncertain significance; here matching enhancement Rest Perf Late Gd

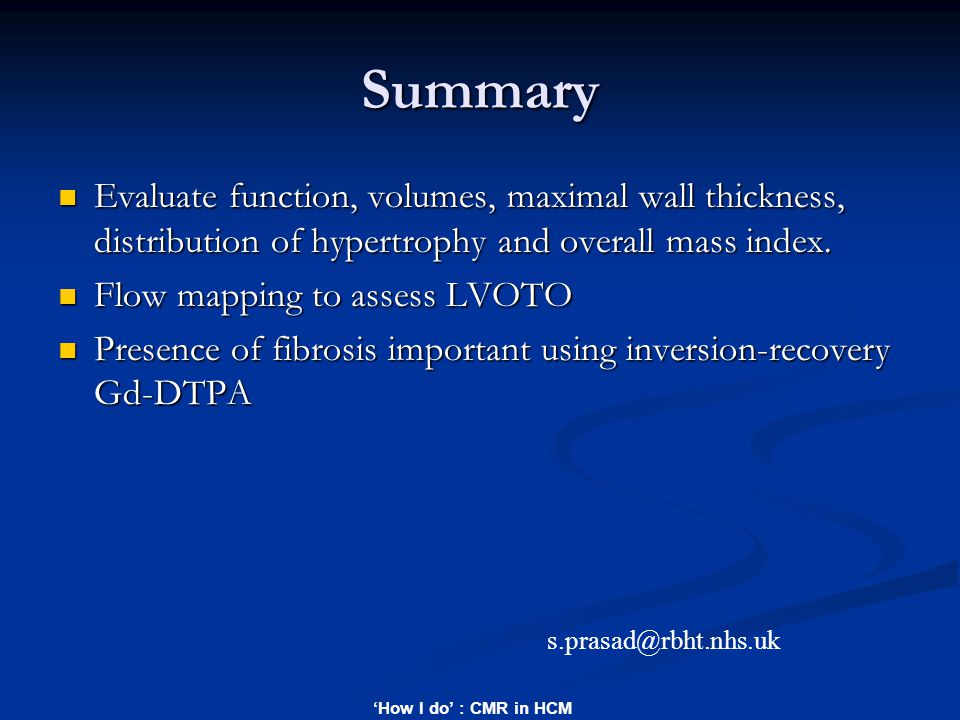

23 ‘How I do’ : CMR in HCM Summary Evaluate function, volumes, maximal wall thickness, distribution of hypertrophy and overall mass index. Evaluate function, volumes, maximal wall thickness, distribution of hypertrophy and overall mass index. Flow mapping to assess LVOTO Flow mapping to assess LVOTO Presence of fibrosis important using inversion-recovery Gd-DTPA Presence of fibrosis important using inversion-recovery Gd-DTPA
