Presented to: By: Date: Federal Aviation Administration WAAS NOTAM SYSTEM UPDATE SBAS Workshop Gary Bobik, NOTAM procedures June 22, 2005.

Similar presentations


Presentation on theme: "Presented to: By: Date: Federal Aviation Administration WAAS NOTAM SYSTEM UPDATE SBAS Workshop Gary Bobik, NOTAM procedures June 22, 2005."— Presentation transcript:

1 Presented to: By: Date: Federal Aviation Administration WAAS NOTAM SYSTEM UPDATE SBAS Workshop Gary Bobik, NOTAM procedures June 22, 2005

2 WAAS NOTAMs 2 Federal Aviation Administration June 22, 2005 WAAS NOTAMs For WAAS, a predictive modeling tool is required to determine availability The Service Volume Model (SVM) will generate WAAS service availability and NOTAMs associated with WAAS unavailability for a 48-your period at least once every 24 hours Should the SVM detect the loss of a GPS satellite or a WAAS asset outage, the SVM will auto generate a new service availability assessment and new unavailability NOTAMs

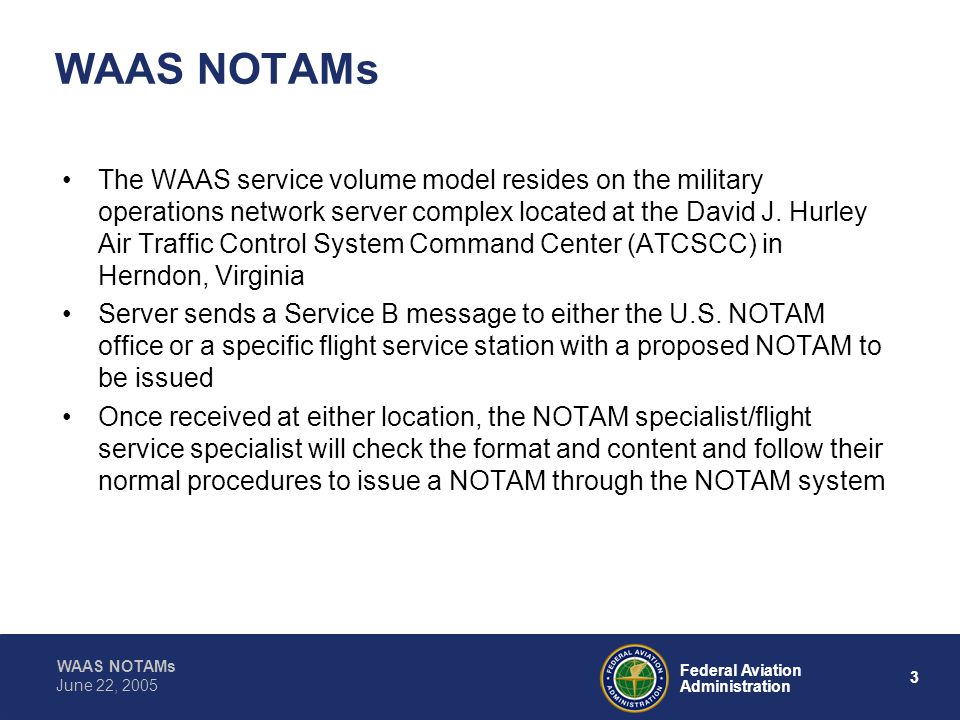

3 WAAS NOTAMs 3 Federal Aviation Administration June 22, 2005 WAAS NOTAMs The WAAS service volume model resides on the military operations network server complex located at the David J. Hurley Air Traffic Control System Command Center (ATCSCC) in Herndon, Virginia Server sends a Service B message to either the U.S. NOTAM office or a specific flight service station with a proposed NOTAM to be issued Once received at either location, the NOTAM specialist/flight service specialist will check the format and content and follow their normal procedures to issue a NOTAM through the NOTAM system

4 WAAS NOTAMs 4 Federal Aviation Administration June 22, 2005 WAAS NOTAMs The SVM tool can generate two types of NOTAMs: 1. WAAS Area NOTAMs issued through the U.S. NOTAM office and distributed under a Center’s identification 2. WAAS airport-specific NOTAMs issued throught the applicable Automated Flight Service Station and are airport specific

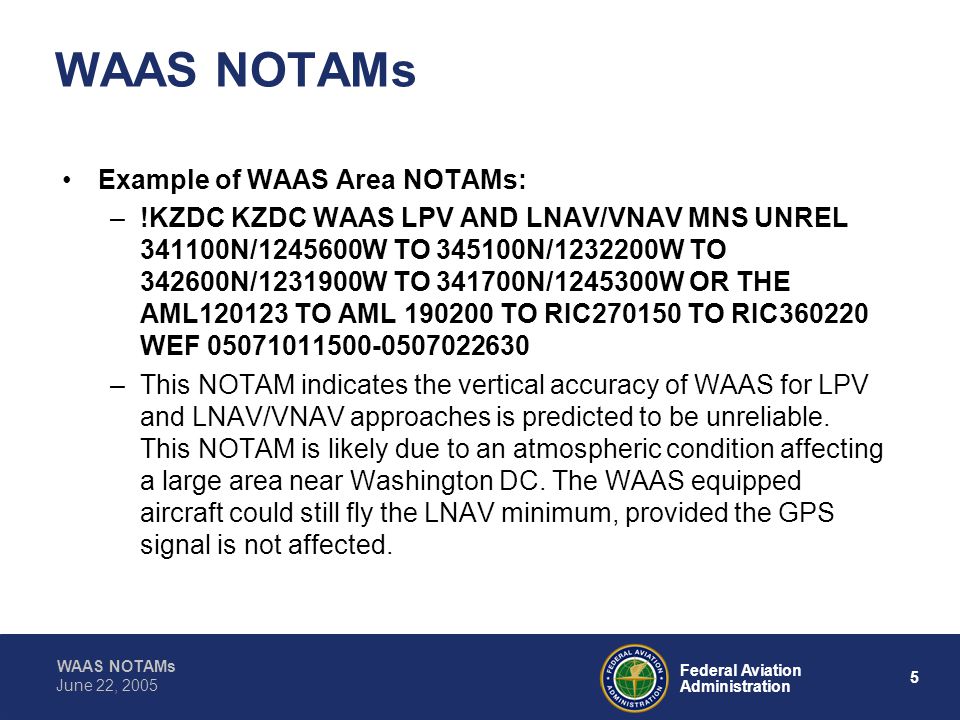

5 WAAS NOTAMs 5 Federal Aviation Administration June 22, 2005 WAAS NOTAMs Example of WAAS Area NOTAMs: –!KZDC KZDC WAAS LPV AND LNAV/VNAV MNS UNREL N/ W TO N/ W TO N/ W TO N/ W OR THE AML TO AML TO RIC TO RIC WEF –This NOTAM indicates the vertical accuracy of WAAS for LPV and LNAV/VNAV approaches is predicted to be unreliable. This NOTAM is likely due to an atmospheric condition affecting a large area near Washington DC. The WAAS equipped aircraft could still fly the LNAV minimum, provided the GPS signal is not affected.

6 WAAS NOTAMs 6 Federal Aviation Administration June 22, 2005 WAAS NOTAMs !KZDC KZDC WAAS LPV AND LNAV/VNAV MNS UNAVBL N/ W TO N/ W TO N/ W TO N/ W OR THE AML TO AML TO RIC TO RIC WEF This NOTAM indicates the vertical accuracy for WAAS LPV and LNAV/VNAV approaches is unavailable. This NOTAM is likely due to a WAAS asset outage affecting a large area near Washington DC and will not have a date and time the outage will end. The WAAS equipped aircraft could still fly the LNAV minimum, provided the GPS signal is not affected.

7 WAAS NOTAMs 7 Federal Aviation Administration June 22, 2005 WAAS NOTAMs Large scale WAAS service outages identified by WAAS Area NOTAMs can be caused by large ionosphere disturbances or a WAAS asset outage (e.g.,WAAS Reference Station or WAAS GEO out-of-service) Area NOTAMs caused by ionosphere disturbance will be predictive and have the word UNRELIABLE in the NOTAM These NOTAMs advise pilots that WAAS may not provide an acceptable level of service (Pre-flight planning info) WAAS asset outage will have the word UNAVAILABLE in the NOTAM These NOTAMs advise pilots that WAAS will not be available and controllers are required to include this info when they clear an aircraft for an RNAV approach if not carried in the ATIS broadcast

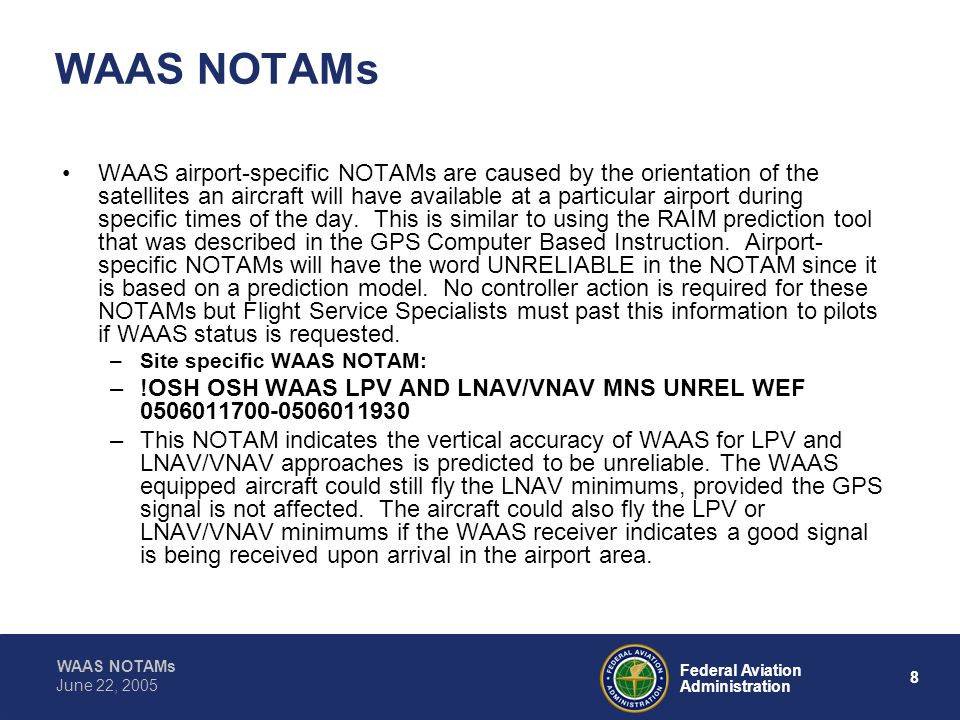

8 WAAS NOTAMs 8 Federal Aviation Administration June 22, 2005 WAAS NOTAMs WAAS airport-specific NOTAMs are caused by the orientation of the satellites an aircraft will have available at a particular airport during specific times of the day. This is similar to using the RAIM prediction tool that was described in the GPS Computer Based Instruction. Airport- specific NOTAMs will have the word UNRELIABLE in the NOTAM since it is based on a prediction model. No controller action is required for these NOTAMs but Flight Service Specialists must past this information to pilots if WAAS status is requested. –Site specific WAAS NOTAM: –!OSH OSH WAAS LPV AND LNAV/VNAV MNS UNREL WEF –This NOTAM indicates the vertical accuracy of WAAS for LPV and LNAV/VNAV approaches is predicted to be unreliable. The WAAS equipped aircraft could still fly the LNAV minimums, provided the GPS signal is not affected. The aircraft could also fly the LPV or LNAV/VNAV minimums if the WAAS receiver indicates a good signal is being received upon arrival in the airport area.

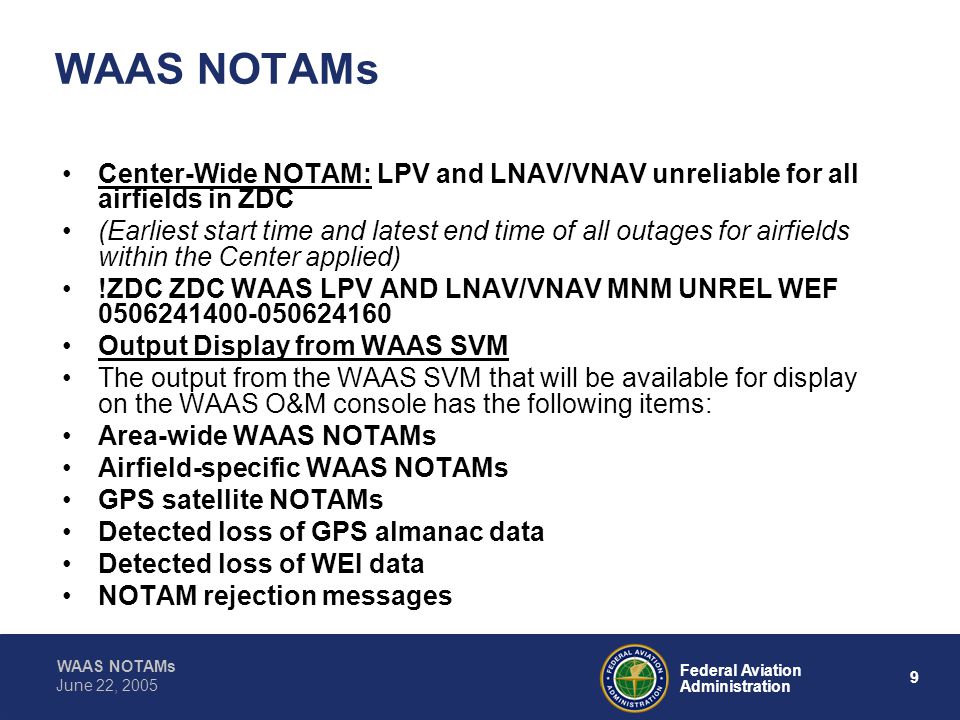

9 WAAS NOTAMs 9 Federal Aviation Administration June 22, 2005 WAAS NOTAMs Center-Wide NOTAM: LPV and LNAV/VNAV unreliable for all airfields in ZDC (Earliest start time and latest end time of all outages for airfields within the Center applied) !ZDC ZDC WAAS LPV AND LNAV/VNAV MNM UNREL WEF Output Display from WAAS SVM The output from the WAAS SVM that will be available for display on the WAAS O&M console has the following items: Area-wide WAAS NOTAMs Airfield-specific WAAS NOTAMs GPS satellite NOTAMs Detected loss of GPS almanac data Detected loss of WEI data NOTAM rejection messages

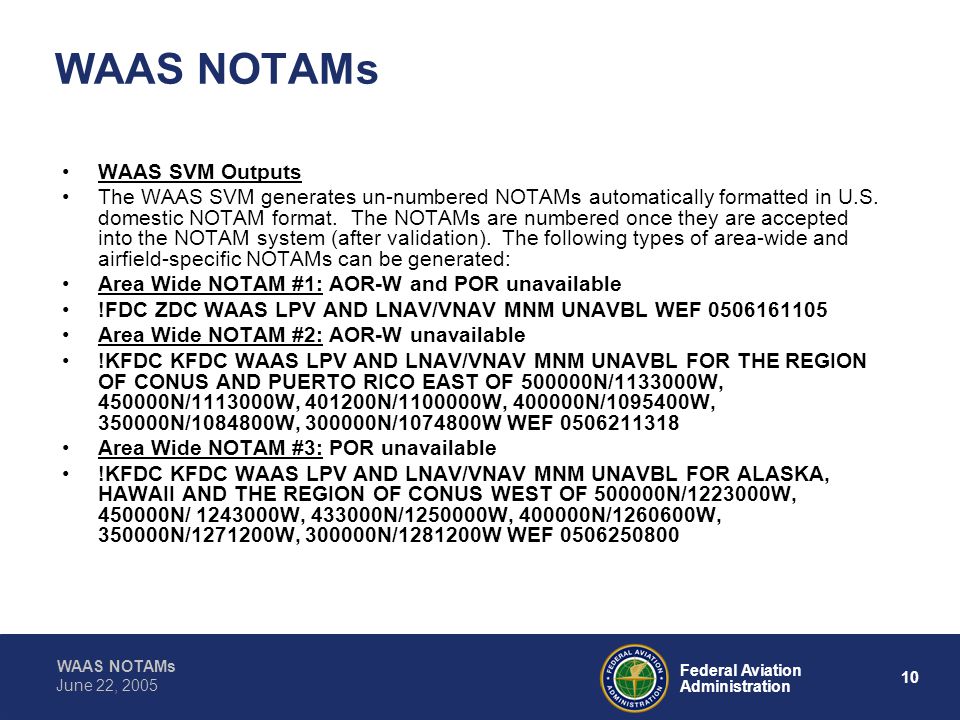

10 WAAS NOTAMs 10 Federal Aviation Administration June 22, 2005 WAAS NOTAMs WAAS SVM Outputs The WAAS SVM generates un-numbered NOTAMs automatically formatted in U.S. domestic NOTAM format. The NOTAMs are numbered once they are accepted into the NOTAM system (after validation). The following types of area-wide and airfield-specific NOTAMs can be generated: Area Wide NOTAM #1: AOR-W and POR unavailable !FDC ZDC WAAS LPV AND LNAV/VNAV MNM UNAVBL WEF Area Wide NOTAM #2: AOR-W unavailable !KFDC KFDC WAAS LPV AND LNAV/VNAV MNM UNAVBL FOR THE REGION OF CONUS AND PUERTO RICO EAST OF N/ W, N/ W, N/ W, N/ W, N/ W, N/ W WEF Area Wide NOTAM #3: POR unavailable !KFDC KFDC WAAS LPV AND LNAV/VNAV MNM UNAVBL FOR ALASKA, HAWAII AND THE REGION OF CONUS WEST OF N/ W, N/ W, N/ W, N/ W, N/ W, N/ W WEF

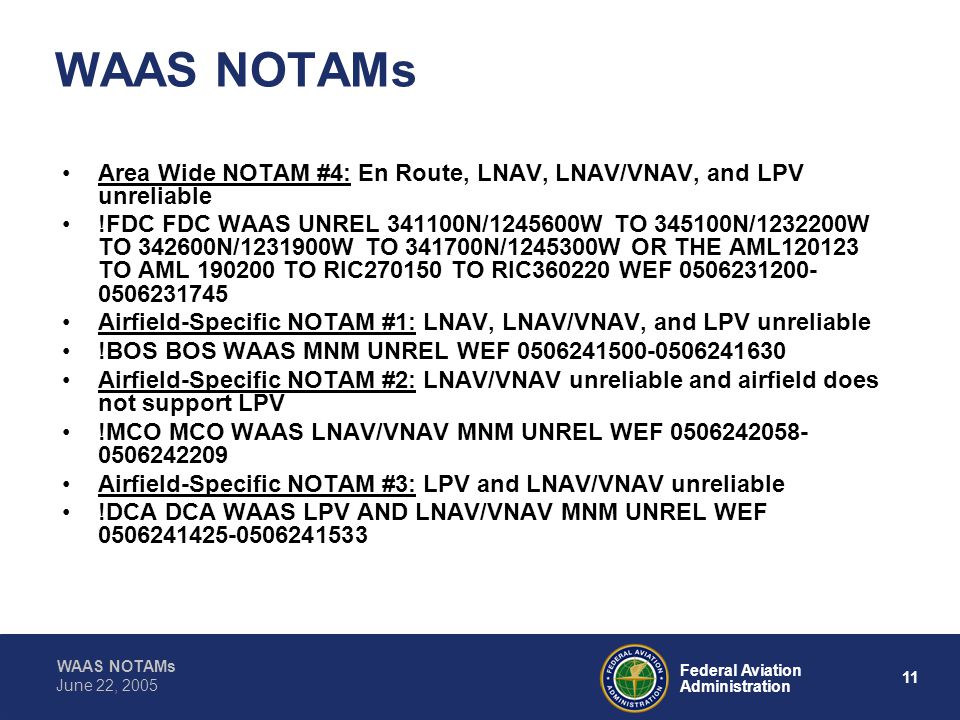

11 WAAS NOTAMs 11 Federal Aviation Administration June 22, 2005 WAAS NOTAMs Area Wide NOTAM #4: En Route, LNAV, LNAV/VNAV, and LPV unreliable !FDC FDC WAAS UNREL N/ W TO N/ W TO N/ W TO N/ W OR THE AML TO AML TO RIC TO RIC WEF Airfield-Specific NOTAM #1: LNAV, LNAV/VNAV, and LPV unreliable !BOS BOS WAAS MNM UNREL WEF Airfield-Specific NOTAM #2: LNAV/VNAV unreliable and airfield does not support LPV !MCO MCO WAAS LNAV/VNAV MNM UNREL WEF Airfield-Specific NOTAM #3: LPV and LNAV/VNAV unreliable !DCA DCA WAAS LPV AND LNAV/VNAV MNM UNREL WEF
