The Local Manufacture Leader of Explosion-Proof Electrical Equipment in Saudi Arabia Panel Boards Circuit Breakers Junction Boxes Enclosures Lighting Fixtures.

Similar presentations


Presentation on theme: "The Local Manufacture Leader of Explosion-Proof Electrical Equipment in Saudi Arabia Panel Boards Circuit Breakers Junction Boxes Enclosures Lighting Fixtures."— Presentation transcript:

1 The Local Manufacture Leader of Explosion-Proof Electrical Equipment in Saudi Arabia Panel Boards Circuit Breakers Junction Boxes Enclosures Lighting Fixtures Switch Racks 2015 Designed and Built Locally

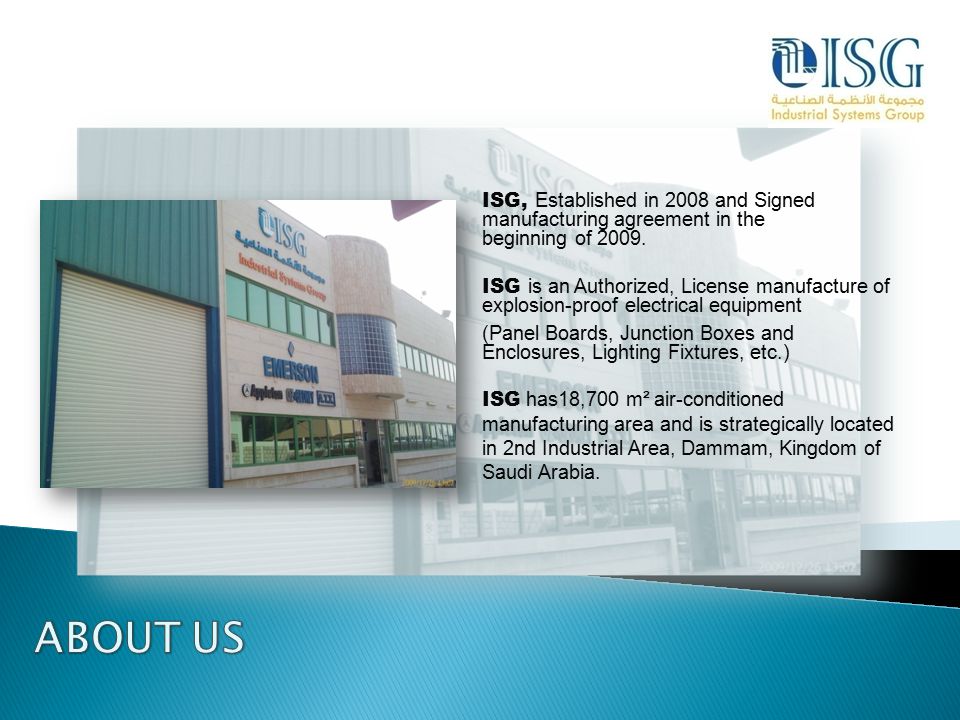

2 ISG, Established in 2008 and Signed manufacturing agreement in the beginning of ISG is an Authorized, License manufacture of explosion-proof electrical equipment (Panel Boards, Junction Boxes and Enclosures, Lighting Fixtures, etc.) ISG has18,700 m² air-conditioned manufacturing area and is strategically located in 2nd Industrial Area, Dammam, Kingdom of Saudi Arabia.

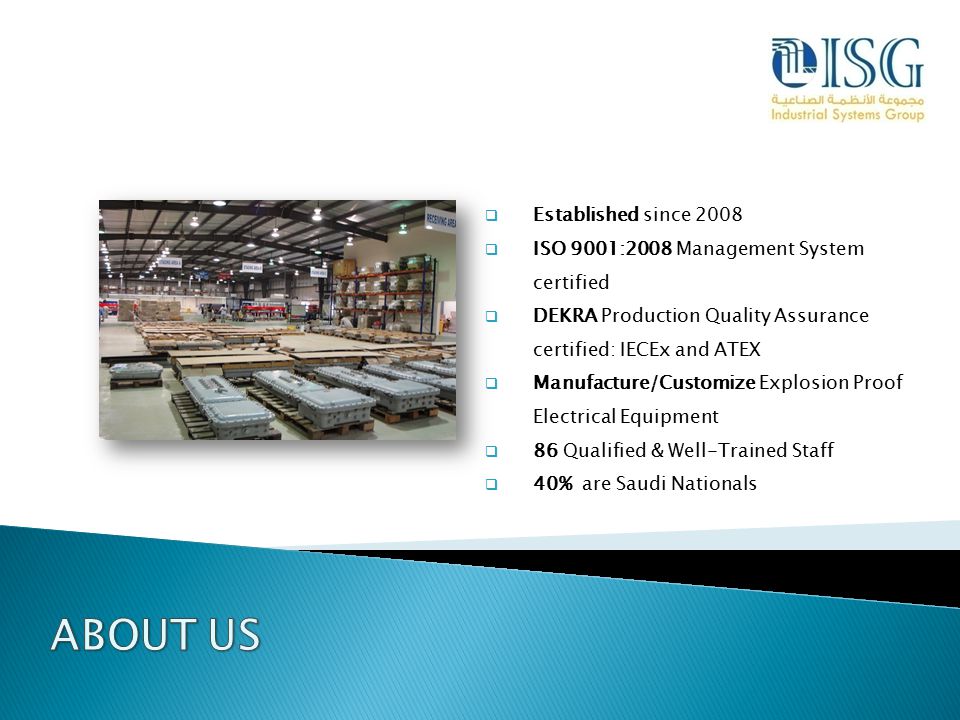

3  Established since 2008  ISO 9001:2008 Management System certified  DEKRA Production Quality Assurance certified: IECEx and ATEX  Manufacture/Customize Explosion Proof Electrical Equipment  86 Qualified & Well-Trained Staff  40% are Saudi Nationals

4

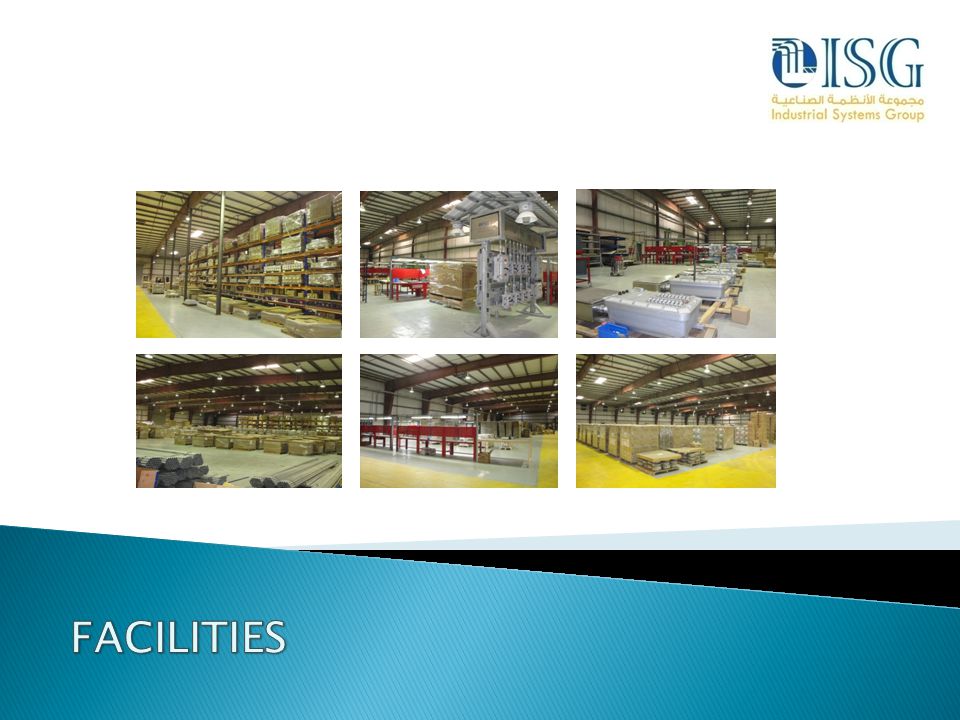

5

6

7 The goal of ISG; to meet client's needs accurately, correctly, first time, every time and in the required time, to carry out work consistently satisfying the requirement of our clients. The goal of ISG; to meet client's needs accurately, correctly, first time, every time and in the required time, to carry out work consistently satisfying the requirement of our clients. Our strategy; to focus on our customer satisfaction in the Oil and Gas, Petrochemicals, Utilities, instrumentation, Communication, Information Technology, including development of Human Resources. Our strategy; to focus on our customer satisfaction in the Oil and Gas, Petrochemicals, Utilities, instrumentation, Communication, Information Technology, including development of Human Resources.

8 Hazardous and Non-Hazardous

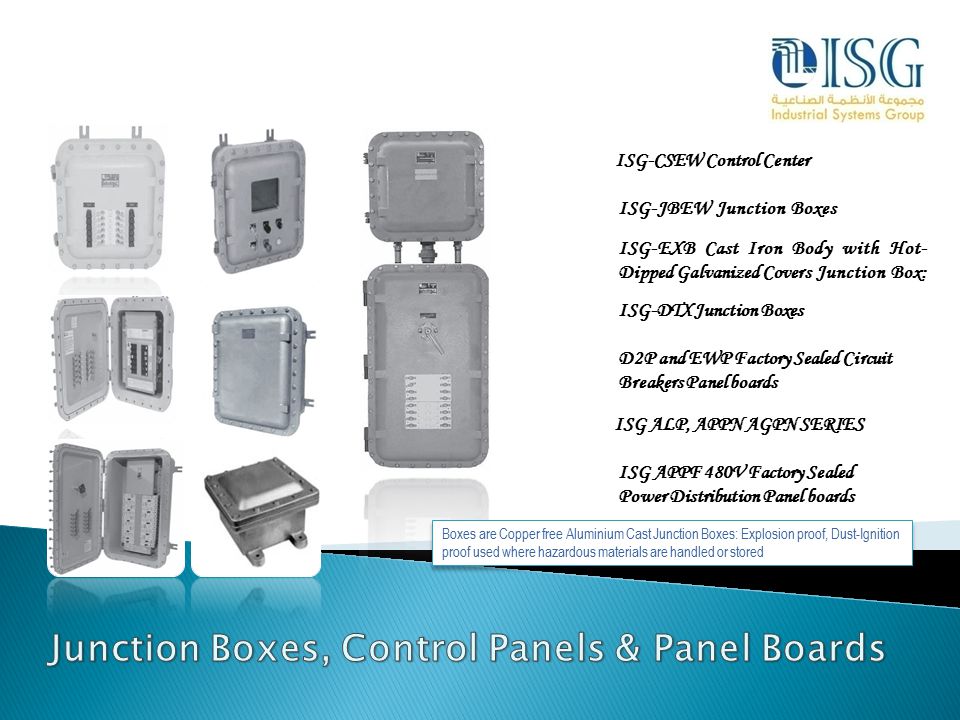

9 ISG-CSEW Control Center ISG-JBEW Junction Boxes ISG-EXB Cast Iron Body with Hot- Dipped Galvanized Covers Junction Box: ISG-DTX Junction Boxes D2P and EWP Factory Sealed Circuit Breakers Panel boards ISG ALP, APPN AGPN SERIES ISG APPF 480V Factory Sealed Power Distribution Panel boards Boxes are Copper free Aluminium Cast Junction Boxes: Explosion proof, Dust-Ignition proof used where hazardous materials are handled or stored

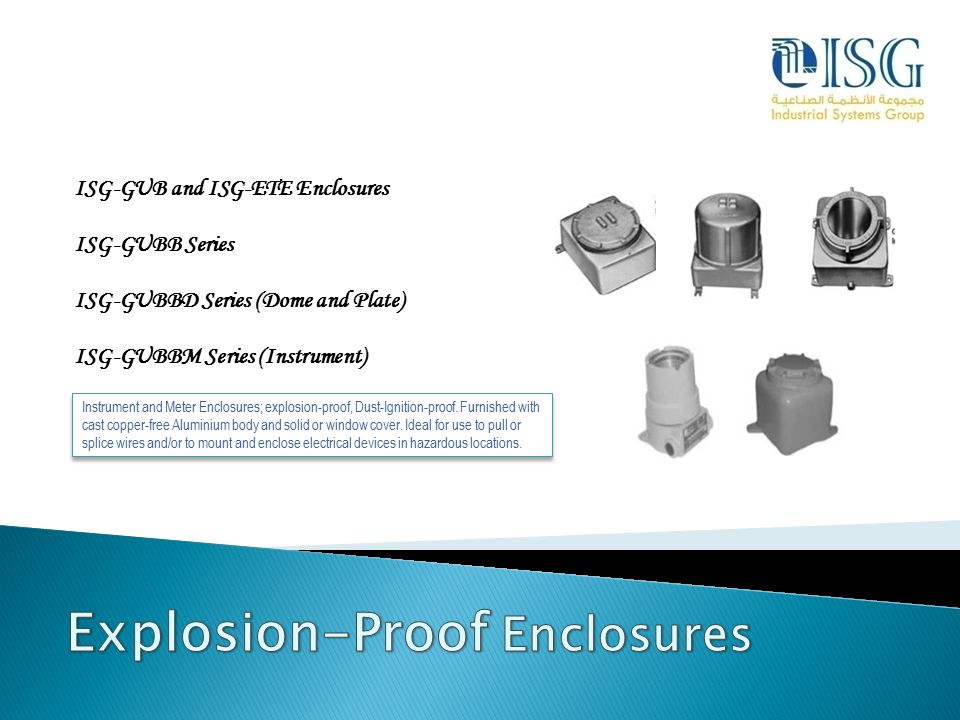

10 ISG-GUB and ISG-ETE Enclosures ISG-GUBB Series ISG-GUBBD Series (Dome and Plate) ISG-GUBBM Series (Instrument) Instrument and Meter Enclosures; explosion-proof, Dust-Ignition-proof. Furnished with cast copper-free Aluminium body and solid or window cover. Ideal for use to pull or splice wires and/or to mount and enclose electrical devices in hazardous locations.

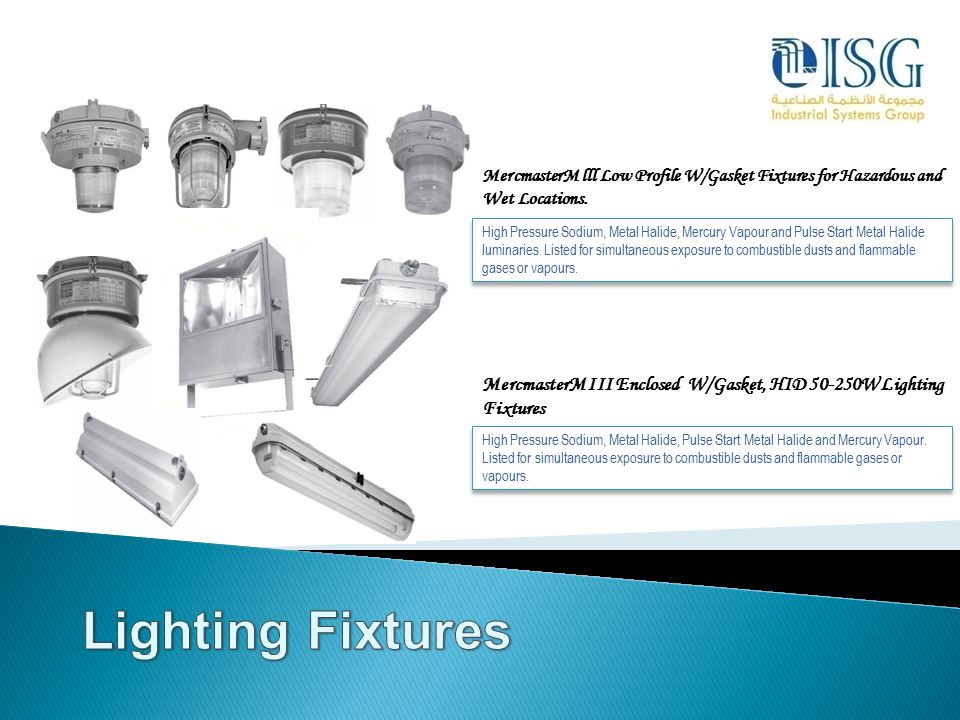

11 MercmasterM lll Low Profile W/Gasket Fixtures for Hazardous and Wet Locations. MercmasterM III Enclosed W/Gasket, HID W Lighting Fixtures High Pressure Sodium, Metal Halide, Pulse Start Metal Halide and Mercury Vapour. Listed for simultaneous exposure to combustible dusts and flammable gases or vapours. High Pressure Sodium, Metal Halide, Mercury Vapour and Pulse Start Metal Halide luminaries. Listed for simultaneous exposure to combustible dusts and flammable gases or vapours.

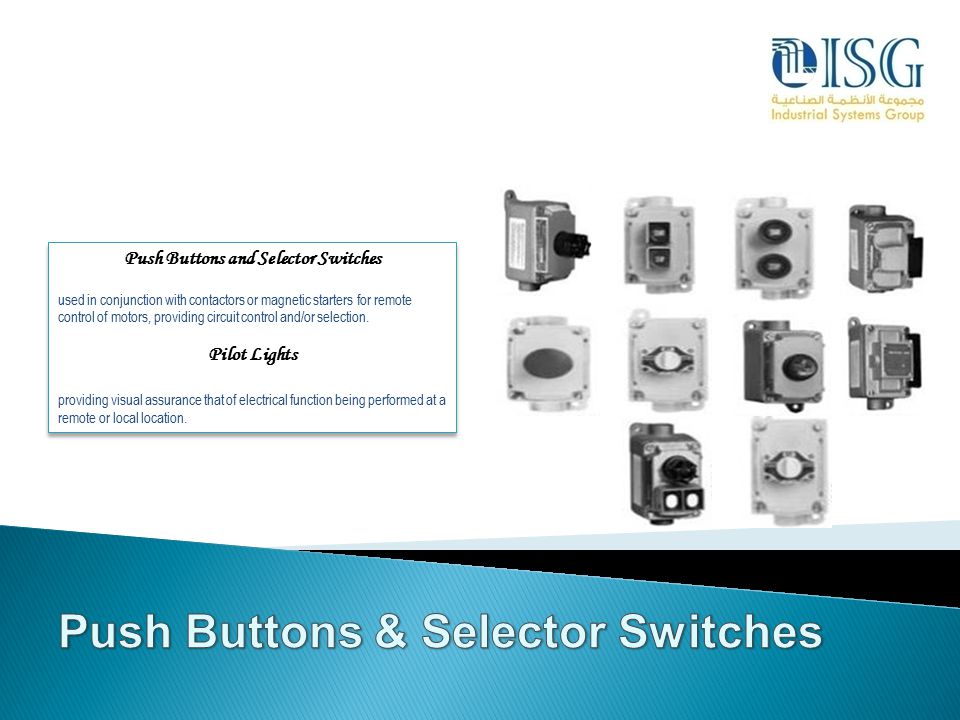

12 Push Buttons and Selector Switches used in conjunction with contactors or magnetic starters for remote control of motors, providing circuit control and/or selection. Pilot Lights providing visual assurance that of electrical function being performed at a remote or local location. Push Buttons and Selector Switches used in conjunction with contactors or magnetic starters for remote control of motors, providing circuit control and/or selection. Pilot Lights providing visual assurance that of electrical function being performed at a remote or local location.

13

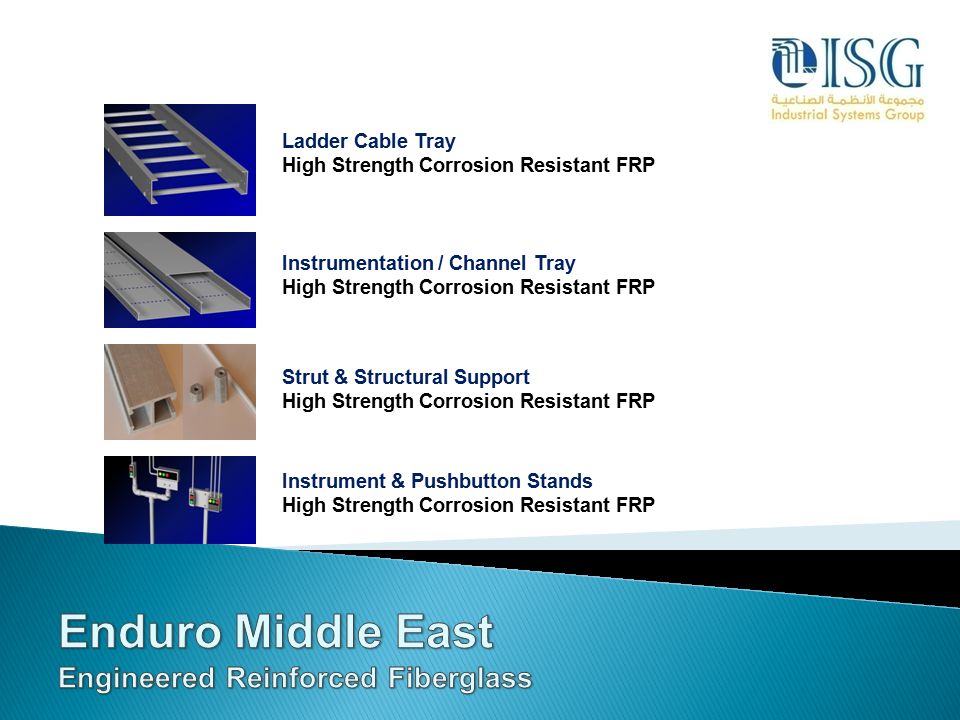

14 Ladder Cable Tray High Strength Corrosion Resistant FRP Instrumentation / Channel Tray High Strength Corrosion Resistant FRP Strut & Structural Support High Strength Corrosion Resistant FRP Instrument & Pushbutton Stands High Strength Corrosion Resistant FRP

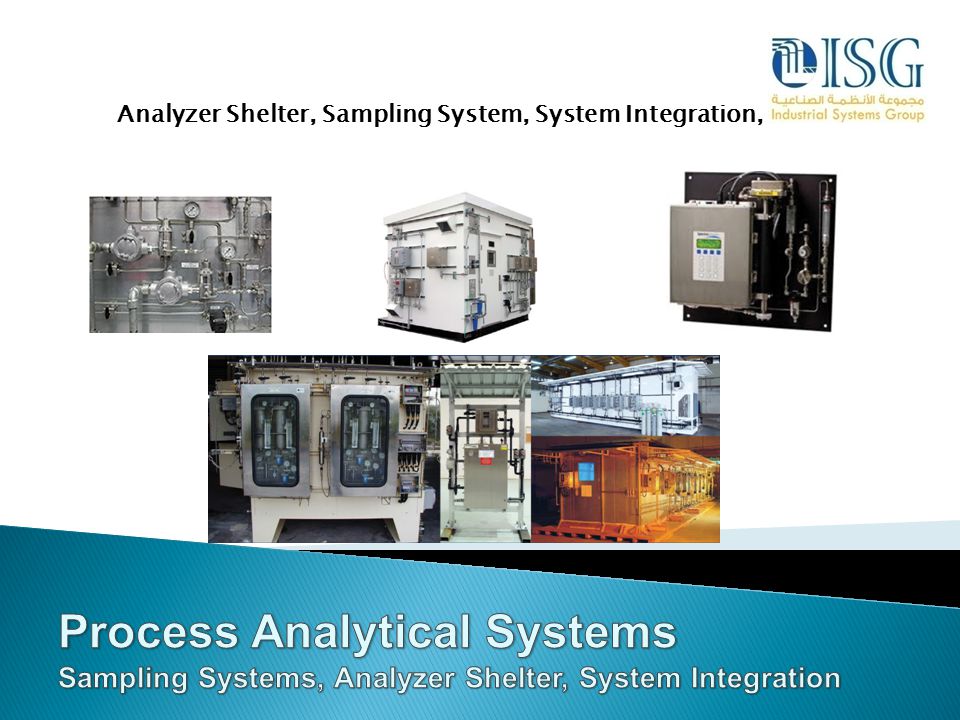

15 Analyzer Shelter, Sampling System, System Integration,

16

17

18

19

20

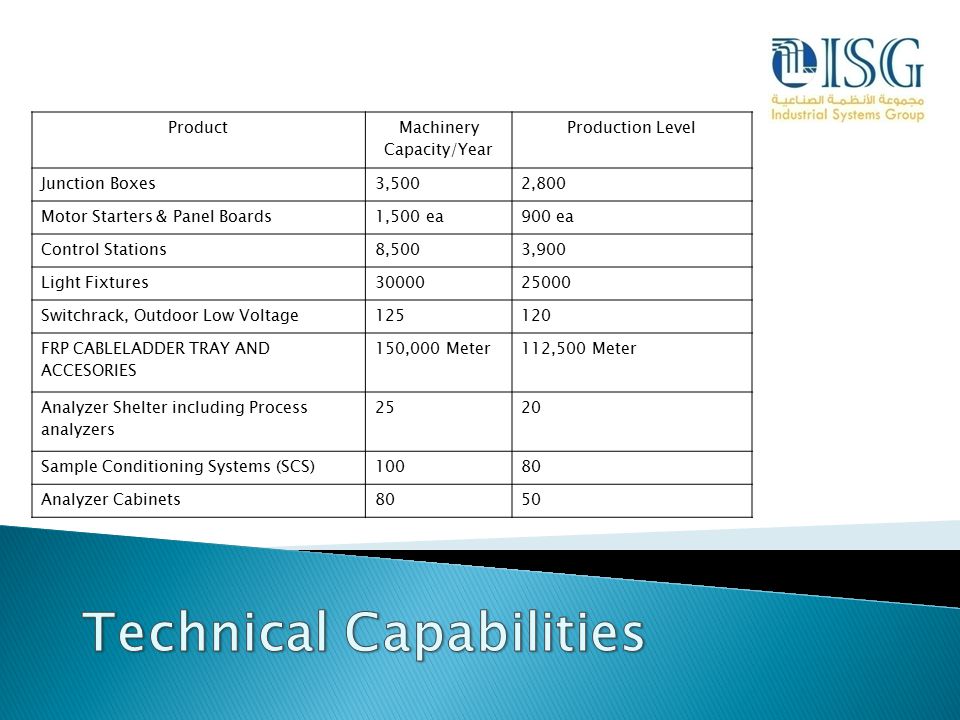

21 Product Machinery Capacity/Year Production Level Junction Boxes3,5002,800 Motor Starters & Panel Boards1,500 ea900 ea Control Stations8,5003,900 Light Fixtures Switchrack, Outdoor Low Voltage FRP CABLELADDER TRAY AND ACCESORIES 150,000 Meter112,500 Meter Analyzer Shelter including Process analyzers 2520 Sample Conditioning Systems (SCS)10080 Analyzer Cabinets8050

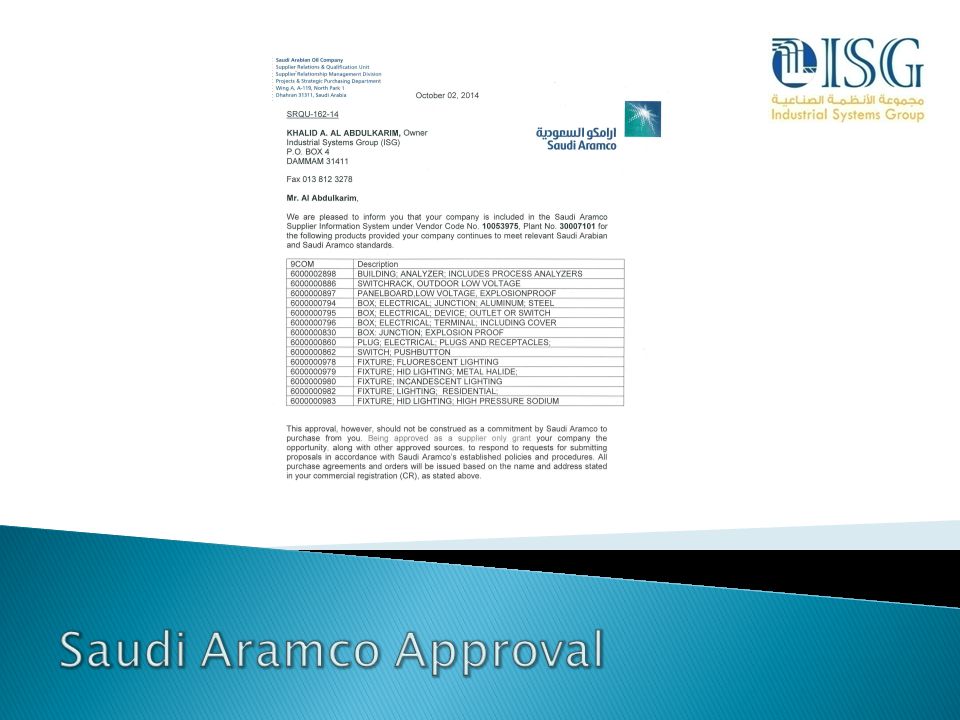

22 Material Description9 COMApplicable Standards Electrical Junction Box (Explosion-Proof) CCC Code Electrical Box; Device & Covers CCC Code Electrical Junction Box; Aluminum, Steel, Iron, Plastic, or Fiberglass CCC Code Electrical Box; Outlet or Switch CCC Code Electrical Box; Terminal CCC Code L.V Panel board Explosion-Proof SAMSS-518 CCC L.V Panel board Non-Explosion-Proof SAMSS-518 CCC L.V Switchrack Outdoor SAMSS-512 CCC Cable Gland CCC Code

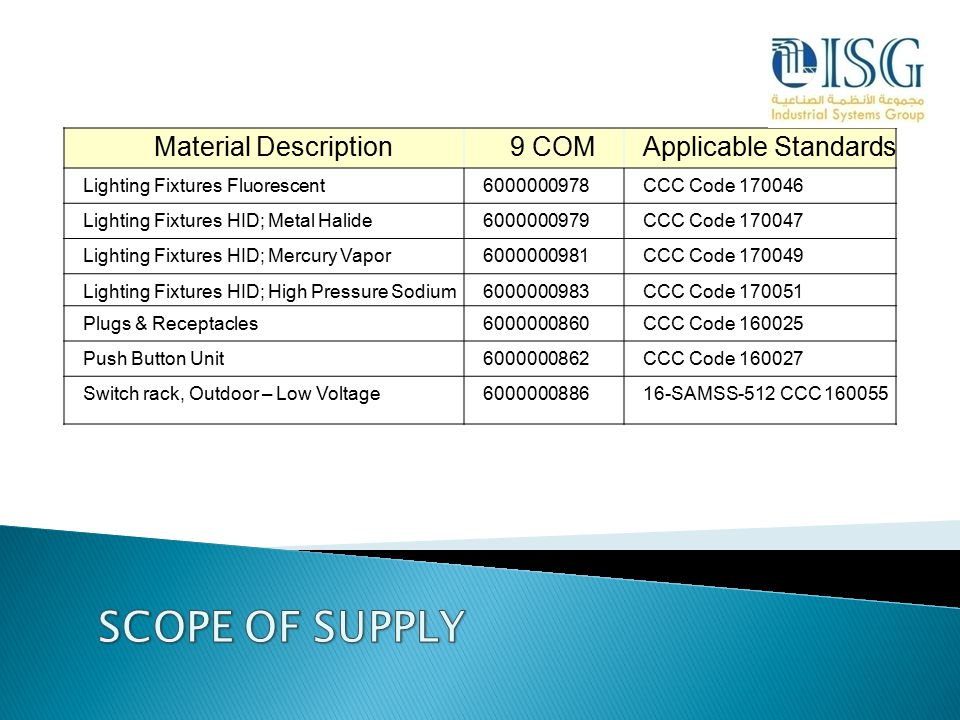

23 Material Description9 COMApplicable Standards Lighting Fixtures Fluorescent CCC Code Lighting Fixtures HID; Metal Halide CCC Code Lighting Fixtures HID; Mercury Vapor CCC Code Lighting Fixtures HID; High Pressure Sodium CCC Code Plugs & Receptacles CCC Code Push Button Unit CCC Code Switch rack, Outdoor – Low Voltage SAMSS-512 CCC

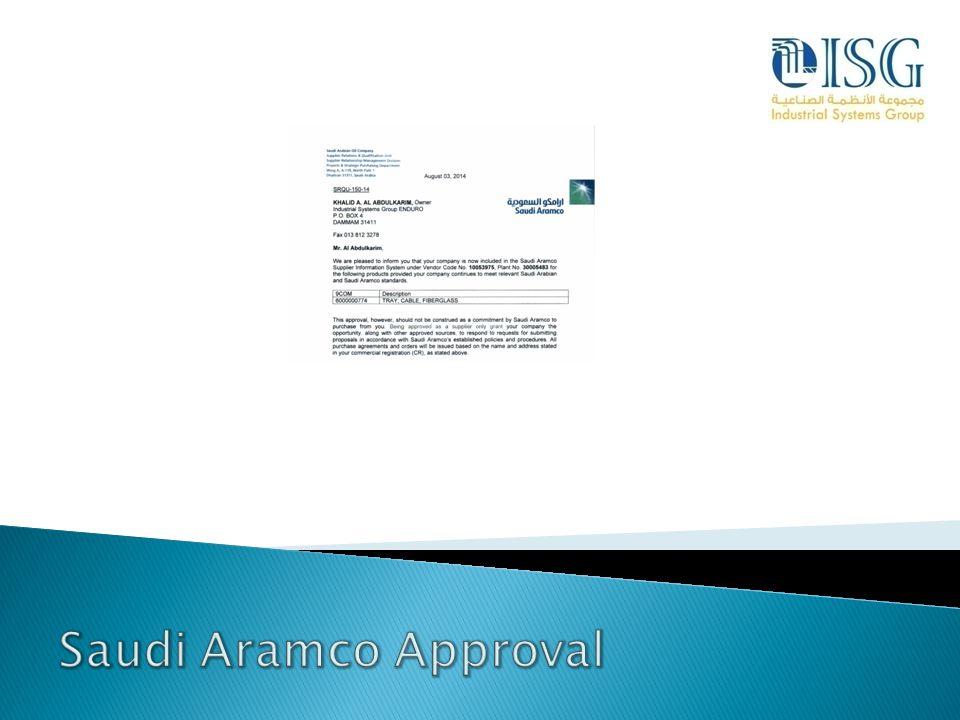

24 Material Description9 COMApplicable Standards TRAY; CABLE TYPE,FIBERGLASS,NEMA FG SAMSS-023 BUILDING; ANALYZER TYPE,SAES-J- 502,INCLUDES PROCESS ANALYZERS SAES-J-502

25 Saudi Arabian Oil Company Saudi Basic Industries Corporation Al-Abdulkarim Holding Company Technip JGC Gulf International Saipem SK Engineering & Construction Samsung Technicas Reunidas Worley Parsons Zamil Offshore Al Fanar Co. East West

26

27

28

29

30

31

32

33

34 Physical Address: 12th Street, Second Industrial City Mailing Address: P.O. Box 4779 Khobar Central Kingdom of Saudi Arabia Contact No: ; Fax No: Please refer your inquiries to: Visit:
