1 fluidyn FLOWCOAST FLOOIL 3D Fluid Dynamics Model to Simulate Oil slick movement in coastal waters or rivers FLOOIL

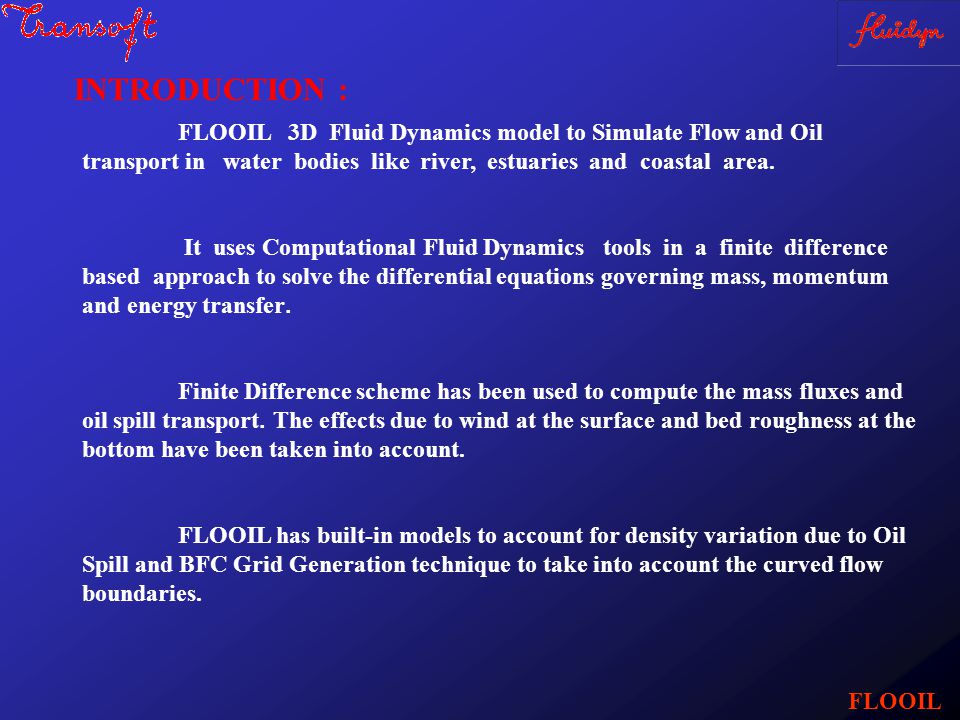

2 FLOOIL 3D Fluid Dynamics model to Simulate Flow and Oil transport in water bodies like river, estuaries and coastal area. It uses Computational Fluid Dynamics tools in a finite difference based approach to solve the differential equations governing mass, momentum and energy transfer. Finite Difference scheme has been used to compute the mass fluxes and oil spill transport. The effects due to wind at the surface and bed roughness at the bottom have been taken into account. FLOOIL has built-in models to account for density variation due to Oil Spill and BFC Grid Generation technique to take into account the curved flow boundaries. INTRODUCTION :

3 FLOOIL FLOOIL can be used for simulating oil slick movement by considering the transportation of an oil slick due to advection spreading- evaporation and dissolution. FLOOIL can also consider the lateral flows and Oil discharges joining the flow domain at any location. The model can also be used for varying boundary values over the time at user specified locations. FLOOIL has special features to analyze time dependent velocity fields, Oil spill movement and water levels at user specified location.

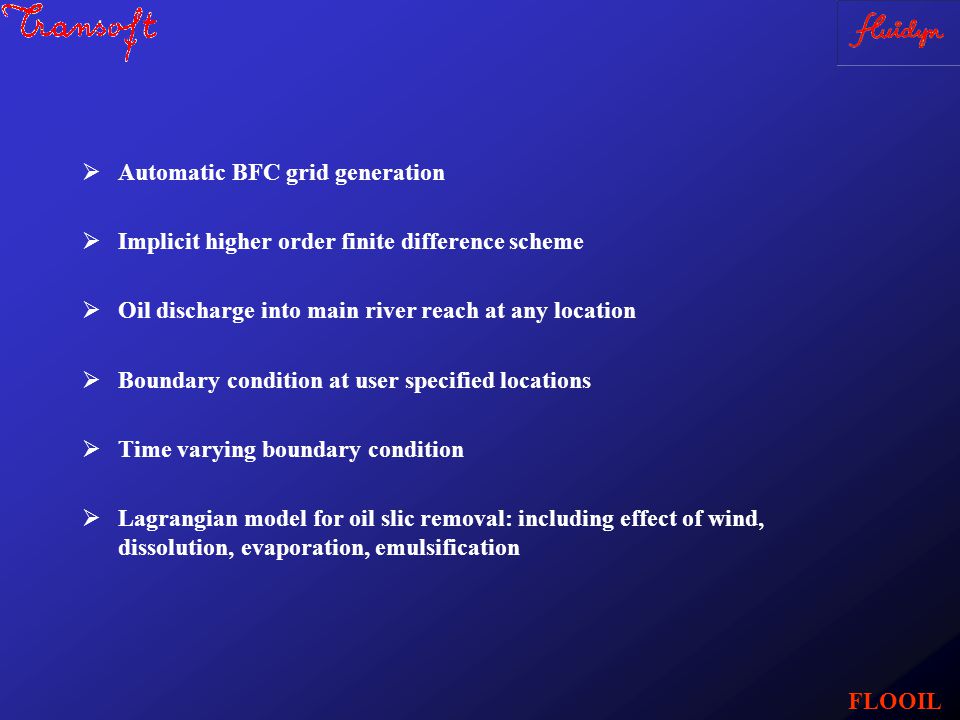

5  Automatic BFC grid generation  Implicit higher order finite difference scheme  Oil discharge into main river reach at any location  Boundary condition at user specified locations  Time varying boundary condition  Lagrangian model for oil slic removal: including effect of wind, dissolution, evaporation, emulsification FLOOIL

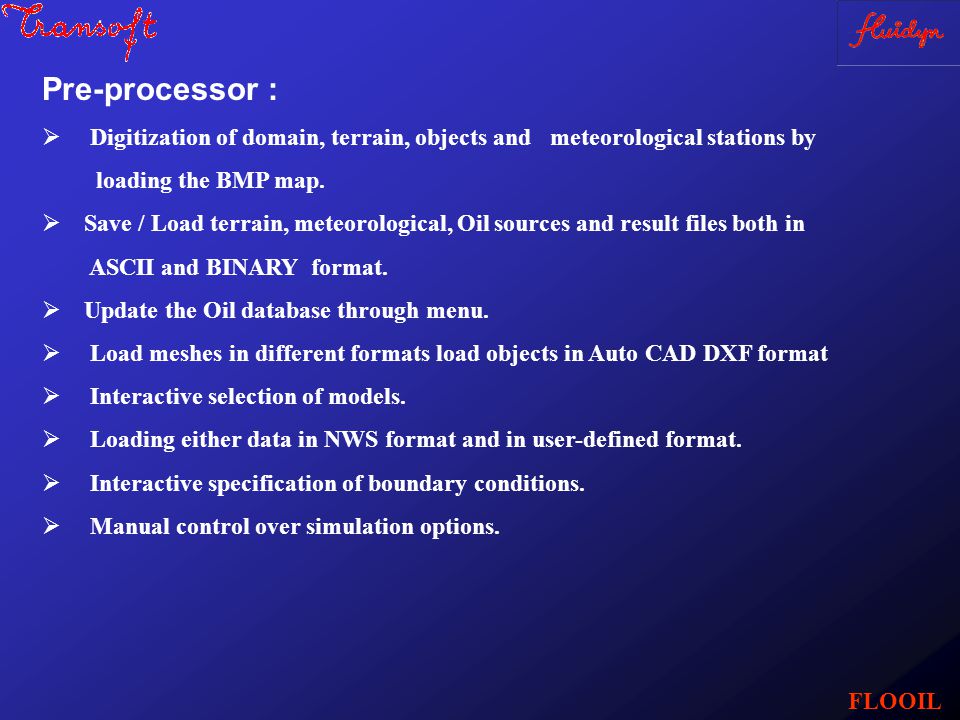

6 Pre-processor :  Digitization of domain, terrain, objects and meteorological stations by loading the BMP map.  Save / Load terrain, meteorological, Oil sources and result files both in ASCII and BINARY format.  Update the Oil database through menu.  Load meshes in different formats load objects in Auto CAD DXF format  Interactive selection of models.  Loading either data in NWS format and in user-defined format.  Interactive specification of boundary conditions.  Manual control over simulation options. FLOOIL

7 Post-processor : ( Viewing the Terrain with object masking facility )  Grid plots, Vector plots.  Contour plot / Surface plots : line and filled.  Plots of variables with distance on a plane.  Trace plots of variables at monitor points.  The values of a variable at any grid points.

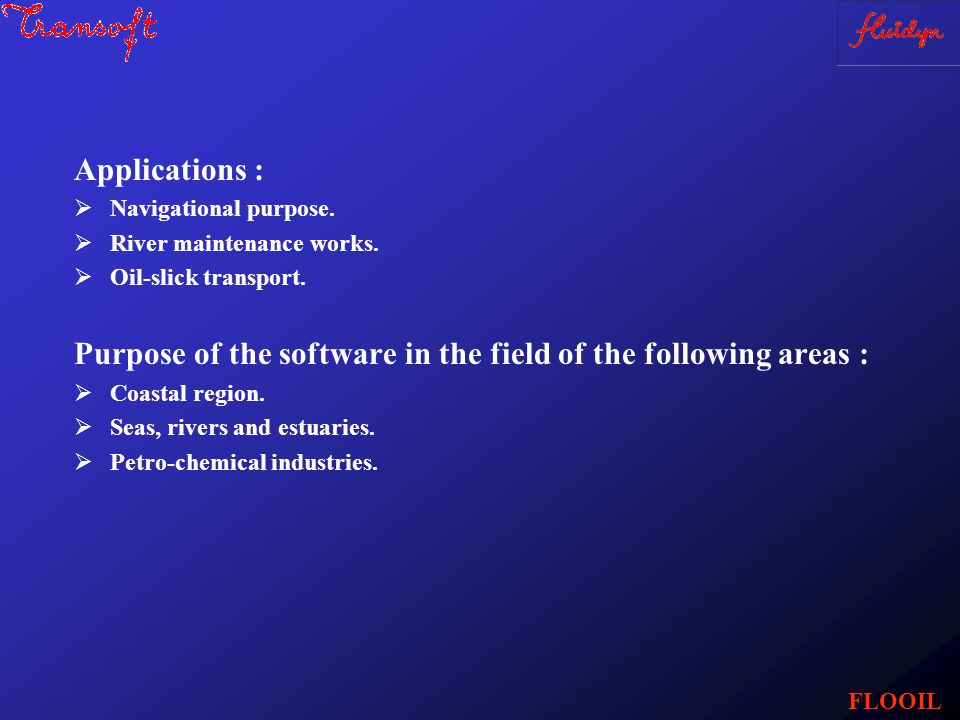

8 Applications :  Navigational purpose.  River maintenance works.  Oil-slick transport. Purpose of the software in the field of the following areas :  Coastal region.  Seas, rivers and estuaries.  Petro-chemical industries. FLOOIL

9 User Interface :  Menu Driven  User – Friendly  Easy to Use  Online Help FLOOIL

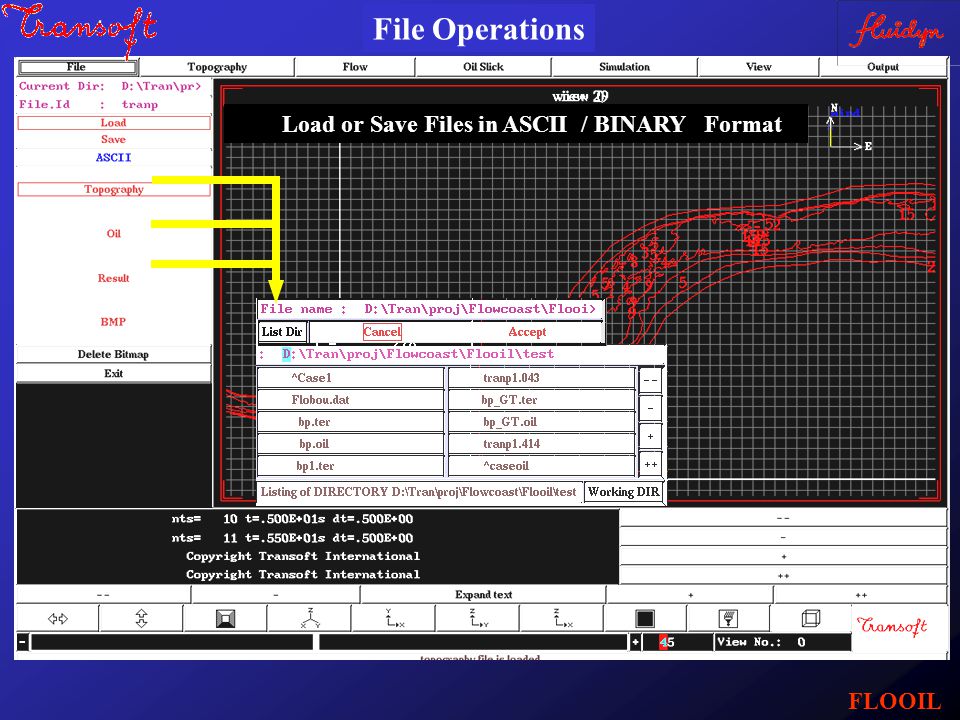

11 Load or Save Files in ASCII / BINARY Format File Operations FLOOIL

12 Terrain Features Topography Options FLOOIL

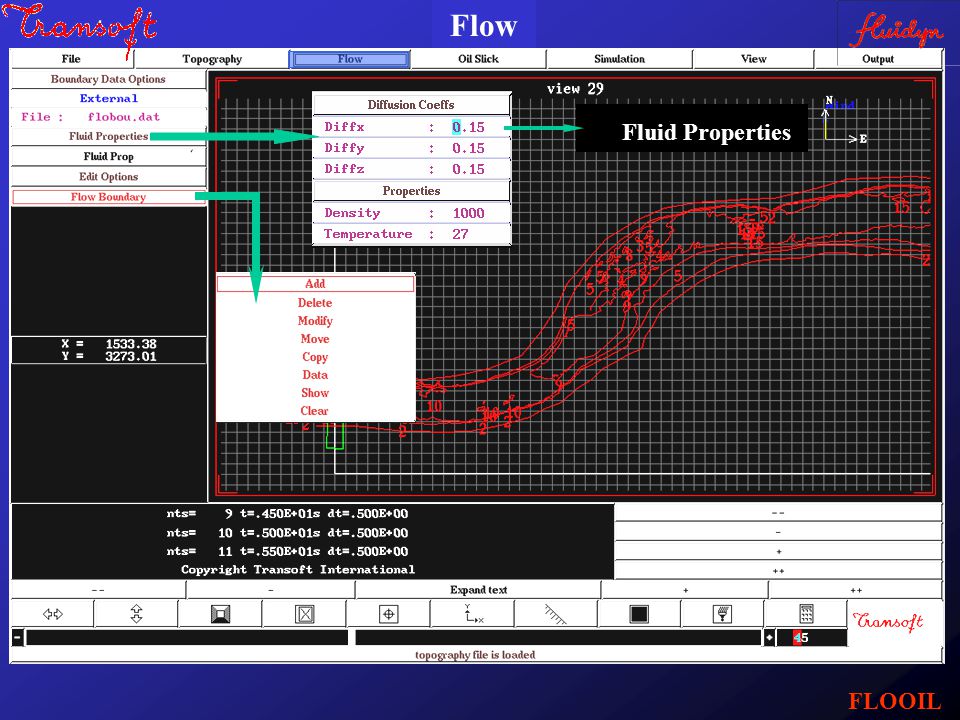

13 Fluid Properties Flow FLOOIL

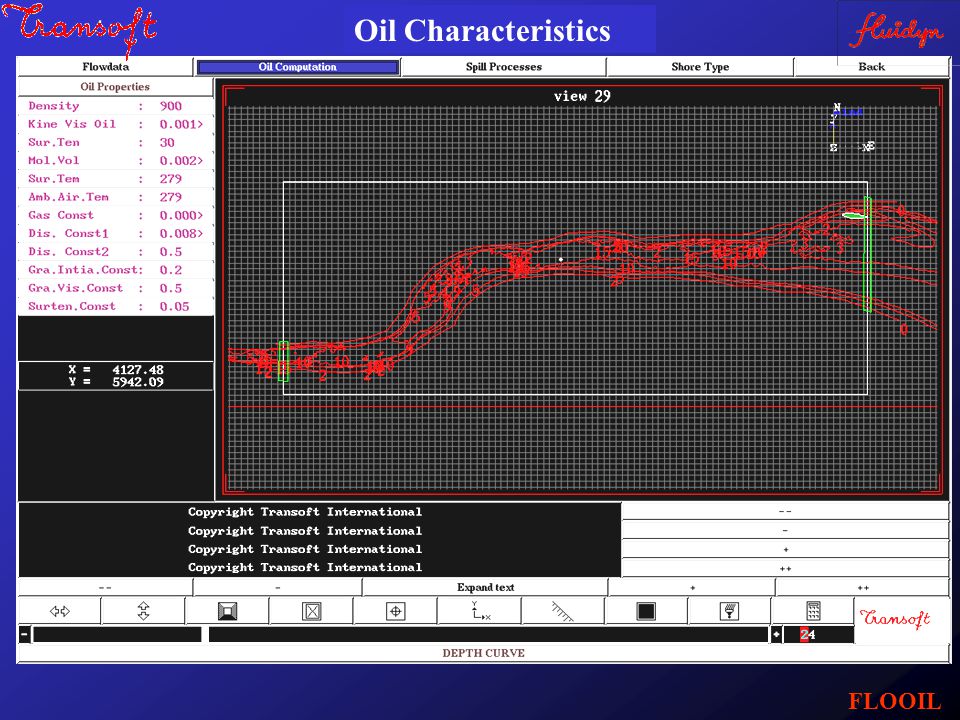

14 Oil Characteristics FLOOIL

15 Spill Process Spill Mechanism FLOOIL

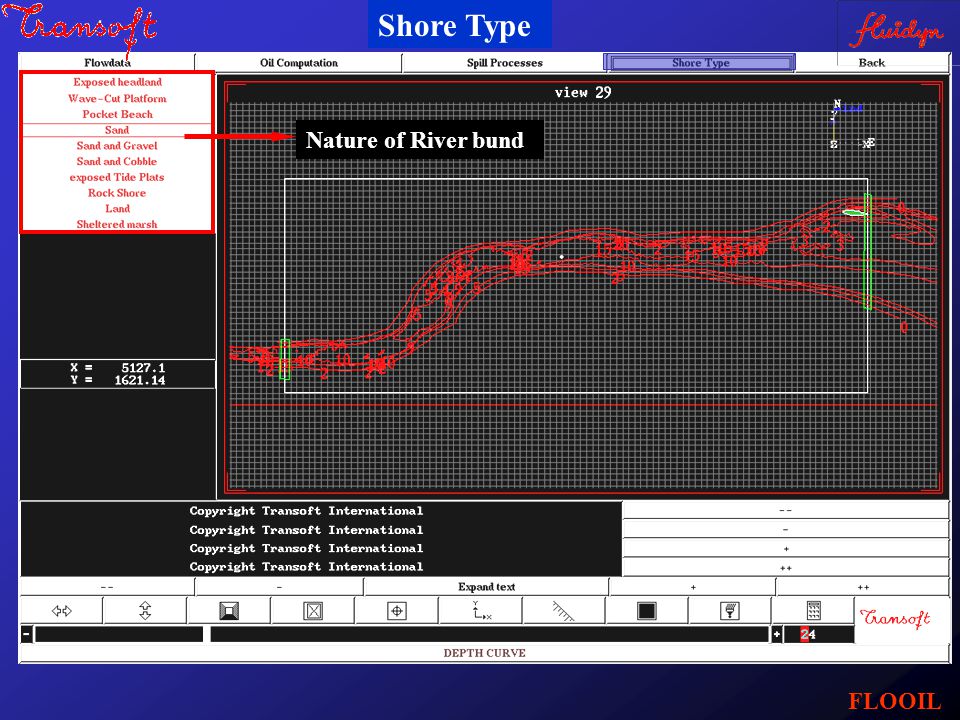

16 Shore Type Nature of River bund FLOOIL

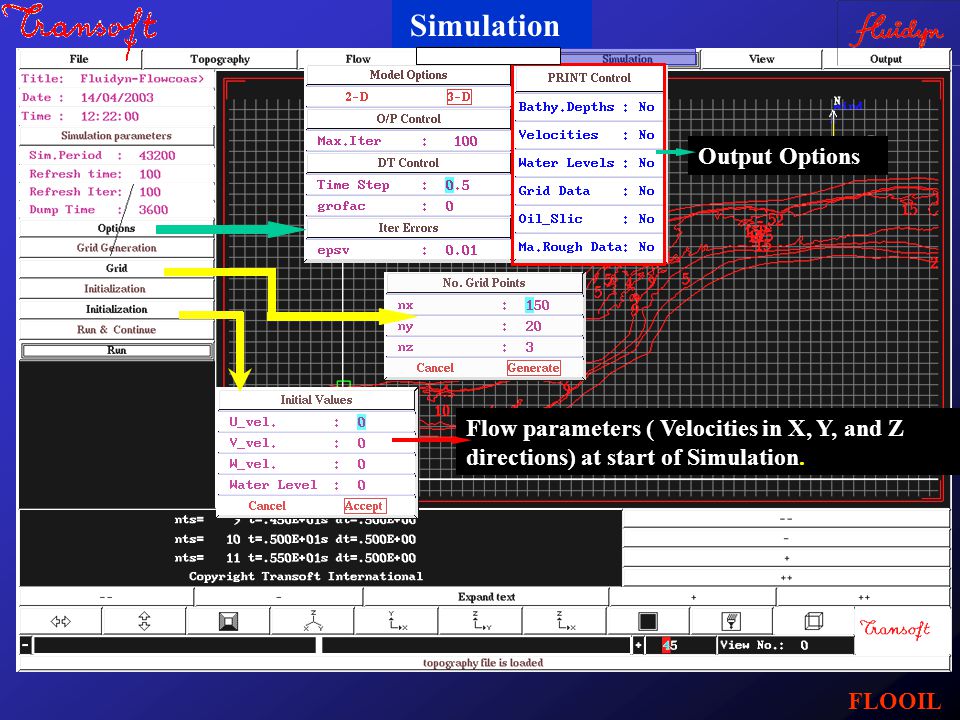

17 Simulation Output Options Flow parameters ( Velocities in X, Y, and Z directions) at start of Simulation. FLOOIL

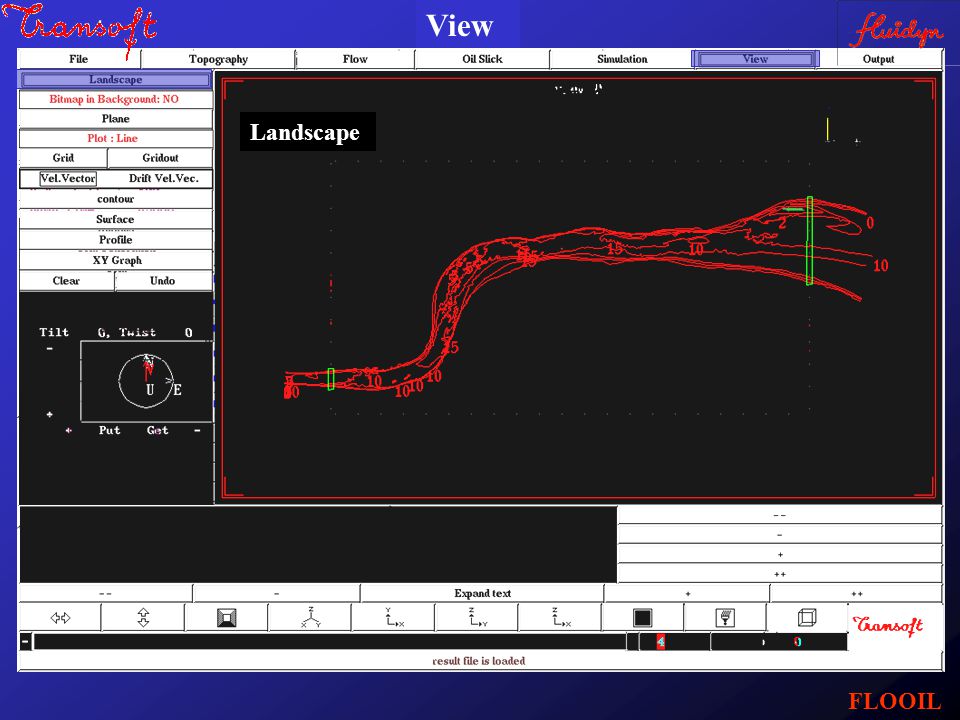

18 Landscape View FLOOIL

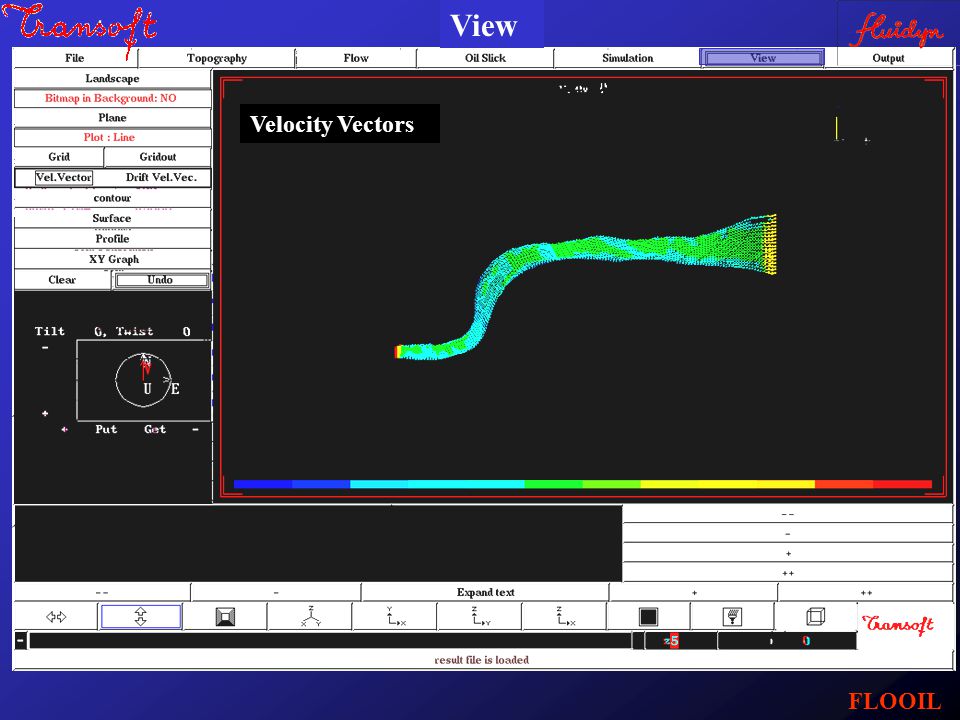

19 Velocity Vectors View FLOOIL

20 Contours filled mode View FLOOIL

21 Contours line mode View FLOOIL

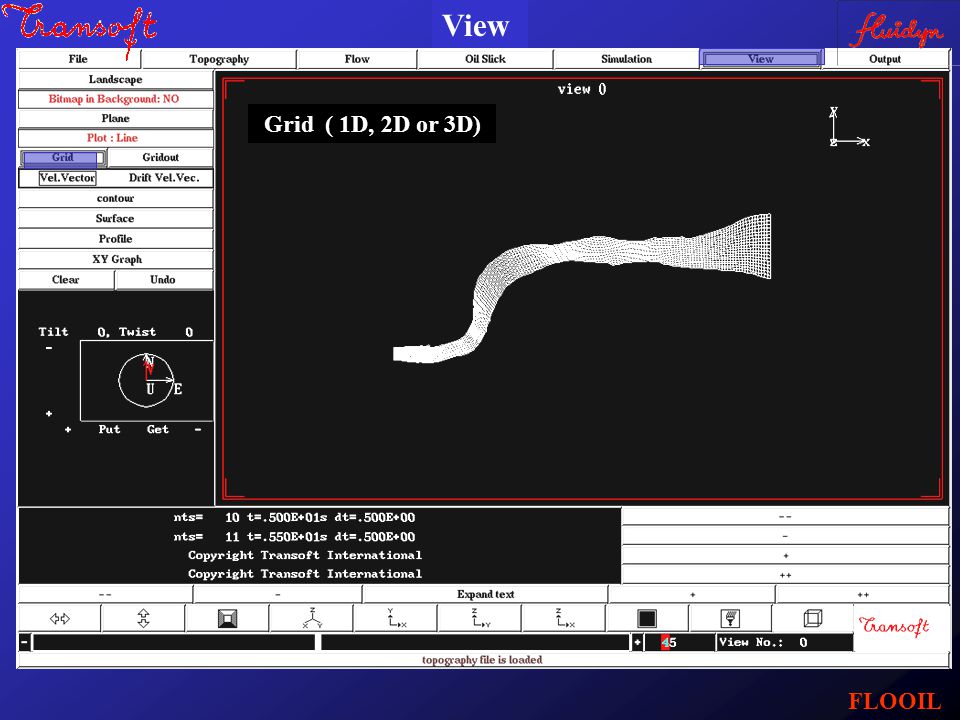

22 Grid ( 1D, 2D or 3D) View FLOOIL

23 Grid out ( Outer boundary of mesh ) View FLOOIL

24 Graphs View FLOOIL


26  Topography of Water body.  Fluid Properties.  Flow Boundary Conditions.  Chemical and Physical Characteristic of Oil Spill.  Type of the Oil Source ( point, line, area or volume).  Shore Type (like sand and Grave, Rock Shore ). FLOOIL

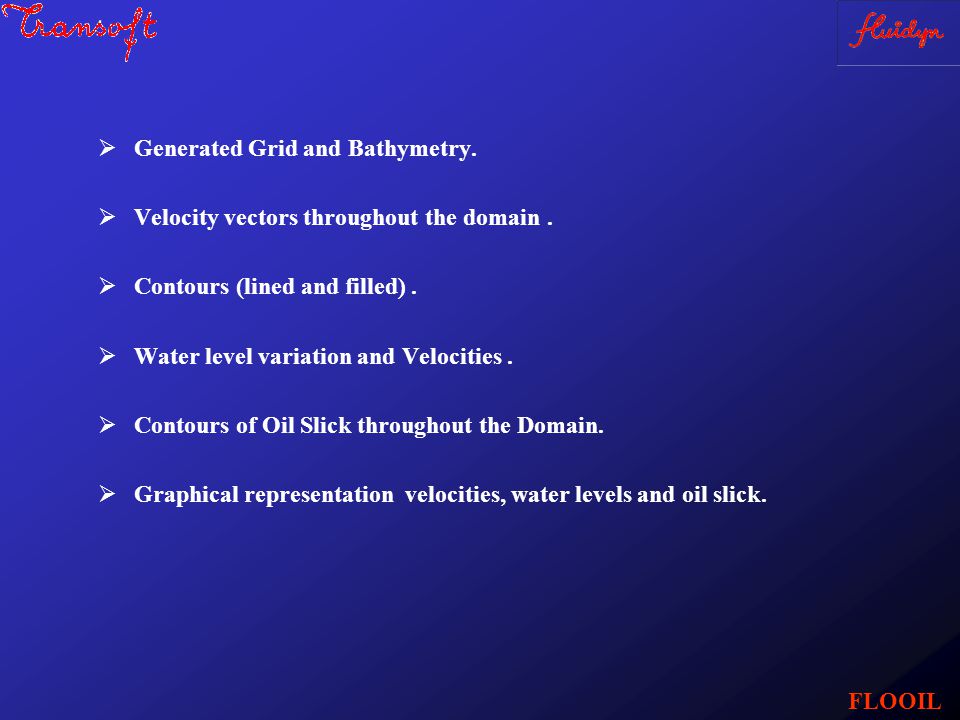

28  Generated Grid and Bathymetry.  Velocity vectors throughout the domain.  Contours (lined and filled).  Water level variation and Velocities.  Contours of Oil Slick throughout the Domain.  Graphical representation velocities, water levels and oil slick. FLOOIL

29 Oil Slick in River Thames near Coryton Case Study FLOOIL

30 Introduction:  The main objective of the study is to analyze the fate of a large quantity of Crude oil spillage into the River Thames  The Oil spill is due to the shipwreck of an Oil Tanker  The location of the spillage is near Coryton  The flow in River Thames varies with the tidal cycle FLOOIL

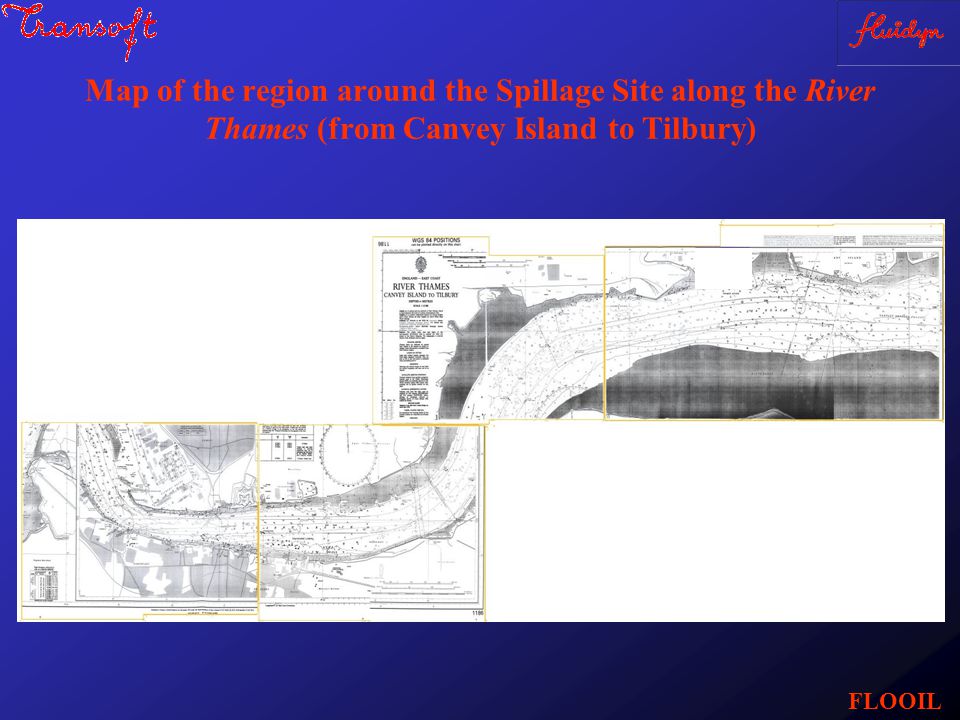

31 Map of the region around the Spillage Site along the River Thames (from Canvey Island to Tilbury) FLOOIL

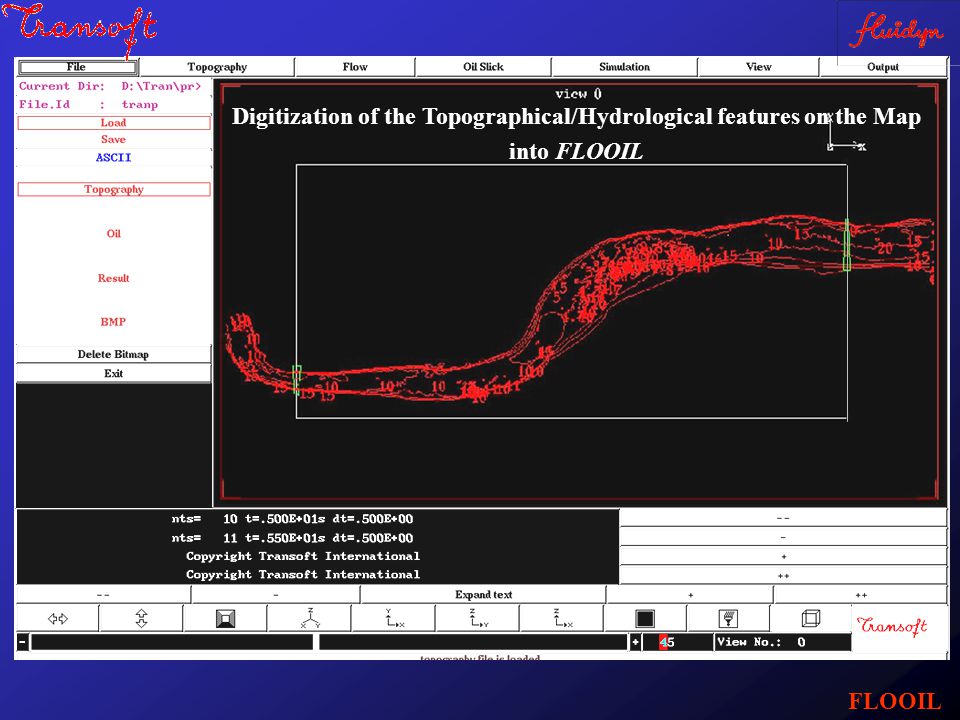

32 Digitization of the Topographical/Hydrological features on the Map into FLOOIL

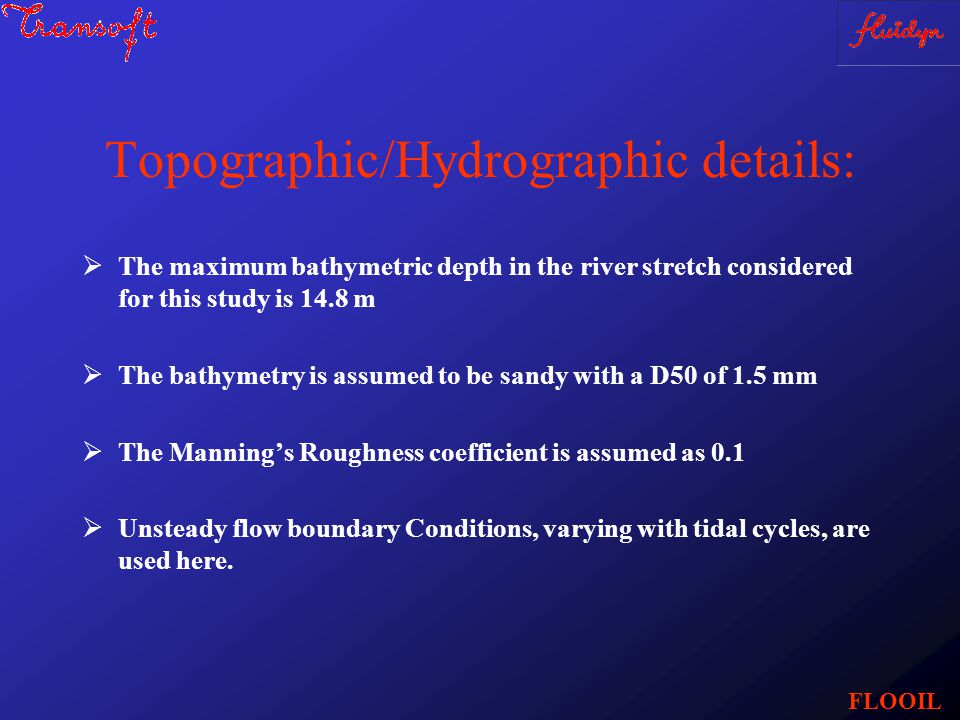

33 Topographic/Hydrographic details:  The maximum bathymetric depth in the river stretch considered for this study is 14.8 m  The bathymetry is assumed to be sandy with a D50 of 1.5 mm  The Manning’s Roughness coefficient is assumed as 0.1  Unsteady flow boundary Conditions, varying with tidal cycles, are used here. FLOOIL

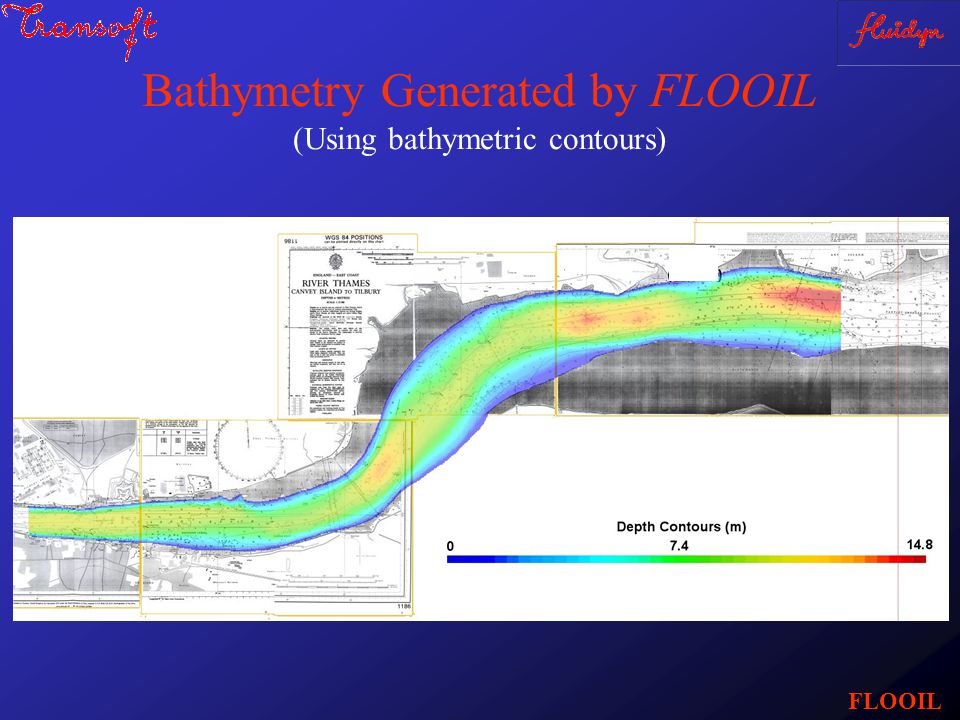

34 Bathymetry Generated by FLOOIL (Using bathymetric contours) FLOOIL

35 Spill Details:  Spilled Liquid : Crude Oil  Amount of Spill : 1000 tons  Spill Location : Near Coryton  Oil Density : 900 Kg/m 3 (at 15 0 C)  Kinematic Viscosity of Oil : 0.00134 m 2 /s  Surface Tension : 30 dynes/m  Ambient Air Temperature : 13 0 C  Dissolution Constant : 0.0088 (g.m -1  Decay constant : 0.5 d -1 The source of spillage is assumed as an underwater pipeline of size 18 inches, carrying Crude oil. FLOOIL

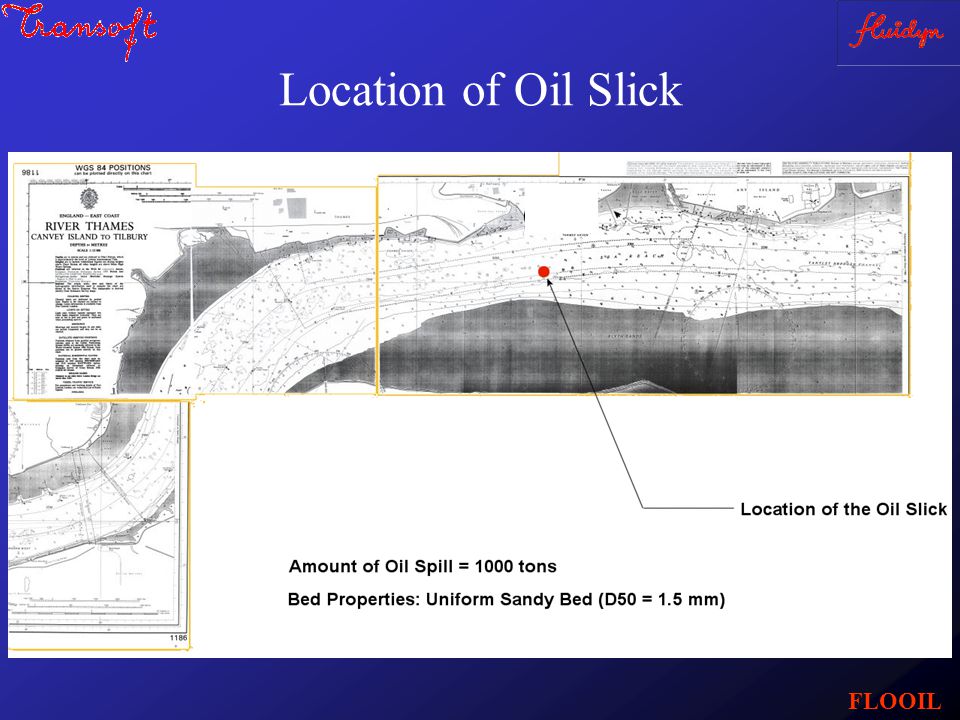

36 Location of Oil Slick FLOOIL

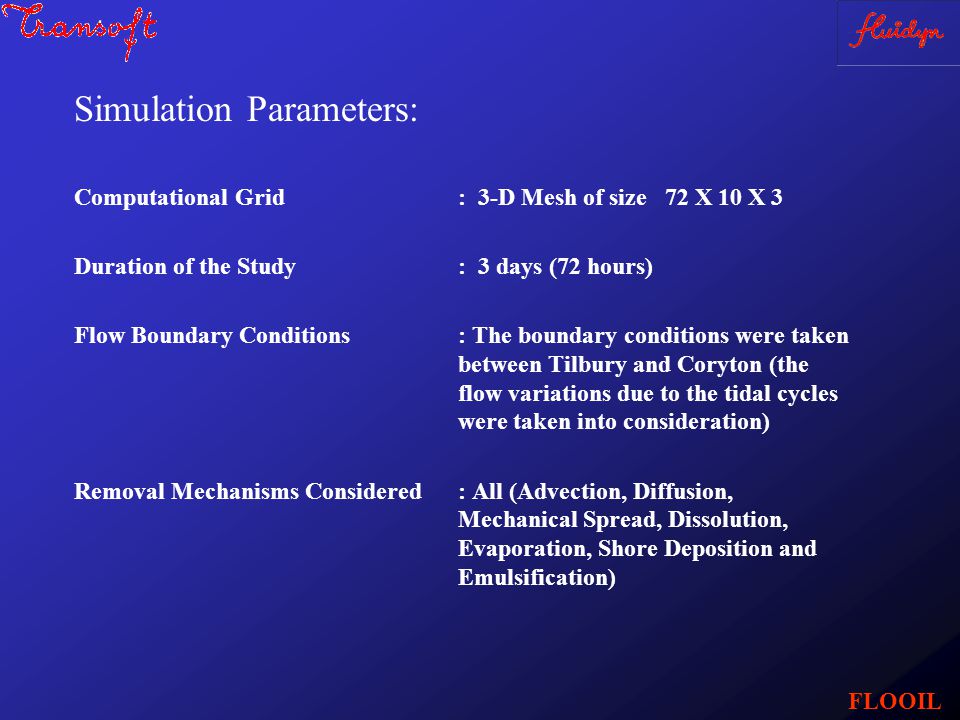

37 Simulation Parameters: Computational Grid: 3-D Mesh of size 72 X 10 X 3 Duration of the Study: 3 days (72 hours) Flow Boundary Conditions : The boundary conditions were taken between Tilbury and Coryton (the flow variations due to the tidal cycles were taken into consideration) Removal Mechanisms Considered: All (Advection, Diffusion, Mechanical Spread, Dissolution, Evaporation, Shore Deposition and Emulsification) FLOOIL

38 2-D View of the Computational Grid FLOOIL

39 3-D View of Computational Grid FLOOIL

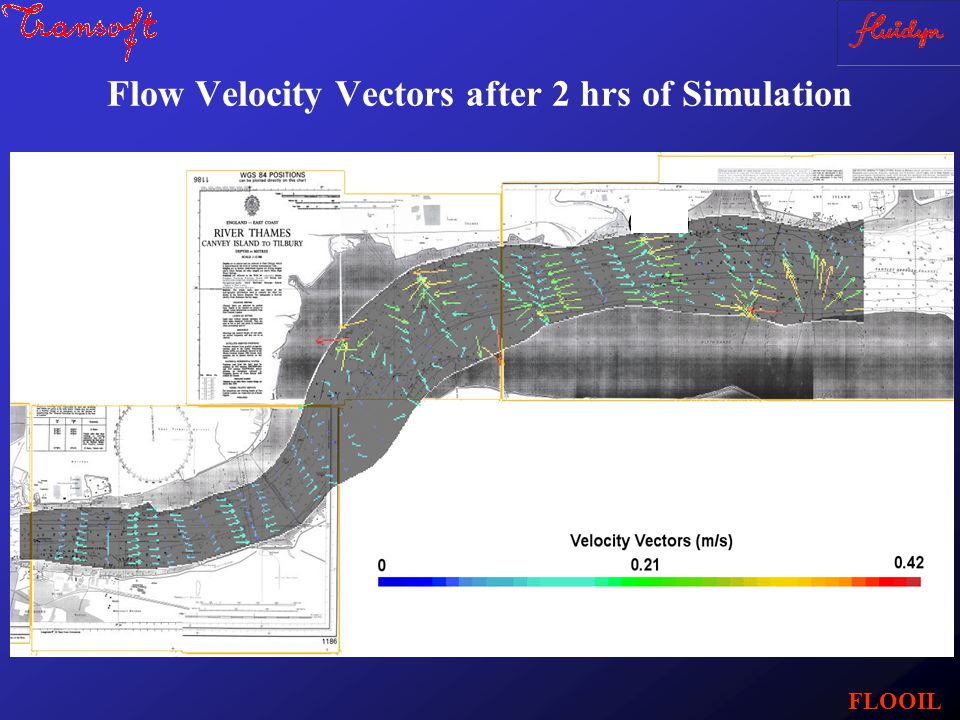

40 Flow Velocity Vectors after 2 hrs of Simulation FLOOIL

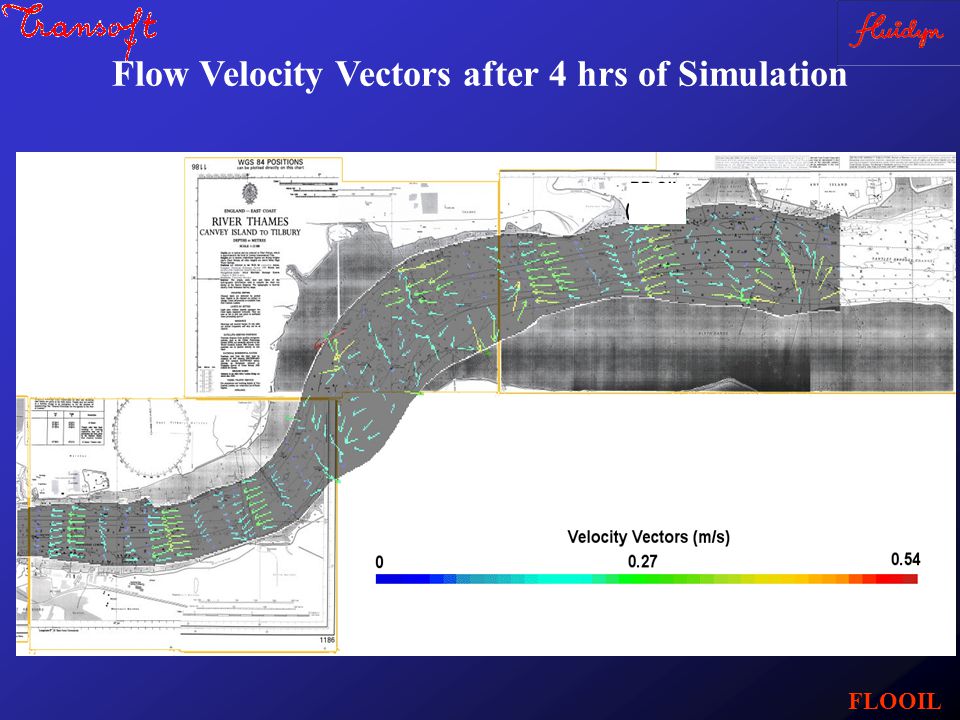

41 Flow Velocity Vectors after 4 hrs of Simulation FLOOIL

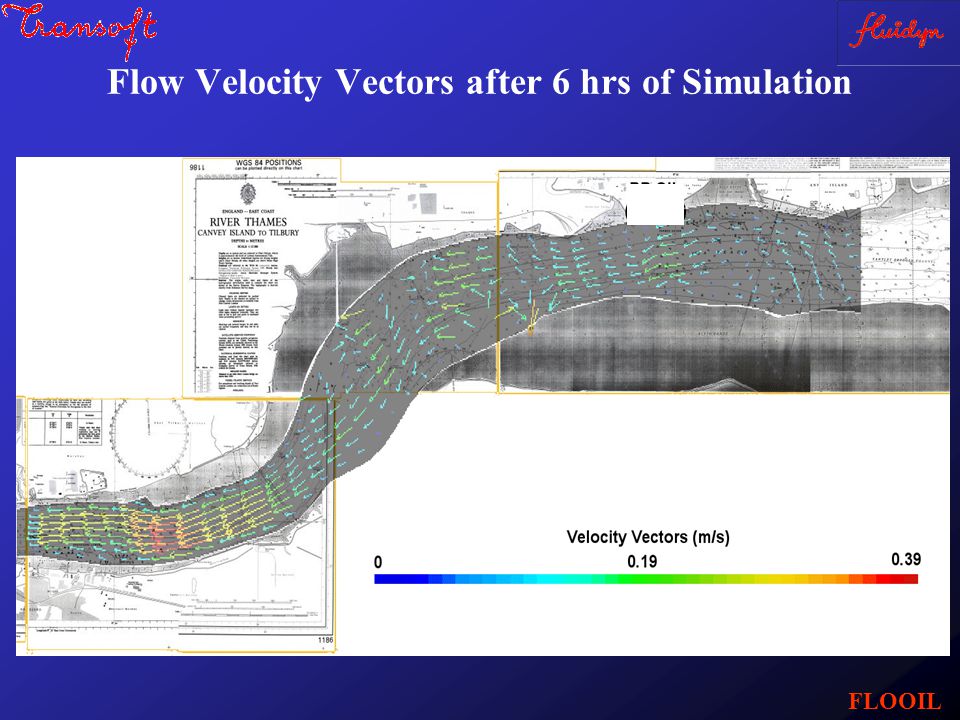

42 Flow Velocity Vectors after 6 hrs of Simulation FLOOIL

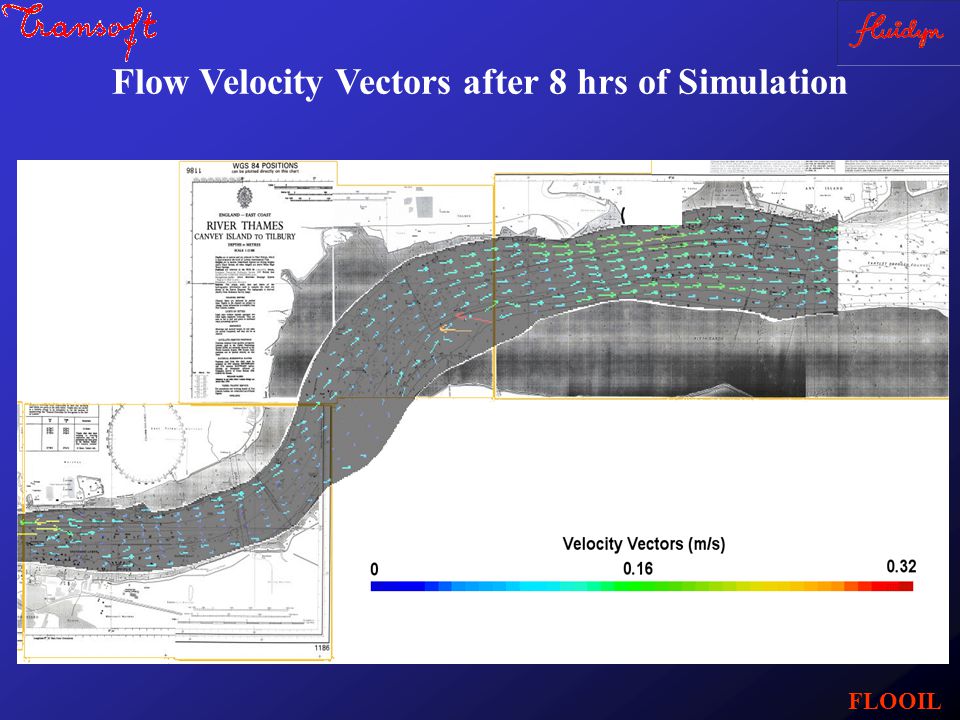

43 Flow Velocity Vectors after 8 hrs of Simulation FLOOIL

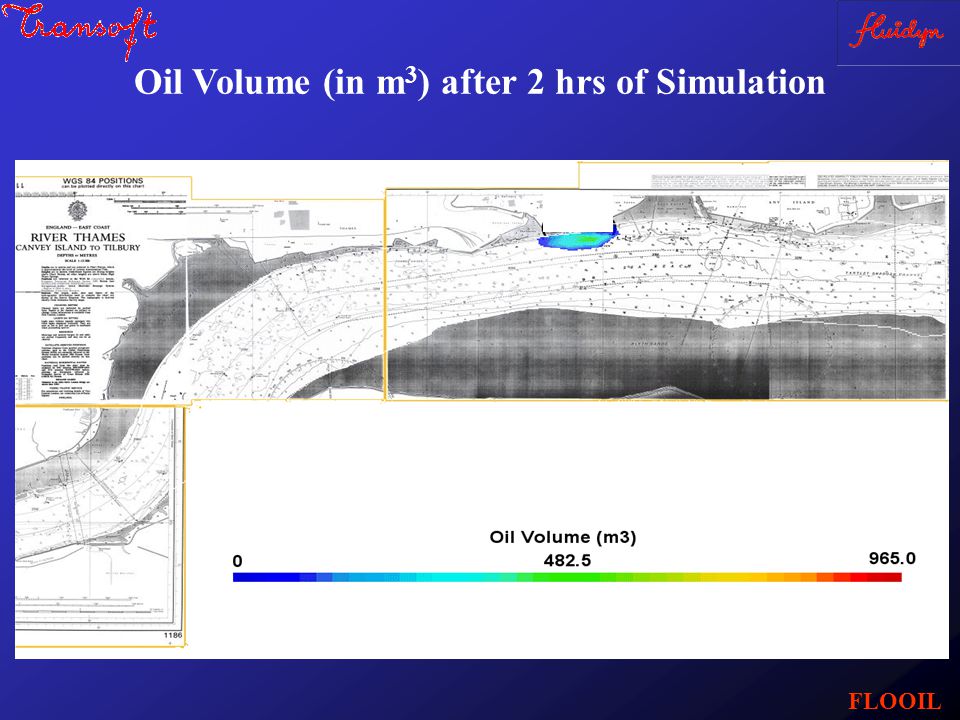

44 Oil Volume (in m 3 ) after 2 hrs of Simulation FLOOIL

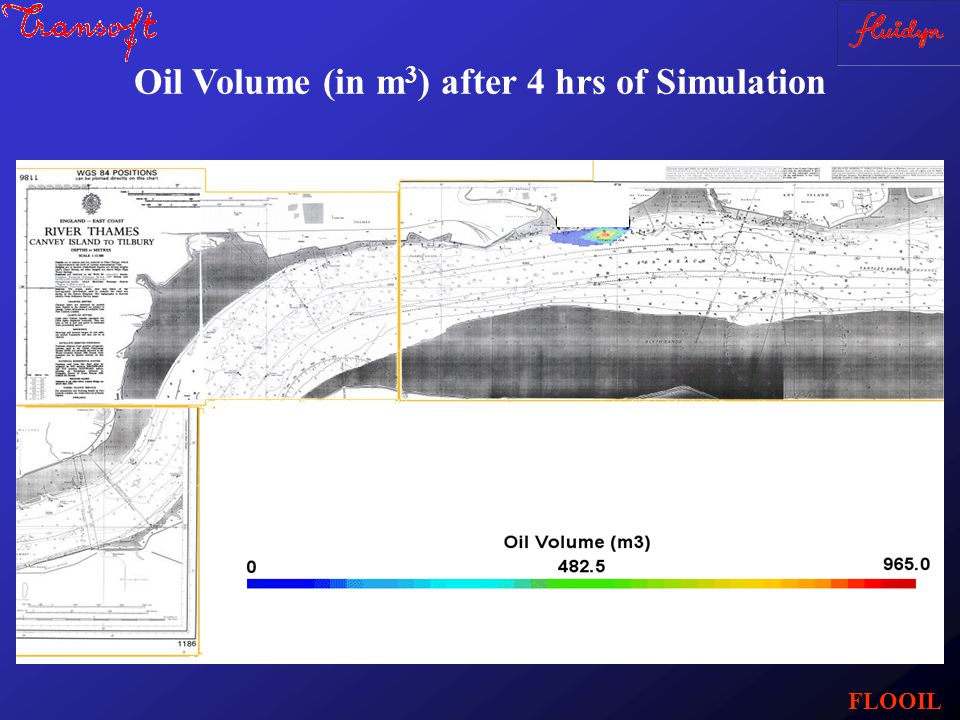

45 Oil Volume (in m 3 ) after 4 hrs of Simulation FLOOIL

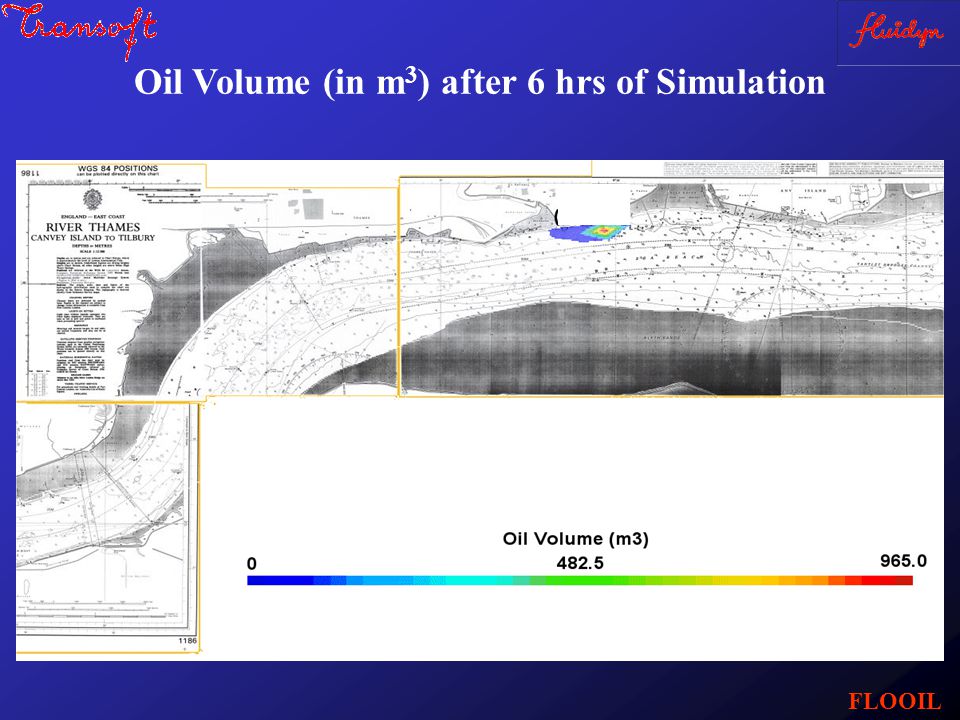

46 Oil Volume (in m 3 ) after 6 hrs of Simulation FLOOIL

47 Oil Volume (in m 3 ) after 8 hrs of Simulation FLOOIL
