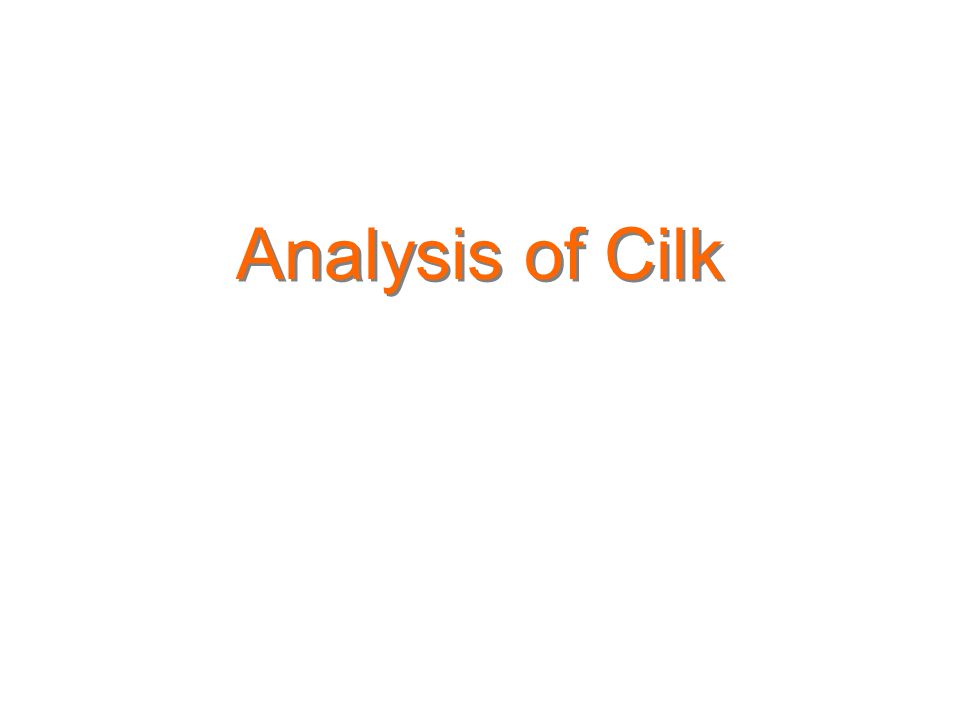

1 Analysis of Cilk

2 A Formal Model for Cilk  A thread: maximal sequence of instructions in a procedure instance (at runtime!) not containing spawn, sync, return  For a given computation, define a dag  Threads are vertices  Continuation edges within procedures  Spawn edges  Initial & final threads (in main)

3 Work & Critical Path  Threads are sequential: work = running time  Define T P = running time on P processors  Then T 1 = work in the computation  And T ∞ = critical-path length, longest path in the dag

4 Lower Bounds on T P  T P ≥ T 1 / P (no miracles in the model, but they do happen occasionally)  T P ≥ T ∞ (dependencies limit parallelism)  Speedup is T 1 / T P  (Asymptotic) linear speedup means Θ(P)  Parallelism is T 1 / T ∞ (average work available at every step along critical path)

5 Greedy Schedulers  Execute at most P threads in every step  Choice of threads is arbitrary (greedy)  At most T 1 / P complete steps (everybody busy)  At most T ∞ incomplete steps All threads with in-degree = 0 are executed Therefore, critical path length reduced by 1  Theorem: T P ≤ T 1 / P + T ∞  Linear speedup when P = O(T 1 / T ∞ )

6 Cilk Guarantees:  T P ≤ T 1 / P + O(T ∞ ) expected running time  Randomized greedy scheduler  The developers claim: T P ≈ T 1 / P + T ∞ in practice  This implies near-perfect speedup when P << T 1 / T ∞

7 But Which Greedy Schedule to Choose?  Busy leaves property: some processor executes every leaf in the dag  Busy leaves controls space consumption; can show S P = O(P S 1 )  Without busy leaves, worst case is S P = Θ(T 1 ), not hard to reach  A processor that spawns a procedure executes it immediately; but another processor may steal the caller & execute it

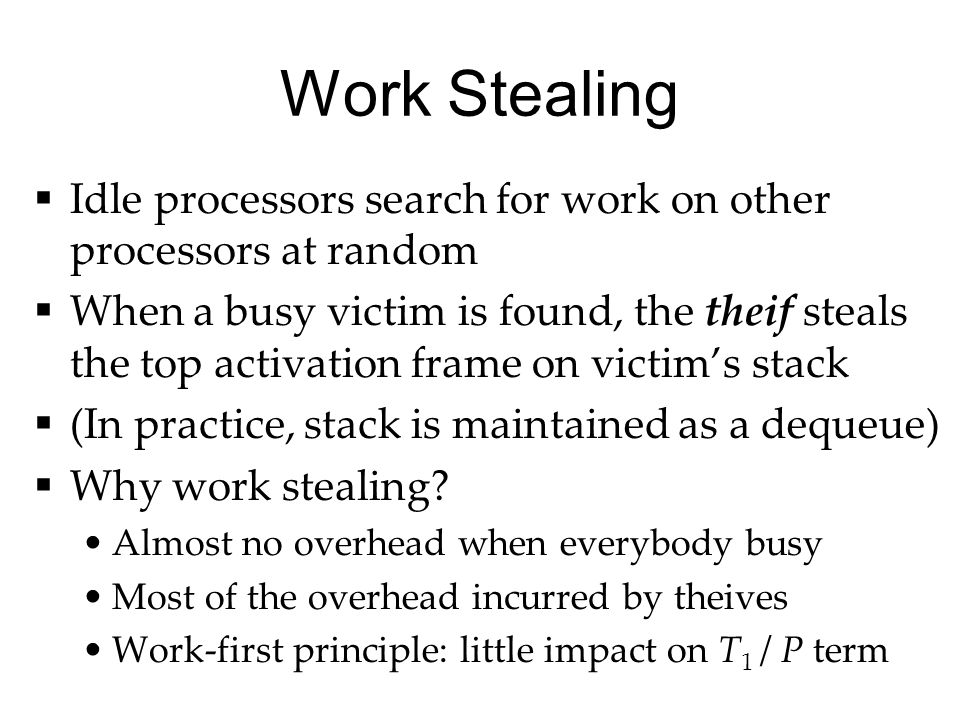

8 Work Stealing  Idle processors search for work on other processors at random  When a busy victim is found, the theif steals the top activation frame on victim’s stack  (In practice, stack is maintained as a dequeue)  Why work stealing? Almost no overhead when everybody busy Most of the overhead incurred by theives Work-first principle: little impact on T 1 / P term

9 Some Overhead Remains  To achieve portability, spawn stack is maintained as an explicit data structure  Theives steal from this dequeue  Could implement stealing directly from stack, more complex and nonportable  Main consequence: Spawns are more expensive than function calls Must do significant work at the bottom of recursions to hide this overhead Same is true for normal function calls, but to a lesser extent

10 More Cilk Features

11 Inlets  x = spawn fib(n-1) is equivalent to: cilk int fib(int n) { int x = 0; inlet void summer(int result) { x += result; } if (n<2) return n; summer( spawn fib(n-1) ); summer( spawn fib(n-2) ); sync; return x;

12 Inlet Semantics  Inlet: an inner function that is called when a child completes its execution  An inlet is a thread in a procedure (so spawn, sync are not allowed)  All the threads of a procedure instance are executed atomically with respect to one another (i.e., not concurrently)  Easy to reason about correctness  x += spawn fib(n-1) is an implicit inlet

13 Aborting Work  An abort statement in an inlet aborts already-spawned children of a procedure  Useful for aborting speculative searches  Semantics: Children may not abort instantly Aborted children do not return values, so don’t use these values, as in x = spawn fib(n-1) Does not prevent future spawns; be careful with sequences of spawns

14 The SYNCHED Built-In Variable  True only if no children are currently executing  False if some children may be executing now  Useful for avoiding space and work overheads that reduce the critical path when there is no need to

15 Cilk’s Memory Model  Memory operations of two threads are guaranteed to be ordered only if there is a dependence path between them (ancestor- descendant relationship)  Unordered threads may see inconsistent views of memory

16 Locks  Mutual-exclusion variables  Memory operations that a thread performs before releasing a lock are seen by other threads after they acquire the lock  Using locks invalidates all the performance guarantees that Cilk provides  In short, Cilk supports locks but don’t use them unless you must

17 Useful but Obsolete  Cilk as a library Can call Cilk procedures from C, C++, Fortran Necessary for building general-purpose C libraries  Cilk on clusters with distributed memory Programmer sees the same shared-memory model Used an interesting memory-consistency protocol to support shared-memory view Was performance ever good enough?

18 Some Open Problems Perhaps good enough for a thesis

19 Open Issues in Cilk  Theoretical question about the distributed- memory version: is performance monotone in the size of local caches?  Cilk as a library: resurrect  Distributed-memory version: resurrect, is it fast enough? Can you make it faster?

20 Parallel Merge Sort in Cilk

21 Parallel Merge Sort merge_sort(A, n) if (n=1) return spawn merge_sort(A, n/2) spawn merge_sort(A+n/2, n-n/2) sync merge(A, n/2, n-n/2)

22 Can’t Merge In Place! merge_sort(A, T, n, AorT) if (n=1) { T 0 =A 0 ; return } spawn merge_sort(A, T, n/2, !TorA) spawn merge_sort(A+n/2, n-n/2, !TorA) sync if (TorA=A) merge(A, T, n/2, n-n/2) if (TorA=T) merge(T, A, n/2, n-n/2)

23 Analysis  Merging uses two pointers, move the smaller into sorted array  T 1 (n) = 2T 1 (n/2) + Θ(n)  T 1 (n) = Θ(n log n)  We fill the output element by element  T ∞ (n) = T ∞ (n/2) + Θ(n)  T ∞ (n) = Θ(n)  Not very parallel...

24 Parallel Merging p_merge(A,n,B,m,C) // C is the output swap A,B if A is smaller if (m+n = 1) { C 0 =A 0 ; return } if (n = 1 /* implies m = 1 */) { merge ; return } locate A n/2 between B j and B j+1 (binary search) spawn p_merge(A,n/2,B,j,C) spawn p_merge(A+n/2, n-n/2, B+ j, n-j, C+n/2+j) sync

25 Analysis of Parallel Merging  When we merge n elements, both recursive calls merge at most 3n/4 elements  T ∞ (n) ≤ T ∞ (3n/4) + Θ(log n)  T ∞ (n) = Θ(log 2 n)  Critical path is short!  But the analysis of work is more complex (extra work due to binary searches)  T 1 (n) = T 1 (αn) + T 1 ((1-α)n) + Θ(log n), ¼ ≤ α ≤ ¾  T 1 (n) = Θ(n) using substitution (nontrivial)  Critical path for parallel merge sort  T ∞ (n) = T ∞ (n/2) + Θ(log 2 n) = Θ(log 3 n)

26 Analysis of Parallel Merge Sort  T ∞ (n) = T ∞ (n/2) + Θ(log 2 n) = Θ(log 3 n)  T 1 (n) = Θ(n)  Impact of extra work in practice?  Can find the median of 2 sorted arrays of total size n in Θ(log n) time, leads to parallel merging and merge-sorting with shorter critical paths

27 Analysis of Parallel Merge Sort  T ∞ (n) = T ∞ (n/2) + Θ(log 2 n) = Θ(log 3 n)  T 1 (n) = Θ(n)  Impact of extra work in practice?  Can find the median of 2 sorted arrays of total size n in Θ(log n) time, leads to parallel merging and merge-sorting with shorter critical paths  Parallelizing an algorithm can be nontrivial!

28 Cache-Efficient Sorting

29 Caches  Store recently-used data  Not really LRU Usually 1, 2, or 4-way set associative But up to 128-way set associative  Data transferred in blocks called cache lines  Write through or write back  Temporal locality: use same data again soon  Spatial locality: use nearby data soon

30 Cache Misses in Merge Sort  Assume cache-line size = 1, LRU, write back  Assume cache holds M words  When n <= M/2, exactly n reads, write backs  When n > M, at least n cache misses (cover all cases in the proof!)  Therefore, number of cache misses is Θ(n log n/M) = Θ(n log n – log M)  We can do much better

31 The Key Idea  Merge M/2 sorted runs into one, not 2 into 1  Keep one element from each run in a heap, together with a run label  Extract the min, move to sorted run, insert another element from same run into heap  Reading from sorted runs & writing to sorted ouput removes elements of the heap, but this cost is O(n) cache misses  Θ(n log M n) = Θ(n log n / log M)

32 This is Poly-Merge Sort  Optimal in terms of cache misses  Can adapt to long cache lines, sorting on disks, etc  Originally invented from sorting on tapes on a machine with several tape drives  Often, Θ(n log n / log M) is really Θ(n) in practice  Example: 32 KB cache, 4+4 bytes elements 4192-way merges Can sort 64 MB of data in 1 merge, 256 GB in 2 merges But more merges with long cache lines

33 From Quick Sort To Sample Sort  Same number of cache misses with normal quick sort  Key idea Choose a large random sample, Θ(M) elements Sort the samples Classify all the elements using binary searches Determine size of intervals Partition Recursively sort the intervals  Cache miss # probably similar to merge sort

34 Distributed-Memory Sorting

35 Issues in Sample Sort  Main idea: Partition input into P intervals, classify elements, send elements in ith interval to processor i, sort locally  Most of the communication in one global all- to-all phase  Load balancing: Intervals must be similar in size  How do we sort the sample?

36 Balancing the Load  Select a random sample of sP elements  OK even if every processor selects s  The probability of an interval larger than cn/P grows linearly with n, shrinks exponentially with s; a large s virtually ensures uniform intervals  Example: n = 10 9, s = 256 Pr[max interval > 2n/P] < 10 -8

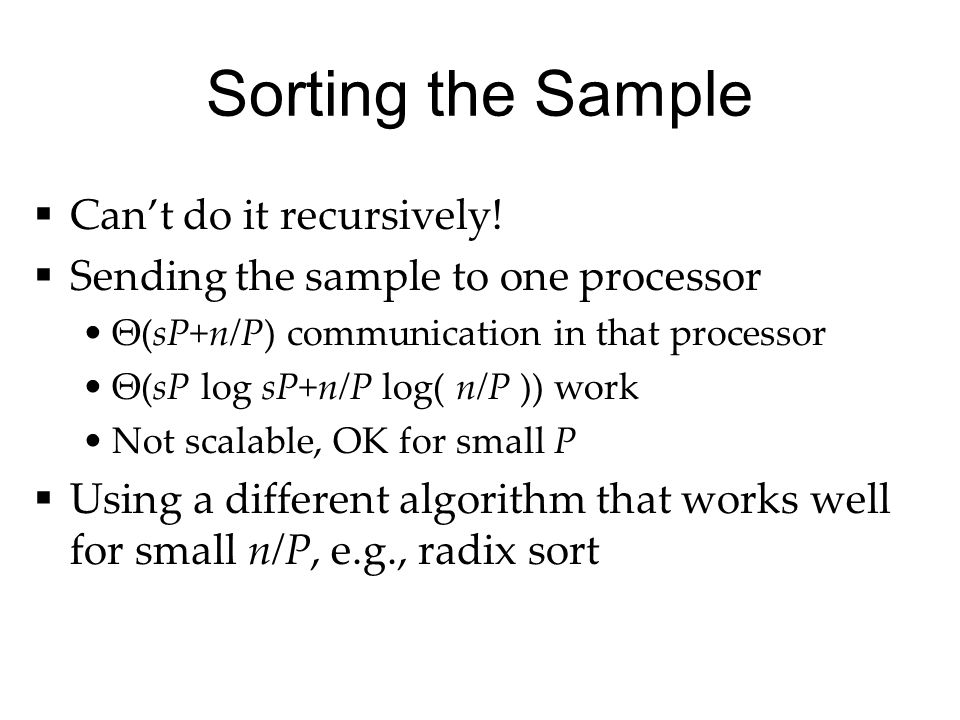

37 Sorting the Sample  Can’t do it recursively!  Sending the sample to one processor Θ(sP+n/P) communication in that processor Θ(sP log sP+n/P log( n/P )) work Not scalable, OK for small P  Using a different algorithm that works well for small n/P, e.g., radix sort

38 Distributed-Memory Radix Sort  Sort blocks of r bits from least significant to most significant; use a stable sort  Counting sort of one block Sequentially, count occurrences using a 2 r array, compute prefix sums, use as pointers  In parallel, every processor counts occurrences, then pipelined parallel prefix sums, send elements to destination processor  Θ((b/r) (2 r + n/P) work & comm / proc

39 Odds and Ends

40 CPU Utilization Issues  Avoid conditionals In sorting algorithms, the compiler & processors cannot predict outcome, so the pipeline stalls Example: partitioning in qsort without conditionals  Avoid stalling the pipeline Even without conditionals, rapid use of computed values stalls the pipeline Same example

41 Dirty Tricks  Exploit uniform input distributions approximately (quick sort, radix sort) Fix mistakes by bubbling  To avoid conditionals when fixing mistakes Split the array into small blocks Use and’s to check for mistakes in a block Fix a block only if it contains mistakes Some conditionals, but not many Compute probability of mistakes to optimize

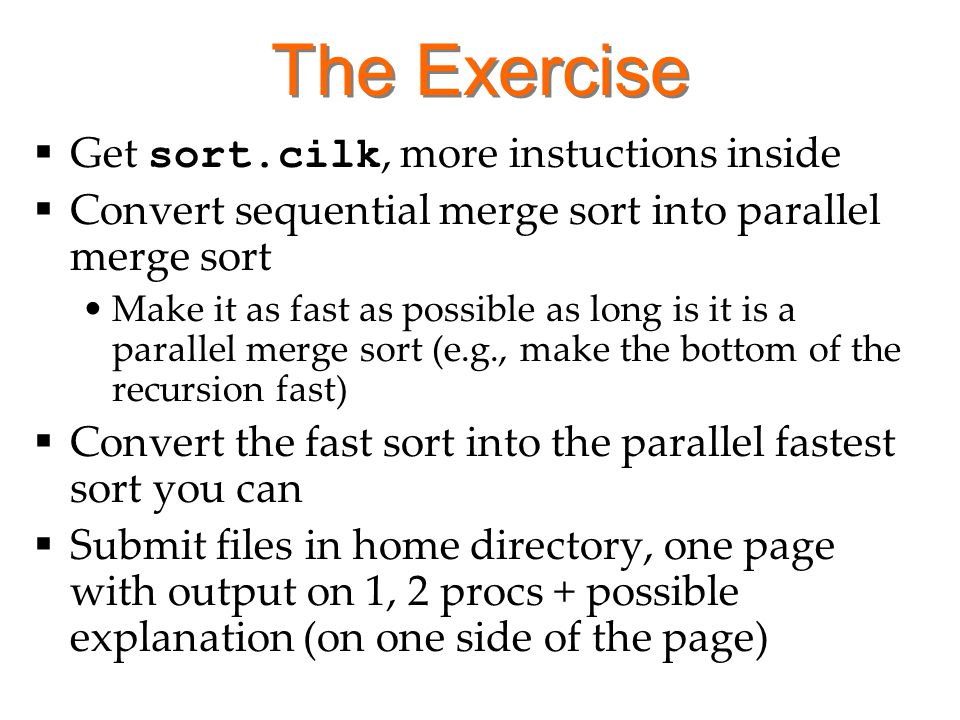

42 The Exercise  Get sort.cilk, more instuctions inside  Convert sequential merge sort into parallel merge sort Make it as fast as possible as long is it is a parallel merge sort (e.g., make the bottom of the recursion fast)  Convert the fast sort into the parallel fastest sort you can  Submit files in home directory, one page with output on 1, 2 procs + possible explanation (on one side of the page)
