Presentation on theme: "Automatic Single Sided Test Sequence of ELQ 30A To learn more click on the selected topic! ELQ 30A provides single sided test sequences to estimate the."— Presentation transcript:

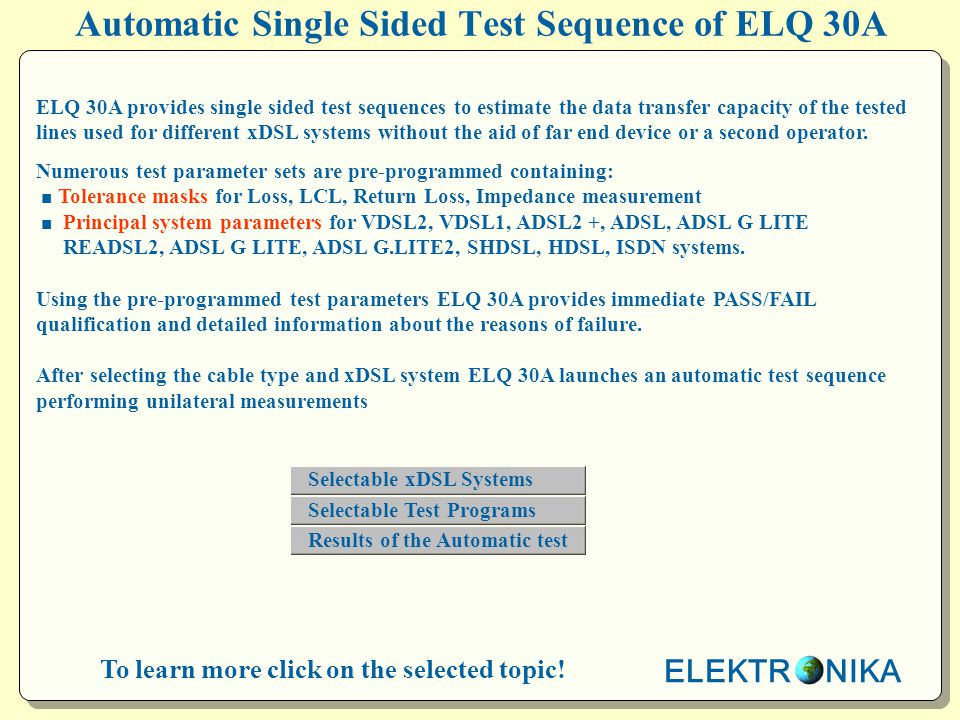

Automatic Single Sided Test Sequence of ELQ 30A To learn more click on the selected topic! ELQ 30A provides single sided test sequences to estimate the data transfer capacity of the tested lines used for different xDSL systems without the aid of far end device or a second operator. Numerous test parameter sets are pre-programmed containing: ■ Tolerance masks for Loss, LCL, Return Loss, Impedance measurement ■ Principal system parameters for VDSL2, VDSL1, ADSL2 +, ADSL, ADSL G LITE READSL2, ADSL G LITE, ADSL G.LITE2, SHDSL, HDSL, ISDN systems. Using the pre-programmed test parameters ELQ 30A provides immediate PASS/FAIL qualification and detailed information about the reasons of failure. After selecting the cable type and xDSL system ELQ 30A launches an automatic test sequence performing unilateral measurements Selectable xDSL Systems Selectable Test Programs ELEKTR NIKA Results of the Automatic test

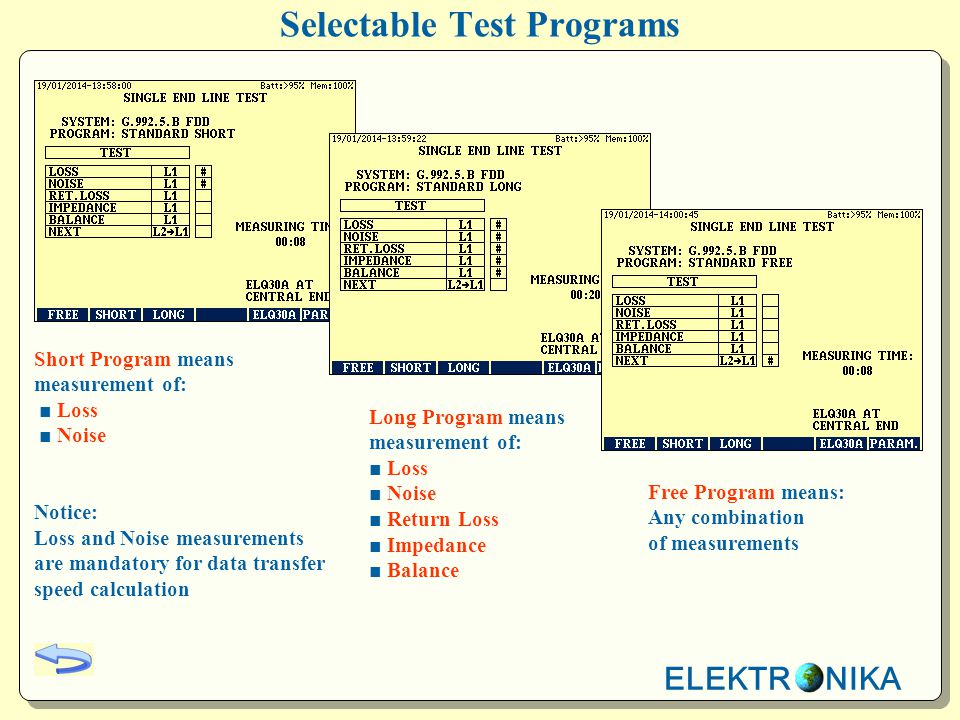

Selectable Test Programs ELEKTR NIKA Short Program means measurement of: ■ Loss ■ Noise Notice: Loss and Noise measurements are mandatory for data transfer speed calculation Long Program means measurement of: ■ Loss ■ Noise ■ Return Loss ■ Impedance ■ Balance Free Program means: Any combination of measurements
Detailed Results of VDSL and ADSL Qualification ELEKTR NIKA
