1 Following Molecules/Cells through TIME to Understand Processing and Processes

2 Experimental strategies for investigating: 1.Kinetics of synthesis or degradation of a molecule 2.Precursor/product relationships 3.Molecular mechanisms (e.g., DNA replication, signal transduction) 4.Movements of a molecule over time (protein secretion, cell cycle, differentiation) 5.Which cells give rise to particular structures during development?

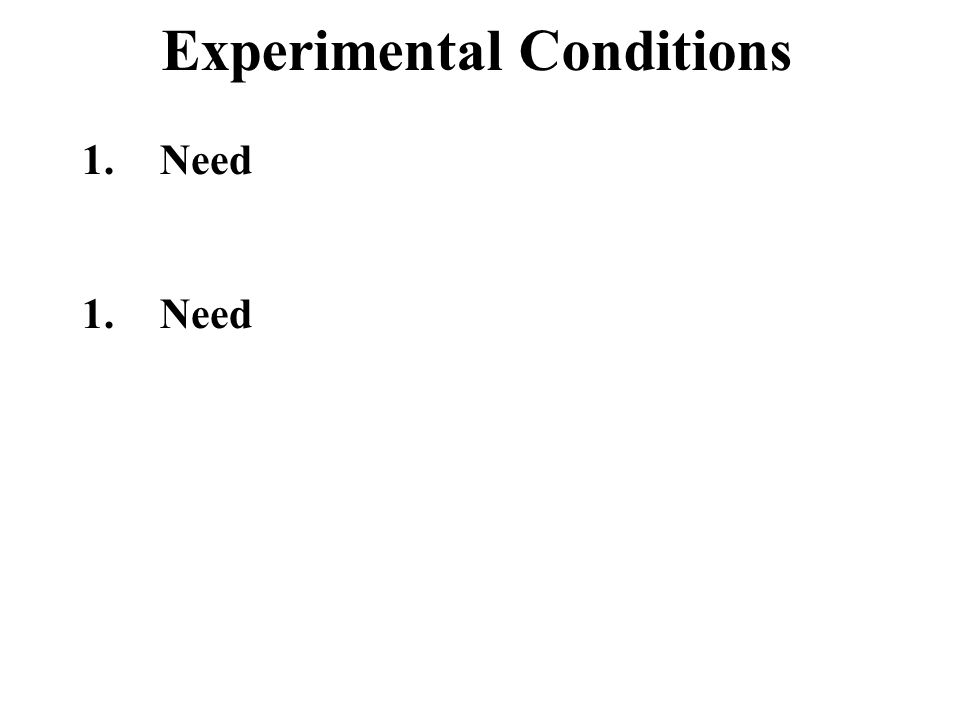

3 1.Need Experimental Conditions

4 1.Need a means of differentially marking a population of molecules or cells. 2.Need Experimental Conditions

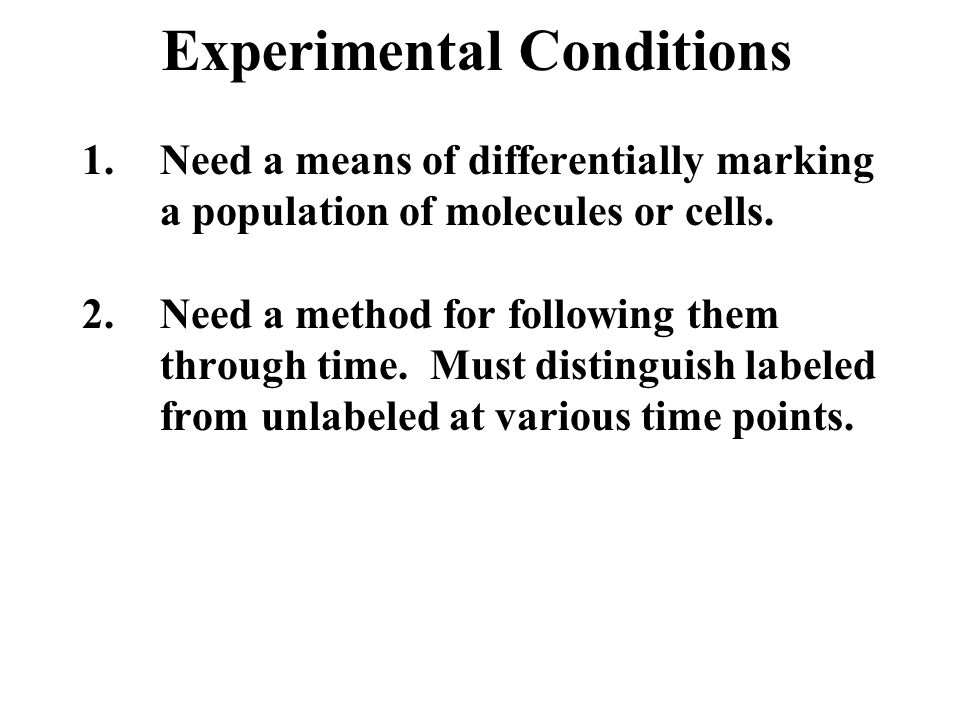

5 1.Need a means of differentially marking a population of molecules or cells. 2.Need a method for following them through time. Must distinguish labeled from unlabeled at various time points. Experimental Conditions

6 1. Molecules 2. Cells For marking:

7 1. Molecules a. Radioactivity (e.g., 3 H, 35 S, 32 P) b. Density c. Fluorescent or enzyme tags (with chromogenic substrates) 2. Cells For marking:

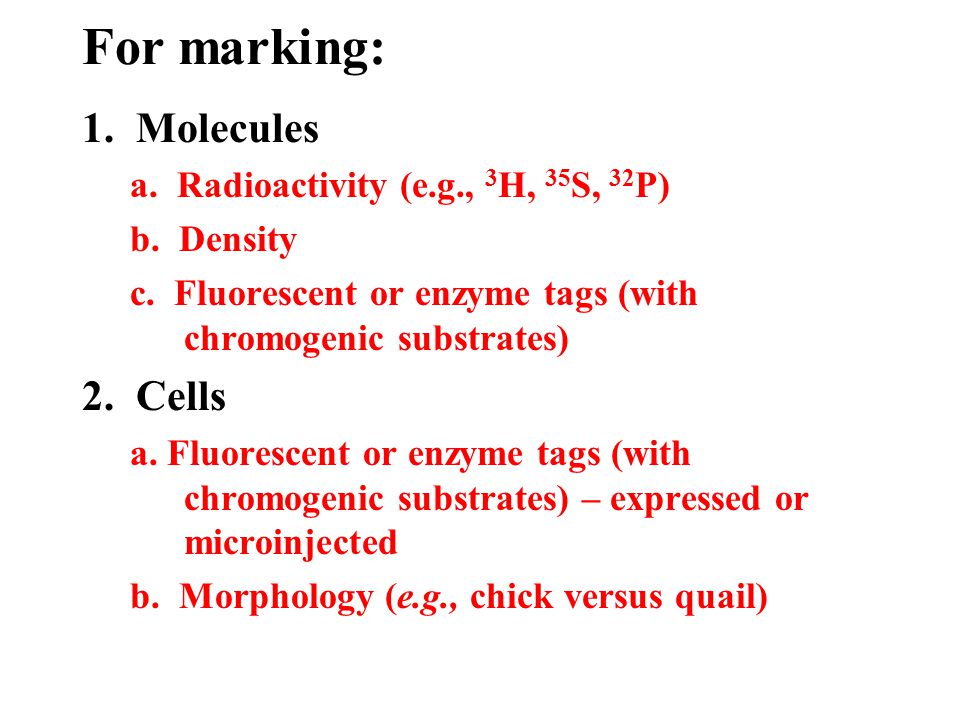

8 1. Molecules a. Radioactivity (e.g., 3 H, 35 S, 32 P) b. Density c. Fluorescent or enzyme tags (with chromogenic substrates) 2. Cells a. Fluorescent or enzyme tags (with chromogenic substrates) – expressed or microinjected b. Morphology (e.g., chick versus quail) For marking:

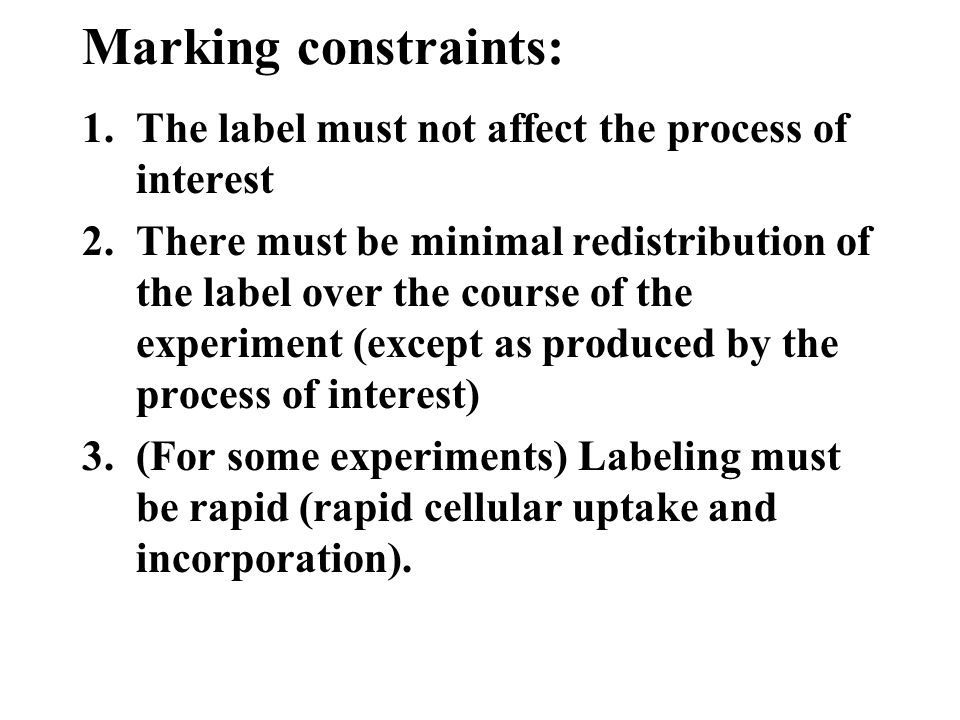

9 1.The label must not affect the process of interest 2.There must be minimal redistribution of the label over the course of the experiment (except as produced by the process of interest) 3.(For some experiments) Labeling must be rapid (rapid cellular uptake and incorporation). Marking constraints:

10 1. Radioactivity 2. Density 3. Fluorescence and enzyme labeling For detecting/tracking:

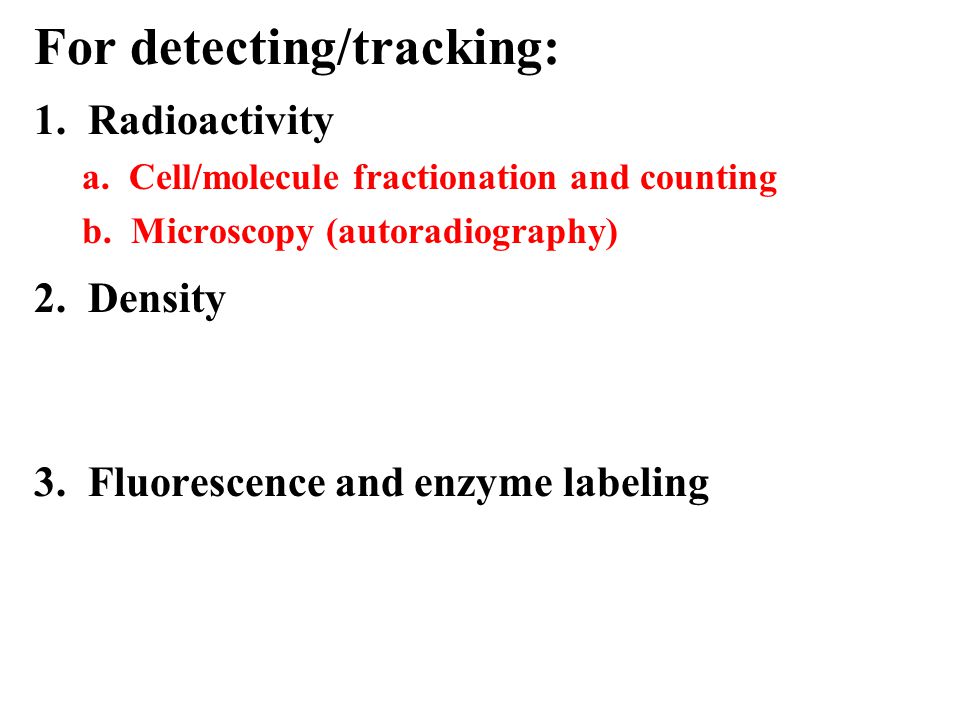

11 1. Radioactivity a. Cell/molecule fractionation and counting b. Microscopy (autoradiography) 2. Density 3. Fluorescence and enzyme labeling For detecting/tracking:

12

13

14

15 1. Radioactivity a. Cell/molecule fractionation and counting b. Microscopy (autoradiography) 2. Density a. Density-gradient centrifugation b. Mass spectrometry 3. Fluorescence and enzyme labeling For detecting/tracking:

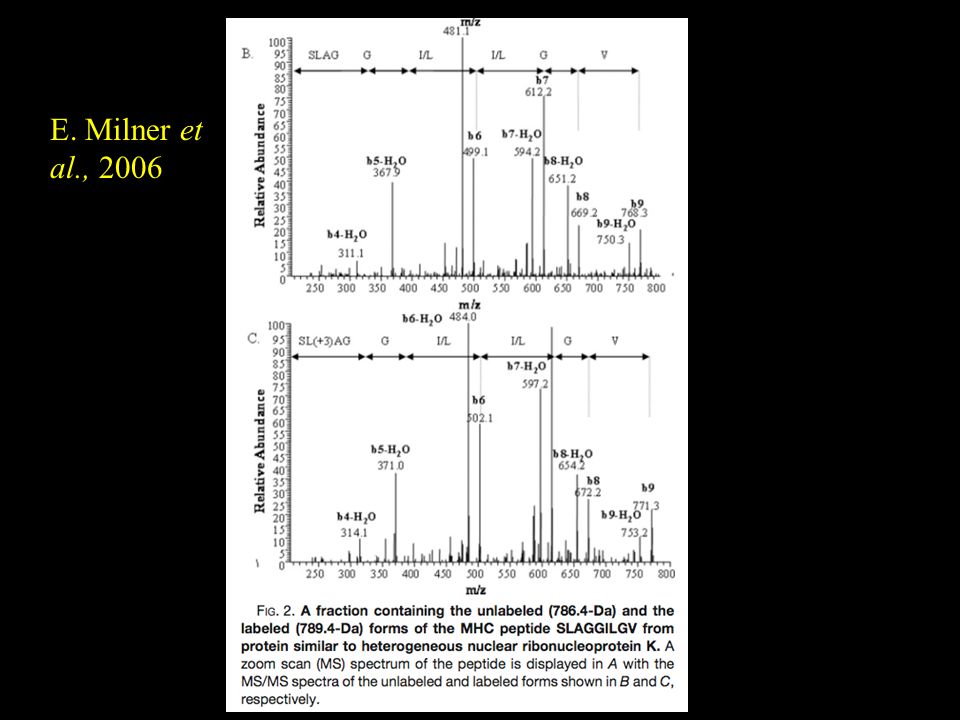

16 E. Milner et al., 2006

17

18 Section of a coral tentacle Epiderm Nematocysts Gastroderm Dinoflagellates Mesentery

19

20

21

22 1. Radioactivity a. Cell/molecule fractionation and counting b. Microscopy (autoradiography) 2. Density a. Density-gradient centrifugation b. Mass spectrometry 3. Fluorescence and enzyme labeling a. Microscopy b. Cell/molecular fractionation and observation (of fractions, gels, chromatograms) For detecting/tracking:

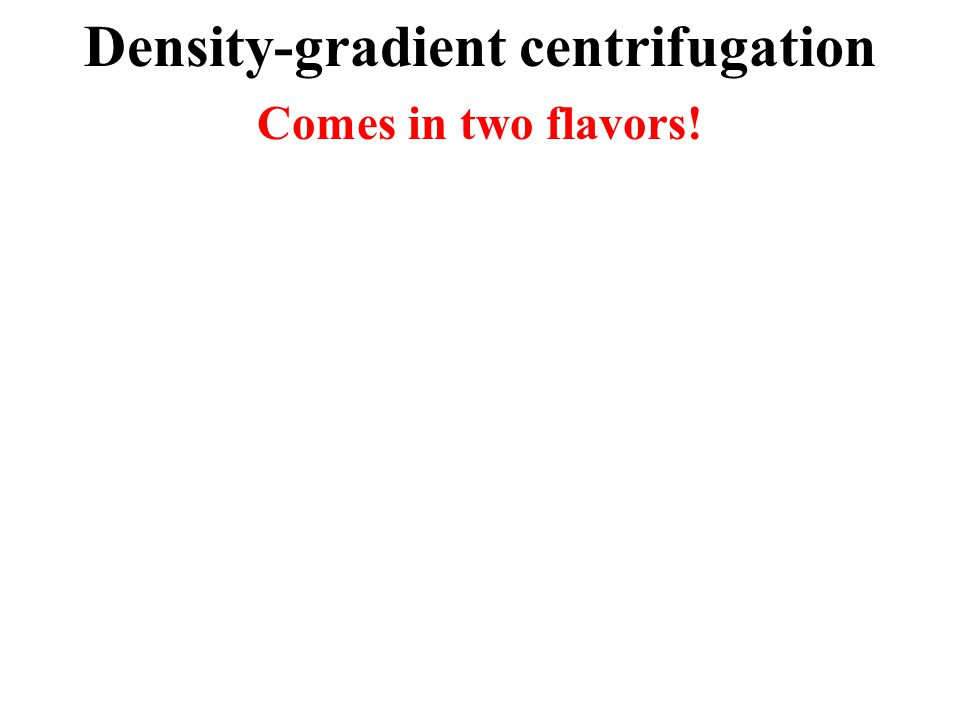

23 Density-gradient centrifugation Comes in two flavors!

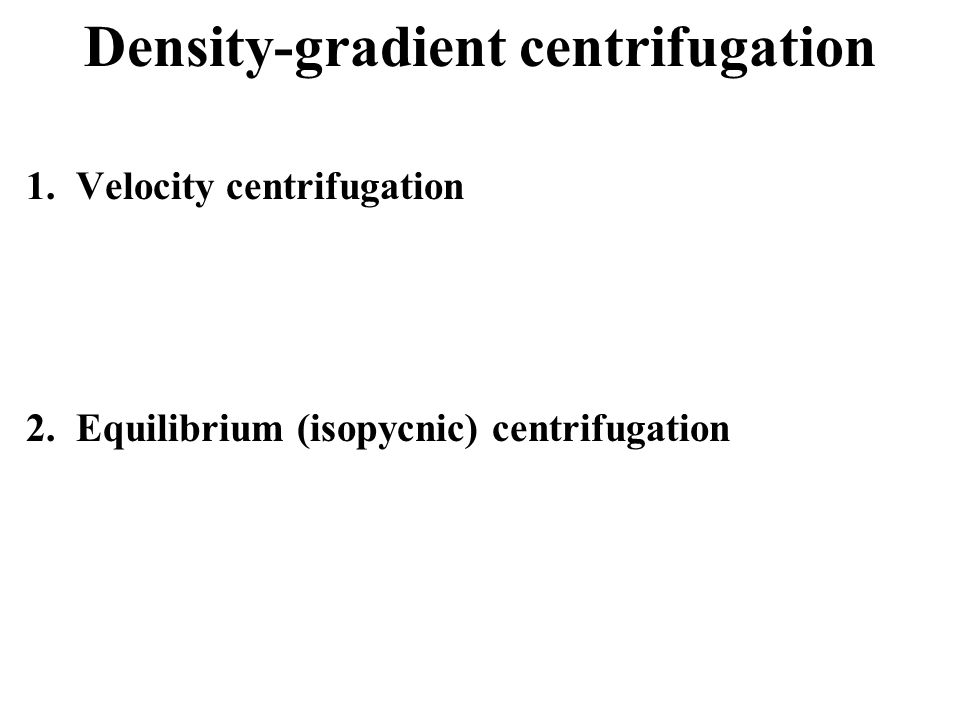

24 Density-gradient centrifugation Comes in two flavors! 1. Velocity centrifugation 2. Equilibrium (isopycnic) centrifugation

25 Density-gradient centrifugation Comes in two flavors! 1. Velocity centrifugation Materials: Sucrose, Ficoll (low osmolarity), etc. Procedure: Premix gradient, run for fixed time Separation: Depends on mass, shape, partial-specific volume (density), which determine “S value”

26

27 Density-gradient centrifugation Comes in two flavors! 1. Velocity centrifugation Materials: Sucrose, Ficoll (low osmolarity), etc. Procedure: Premix gradient, run for fixed time Separation: Depends on mass, shape, partial-specific volume (density), which determine “S value” 2. Equilibrium (isopycnic) centrifugation Procedure: Run to equilibrium Separation: Depends only on density (neutral buoyancy) a. “Step gradients” (pre-form gradient of sucrose, etc.) b. “Continuous gradients” [gradient forms itself by sedimentation vs. diffusion; CsCl (nucleic acids), Percoll (cells and organelles)]

28 Meselson & Stahl (1958) One of the most famous experiments ever – why?

29 Meselson & Stahl (1958) One of the most famous experiments ever – why? They solved an important problem (did DNA replicate the way Watson’s & Crick’s model predicted?).

30 Meselson & Stahl (1958) One of the most famous experiments ever – why? They solved an important problem (did DNA replicate the way Watson’s & Crick’s model predicted?). They pioneered use of stable-isotope labeling AND isopycnic density-gradient centrifugation in CsCl (with Vinograd).

31 Meselson & Stahl (1958) One of the most famous experiments ever – why? They solved an important problem (did DNA replicate the way Watson’s & Crick’s model predicted?). They pioneered use of stable-isotope labeling AND isopycnic density-gradient centrifugation in CsCl (with Vinograd). Methods were elegant, they attended punctiliously to detail (craftsmanship!), the results were very clear, and the presentation was lucid (more craftsmanship!).

32 conservativedistributive semi-conservative

33

34

35

36

37

38

39

40 4000 kb X 650 kDa/kb ≈ 2.6 X 10 9

41

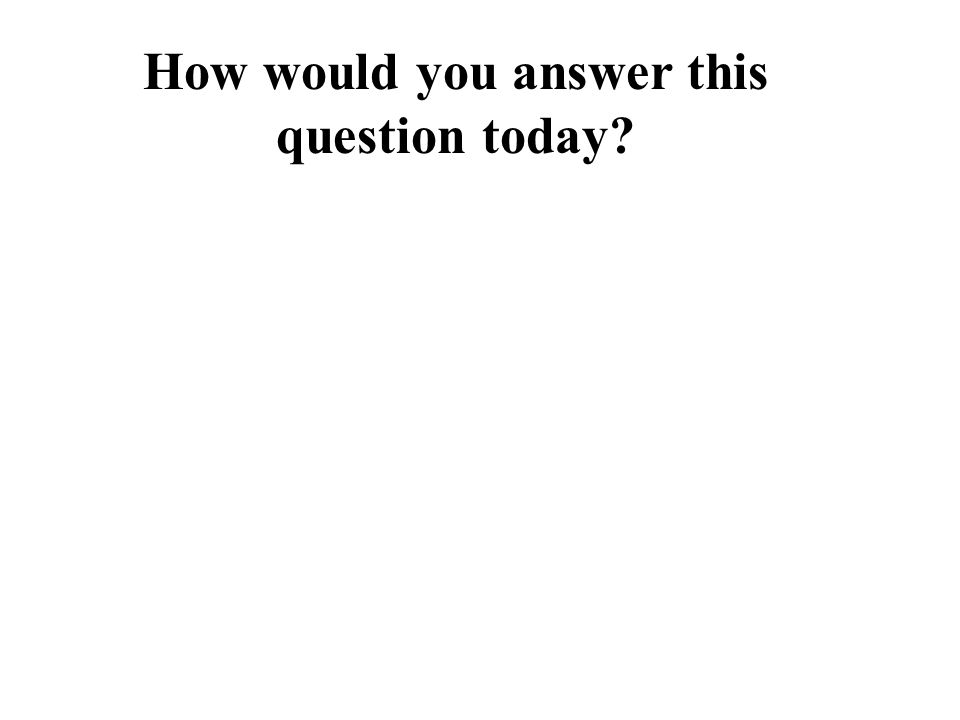

42 How would you answer this question today? Look directly at the DNA molecule? Resolution is an issue. Maybe atomic force microscopy? What about BrdU labeling? Resolution wouldn’t be good enough to distinguish strands.

43 Here rapid labeling IS an issue. Often, cells are first grown in a metabolite-deficient medium to deplete their stores of that metabolite. Pulse/Chase Experiments

44 Here rapid labeling IS an issue. Often, cells are first grown in a metabolite-deficient medium to deplete their stores of that metabolite. Labeled metabolite is added, or a tagging procedure is applied, for a discrete interval (the “pulse”). Pulse/Chase Experiments

45 Here rapid labeling IS an issue. Often, cells are first grown in a metabolite-deficient medium to deplete their stores of that metabolite. Labeled metabolite is added, or a tagging procedure is applied, for a discrete interval (the “pulse”). Cells are then washed and/or an excess of unlabeled metabolite is added (the “chase”). Pulse/Chase Experiments

46 Here rapid labeling IS an issue. Often, cells are first grown in a metabolite-deficient medium to deplete their stores of that metabolite. Labeled metabolite is added, or a tagging procedure is applied, for a discrete interval (the “pulse”). Cells are then washed and/or an excess of unlabeled metabolite is added (the “chase”). Cells are sampled at intervals to track the metabolite (or tagged molecule) and molecules and/or organelles into which it is incorporated. Pulse/Chase Experiments

47

48

49

50

51

52

53

54

55

56

57 Curr. Biol. 18: (2008)

58

59

60

61

62

63
