1 Dental non-caries disease

2 Discoloration of teeth Anomalous formation of teeth
Chapter 5 Discoloration of teeth Anomalous formation of teeth

3 Discoloration of teeth
Intrinsic discoloration Extrinsic discoloration

4 Intrinsic discoloration of teeth
pigmentation of internal structure anomalous development of teeth Extrinsic discoloration of teeth drug、food、drinks、tobacco surface staining of teeth or denture

5 Extrinsic staining chlorhexidine staining tobacco and coffee stains

6 Intrinsic discoloration dental bleaching
Treatment of dental discoloration Intrinsic discoloration dental bleaching resin repair crown repair Extrinsic discoloration ultrasonic scaling

7 Dental fluorosis tetracycline pigmentation teeth Dental bleaching technique

8 Dental Fluorosis Dental fluorosis occurs as a result of long-term intake of fluoride during the period of tooth formation Characterized by an increasing porosity of the surface and subsurface enamel causing the enamel to appear opaque

9 Etiological factors of dental fluorosis
Fluorides in drinking water Fluorides in foods and drinks Fluoride ingestion period

10 The optimum level of fluoride in drinking water supplies
1ppm(1mg/L):maximum caries protection while causing minimal dental fluorosis

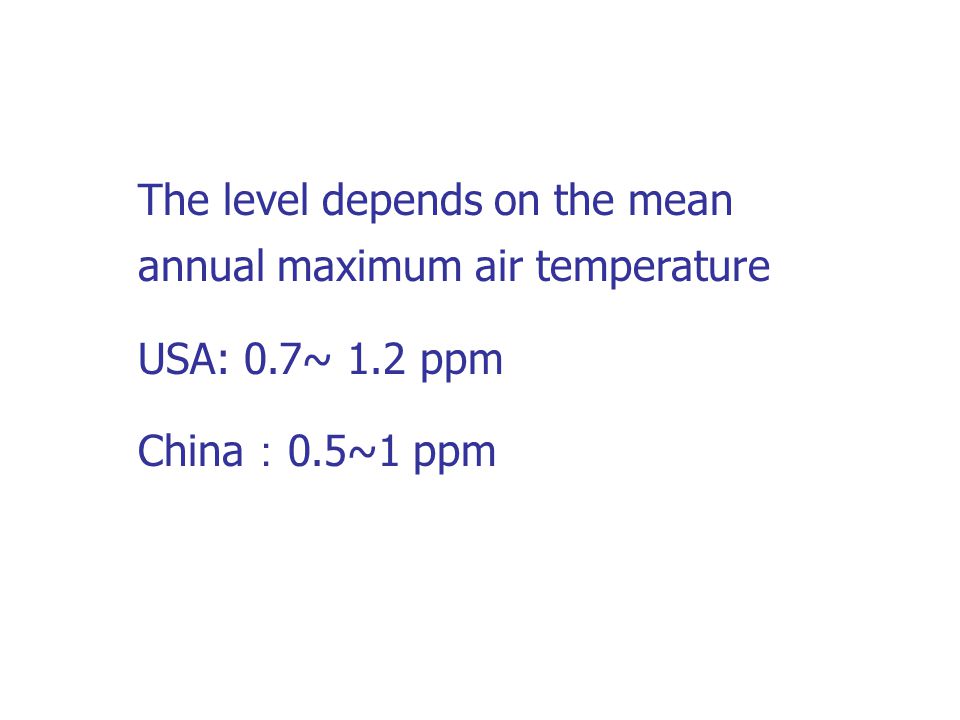

11 The level depends on the mean annual maximum air temperature
USA: 0.7~ 1.2 ppm China:0.5~1 ppm

12 Fluorides in foods and drinks
Fish, tea, etc Fluoride solubility Calcium and magnesium

13 The period of risk of developing dental fluorosis
For many years it was believed that only during certain stages of tooth formation can fluoride exert its toxic effect on enamel: the stage during which enamel is laid down by the ameloblasts

14 So long as a tooth has not yet erupted
into the mouth,it may be sensitive to exposure to fluoride The later in the pre-eruptive life of a tooth that it is exposed to fluoride the less severe will be the resulting degree of dental fluorosis

15 The pathogenesis and pathology of dental fluorosis
ALP (Alkaline phosphatase) inhibitor hypo-mineralization of interrod substance super-mineralization of enamel rod

16 Clinical features of dental fluorosis
Permanent dentition: symmetrically distributed in the mouth, but not all teeth are equally affected The least affected teeth are the incisors and first permanent molars The premolars and other molars are most severely affected

17 Primary dentition Similar clinical features Less severely affected than their permanent successors

18 Changes from fine white opaque lines
running across the tooth on all parts of the enamel, to features where parts of the chalky white and porous outer enamel become detached and discolored

19 The loss of surface enamel in the severest cases results in a loss of anatomical form of the teeth

20 Indices for measuring dental fluorosis (the Dean index)
“Normal” (score: 0) The enamel represents the usual translucent semi-vitriform type of structure The surface is smooth, glossy, and usually of a pale, creamy white colour

21 Questionable (score: 0.5)
The enamel discloses slight aberrations from the translucency of normal enamel, ranging from a few white flecks to occasional white spots This classification is utilized in those instance where a definite diagnosis of the mildest form of fluorosis is not warranted and a classification of “normal” not justified

22 Very mild (score: 1.0) Small, opaque, paper white areas scattered irregularly over the tooth but not involving as much as approximately 25% of the tooth surface Frequently included in the classification are teeth showing no more than about 1-2mm of white opacity at the tip of the summit of the cusps of the bicuspids of second molars

23 Very mild (score: 1.0)

24 Mild (score: 2.0) The white opaque areas in the enamel of the teeth are more extensive but not involve as much as 50% of the tooth

25 Moderate (score: 3.0) All enamel surfaces of the teeth are affected, and surfaces subject to attrition show marked wear Brown stain is frequently a disfiguring feature

26 Severe (score: 4.0) All enamel surfaces are affected and hypoplasia is so marked that the general form of the tooth may be affected

27 The major diagnosis sign of this classification is the discrete or confluent pitting
Brown stains are widespread and teeth often present a corroded-like appearance

28 The TF index --originally proposed by Thylstrup and Fejerskov --score 0-9 --the TF index is a logical improvement and extension of Dean’s index --It is more precise and sensitive in its characterization of various degrees of severity of dental fluorosis, especially in its capacity to distinguish between the spectrum of changes associated with the early signs and with the more severe forms of dental fluorosis

29 The prevention of the dental fluorosis
Defluoridation of drinking water Lime softening Alum, alum and lime Activated alumina Activated carbon Electrodialysis Reverse osmosis Natural bone, bone char and charcoal ……

30 The shortcomings of several the above-mentioned methods
-high initial cost of defluoridation plant -high operation and maintenance costs -low fluoride removal capacities -undesirable effects on water quality -generation of sludge -complicated procedures

31 The treatment of dental fluorosis
For very mild dental fluorosis: Physically grinding away the outer porous fluorotic enamel until the underlying almost sound and better mineralized enamel is exposed

32 Pronounced opacities and stains can be removed by alternatively applying phosphoric acid to enamel surface and polishing with an abrasive, finished by applying a mineralizing solution and topical fluorides to the treated enamel

33 In the cases of severe dental fluorosis:
-Restoration with composite resins cosmetically unsatisfactory in the long run -Repair with crowns

34 Tetracycline Stained Teeth
background pathogenesis classification clinical features prevention and treatment

35 Background 1940s, clinical initial usage of Tetracycline
1950s, Tetracycline Stained Teeth reported 1970s, brought to attention

36 Onset time of the illness
Calcification stage of tooth formation 4 months afterwards during gestational period placenta Pigmentation of primary dentition children below 7-year-old tetracycline Stained teeth or enamel hypoplasia

37 Pathogenesis Discoloration of dentine and enamel
tetracycline +Ca compound of tetracycline-Ca+ mineralization inhibition enamel hypoplasia

38 The classification of the illness
mild:yellow or gray staining no enamel defect moderate:brown-gray staining severe:brown-gray or black band-like staining accompanying enamel hypoplasia


40 Prophylaxis and treatment
Prevention of Tetracycline Stained Teeth No tetracycline for--- pregnant women breast-feeding women children below 8-year-old

41 Treatment of Tetracycline Stained Teeth
Bleaching technique Composite resin repair Crown repair

42 Bleaching Technique Indication: discoloration teeth
Mild to moderate mottled enamel Tetracycline Stained Teeth Non-vital discolored teeth

43 Bleaching Technique Non-vital bleaching technique
In-office vital bleaching technique In-home vital bleaching technique

44 Non-vital bleaching technique
Pulpectomy, root canal therapy removal 2~3mm root canal filling material 30%H2O2 in pulp chamber every 3 days 4~6 times in all coronal restoration

45 Non-vital bleaching technique
Walking bleach technique Clinically effective Shortcomings: non-vital tooth external absorption of tooth cervix

46 In-office vital bleaching technique
30%H2O2 enamel demineralization enamel pellucidit enamel remineralization

47 In-home bleaching technique
Matrix bleaching technique Nightguard vital bleaching technique 10%-15% carbamide peroxide

48 In-office bleaching technique

49 Bleaching technique

50 Dental structural anomalies
Enamel Hypoplasia Hereditary dentinogenesis imperfecta Congenital syphilitic teeth

51 Enamel Hypoplasia Developmental disturbance of enamel, which appears as a surface defect, during the period of tooth formation enamel dysplasia enamel hypocalcification

52 Enamel Hypoplasia Etiology Clinical feature Prevention and cure

53 Etiology of Enamel Hypoplasia
Nutrient: VitA、C、D,Ca、P Endocrine factor: parathyroid gland Mother and baby related disease: chickenpox, scarlatina, gravida rubella Local factor: periapical periodontitis of primary teeth (Turner teeth)

54 Clinical feature of Enamel Hypoplasia
Systemic hypoplasia affect homologous teeth Several groups of teeth are involved frequently

55 The classic clinical features vary from a grooved line across the tooth surfaces to
a wider band of faulty deformed enamel Always characterized by having smooth rounded and well-demarcated borders

56 Enamel hypoplasia

57 Mild : Hypomineralization No alteration in enamel integrity
Color and pellucidit change Chalk-like enamel

58 Severe: Band- or groove-like enamel defect
Pit or honeycomb appearance enamel Thinned Incisal edge defected cusp

59 Enamel hypoplasia associated
with dental fluorosis

60 Symmetry lesion of Enamel hypoplasia
1yr after birth to 2yr after birth yr after birth

61 Prophylaxis of enamel hypoplasia
related disease prevention during the period of dental development

62 Treatment of enamel hypoplasia
anti-caries treat cover with resin ceramic restoration

63 Differential diagnosis
Enamel hypoplasia well-demarcated borders along incremental line one or one group tooth/teeth Dental fluorosis long-term lesion frog-like, no borders high fluoride region

64 Dental fluorosis Enamel hypoplasia

65 Hereditary dentinogenesis imperfecta
Hereditary opalescent dentin Autosomal dominant inheritance disease Developmental disturbance of unknown origin of the pulpo-dentinal organ

66 The discoloration is due to the fact that the
pathologically disturbed pulpo-dentinal organ can be seen through the translucent enamel Enamel loss and severe dental attrition

67 Less, enlarged irregular dentinal tubule
Narrowed, blocked pulp chamber and root canal

68 Treatment Primary dentition: protection incisal edge and occlusal surface with plastic splint Permanent dentition:crown and overdenture

69 Congenital syphilitic teeth
Hutchinson teeth Mulberry molars Pfluger teeth Moon teeth

70 Dental morphologic abnormality
Microdontia、macrodontia, conic shaped teeth Fused teeth, geminated teeth, concrescence of teeth Abnormal central cusp Dens invaginatus Enamel pearl

71 Microdontia

72 Macrodontia and conic shaped teeth

73 Fused teeth two dental germ

74 Geminated teeth one tooth germ

75 Concrescence of teeth

76 Abnormal central cusp

77 Dens evaginates

78 The treatment of abnormal central cusp
Pulp capping Grinding Apexification Root canal therapy

79 Dens invaginatus Dens–in-dente is the result of invagination of the coronal aspect of the enamel organ down into the dental papilla

80 Clinically, giving the appearance of a tooth within a tooth
Maxillary lateral incisors are most commonly involved

81 Classification of Dens invaginatus
Invaginated lingual fossa Invaginated root groove Talon cusp Dens-in-dente

82 Invaginated lingual fossa Invaginated root groove

83 Dens-in-dente

84 The treatment of Dens invaginatus
Indirect pulp capping GIC restoration Endodontic treatment Periodontic treatment Tooth extraction

85 Enamel pearl

86 Abnormal number of teeth
Supernumerary tooth Partial anodontia Congenital anodontia

87 Supernumerary teeth Teeth that develop from accessory tooth buds The mesiodens is most commonly, a small cone-shaped tooth located between the maxillary central incisors Also, distomolars and premolars Treatment: None, unless for esthetic or occlusal interference

88 Supernumerary teeth Supernumerary teeth in cleidocranial dysplasia

89 Anodontia Congenitally missing teeth Complete(anodontia ) or
partial missing (oligodontia) Third molars, lateral incisors, second premolars

90 Anodontia Hereditary ectodermal dysplasia and head-
and-neck radiation therapy are associated with anodontia or oligodontia

91 Partial anodontia

92 Congenital anodontia

93 Anodontia of ectodermal dysplasia

94 Dental eruptive disorder
Early eruption of tooth deciduous or permanent teeth natal tooth and neonatal tooth Delayed eruption of tooth Ectopic eruption of tooth
