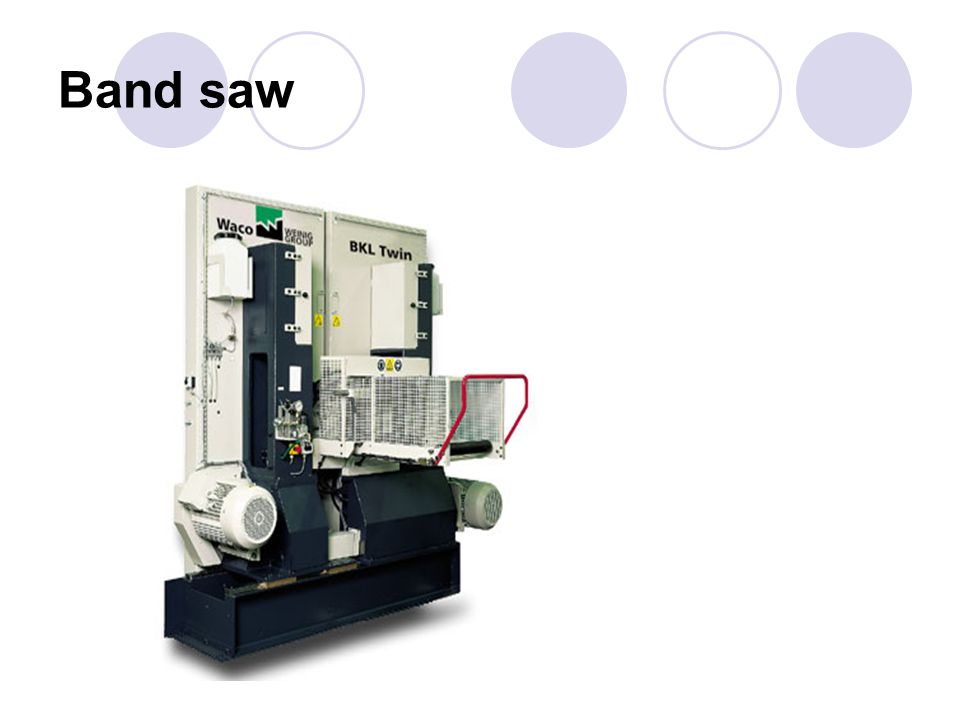

Sawing Methods Handsawing The tools is moved by hand Machine sawing The tools is moved by a machinery
Sawing Saw tool can be moved Straightforward Ahead and back Circular Counter and climb

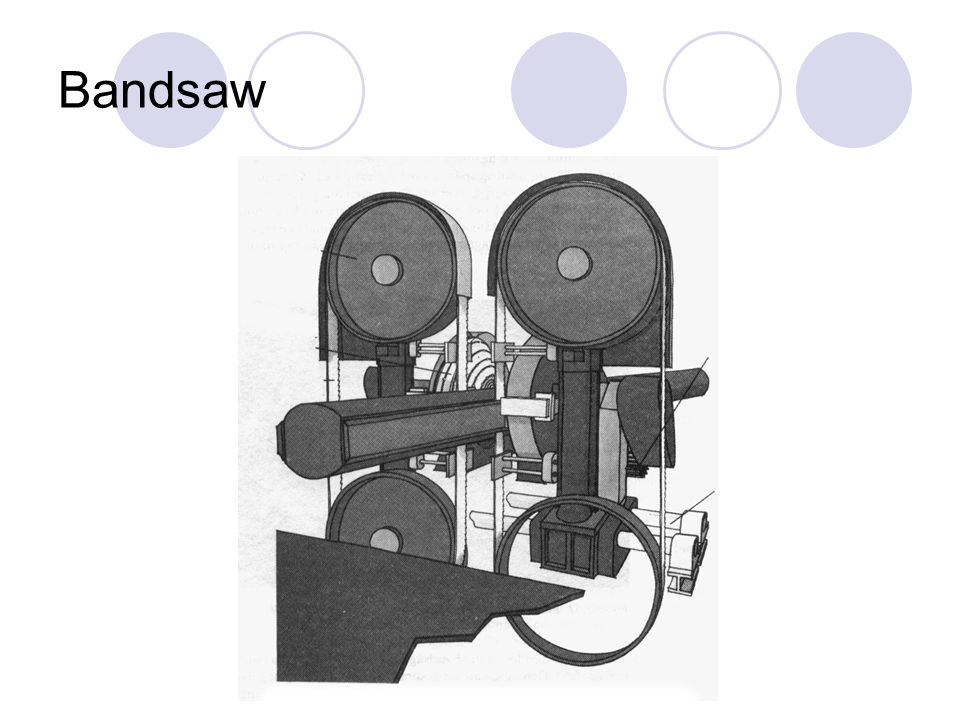

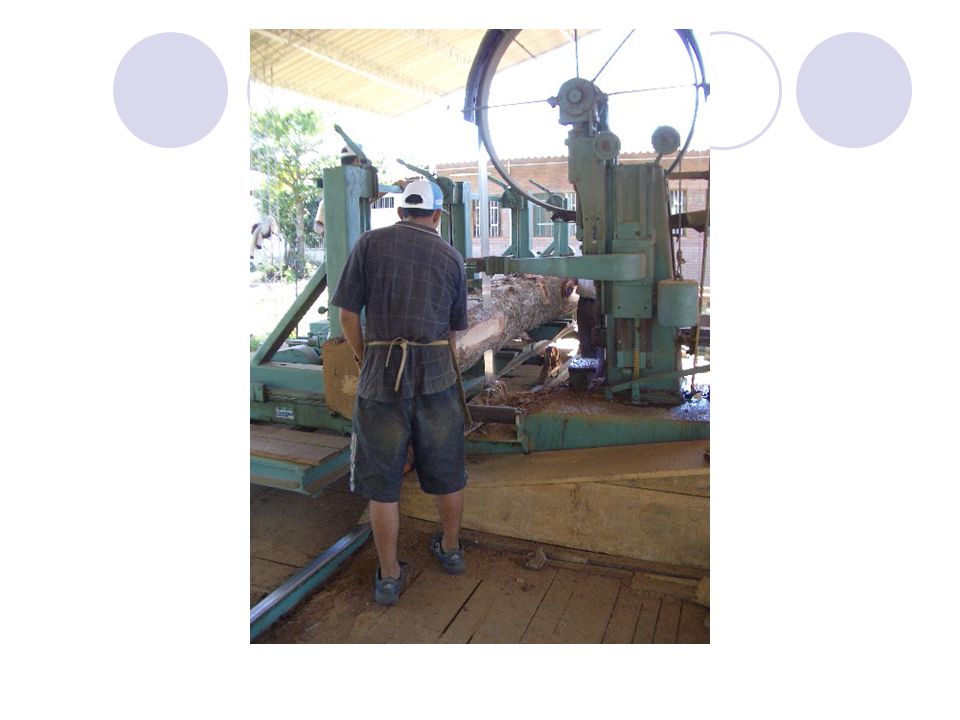

Band sawing Chip filling rate is depending on following factors: Table feed Cutting speed Teeth pitch Work piece height Teeth gap area

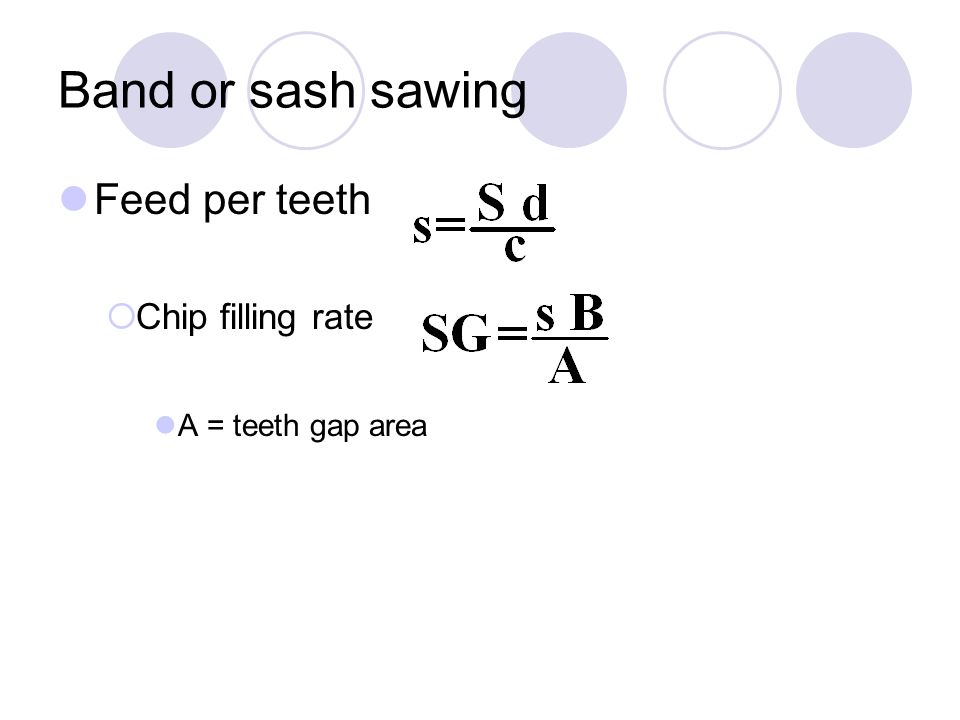

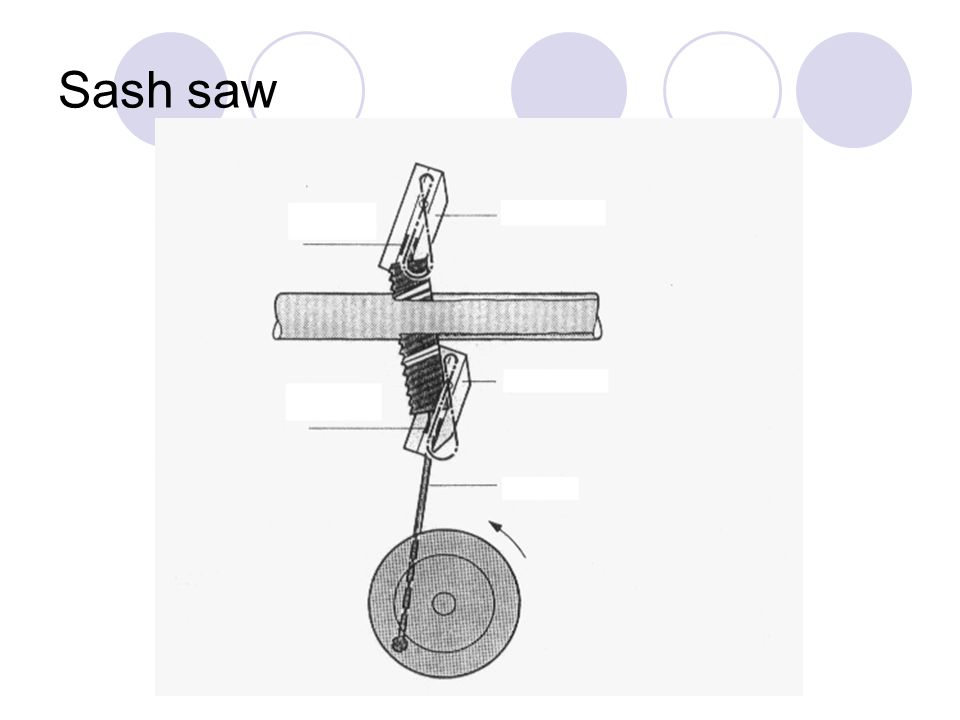

Band or sash sawing Feed per teeth Chip filling rate A = teeth gap area
Counter- and climb sawing

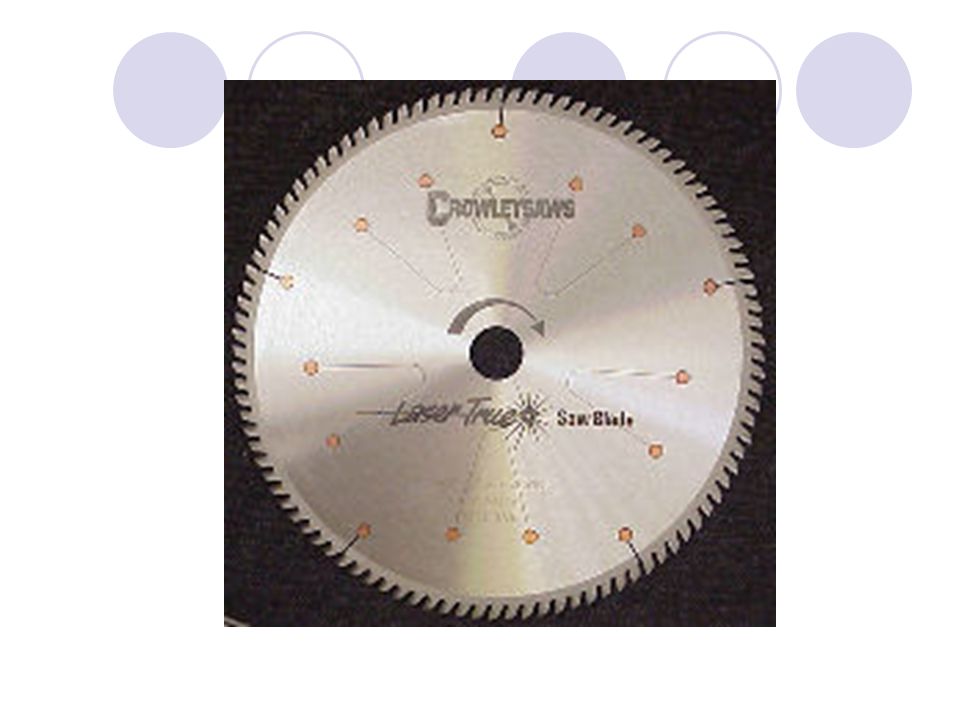

Circular Sawing Arc length L Climb Counter

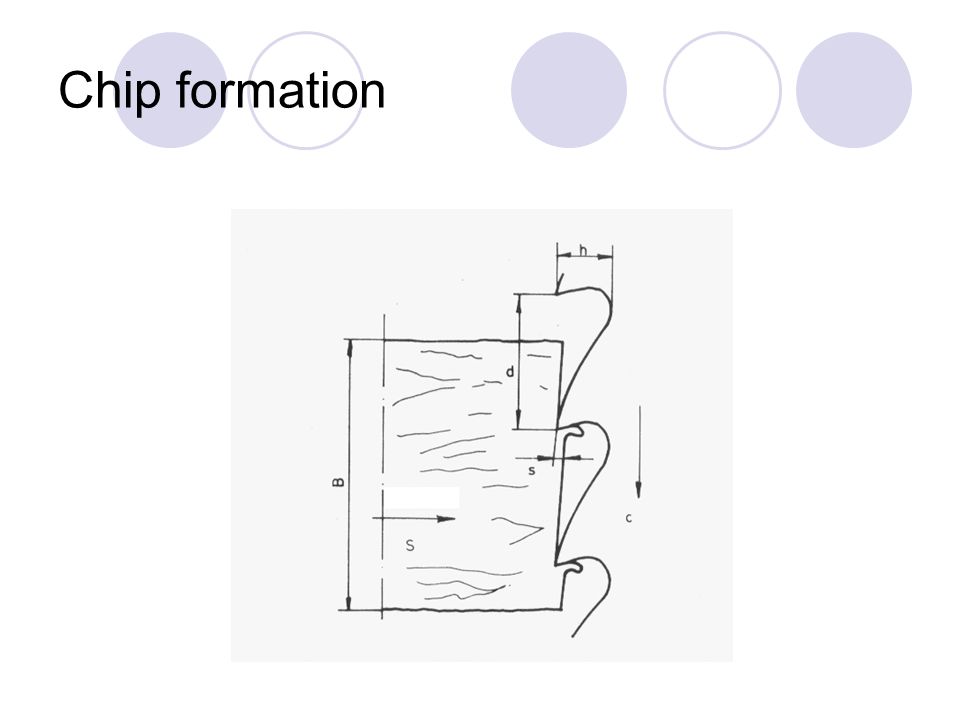

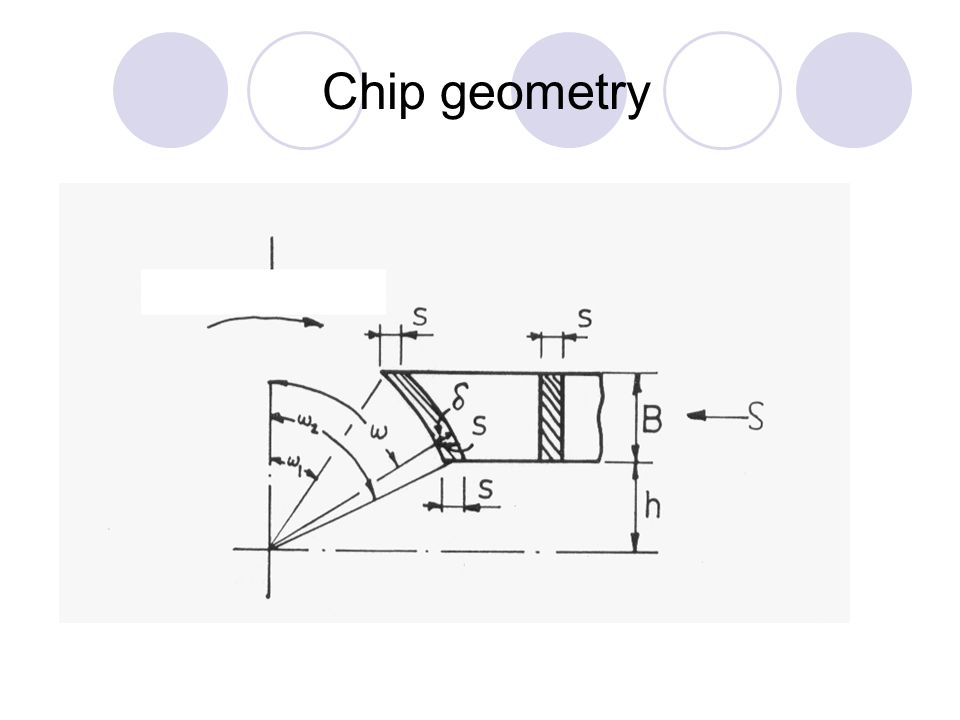

Circular sawing Teeth pitch Feed per teeth Chip thickness
Sawing Cutting speed c m/sec Feed rate S mm/sec Feed s mm/teeth Number of teeth N Cutting time t min
Solving for A Cutting Data Table Which Formula Should I Use?
Circular interpolation. Circular cutting motion Arc or Radius Cutting is known as Circular interpolation Milling machine operations involve circular motion.
