4. OPERATIONAL AMPLIFIERS CIRCUITS by Ulaby & Maharbiz

2
Overview

3
Tech Brief 7: IC Fabrication Wafer: Thin slice of semiconductor material with highly polished surface Processed wafer is cut into many dies or chips. Lithography: Defining spatial pattern Photoresist: Polymer material that does not allow etching or deposition of areas underneath it.

4

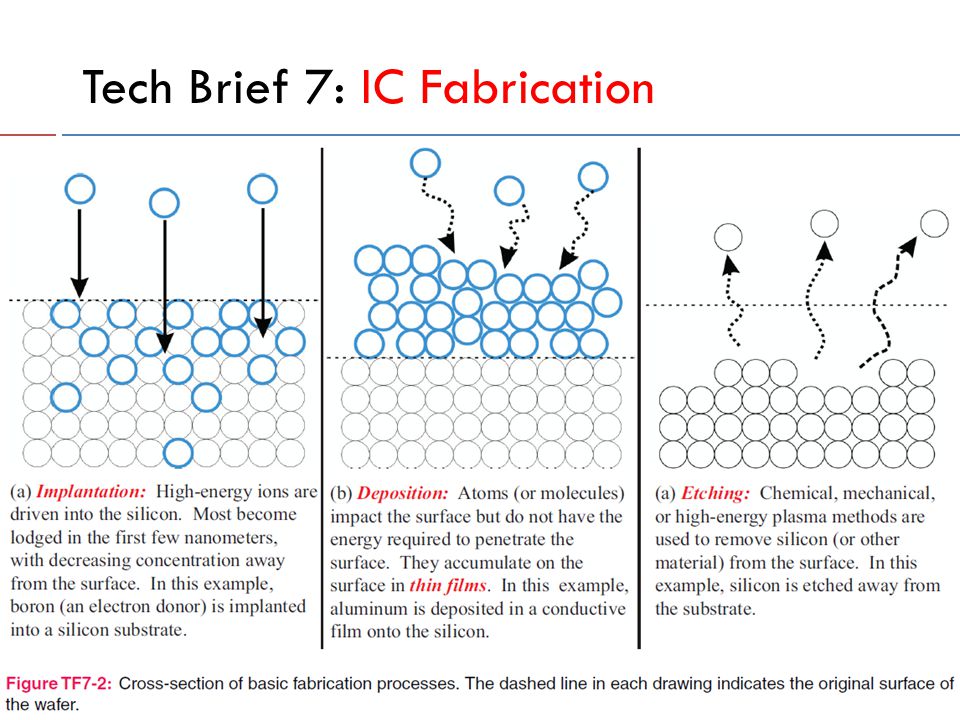

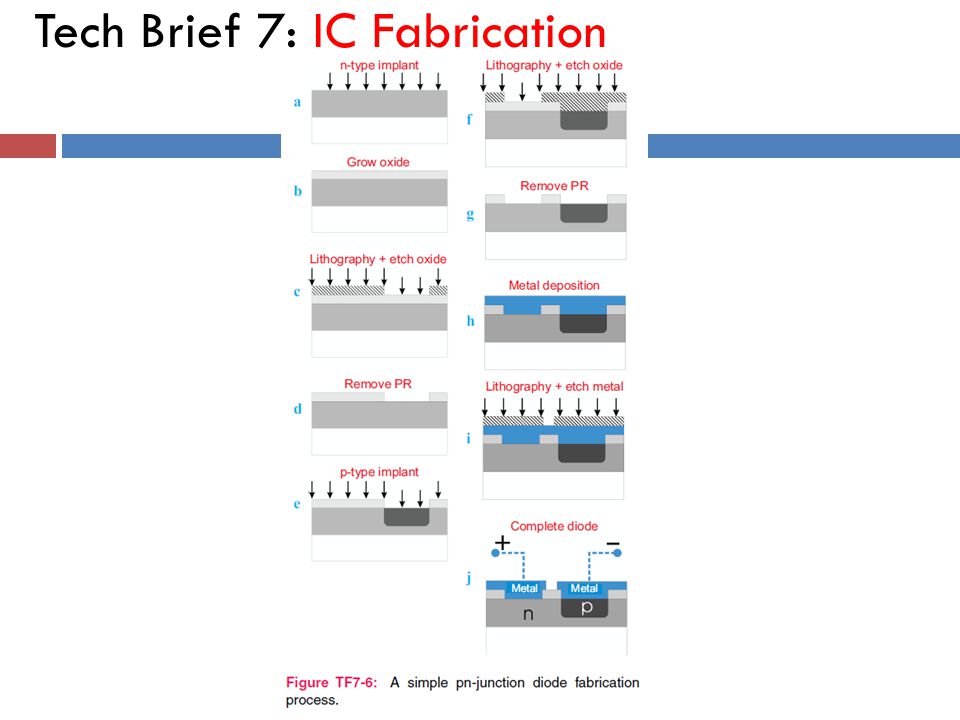

Tech Brief 7: IC Fabrication

5
Lithography: Defining spatial pattern Photoresist: Polymer material that does not allow etching or deposition of areas underneath it. Tech Brief 7: IC Fabrication

9

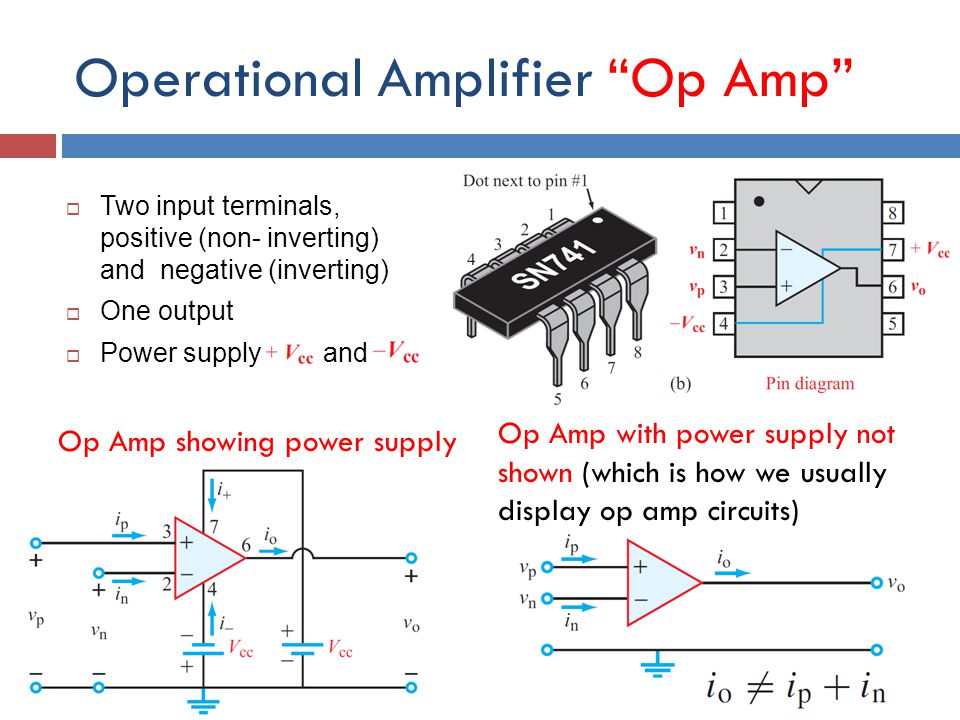

Operational Amplifier “Op Amp” Two input terminals, positive (non- inverting) and negative (inverting) One output Power supply V +, and Op Amp showing power supply Op Amp with power supply not shown (which is how we usually display op amp circuits)

10
Inside The Op-Amp (741)

11
Gain Key important aspect of op amp: high voltage gain Output, A is op-amp gain (or open-loop gain) – different from circuit gain G Linear response

12

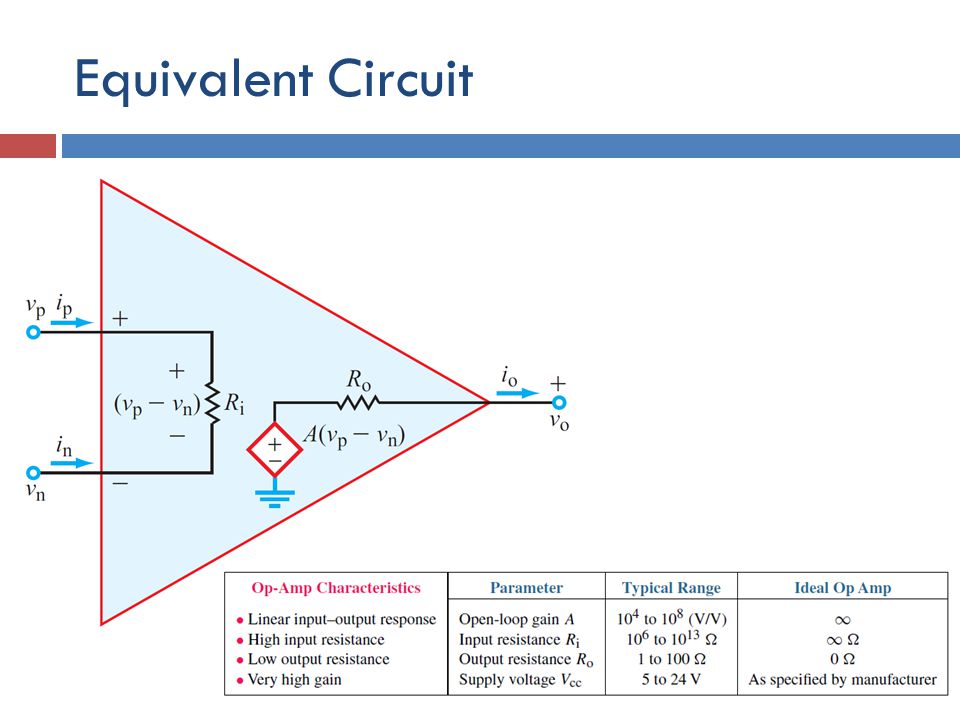

Equivalent Circuit

13

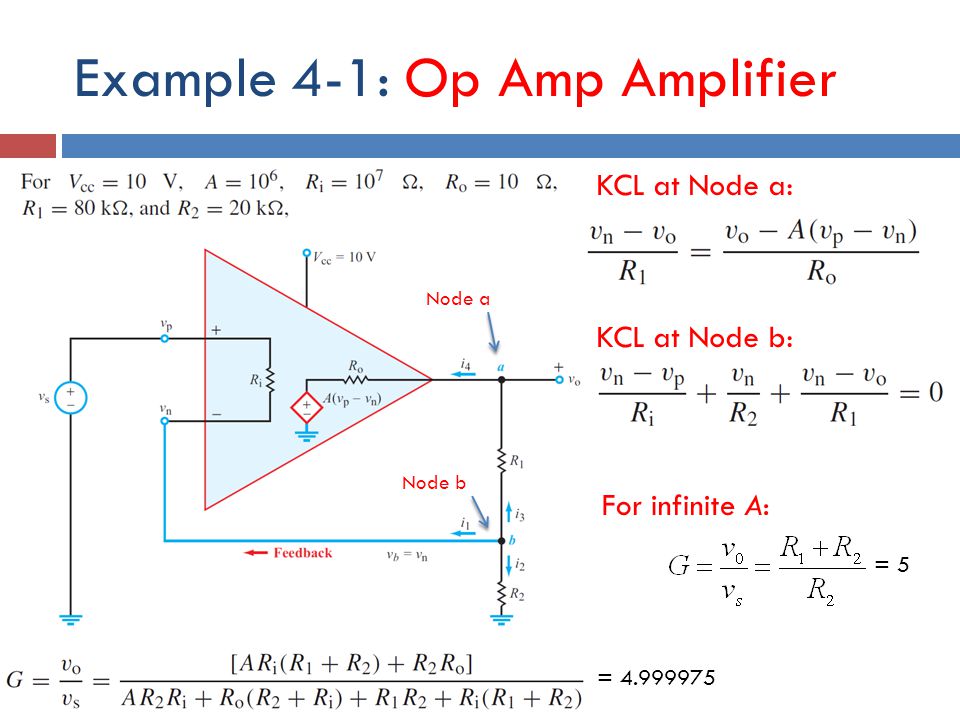

Example 4-1: Op Amp Amplifier KCL at Node a: KCL at Node b: For infinite A: = 4.999975 = 5 Node a Node b

14
Negative Feedback Feedback: return some of the output to the input Negative feedback decreases input signal Achieves desired circuit gain, with wide range for input Negative Feedback No Feedback Range of 5 Gain = 5Range of : ‒ 2 V to +2 V Gain = 1million Range of : ‒ 10 mV to +10 mV

15

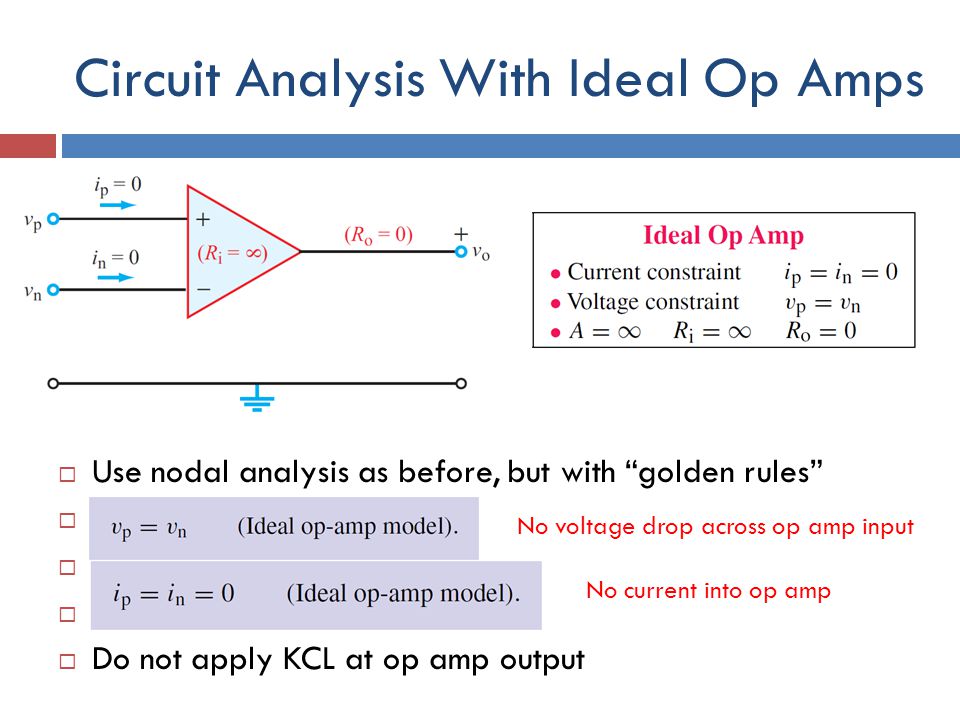

Circuit Analysis With Ideal Op Amps Use nodal analysis as before, but with “golden rules” N Do not apply KCL at op amp output No current into op amp No voltage drop across op amp input

16

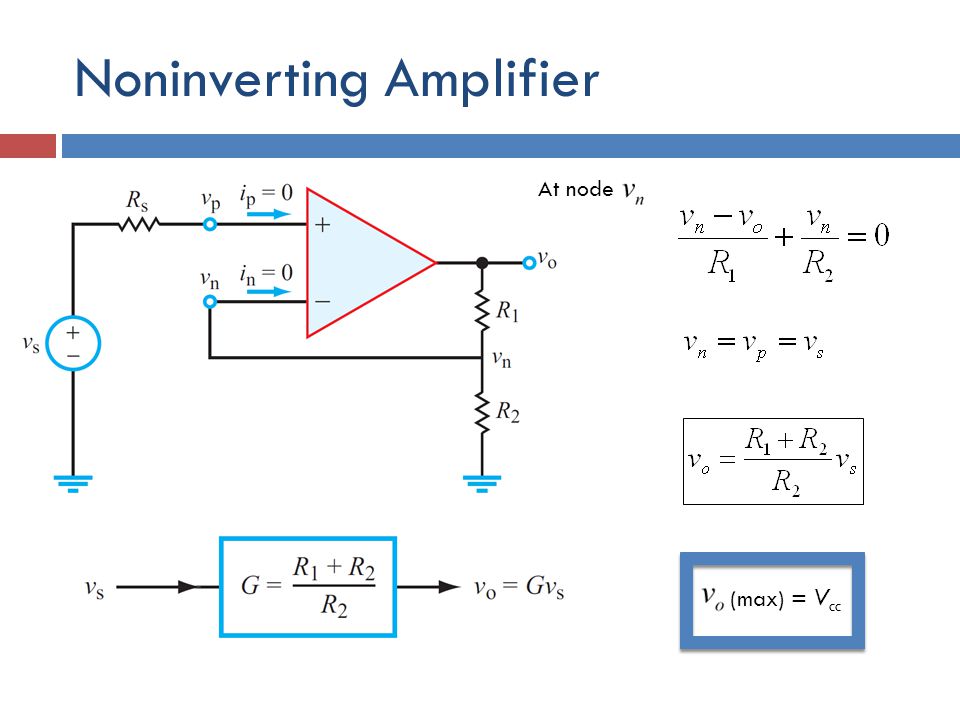

Noninverting Amplifier (max) = V cc At node

17
Inverting Amplifier

18
Example 4-2: Input Current Source Relate output voltage to input current source

19
Summing Amplifier

20

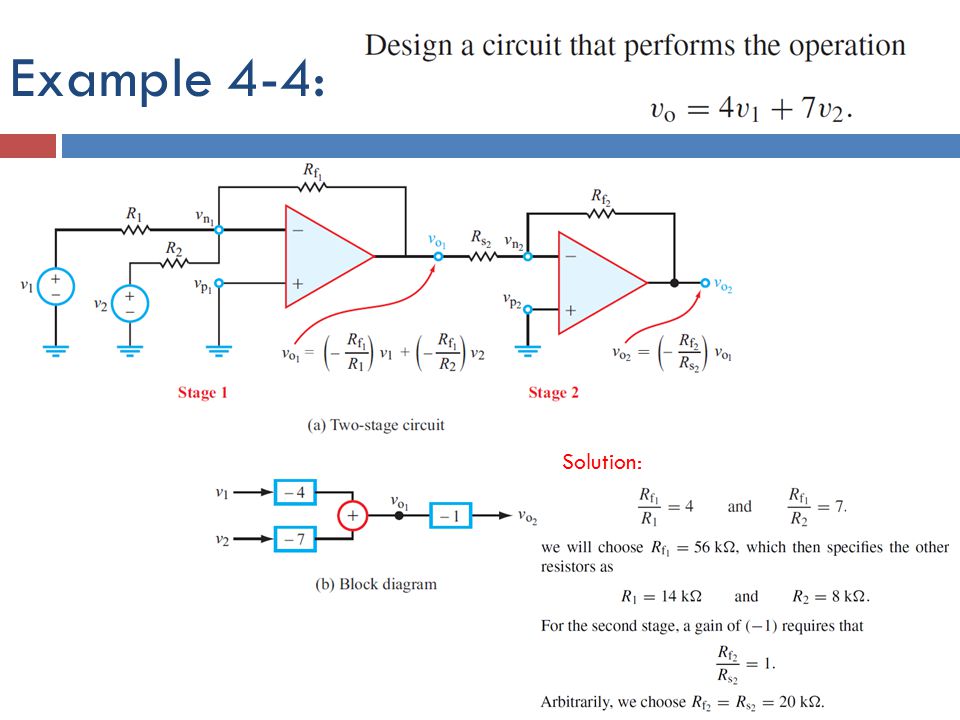

Example 4-4: Solution:

21
Difference Amplifier Note negative gain of channel 1

22

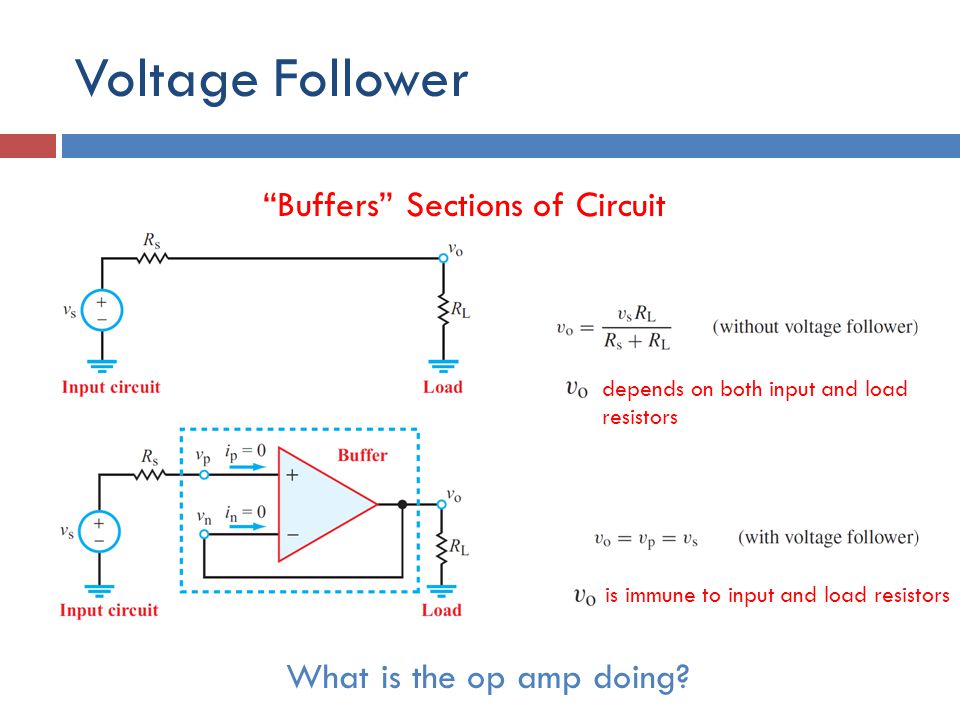

Voltage Follower “Buffers” Sections of Circuit What is the op amp doing? depends on both input and load resistors is immune to input and load resistors

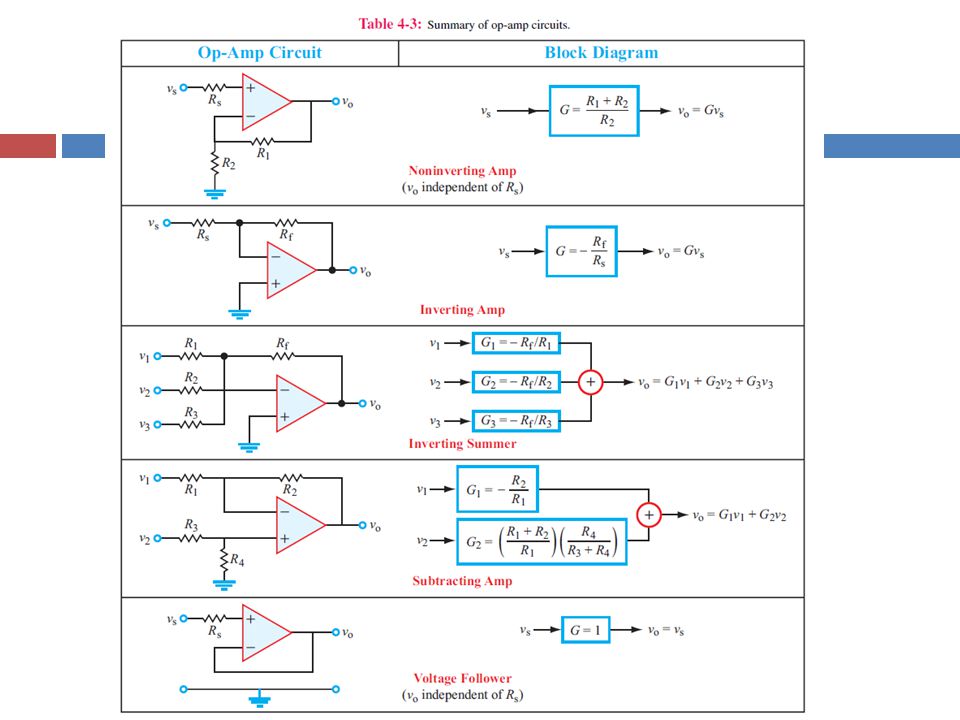

24

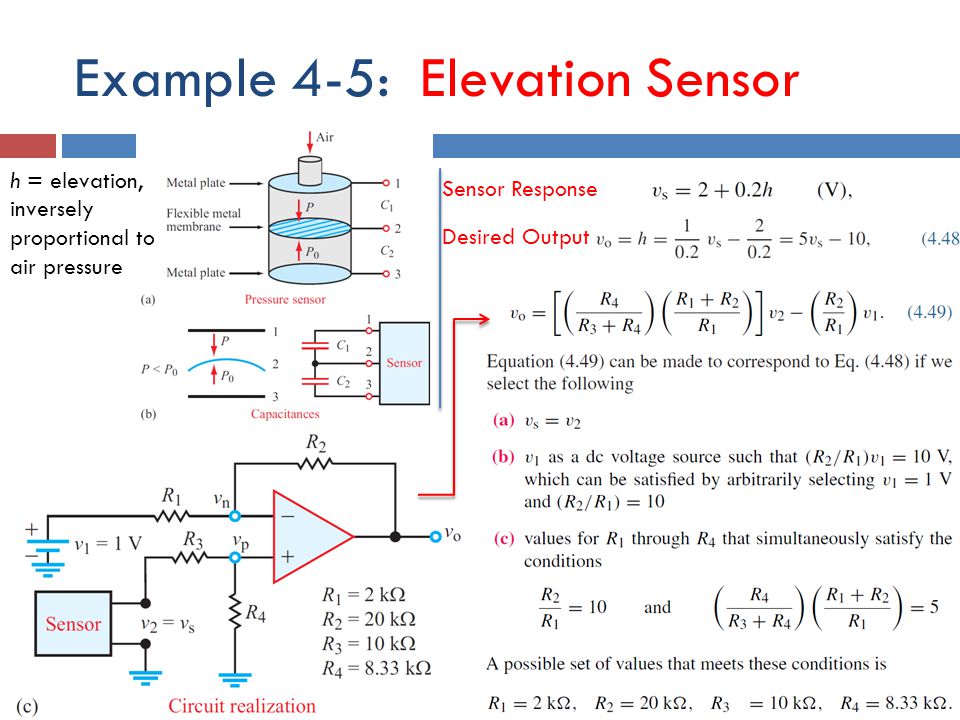

Example 4-5: Elevation Sensor Sensor Response Desired Output h = elevation, inversely proportional to air pressure

25
Example 4-6: Multiple Op-Amp Circuit

26
Measurement Uncertainty (T = 21 ° C) v2v2 V 0 = V 2 ± 1% of V 2 21 ° C ± 0.21 ° C G = 1 ± 1% G = 1 1% G = 1 1% v2v2 (T = 21 ° C) Thermistor v1v1 Fixed Reference Temp = 20 ° C V 0 = (V 2 ‒ V 1 ) ± 1% of (V 2 ‒ V 1 ) 1 ° C ± 0.01 ° C Direct Measurement Differential Measurement Much better measurement uncertainty

27
Instrumentation Amplifier Highly sensitive differential amplifier

28
Digital to Analog Converter Converts digital value into analog voltage 4-digit example

29
Digital to Analog Converter Represent digital value with analog voltage

30
MOSFET (Field Effect Transistor) Active Device: Voltage Controlled Current Source Gate voltage controls drain/source current

31
MOSFET Equivalent Circuit Characteristic curvesIdealized response

32
Example 4-9: MOSFET Amplifier Given: Determine

33
Load Line You can use a “load line” to graphically determine V out = V DS for a given V in = V GS RLRL V DD V DD / R D

34
Digital Circuit: MOSFET Inverter V DD = 15 V RLRL G S D IDID Output “High” Logic 1 Output “Low” Logic 0 InOut 01 10 Input “Low” InOut V DD 012345 0 5 10 15 V GS =V in V DS =V out Output “Low” Logic 0 Output “High” Logic 1 Input “High”

35
Read-Only Memory (ROM) Circuits V READ = 1 V BIT = 0100

36
Another Digital Circuit Element: NAND ABOut 001 011 101 110 A B V DD A V out B No current flows through resistor, unless both A and B inputs turn their transistors on to “pull down” V out NAND gates can be used to build any binary logic function

37

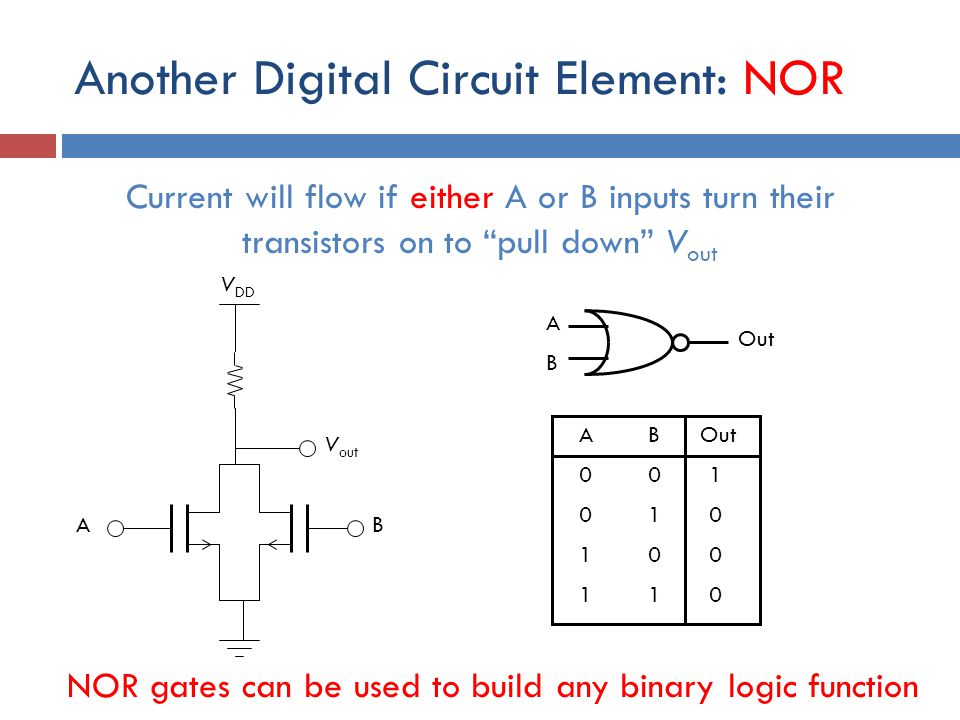

Another Digital Circuit Element: NOR Current will flow if either A or B inputs turn their transistors on to “pull down” V out ABOut 001 010 100 110 A B A V DD V out B NOR gates can be used to build any binary logic function

38
Tech Brief 8: Electromagnetic Spectrum

39
Example: Multisim Instruments

40
Multisim Table

42
Multisim: MOSFET I-V Analyzer

43

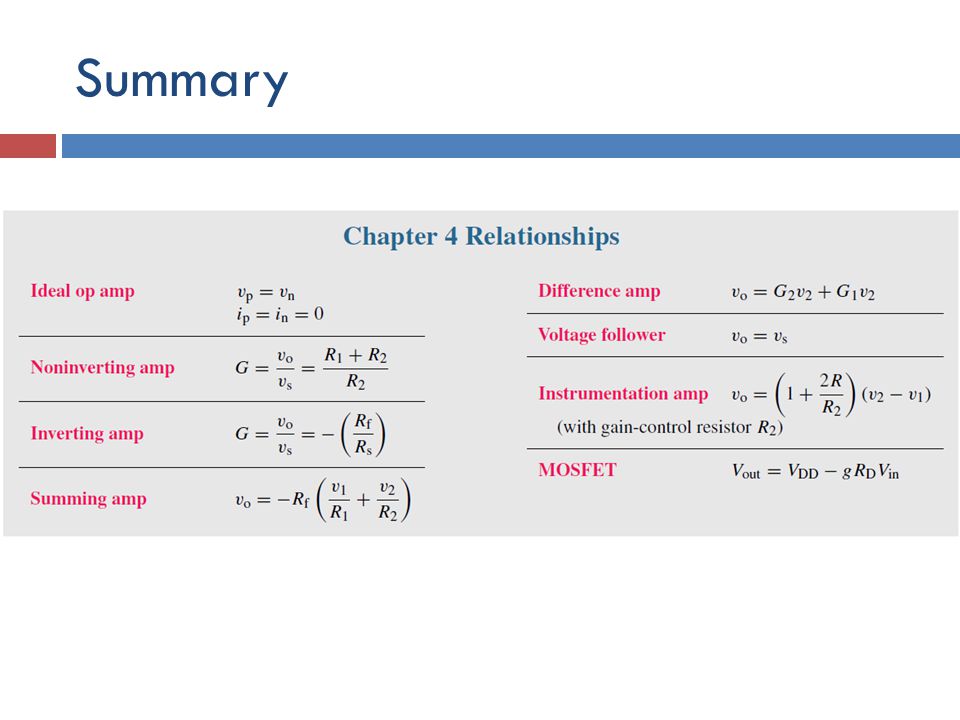

Summary
