1
Topics 1.FASOM Basics 2.FASOM Equations 3.Analyzing FASOM 4.Modifying FASOM

2
I FASOM Basics

3
Model Scope Natural Resources Agriculture Forestry Processing Food, Fibre, Timber, Energy Markets

4
Purpose and Objectives To study and advice policy makers about the agricultural and forestry sector response to a)Policies b)Environmental change c)Technical change d)Socioeconomic change

5
Policy Scope Climate and other environmental policies Research subsidies Agricultural policies Trade policies Simultaneous assessment

6
Structural Changes a)Policies b)Environmental change c)Technical change d)Socioeconomic change (population, preferences)

7
Methodology Partial Equilibrium Bottom Up Constrained Welfare Maximization Dynamic Optimization Integrated Assessment Mathematical programming GAMS

8

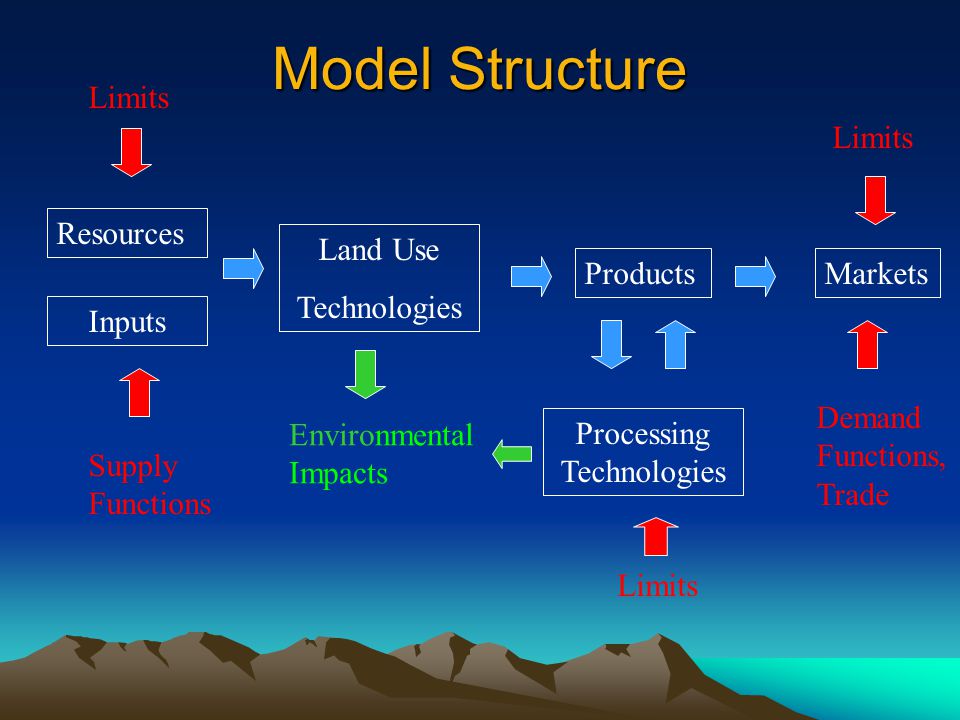

Model Structure Resources Land Use Technologies Processing Technologies ProductsMarkets Inputs Limits Supply Functions Limits Demand Functions, Trade Limits Environmental Impacts

9
FASOM is a Large Linear Program

10
Exogenous Data Resource endowments Technologies (Inputs,Outputs, Costs) Demand functions Environmental Impacts Policies

11
Endogenous Data Land use decisions (control variables), Impacts (state variables), Shadow prices of constraints

12
Equations Understanding them is to understand FASOM

13
Equations Objective Function Resource Restrictions Technological Restrictions Environmental Accounts Others

14
Constrained Optimization Maxz = f(X)... objective function s.t. G(X) <= 0... constraints

15
FASOM = Large Linear Programs

16
Objective Function (Normative Economics) Maximize +Area underneath demand curves -Area underneath supply curves -Costs ±Subsidies / Taxes from policies Maximum equilibrates markets!

17
Alternative Objective Function To get „technical potentials“ from land use for alternative objective u, simply use Maximize us.t. all constraints Examples: u = Carbon Sequestration, Wheat production, Mire area

18
Is FASOM linear? Input prices increase with increasing input use (scarcity of resources) Output prices decrease with increasing output supply (saturation of demand) Hence, FASOM has non-linear objective function but is solved as Linear Program using linear approximations

19
Linear Approximation? For well behaved functions: yes –Concave benefit / convex cost functions –Decreasing marginal utilities –Increasing marginal costs For ill behaved: no, need integer variables –Fixed cost (Investment) –Minimum habitat requirements (Biodiversity)

20
PRODUCTBAL_EQU Very important Multi-input, Multi-output Negative coefficients - Inputs Positive coefficients - Outputs

21
RESOURCEBAL_EQU Sum resource uses over all technologies, species, farm structures into an accounting variable RESOURCE_VAR(REGION,PERIOD,RESOURCE)

22
RESOURCEMAX_EQU Represent resource limits (endowments) RESOURCE_VAR(REGION,PERIOD,RESOURCE) ≤ RESOURCE_DATA (REGION,PERIOD,RESOURCE,”Maximum”)

23
LUC_EQU LUC_EQU(REGION,PERIOD,SOILTYPE,SPECIES,CHANGE) $ LUC_TUPLE(REGION,PERIOD,SOILTYPE,SPECIES,CHANGE).. Land use accounting equation Combines individual and aggregated accounting

24
LUCLIMIT_EQU LUCLIMIT_EQU(REGION,PERIOD,SOILTYPE,SPECIES,CHANGE) $(LUC_TUPLE(REGION,PERIOD,SOILTYPE,SPECIES,CHANGE) AND LUC_DATA(REGION,PERIOD,SOILTYPE,SPECIES,CHANGE, "MAXIMUM")).. Land use change limits Should be based on land characteristics Currently uses rough assumptions

25
FORINVENT_EQU Forest distribution this period depends on forest distribution in last period and harvest activities Note: –Oldest cohort transition –Initial distribution –Harvested forests can immeadiatly be reforested

26
INTIALFOREST_EQU Thinning regime cannot be switched Initial thinning distribution unknown Let model decide, which thinning regime to use for initial forests

27
REPLANT_EQU Restricts tree species that can be replanted after harvest (can have agricultural break inbetween) Regulated by tuple SPECIESSEQU_MAP(OLDSPECIES,SPECIES) Currently restrictive

28
SOILSTATE_EQU To portray important unstable soil properties Carbon sequestration effect depends on soil carbon level Equations are implemented, EPIC data are not yet established SOILSTATE_EQU(REGION,PERIOD,SOILTYPE,SOILSTATE)

29
SOILSTATE_EQU To portray important unstable soil properties Carbon sequestration effect depends on soil carbon level Equations are implemented, EPIC data are not yet established

30
SOILSTATE_EQU Contains soil state transition probabilities Probability_Data(REGION,SOILTYPE,SOILSTATE,SPECIES, OWNER,COHORT,ALLTECH,POLICY,OLDSTATE) Transition probabilities are calculated from EPIC based carbon functions

31
Soil Carbon Transition Probabilities SOC1SOC2SOC3SOC4SOC5SOC6SOC7SOC8 SOC10.810.19 SOC21 SOC30.090.91 SOC40.310.69 SOC50.5 SOC60.740.26 SOC71 SOC80.040.96 No-till Wheat Fallow

32
Soil Organic Carbon (tC/ha/20cm) 5 10 15 20 25 30 35 40 45 0 10 20 30 40 50 Time (years) Wheat-Lucerne 3/3 Wheat-Lucerne 6/3 No-till wheat-fallow Tilled wheat-fallow Carbon Functions

33
STOCK_EQU STOCK_EQU(REGION,PERIOD,STOCK) $(STOCK_TUPLE(REGION,PERIOD,STOCK) AND STOCK_DATA(REGION,PERIOD,STOCK,"DecompRate")).. Represents dynamics of dead wood (14 types) Linked to emission accounting

34
PRODUCTINVENT_EQU PRODUCTINVENT_EQU(REGION,PERIOD,PRODUCT) Represents different product life span of forest products Linked to carbon emissions from forest products

35
EMIT_EQU EMIT_EQU(REGION,PERIOD,SUBSTANCE) $ EMIT_TUPLE(REGION,PERIOD,SUBSTANCE).. Accounting equation Contains direct emissions and emissions from stock changes

36
Why Large Models? Land use is diverse and globally linked We want both high resolution and large scope More computer power tempts larger models Data availability better

37
Large Model Effects Indexed data, variables, and equations Dimensions need to be carefully conditioned More things can go wrong Less intuition in model drivers Causes of misbehavior difficult to guess Higher probability that some errors are not discovered

38
Pre-Solution Analysis Generic variable and equation checks About 30 different types Easy in GAMS through use of GAMSCHK, possible with other software

39
Example Nonnegative Variable X j occurs only in <= constraints All a ij coefficients are nonnegative All objective function coefficients (c j ) are nonpositive Optimal X j = 0! (Maximization problem)

40
More Generic Checks

41
Linear Program Duality

42
Reduced Cost Shadow prices Technical Coefficients Objective Function Coefficients

43
Complementary Slackness Reduced Cost Opt. Variable Level Shadow Price Opt. Slack Variable Level

44
Fixing Non-sensible Models Zero/large variables: look at cost and benefits of these variables in individual equations High shadow prices: indicate resource scarcity (check endowments, technical coefficients, units) In general, analyst needs a combination of mathematical and context knowledge

45
Conclusions Large mathematical programming models are not necessarily black boxes Drivers for individual results can be traced and understood Generic misspecifications can and should always be corrected Systematic post-optimality analysis is by far better and faster than intuition and guesswork
