Brief Synopsis of Project Hickahala Creek Hickahala Creek Pipeline Protection Project at milepost 347.64 Tate County, Senatobia, MS Designed by Submar,

Similar presentations


Presentation on theme: "Brief Synopsis of Project Hickahala Creek Hickahala Creek Pipeline Protection Project at milepost 347.64 Tate County, Senatobia, MS Designed by Submar,"— Presentation transcript:

1 Brief Synopsis of Project Hickahala Creek Hickahala Creek Pipeline Protection Project at milepost Tate County, Senatobia, MS Designed by Submar, Inc and River Research and Design, Inc. Installed, & Monitored by: Submar Incorporated 805 Dunn St., Houma, LA |

2 Hickahala Creek Pipeline Protection Project at milepost Tate County, Senatobia, MS (Looking across and downstream in this view)

3 Looking Upstream - September Pipeline Exposed 10 Feet

4 Looking Upstream - September Pipeline Exposed 25 Feet

5 Looking Upstream - March Pipeline Exposed 50 Feet

6 Looking Downstream - March Pipeline Exposed 50 Feet Main stream force & thalweg of stream aimed underneath exposed pipe; note other pipeline exposed.

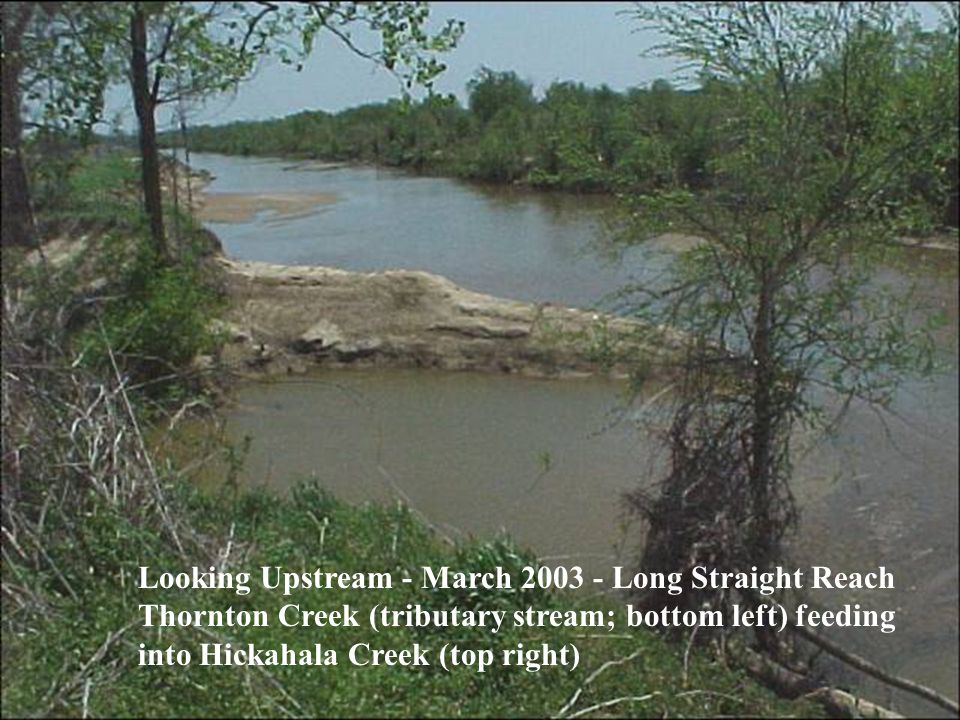

7 Looking Upstream - March Long Straight Reach Thornton Creek (tributary stream; bottom left) feeding into Hickahala Creek (top right)

8 Looking Upstream - April 2003 “and the news is not good"

9 Looking Upstream - the entire stream is trying to flow underneath the pipeline

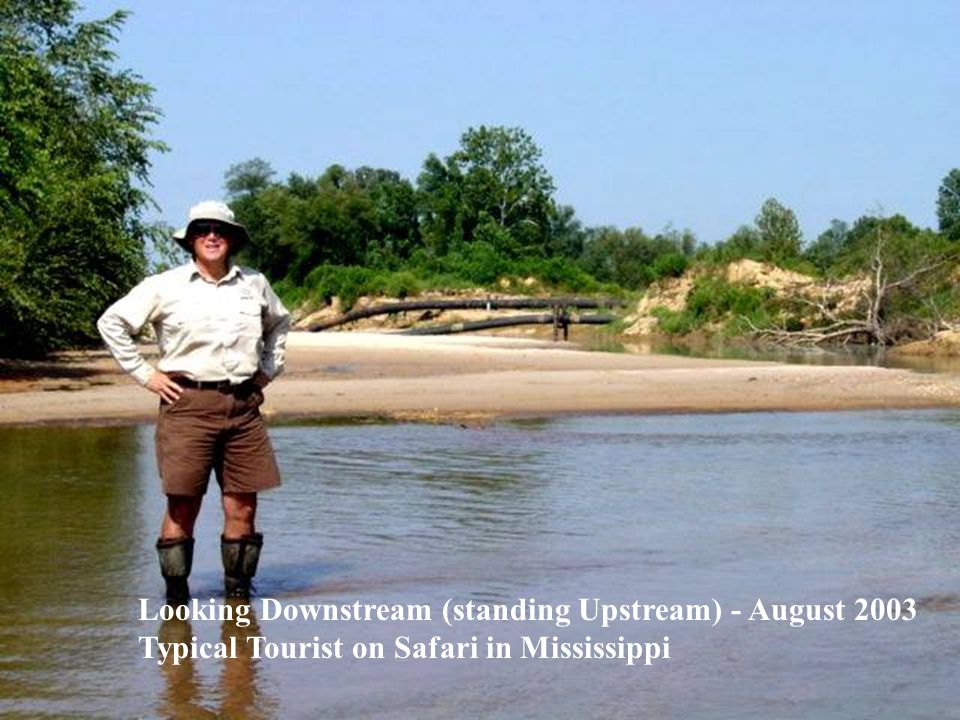

10 Looking Downstream (standing Upstream) - August 2003 Typical Tourist on Safari in Mississippi

11 Note Pipe Tie-Down Structure

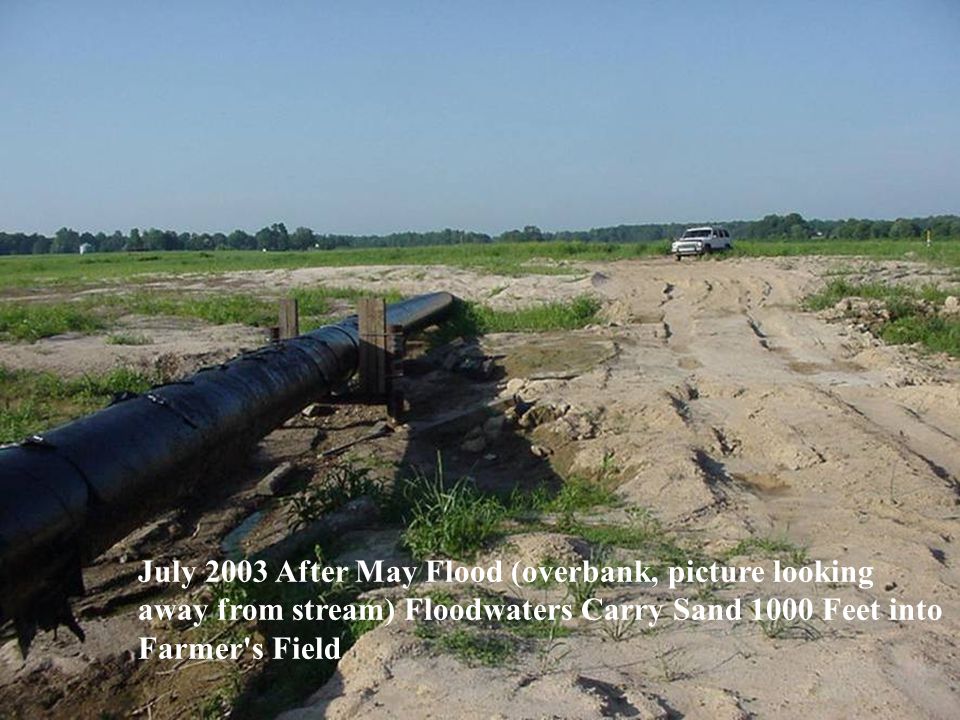

12 July 2003 After May Flood (overbank, picture looking away from stream) Floodwaters Carry Sand 1000 Feet into Farmer's Field

13 August Aerial Photos - *Note* Upstream Straight Stretch (bottom right) Pipe Exposed on Overbank, Large Sand Splay in Farmers Field (top right)

14 Looking Downstream - April 2003 Pipe is Vulnerable to Impact from the Next Large Floating Tree. Bank is a mess (technical term)

15 September 5th, 2003 Portable Cofferdams used to Dewater the site for Pipeline Recoating; The Green Portion of the Pipeline is New, Pipe was Cut, and New Section Installed at a Lower Elevation

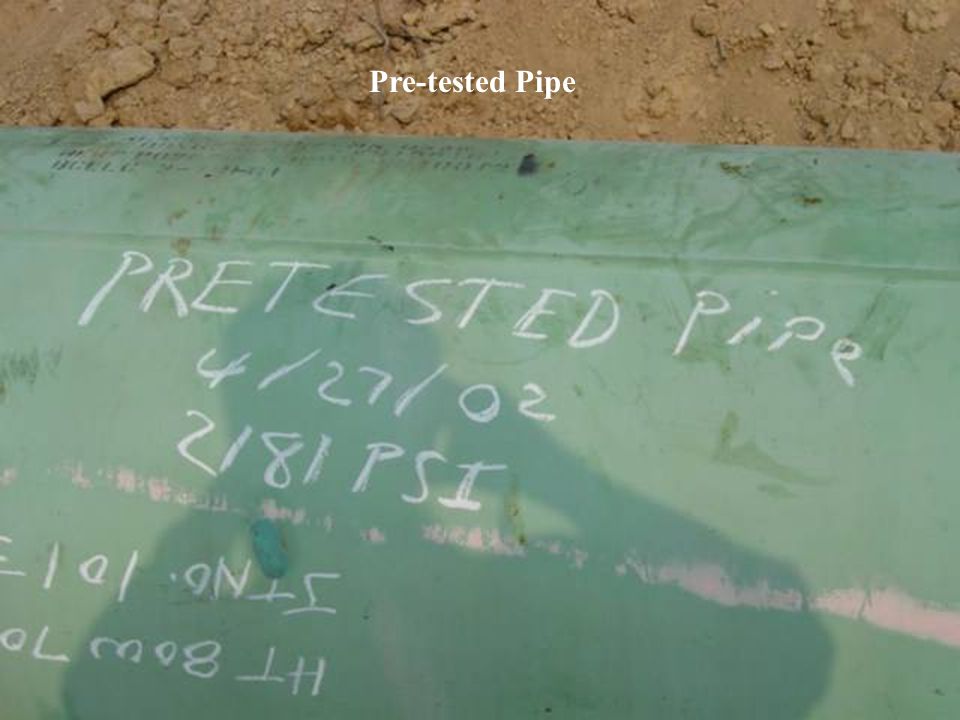

16 Pre-tested Pipe

17 Hickahala Creek Conceptual Drawings - Total Mats (182)

18 Looking Upstream into Tributary Widening Channel to Accommodate LPSTP

19 The Key Trench is a Thing of Beauty!

20 From Key Looking Downstream in Tributary Toward Hickahala Creek - September 17th, Fresh LPSTP

21 Looking Upstream into Tributary Longitudinal Peaked Stone Toe Protection (LPSTP)

22 LPSTP Under Construction Looking Downstream - September 17th, 2003

23 September 17th, 2003 Mat Installation

24 September 17th, 2003 Installing Mat

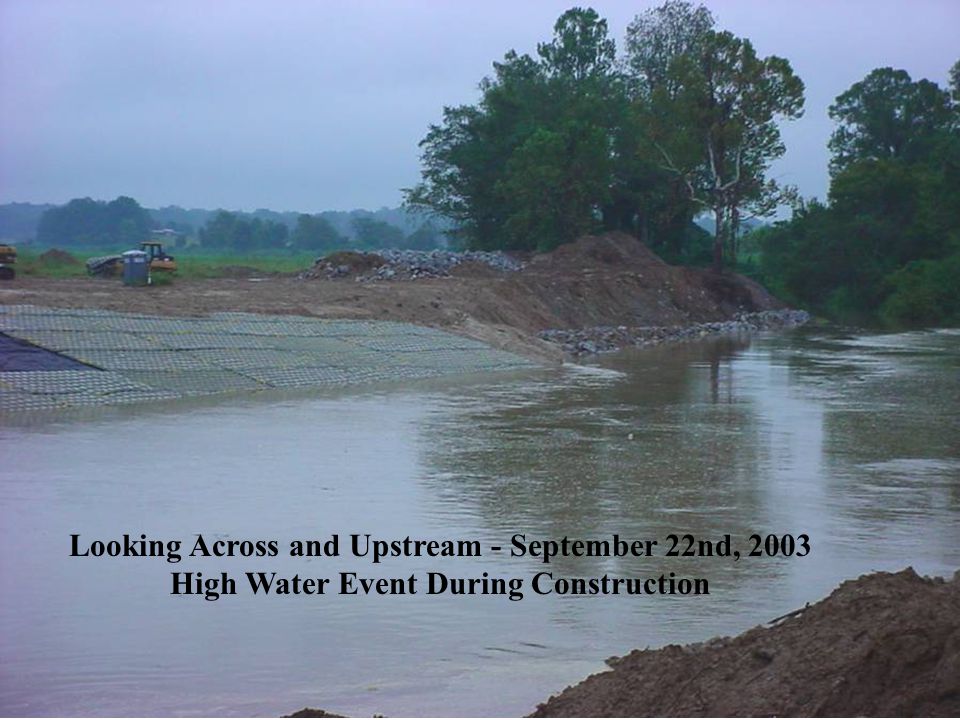

25 Looking Across and Upstream - September 22nd, 2003 High Water Event During Construction

26 High Water Event During Construction September 22nd, 2003

27 September 26th, 2003 *Note* Bank Paving (left), LPSTP (5 tons/ft; middle), Key (right)

28 September 26th, 2003 *Note* Bank Paving (left), & LPSPT (right)

29 September 27th, Mat Installation Complete

30 Looking Upstream - September 30th 2003 Installation Complete

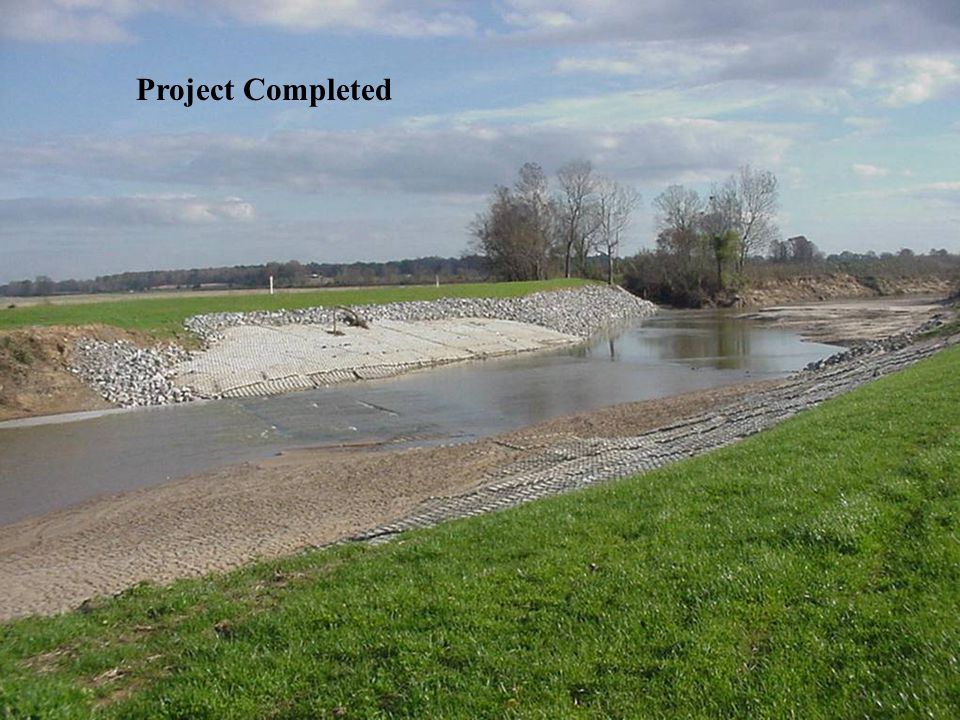

31 Project Completed

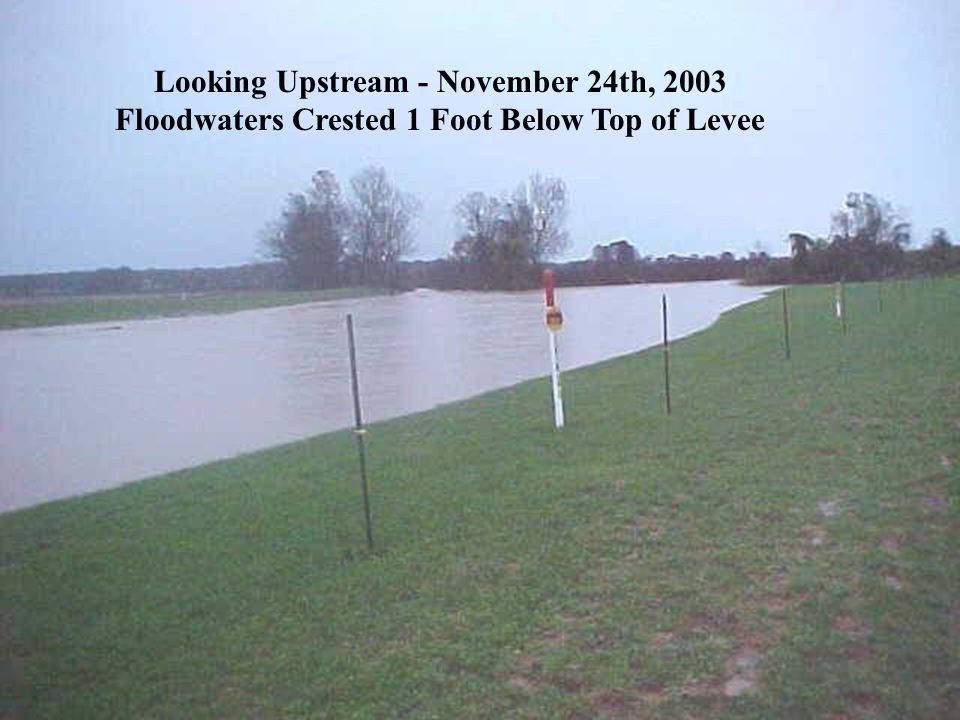

32 Looking Upstream - November 24th, 2003 Floodwaters Crested 1 Foot Below Top of Levee

33 Before

34 After

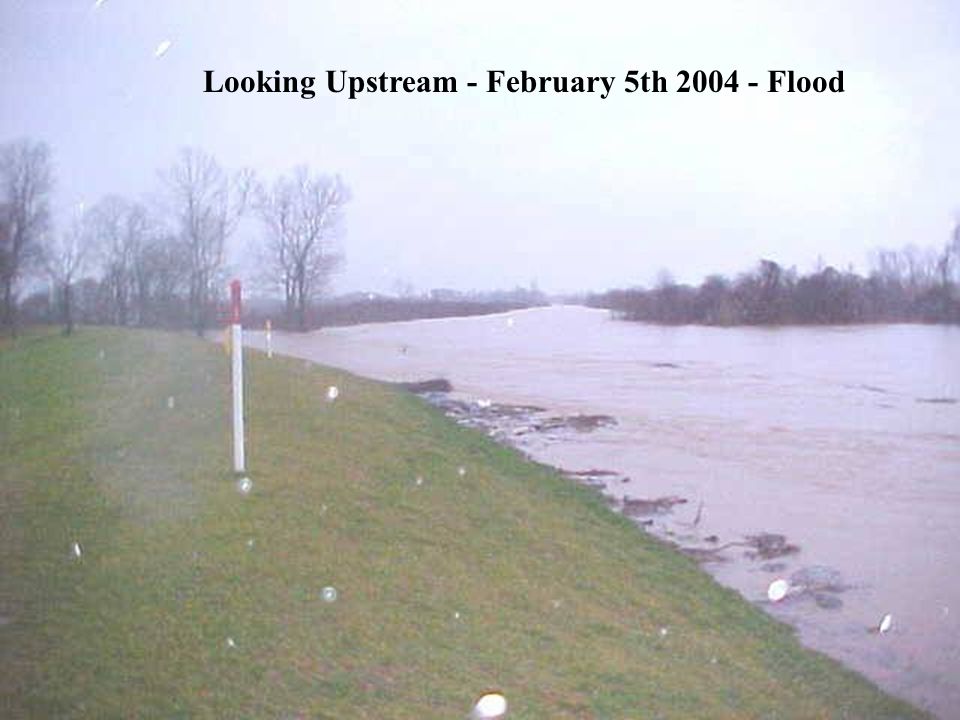

35 Looking Upstream - February 5th Flood

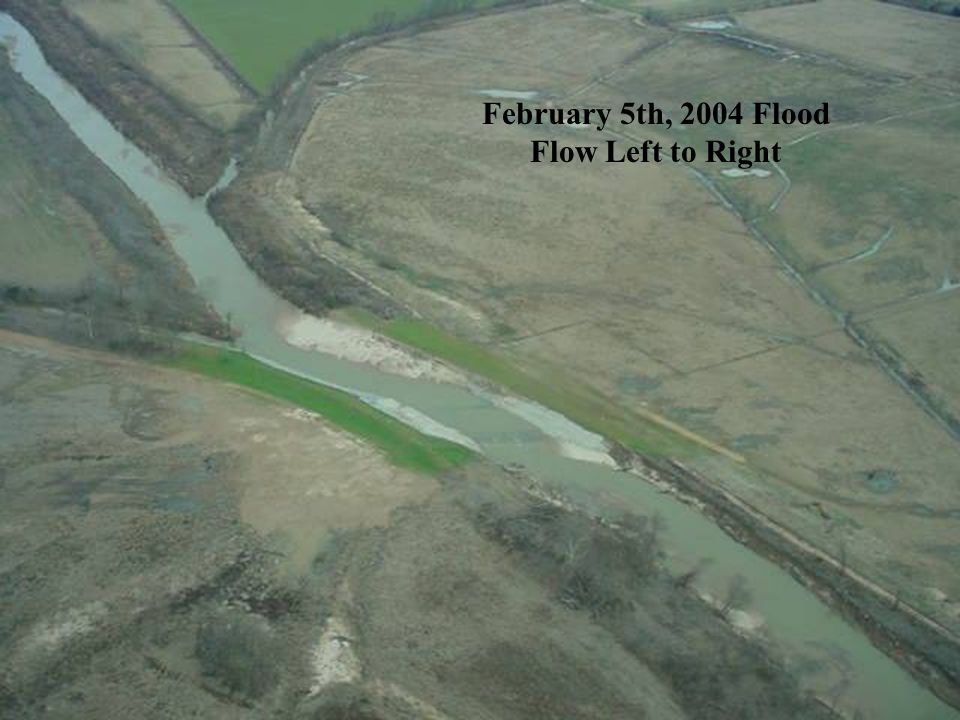

36 February 5th, 2004 Flood Flow Left to Right
