Visualizing The Direct Comparison Test for Infinite Series A Presentation by Pablito Delgado Sponsored by the Center for Academic Program Support (CAPS) University of New Mexico

2

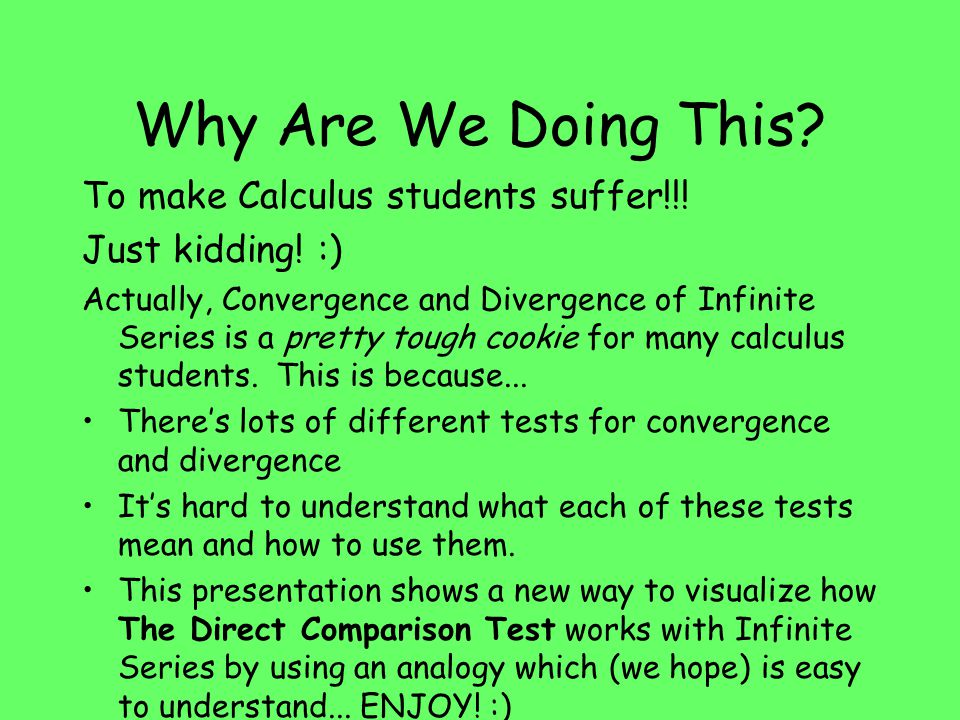

Why Are We Doing This? To make Calculus students suffer!!! Just kidding! :) Actually, Convergence and Divergence of Infinite Series is a pretty tough cookie for many calculus students. This is because... There’s lots of different tests for convergence and divergence It’s hard to understand what each of these tests mean and how to use them. This presentation shows a new way to visualize how The Direct Comparison Test works with Infinite Series by using an analogy which (we hope) is easy to understand... ENJOY! :)

3

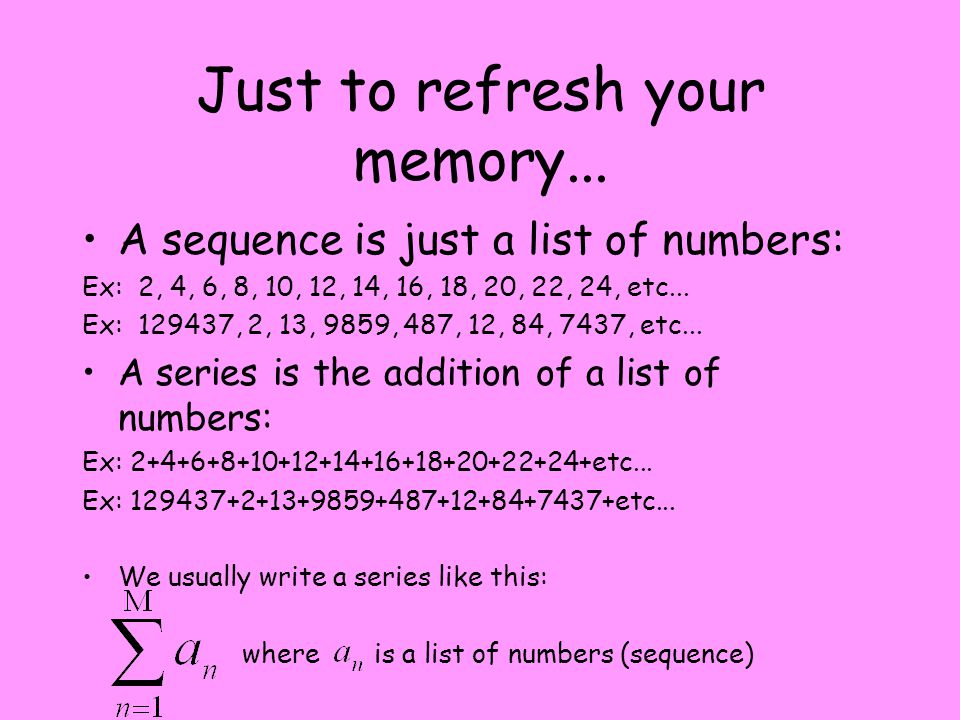

Just to refresh your memory... A sequence is just a list of numbers: Ex: 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, etc... Ex: 129437, 2, 13, 9859, 487, 12, 84, 7437, etc... A series is the addition of a list of numbers: Ex: 2+4+6+8+10+12+14+16+18+20+22+24+etc... Ex: 129437+2+13+9859+487+12+84+7437+etc... We usually write a series like this: where is a list of numbers (sequence)

4

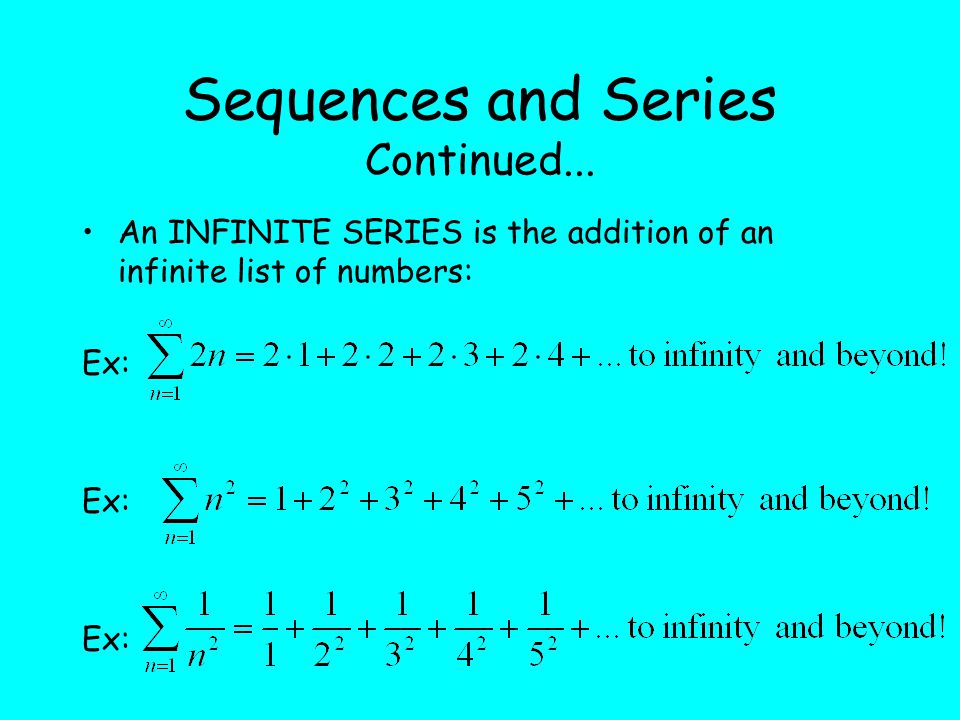

Sequences and Series Continued... An INFINITE SERIES is the addition of an infinite list of numbers: Ex:

5
The BIG QUESTION is: If you added up an INFINITE list of numbers, Would you eventually get a REGULAR NUMBER (not infinity) or would you get INFINITY? If you get a Regular Number, your Series CONVERGES If you get Infinity, this means your series DIVERGES Ok... so now, how the heck do we do find out if a series converges or diverges?

6
TESTS!!! Don’t worry... you won’t be taking the test! Your series will take it for you... :) You just have to grade his test! :) There are lots and lots of tests to do this: Direct Comparison Test, Limit Comparison Test, Integral Test, Ratio Test, Root Test, Alternating Series Test, Geometric Series Test, etc... Here, we are only going to talk about the Direct Comparison Test and how it works.

7
The Direct Comparison Test The Boring Book Definition: (BOOO!!!) Part 1 The series diverges if there exists another series such that b n < a n and b n diverges, then the series diverges. Part 2 The series converges if there exists another series such that a n **
{
"@context": "http://schema.org",
"@type": "ImageObject",
"contentUrl": "http://images.slideplayer.com/14/4285399/slides/slide_7.jpg",
"name": "The Direct Comparison Test The Boring Book Definition: (BOOO!!!) Part 1 The series diverges if there exists another series such that b n < a n and b n diverges, then the series diverges.",
"description": "Part 2 The series converges if there exists another series such that a n
**

8
The Analogy (Yippee!!!) Ok... Imagine for a moment that you have a MAGIC BOX (ooh! aah!) This magic box has the ability to float in the middle of the air! (wow!)

9
Where will the magic box go? You decide that want to push this magic box somewhere... either on the ceiling or on the floor...

10
Push it to the floor If you want to push it to the floor, your hands need to be ON TOP of the box, and you need to push downward

11
Push it to the ceiling If you want to push it to the ceiling, you need to put your hands underneath the box, and then push upward

12

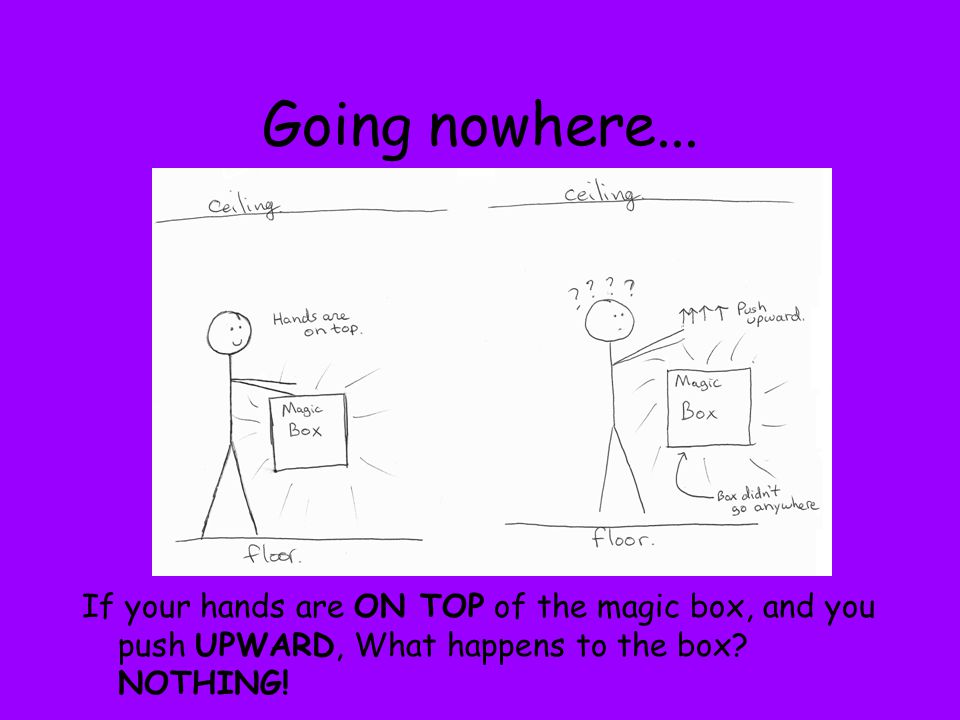

Going nowhere... If your hands are ON TOP of the magic box, and you push UPWARD, What happens to the box? NOTHING!

13
Going nowhere, again! If your hands are UNDERNEATH the magic box, and you push DOWNWARD, What happens to the box? NOTHING!

14
Put it all together... For the Direct Comparison Test, you can think of the “magic box” as the series which you want to find out if it converges or diverges. You can think of your hands as the other series Pushing downward means your converges Pushing upward means your diverges

15
The Direct Comparison Test Part 1 (rewritten) If you want to show that converges: This is like trying to push the magic box down to the floor. You need to have two things 1. You need to have your hands (b n ) on top of the “magic box” (a n ) Mathematically, this means that b n > a n 2. You need to have your hands ( ) push downward Mathematically, this means has to converge If you can find b n that does this, then converges

16
The Direct Comparison Test Part 2 (rewritten) If you want to show that diverges, This is like trying to push the magic box up to the ceiling. You need to have two things 1. You need to have your hands (b n ) underneath the “magic box” (a n ) Mathematically, this means that b n < a n 2. You need to have your hands ( ) push upward Mathematically, this means has to diverge If you can find a b n that does this, then diverges

17
The Direct Comparison Test Limitations Remember that if you have your hands ON TOP of the magic box and you push upward, nothing happens... Similarly: If you have a b n > a n and diverges, then nothing happens... you don’t prove anything If you have your hands UNDERNEATH the magic box and you push downward, nothing happens... Similarly: If You have a b n > a n and diverges, then nothing happens... you don’t prove anything

18
Example: Let’s try to show that converges. Let’s place in our magic box If you want to show that converges, then we need to put our hands on top of it and push downward...

19
Example: continued... Let’s try to choose something SIMPLE that (we already know) converges... Let’s choose This new series that we chose will become our “hands”. So now, we have to figure out if our “hands” go ON TOP or UNDERNEATH the MAGIC BOX. If we plot the graphs of and We can easily see that the graph of is on top of

20
Example: continued... Since the graph of our “hands” is on top of the graph of “the magic box, this means that we can place “our hands” on top of the magic box And since we know ahead of time that converges, this means that we have everything we need to push the magic box downward... thus proving that converges!

21
Believe it or not... The idea of putting your hands on top of the “magic box” and pushing downward is the basic principal behind other convergence tests as well !!! The next time you try to prove that a series converges / diverges, try using the “magic box” to help you figure out what you need to do, and to check if you did it right!
