1 PSY 368 Human Memory Neuropsychology & Memory

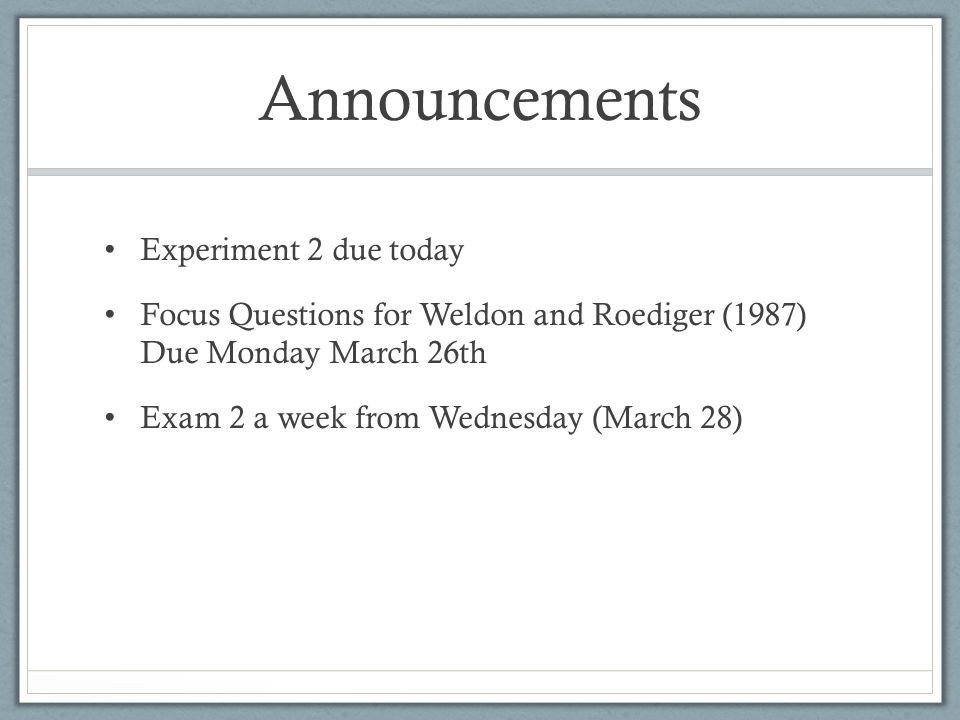

2 Announcements Experiment 2 due today Focus Questions for Weldon and Roediger (1987) Due Monday March 26th Exam 2 a week from Wednesday (March 28)

3 Neuropsychology of Memory Where is memory? Methods of study Neurons and Brains Role of the hippocampus Memory Disorders Amnesia Alzheimer’s Disease Mapping memory in 3DMemory The Brain

4 Neurons and Memory Connections between neurons change based on experiences Brain is less ‘hard-wired’ than we used to believe Lashley provided evidence of plasticity in monkeys in the 1920’s but not widely accepted until 1960’s Neuroplasticity is fundamental property of brain (nervous system) Capacity of nervous system to modify its organization Changes in structure and function as a result of experience Changes largely within the synapses

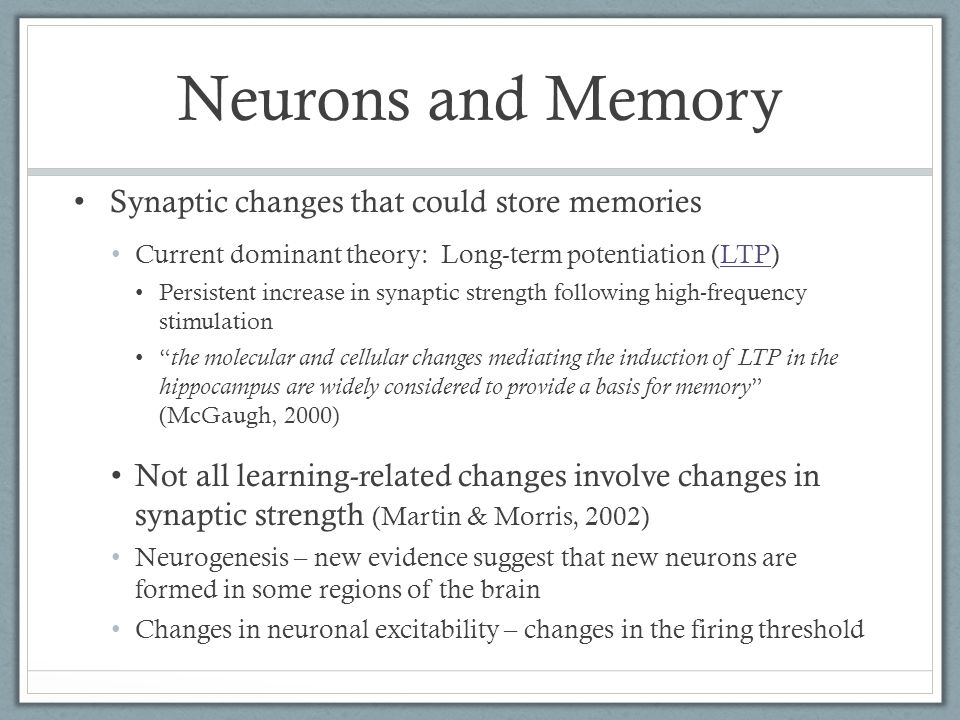

5 Neurons and Memory Current dominant theory: Long-term potentiation (LTP)LTP Persistent increase in synaptic strength following high-frequency stimulation “ the molecular and cellular changes mediating the induction of LTP in the hippocampus are widely considered to provide a basis for memory ” (McGaugh, 2000) Not all learning-related changes involve changes in synaptic strength (Martin & Morris, 2002) Neurogenesis – new evidence suggest that new neurons are formed in some regions of the brain Changes in neuronal excitability – changes in the firing threshold Synaptic changes that could store memories

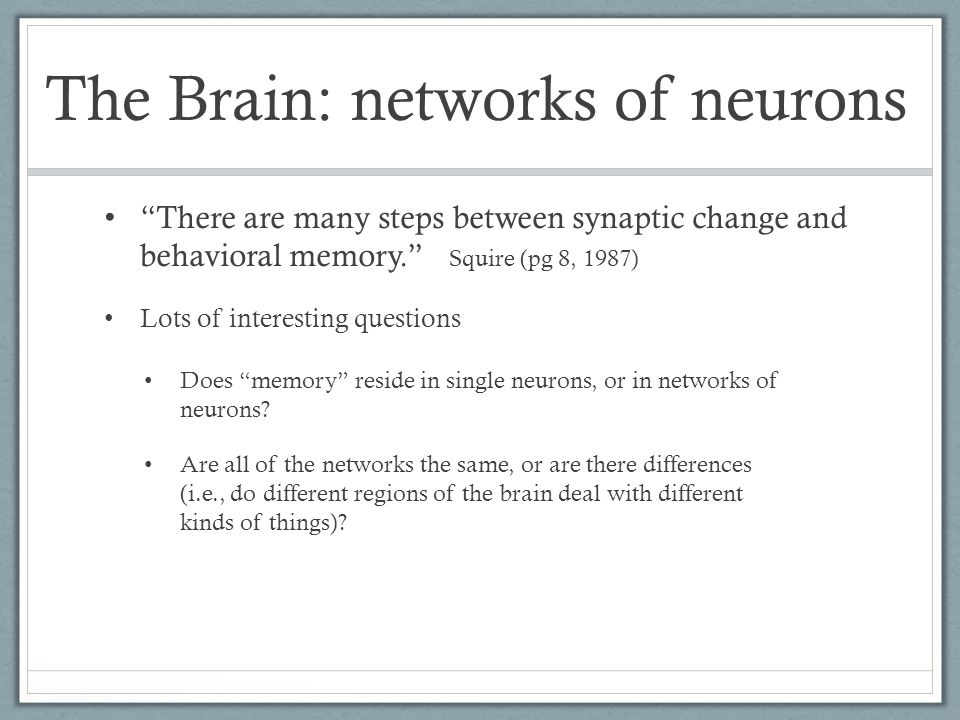

6 “There are many steps between synaptic change and behavioral memory.” Squire (pg 8, 1987) The Brain: networks of neurons Lots of interesting questions Does “memory” reside in single neurons, or in networks of neurons? Are all of the networks the same, or are there differences (i.e., do different regions of the brain deal with different kinds of things)?

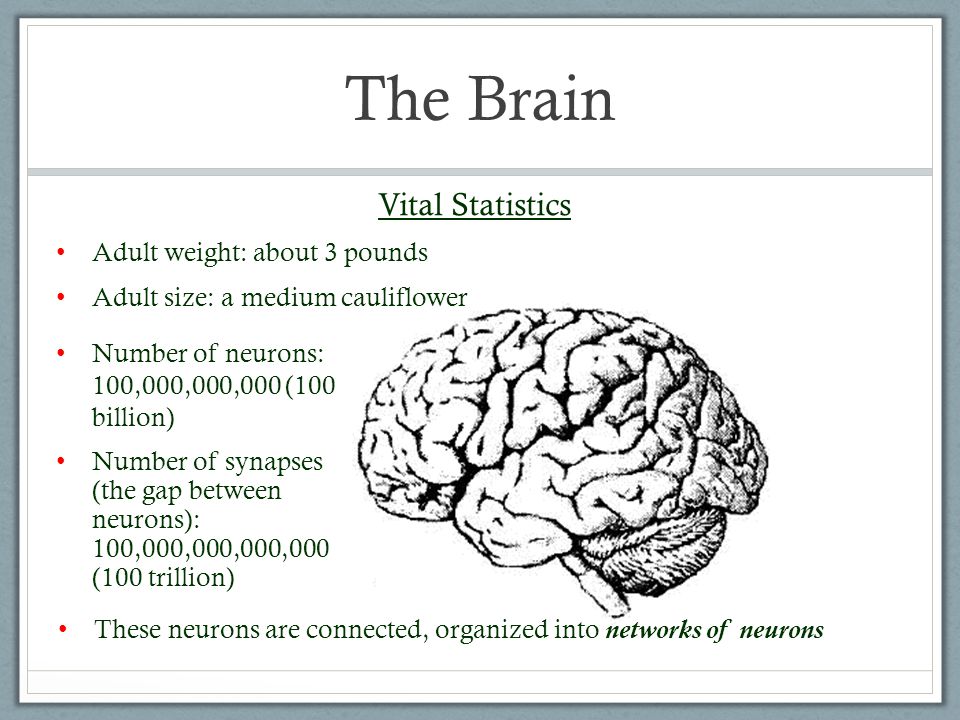

7 The Brain Number of neurons: 100,000,000,000 (100 billion) Number of synapses (the gap between neurons): 100,000,000,000,000 (100 trillion) Vital Statistics Adult weight: about 3 pounds Adult size: a medium cauliflower These neurons are connected, organized into networks of neurons

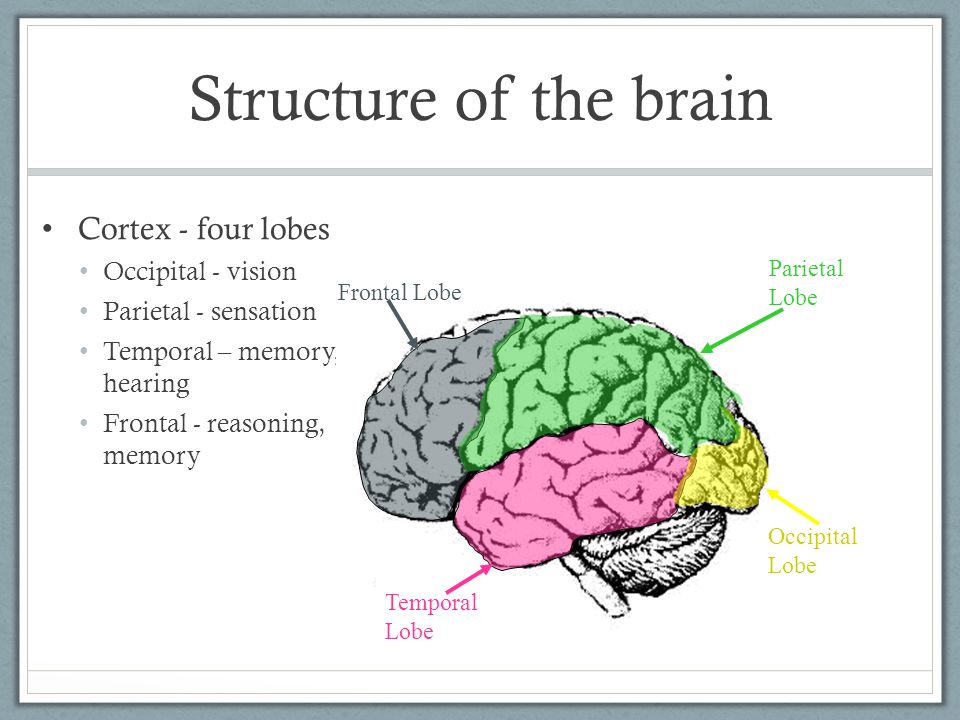

8 Structure of the brain Cortex - four lobes Occipital - vision Parietal - sensation Temporal – memory, hearing Frontal - reasoning, memory Frontal Lobe Temporal Lobe Occipital Lobe Parietal Lobe

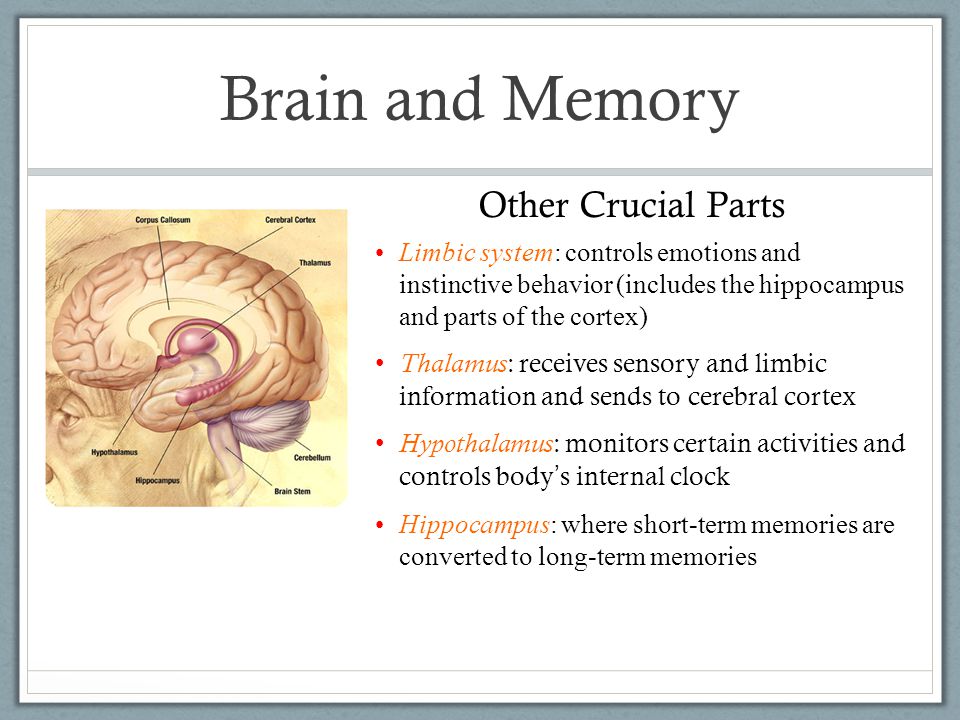

9 Limbic system: controls emotions and instinctive behavior (includes the hippocampus and parts of the cortex) Thalamus : receives sensory and limbic information and sends to cerebral cortex Hypothalamus : monitors certain activities and controls body’s internal clock Hippocampus: where short-term memories are converted to long-term memories Other Crucial Parts Brain and Memory

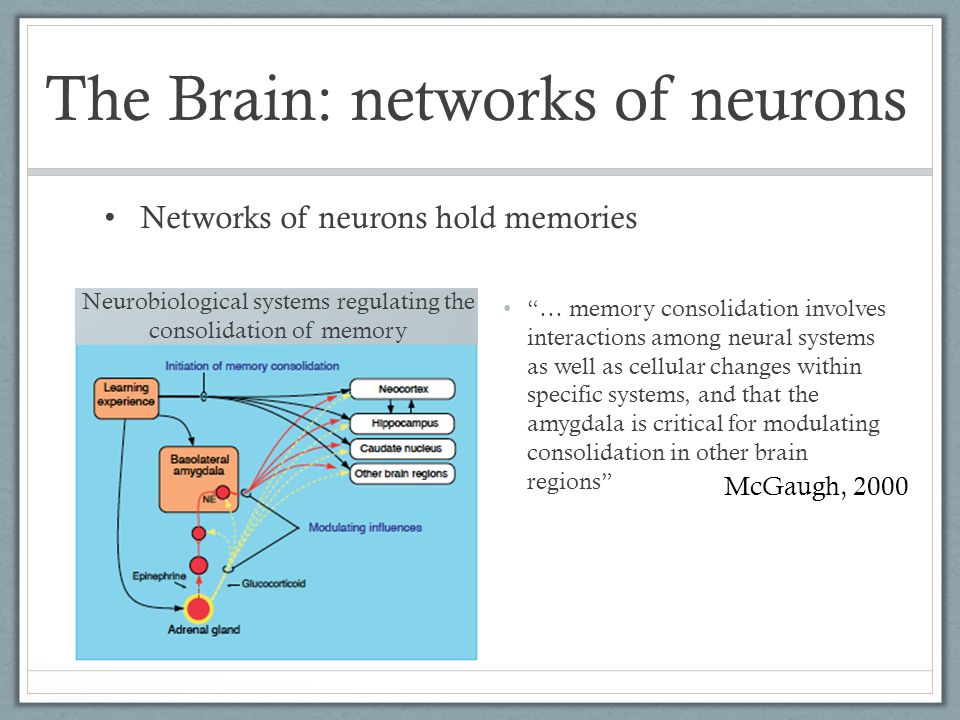

10 McGaugh, 2000 “… memory consolidation involves interactions among neural systems as well as cellular changes within specific systems, and that the amygdala is critical for modulating consolidation in other brain regions” Neurobiological systems regulating the consolidation of memory Networks of neurons hold memories The Brain: networks of neurons

11 So where is memory? It is complicated Multiple brain regions are involved in encoding (as shown by fMRI) -term memory.

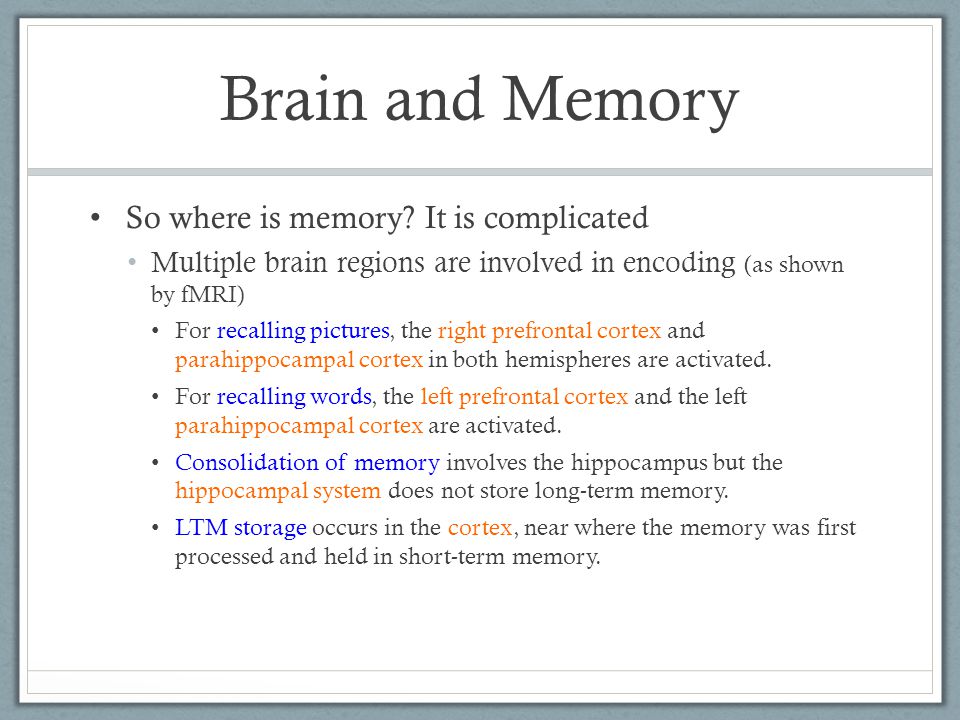

12 Brain and Memory So where is memory? It is complicated Multiple brain regions are involved in encoding (as shown by fMRI) For recalling pictures, the right prefrontal cortex and parahippocampal cortex in both hemispheres are activated. For recalling words, the left prefrontal cortex and the left parahippocampal cortex are activated. Consolidation of memory involves the hippocampus but the hippocampal system does not store long-term memory. LTM storage occurs in the cortex, near where the memory was first processed and held in short-term memory.

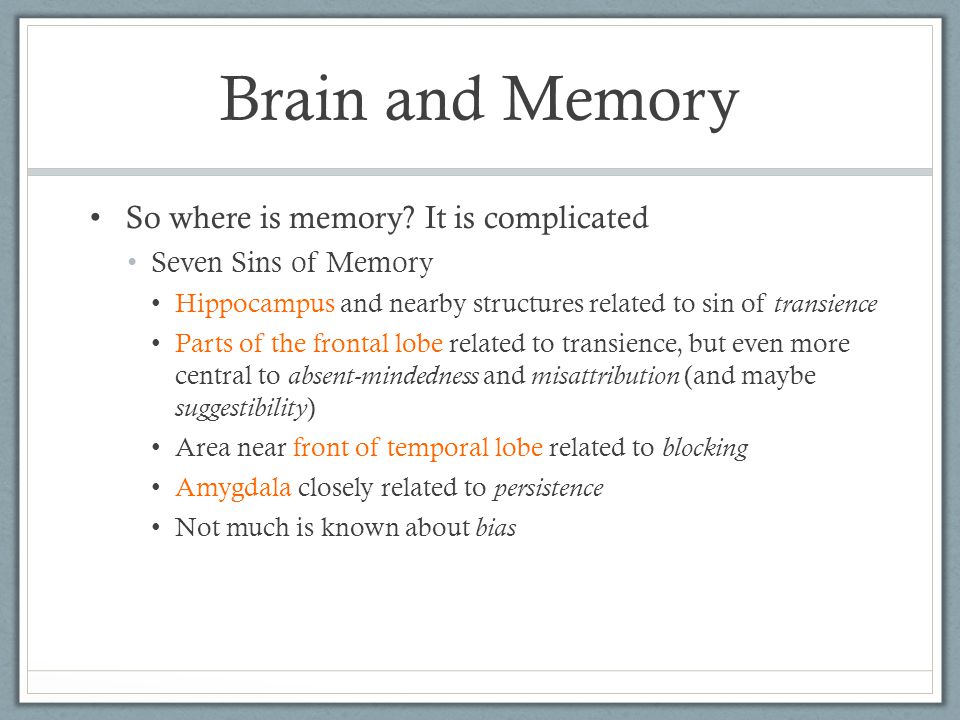

13 Brain and Memory So where is memory? It is complicated Seven Sins of Memory Hippocampus and nearby structures related to sin of transience Parts of the frontal lobe related to transience, but even more central to absent-mindedness and misattribution (and maybe suggestibility ) Area near front of temporal lobe related to blocking Amygdala closely related to persistence Not much is known about bias

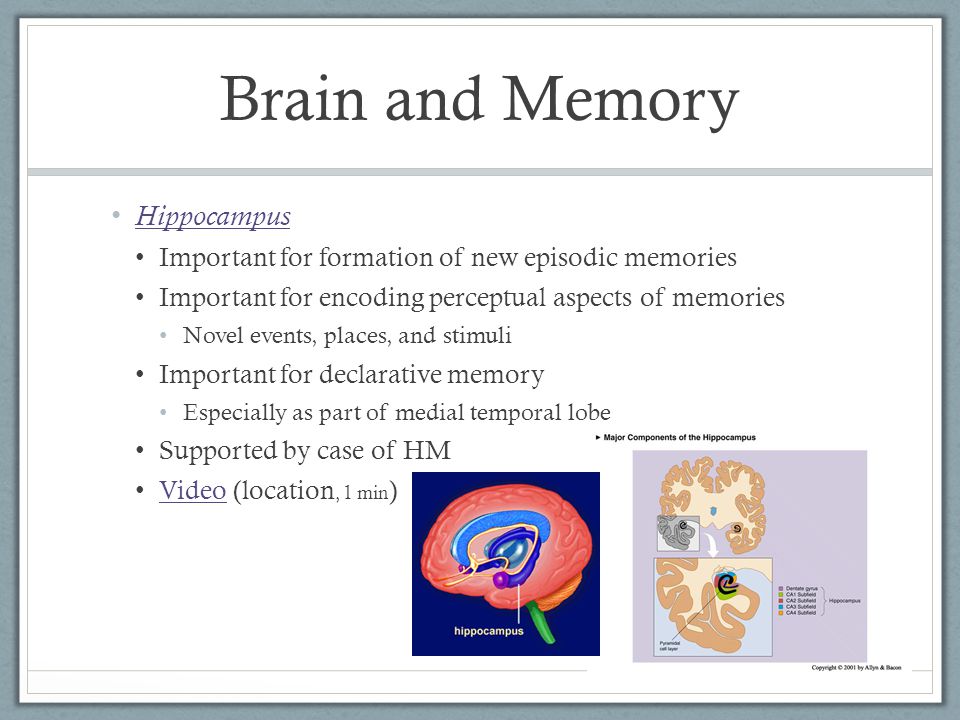

14 Hippocampus Important for formation of new episodic memories Important for encoding perceptual aspects of memories Novel events, places, and stimuli Important for declarative memory Especially as part of medial temporal lobe Supported by case of HM Video (location, 1 min ) Video Brain and Memory

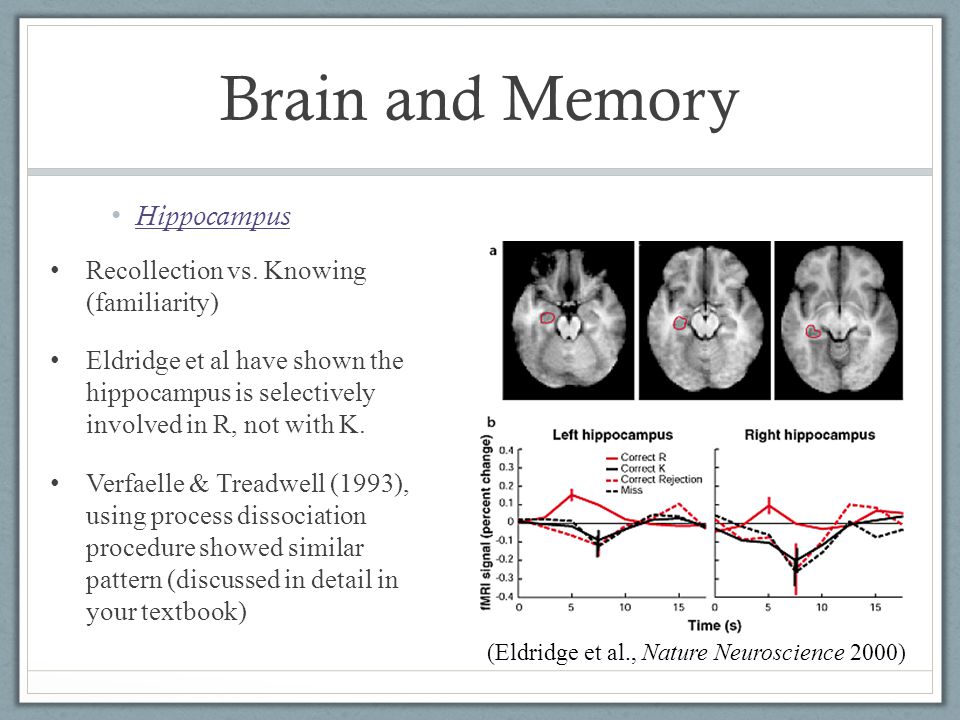

15 Recollection vs. Knowing (familiarity) Eldridge et al have shown the hippocampus is selectively involved in R, not with K. Verfaelle & Treadwell (1993), using process dissociation procedure showed similar pattern (discussed in detail in your textbook) (Eldridge et al., Nature Neuroscience 2000) Brain and Memory Hippocampus

16 Brain and Memory: Amnesia Diencephalic amnesia - damage to the medial thalamus and mammillary nuclei Medial temporal lobe amnesia - damage to the hippocampal formation, uncus, amygdala, and surrounding cortical areas Other implicated regions include Anterior Lateral Temporal Lobe and Frontal Lobes

17 Amnesia Loss of memory ability - usually due to lesion or surgical removal of various parts of the brain Relatively spared performance in other domains A pure amnesia is relatively rare video ( #18, 10 mins ) video Video ( ~ 7 mins ) Video Video 3 ( Clive Wearing, 7 mins ) Video 3

18 Amnesia Loss of memory ability - usually due to lesion or surgical removal of various parts of the brain Three different kinds of classifications Source of the disease (e.g., illness, injury) Location of the area of damage Functional deficit (i.e., what kind of memory is impaired) This mixed way of categorizing amnesia causes some difficulties

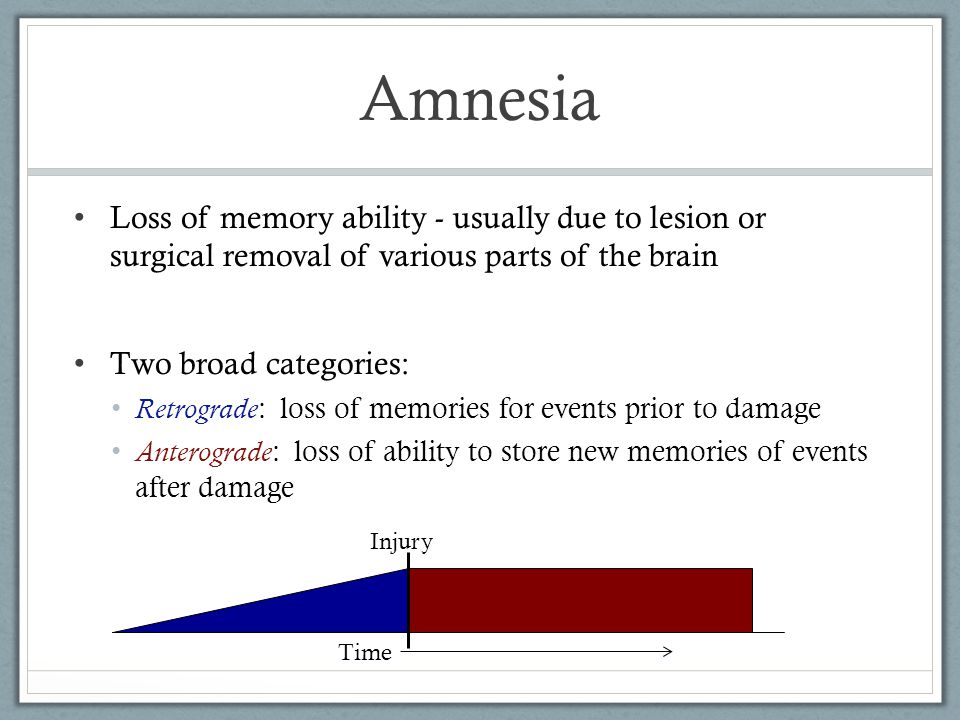

19 Amnesia Loss of memory ability - usually due to lesion or surgical removal of various parts of the brain Two broad categories: Retrograde : loss of memories for events prior to damage Anterograde : loss of ability to store new memories of events after damage Injury Time

20 Causes of Amnesia Korsakoff’s syndrome Traumatic Brain Injury (TBI) (Concussion) Alzheimer’s disease Other causes include Specific brain lesions (i.e. surgical removal) Psychological Dissociative Fugue Psychogenic Migraines Hypoglycemia Epilepsy Electroconvulsive shock therapy Drugs (esp. anesthetics) Infection Nutritional deficiency

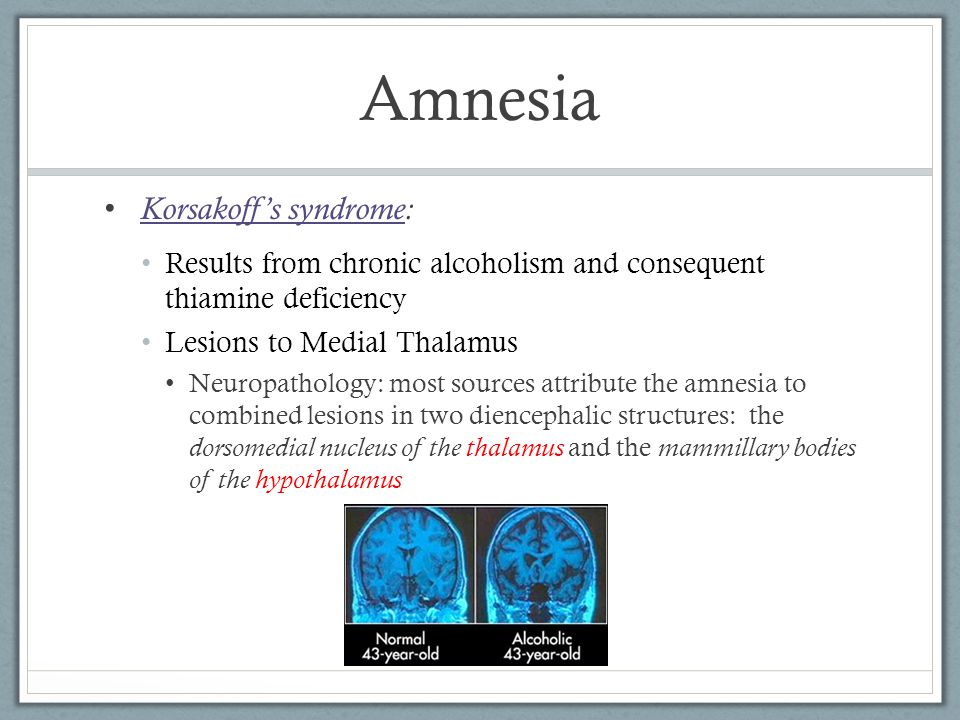

21 Amnesia Results from chronic alcoholism and consequent thiamine deficiency Lesions to Medial Thalamus Neuropathology: most sources attribute the amnesia to combined lesions in two diencephalic structures: the dorsomedial nucleus of the thalamus and the mammillary bodies of the hypothalamus Korsakoff’s syndrome: Korsakoff’s syndrome

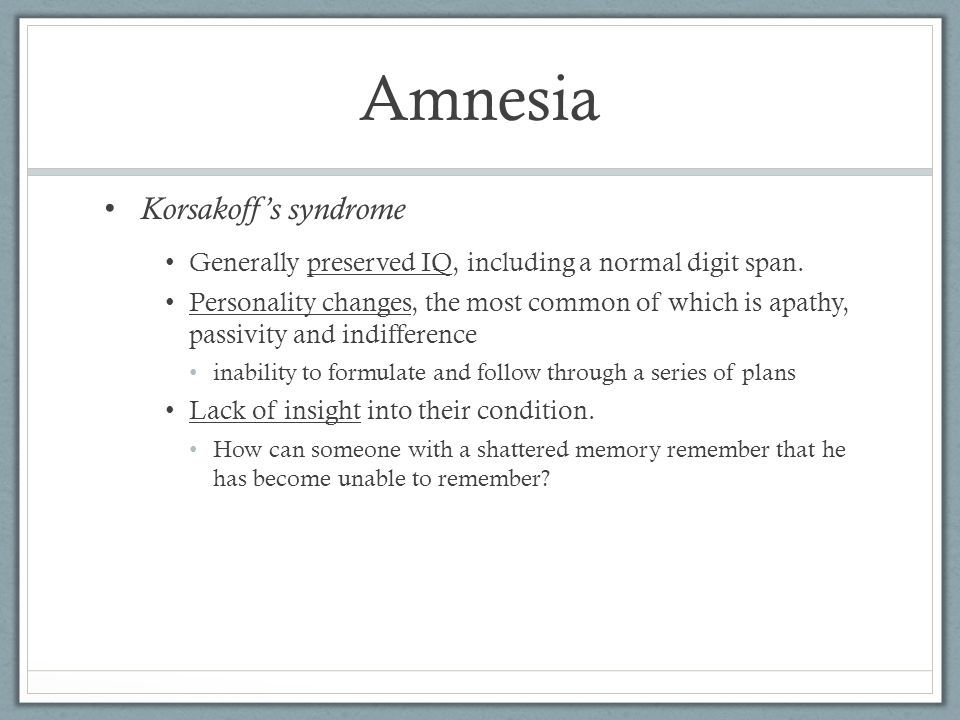

22 Amnesia Generally preserved IQ, including a normal digit span. Personality changes, the most common of which is apathy, passivity and indifference inability to formulate and follow through a series of plans Lack of insight into their condition. How can someone with a shattered memory remember that he has become unable to remember? Korsakoff’s syndrome

23 Amnesia Korsakoff’s syndrome Retrograde amnesia with a temporal gradient Anterograde amnesia Confabulation, which is a tendency to "fill in the gaps" of one's memories with plausible made-up stories. confabulations are rare among chronic Korsakoff patients who've had the disease for more than 5 years. Patients in the chronic stage are more likely to say "I don't know" or remain silent when faced with memory failures rather than to invent stories.

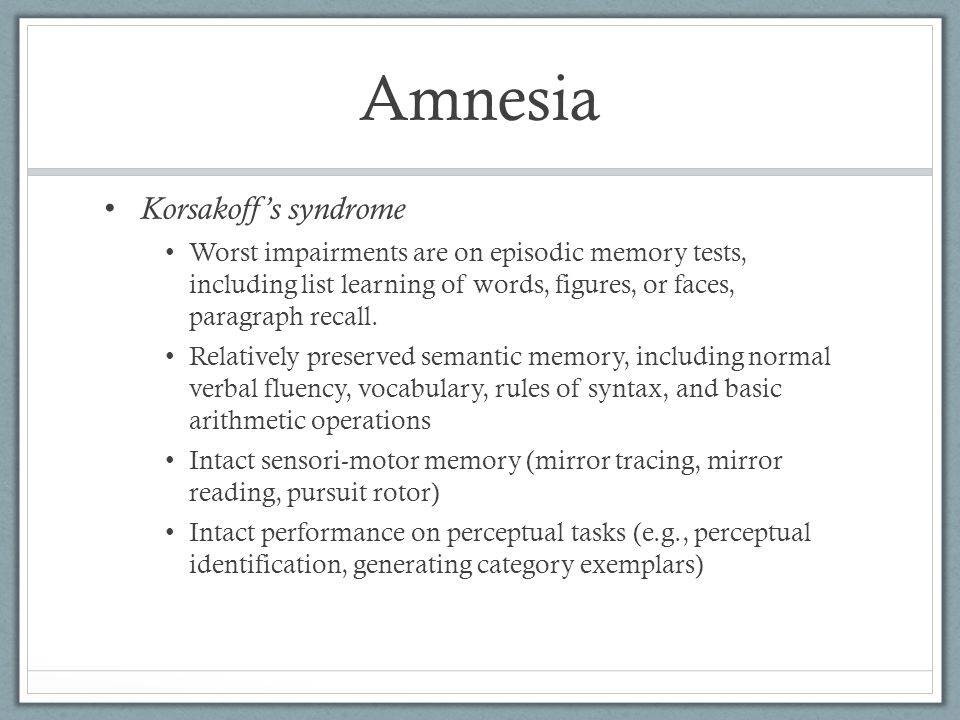

24 Amnesia Korsakoff’s syndrome Worst impairments are on episodic memory tests, including list learning of words, figures, or faces, paragraph recall. Relatively preserved semantic memory, including normal verbal fluency, vocabulary, rules of syntax, and basic arithmetic operations Intact sensori-motor memory (mirror tracing, mirror reading, pursuit rotor) Intact performance on perceptual tasks (e.g., perceptual identification, generating category exemplars)

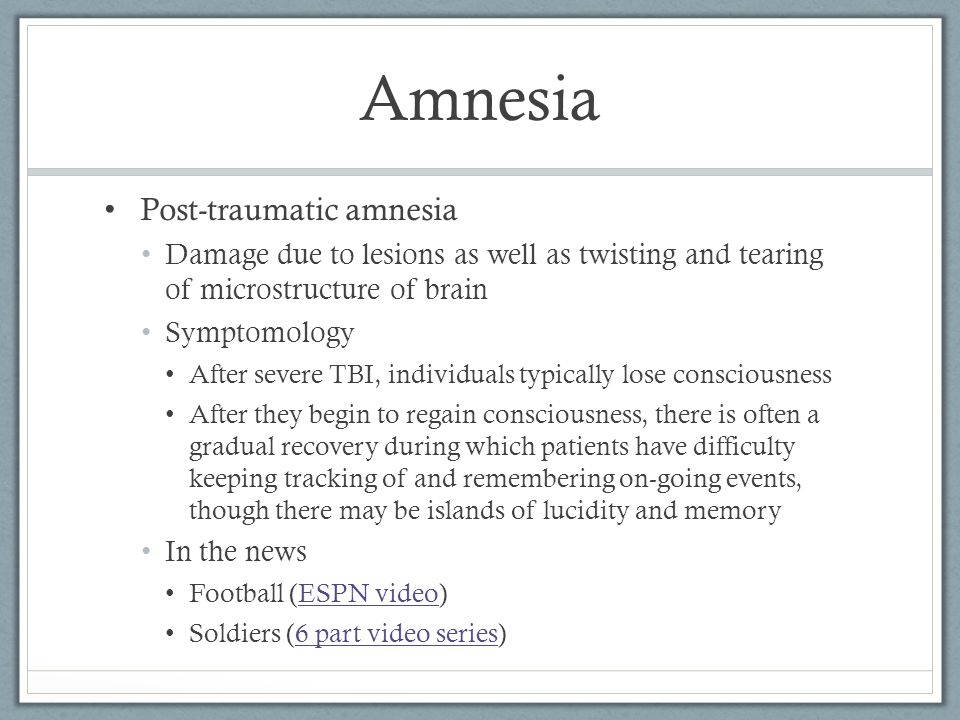

25 Post-traumatic amnesia Damage due to lesions as well as twisting and tearing of microstructure of brain Symptomology After severe TBI, individuals typically lose consciousness After they begin to regain consciousness, there is often a gradual recovery during which patients have difficulty keeping tracking of and remembering on-going events, though there may be islands of lucidity and memory In the news Football (ESPN video)ESPN video Soldiers (6 part video series)6 part video series Amnesia

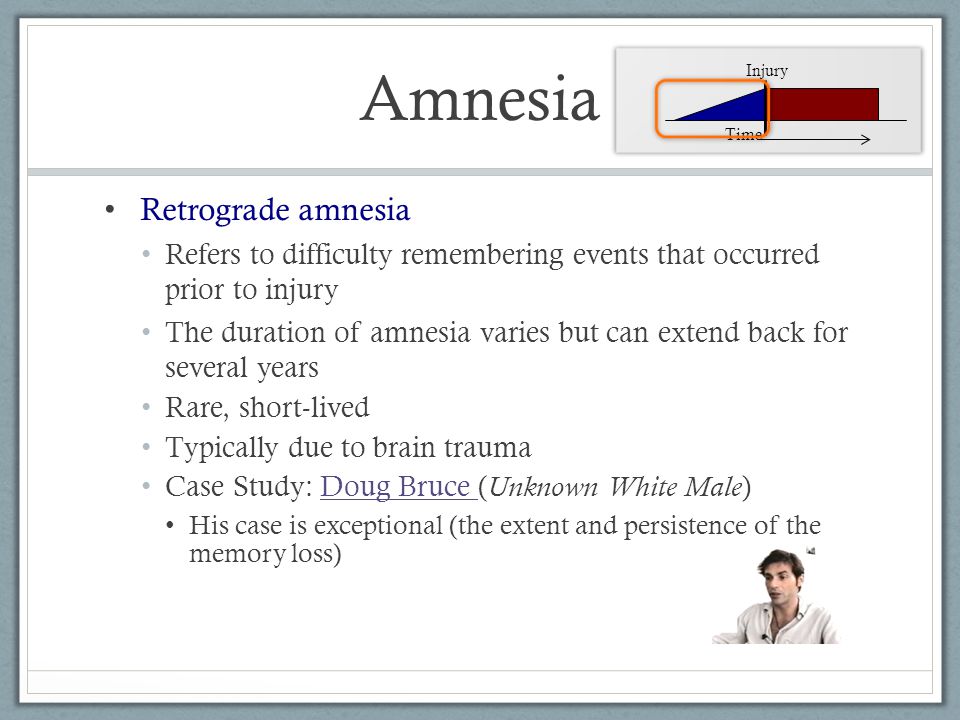

26 Retrograde amnesia Refers to difficulty remembering events that occurred prior to injury The duration of amnesia varies but can extend back for several years Rare, short-lived Typically due to brain trauma Case Study: Doug Bruce ( Unknown White Male )Doug Bruce His case is exceptional (the extent and persistence of the memory loss) Amnesia Injury Time

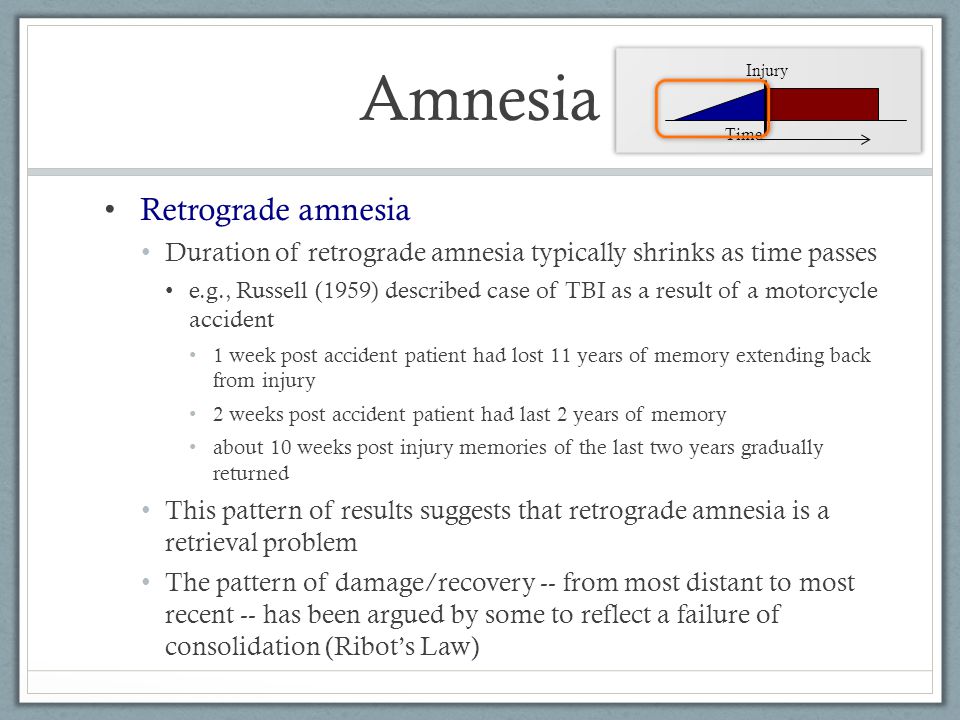

27 Retrograde amnesia Duration of retrograde amnesia typically shrinks as time passes e.g., Russell (1959) described case of TBI as a result of a motorcycle accident 1 week post accident patient had lost 11 years of memory extending back from injury 2 weeks post accident patient had last 2 years of memory about 10 weeks post injury memories of the last two years gradually returned This pattern of results suggests that retrograde amnesia is a retrieval problem The pattern of damage/recovery -- from most distant to most recent -- has been argued by some to reflect a failure of consolidation (Ribot’s Law) Amnesia Injury Time

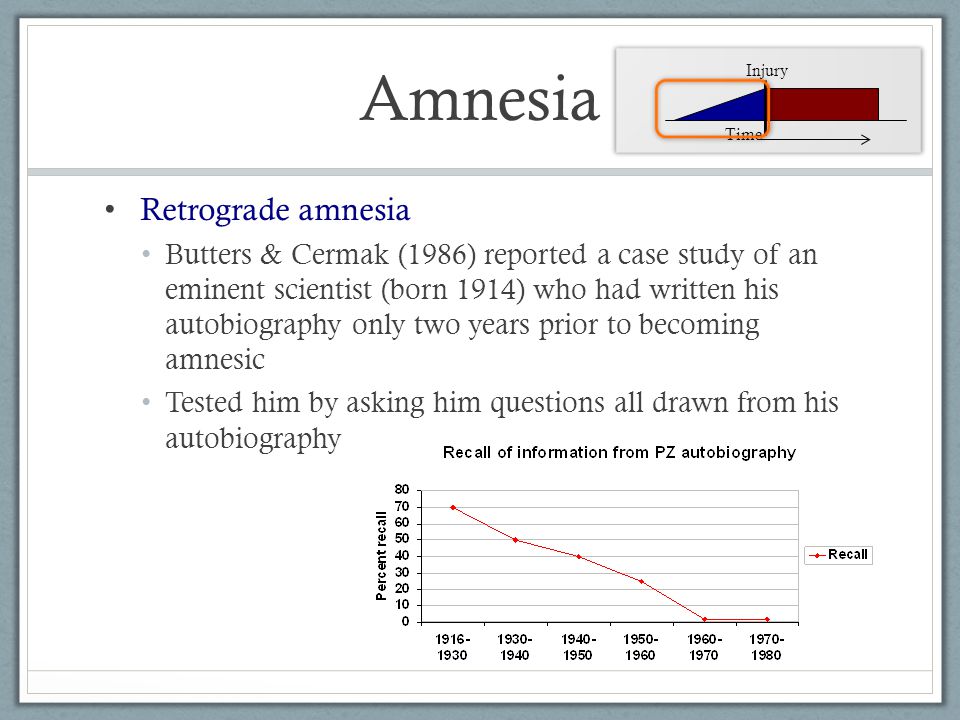

28 Retrograde amnesia Butters & Cermak (1986) reported a case study of an eminent scientist (born 1914) who had written his autobiography only two years prior to becoming amnesic Tested him by asking him questions all drawn from his autobiography Amnesia Injury Time

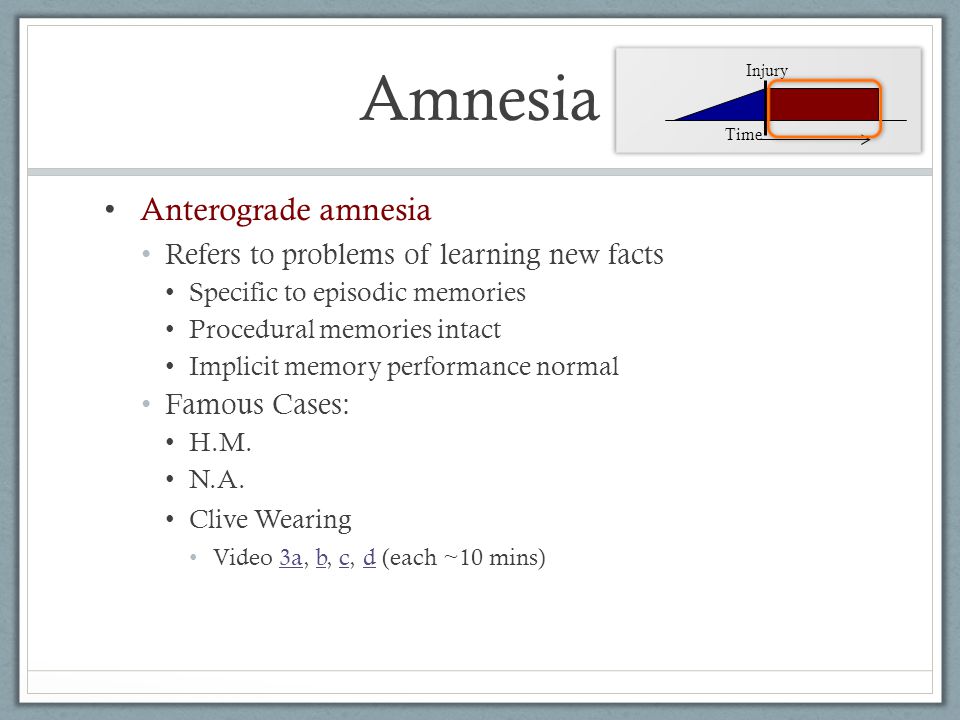

29 Anterograde amnesia Refers to problems of learning new facts Specific to episodic memories Procedural memories intact Implicit memory performance normal Famous Cases: H.M. N.A. Clive Wearing Video 3a, b, c, d (each ~10 mins)3abcd Amnesia Injury Time

30 Amnesia Case Study: HM Henry Molaison (Patient H. M.) (brief news video following his death) Henry Molaison (Patient H. Bilateral mesial temporal lobe resection extending 8 cm. back from the temporal tips, including the uncus and amygdala, and destroying the anterior two-thirds of the hippocampus and hippocampal gyrus Scoville & Milner (1957)Milner Suffered from extreme epilepsy

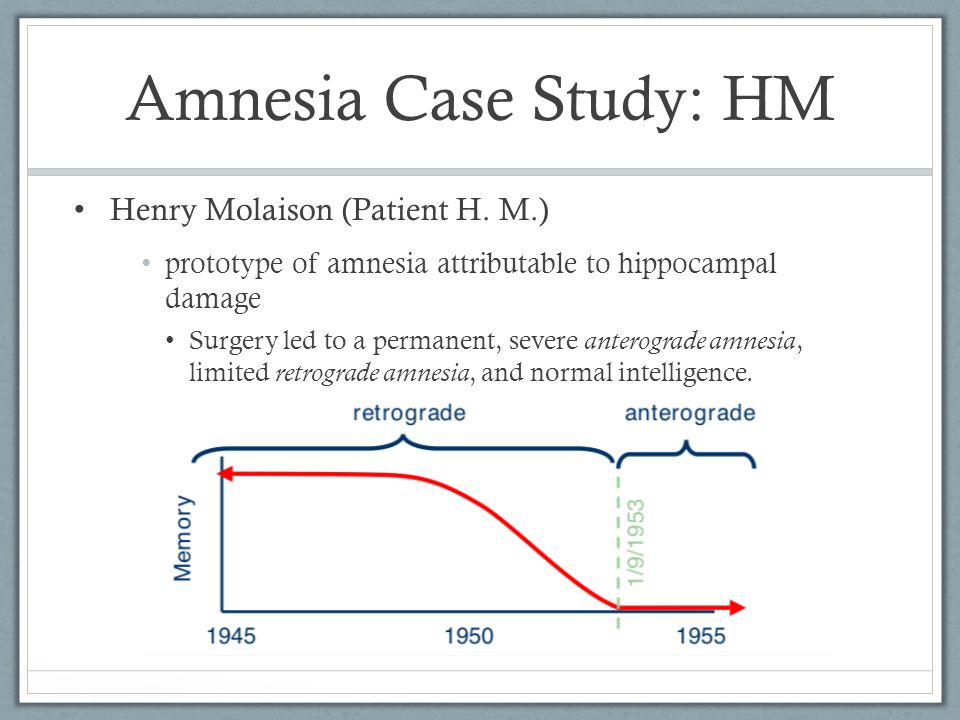

31 Amnesia Case Study: HM prototype of amnesia attributable to hippocampal damage Surgery led to a permanent, severe anterograde amnesia, limited retrograde amnesia, and normal intelligence. Henry Molaison (Patient H. M.)

32 Amnesia Case Study: HM Functional characteristics Declarative and nondeclarative memories Although patients can learn other tasks, they cannot recall ever learning them Learning and memory involve different processes 2 major categories of memories Declarative memories – memory that can be verbally expressed, such as memory for events, facts, or specific stimuli; this is impaired with anterograde amnesia Nondeclarative memories – memory whose formation does not depend on the hippocampal formation; a collective term for perceptual, stimulus- response, and motor memory; not affected by anterograde amnesia; these control behavior; cannot always be described in words Henry Molaison (Patient H. M.)

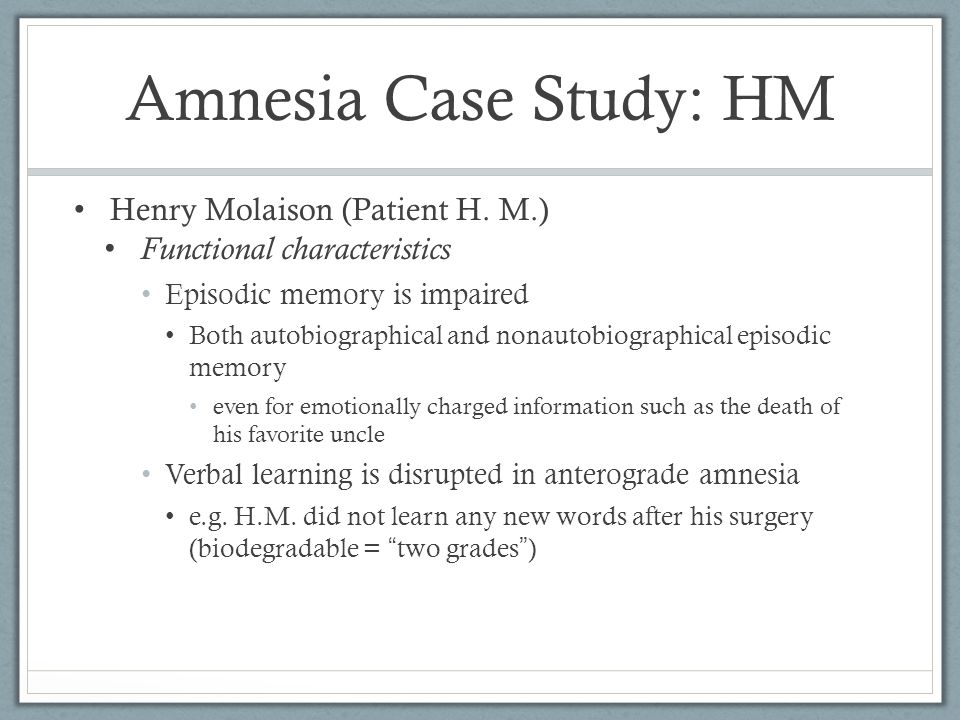

33 Amnesia Case Study: HM Functional characteristics Episodic memory is impaired Both autobiographical and nonautobiographical episodic memory even for emotionally charged information such as the death of his favorite uncle Verbal learning is disrupted in anterograde amnesia e.g. H.M. did not learn any new words after his surgery (biodegradable = “ two grades ” ) Henry Molaison (Patient H. M.)

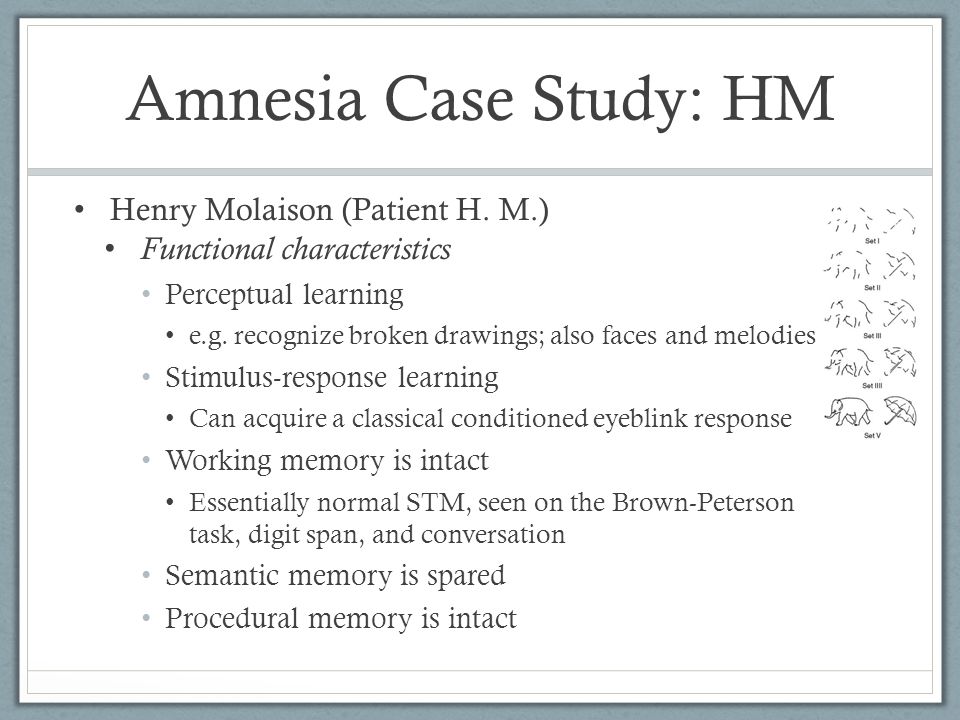

34 Amnesia Case Study: HM Functional characteristics Perceptual learning e.g. recognize broken drawings; also faces and melodies Stimulus-response learning Can acquire a classical conditioned eyeblink response Working memory is intact Essentially normal STM, seen on the Brown-Peterson task, digit span, and conversation Semantic memory is spared Procedural memory is intact Henry Molaison (Patient H. M.)

35 Amnesia Case Study: HM HM shows normal procedural and implicit memory despite extensive declarative and explicit memory deficits. In particular, he shows normal motor priming on pursuit- rotor and mirror tracing tasks (Milner video start 5:45)Milner video start 5:45

36 Amnesia Anatomy of anterograde amnesia Damage to the hippocampus or to regions that supply its inputs and receive its outputs causes anterograde amnesia How does the hippocampus form new declarative memories? Hippocampus receives info about what is going on from sensory and motor assc. cortex and from some subcortical regions It processes this info and then modifies the memories being consolidated by efferent connections back to these regions Experiences that lead to declarative memories activate the hippocampal formation The hippocampal formation enables us to learn the relationship between the stimuli that were present at the time of an event (i.e. context) and then events themselves

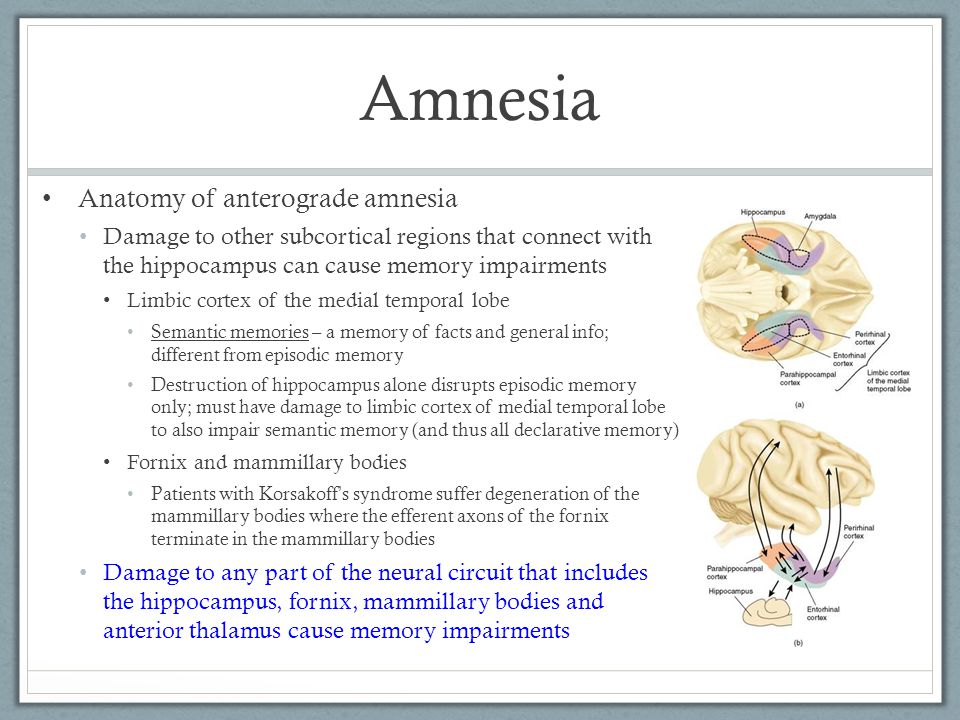

37 Amnesia Anatomy of anterograde amnesia Damage to other subcortical regions that connect with the hippocampus can cause memory impairments Limbic cortex of the medial temporal lobe Semantic memories – a memory of facts and general info; different from episodic memory Destruction of hippocampus alone disrupts episodic memory only; must have damage to limbic cortex of medial temporal lobe to also impair semantic memory (and thus all declarative memory) Fornix and mammillary bodies Patients with Korsakoff ’ s syndrome suffer degeneration of the mammillary bodies where the efferent axons of the fornix terminate in the mammillary bodies Damage to any part of the neural circuit that includes the hippocampus, fornix, mammillary bodies and anterior thalamus cause memory impairments

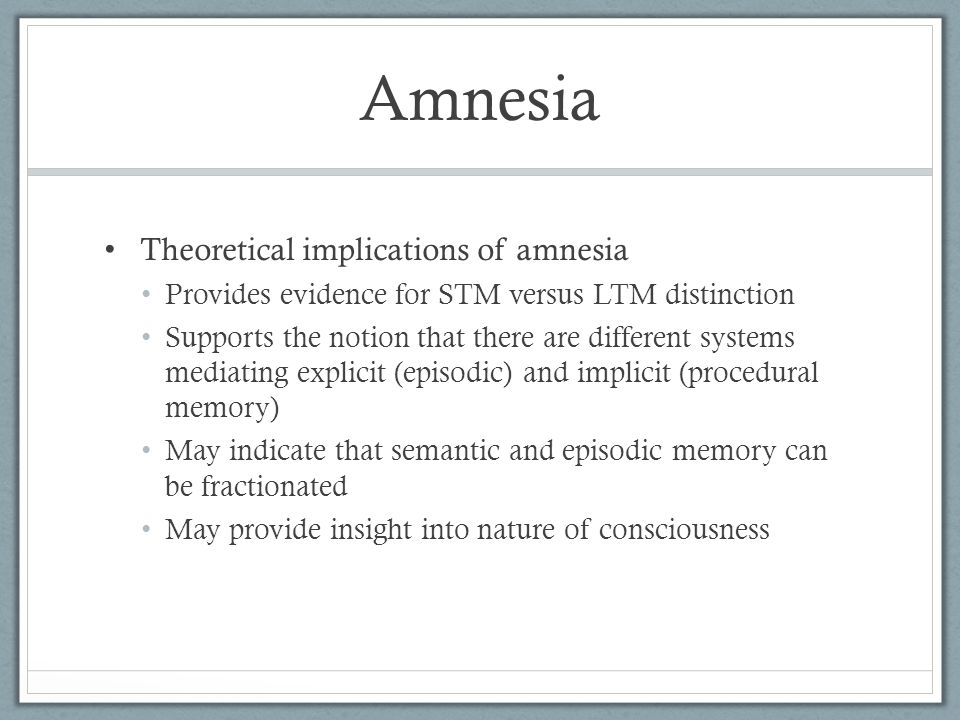

38 Amnesia Theoretical implications of amnesia Provides evidence for STM versus LTM distinction Supports the notion that there are different systems mediating explicit (episodic) and implicit (procedural memory) May indicate that semantic and episodic memory can be fractionated May provide insight into nature of consciousness

39 Alzheimer ’ s Disease Alzheimer’s disease (video clip # 19, ~7mins)video clip cortical, progressive dementia disease is associated with the development of neuro- fibrillary tangles and plaques The brain has billions of neurons, each with an axon and many dendrites. To stay healthy, neurons must communicate with each other, carry out metabolism, and repair themselves. AD disrupts all three of these essential jobs.

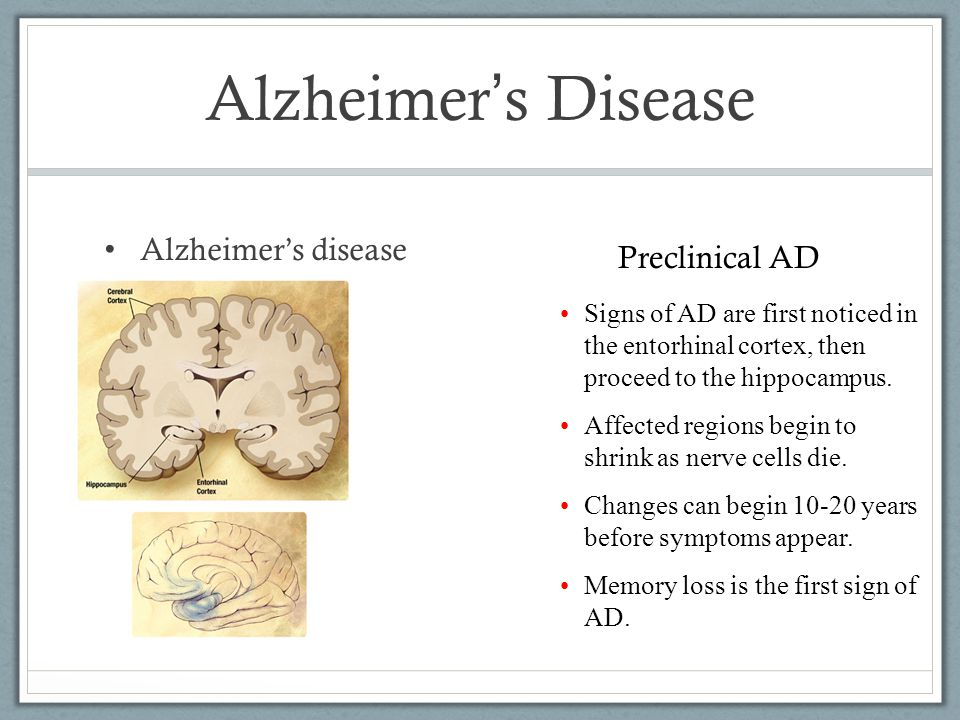

40 Alzheimer ’ s Disease Alzheimer’s disease Signs of AD are first noticed in the entorhinal cortex, then proceed to the hippocampus. Affected regions begin to shrink as nerve cells die. Changes can begin 10-20 years before symptoms appear. Memory loss is the first sign of AD. Preclinical AD

41 Alzheimer ’ s Disease Alzheimer’s disease AD spreads through the brain. The cerebral cortex begins to shrink as more and more neurons stop working and die. Mild AD signs can include memory loss, confusion, trouble handling money, poor judgment, mood changes, and increased anxiety. Moderate AD signs can include increased memory loss and confusion, problems recognizing people, difficulty with language and thoughts, restlessness, agitation, wandering, and repetitive statements. Mild to Moderate AD

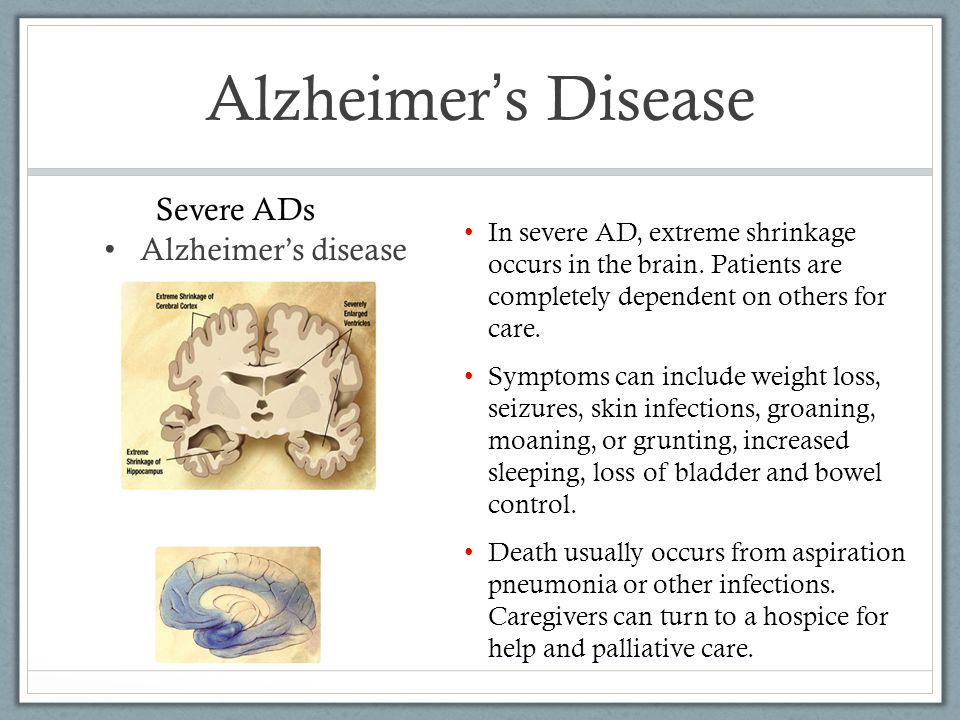

42 Alzheimer ’ s Disease Alzheimer’s disease In severe AD, extreme shrinkage occurs in the brain. Patients are completely dependent on others for care. Symptoms can include weight loss, seizures, skin infections, groaning, moaning, or grunting, increased sleeping, loss of bladder and bowel control. Death usually occurs from aspiration pneumonia or other infections. Caregivers can turn to a hospice for help and palliative care. Severe ADs

43 Alzheimer ’ s Disease Alzheimer’s disease

44 Alzheimer ’ s Disease Pet Scan of Normal Brain Pet Scan of Alzheimer ’ s Disease Brain

45 Alzheimer ’ s Disease Criteria deficit in two or more areas of cognition, at least one of which is memory interferes with social or occupational functioning decline from premorbid level gradually progressive course rule out other causes

46 Alzheimer’s Disease The Hallmarks of AD The brains of people with AD have an abundance of two abnormal structures: An actual AD plaque An actual AD tangle Beta-amyloid plaques Dense deposits of protein and cellular material that accumulate outside and around nerve cells Neurofibrillary tangles Twisted fibers that build up inside the nerve cell

47 Alzheimer ’ s Disease Alzheimer’s disease Beta-amyloid Plaques Amyloid precursor protein (APP) is the precursor to amyloid plaque. 1. APP sticks through the neuron membrane. 2. Enzymes cut the APP into fragments of protein, including beta-amyloid. 3. Beta-amyloid fragments come together in clumps to form plaques. In AD, many of these clumps form, disrupting the work of neurons. This affects the hippocampus and other areas of the cerebral cortex.

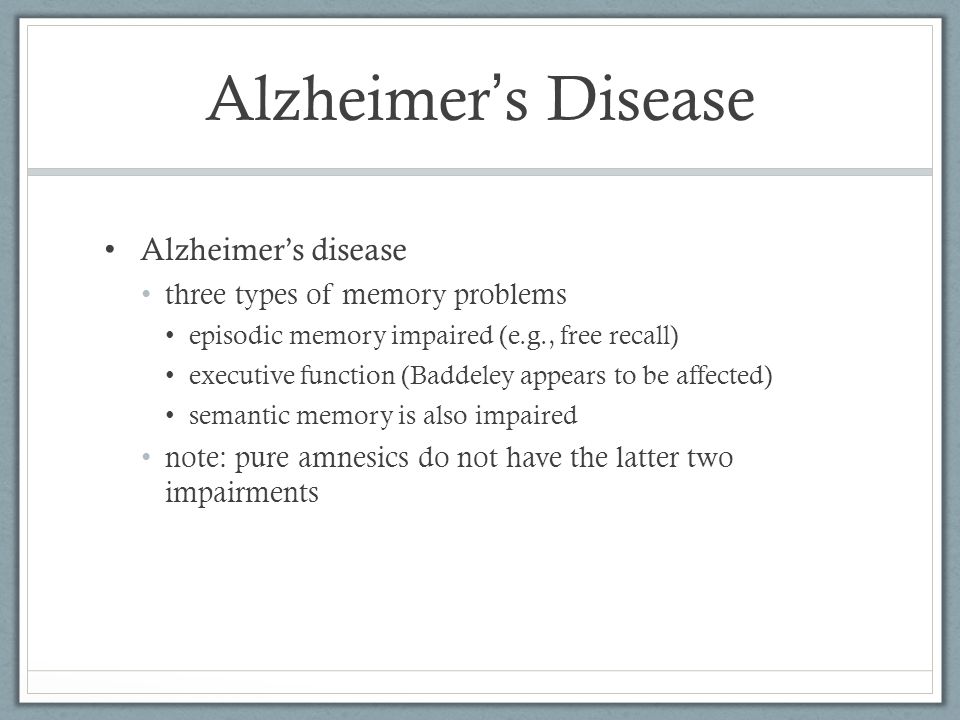

48 Alzheimer ’ s Disease Alzheimer’s disease three types of memory problems episodic memory impaired (e.g., free recall) executive function (Baddeley appears to be affected) semantic memory is also impaired note: pure amnesics do not have the latter two impairments

49 Alzheimer ’ s Disease AD semantic memory system for storing, organizing, and manipulating information pertaining to the meaning of words, concepts, and their associations conceptualized as a broadly distributed network enables judgments about the properties and functions of items

50 Semantic Memory Performance in AD naming and word generation to semantic cues both require semantic memory, both impaired in AD Explanations: degradation of the semantic network? loss of access to preserved concepts? both?

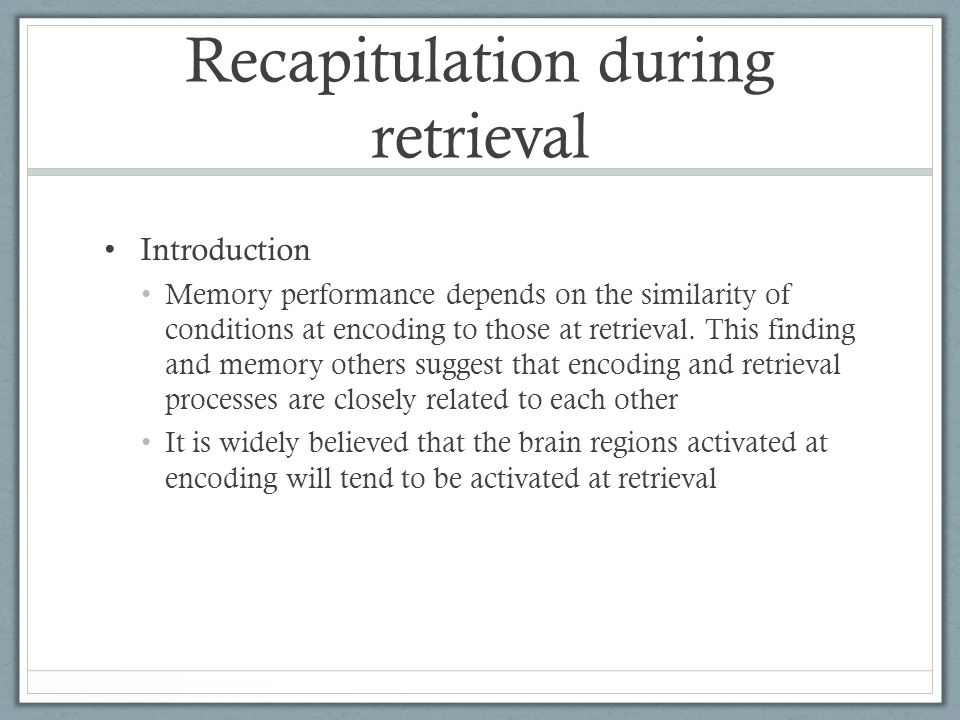

51 Recapitulation during retrieval Introduction Memory performance depends on the similarity of conditions at encoding to those at retrieval. This finding and memory others suggest that encoding and retrieval processes are closely related to each other It is widely believed that the brain regions activated at encoding will tend to be activated at retrieval

52 Recapitulation during retrieval Purpose (Wheeler et al., 2000) To identify regions of brain associated with the retrieval of vivid visual and auditory information To determine the extent to which these regions are associated with the regions activated at the time of encoding

53 Recapitulation during retrieval Method Subjects a set of picture and sound items each of which was paired with a descriptive label E.g., half Ss presented DOG with picture of dog; half Ss presented DOG with sound of dog barking Ss performed task in which they perceived the sounds and pictures or recalled the studied sounds and pictures from memory when shown the label

54 Recapitulation during retrieval Results Brain areas in the visual cortex are active during retrieval of memories with visual content Brain areas in the auditory cortex are active during retrieval of memories with auditory content

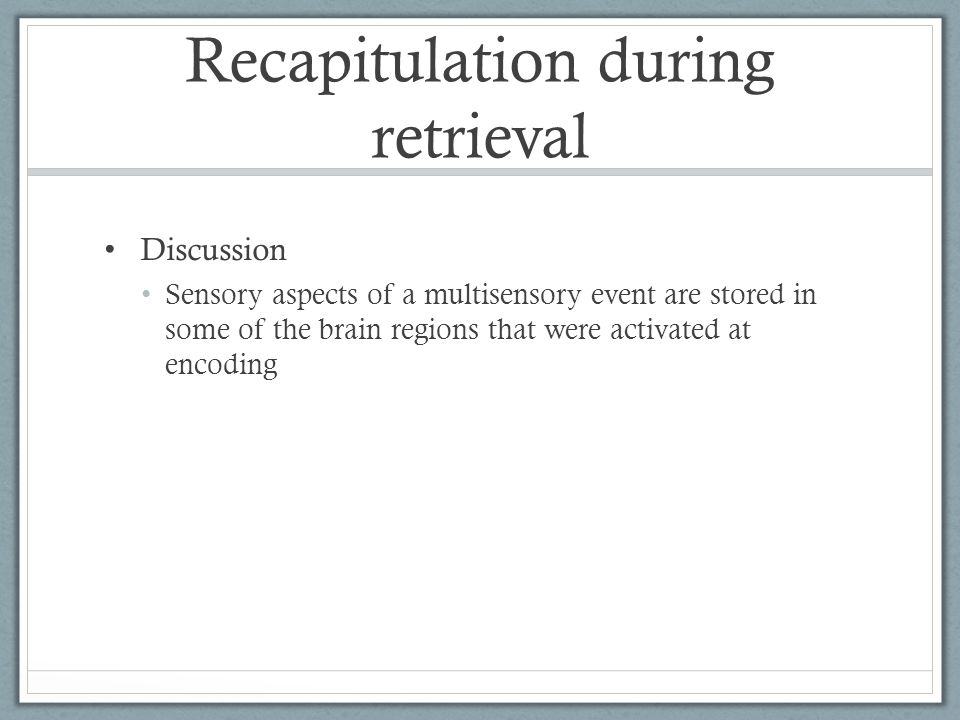

55 Recapitulation during retrieval Discussion Sensory aspects of a multisensory event are stored in some of the brain regions that were activated at encoding

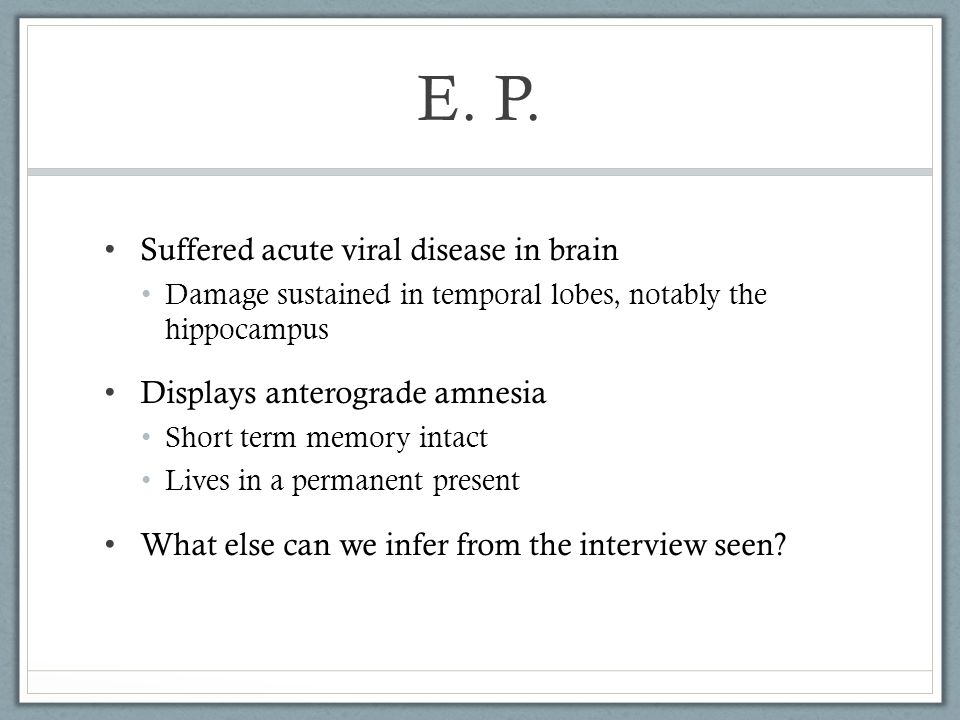

56 E. P. Suffered acute viral disease in brain Damage sustained in temporal lobes, notably the hippocampus Displays anterograde amnesia Short term memory intact Lives in a permanent present What else can we infer from the interview seen?

57 Hypermnesia - S. “ Photographic ” extreme memory ability (a mnemonist)

58 Hypermnesia - S. “ Photographic ” extreme memory ability (a mnemonist) Able to recall complex test stimuli

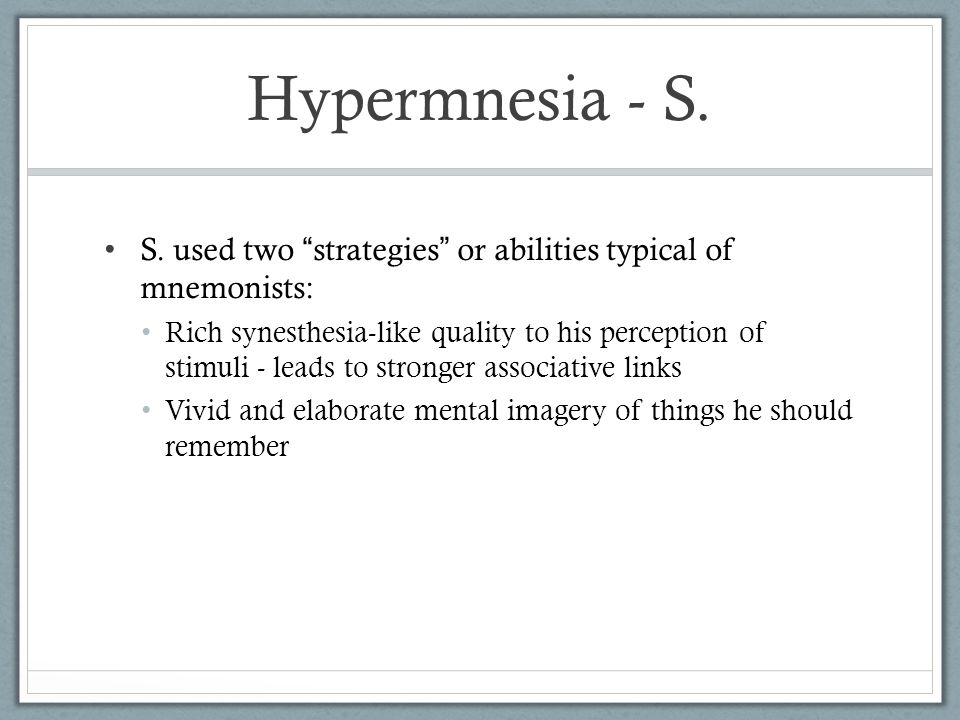

59 Hypermnesia - S. S. used two “ strategies ” or abilities typical of mnemonists: Rich synesthesia-like quality to his perception of stimuli - leads to stronger associative links Vivid and elaborate mental imagery of things he should remember

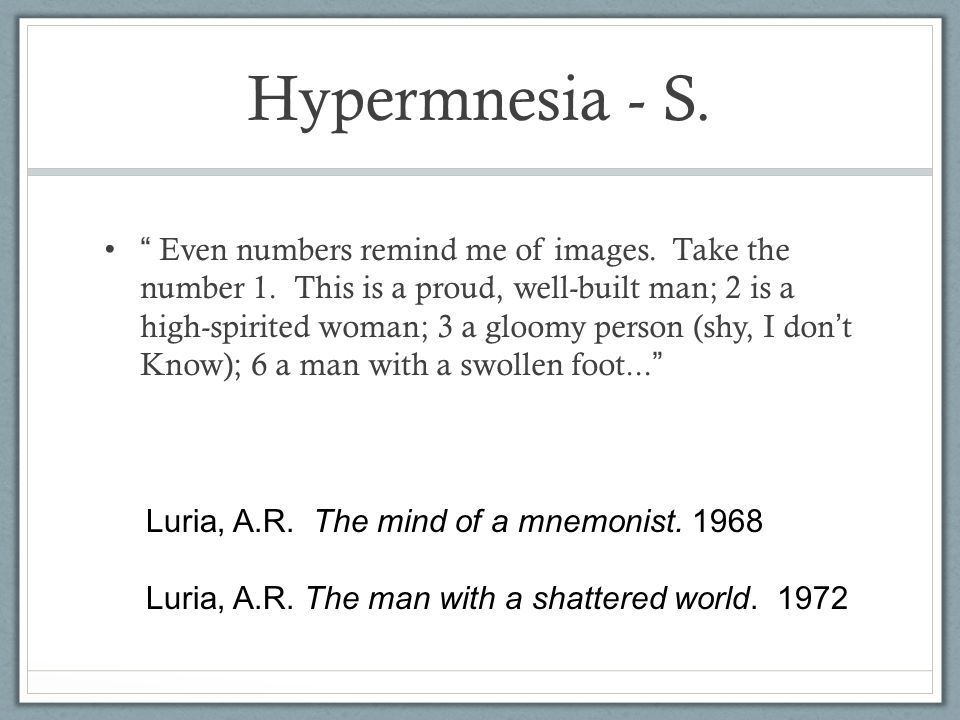

60 Hypermnesia - S. “ Even numbers remind me of images. Take the number 1. This is a proud, well-built man; 2 is a high-spirited woman; 3 a gloomy person (shy, I don ’ t Know); 6 a man with a swollen foot... ” Luria, A.R. The mind of a mnemonist. 1968 Luria, A.R. The man with a shattered world. 1972

61 Neuropsychology of Memory Consciousness Tulving has proposed that different memory systems have associated with them different levels of consciousness noetic -- awareness episodic memory -- autonoetic, self awareness semantic memory -- noetic, aware of the information, but not aware of event procedural memory -- anoetic no conscious awareness

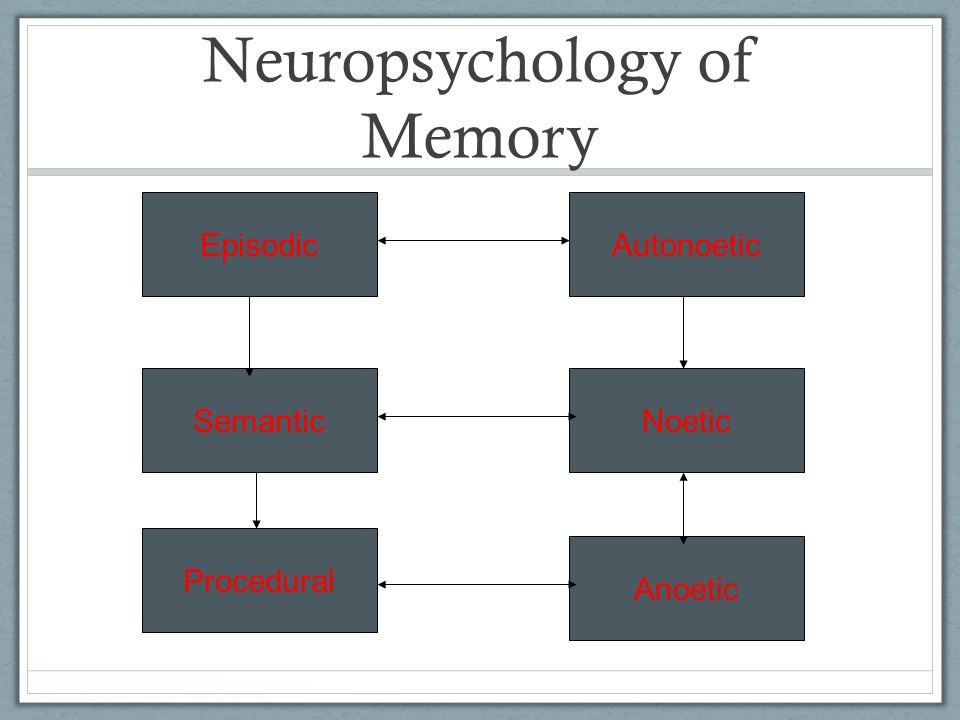

62 Neuropsychology of Memory AutonoeticEpisodic Semantic Procedural Noetic Anoetic

63 Neuropsychology

64 The Neuron Positive chemicals flow into axon, making it positively charged Causes positive charge to flow down cell to terminal buttons Myelin sheath helps Nerual signal: The Action potential

65 Neuropsychology Strong emotions can enhance memory formation and retrieval. Many compounds participate: acetylcholine, epinephrine, norepinephrine, vasopressin, the opioids, and GABA. Drugs that are agonists or antagonists of these can be involved.

66 Dissociations Good Neuropsychology studies look for dissociations: Brain Area 1 Brain Area 2 Task 1 Task 2 Activation No Activation Often found across patients Example: H.M. Intact Working Memory, poor ability to recall episodic memories K.F. no problem recalling daily episodes, but digit span of 1 (Shallice and Warrington, 1970)

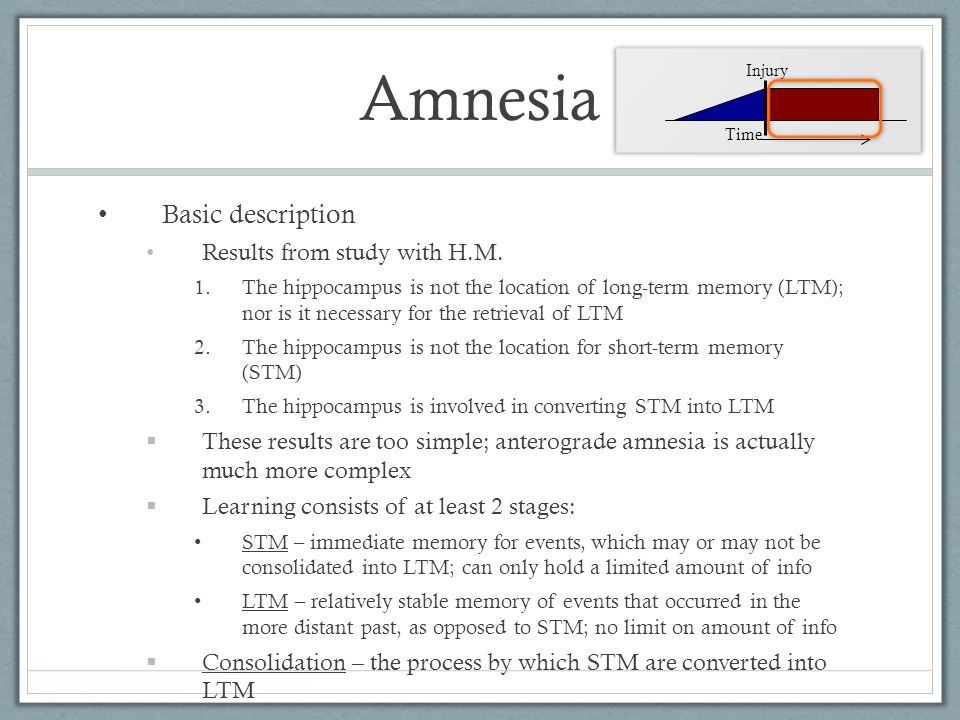

67 Amnesia Basic description Results from study with H.M. 1.The hippocampus is not the location of long-term memory (LTM); nor is it necessary for the retrieval of LTM 2.The hippocampus is not the location for short-term memory (STM) 3.The hippocampus is involved in converting STM into LTM  These results are too simple; anterograde amnesia is actually much more complex  Learning consists of at least 2 stages: STM – immediate memory for events, which may or may not be consolidated into LTM; can only hold a limited amount of info LTM – relatively stable memory of events that occurred in the more distant past, as opposed to STM; no limit on amount of info  Consolidation – the process by which STM are converted into LTM Injury Time

68 Structure of the brain Video 3 (damage) Video 3 Video 3a, b, c, d (Clive Wearing, damage)3abcd
