1 The Nervous System

2

3 Organization of the Nervous System Structural Classification Structural Classification Functional classification Functional classification

4 Structural Classification Central nervous system (CNS) consists of brain and spinal cord. Central nervous system (CNS) consists of brain and spinal cord. Peripheral nervous system (PNS) consists of spinal and cranial nerves. Peripheral nervous system (PNS) consists of spinal and cranial nerves.

5 Functional classification The sensory, or afferent. The sensory, or afferent. The motor, or efferent. The motor, or efferent.

6 The somatic nervous system voluntary nervous system voluntary nervous system The autonomic nervous system involuntary nervous system involuntary nervous system Sympathetic and parasympathetic Sympathetic and parasympathetic

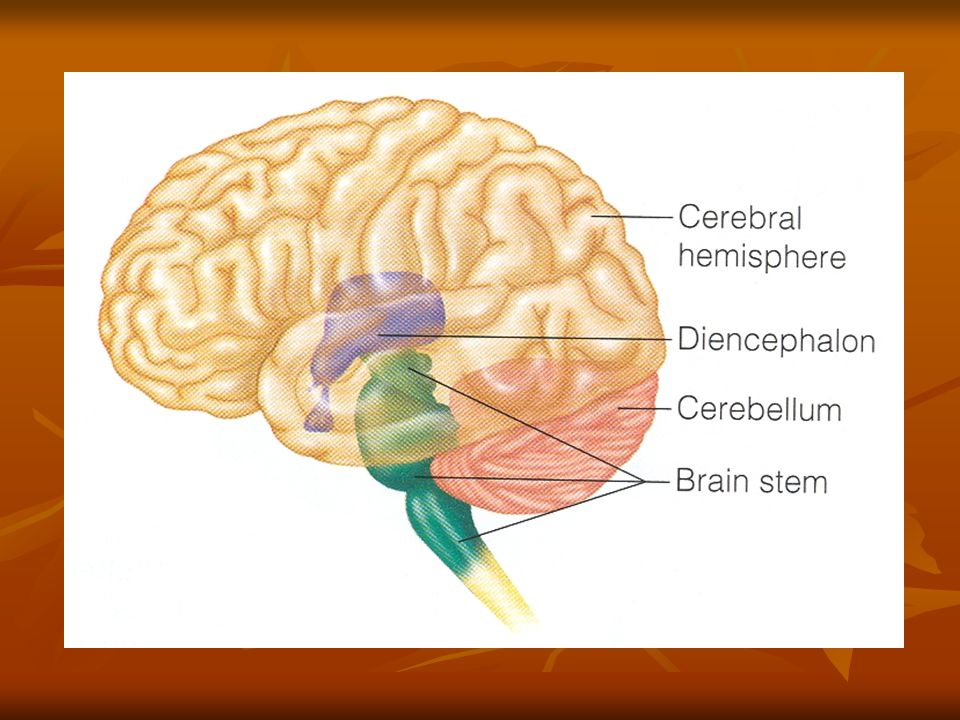

7 Functional anatomy of the brain Cerebral hemispheres. Cerebral hemispheres. Diencephalon. Diencephalon. Brain stem. Brain stem. Cerebellum. Cerebellum.

8

9 Cerebral Hemispheres The most superior and largest part of the brain. The most superior and largest part of the brain. The entire surface of the cerebral hemispheres have elevated ridges of tissue called gyri,separated by shallow grooves called sulci The entire surface of the cerebral hemispheres have elevated ridges of tissue called gyri,separated by shallow grooves called sulci Fissures are the deeper grooves which separate large regions of the brain Fissures are the deeper grooves which separate large regions of the brain

10

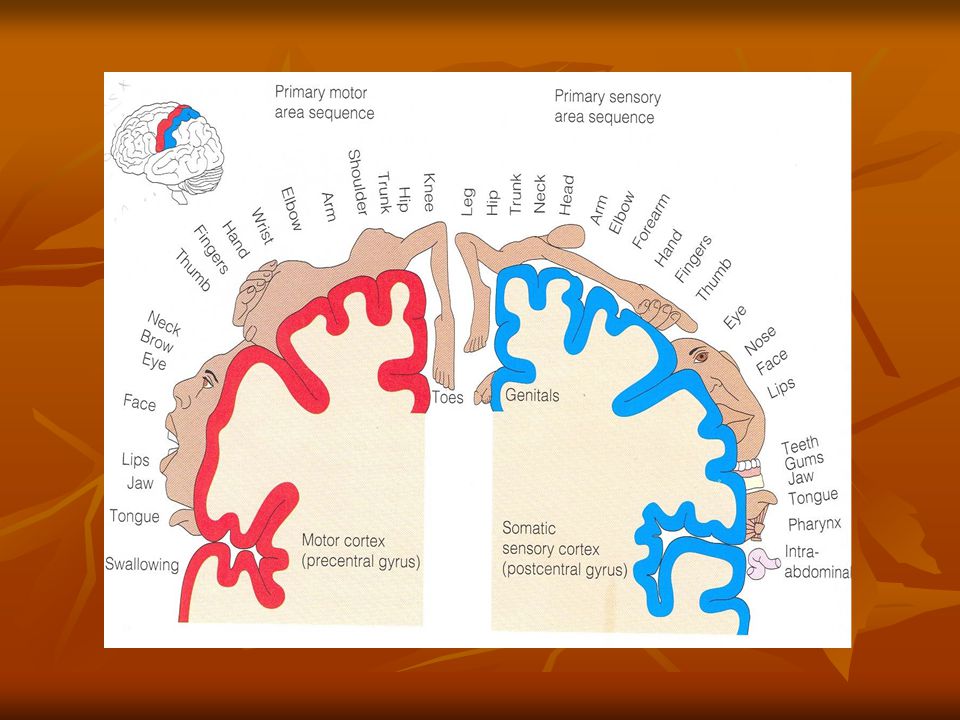

11 The cerebral hemispheres are separated by a single deep fissure the longitudinal fissure The cerebral hemispheres are separated by a single deep fissure the longitudinal fissure Other fissures divide each cerebral hemispheres into number of lobes Other fissures divide each cerebral hemispheres into number of lobes Somatic sensory area is located in the parietal lobe posterior to the central sulcus Somatic sensory area is located in the parietal lobe posterior to the central sulcus The body represented upside-down manner The body represented upside-down manner The visual area is located in the in the posterior part of the occipital lobe The visual area is located in the in the posterior part of the occipital lobe

12

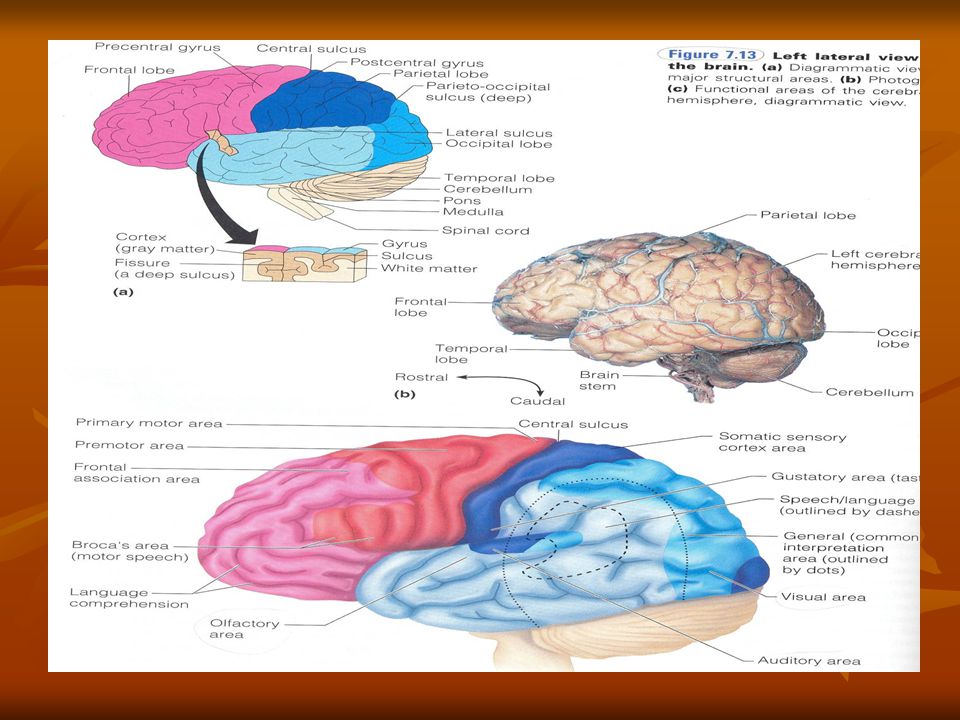

13 The auditory is located in the temporal lobe The auditory is located in the temporal lobe The olfactory area is found deep inside the temporal lobe The olfactory area is found deep inside the temporal lobe The primary motor area is anterior to the central sulcus in the frontal lobe. The primary motor area is anterior to the central sulcus in the frontal lobe. Broca ’ s area is found at the base of the precentral gyrus Broca ’ s area is found at the base of the precentral gyrus Speech area is located at the junction of the temporal, parietal, and occipital lobes. Speech area is located at the junction of the temporal, parietal, and occipital lobes.

14

15 The cell bodies of neurons are found only in the outermost gray matter of cerebrum,the cerebral cortex The cell bodies of neurons are found only in the outermost gray matter of cerebrum,the cerebral cortex The deeper cerebral white matter is composed of fiber tracts carrying impulses to or from the cortex. The deeper cerebral white matter is composed of fiber tracts carrying impulses to or from the cortex.

16

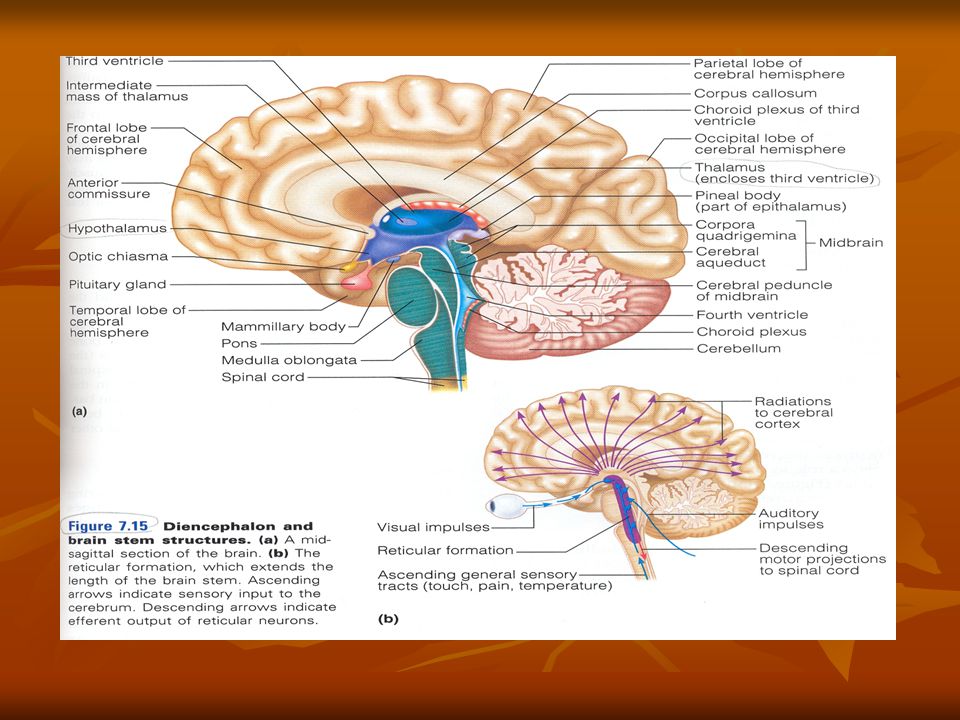

17 Diencephalon The major structures of diencephalon are the thalamus, hypothalamus and epithlamus The major structures of diencephalon are the thalamus, hypothalamus and epithlamus

18

19 The thalamus It encloses the shallow third ventricle of the brain It encloses the shallow third ventricle of the brain It is a relay station for sensory impulses. It is a relay station for sensory impulses.

20

21 The hypothalamus It makes the floor of the diencephalon It makes the floor of the diencephalon It is an important autonomic nervous system centre (body temperature, water balance, and metabolism) It is an important autonomic nervous system centre (body temperature, water balance, and metabolism) The hypothalamus regulates the pituitary gland The hypothalamus regulates the pituitary gland

22

23 epithalamus It forms the roof of the third ventricle It forms the roof of the third ventricle The choroid plexus, form the cerebrospinal fluid. The choroid plexus, form the cerebrospinal fluid.

24

25 Brain stem Midbrain,pons,and medulla oblongata Midbrain,pons,and medulla oblongata

26

27 cerebellum. It has two hemispheres and a convoluted surface. Precise timing for skeletal muscle activity..

28 Protection of the central nervous system Bone (skull and vertebral column) Bone (skull and vertebral column) Membranes (meninges) Membranes (meninges) Watery cushion (CSF) Watery cushion (CSF) Blood brain barrier Blood brain barrier

29

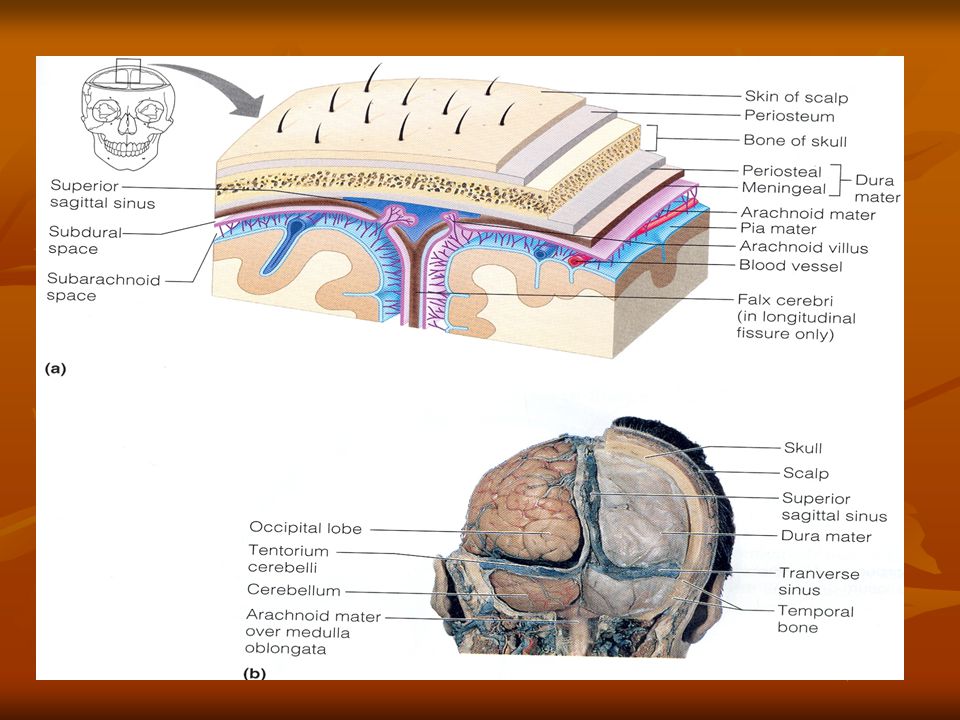

30 meninges Dura mater … double-layered membrane Dura mater … double-layered membrane periosteal layer periosteal layer meningeal layer meningeal layer Dural sinuses ….collect venous blood Dural sinuses ….collect venous blood Falx cerebri Falx cerebri Tentorium cerebelli Tentorium cerebelli

31

32 Arachnoid mater Arachnoid mater Pia mater..delicate pia mater Pia mater..delicate pia mater The subarachnoid space … C.S.F The subarachnoid space … C.S.F Arachnoid villi Arachnoid villi

33

34 C.S.F Watery similar in it ’ s makeup to blood plasma, from which it forms. Watery similar in it ’ s makeup to blood plasma, from which it forms.

35

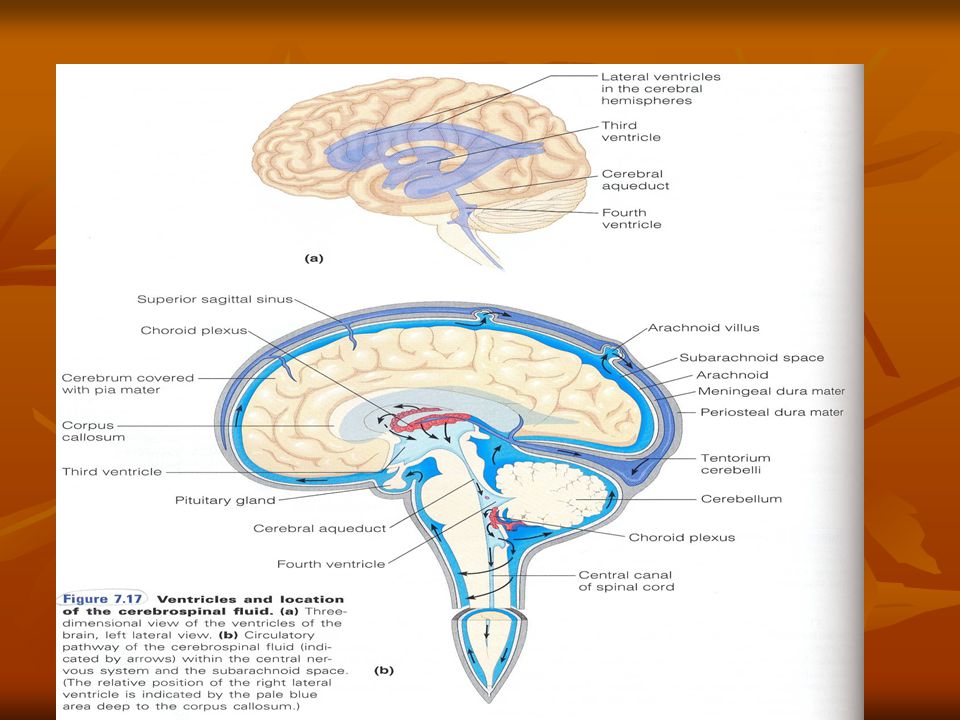

36 Is formed from blood by the choroid plexuses that found in the lateral and third ventricles Is formed from blood by the choroid plexuses that found in the lateral and third ventricles then to the subarachnoid space through the three opening in the wall of the fourth ventricles

37

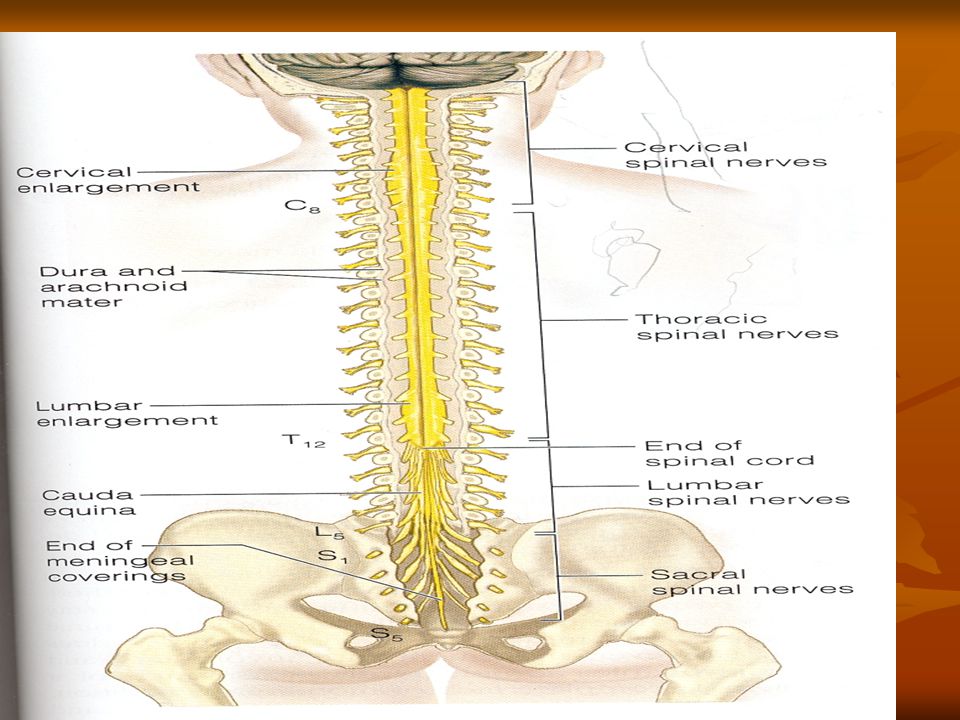

38 Spinal cord It extends from the foramen magnum of the skull to the 1 st and 2 nd lumbar vertebra It extends from the foramen magnum of the skull to the 1 st and 2 nd lumbar vertebra The spinal is protected by meninges which is extend well beyond the end of spinal cord. The spinal is protected by meninges which is extend well beyond the end of spinal cord. 31pairs of spinal nerves 31pairs of spinal nerves Cauda equina Cauda equina Cervical and lumbar enlargement Cervical and lumbar enlargement

39

40 Gray mater of the spinal cord Butterfly – H Butterfly – H Posterior or dorsal horn Posterior or dorsal horn anterior or ventral horn and lateral horn Gray mater surrounds the central canal Gray mater surrounds the central canal Dorsal root, dorsal root ganglion, ventral root Dorsal root, dorsal root ganglion, ventral root

41

42 White mater of the spinal cord Posterior column (ascending). lateral, and anterior columns (ascending and descending). Posterior column (ascending). lateral, and anterior columns (ascending and descending).

43
