Electrical Test Equipment Copyright © Texas Education Agency, All rights reserved.
2 LEARNING OBJECTIVES Voltmeter use How to measure voltage Ammeter use How to measure current Ohmmeter use How to measure resistance Use of Ohm's Law Copyright © Texas Education Agency, All rights reserved.
3 Voltage Testing Devices Voltage testers are used to measure or check the presents of voltage in an electrical circuit Wiggy Voltmeter Neon Light Copyright © Texas Education Agency, All rights reserved.

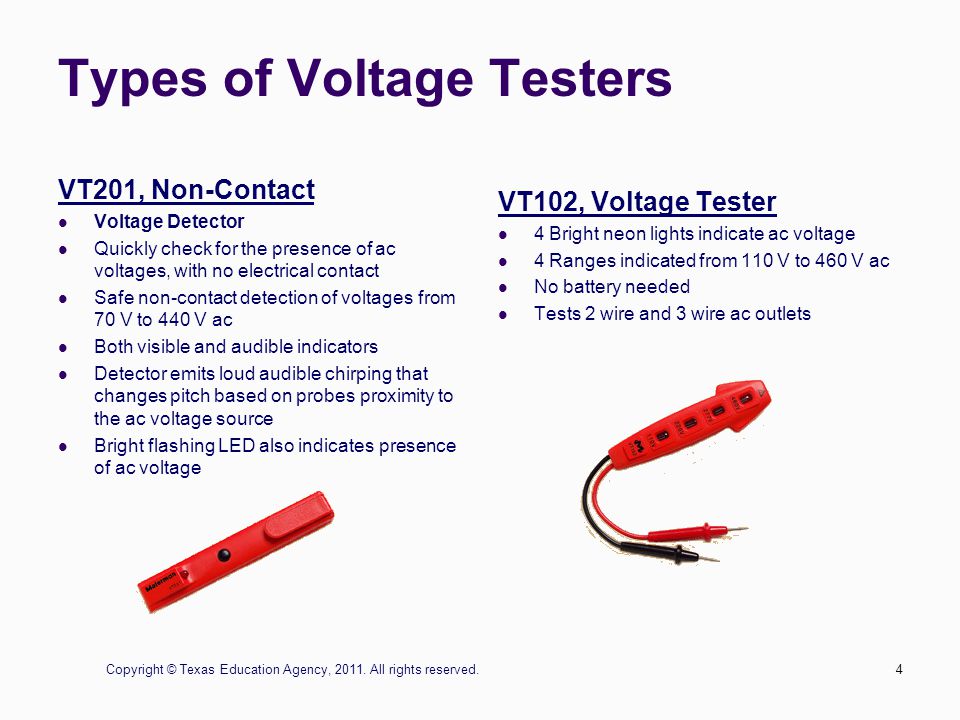

4 Types of Voltage Testers VT201, Non-Contact Voltage Detector Quickly check for the presence of ac voltages, with no electrical contact Safe non-contact detection of voltages from 70 V to 440 V ac Both visible and audible indicators Detector emits loud audible chirping that changes pitch based on probes proximity to the ac voltage source Bright flashing LED also indicates presence of ac voltage VT102, Voltage Tester 4 Bright neon lights indicate ac voltage 4 Ranges indicated from 110 V to 460 V ac No battery needed Tests 2 wire and 3 wire ac outlets Copyright © Texas Education Agency, All rights reserved.

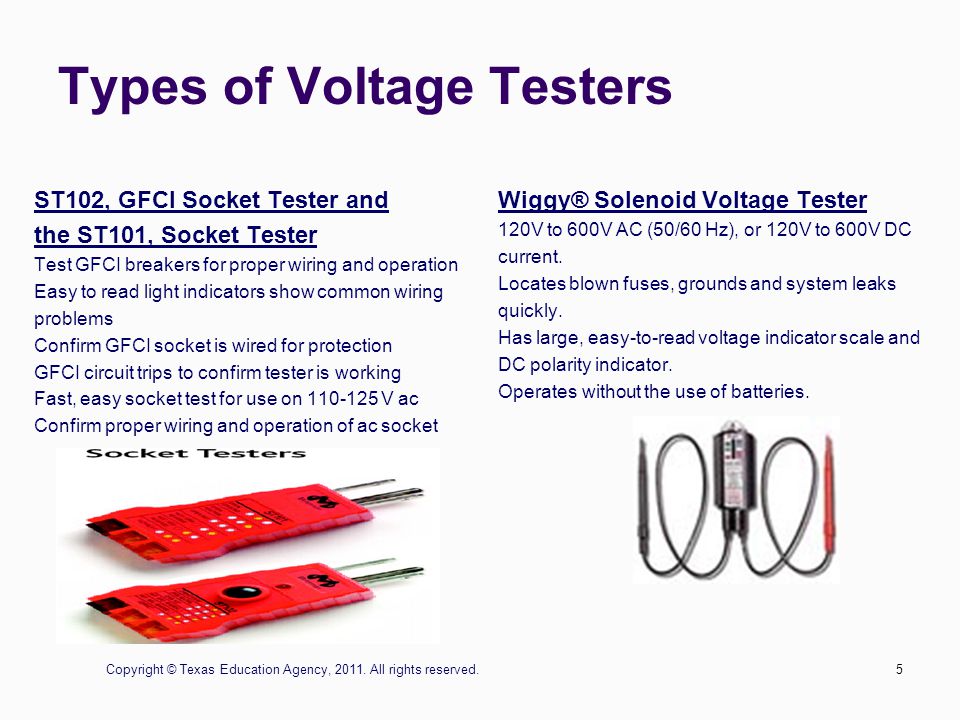

5 Types of Voltage Testers ST102, GFCI Socket Tester and the ST101, Socket Tester Test GFCI breakers for proper wiring and operation Easy to read light indicators show common wiring problems Confirm GFCI socket is wired for protection GFCI circuit trips to confirm tester is working Fast, easy socket test for use on V ac Confirm proper wiring and operation of ac socket Wiggy® Solenoid Voltage Tester 120V to 600V AC (50/60 Hz), or 120V to 600V DC current. Locates blown fuses, grounds and system leaks quickly. Has large, easy-to-read voltage indicator scale and DC polarity indicator. Operates without the use of batteries. Copyright © Texas Education Agency, All rights reserved.
6 Using a Voltage Tester The simplest and least expensive tester is the neon 2-wire volt tester. Put one of the leads on a ground reference (box screws, neutral side of a plug, neutral or white wire, etc.) and the other lead on the hot wire (hot side of a plug, black or red wire, etc.) (see figures #1 and #2). Figure 1: Neon 2-Wire Volt Tester Figure 2. If the neon light glows, then you have voltage at the outlet, as is the case here. Copyright © Texas Education Agency, All rights reserved.
7 Using a Voltage Tester Another handy device to have around is the "plug tester". Just plug this device into a receptacle, and it will not only tell you if there is voltage present, but also if it is wired correctly. Just follow the codes on the tester to determine the situation. Figure 3: Plug Tester Figure 4. Copyright © Texas Education Agency, All rights reserved.
8 Using a Voltage Tester The type of meter that most electricians will use is the digital multi-meter. These come in various brand names, price ranges and quality, and the old adage, "you get what you pay for" is the best advice to follow here. Figure 5: Digital Multi-Meter (Testing from hot wire to box ground ) Figure 6: (Testing from neutral to box ground. Notice the accuracy of only.077 volts AC) *Note: The multi-meter will be discuss in detail later on in the presentation Copyright © Texas Education Agency, All rights reserved.

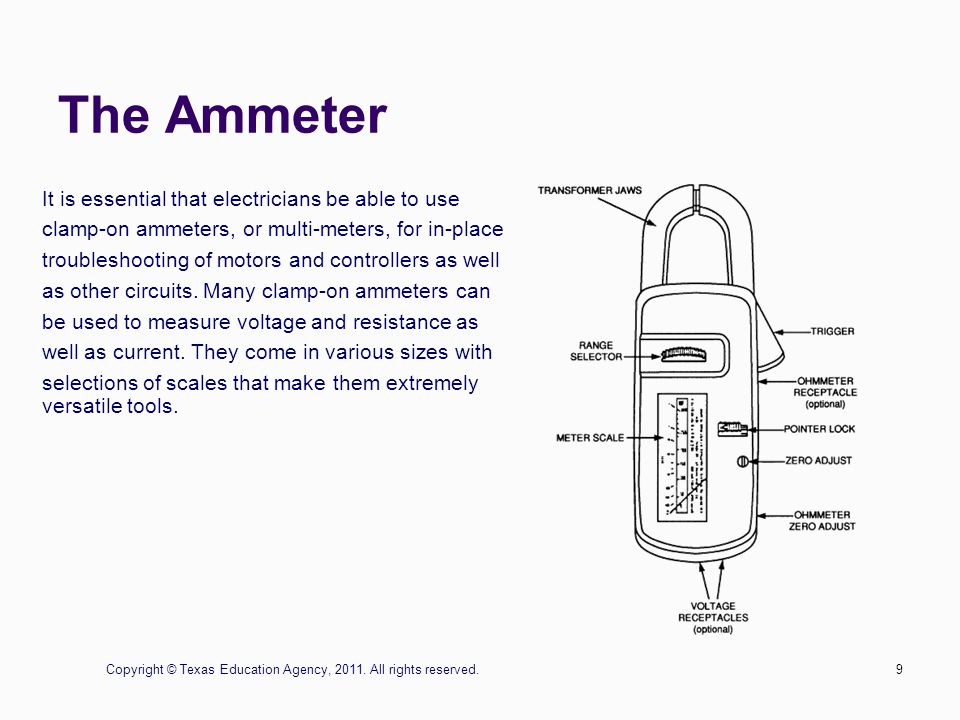

9 The Ammeter It is essential that electricians be able to use clamp-on ammeters, or multi-meters, for in-place troubleshooting of motors and controllers as well as other circuits. Many clamp-on ammeters can be used to measure voltage and resistance as well as current. They come in various sizes with selections of scales that make them extremely versatile tools. Copyright © Texas Education Agency, All rights reserved.

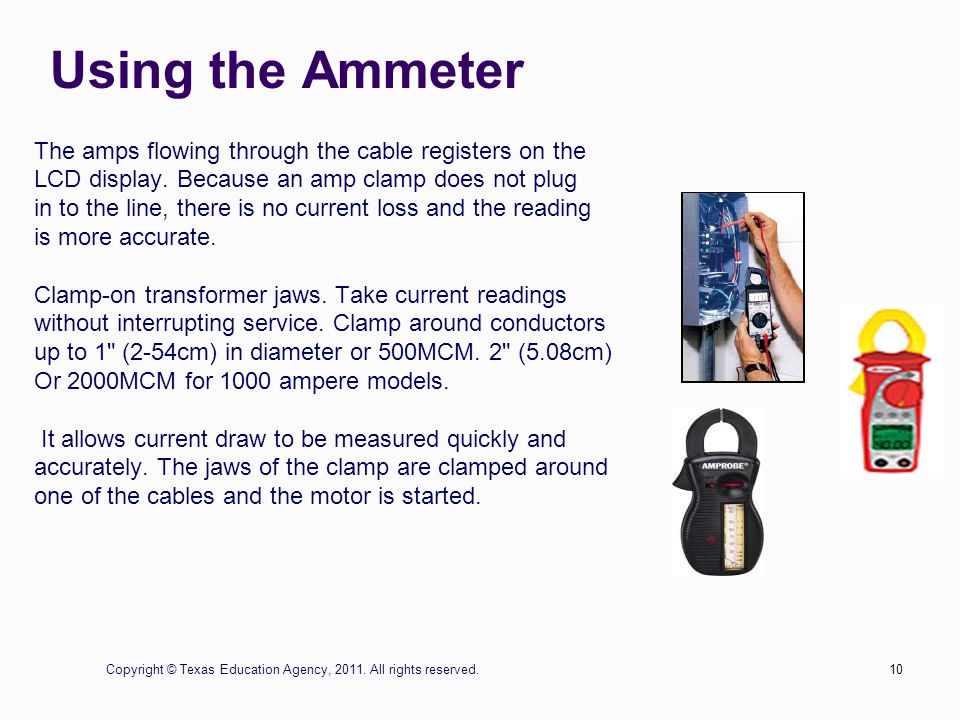

10 Using the Ammeter The amps flowing through the cable registers on the LCD display. Because an amp clamp does not plug in to the line, there is no current loss and the reading is more accurate. Clamp-on transformer jaws. Take current readings without interrupting service. Clamp around conductors up to 1" (2-54cm) in diameter or 500MCM. 2" (5.08cm) Or 2000MCM for 1000 ampere models. It allows current draw to be measured quickly and accurately. The jaws of the clamp are clamped around one of the cables and the motor is started. Copyright © Texas Education Agency, All rights reserved.

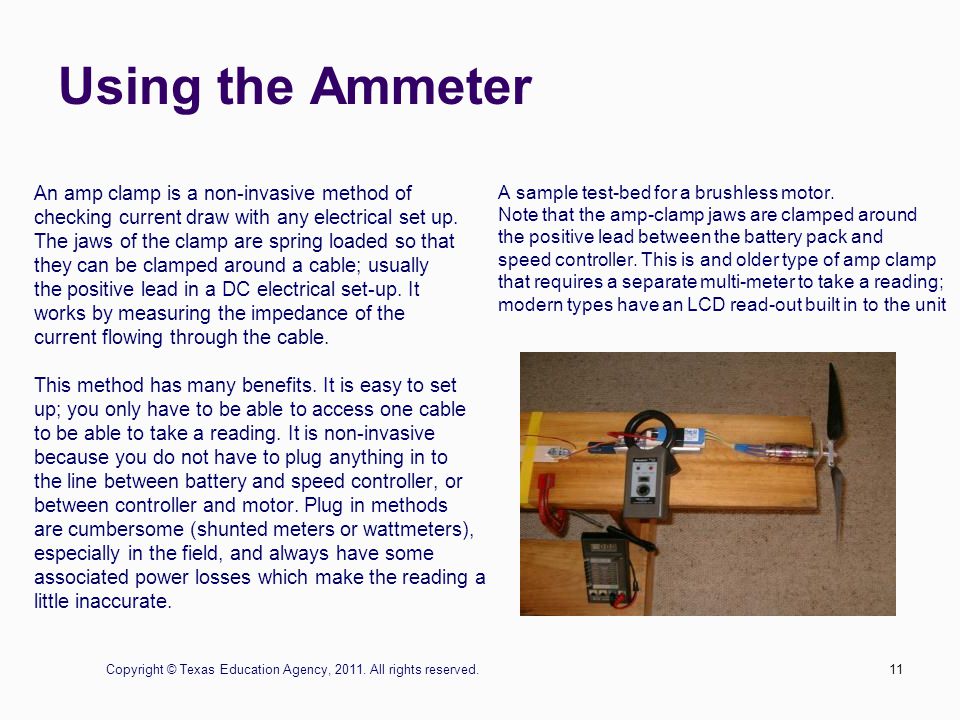

11 Using the Ammeter An amp clamp is a non-invasive method of checking current draw with any electrical set up. The jaws of the clamp are spring loaded so that they can be clamped around a cable; usually the positive lead in a DC electrical set-up. It works by measuring the impedance of the current flowing through the cable. This method has many benefits. It is easy to set up; you only have to be able to access one cable to be able to take a reading. It is non-invasive because you do not have to plug anything in to the line between battery and speed controller, or between controller and motor. Plug in methods are cumbersome (shunted meters or wattmeters), especially in the field, and always have some associated power losses which make the reading a little inaccurate. A sample test-bed for a brushless motor. Note that the amp-clamp jaws are clamped around the positive lead between the battery pack and speed controller. This is and older type of amp clamp that requires a separate multi-meter to take a reading; modern types have an LCD read-out built in to the unit Copyright © Texas Education Agency, All rights reserved.
12 Testing Electrical Circuits with the Multi- meter A multimeter is an electrical instrument capable of measuring voltage, current, and resistance. Digital multimeters have numerical displays, like digital clocks, for indicating the quantity of voltage, current, or resistance. Analog multimeters indicate these quantities by means of a moving pointer over a printed scale. Analog multimeters tend to be less expensive than digital multimeters, and more beneficial as learning tools for the first time student of electricity. Connect the black lead to the common (-) hole. This may well already be done, depending on the type of meter you use. Connect the red lead to the volts (+) hole. Be careful, if this lead Is placed in the wrong hole (ohm or amp) it can cause permanent damage to the meter. This may well already be done, depending on the type of meter you use. Turn the selector switch to AC volts (usually red). If there are Multiple selections, use the highest setting possible (if power unknown) or go one level higher than the estimated power. Some digital meters have "Auto-range" and don't require any selection apart from AC volts. Copyright © Texas Education Agency, All rights reserved.
13 Measuring Current in a Circuit Current is the measure of the rate of electron "flow" in a circuit. It is measured in the unit of the Ampere, simply called "Amp," (A). The most common way to measure current in a circuit is to break the circuit open and insert an "ammeter" in series (in-line) with the circuit so that all electrons flowing through the circuit also have to go through the meter. Because measuring current in this manner requires the meter be made part of the circuit, it is a more difficult type of measurement to make than either voltage or resistance. Some digital meters, like the unit shown in the illustration, have a separate jack to insert the red test lead plug when measuring current. Other meters, like most inexpensive analog meters, use the same jacks for measuring voltage, resistance, and current. Consult your owner's manual on the particular model of meter you own for details on measuring current. When an ammeter is placed in series with a circuit, it ideally drops no voltage as current goes through it. In other words, it acts very much like a piece of wire, with very little resistance from one test probe to the other. Consequently, an ammeter will act as a short circuit if placed in parallel (across the terminals of) a substantial source of voltage. If this is done, a surge in current will result, potentially damaging the meter: Copyright © Texas Education Agency, All rights reserved.
14 Measuring Resistance in a Circuit Resistance is the measure of electrical "friction" as electrons move through a conductor. It is measured in the unit of the "Ohm," that unit symbolized by the capital Greek letter omega (Ω). Set your multimeter to the highest resistance range available. The resistance function is usually denoted by the unit symbol for resistance: the Greek letter omega (Ω), or sometimes by the word "ohms." Touch the two test probes of your meter together. When you do, the meter should register 0 ohms of resistance. If you are using an analog meter, you will notice the needle deflect full-scale when the probes are touched together, and return to its resting position when the probes are pulled apart. The resistance scale on an analog multimeter is reverse-printed from the other scales: zero resistance in indicated at the far right-hand side of the scale, and infinite resistance is indicated at the far left-hand side. There should also be a small adjustment knob or "wheel" on the analog multimeter to calibrate it for "zero" ohms of resistance. Touch the test probes together and move this adjustment until the needle exactly points to zero at the right- hand end of the scale. Digital multimeters set to the "resistance" mode indicate non-continuity by displaying some non-numerical indication on the display. Some models say "OL" (Open-Loop), while others display dashed lines. If you are using a digital multimeter, you should see a numerical figure close to 10 shown on the display, with a small "k" symbol on the right-hand side denoting the metric prefix for "kilo" (thousand). Some digital meters are manually-ranged, and require appropriate range selection just as the analog meter. If yours is like this, experiment with different range switch positions and see which one gives you the best indication Copyright © Texas Education Agency, All rights reserved.

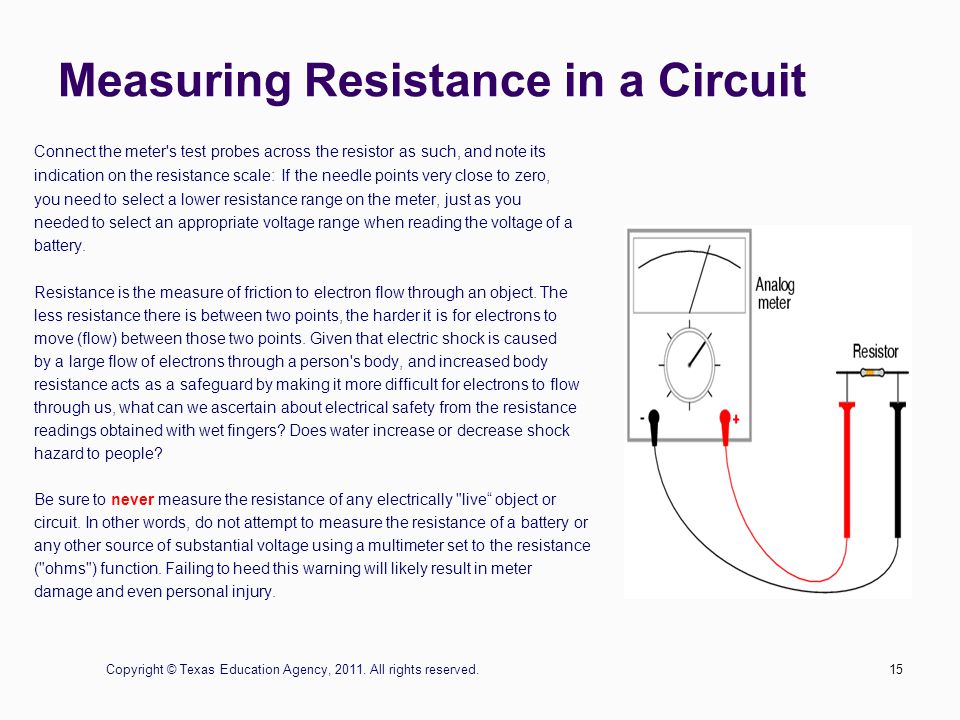

15 Measuring Resistance in a Circuit Connect the meter's test probes across the resistor as such, and note its indication on the resistance scale: If the needle points very close to zero, you need to select a lower resistance range on the meter, just as you needed to select an appropriate voltage range when reading the voltage of a battery. Resistance is the measure of friction to electron flow through an object. The less resistance there is between two points, the harder it is for electrons to move (flow) between those two points. Given that electric shock is caused by a large flow of electrons through a person's body, and increased body resistance acts as a safeguard by making it more difficult for electrons to flow through us, what can we ascertain about electrical safety from the resistance readings obtained with wet fingers? Does water increase or decrease shock hazard to people? Be sure to never measure the resistance of any electrically "live“ object or circuit. In other words, do not attempt to measure the resistance of a battery or any other source of substantial voltage using a multimeter set to the resistance ("ohms") function. Failing to heed this warning will likely result in meter damage and even personal injury. Copyright © Texas Education Agency, All rights reserved.
16 Using Ohm’s Law Take and the measure the voltage and resistance ofa circuit, use the Ohm's Law equation to calculate circuit current. Compare this calculated figure with the measured figure for circuit current: Taking the measured figures for voltage and current, use the Ohm's Law equation to calculate circuit resistance. Compare this calculated figure with the measured figure for circuit resistance: Taking the measured figures for resistance and current, use the Ohm's Law equation to calculate circuit voltage. Compare this calculated figure with the measured figure for circuit voltage: Copyright © Texas Education Agency, All rights reserved.
17 Summary Working with live electrical current can be very hazardous. Testing voltage output requires working with electrical current. Do not attempt this measurement without the proper tools and safeguards. It is essential that electricians be able to use clamp-on ammeters, or multi- meters, for in-place troubleshooting of motors and controllers as well as other circuits. Always test your test equipment for proper operation before use. A multimeter is an electrical instrument capable of measuring voltage, current, and resistance. There are two types of multimeters, the digital and the analog meters. Digital multimeters have numerical displays, like digital clocks, for indicating the quantity of voltage, current, or resistance. Analog multimeters indicate these quantities by means of a moving pointer over a printed scale. Ammeters are use to check current in a circuit. An amp clamp is a non-invasive method of checking current draw with any electrical set up. Copyright © Texas Education Agency, All rights reserved.
