3 zones of Upward motion: ITCZ polar fronts and windward side of a mountain air rises, cools, and may condense.

Similar presentations


Presentation on theme: "3 zones of Upward motion: ITCZ polar fronts and windward side of a mountain air rises, cools, and may condense."— Presentation transcript:

1 3 zones of Upward motion: ITCZ polar fronts and windward side of a mountain air rises, cools, and may condense

2 4 zones of Downward motion: poles 30ºN and S and leeward side of a mountain warms, so lower RH and dry conditions

3

4 Winds blow because of differences in atmospheric pressure.

5 Wind DIRECTION depends on: PRESSURE GRADIENT FORCE and CORIOLIS EFFECT force derived from the difference in the pressure winds “want” to blow from high pressure to low pressure the steeper the pressure gradient, the stronger the wind isobars (lines of equal barometric pressure) close together acts to deflect the wind greatest at the poles stronger wind, greater effect

6 FROM. Winds are named by where they are FROM. A NORTH wind in Jacksonville is likely to be a COLD wind. A SOUTH wind is likely to be a WARM wind.

7 Coriolis Effect deflects winds to the right in the northern hemisphere HighLow N NW SW NE SE

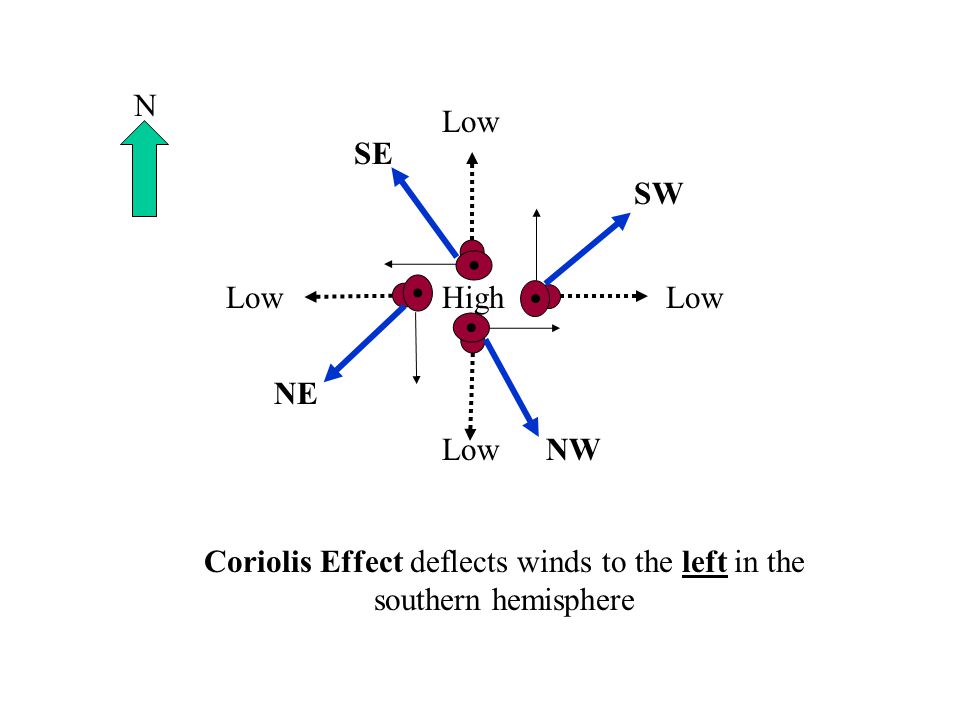

8 Coriolis Effect deflects winds to the left in the southern hemisphere HighLow N NW SW NE SE

9 Wind speed depends on: pressure gradient force greater the difference in pressure, the stronger the wind friction friction occurs from interference with the earth’s surface friction acts to slow down the wind

10 GEOSTROPHIC WINDS high altitude winds have little effect from friction geostrophic winds blow parallel to the isobars H L JET STREAM center of fast moving winds in the upper troposphere center of the geostrophic winds

11 Northern Hemisphere Southern Hemisphere surface windssurface winds geostrophic windsgeostrophic winds H cw, out L ccw, in H cw L ccw coriolis deflects to the right coriolis deflects to the left H ccw, out L cw, in H ccw L cw

12 HIGH PRESSURE anti-cyclone LOW PRESSURE cyclone

13 other winds foehn or chinook --those warm, dry winds that blow down the leeward sides of mountains katabatic winds --cold winds that sink down off of a mountain because the cold air is very dense and heavy

14 MONSOONS seasonal shift in the prevailing wind directions noted for bringing seasonal precipitation January H July L

15 Valley Breeze warms during the day, the valley air warms, becomes less dense, and rises

16 Mountain Breeze cools at night, the top of the mountain cools faster because of the thinner air, and the colder, denser air sinks down the mountain

17 along a coastline waterland HOT COLD SEA BREEZE H L During the day, the land heats faster than the water, the warm air rises, and low pressure develops. The air over the water becomes cold and heavy, sinking, creating high pressure. Air moves from highs toward lows, so a SEA BREEZE develops coming from the water.

18 waterlandHOTCOLD H L LAND BREEZE At night, the land cools faster than the water, the cold air sinks, and high pressure develops. The air over the water becomes warm and light, rising, creating low pressure. Air moves from highs toward lows, so a LAND BREEZE develops coming from the land.
