2 Metro Parking Systems Parking Guidance System :  This system is meant for guiding the commuter toward an available parking slot.  Displays the number of available and occupied space in a multi-level parking location. Parking Management system :  This system is only meant for revenue collect  It may or may not display number of available slots

3 Ticket issuance automatically or manually Barrier gate is opened after ticket issuance Entry information is printed Intercom and call button for customer support LCD display Entry Station

4 Type of Fee Collection Modules in Parking System Two types of Fee Collection Booth Pay In Pay Out  Customer pays before entering.  Cashier collects money at Entry lane.  Customer will be given a receipt with barcode  Customer pays before leaving  Cashier collects the money at Exit lane  Customer returns ticker to cashier for scanning  Barrier opens

5 Type of Fee Payments  Cash  Smart Cards  RFID Tags

6 Entry & Exit Lane On Entry Lane (Manual) Ticket are issued at entry lane or Smart Card is swiped. Barrier Gate is opened after ticket is issued or after validating the pass. Entry information is printed on the ticket. Intercom for customer support LCD display or UFD display for Fare Display Vehicle image is captured.

7 System Architecture of Parking Management System

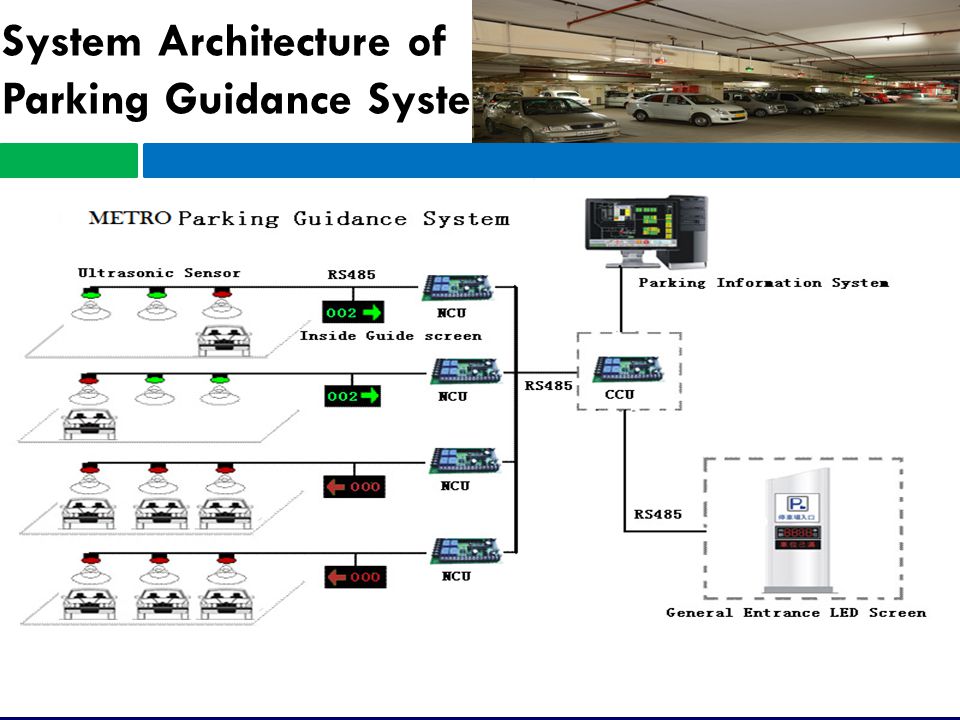

8 System Architecture of Parking Guidance System

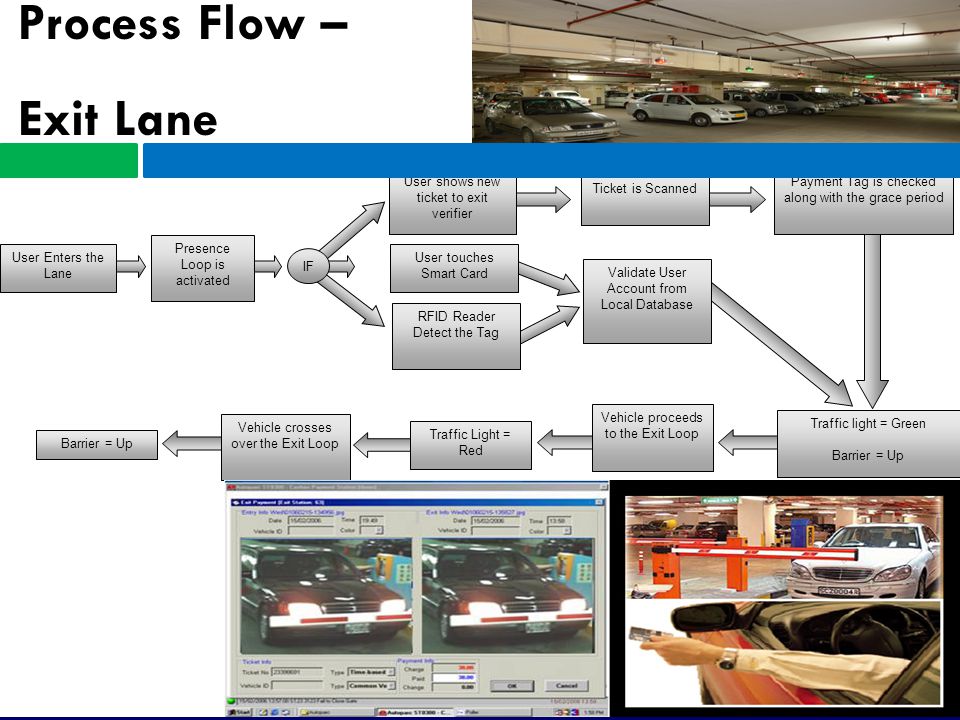

9 Process Flow – Exit Lane User Enters the Lane Presence Loop is activated IF User shows new ticket to exit verifier User touches Smart Card RFID Reader Detect the Tag Ticket is Scanned Payment Tag is checked along with the grace period Validate User Account from Local Database Traffic light = Green Barrier = Up Vehicle proceeds to the Exit Loop Traffic Light = Red Vehicle crosses over the Exit Loop Barrier = Up

10 Software General State of Parking

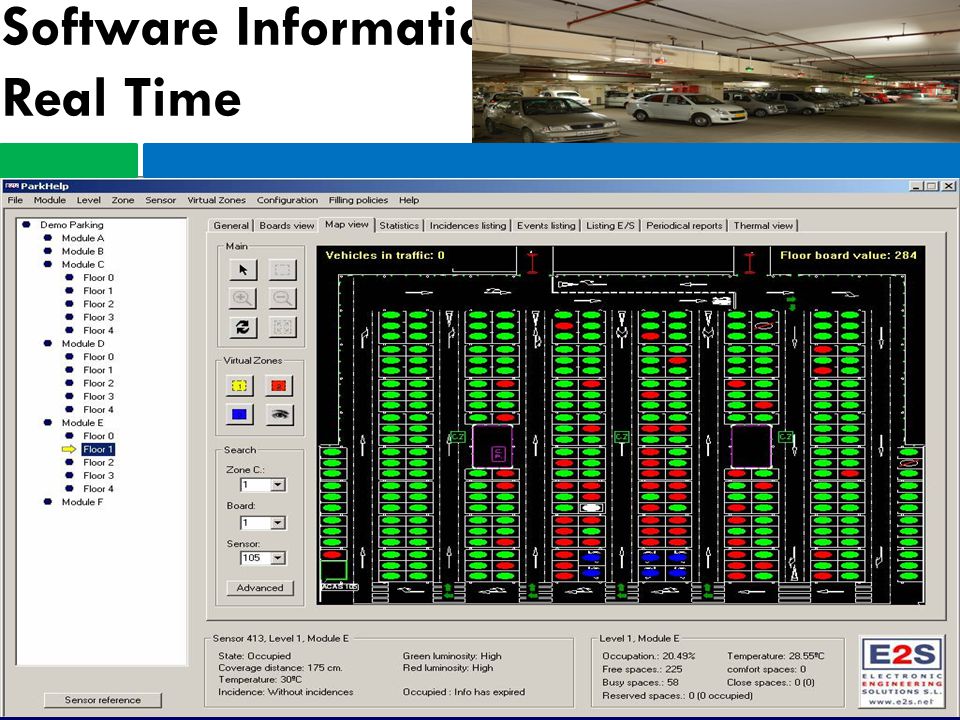

11 Software Information in Real Time

12  New Delhi Municipal Corporation(Where Home Ministry is situated), Automatic Parking Guidance System & Management. Parking for 800 vehicles. 14 Lanes 7500 vehicles  Unitech of Parking Management Systems & Fee Collection Systems for 14 Lanes at Amusement Park, Rohini, New Delhi. Parking has the capacity of handling 7500 vehicles at a time. Metro Parking Project References  Oberoi Hotel & Resort Parking Management Systems for Govt. Car Park & main hotel building for 4 Lanes at Bandra Kurla Complex, Mumbai. Contains 3 level of parking floor for 1500 vehicles.  VSK - Lal Quila parking Guidance and Management System. Contains 4 level of Multi Parking which accommodated 1500 Vehicles

13 Mr. Sachin Bhatia Urban & Highway ITS Solutions Mr. Syed Shahwanaz Ali General manager Contact :
