1 China Certification Processes April 10 , 2014 Cucy Zhao ACB Beijing

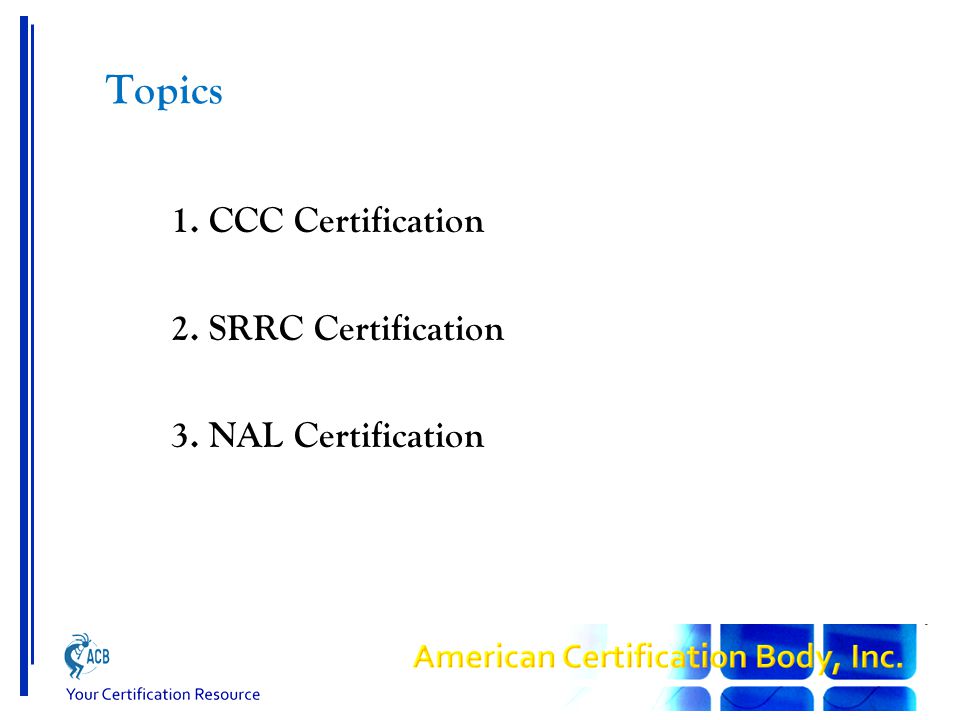

2 Topics 1. CCC Certification 2. SRRC Certification 3. NAL Certification

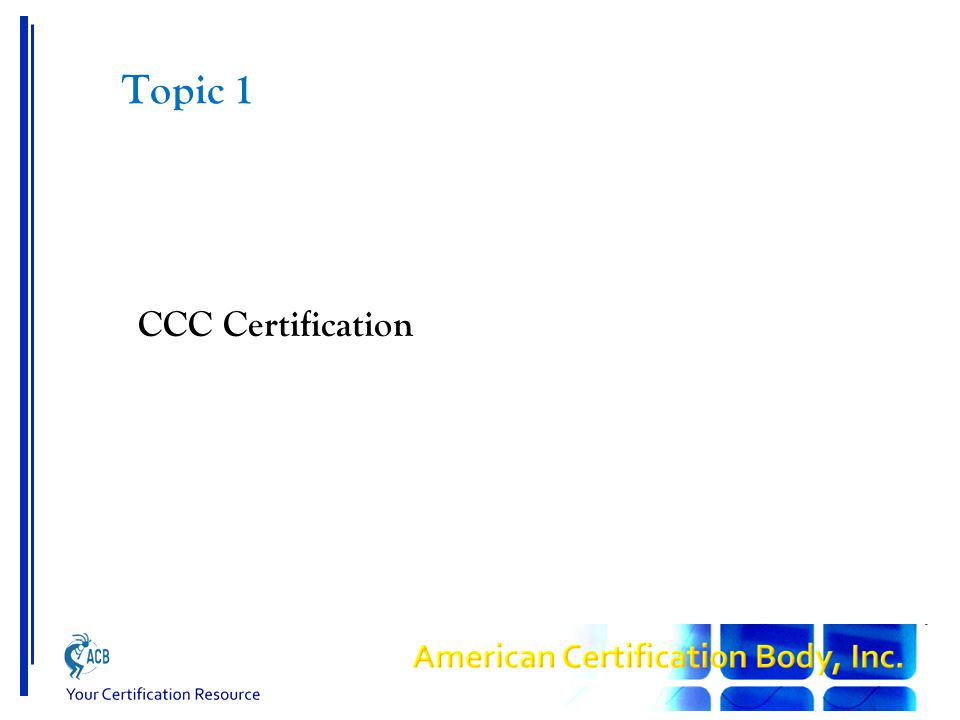

3 Topic 1 CCC Certification

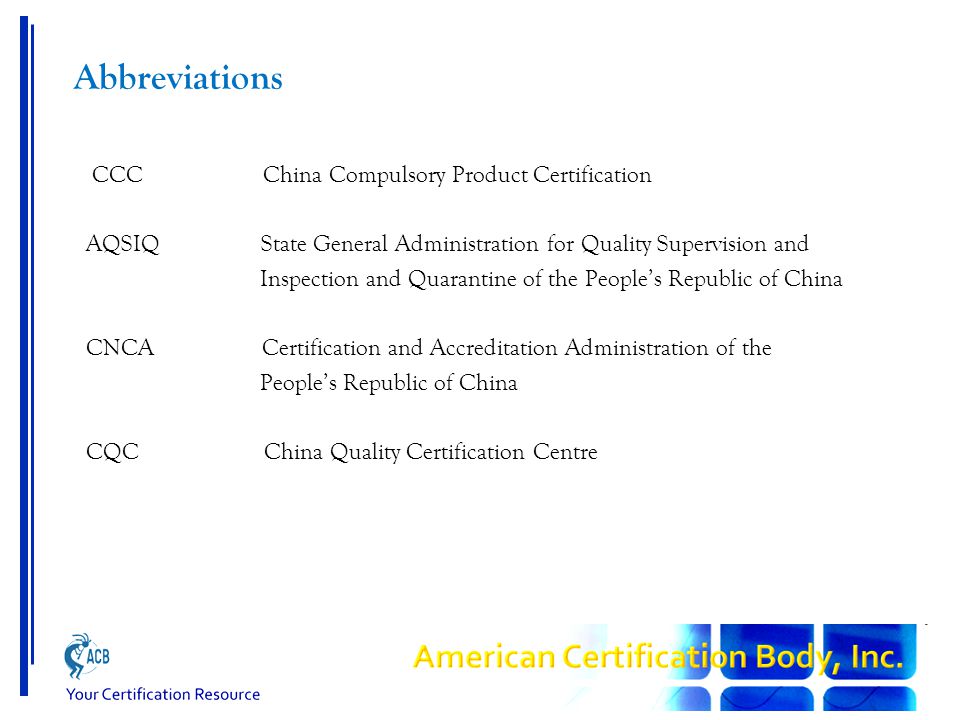

4 Abbreviations CCC China Compulsory Product Certification AQSIQ State General Administration for Quality Supervision and Inspection and Quarantine of the People’s Republic of China CNCA Certification and Accreditation Administration of the People’s Republic of China CQC China Quality Certification Centre

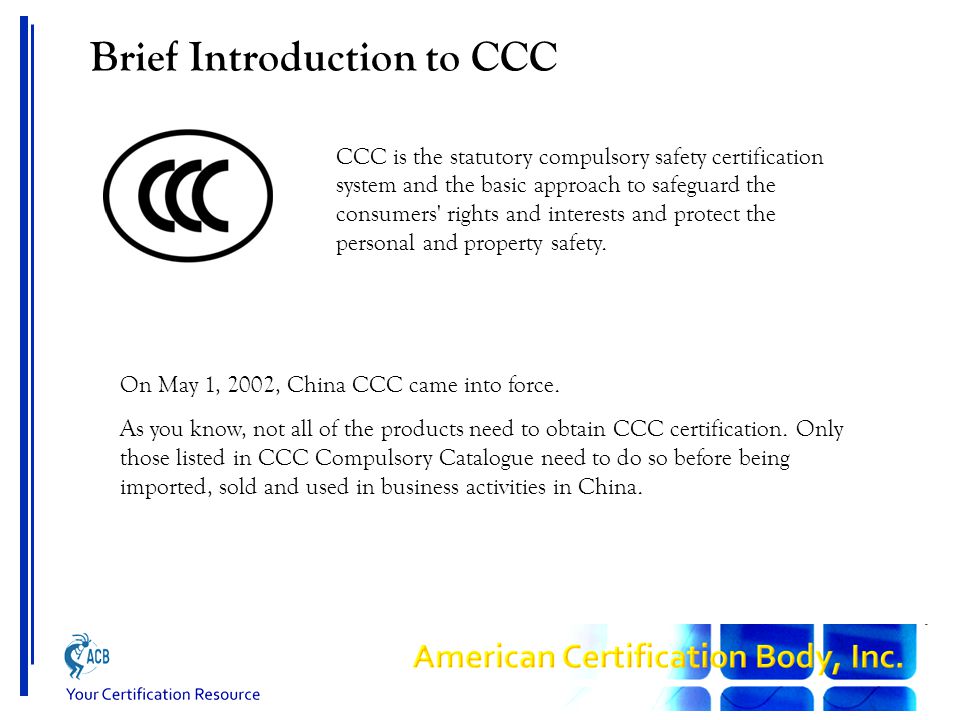

5 Brief Introduction to CCC CCC is the statutory compulsory safety certification system and the basic approach to safeguard the consumers' rights and interests and protect the personal and property safety. On May 1, 2002, China CCC came into force. As you know, not all of the products need to obtain CCC certification. Only those listed in CCC Compulsory Catalogue need to do so before being imported, sold and used in business activities in China.

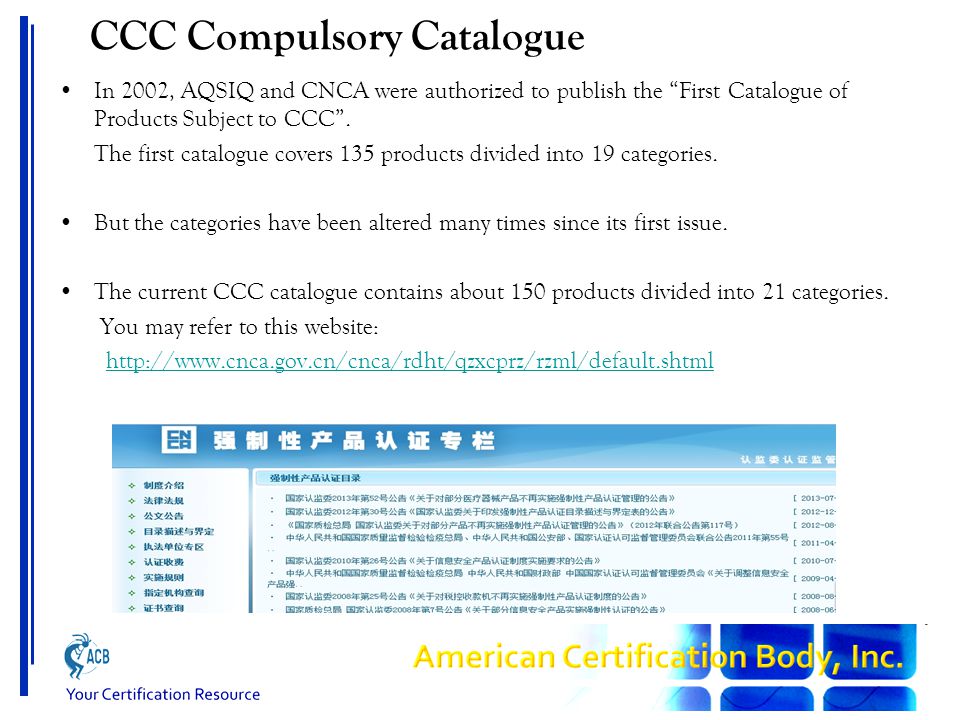

6 CCC Compulsory Catalogue In 2002, AQSIQ and CNCA were authorized to publish the “First Catalogue of Products Subject to CCC”. The first catalogue covers 135 products divided into 19 categories. But the categories have been altered many times since its first issue. The current CCC catalogue contains about 150 products divided into 21 categories. You may refer to this website:

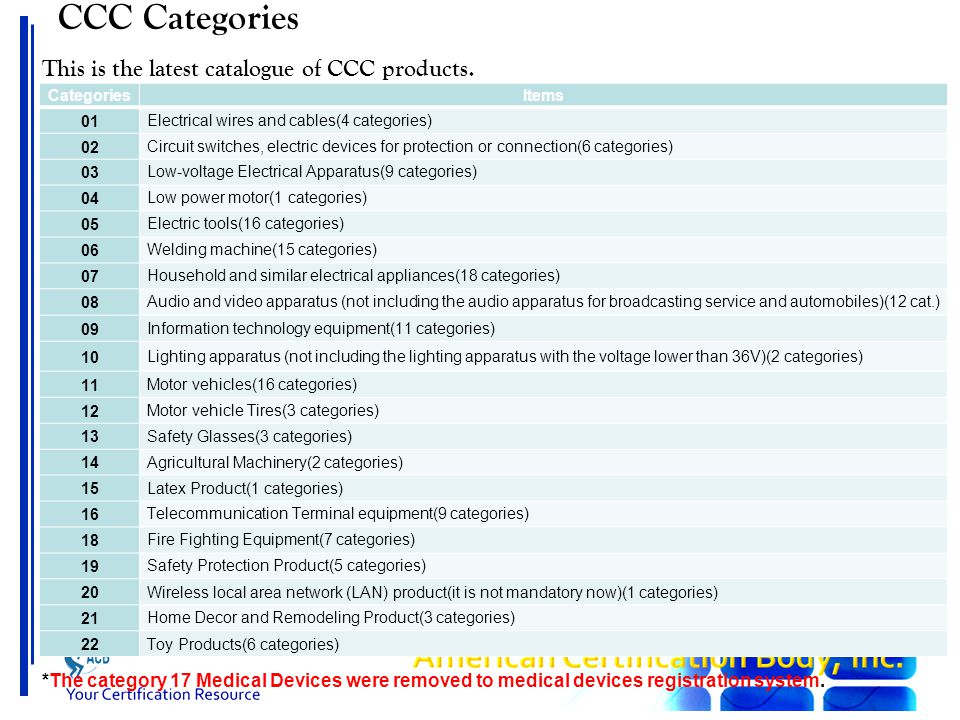

7 CCC Categories CategoriesItems 01Electrical wires and cables(4 categories) 02Circuit switches, electric devices for protection or connection(6 categories) 03Low-voltage Electrical Apparatus(9 categories) 04Low power motor(1 categories) 05Electric tools(16 categories) 06Welding machine(15 categories) 07Household and similar electrical appliances(18 categories) 08Audio and video apparatus (not including the audio apparatus for broadcasting service and automobiles)(12 cat.) 09Information technology equipment(11 categories) 10Lighting apparatus (not including the lighting apparatus with the voltage lower than 36V)(2 categories) 11Motor vehicles(16 categories) 12Motor vehicle Tires(3 categories) 13Safety Glasses(3 categories) 14Agricultural Machinery(2 categories) 15Latex Product(1 categories) 16Telecommunication Terminal equipment(9 categories) 18Fire Fighting Equipment(7 categories) 19Safety Protection Product(5 categories) 20Wireless local area network (LAN) product(it is not mandatory now)(1 categories) 21Home Decor and Remodeling Product(3 categories) 22Toy Products(6 categories) This is the latest catalogue of CCC products. *The category 17 Medical Devices were removed to medical devices registration system.

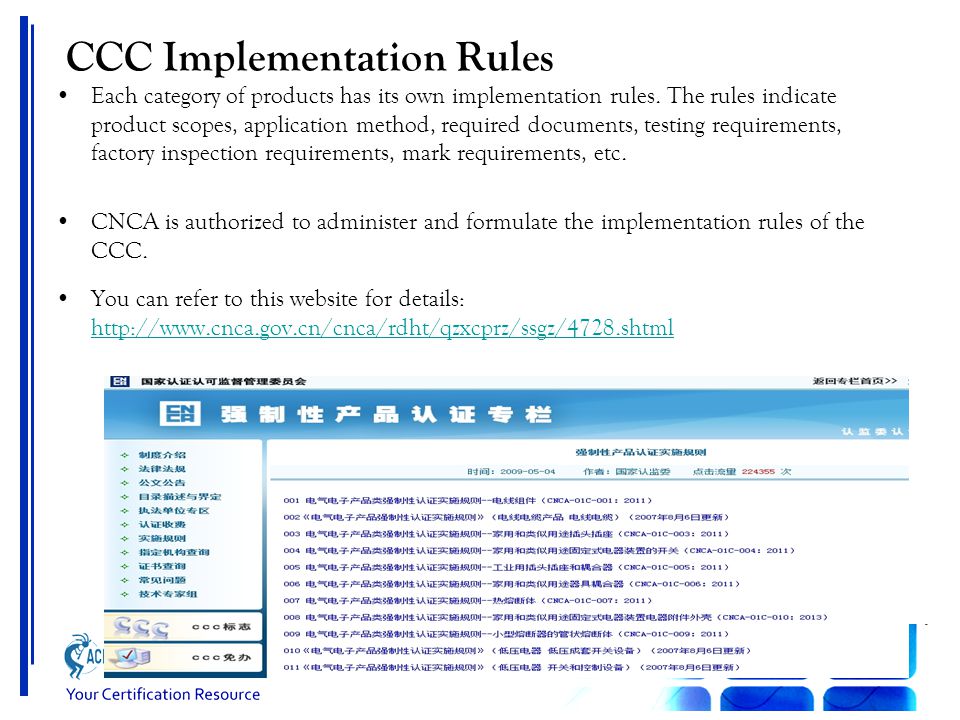

8 CCC Implementation Rules Each category of products has its own implementation rules. The rules indicate product scopes, application method, required documents, testing requirements, factory inspection requirements, mark requirements, etc. CNCA is authorized to administer and formulate the implementation rules of the CCC. You can refer to this website for details:

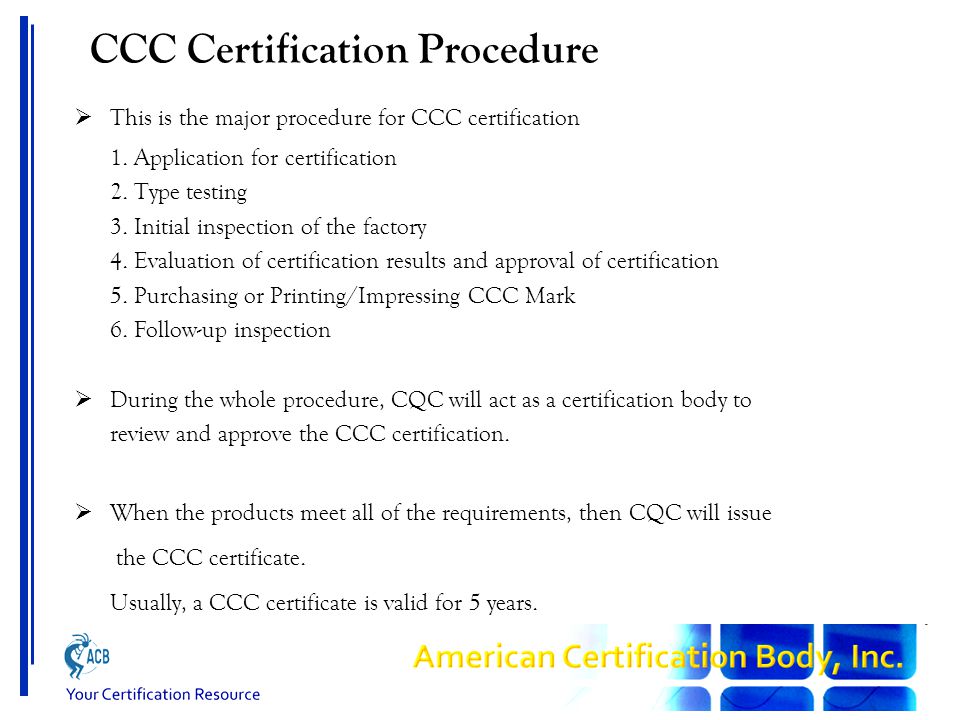

9 CCC Certification Procedure  This is the major procedure for CCC certification 1. Application for certification 2. Type testing 3. Initial inspection of the factory 4. Evaluation of certification results and approval of certification 5. Purchasing or Printing/Impressing CCC Mark 6. Follow-up inspection  During the whole procedure, CQC will act as a certification body to review and approve the CCC certification.  When the products meet all of the requirements, then CQC will issue the CCC certificate. Usually, a CCC certificate is valid for 5 years.

10 CCC Flow Chart Submit the required documents and the samples Perform CCC Test and issue the test report Apply for Initial factory inspection Apply for Initial factory inspection Evaluate and approve the certification Evaluate and approve the certification 1 week 1 month 3 months (for foreigners) 2 weeks Apply for CCC Mark Apply for CCC Mark Follow-up factory inspection every year Follow-up factory inspection every year 1 week 1 month

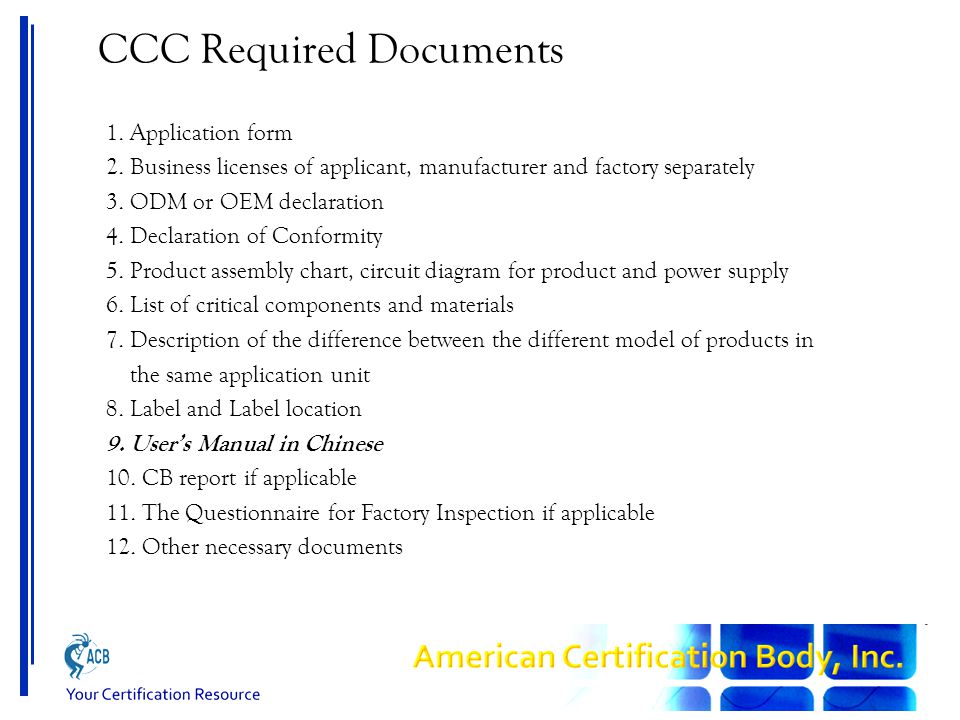

11 CCC Required Documents 1. Application form 2. Business licenses of applicant, manufacturer and factory separately 3. ODM or OEM declaration 4. Declaration of Conformity 5. Product assembly chart, circuit diagram for product and power supply 6. List of critical components and materials 7. Description of the difference between the different model of products in the same application unit 8. Label and Label location 9. User’s Manual in Chinese 10. CB report if applicable 11. The Questionnaire for Factory Inspection if applicable 12. Other necessary documents

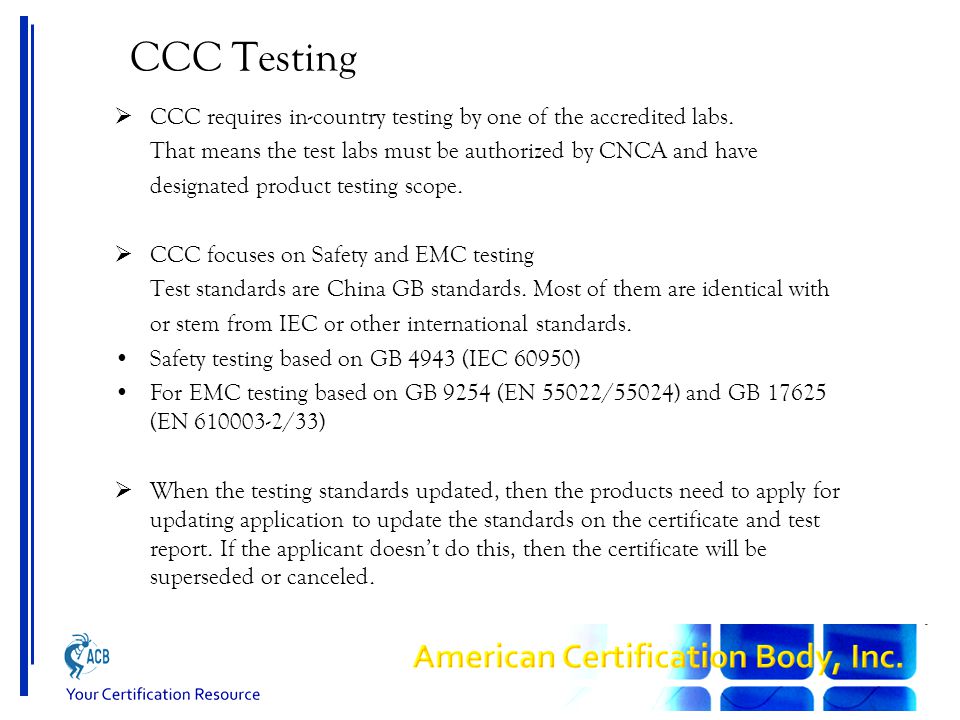

12 CCC Testing  CCC requires in-country testing by one of the accredited labs. That means the test labs must be authorized by CNCA and have designated product testing scope.  CCC focuses on Safety and EMC testing Test standards are China GB standards. Most of them are identical with or stem from IEC or other international standards. Safety testing based on GB 4943 (IEC 60950) For EMC testing based on GB 9254 (EN 55022/55024) and GB (EN /33)  When the testing standards updated, then the products need to apply for updating application to update the standards on the certificate and test report. If the applicant doesn’t do this, then the certificate will be superseded or canceled.

13  Initial Factory Inspection is required when a new factory or a new category product applies for CCC certification. It focuses on the quality control system of the factory.  Usually, one to four inspectors will visit the factory and stay for one to four days depending on the factory size.  Inspection items below are for your reference: 1. interview the responsible engineers in the factory 2. review the product quality system 3. witness the Dielectric Strength and Ground Resistance tests on the product CCC Initial Factory Inspection

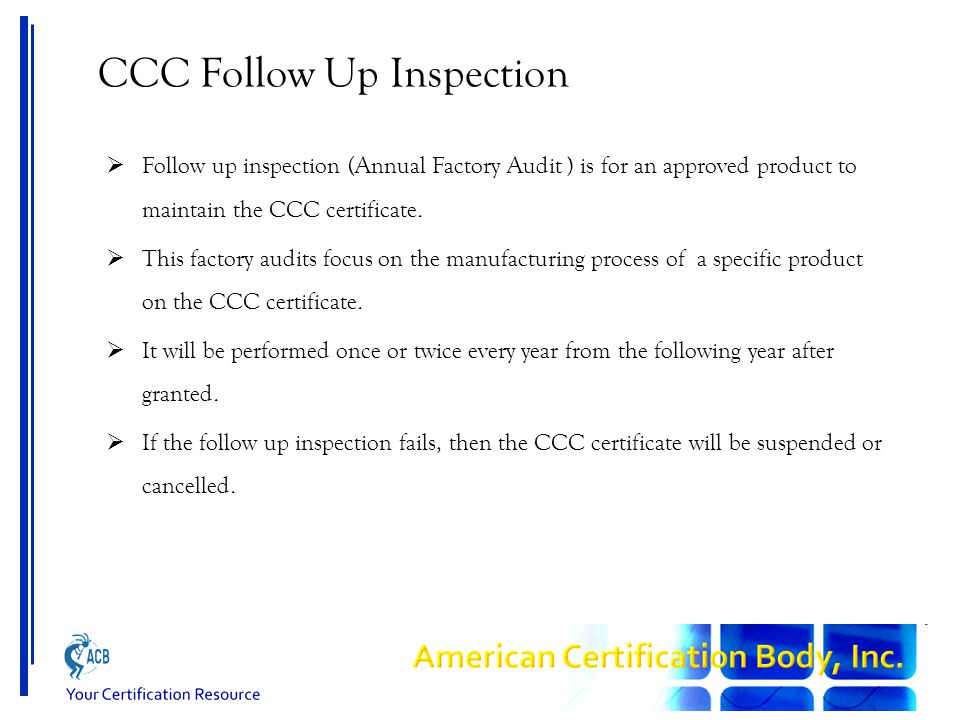

14  Follow up inspection (Annual Factory Audit ) is for an approved product to maintain the CCC certificate.  This factory audits focus on the manufacturing process of a specific product on the CCC certificate.  It will be performed once or twice every year from the following year after granted.  If the follow up inspection fails, then the CCC certificate will be suspended or cancelled. CCC Follow Up Inspection

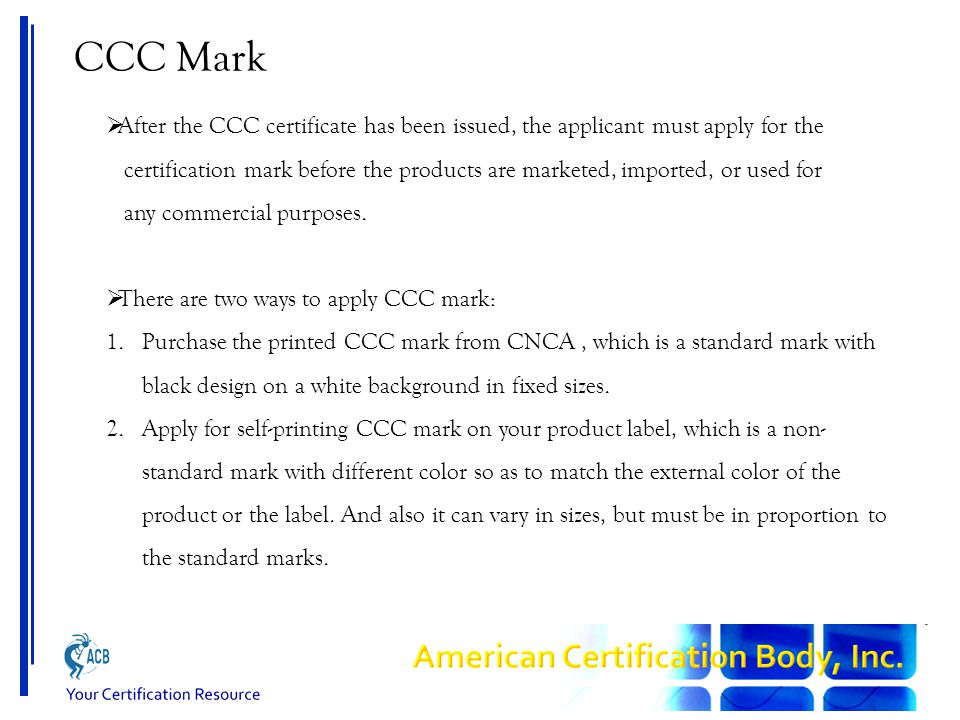

15 CCC Mark  After the CCC certificate has been issued, the applicant must apply for the certification mark before the products are marketed, imported, or used for any commercial purposes.  There are two ways to apply CCC mark: 1.Purchase the printed CCC mark from CNCA, which is a standard mark with black design on a white background in fixed sizes. 2.Apply for self-printing CCC mark on your product label, which is a non- standard mark with different color so as to match the external color of the product or the label. And also it can vary in sizes, but must be in proportion to the standard marks.

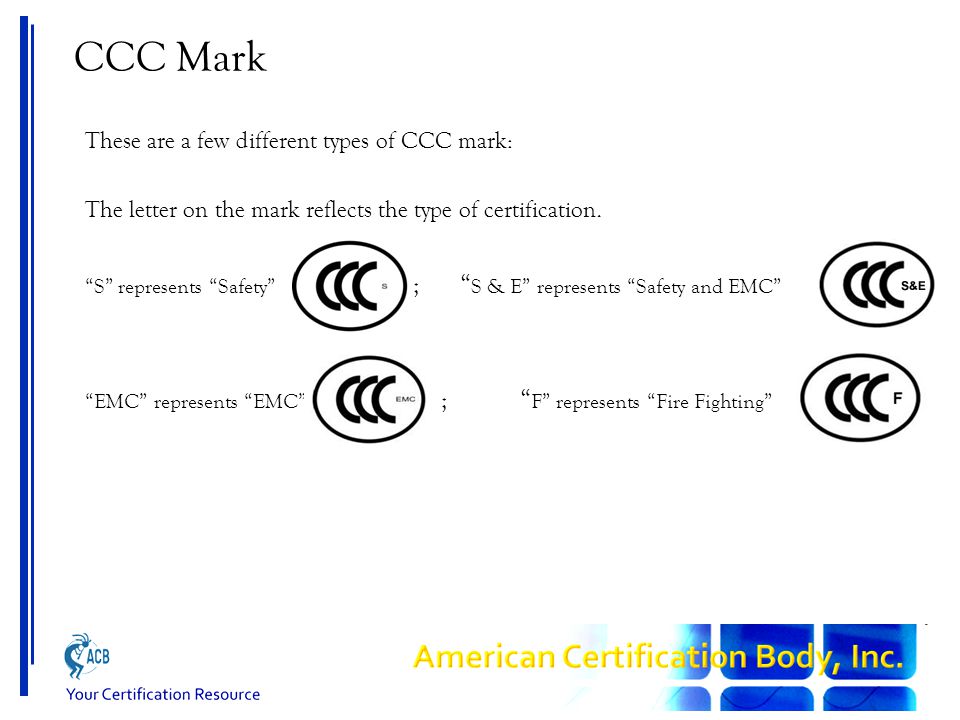

16 CCC Mark These are a few different types of CCC mark: The letter on the mark reflects the type of certification. “S” represents “Safety” ; “ S & E” represents “Safety and EMC” “EMC” represents “EMC” ; ; “ F” represents “Fire Fighting”

17 Topic 2 SRRC Certification (China Radio Type Approval)

18 Abbreviations SRRC State Radio Regulatory Commission of the People’s Republic of China CTA(RTA) Radio Transmission Equipment Type Approval MIIT Ministry of Industry and Information Technology CMIIT ID Type Approval Identifier SRTC The State Radio_Monitoring_Center Testing Center

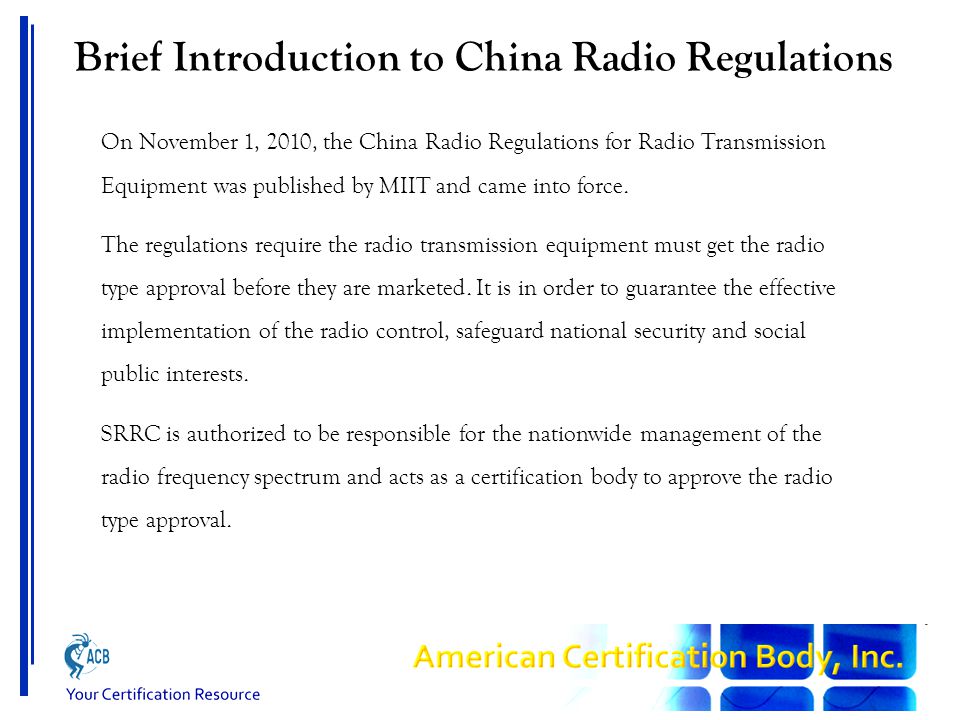

19 Brief Introduction to China Radio Regulations On November 1, 2010, the China Radio Regulations for Radio Transmission Equipment was published by MIIT and came into force. The regulations require the radio transmission equipment must get the radio type approval before they are marketed. It is in order to guarantee the effective implementation of the radio control, safeguard national security and social public interests. SRRC is authorized to be responsible for the nationwide management of the radio frequency spectrum and acts as a certification body to approve the radio type approval.

20 SRRC Categories The SRRC or RTA applies to any radio transmission equipment which radiates radio wave for communication, navigation, location, direction-finding, remote control, telemetry, broadcasting, TV transmission and radar purposes. Such as:  Digital Cellular Telecommunication System  Wireless Access Equipment  Short Range Device  FM Transceiver  Broadcasting Communication System

21 SRRC Certification Procedure  SRRC certification procedure 1. Application for SRRC testing 2. Type testing 3. Application for SRRC certification 4. Evaluation of certification results and approval of certification  During the whole procedure, SRRC will act as a certification body to review and approve the SRRC certification.  When the application meets all of the requirements, SRRC will issue the certificate. Usually, a SRRC certificate is valid for 5 years.

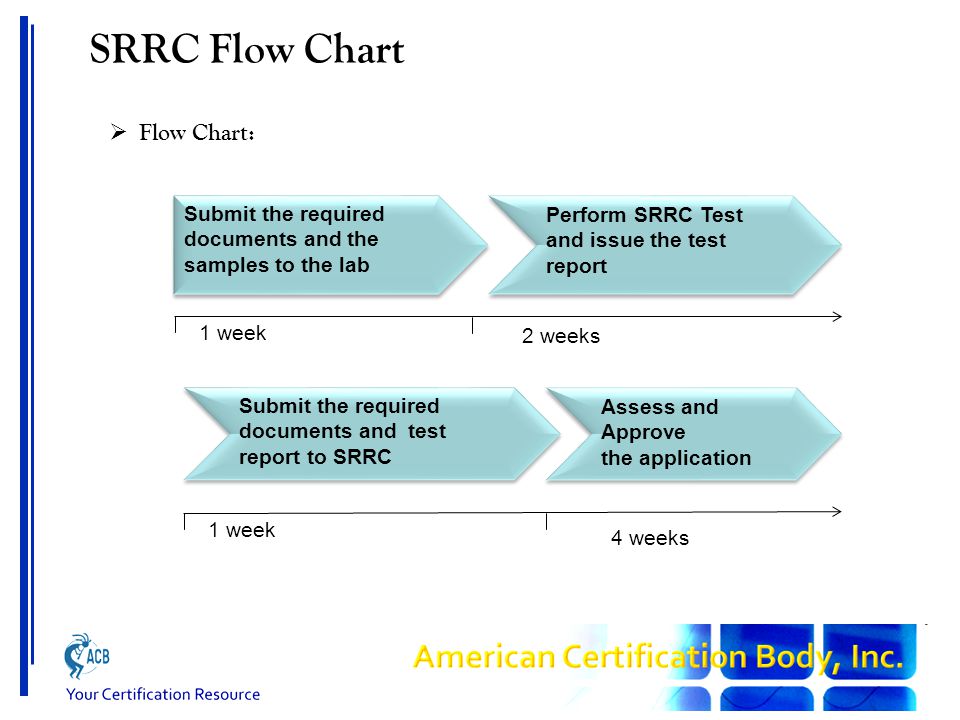

22 SRRC Flow Chart Submit the required documents and the samples to the lab Perform SRRC Test and issue the test report 1 week 2 weeks  Flow Chart: Assess and Approve the application Assess and Approve the application Submit the required documents and test report to SRRC 1 week 4 weeks

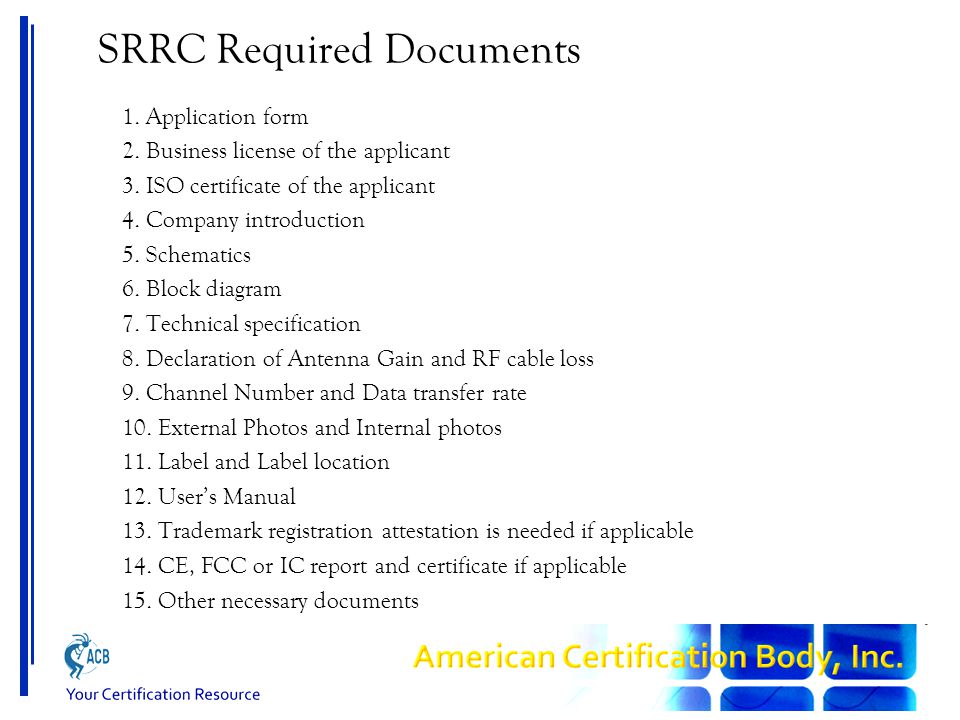

23 SRRC Required Documents 1. Application form 2. Business license of the applicant 3. ISO certificate of the applicant 4. Company introduction 5. Schematics 6. Block diagram 7. Technical specification 8. Declaration of Antenna Gain and RF cable loss 9. Channel Number and Data transfer rate 10. External Photos and Internal photos 11. Label and Label location 12. User’s Manual 13. Trademark registration attestation is needed if applicable 14. CE, FCC or IC report and certificate if applicable 15. Other necessary documents

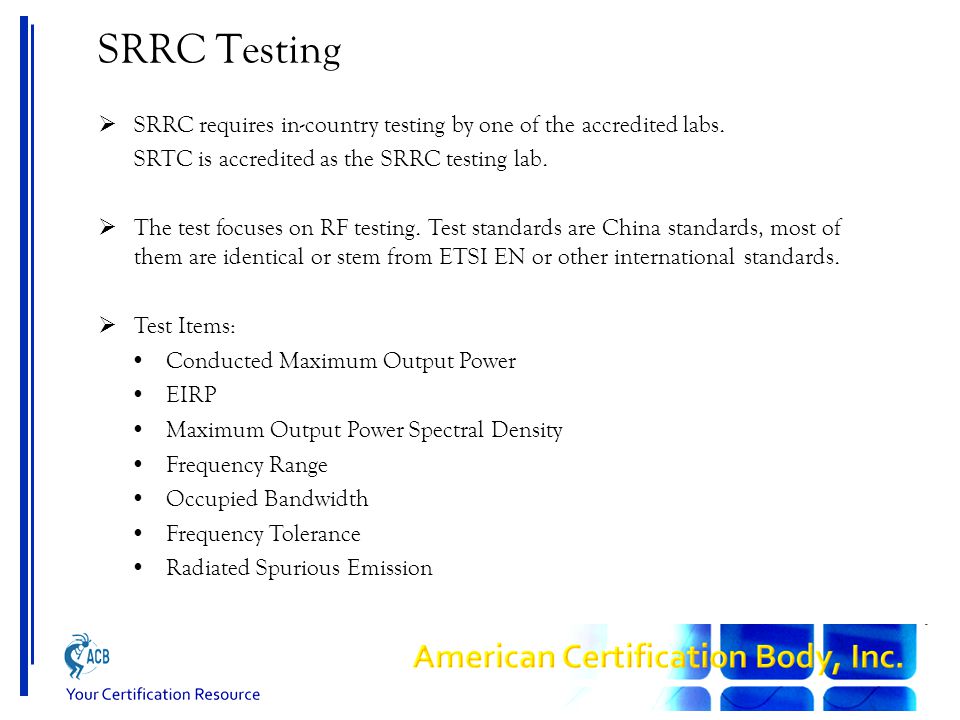

24 SRRC Testing  SRRC requires in-country testing by one of the accredited labs. SRTC is accredited as the SRRC testing lab.  The test focuses on RF testing. Test standards are China standards, most of them are identical or stem from ETSI EN or other international standards.  Test Items: Conducted Maximum Output Power EIRP Maximum Output Power Spectral Density Frequency Range Occupied Bandwidth Frequency Tolerance Radiated Spurious Emission

25 SRRC Certificate (RTA Certificate) When the certification is approved, SRRC will issue the certificate for the radio transmission equipment. Then the products can be imported, sold and used in business activities in China with a CMIIT ID on the label. The CMIIT ID is issued on the SRRC certificate as below marked.

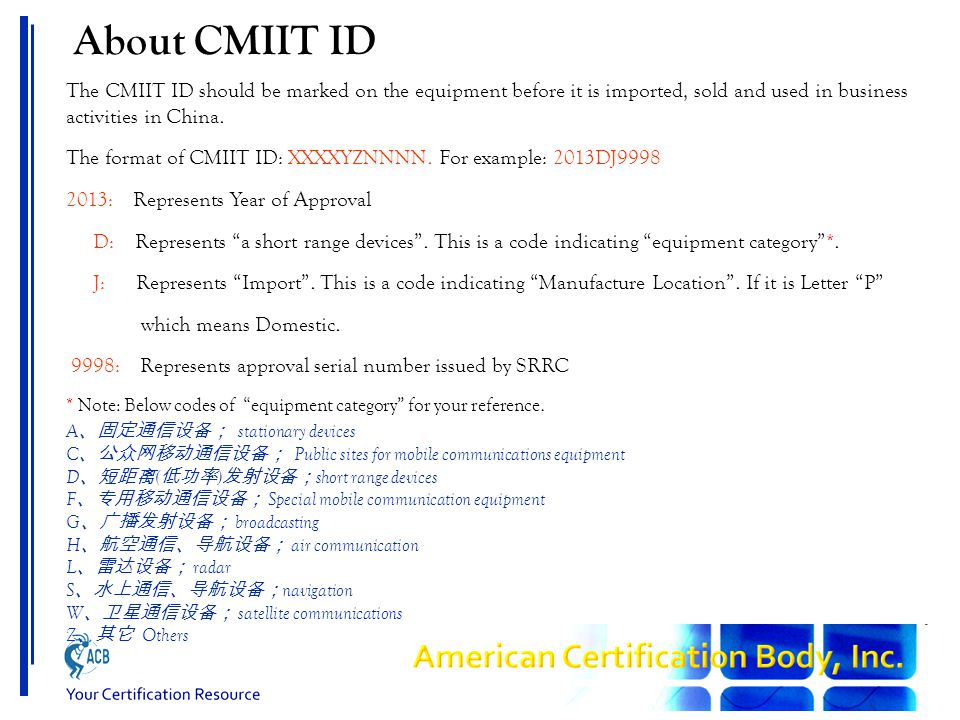

26 About CMIIT ID The CMIIT ID should be marked on the equipment before it is imported, sold and used in business activities in China. The format of CMIIT ID: XXXXYZNNNN. For example: 2013DJ : Represents Year of Approval D: Represents “a short range devices”. This is a code indicating “equipment category”*. J: Represents “Import”. This is a code indicating “Manufacture Location”. If it is Letter “P” which means Domestic. 9998: Represents approval serial number issued by SRRC * Note: Below codes of “equipment category” for your reference. A 、固定通信设备; stationary devices C 、公众网移动通信设备; Public sites for mobile communications equipment D 、短距离 ( 低功率 ) 发射设备; short range devices F 、专用移动通信设备; Special mobile communication equipment G 、广播发射设备; broadcasting H 、航空通信、导航设备; air communication L 、雷达设备; radar S 、水上通信、导航设备; navigation W 、卫星通信设备; satellite communications Z 、其它 Others

27 Topic 3 NAL Certification

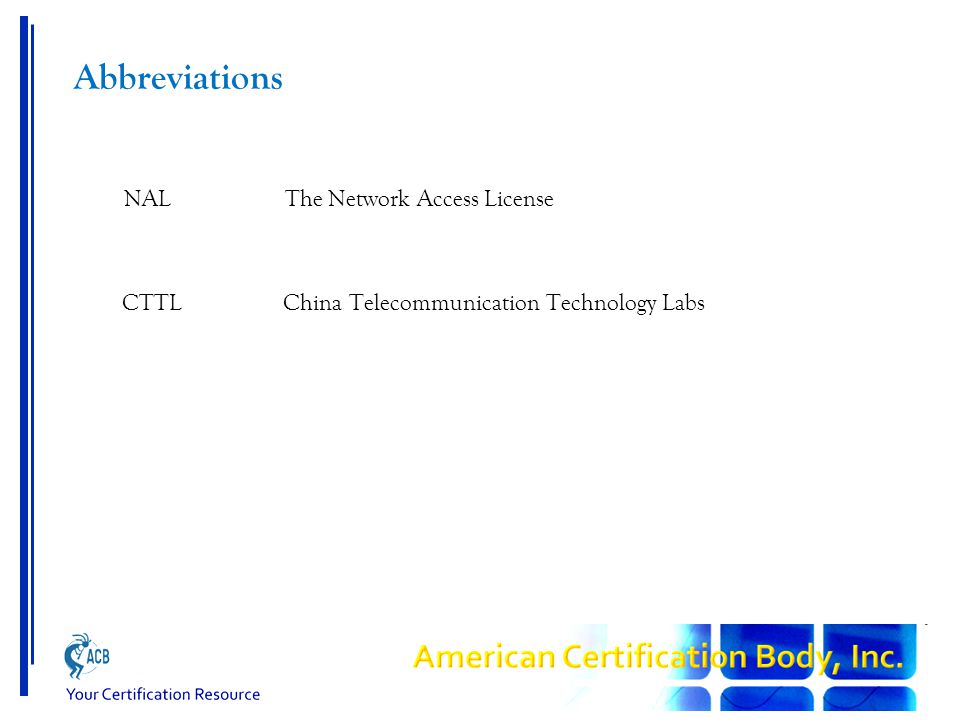

28 Abbreviations NAL The Network Access License CTTL China Telecommunication Technology Labs

29 Brief Introduction to NAL NAL Approval is a mandatory requirement for telecom devices included in the NAL product category. That means the telecom devices included in the NAL product category are required to get NAL(MIIT) approval before they are marketed in China. The NAL product category was announced by MIIT in It includes three parts: 1.Telecommunication Terminal Devices 2.Radio Telecommunication Devices 3.Internet devices concerning the connection between the network

30 NAL Categories 1. Telecommunication Terminal Equipment3. Internet devices between the network 1. Fixed Telephone Terminal1. Optical Transmission Equipment 2. Cordless Telephone Terminals2. Digital SPC Exchanger 3. Group Telephones3. No.7 signaling device 4. Fax machine4. Intelligent Network Equipment 5. Modems (Including Card)5. Synchronous Equipment 6. Private Branch Exchange6. Network Access Equipment 7. Mobile User Terminal(GSM/WCDMA/LTE Cell Phone)7. Frame Relay Switch 8. BP Machines8. ATM Exchanger 9. ISDN Terminals9. Multiple Functions Exchange System 10. Data Terminals (including card)(POS terminal)10. Router Equipment 11. Multimedia Terminals11. IP Network Gateway and Gatekeeper 12. Other Telecom Terminal Equipment12. Data Telecommunication Equipment 2. Radio Telecommunication Equipment 13. Call Center 1. Radio Station 2. Micro-wave telecommunication Equipment 3. Satellite Earth Station

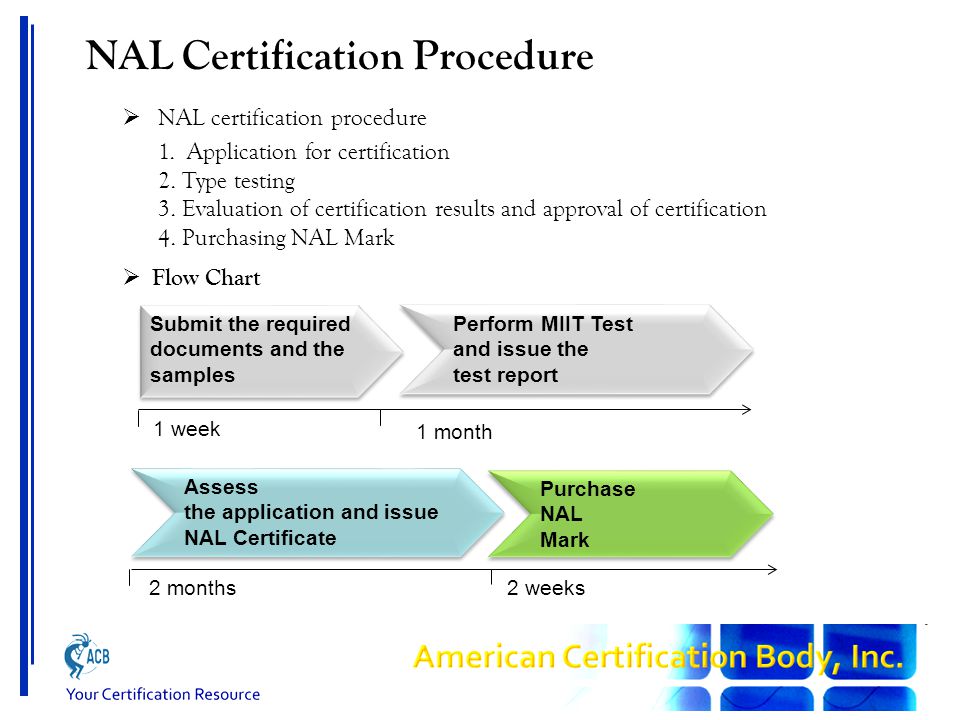

31 NAL Certification Procedure Submit the required documents and the samples Perform MIIT Test and issue the test report Perform MIIT Test and issue the test report Assess the application and issue NAL Certificate Assess the application and issue NAL Certificate Purchase NAL Mark Purchase NAL Mark 1 week 1 month 2 months2 weeks  Flow Chart  NAL certification procedure 1. Application for certification 2. Type testing 3. Evaluation of certification results and approval of certification 4. Purchasing NAL Mark

32 NAL Required Documents 1.Application form 2.Business license of the applicant, manufacturer and factory 3.Applicant must be a domestic registered company. So if the foreigners want to apply for NAL, the applicant can be their branch registered in China or other company whose registered business scope must include the after-sale. 4.The introduction for applicant and factory 5.ISO certificate of the factory 6.Technical specification 7.Block diagram and schematics 8.External Photos and Internal photos 9.User’s Manual 10.Test report 11.SRRC Certificate if applicable 12.Other necessary documents * Note: All of the above documents must be in Chinese.

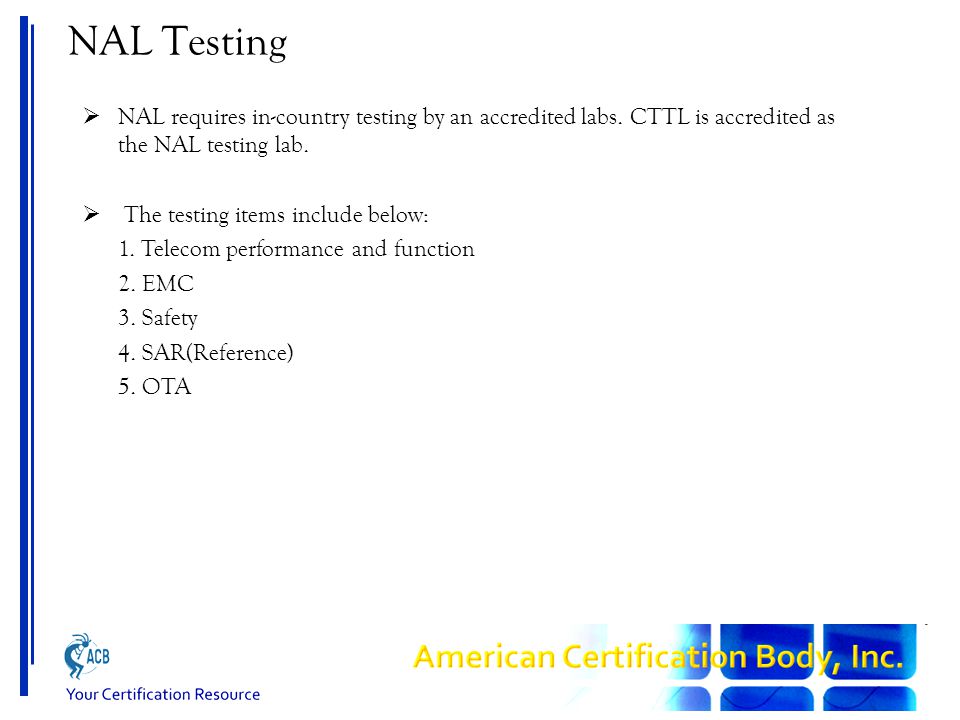

33 NAL Testing  NAL requires in-country testing by an accredited labs. CTTL is accredited as the NAL testing lab.  The testing items include below: 1. Telecom performance and function 2. EMC 3. Safety 4. SAR(Reference) 5. OTA

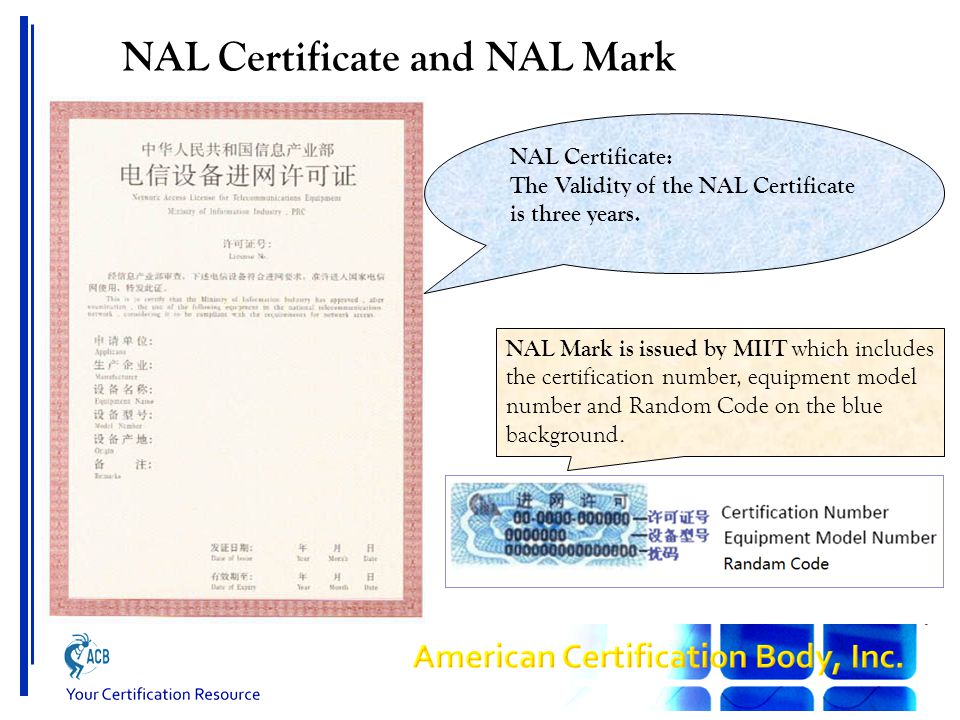

34 NAL Certificate and NAL Mark NAL Mark is issued by MIIT which includes the certification number, equipment model number and Random Code on the blue background. NAL Certificate: The Validity of the NAL Certificate is three years.

35 Thank you ! Q&A? It is much appreciated if you can the questions to me.
