1. Control Structures Corresponds with Chapters 3 and 4

2. Control Statements Decisions (selections) Decisions (selections) if statements if statements switch statements switch statements Iterations (repetitions) Iterations (repetitions) for loops (enumerated) for loops (enumerated) while loops (top-tested) while loops (top-tested) do while loops (bottom-tested) do while loops (bottom-tested)

3. if Statement if (booleanExpression) single statement; single statement; Evaluates to true or false Must be enclosed in parentheses. Remember to indent the subordinate statement

4. if Statement if (booleanExpression) { statement1; statement2; … statementn; } If you have multiple subordinate statements, these must be a block enclosed in braces.

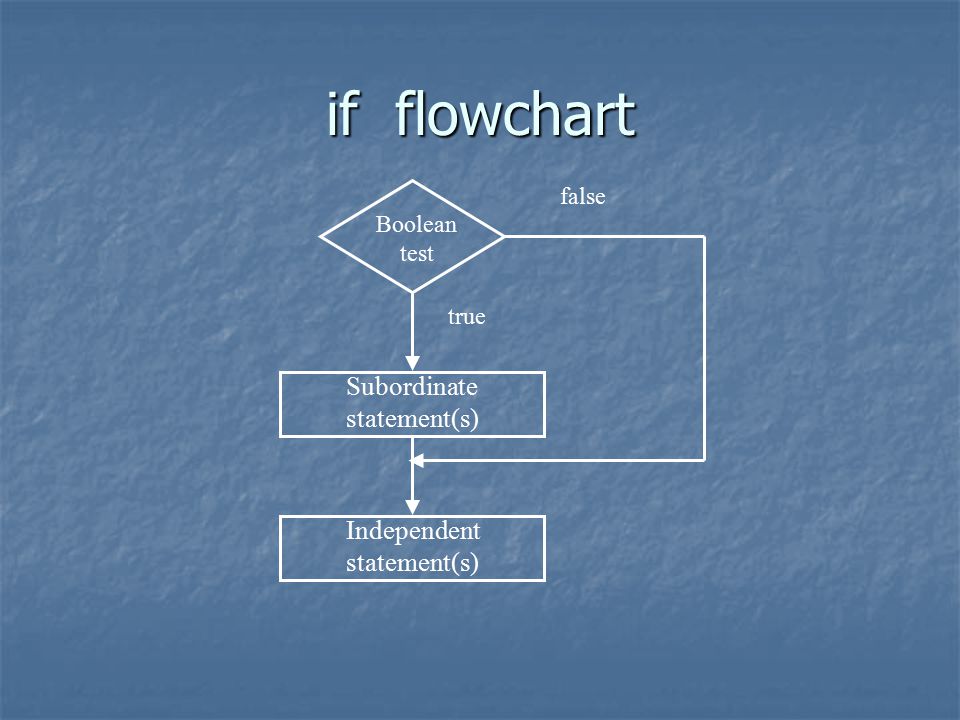

5. if flowchart Boolean test Subordinate statement(s) Independent statement(s) true false

6. Example: if (i >= 0 && i = 0 && i <= 10) System.out.println("i is an System.out.println("i is an integer between 0 and 10"); integer between 0 and 10"); boolean value Statement executes only if both conditions are true

7. The if...else Statement if (booleanExpression) { statement(s)-for-the-true-case; statement(s)-for-the-true-case;}else{ statement(s)-for-the-false-case; statement(s)-for-the-false-case;} Note: blocks with braces are necessary when there are multiple subordinate statements. They are optional when there is a single subordinate statement.

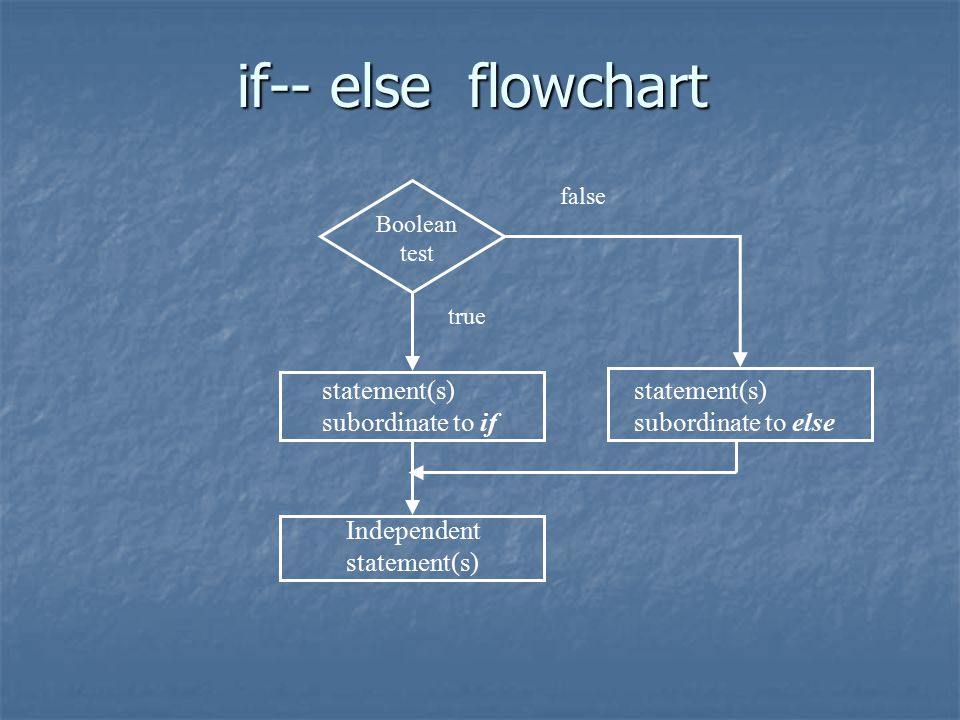

8. if-- else flowchart Boolean test statement(s) subordinate to if Independent statement(s) true false statement(s) subordinate to else

9. if...else Example if (radius >= 0) { area = radius*radius*PI; area = radius*radius*PI; System.out.println("The area for the " System.out.println("The area for the " + "circle of radius " + radius + " is" + "circle of radius " + radius + " is" + area); + area);}else System.out.println("Negative input"); System.out.println("Negative input"); The if branch statement must be in a block because there are two of them. There is only one else-branch statement. It does not need to be in a block, but you can if you want.

10. Nested if Statements This is true indentation for the nesting… inner ifs are nested within else of previous if statement. This has the same effect, but is more readable. Unlike VB, there is no ElseIf clause in Java, but the else if lines make it look like a VB ElseIf. Similar idea to figure 3.3 p76

11. FlowChart for if – else if -- else Boolean test statement(s) subordinate to if Independent statement(s) true false statement(s) subordinate to elseif Boolean test false statement(s) subordinate to else true

12. Nesting an if - else inside the if portion if (boolean expression1) if (boolean expression2) statement1;elsestatement2; The nested if-else. NOTE: an else is always associated with the most recent if. This else is the result of boolean expression2, not boolean expression1.

13. FlowChart for if with nested if -- else Boolean test1 Independent statement(s) false true statement1 subordinate to success on boolean test2. Therefore both tests succeeded. Boolean test2 false true statement2 subordinate to success on boolean test2. Therefore test1 succeeded and test2 failed.

14. Outer if-else with a nested if (no inner else) if (boolean expression1){ if (boolean expression2) statement1;}elsestatement2; The nested if. NOTE: here, because of the braces, the else is associated with the if for boolean expression #1.

15. FlowChart for if -else with nested if Boolean test1 Independent statement(s) false statement1 subordinate to success on boolean test2. Therefore both tests succeeded. Boolean test2 false true statement2 subordinate to failure of boolean test1 (the outer else). true

16. Shortcut if Statements if (x > 0) y = 1 else y = -1; is equivalent to y = (x > 0) ? 1 : -1; test if Returned if true else Returned if false

17. switch Statements switch (switch-expression) { case value1: case value1: statement(s) 1; break; case value2: case value2: statement(s) 2; break; … case valueN: interestRate = 9.0; case valueN: interestRate = 9.0; statement(s) N; break; default: default: statement(s) for default; } switch-expression can evaluate to char, byte, short, or int. break causes control to skip past the end of the switch block. Without break, control would fall through to the next case. No break needed for last condition

18. switch Statements switch (status) { case 0: compute taxes for single filers; case 0: compute taxes for single filers; break; break; case 1: compute taxes for married file jointly; case 1: compute taxes for married file jointly; break; break; case 2: compute taxes for married file separately; case 2: compute taxes for married file separately; break; break; case 3: compute taxes for head of household; case 3: compute taxes for head of household; break; break; default: System.out.println("Errors: invalid status"); default: System.out.println("Errors: invalid status"); System.exit(0); System.exit(0);}

19. switch Statement Flow Chart

20. Equivalent if statement if (status == 0) compute tax for single filers; else if (status == 1) compute tax for married filing jointly; compute tax for married filing jointly; else if (status == 2) compute tax for married filing separately; compute tax for married filing separately; else if (status == 3) compute tax for head of household; compute tax for head of household;else{System.out.println( ("Errors: invalid status"); ("Errors: invalid status");System.exit(0);}

21. Exercise if (a==1) x += 6; else if (a == 2) x += 10; else if (a == 3) x += 16; else if (a == 4) x += 34; Convert this if statement into a switch statement

22. while Loops while (continue-condition) { // loop-body; // loop-body;} Top-tested loop Test before performing statements of loop Loop body may never execute

23. Listing 4.4 p109 – User Decides when to quit Initial data input – before the loop Subsequent data inputs – toward the end of the loop body

24. Do-while Loops do{ //loop body; //loop body; } while (continue-condition) Bottom-tested loop Perform statements of loop before testing Always enter the loop body at least once

25. Listing 4.5 – a Do-While Loop Test is at the bottom

26. for Loops for (control variable initialization; continue-test; adjustment-statement) continue-test; adjustment-statement){ //loop body; //loop body;} 1) assignment statement 2) boolean expression 3) assignment statement 1)Set initial value for loop counter (only once, before looping starts) 2)Test loop counter (also called control variable) to see if it is less than the max loop allowed (before executing loop body) 3)Increment loop counter (after executing loop body) (usually an increment operator).

27. for Loop Flow Chart

28. for Loop Example: int i; for (i = 0; i<100; i++) { System.out.println(“Hi. i is:” + i); System.out.println(“Hi. i is:” + i);} Here, the loop counter variable (called i ) is available for use outside the loop.

29. Alternative Syntax: Declare Loop Counter in Initialization for (int i = 0; i<100; i++) { System.out.println(“Hi. i is:” + i); System.out.println(“Hi. i is:” + i);} Here, the loop counter variable (called i ) is available for use only within the loop.

30. The Nested for Loop for (int i=0; i<outerLoopLimit;i++){ outer loop statement(s); for (int j=0;j<innerLoopLimit;j++){ inner loop statement(s); } outer loop statement(s); } Body of outer loop Body of inner loop Body of outer loop will execute outerLoopLimit times Body of inner loop will execute innerLoopLimit times for each time the outer loop body executes.  Total innerLoopLimit * outerLoopLimit times!

31. Initialize outer loop counter Initialize inner loop counter Test to continue outer loop Test to continue inner loop Outer loop statement(s) Inner loop statement(s) Increment outer loop counter Increment inner loop counter Statements preceding loop Statements following loop No Yes The Nested for Loop -- Flowchart

32. Nested Loop Example (my example) Outer loop Inner loop

33. Example Program Run

34. A couple points about the example Max loop count value can be any numeric expression. Here it’s a variable Special escape character \t for tab.

35. Reminders about packages from the example The class NestedForLoop is in the package called controlStructurePackage. Therefore, there is a file called NestedForLoop.class in a folder called controlStructurePackage.

36. Reminders about packages from the example In order to use a class from outside your own package, you must import the package that the class is contained in. Here, we import the JOptionPane class from the javax.swing package.

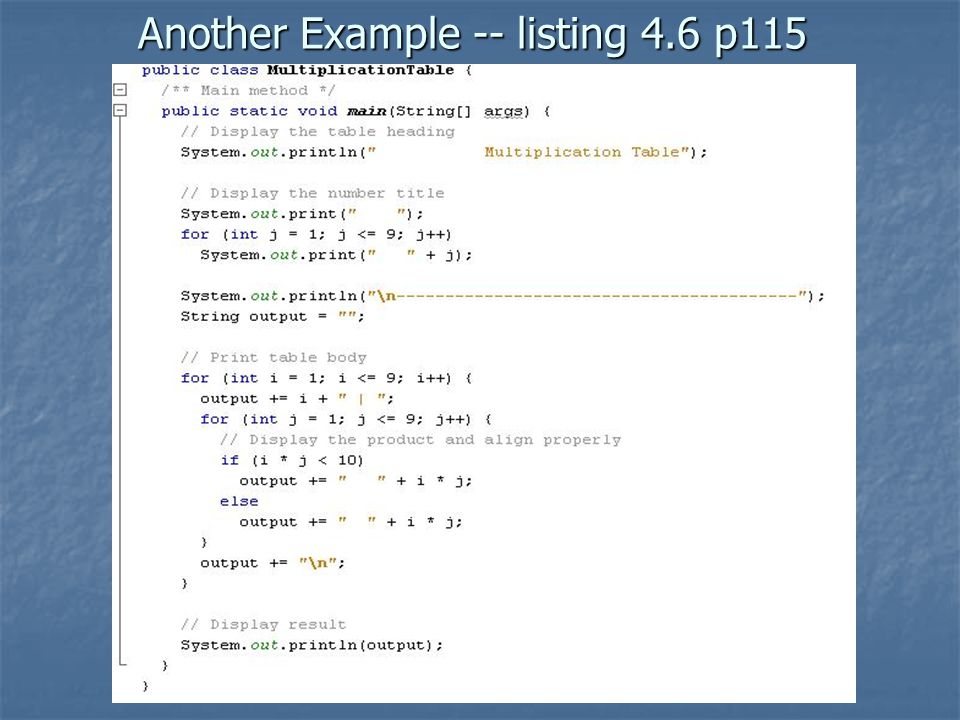

37. Another Example -- listing 4.6 p115

38. Listing 4.6 Loop with single statement in body

39. Listing 4.6 An if statement nested inside a for loop, which is itself nested in another for loop.

40. Listing 4.6 At the end, the string is displayed in the output screen Note: actions in the loops are concatenating values into the string output.

41. Listing 4.6 program analysis Question 1: how many times will outer loop body execute? Question 2: how many times will inner loop body execute? Question 3: how many times will IF branch execute?

42. The break Keyword break can be used to terminate the loop based on decisions inside the loop body.

43. Listing 4.11 Using the break keyword Question: how many times will this loop body execute? What will be the value in sum?

44. The continue Keyword continue can be used to branch to the top of the loop (skipping statements in loop body) based on decisions inside the loop body.

45. Listing 4.12 Using the continue keyword Question 1: how many times will this loop body execute? Question 2: how many times sum += number; execute?

46. Typical Nested Structure: Decision within a Loop (menu-driven as first statement in loop) User wants to quit? User choice 1? Present menu options to user Input User Choice Choice 1 statement(s) Statements following loop No Yes User choice n? Choice n statement(s) Yes No

47. A Java Implementation This implementation nests a switch inside a while loop. Exercise: Do the same thing by nesting an if statement inside a do- while loop.

48. Other Useful Examples Listing 4.8: finding the greatest common divisor (while loop with nested if statement) Listing 4.8: finding the greatest common divisor (while loop with nested if statement) Listing 4.9: finding a sales amount (do-while loop with nested if - else if - else statement) Listing 4.9: finding a sales amount (do-while loop with nested if - else if - else statement) Listing 4.10: printing a pyramid (outer for loop with three nested for loops inside it) Listing 4.10: printing a pyramid (outer for loop with three nested for loops inside it) Listing 4.14: finding prime numbers (outer while loop with nested for loop with nested if statement) Listing 4.14: finding prime numbers (outer while loop with nested for loop with nested if statement)
