1 Mohammad Ariful Huq Supervisor : Eryk Dutkiewicz Minimizing Channel Access Delay for Emergency Traffic in IEEE 802.15.6  Wireless Body Area Network.

Similar presentations


Presentation on theme: "1 Mohammad Ariful Huq Supervisor : Eryk Dutkiewicz Minimizing Channel Access Delay for Emergency Traffic in IEEE 802.15.6  Wireless Body Area Network."— Presentation transcript:

1 1 Mohammad Ariful Huq Supervisor : Eryk Dutkiewicz Minimizing Channel Access Delay for Emergency Traffic in IEEE  Wireless Body Area Network (WBAN)

2 2 Outlines Introduction Necessity of MAC Protocol for WBAN IEEE , IEEE , MEB MAC Channel Access Delay Minimization for Emergency Traffic Simulation Results

3 3 Outlines Introduction Necessity of MAC Protocol for WBAN IEEE , IEEE , MEB MAC. Channel Access Delay Minimization for Emergency Traffic Simulation Results

4 4 Wireless Network

5 5 Introduction WBAN is RF based wireless networking technology that interconnects tiny nodes with sensors in, on, or around a human body. A typical WBAN consists of a number of inexpensive, lightweight, miniature sensor platforms, each featuring one or more physiological sensors like –Motion Sensors –ECG (Electrocardiograms) –Sp02 –Breathing Sensors –Blood pressure –EMG (Electromyograms) –EEG(Electro-encephalograms) –Blood Glucose Sensors

6 6 Introduction Network size of WBAN –Application dependent ( up to 256 devices) WBAN Sensors could be located on –The body as intelligent patches –Integrated into clothing –Implanted below the skin –Embedded deeply in tissues Figure: Positioning of a Wireless Body Area Network in the realm of wireless networks.

7 7 SENSING ACTIVITIES IN MEDICAL BANS

8 8 WBAN Traffic Classification – Normal traffic: Based on normal operation between device and coordinator. – On-demand traffic: Initiated by Coordinator to know certain information. – Emergency traffic: In case of critical condition.

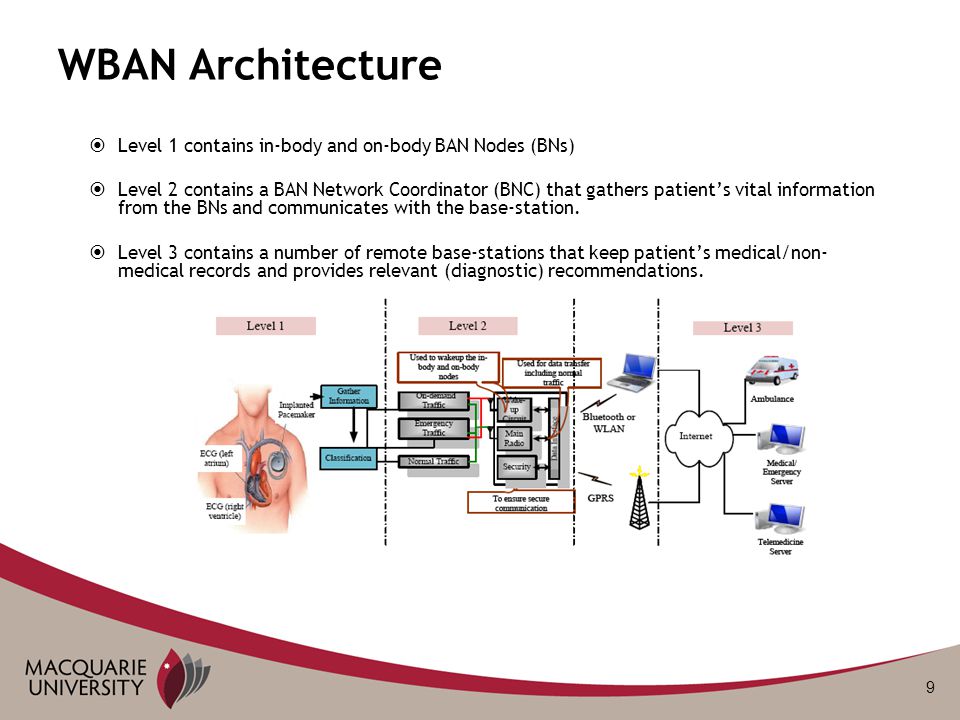

9 9 WBAN Architecture  Level 1 contains in-body and on-body BAN Nodes (BNs)  Level 2 contains a BAN Network Coordinator (BNC) that gathers patient’s vital information from the BNs and communicates with the base-station.  Level 3 contains a number of remote base-stations that keep patient’s medical/non- medical records and provides relevant (diagnostic) recommendations.

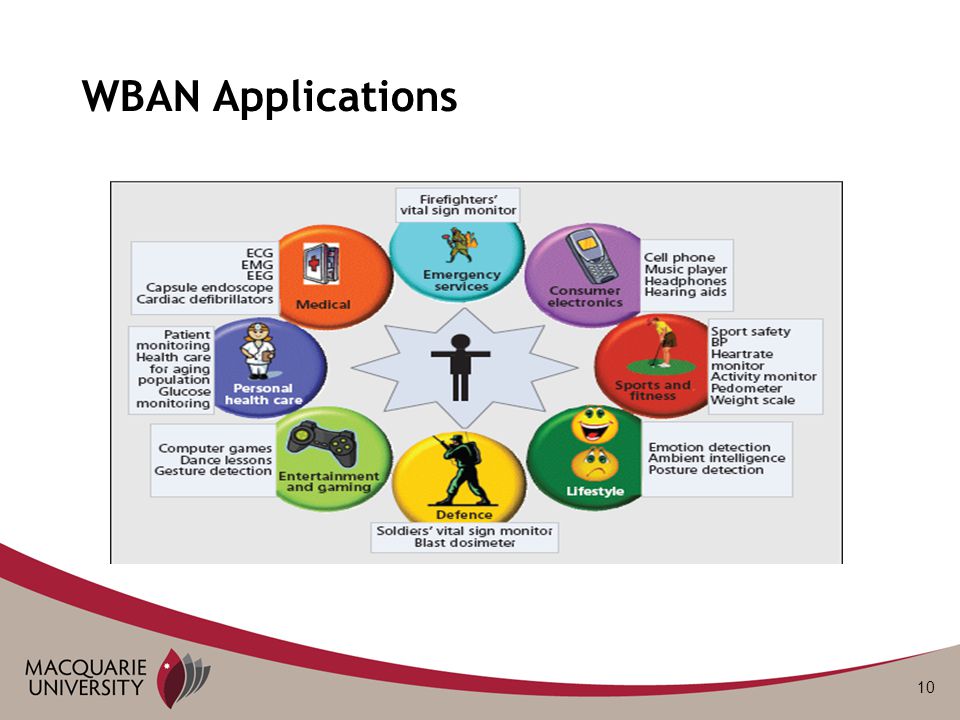

10 10 WBAN Applications

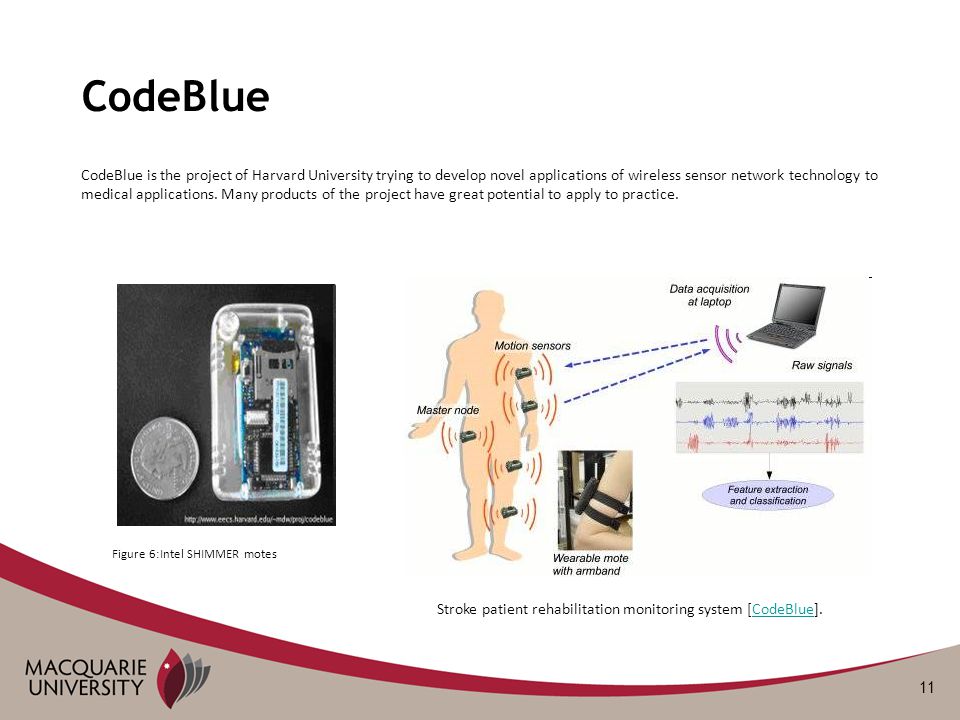

11 11 CodeBlue CodeBlue is the project of Harvard University trying to develop novel applications of wireless sensor network technology to medical applications. Many products of the project have great potential to apply to practice. Figure 6:Intel SHIMMER motes Stroke patient rehabilitation monitoring system [CodeBlue].CodeBlue

12 12 Mercury: A Wearable Sensor Network Platform for High-Fidelity Motion Analysis The Intel SHIMMER mote, including a triaxial accelerometer The SHIMMER mote connected to its programming board. SHIMMER sensors being worn on a patient's arm.

13 13 VitalDust: Wireless vital sign monitoring Mica2-based pulse oximeter Measures heart rate, blood oxygen saturation Telos-based two-lead Electrocardiogram PDA- and PC-based applications for multi-patient triage

14 14 Outlines Introduction Necessity of MAC Protocol for WBAN IEEE , IEEE , MEB MAC. Channel Access Delay Minimization for Emergency Traffic Simulation Results

15 15 Major Sources of Energy Waste in Sensor Network 1.Collision : Two nodes emit at the same time 2. Idle Listening : Node listens to an idle channel 3. Overhearing: Node listens for a message sent to another node

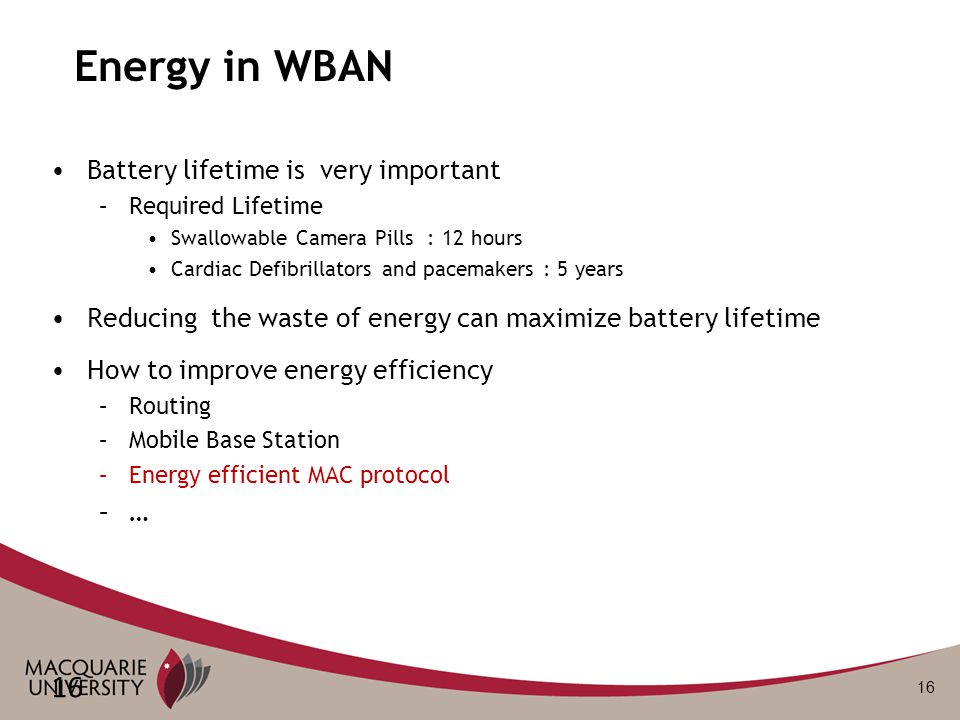

16 16 Energy in WBAN Battery lifetime is very important –Required Lifetime Swallowable Camera Pills : 12 hours Cardiac Defibrillators and pacemakers : 5 years Reducing the waste of energy can maximize battery lifetime How to improve energy efficiency –Routing –Mobile Base Station –Energy efficient MAC protocol –…

17 17 Major MAC Protocol Approaches Contention Based (CSMA/CA) –Nodes need to perform CCA before transmission of data –If the channel is busy, the node defers its transmission till it becomes idle. –Its infrastructure-free –Ad hoc feature –Good adaptability to traffic fluctuation Schedule Based(TDMA) –Channels are divided into fixed/variable time slots which are assigned to nodes that transmit during its slot period –Free of idle listening, overhearing and packet collisions because of the lack of medium competition, –But require tight time synchronization.

18 18 Outlines Introduction Necessity of MAC Protocol for WBAN IEEE , IEEE , MEB MAC. Channel Access Delay Minimization for Emergency Traffic Simulation Results

19 19 Network beacon Contention period Transmitted by network coordinator. Contains network information, frame structure and notification of pending node messages. Access by any node using CSMA-CA Guaranteed Time Slot Reserved for nodes requiring guaranteed bandwidth Superframe Format Contention Access Period Contention Free Period Inactive period beacon Inactive Period Sleep period Active period CAP CFP

20 Superframe Format The EAP is Emergency Access Period. -> In this period only devices with emergency traffic can contend. The RAP(Random Access Period) can be used by any device both emergency and non-emergency. -> The data that are accumulated in the device buffers have a priority assigned to them. Each of the devices have to contend with backoff windows according to their priority.

21 21 Outlines Introduction Necessity of MAC Protocol for WBAN IEEE , IEEE , MEB MAC. Channel Access Delay Minimization for Emergency Traffic Simulation Results

22 22 Channel Access Delay Channel Access Delay is the duration from the time when a packet arrives at the queue until the designated packet gains access to the channel.

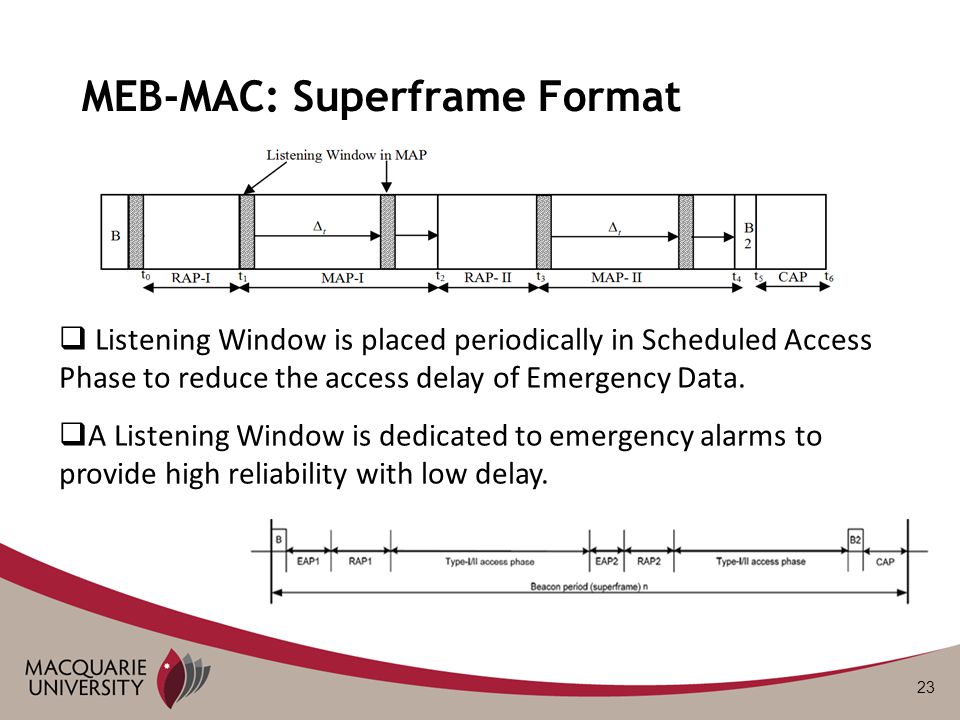

23 23 MEB-MAC: Superframe Format  Listening Window is placed periodically in Scheduled Access Phase to reduce the access delay of Emergency Data.  A Listening Window is dedicated to emergency alarms to provide high reliability with low delay.

24 24 Algorithm for Inserting Listening Window

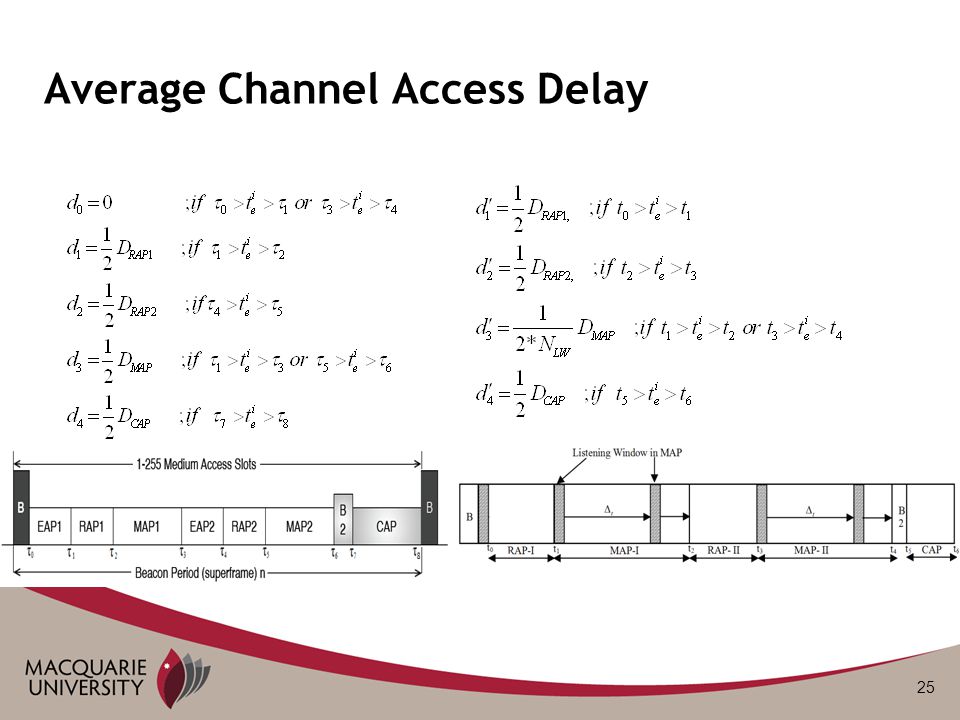

25 25 Average Channel Access Delay

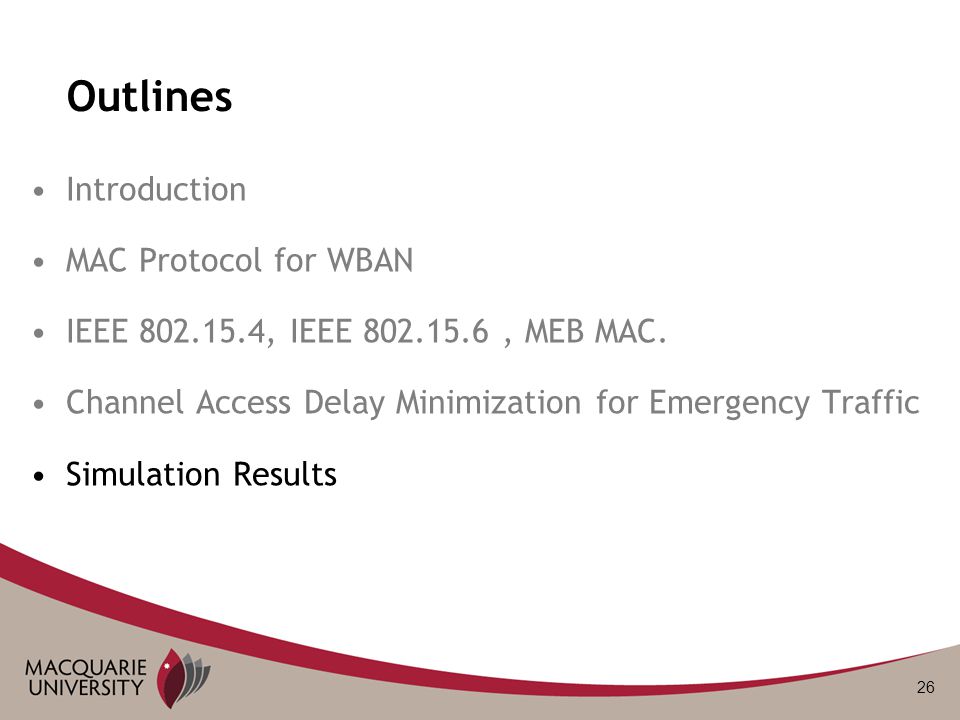

26 26 Outlines Introduction MAC Protocol for WBAN IEEE , IEEE , MEB MAC. Channel Access Delay Minimization for Emergency Traffic Simulation Results

27 27 Simulation Result : Channel Access Delay Comparison Congested Scenarios Non Congested Scenarios

28 28 Thank You ?
