1 SCIENCES USC INFORMATION INSTITUTE Pedro C. Diniz, Mary W. Hall, Joonseok Park, Byoungro So and Heidi Ziegler University of Southern California / Information Sciences Institute 4676 Admiralty Way, Suite 1001 Marina del Rey, California 90292 DEFACTO: Combining Parallelizing Compiler Technology with Hardware Behavioral Synthesis* * The DEFACTO project was funded by the Information technology Office (ITO) of the Defense Advanced research project Agency (DARPA) under contract #F30602-98-2-0113.

2 SCIENCES USC INFORMATION INSTITUTE 1 Outline  Background & Motivation  Part 1: Application Mapping Example  Part 2: Design Space Exploration  Part 3: Challenges for Future FPGAs  Related Work  Conclusion

3 SCIENCES USC INFORMATION INSTITUTE 2 DEFACTO Objective & Goals  Objectives: Automatically Map High-Level Applications to Field-Programmable Hardware (FPGAs) Explore Multiple Design Choices  Goal: Make Reconfigurable Technology Accessible to the Average Programmer

4 SCIENCES USC INFORMATION INSTITUTE 3 What Are FPGAs:  Key Concepts Configurable Hardware Reprogrammable (ms latency)  Architecture Configurable Logic Blocks  “Universal” logic  Some input/outputs latched Passive network between CLBs Memories, processor cores

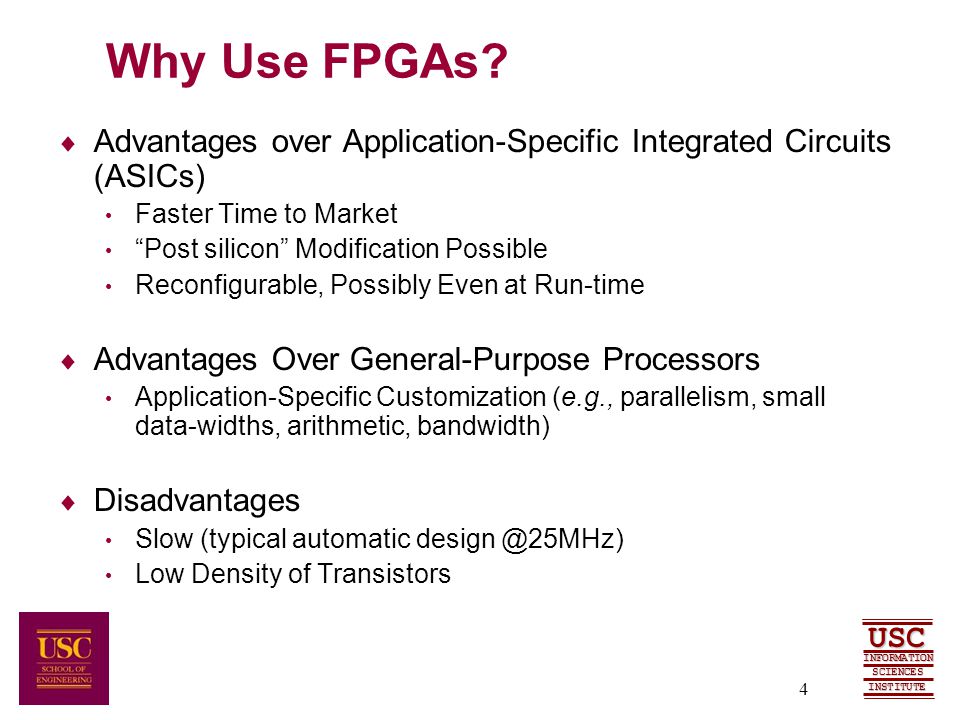

5 SCIENCES USC INFORMATION INSTITUTE 4 Why Use FPGAs?  Advantages over Application-Specific Integrated Circuits (ASICs) Faster Time to Market “Post silicon” Modification Possible Reconfigurable, Possibly Even at Run-time  Advantages Over General-Purpose Processors Application-Specific Customization (e.g., parallelism, small data-widths, arithmetic, bandwidth)  Disadvantages Slow (typical automatic design @25MHz) Low Density of Transistors

6 SCIENCES USC INFORMATION INSTITUTE 5 How to Program FPGAs?  Hardware-Oriented Languages VHDL or Verilog Very Low-Level Programming  Commercial Tools (e.g., Monet TM ) Choose Implementation Based on User Constraints Time and Space Trade-Off Provide Estimations for Implementation  Problem: Too Slow for Large Complex Designs Place-and-Route Can Take up to 8 Hours for Large Designs Unclear What to Do When Things Go Wrong

7 SCIENCES USC INFORMATION INSTITUTE 6 Behavioral Synthesis Example variable A is std_logic_vector(0..7) … X <= (A * B) - (C * D) + F 6 Registers 2 Multipliers 2 Adders/Subtractors 1 (long) clock cycle 9 Registers 2 Multipliers 2 Adders/Subtractors 2 (shorter) clock cycles 13 Registers 1 Multiplier 2 Adders/Subtractors 3 (shorter) clock cycles

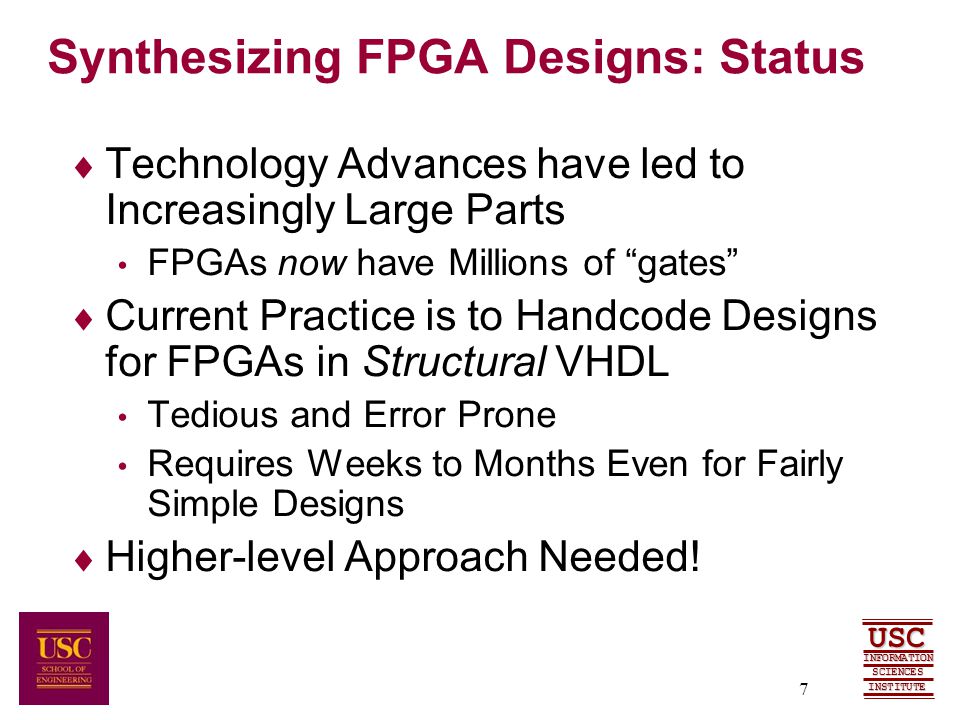

8 SCIENCES USC INFORMATION INSTITUTE 7 Synthesizing FPGA Designs: Status  Technology Advances have led to Increasingly Large Parts FPGAs now have Millions of “gates”  Current Practice is to Handcode Designs for FPGAs in Structural VHDL Tedious and Error Prone Requires Weeks to Months Even for Fairly Simple Designs  Higher-level Approach Needed!

9 SCIENCES USC INFORMATION INSTITUTE 8 DEFACTO: Key Ideas  Parallelizing Compiler Technology Complements Behavioral Synthesis Adjusts Parallelism and Data Reuse Optimizes External Memory Accesses  Design Space Exploration Evaluates and Compares Designs before Committing to Hardware Improves Design Time Efficiency a form of Feedback-directed Optimization

10 SCIENCES USC INFORMATION INSTITUTE 9 Opportunities: Parallelism & Storage Behavioral Synthesis Parallelizing Compiler Optimizations: Scalar Variables only Scalars & Multi-Dimensional Arrays inside Loop Body inside Loop Body & Across Iterations Supports User-Controlled Analysis Guides Automatic Loop Loop Unrolling Transformations Manages Registers and Evaluates Tradeoffs of Different inter-operator Communication Memories, On- and Off-chip Considers one FPGA System-level View Performs Allocation, Binding & No Knowledge of Hardware Scheduling of Hardware Implementation

11 SCIENCES USC INFORMATION INSTITUTE Part 1: Mapping Complete Designs from C to FPGAs Sobel Edge Detection Example

12 SCIENCES USC INFORMATION INSTITUTE 11 Example - Sobel Edge Detection char img[IMAGE_SIZE][IMAGE_SIZE], edge [IMAGE_SIZE][IMAGE_SIZE]; int uh1, uh2, threshold; for (i=0; i < IMAGE_SIZE - 4; i++) { for (j=0; j < IMAGE_SIZE - 4; j++) { uh1= (((-img[i][j]) + (- (2* img[i+1][j])) + (-img[i+2][j])) + ((img[i][j-2]) + (2* img[i+1][j-2]) + (img[i+2][j-2]))); uh2= (((-img[i][j]) + (img[i+2][j])) + (- (2* img[i][j-1])) + (2* img[i+2][j-1]) + ((- img[i][j-2]) + (img[i][j-2]))); if ((abs(uh1) + abs(uh2)) < threshold) edge[i][j] =”0xFF”; else edge[i][j] =”0x00; } edge img -1 -2 -1 0 0 0 1 2 1 1 0 -1 2 0 -2 1 0 -1 threshold

13 SCIENCES USC INFORMATION INSTITUTE 12 Sobel - A Naïve Implementation  Large Number of Adders and Multipliers (shifts in this case)  Too Many Memory Accesses ! 8 Reads and 1 Write per Iteration of the Loop Observation  Across 2 Iterations 4 out of 8 Values Can Be Reused 0x00 0xFF img[i][j]img[i][j+1]img[i][j+2] img[i+2][j]img[i+2][j+1]img[i+2][j+2] img[i+1][j+2] img[i+1][j] edge[i][j]

14 SCIENCES USC INFORMATION INSTITUTE 13 Data Reuse Analysis - Sobel img[i][j+1] img[i+2][j+1] img[i][j+2] img[i+2][j+2] img[i+1][j+2] img[i][j] img[i+2][j] img[i+1][j] d = (1,0)d = (2,0)d = (1,0) img[i][j+1] img[i+2][j+1] img[i][j+2] img[i+2][j+2] img[i+1][j+2] img[i][j] img[i+2][j] img[i+1][j] d = (0,1) d = (0,2) d = (0,1)

15 SCIENCES USC INFORMATION INSTITUTE 14 Data Reuse using Tapped-Delay Lines  Reduce the Number of Memory Accesses  Exploit Array Layout and Distribution Packing Stripping  Examples: 0x00 0xFF img[i][j] img[i+1][j] img[i+2][j] edge[i][j] img[i][j] img[i][j+1] img[i][j+2] 0x00 0xFF Accesses = 0.25 + 0.25 + 0.25 + 0.25 = 1.0 Accesses = 1.0 + 1.0 + 1.0 + 1.0 = 4.0

16 SCIENCES USC INFORMATION INSTITUTE 15 Overall Design Approach MEM Application Data-path Application Data-path  Application Data-paths Extract Body of Loops Uses Behavioral Synthesis  Memory Interfaces Uses Data Access Patterns to Generate Channel Specs VHDL Library Templates

17 SCIENCES USC INFORMATION INSTITUTE 16 WildStar TM : A Complex Memory HierarchySharedMemory0SharedMemory0 SharedMemory2SharedMemory2 SharedMemory3SharedMemory3 SharedMemory1SharedMemory1 FPGA 1 FPGA 0 FPGA 2 SRAM1SRAM1 SRAM0SRAM0 SRAM3SRAM3 SRAM2SRAM2 PCIControllerPCIController To Off-Board Memory 32bits 64bits

18 SCIENCES USC INFORMATION INSTITUTE 17 Project Status  Complex Infrastructure Different Programming Languages (C vs. VHDL) Different EDA Tools Different Vendors Experimental Target In-House Tools  Combines Compiler Techniques and Behavioral Synthesis Different Execution Models Reconcile Representation  It Works! Fully Automated for Single FPGA designs Modest Manual Intervention for Multi-FPGA designs (simulation OK) Compiler Analysis SUIF2VHDL Behavioral Synthesis & Estimation (Monet) Logic Synthesis (Synplicity) Place & Route (Xilinx Foundations) Code Transformations and Annotations Annapolis WildStar Board Algorithm Description Computation & Data Partitioning Design Space Exploration Memory Access Protocols

19 SCIENCES USC INFORMATION INSTITUTE 18 Sobel on the Annapolis WildStar Board Input ImageOutput Image Manual vs. Automated MetricsManualAutomated Space (slices)22382279 (2% increase) Cycles326K518K Clock Rate (MHz)4240 Execution Time (one frame)7.7 ms (100%)12.95 ms (159%) Design Timeabout 1 week42 minutes

20 SCIENCES USC INFORMATION INSTITUTE Part 2: Design Space Exploration Using Behavioral Synthesis Estimates

21 SCIENCES USC INFORMATION INSTITUTE 20 Design Space Exploration (Current Practice) Logic Synthesis / Place&Route Design Specification (Low-level VHDL) Design Modification Validation / Evaluation  2 Weeks for a Working Design  2 Months for an Optimized Design Correct? Good design?

22 SCIENCES USC INFORMATION INSTITUTE 21 Design Space Exploration (Our Approach) Algorithm (C/Fortran) Compiler Optimizations (SUIF) Unroll and Jam Scalar Replacement Custom Data Layout SUIF2VHDL Translation Behavioral Synthesis Estimation Unroll Factor Selection Logic Synthesis / Place&Route  Overall, Less than 2 hours  5 Minutes for Optimized Design Selection

23 SCIENCES USC INFORMATION INSTITUTE 22 Problem Statement Execution Time Exploit parallelism, Reuse data on chip Space Requirements More copies of operators, More on-chip registers  Constraint: Size of design less than FPGA capacity  Goal: Minimal execution time  Selection Criteria : For given performance, minimal space Frees up more space for other computations Better clock rate achieved Desirable to use on-chip space efficiently

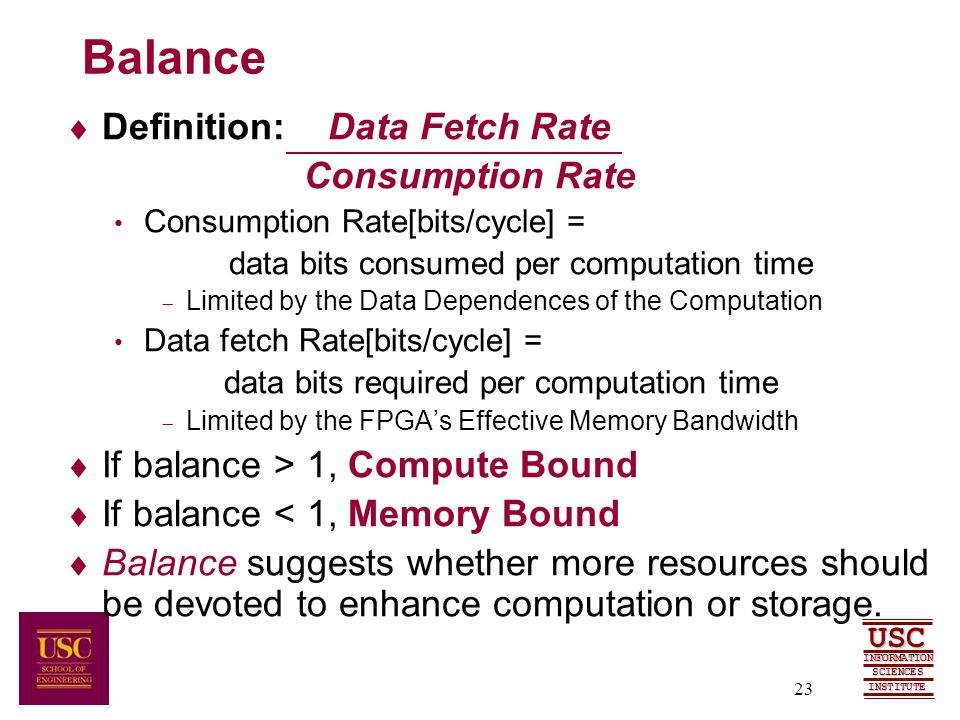

24 SCIENCES USC INFORMATION INSTITUTE 23 Balance  Definition: Data Fetch Rate Consumption Rate Consumption Rate[bits/cycle] = data bits consumed per computation time  Limited by the Data Dependences of the Computation Data fetch Rate[bits/cycle] = data bits required per computation time  Limited by the FPGA’s Effective Memory Bandwidth  If balance > 1, Compute Bound  If balance < 1, Memory Bound  Balance suggests whether more resources should be devoted to enhance computation or storage.

25 SCIENCES USC INFORMATION INSTITUTE 24 Do I=1,N, by 2 A(I) = A(I-2) + B(I) A(I+1) = A(I-1) + B(I+1) Loop Unrolling  Exposes fine-grain parallelism by replicating the loop body. Do I=1, N A(I) = A(I-2) + B(I) A(I) B(I) A(I) A(I-2) A(I) A(I+1) A(I-1) B(I+1) B(I)  As Unrolling Factor Increases, both Data Fetch and Consumption Rate Increase. 2 2 2

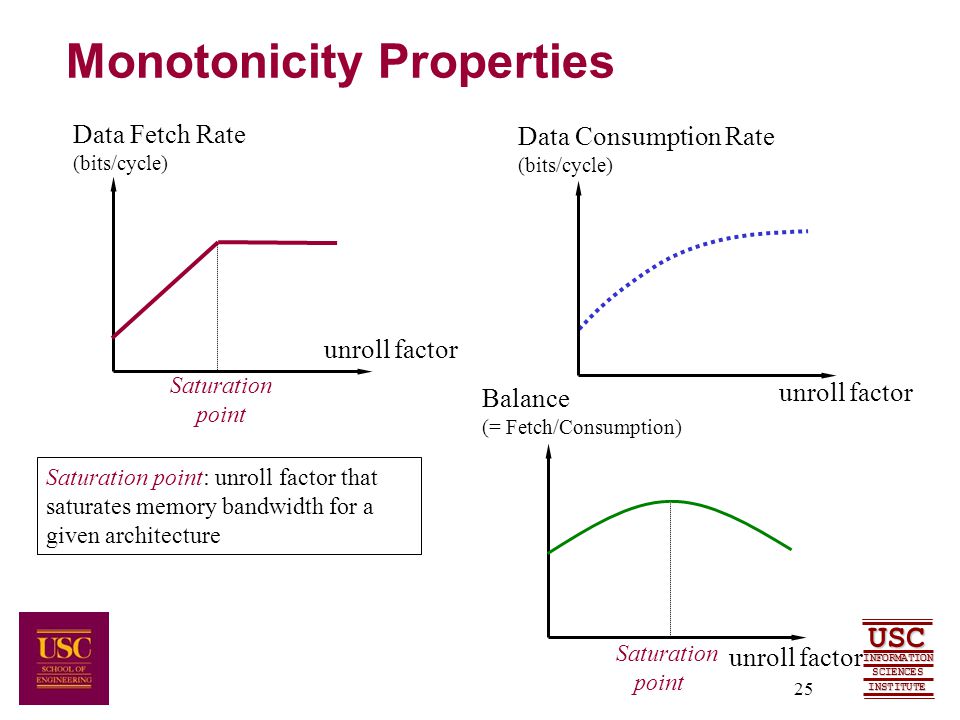

26 SCIENCES USC INFORMATION INSTITUTE 25 Monotonicity Properties unroll factor Data Fetch Rate (bits/cycle) Saturation point Data Consumption Rate (bits/cycle) Saturation point Balance (= Fetch/Consumption) unroll factor Saturation point: unroll factor that saturates memory bandwidth for a given architecture

27 SCIENCES USC INFORMATION INSTITUTE 26 Balance & Optimal Unroll Factor Unroll factor Rate (bits/cycle) 1 3 5 2 4 Saturation point max Data fetch rate Data consumption rate Optimal solution Balance Guides the Design Space Exploration.

28 SCIENCES USC INFORMATION INSTITUTE 27 Experiments  Multimedia Kernels FIR (Finite Impulse Response) Matrix Multiply Sobel (Edge Detection) Pattern Matching Jacobi (Five Point Stencil)  Methodology Compiler Translates C to SUIF and Behavioral VHDL Synthesis Tool Estimates Space and Computational Latency Compiler Computes Balance and Execution Time Accounting for Memory Latency  Memory Latency Pipelined: 1 cycle for read and write Non-pipelined: 7 cycles for read and 3 cycles for write

29 SCIENCES USC INFORMATION INSTITUTE 28 FIR + + x x * * Outer Loop Unroll Factor 1 Outer Loop Unroll Factor 2 Outer Loop Unroll Factor 4 Outer Loop Unroll Factor 8 Outer Loop Unroll Factor 16 Outer Loop Unroll Factor 32 Outer Loop Unroll Factor 64 Speedup: 17.26 Selected Design

30 SCIENCES USC INFORMATION INSTITUTE 29 Matrix Multiply + + x x Outer Loop Unroll Factor 1 Outer Loop Unroll Factor 2 Outer Loop Unroll Factor 4 Outer Loop Unroll Factor 8 Outer Loop Unroll Factor 16 Outer Loop Unroll Factor 32 Selected Design Speedup: 13.36

31 SCIENCES USC INFORMATION INSTITUTE 30 Efficiency of Design Space Exploration ProgramSearch SpaceSearched points FIR2048 (24)3 Matrix Multiply2048 (24)4 Jacobi512 (27)5 Pattern768 (20)4 Sobel2048 (24)2  On average, only 0.3% (15%) of Space Searched.

32 SCIENCES USC INFORMATION INSTITUTE 31 FIR: Estimation vs. Accurate Data  Larger Designs Lead to Degradation in Clock Rates  Compiler Can Use a Statistical Approach to Derive Confidence Intervals for Space  Our case: Compiler Makes Correct Decision using Imperfect Data

33 SCIENCES USC INFORMATION INSTITUTE Part 3: Challenges for Future FPGAs Heterogeneous Functional and Storage Resources Data/Computation Partitioning and Scheduling Revisited

34 SCIENCES USC INFORMATION INSTITUTE 33 Field-Programmable-Core-Arrays  Large Number of Transistors Multiple Application Specific Cores Customization of Interconnect Other Specialized Logic  Challenges: Data Partitioning:  Custom Storage Structures  Allocation, Binding and Scheduling  Replication and Reorganization Computation Partition  Scheduling between Cores  Coarse-Grain Pipelining  Revisiting Issues with Parallelizing Compiler Technology IP Core S-RAM D-RAM IP Core DSP IP Core ARM

35 SCIENCES USC INFORMATION INSTITUTE 34 Related Work  Compilers for Special-purpose Configurable Architectures PipeRench (CMU), RaPiD (UW), RAW (MIT)  High-level Languages Oriented towards Hardware Handel-C, Cameron(CSU), PICO(HP), Napa-C (LANL)  Integrated Compiler and Logic Synthesis Babb (MIT), Nimble (Synopsys)  Compiling from MatLab to FPGAs Match compiler (Northwestern)

36 SCIENCES USC INFORMATION INSTITUTE 35 Conclusion  Combines Behavioral Synthesis and Parallelizing Compiler Technologies  Fast & Automated Design Space Exploration Trades Space with Functional Units via Loop Unrolling Uses Balance and Monotonicity Properties Searches only 0.3% of the Entire Design Space  Near-optimal Performance and Smallest Space  Future FPGAs Coarser-grained, Custom Functional and Storage Structures Multiprocessor on a Chip Data and Computation Partitioning and Coarse Grain Scheduling
