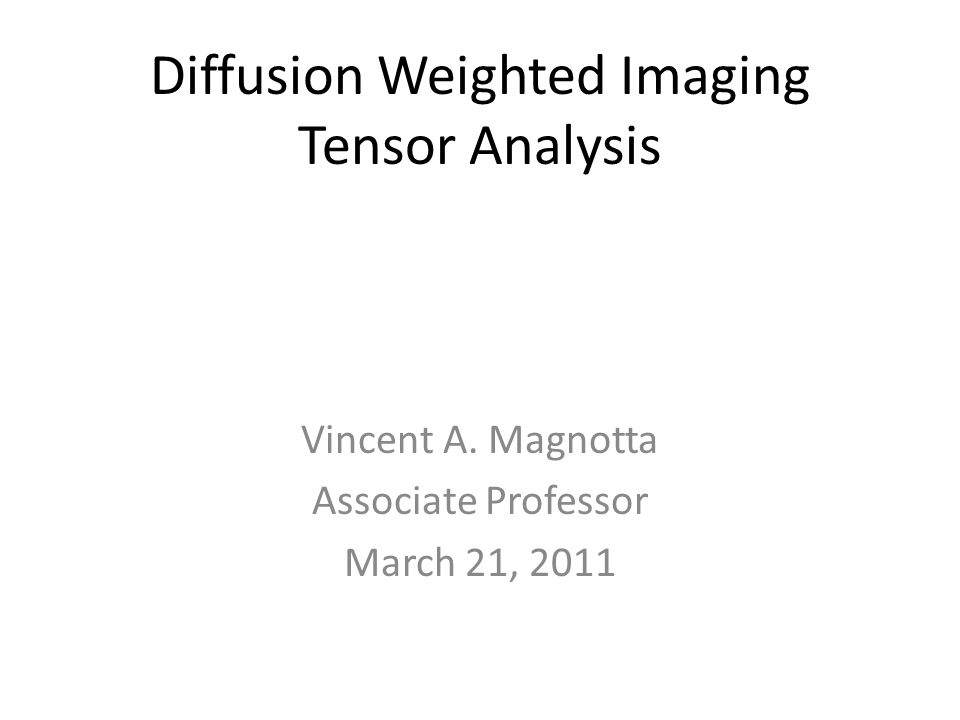

1 Diffusion Weighted Imaging Tensor Analysis Vincent A. Magnotta Associate Professor March 21, 2011

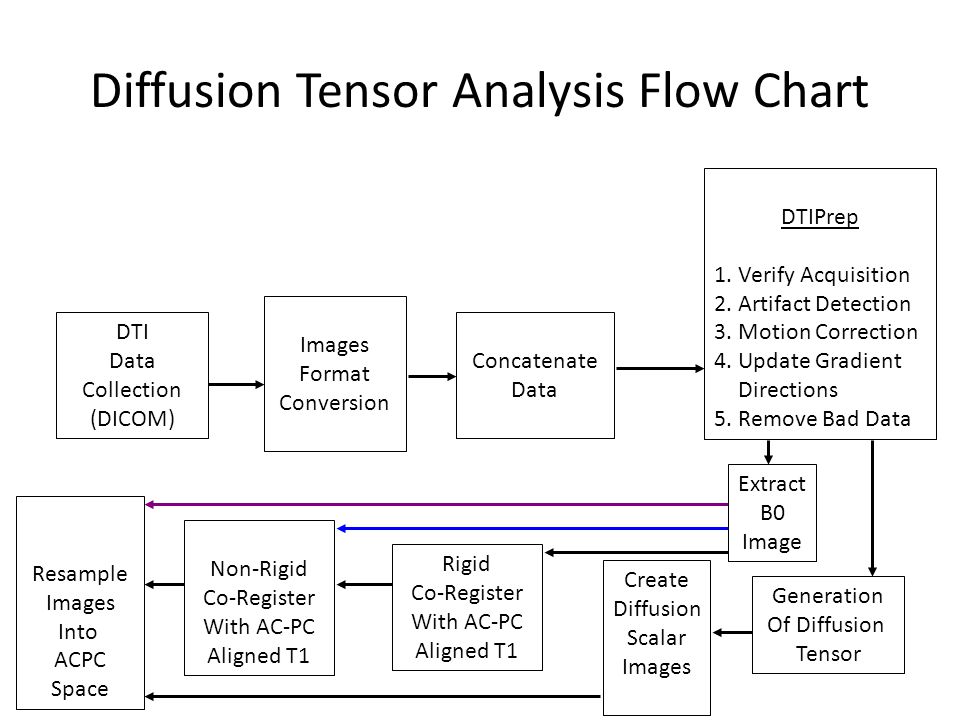

2 Diffusion Tensor Analysis Flow Chart DTI Data Collection (DICOM) Images Format Conversion Generation Of Diffusion Tensor Rigid Co-Register With AC-PC Aligned T1 Non-Rigid Co-Register With AC-PC Aligned T1 Create Diffusion Scalar Images Resample Images Into ACPC Space Concatenate Data DTIPrep 1. Verify Acquisition 2. Artifact Detection 3. Motion Correction 4. Update Gradient Directions 5. Remove Bad Data Extract B0 Image

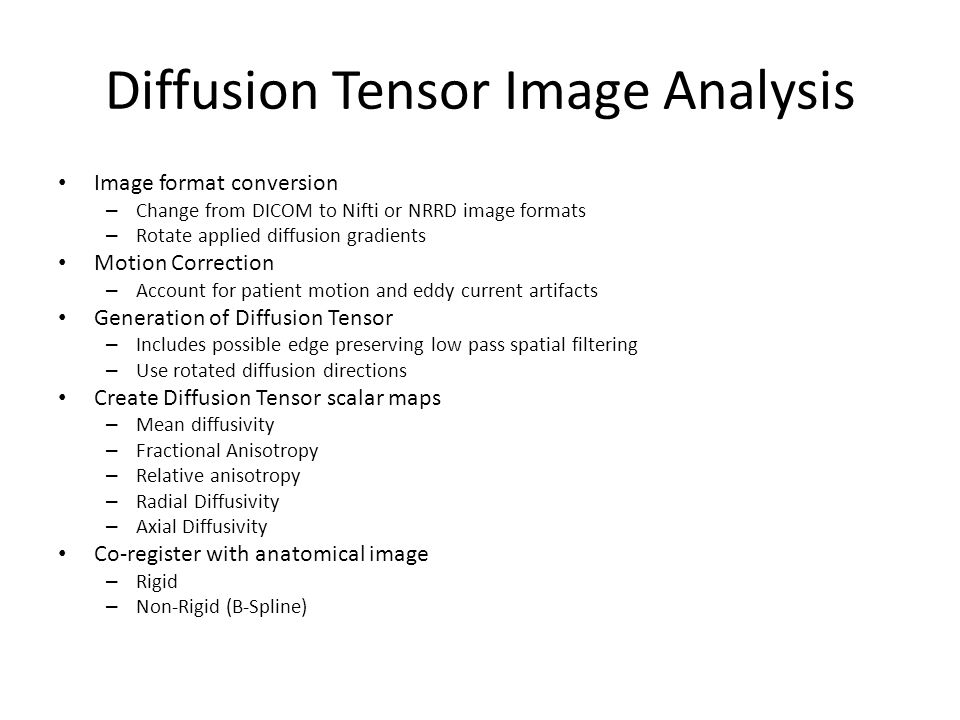

3 Diffusion Tensor Image Analysis Image format conversion – Change from DICOM to Nifti or NRRD image formats – Rotate applied diffusion gradients Motion Correction – Account for patient motion and eddy current artifacts Generation of Diffusion Tensor – Includes possible edge preserving low pass spatial filtering – Use rotated diffusion directions Create Diffusion Tensor scalar maps – Mean diffusivity – Fractional Anisotropy – Relative anisotropy – Radial Diffusivity – Axial Diffusivity Co-register with anatomical image – Rigid – Non-Rigid (B-Spline)

4 Image Format Conversion Convert from DICOM to NRRD format – Nearly Raw Raster Data – Defines origin, spacing, orientation, Diffusion Gradients, and Measurement Frame – Coordinate frame for the applied diffusion gradients All information obtained from DICOM header – Siemens, Philips, and GE scanners DicomToNrrdConverter \ --inputDicomDirectory /home/vince/images/dti_images \ --outputDirectory /home/vince/images \ --outputVolume /home/vince/images/SUBJECT_DWI.nhdr

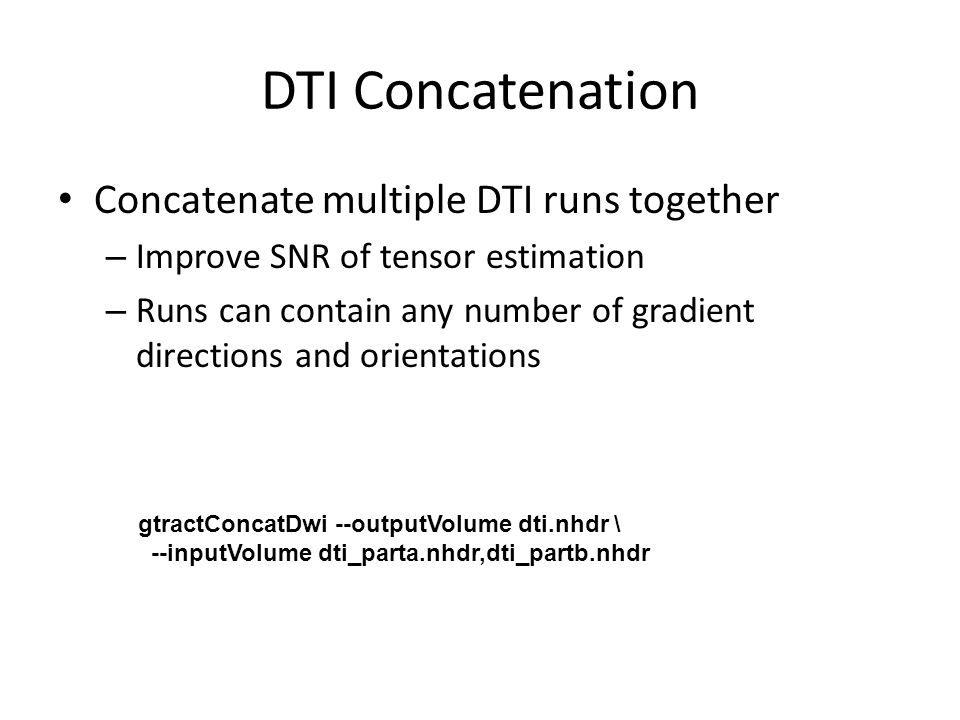

5 DTI Concatenation Concatenate multiple DTI runs together – Improve SNR of tensor estimation – Runs can contain any number of gradient directions and orientations gtractConcatDwi --outputVolume dti.nhdr \ --inputVolume dti_parta.nhdr,dti_partb.nhdr

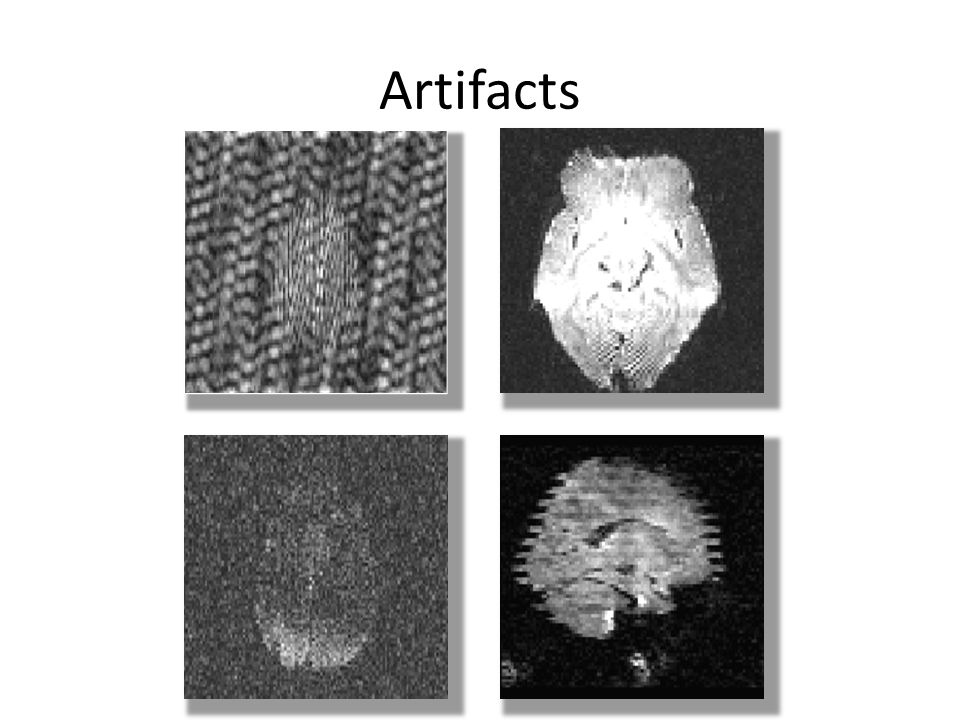

6 Artifacts

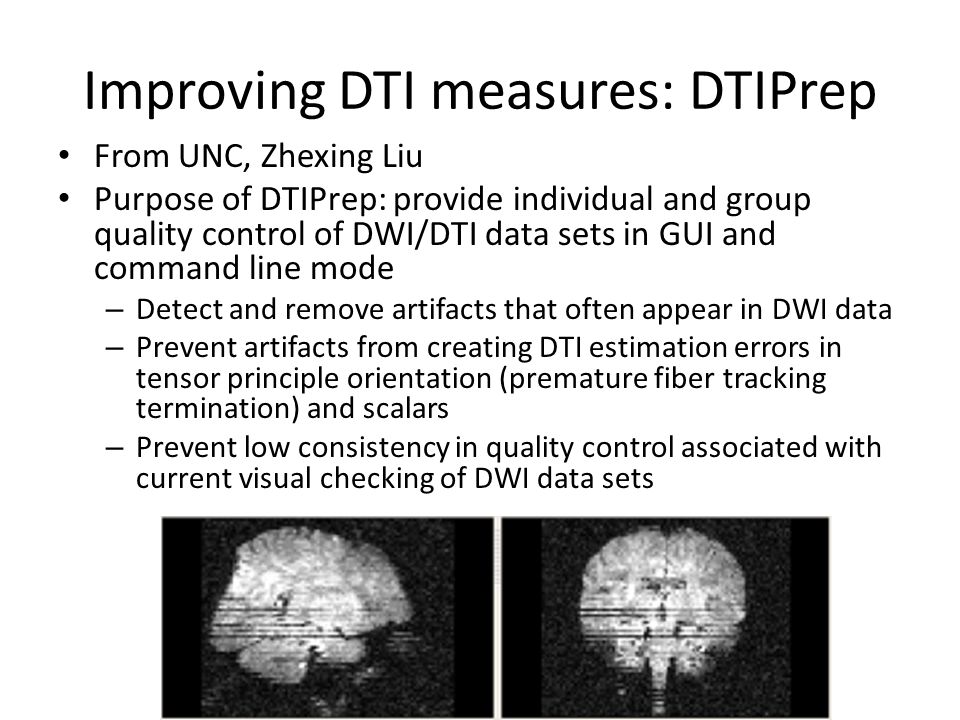

7 Improving DTI measures: DTIPrep From UNC, Zhexing Liu Purpose of DTIPrep: provide individual and group quality control of DWI/DTI data sets in GUI and command line mode – Detect and remove artifacts that often appear in DWI data – Prevent artifacts from creating DTI estimation errors in tensor principle orientation (premature fiber tracking termination) and scalars – Prevent low consistency in quality control associated with current visual checking of DWI data sets

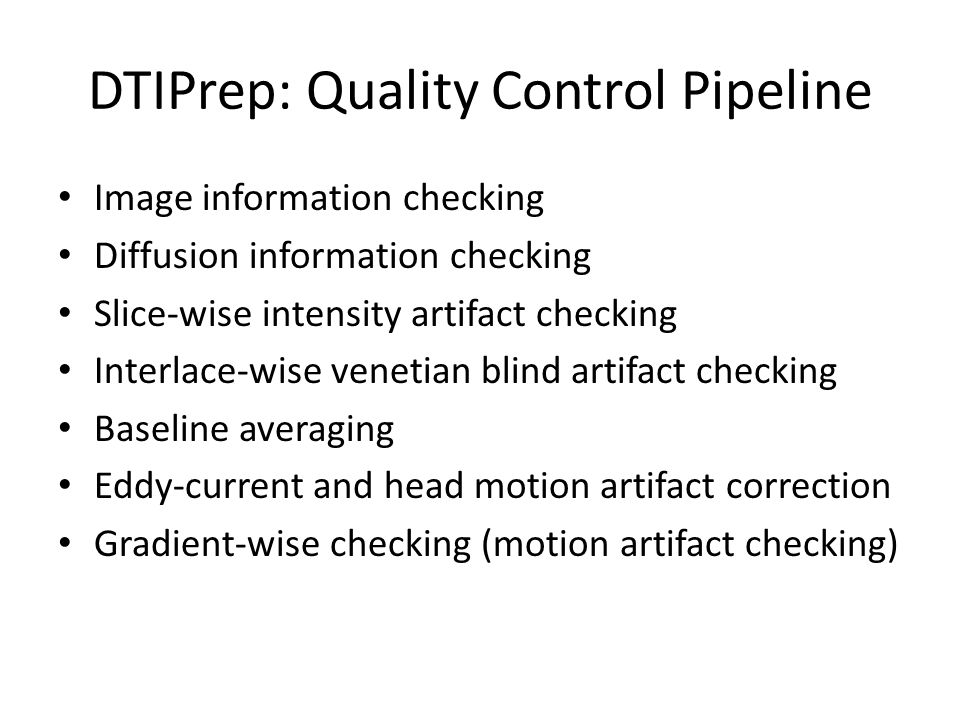

8 DTIPrep: Quality Control Pipeline Image information checking Diffusion information checking Slice-wise intensity artifact checking Interlace-wise venetian blind artifact checking Baseline averaging Eddy-current and head motion artifact correction Gradient-wise checking (motion artifact checking)

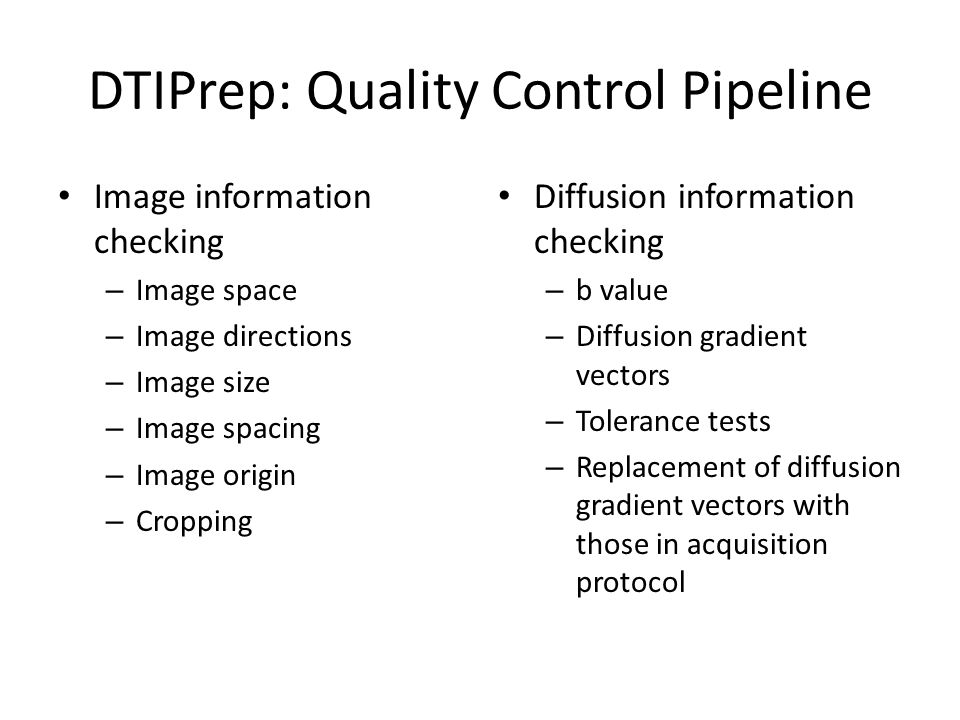

9 DTIPrep: Quality Control Pipeline Image information checking – Image space – Image directions – Image size – Image spacing – Image origin – Cropping Diffusion information checking – b value – Diffusion gradient vectors – Tolerance tests – Replacement of diffusion gradient vectors with those in acquisition protocol

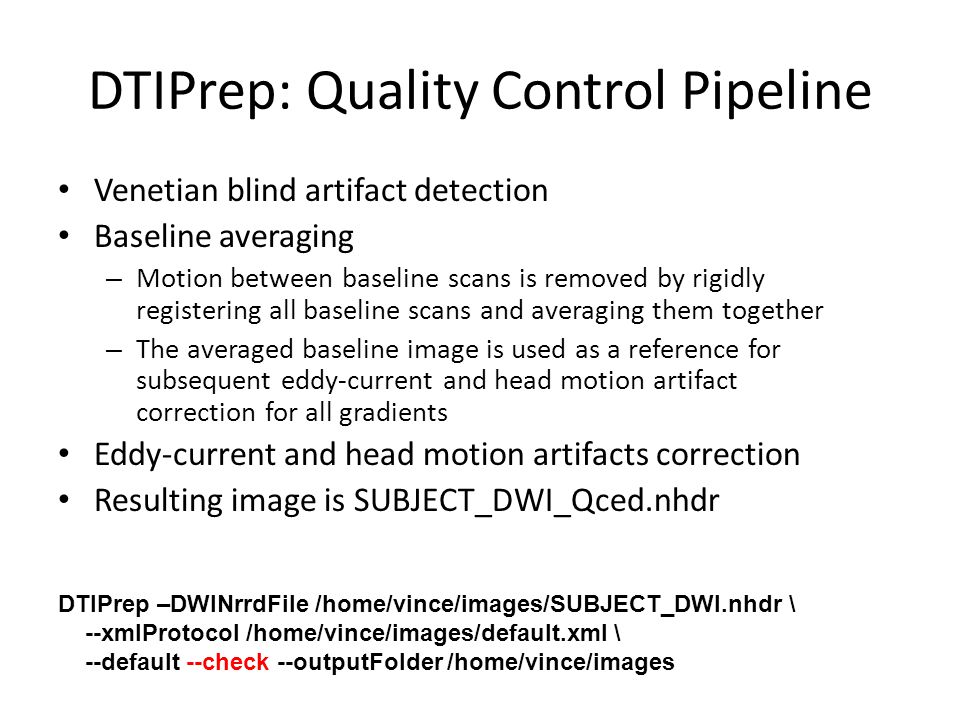

10 DTIPrep: Quality Control Pipeline Venetian blind artifact detection Baseline averaging – Motion between baseline scans is removed by rigidly registering all baseline scans and averaging them together – The averaged baseline image is used as a reference for subsequent eddy-current and head motion artifact correction for all gradients Eddy-current and head motion artifacts correction Resulting image is SUBJECT_DWI_Qced.nhdr DTIPrep –DWINrrdFile /home/vince/images/SUBJECT_DWI.nhdr \ --xmlProtocol /home/vince/images/default.xml \ --default --check --outputFolder /home/vince/images

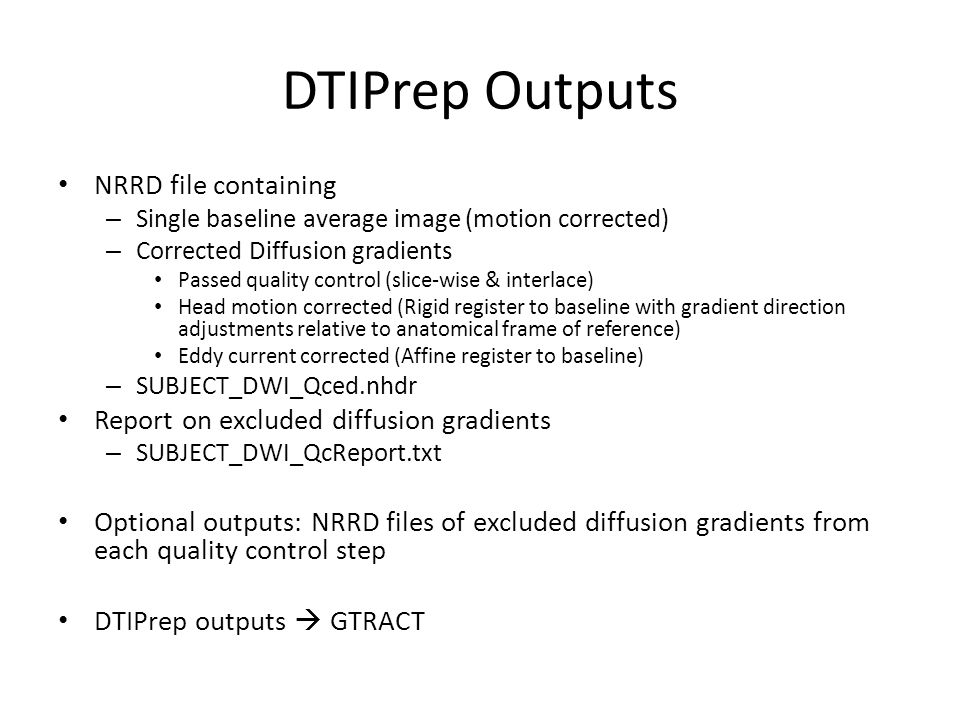

11 DTIPrep Outputs NRRD file containing – Single baseline average image (motion corrected) – Corrected Diffusion gradients Passed quality control (slice-wise & interlace) Head motion corrected (Rigid register to baseline with gradient direction adjustments relative to anatomical frame of reference) Eddy current corrected (Affine register to baseline) – SUBJECT_DWI_Qced.nhdr Report on excluded diffusion gradients – SUBJECT_DWI_QcReport.txt Optional outputs: NRRD files of excluded diffusion gradients from each quality control step DTIPrep outputs  GTRACT

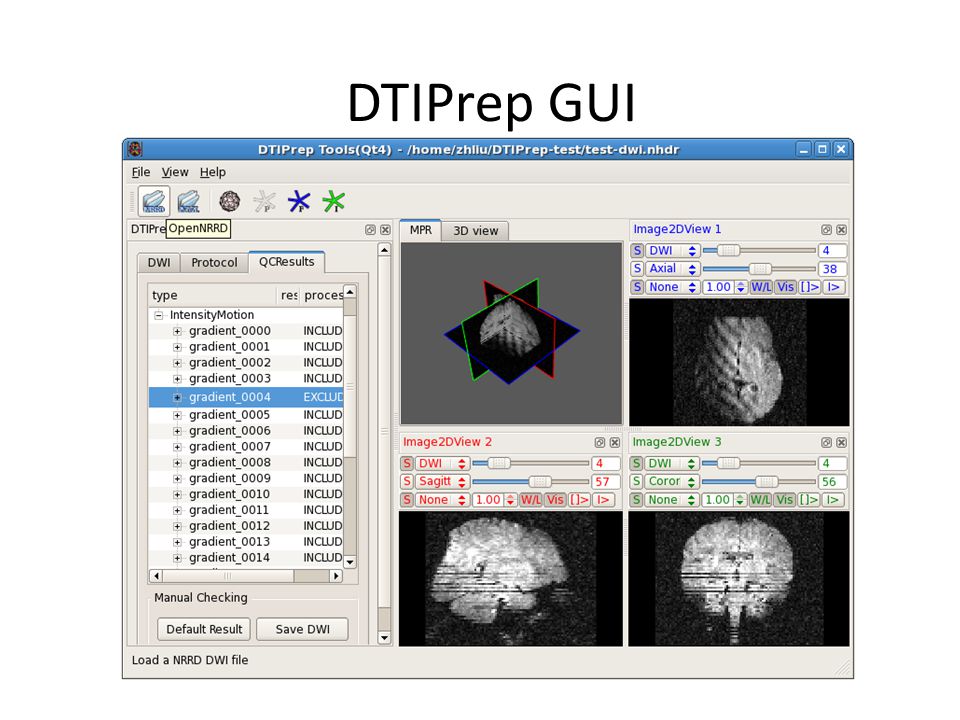

12 DTIPrep GUI

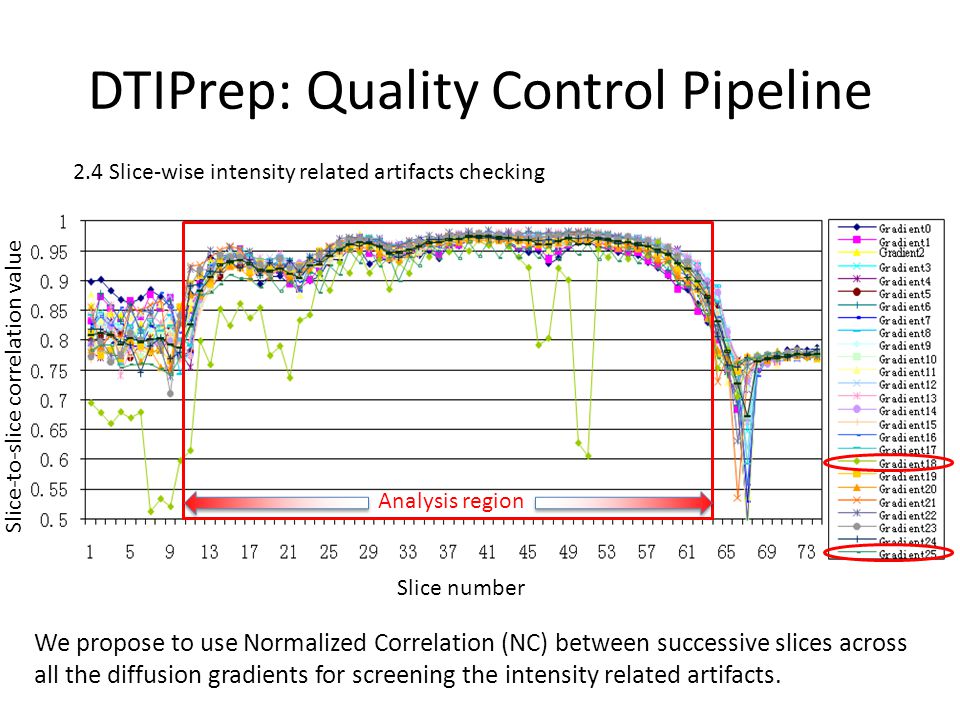

13 DTIPrep: Quality Control Pipeline 2.4 Slice-wise intensity related artifacts checking We propose to use Normalized Correlation (NC) between successive slices across all the diffusion gradients for screening the intensity related artifacts. Analysis region Slice number Slice-to-slice correlation value

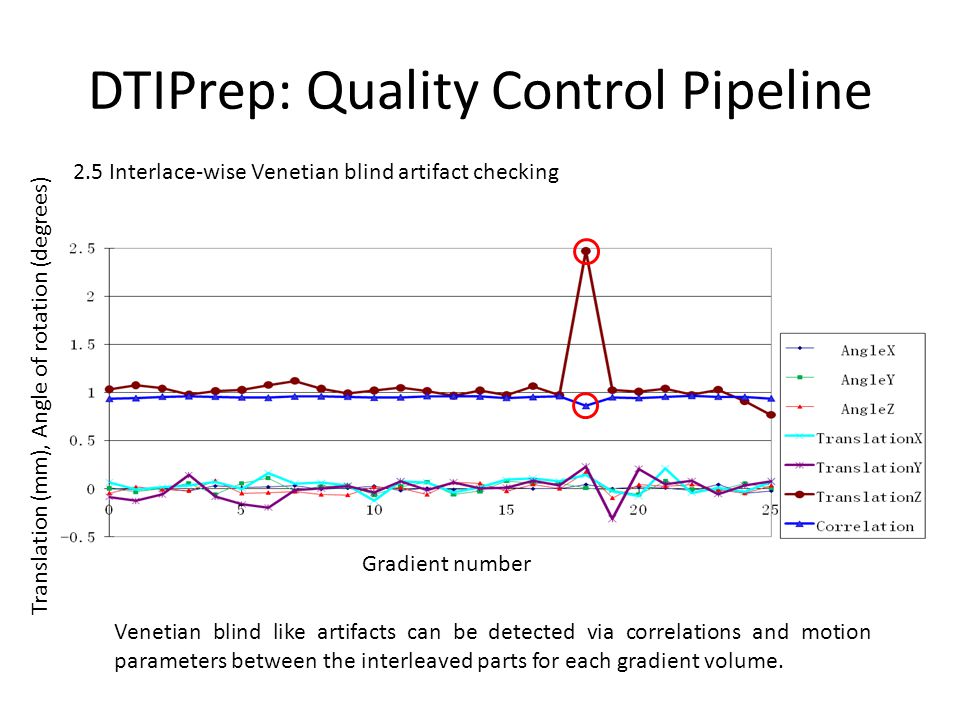

14 DTIPrep: Quality Control Pipeline 2.5 Interlace-wise Venetian blind artifact checking Venetian blind like artifacts can be detected via correlations and motion parameters between the interleaved parts for each gradient volume. Translation (mm), Angle of rotation (degrees) Gradient number

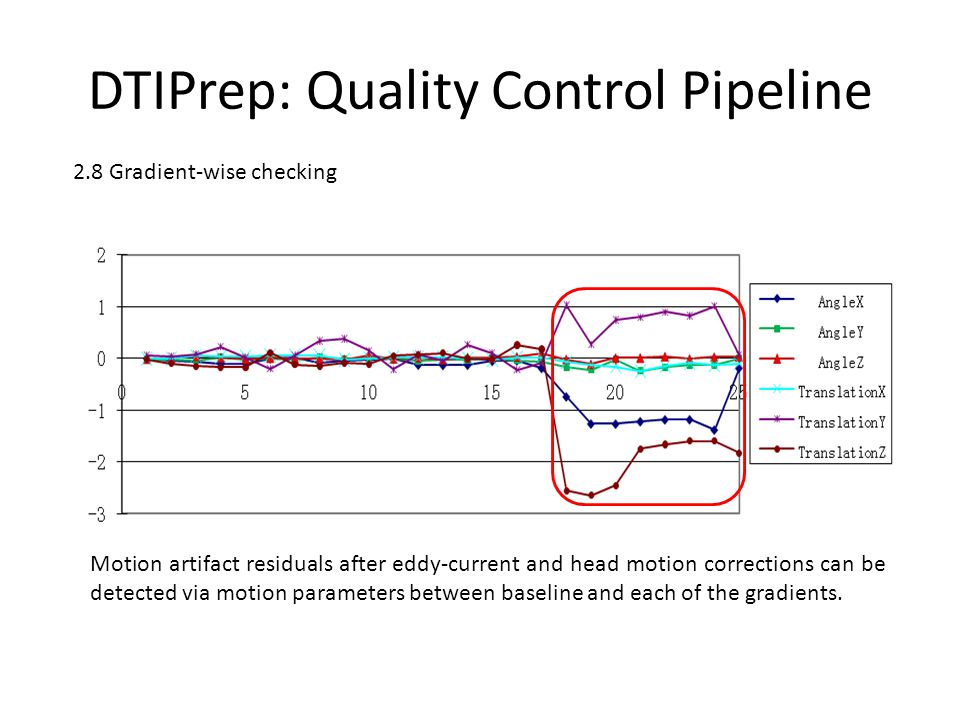

15 DTIPrep: Quality Control Pipeline 2.8 Gradient-wise checking Motion artifact residuals after eddy-current and head motion corrections can be detected via motion parameters between baseline and each of the gradients.

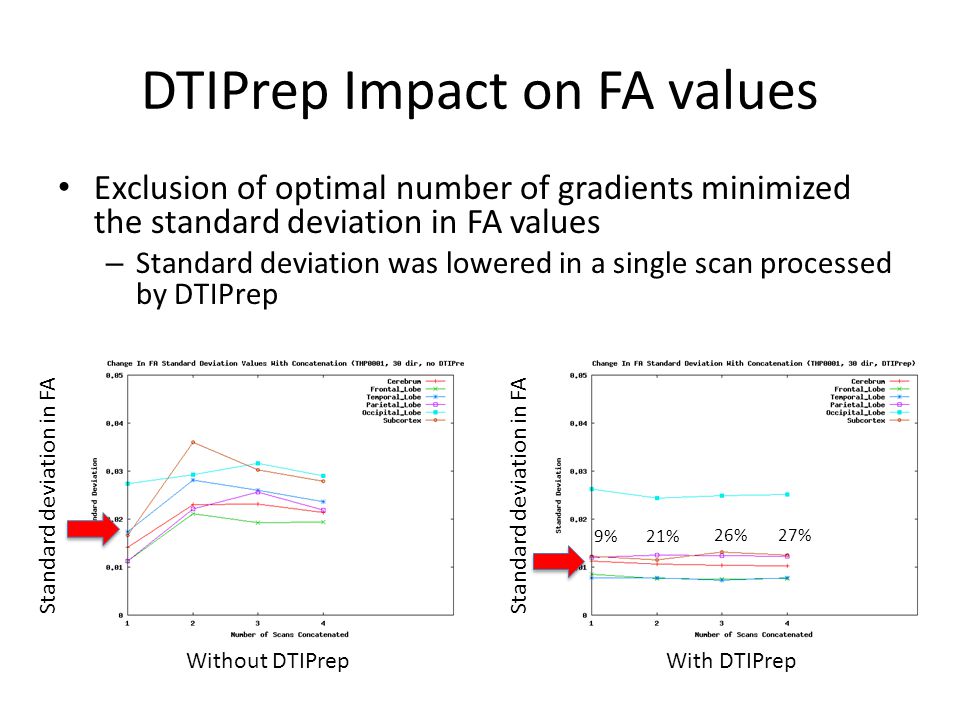

16 DTIPrep Impact on FA values Exclusion of optimal number of gradients minimized the standard deviation in FA values – Standard deviation was lowered in a single scan processed by DTIPrep Without DTIPrepWith DTIPrep Standard deviation in FA 9%21% 26%27%

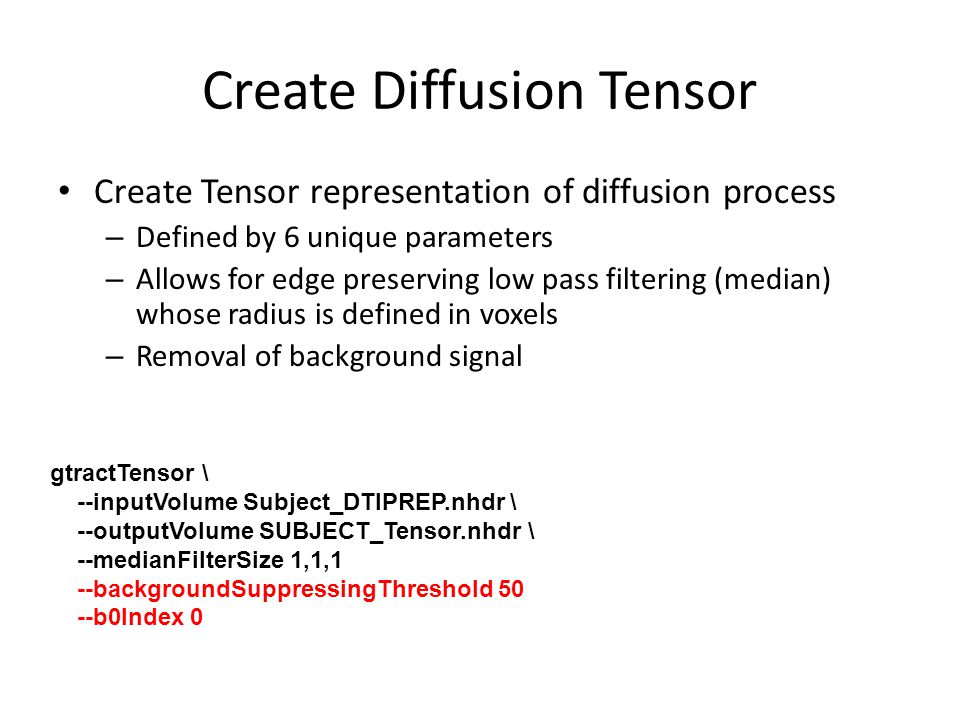

17 Create Diffusion Tensor Create Tensor representation of diffusion process – Defined by 6 unique parameters – Allows for edge preserving low pass filtering (median) whose radius is defined in voxels – Removal of background signal gtractTensor \ --inputVolume Subject_DTIPREP.nhdr \ --outputVolume SUBJECT_Tensor.nhdr \ --medianFilterSize 1,1,1 --backgroundSuppressingThreshold 50 --b0Index 0

18 Rotationally Invariant Scalar Generation Eigen analysis of tensor data Creates a variety of scalars: – FA – Fractional Anisotropy – MD – Mean Diffusivity – RA – Relative Anisotropy – LI – Lattice Index – AD – Axial Diffusivity – RD – Radial Diffusivity gtractAnisotropyMap \ --inputTensorVolume Subject_Tensor.nhdr \ --outputVolume SUBJECT_FA.nii.gz \ --anisotropyType FA

19 Image Extraction and Clipping Extract B0 image Clip B0 image to remove skull using AFNI extractNrrdVectorIndex --index 0\ --inputVolume Subject_DTIPREP.nhdr \ --outputVolume Subject_B0.nii.gz 3dAutomask -prefix Subject_DWI_B0_mask.nii.gz \ Subject_B0.nii.gz 3dcalc -a Subject_DWI_B0_mask.nii.gz \ -datum short -expr "a*1" \ -prefix Subject_B0_maskShort.nii.gz 3dcalc -a Subject_B0_maskShort.nii.gz \ -b Subject_DWI_B0.nii.gz -expr "a*b" \ -prefix Subject_DWI_B0_Brain.nii.gz

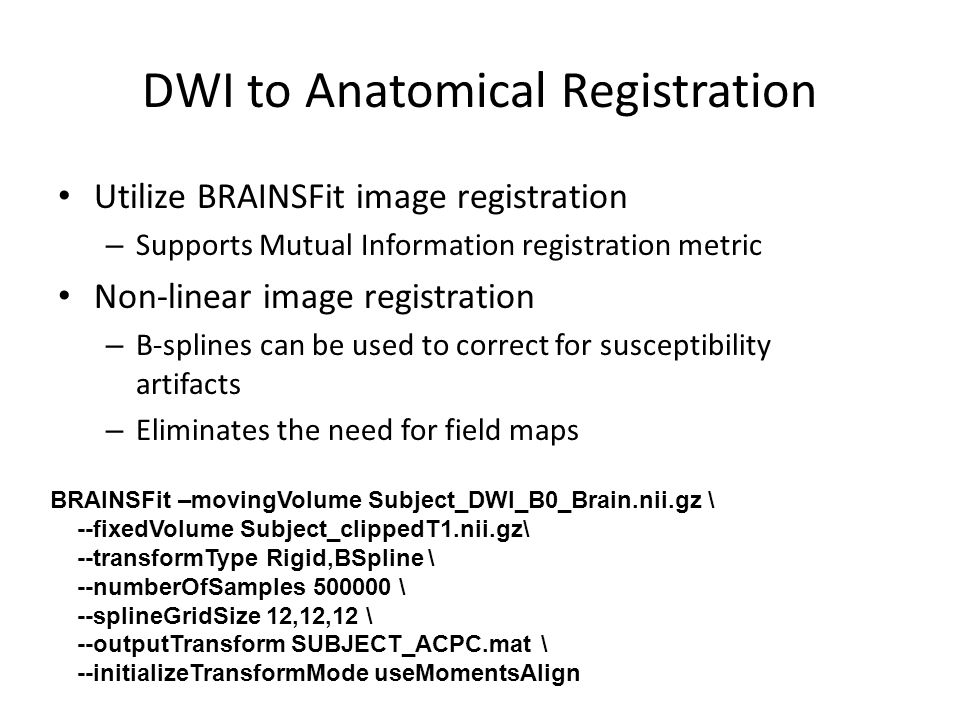

20 DWI to Anatomical Registration Utilize BRAINSFit image registration – Supports Mutual Information registration metric Non-linear image registration – B-splines can be used to correct for susceptibility artifacts – Eliminates the need for field maps BRAINSFit –movingVolume Subject_DWI_B0_Brain.nii.gz \ --fixedVolume Subject_clippedT1.nii.gz\ --transformType Rigid,BSpline \ --numberOfSamples 500000 \ --splineGridSize 12,12,12 \ --outputTransform SUBJECT_ACPC.mat \ --initializeTransformMode useMomentsAlign

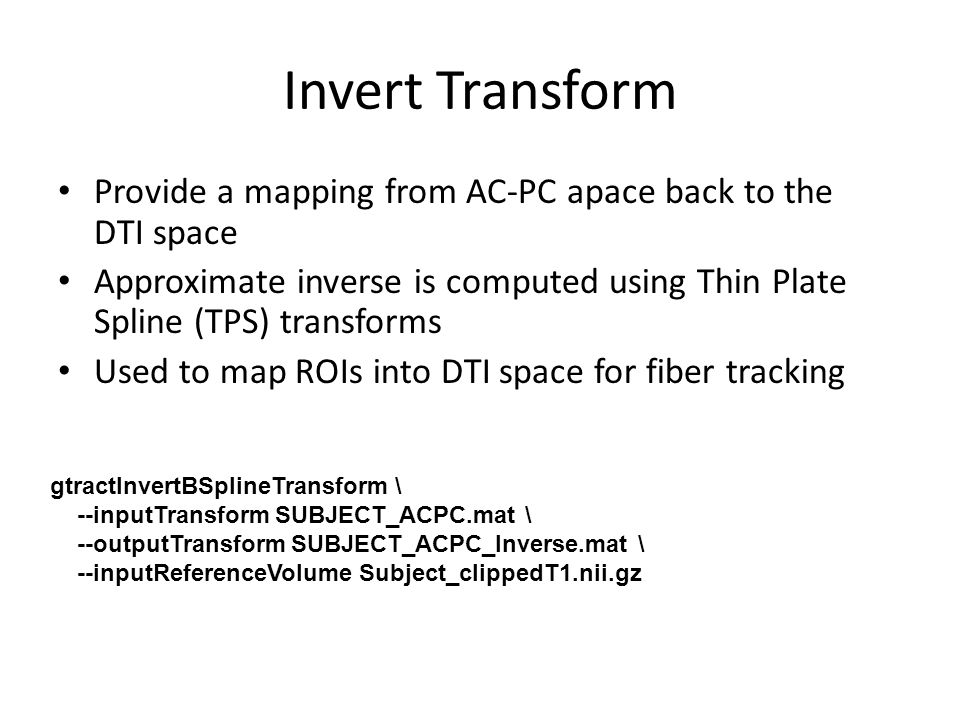

21 Invert Transform Provide a mapping from AC-PC apace back to the DTI space Approximate inverse is computed using Thin Plate Spline (TPS) transforms Used to map ROIs into DTI space for fiber tracking gtractInvertBSplineTransform \ --inputTransform SUBJECT_ACPC.mat \ --outputTransform SUBJECT_ACPC_Inverse.mat \ --inputReferenceVolume Subject_clippedT1.nii.gz

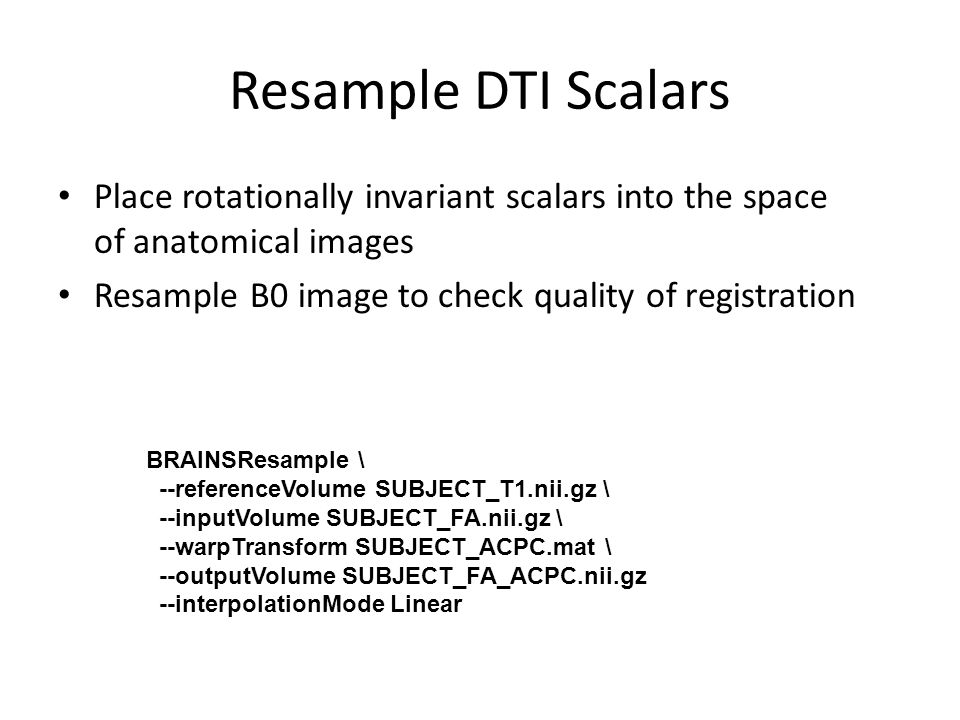

22 Resample DTI Scalars Place rotationally invariant scalars into the space of anatomical images Resample B0 image to check quality of registration BRAINSResample \ --referenceVolume SUBJECT_T1.nii.gz \ --inputVolume SUBJECT_FA.nii.gz \ --warpTransform SUBJECT_ACPC.mat \ --outputVolume SUBJECT_FA_ACPC.nii.gz --interpolationMode Linear

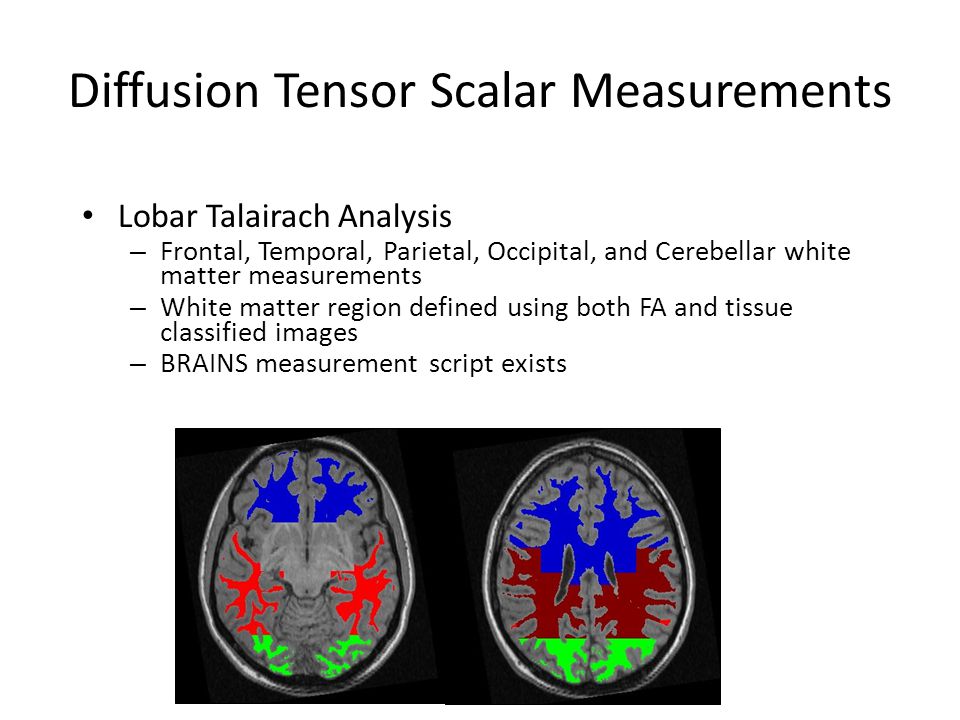

23 Diffusion Tensor Scalar Measurements Lobar Talairach Analysis – Frontal, Temporal, Parietal, Occipital, and Cerebellar white matter measurements – White matter region defined using both FA and tissue classified images – BRAINS measurement script exists

24 Diffusion Tensor Scalar Measurements A-P Analysis of Anisotropy from Anterior-Posterior based on Talairach Atlas – Divide regions from A-D and F-I in half – Retain sizes of E1, E2 and E3 – BRAINS script exists

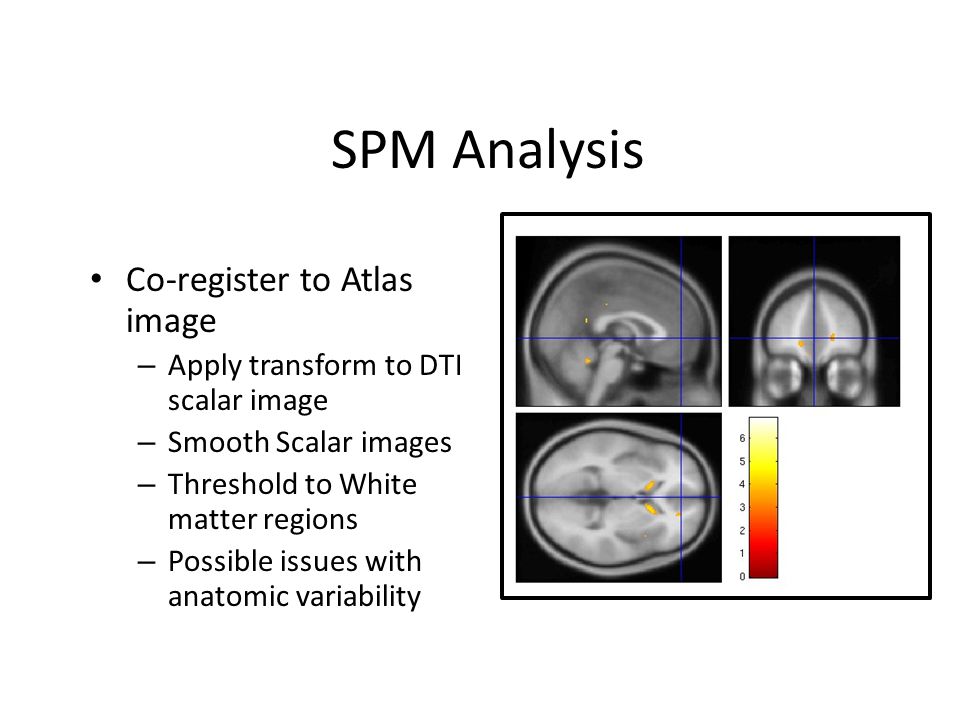

25 SPM Analysis Co-register to Atlas image – Apply transform to DTI scalar image – Smooth Scalar images – Threshold to White matter regions – Possible issues with anatomic variability

26 Fiber Tracking - Introduction Base on the directional information provided by DTI, fiber tracking can be used to explore the underlying white matter fiber structure non- invasively
