1 SEEDING CLOUD-BASED SERVICES: DISTRIBUTED RATE LIMITING (DRL) Kevin Webb, Barath Raghavan, Kashi Vishwanath, Sriram Ramabhadran, Kenneth Yocum, and Alex C. Snoeren

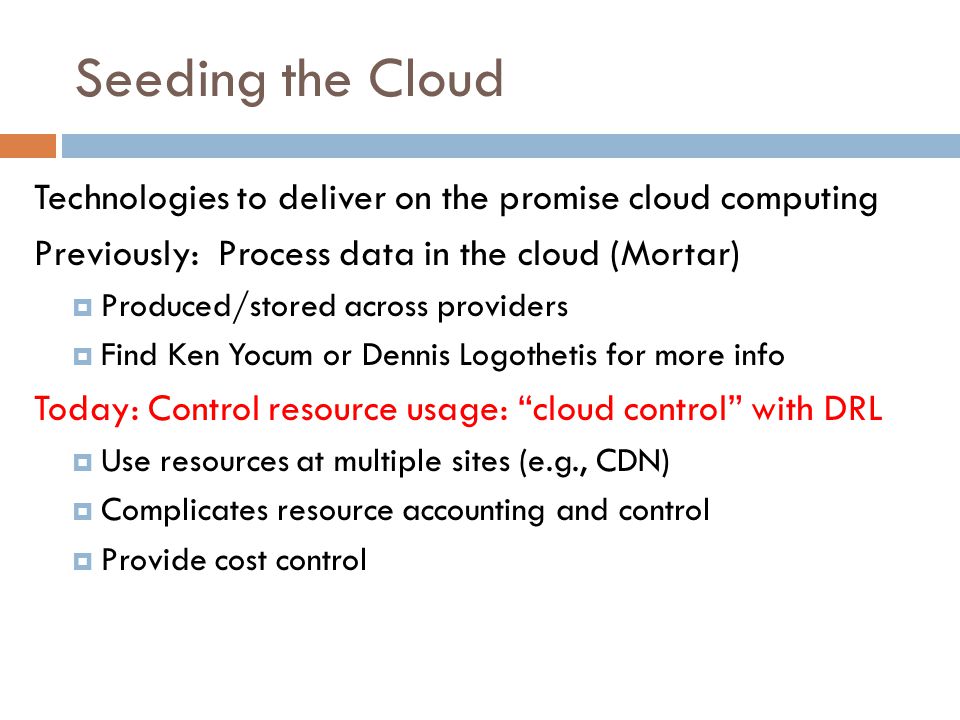

2 Seeding the Cloud Technologies to deliver on the promise cloud computing Previously: Process data in the cloud (Mortar)  Produced/stored across providers  Find Ken Yocum or Dennis Logothetis for more info Today: Control resource usage: “cloud control” with DRL  Use resources at multiple sites (e.g., CDN)  Complicates resource accounting and control  Provide cost control

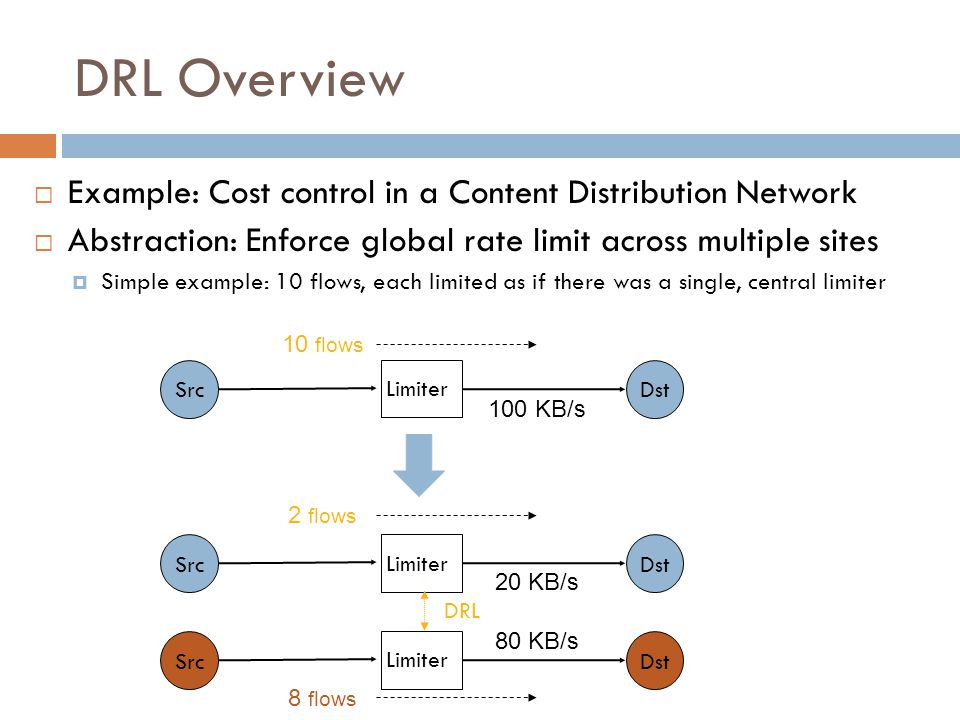

3 DRL Overview  Example: Cost control in a Content Distribution Network  Abstraction: Enforce global rate limit across multiple sites  Simple example: 10 flows, each limited as if there was a single, central limiter SrcDst Limiter SrcDst Limiter SrcDst Limiter DRL 10 flows 2 flows 8 flows 20 KB/s 100 KB/s 80 KB/s

4 Goals & Challenges  Up to now  Develop architecture and protocols for distributed rate limiting (SIGCOMM 07)  Particular approach (FPS) is practical in the wide area  Current goals:  Move DRL out of the lab and impact real services  Validate SIGCOMM results in real-world conditions  Provide Internet testbed with ability to manage bandwidth in a distributed fashion Improve usability of PlanetLab  Challenges  Run-time overheads: CPU, memory, communication  Environment: link/node failures, software quirks

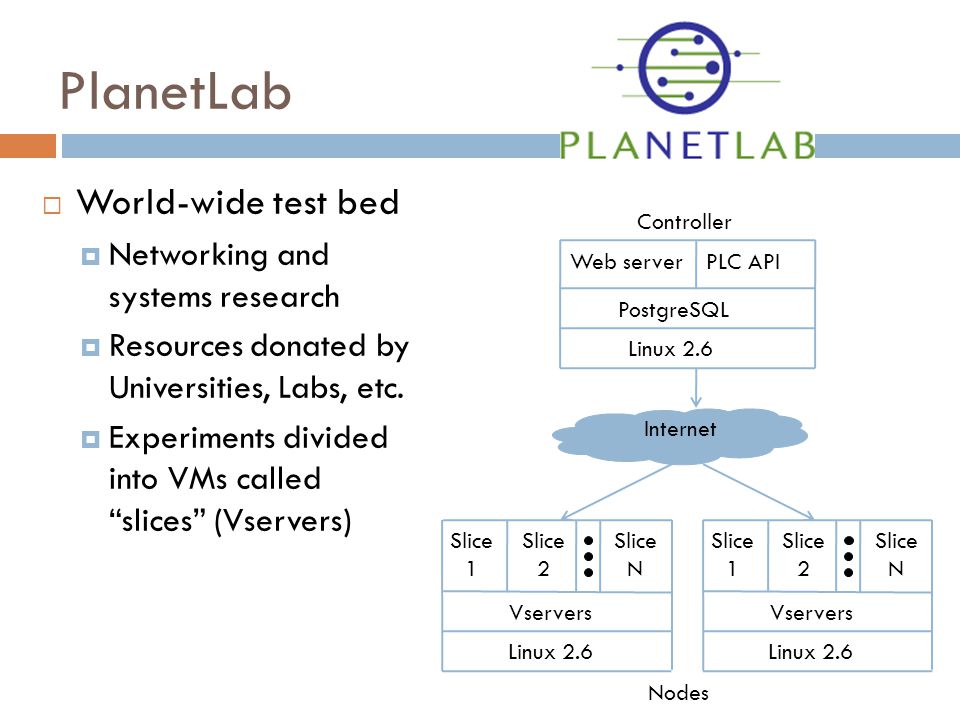

5 PlanetLab  World-wide test bed  Networking and systems research  Resources donated by Universities, Labs, etc.  Experiments divided into VMs called “slices” (Vservers) PostgreSQL PLC APIWeb server Linux 2.6 Internet Controller Vservers Slice 1 Linux 2.6 Slice 2 Slice N Vservers Slice 1 Linux 2.6 Slice 2 Slice N Nodes

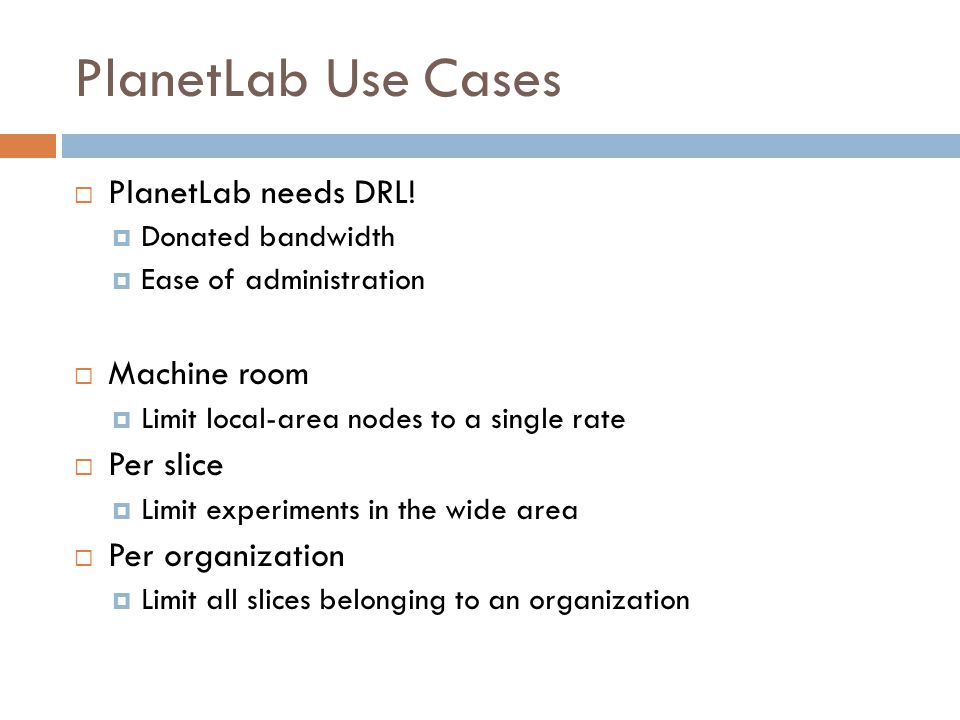

6 PlanetLab Use Cases  PlanetLab needs DRL!  Donated bandwidth  Ease of administration  Machine room  Limit local-area nodes to a single rate  Per slice  Limit experiments in the wide area  Per organization  Limit all slices belonging to an organization

7 PlanetLab Use Cases  Machine room  Limit local-area nodes with a single rate 1 MBps DRL 5 MBps

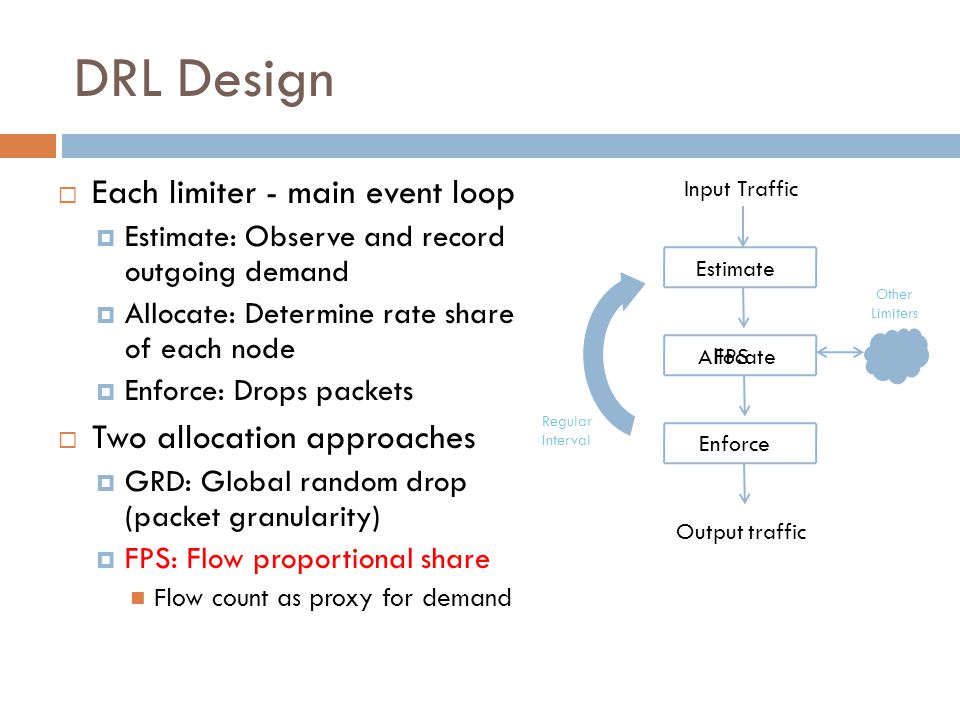

8 DRL Design  Each limiter - main event loop  Estimate: Observe and record outgoing demand  Allocate: Determine rate share of each node  Enforce: Drops packets  Two allocation approaches  GRD: Global random drop (packet granularity)  FPS: Flow proportional share Flow count as proxy for demand Input Traffic Output traffic Estimate Allocate Enforce Regular Interval Other Limiters FPS

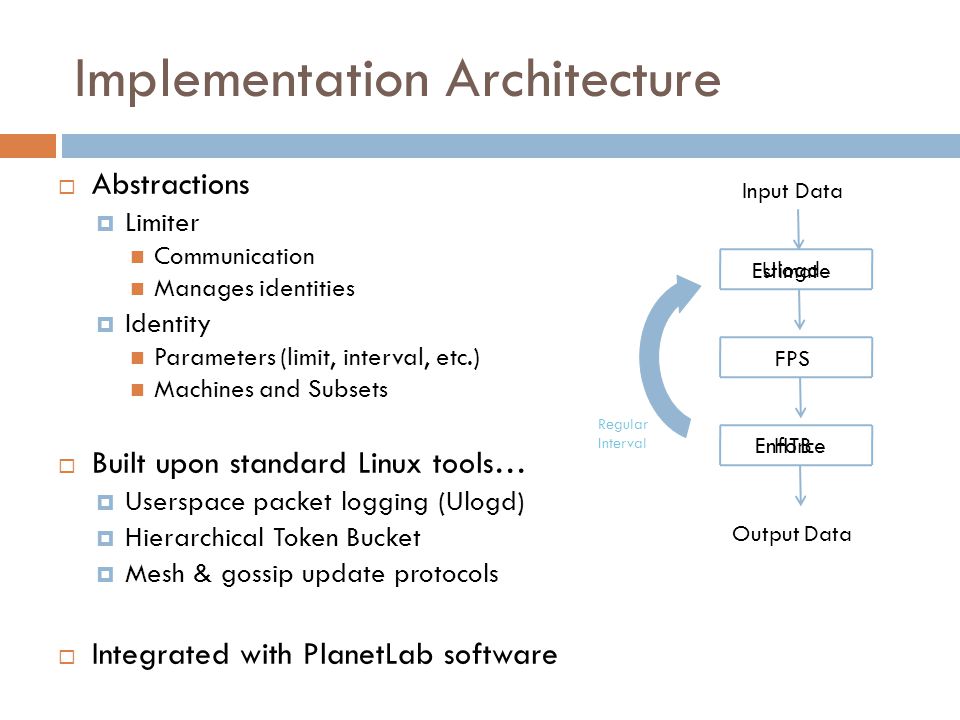

9 Implementation Architecture  Abstractions  Limiter Communication Manages identities  Identity Parameters (limit, interval, etc.) Machines and Subsets  Built upon standard Linux tools…  Userspace packet logging (Ulogd)  Hierarchical Token Bucket  Mesh & gossip update protocols  Integrated with PlanetLab software Input Data Output Data Estimate FPS Enforce Regular Interval Ulogd HTB

10 Estimation using ulogd  Userspace logging daemon  Already used by PlanetLab for efficient abuse tracking  Packets tagged with slice ID by IPTables  Receives outgoing packet headers via netlink socket  DRL implemented as ulogd plug-in  Gives us efficient flow accounting for estimation  Executes the Estimate, Allocate, Enforce loop  Communicates with other limiters

11 Enforcement with Hierarchical Token Bucket  Linux Advanced Routing & Traffic Control  Hierarchy of rate limits  Enforces DRL’s rate limit  Packets attributed to leaves (slices)  Packets move up, borrowing from parents B C D Y Z A XRoot Packet (1500b) 1000b 100b 600b Packet (1500) 0b 200b

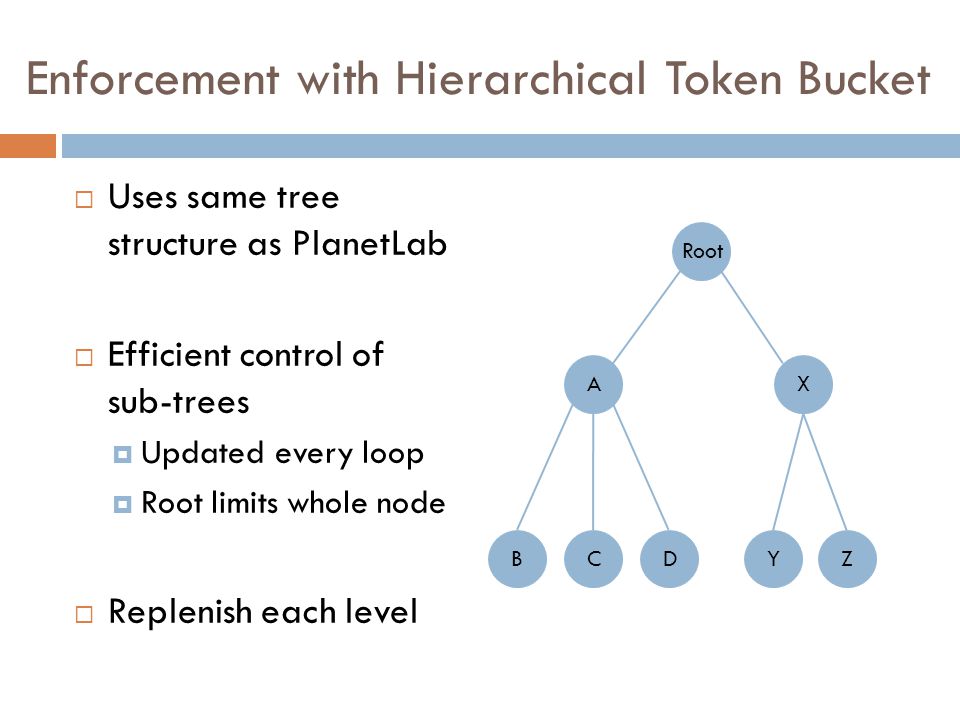

12 Enforcement with Hierarchical Token Bucket  Uses same tree structure as PlanetLab  Efficient control of sub-trees  Updated every loop  Root limits whole node  Replenish each level B C D Y Z A XRoot

13 Citadel Site  The Citadel (2 nodes)  Wanted 1 Mbps traffic limit  Added (horrible) traffic shaper  Poor responsiveness (2 – 15 seconds)  Running right now!  Cycles on and off every four minutes Observe DRL’s impact without ground truth Shaper DRL

14 Citadel Results – Outgoing Traffic  Data logged from running nodes  Takeaways:  Without DRL, way over limit  One node sending more than other Time Outgoing Traffic 1Mbit/s On Off

15 Citadel Results – Flow Counts Time # of Flows  FPS uses flow count as proxy for demand

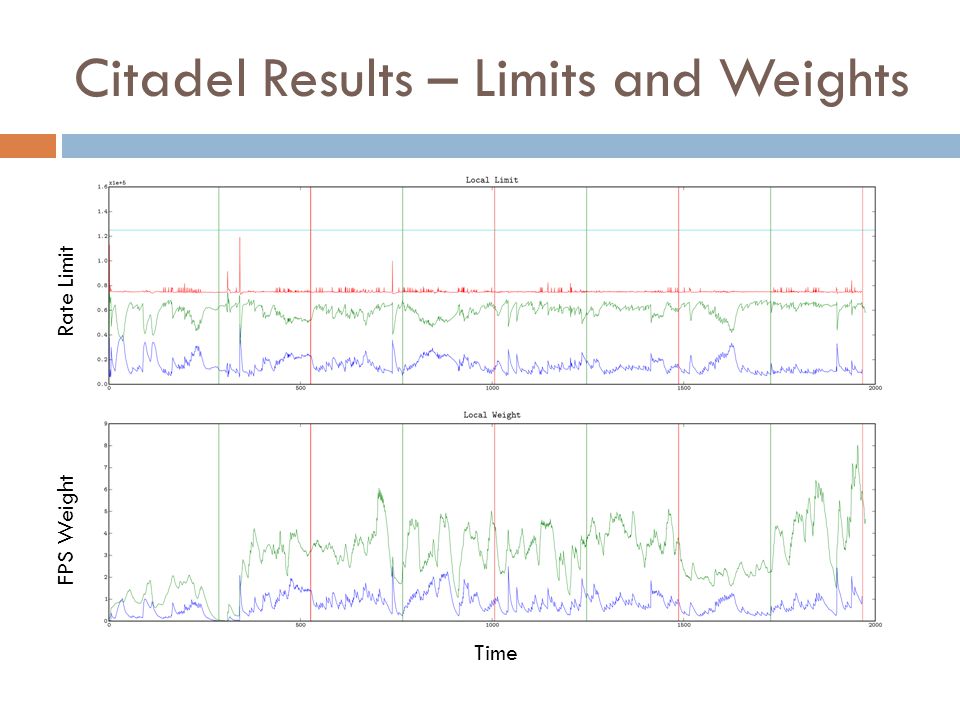

16 Citadel Results – Limits and Weights Time Rate Limit FPS Weight

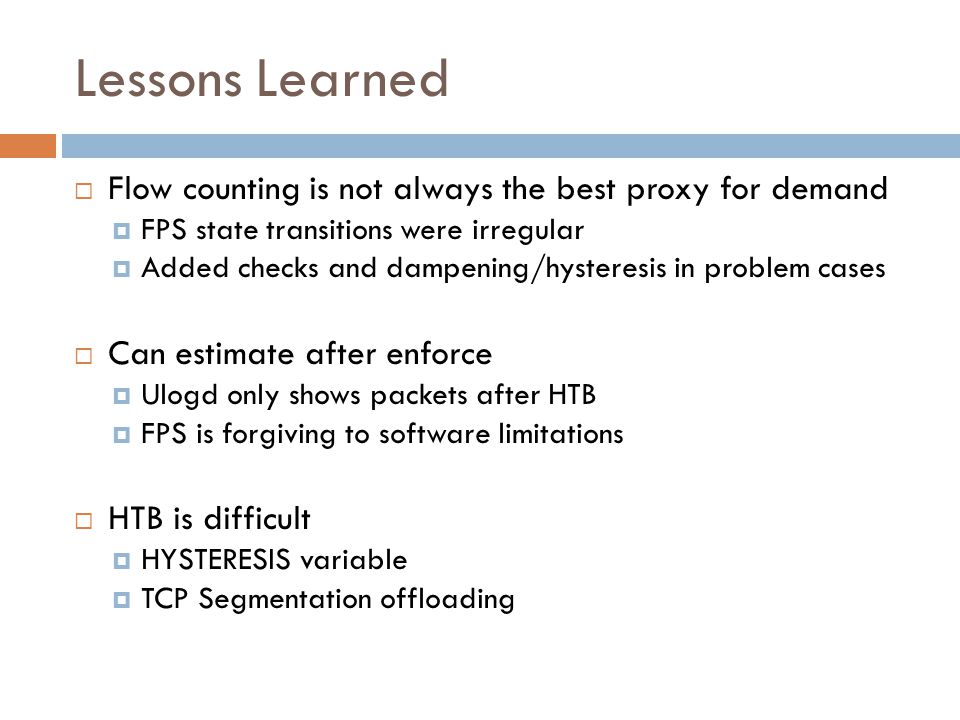

17 Lessons Learned  Flow counting is not always the best proxy for demand  FPS state transitions were irregular  Added checks and dampening/hysteresis in problem cases  Can estimate after enforce  Ulogd only shows packets after HTB  FPS is forgiving to software limitations  HTB is difficult  HYSTERESIS variable  TCP Segmentation offloading

18 Ongoing work  Other use cases  Larger-scale tests  Complete PlanetLab administrative interface  Standalone version  Continue DRL rollout on PlanetLab  UCSD’s PlanetLab nodes soon

19 Questions?  Code is available from PlanetLab svn 

20

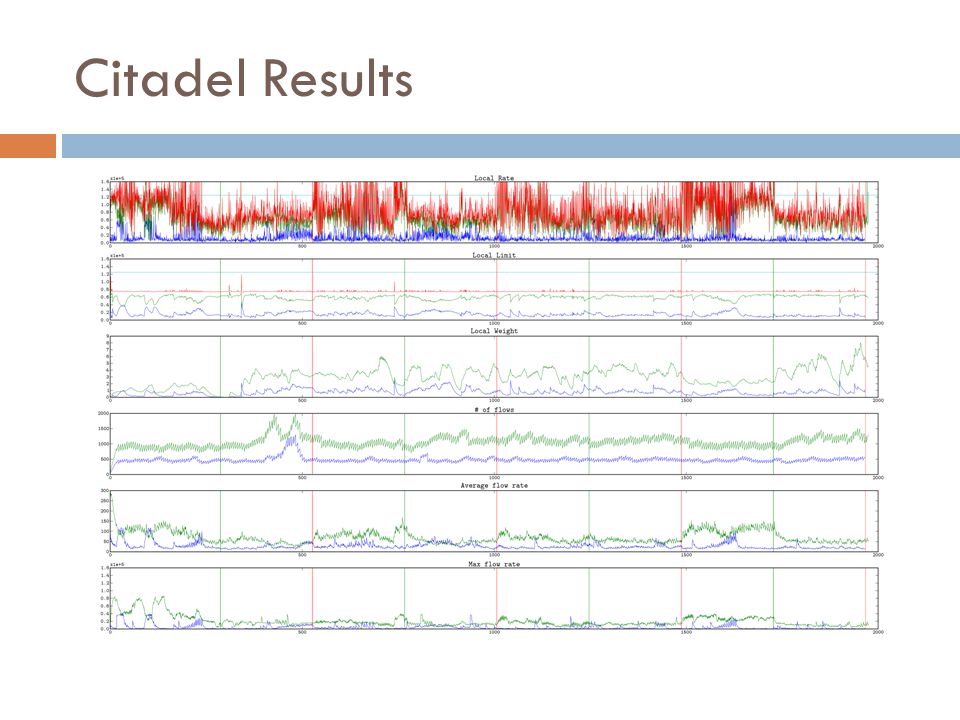

21 Citadel Results
