1 1 Signature Files Information Retrieval: Data Structures and Algorithms by W.B. Frakes and R. Baeza-Yates (Eds.) Englewood Cliffs, NJ: Prentice Hall, 1992. (Chapters 4)

2 2 Signature Files l Characteristics »Word-oriented index structures based on hashing »Low overhead (10%~20% over the text size) at the cost of forcing a sequential search over the index »Suitable for not very large texts »Inverted files outperform signature files for most applications

3 3 Structure l Use superimposed coding to create signature. l Each text is divided into logical blocks. l A block contains n distinct non-common words. l Each word yields “word signature”. l A word signature is a B-bit pattern, with m 1-bit. »Each word is divided into successive, overlapping triplets. e.g. free -->  fr, fre, ree, ee  »Each such triplet is hashed to a bit position. l The word signatures are OR’ed to form block signature. l Block signatures are concatenated to form the document signature.

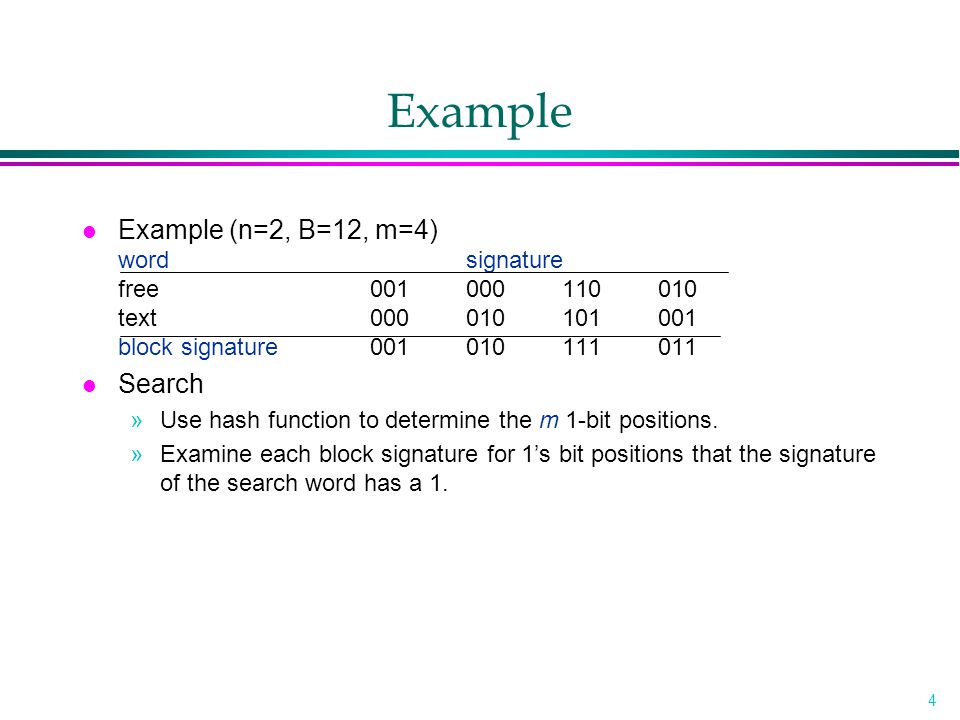

4 4 Example l Example (n=2, B=12, m=4) wordsignature free001000110010 text000010101001 block signature001010111011 l Search »Use hash function to determine the m 1-bit positions. »Examine each block signature for 1’s bit positions that the signature of the search word has a 1.

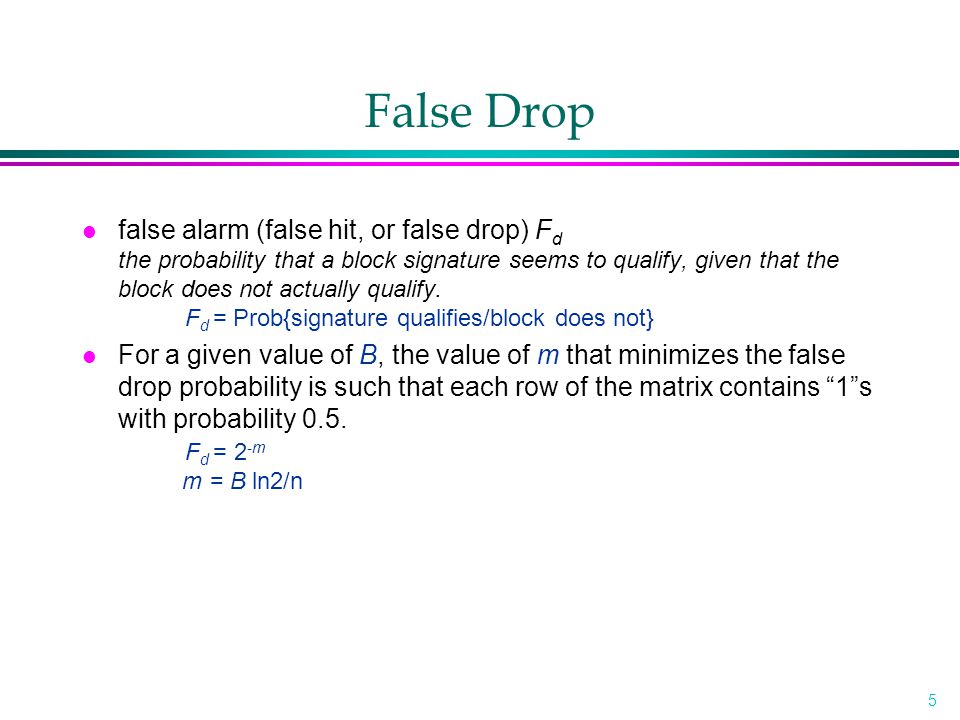

5 5 False Drop l false alarm (false hit, or false drop) F d the probability that a block signature seems to qualify, given that the block does not actually qualify. F d = Prob{signature qualifies/block does not} l For a given value of B, the value of m that minimizes the false drop probability is such that each row of the matrix contains “1”s with probability 0.5. F d = 2 -m m = B ln2/n

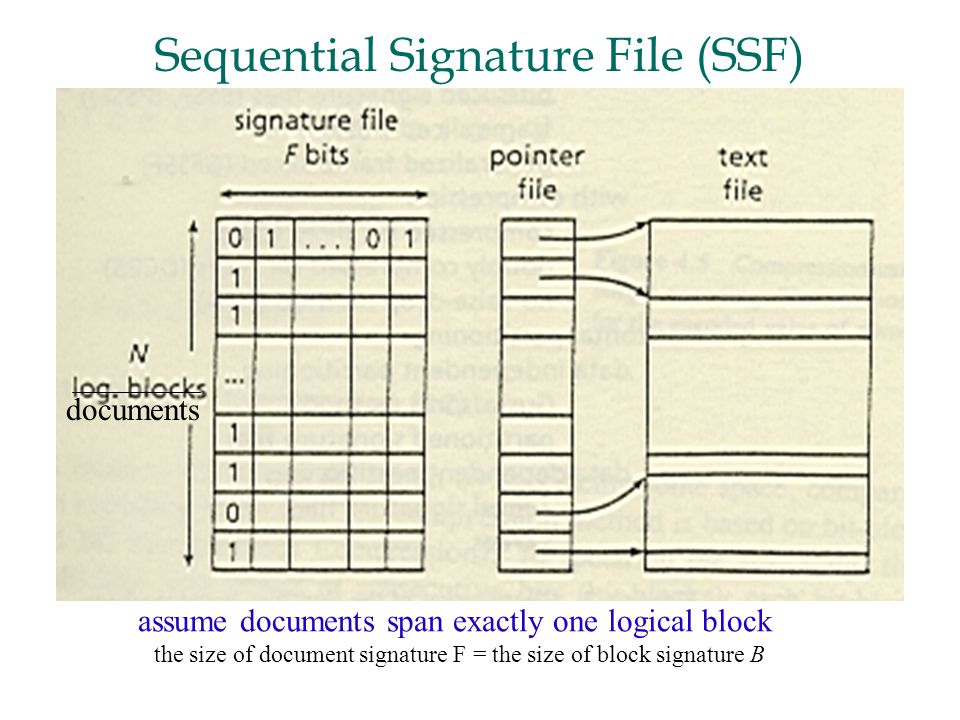

6 documents assume documents span exactly one logical block the size of document signature F = the size of block signature B Sequential Signature File (SSF)

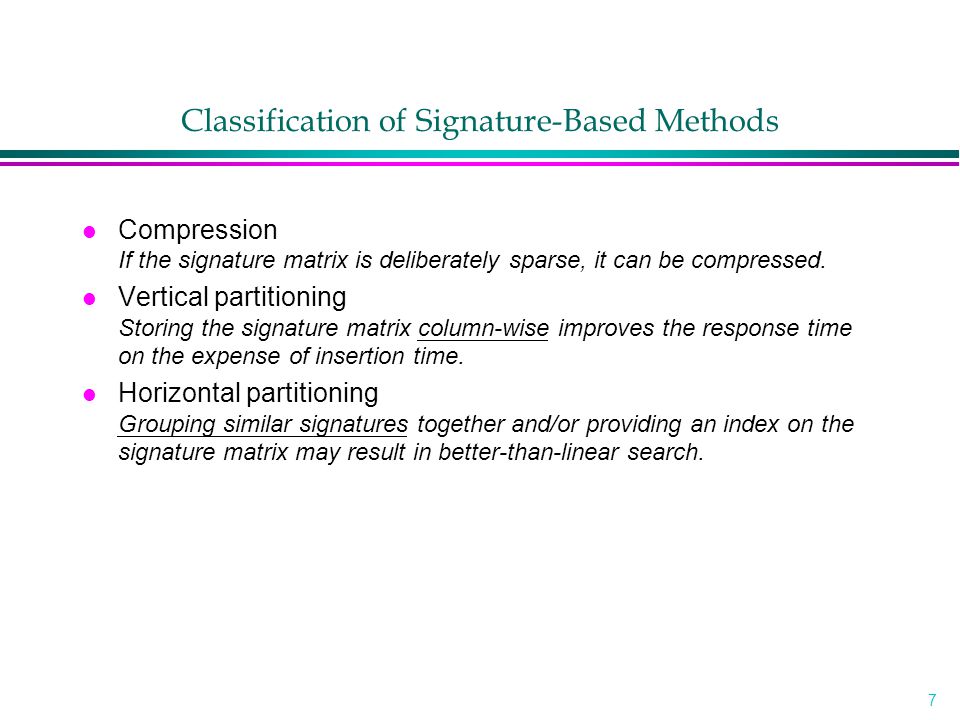

7 7 Classification of Signature-Based Methods l Compression If the signature matrix is deliberately sparse, it can be compressed. l Vertical partitioning Storing the signature matrix column-wise improves the response time on the expense of insertion time. l Horizontal partitioning Grouping similar signatures together and/or providing an index on the signature matrix may result in better-than-linear search.

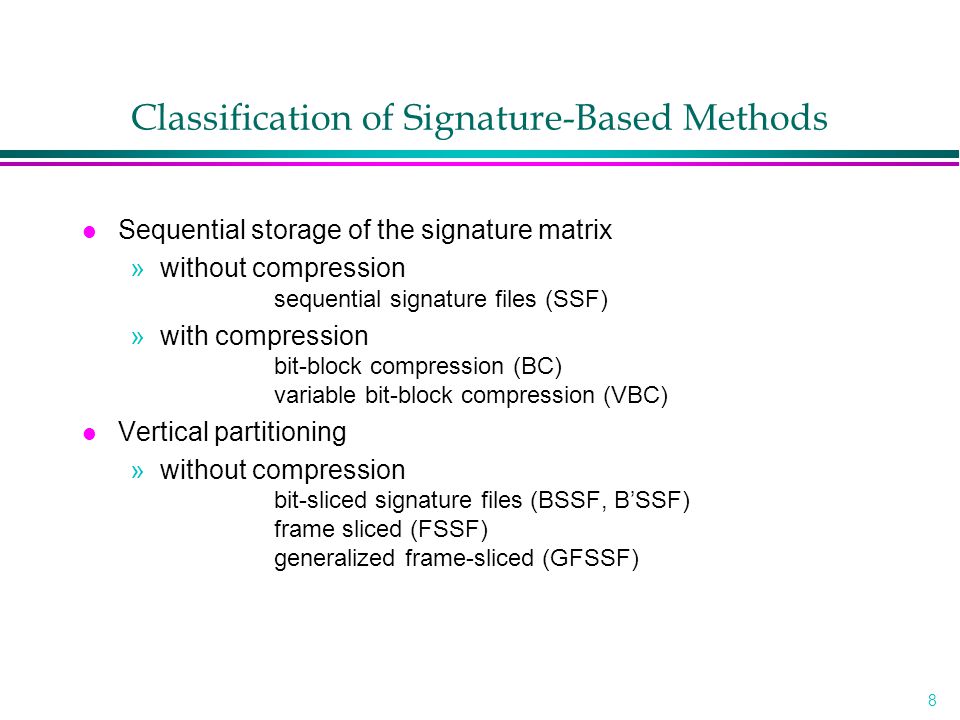

8 8 Classification of Signature-Based Methods l Sequential storage of the signature matrix »without compression sequential signature files (SSF) »with compression bit-block compression (BC) variable bit-block compression (VBC) l Vertical partitioning »without compression bit-sliced signature files (BSSF, B’SSF) frame sliced (FSSF) generalized frame-sliced (GFSSF)

9 9 Classification of Signature-Based Methods ( Continued ) »with compression compressed bit slices (CBS) doubly compressed bit slices (DCBS) no-false-drop method (NFD) l Horizontal partitioning »data independent partitioning Gustafson’s method partitioned signature files »data dependent partitioning 2-level signature files 5-trees

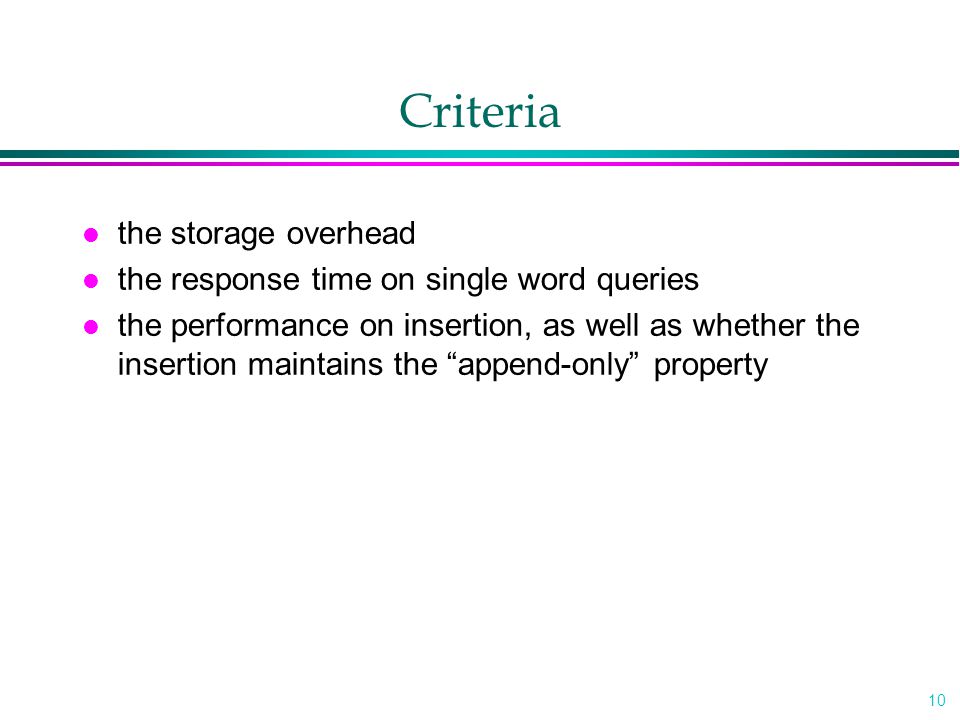

10 10 Criteria l the storage overhead l the response time on single word queries l the performance on insertion, as well as whether the insertion maintains the “append-only” property

11 11 Compression l idea »Create sparse document signatures on purpose. »Compress them before storing them sequentially. l Method »Use B-bit vector, where B is large. »Hash each word into one (or k) bit position(s). »Use run-length encoding (McIlroy 1982).

12 Compression using run-length encoding data0000 0000 0000 0010 0000 base0000 0001 0000 0000 0000 management0000 1000 0000 0000 0000 system0000 0000 0000 0000 1000 block signature0000 1001 0000 0010 1000 L1L1 L2L2 L3L3 L4L4 L5L5 [L 1 ] [L 2 ] [L 3 ] [L 4 ] [L 5 ] where [x] is the encoded vale of x. search: Decode the encoded lengths of all the preceding intervals example: search “data” (1) data ==> 0000 0000 0000 0010 0000 (2) decode [L1]=0000, decode [L2]=00, decode [L3]=000000 disadvantage: search becomes low

13 Bit-block Compression (BC) Data Structure: (1) The sparse vector is divided into groups of consecutive bits (bit-blocks). (2) Each bit block is encoded individually. Algorithm: Part I. It is one bit long, and it indicates whether there are any “1”s in the bit-block (1) or the bit -block is (0). In the latter case, the bit-block signature stops here. 0000 1001 0000 0010 1000 0 1 0 1 1 Part II. It indicates the number s of “1”s in the bit-block. It consists of s-1 “1” and a terminating zero. 10 0 0 Part III. It contains the offsets of the “1”s from the beginning of the bit-block. 0011 10 00 說明: 4bits ,距離為 0, 1, 2, 3 ,編碼為 00, 01, 10, 11 block signature: 01011 | 10 00 | 00 11 10 00

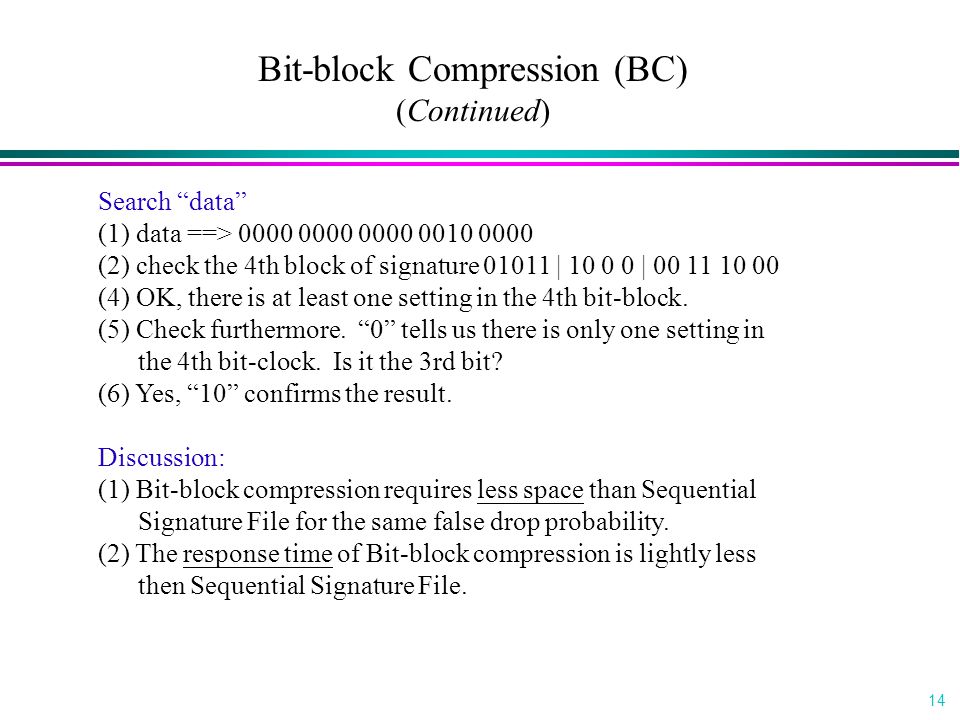

14 14 Bit-block Compression (BC) (Continued) Search “data” (1) data ==> 0000 0000 0000 0010 0000 (2) check the 4th block of signature 01011 | 10 0 0 | 00 11 10 00 (4) OK, there is at least one setting in the 4th bit-block. (5) Check furthermore. “0” tells us there is only one setting in the 4th bit-clock. Is it the 3rd bit? (6) Yes, “10” confirms the result. Discussion: (1) Bit-block compression requires less space than Sequential Signature File for the same false drop probability. (2) The response time of Bit-block compression is lightly less then Sequential Signature File.

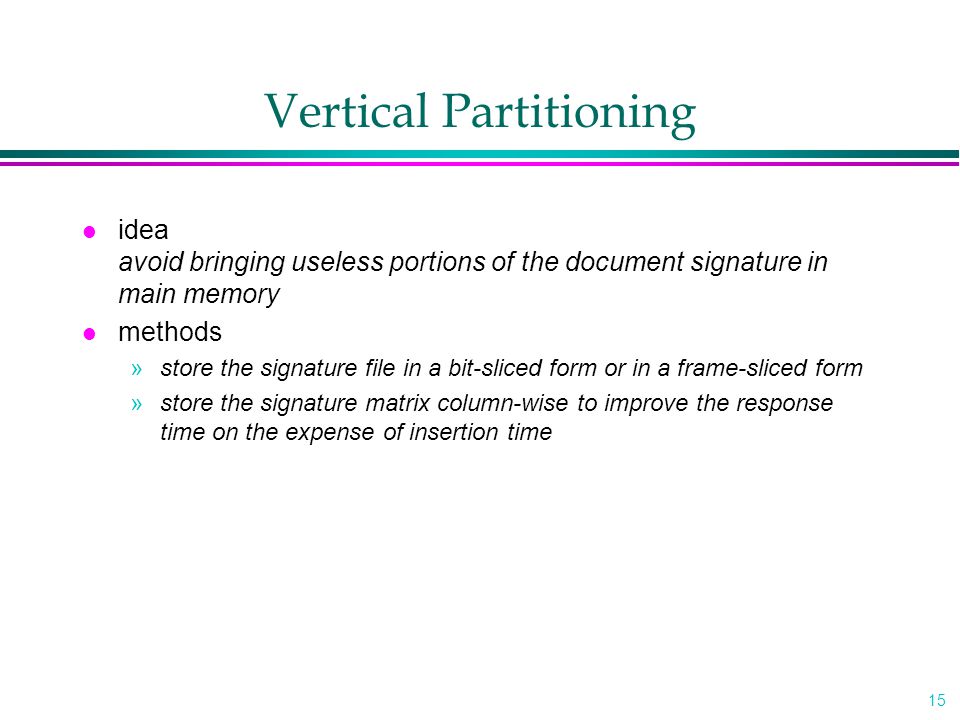

15 15 Vertical Partitioning l idea avoid bringing useless portions of the document signature in main memory l methods »store the signature file in a bit-sliced form or in a frame-sliced form »store the signature matrix column-wise to improve the response time on the expense of insertion time

16 Bit-Sliced Signature Files (BSSF) Transposed bit matrix transpose represent documents (document signature)

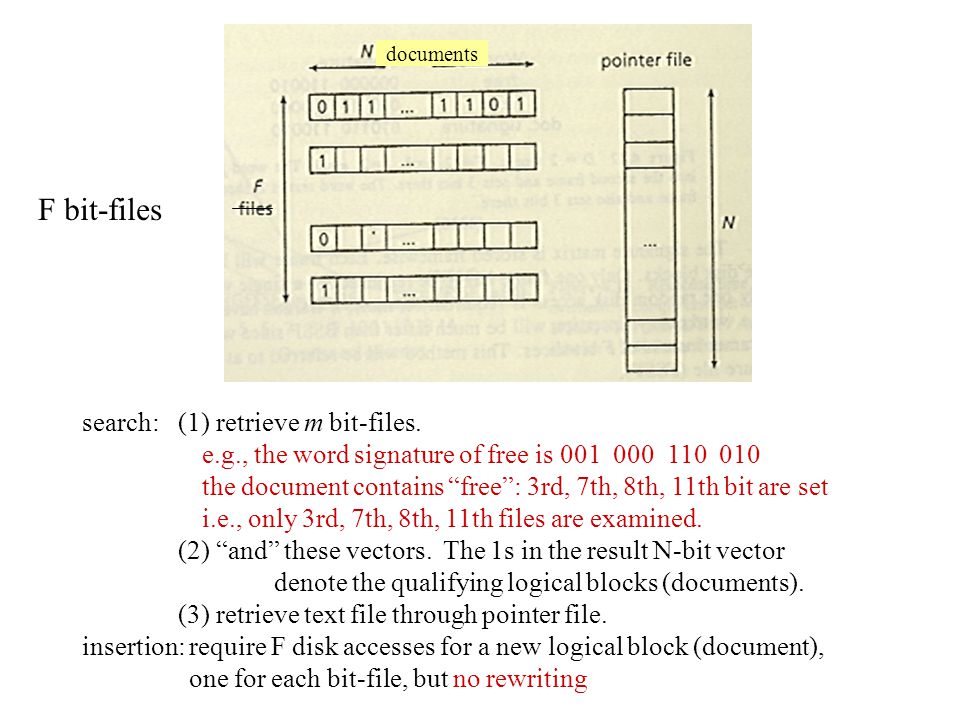

17 F bit-files search:(1) retrieve m bit-files. e.g., the word signature of free is 001 000 110 010 the document contains “free”: 3rd, 7th, 8th, 11th bit are set i.e., only 3rd, 7th, 8th, 11th files are examined. (2) “and” these vectors. The 1s in the result N-bit vector denote the qualifying logical blocks (documents). (3) retrieve text file through pointer file. insertion: require F disk accesses for a new logical block (document), one for each bit-file, but no rewriting documents

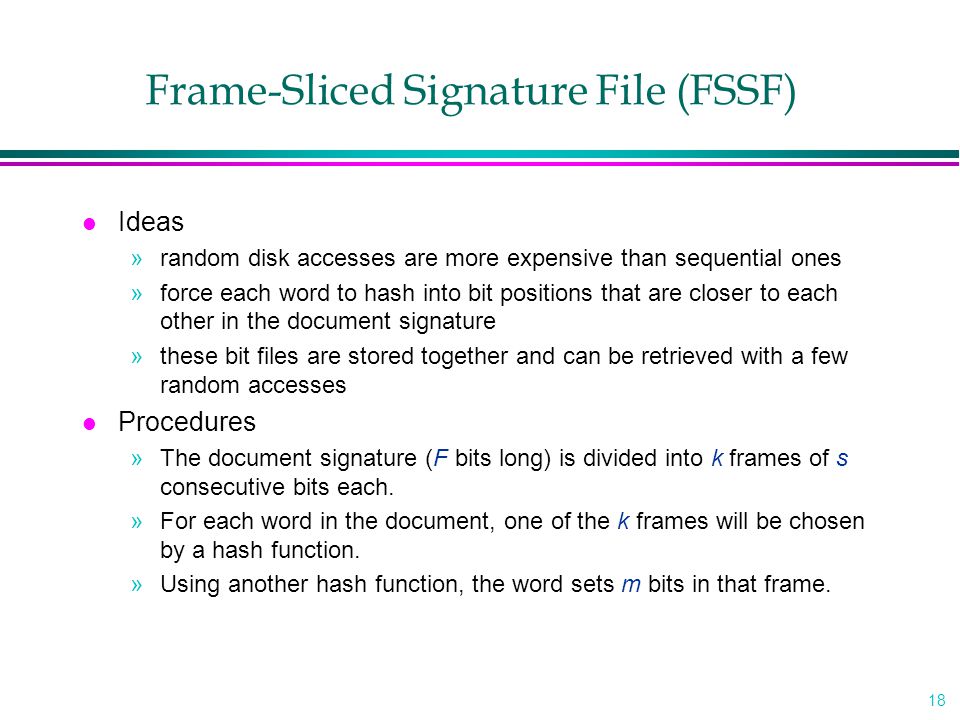

18 18 Frame-Sliced Signature File (FSSF) l Ideas »random disk accesses are more expensive than sequential ones »force each word to hash into bit positions that are closer to each other in the document signature »these bit files are stored together and can be retrieved with a few random accesses l Procedures »The document signature (F bits long) is divided into k frames of s consecutive bits each. »For each word in the document, one of the k frames will be chosen by a hash function. »Using another hash function, the word sets m bits in that frame.

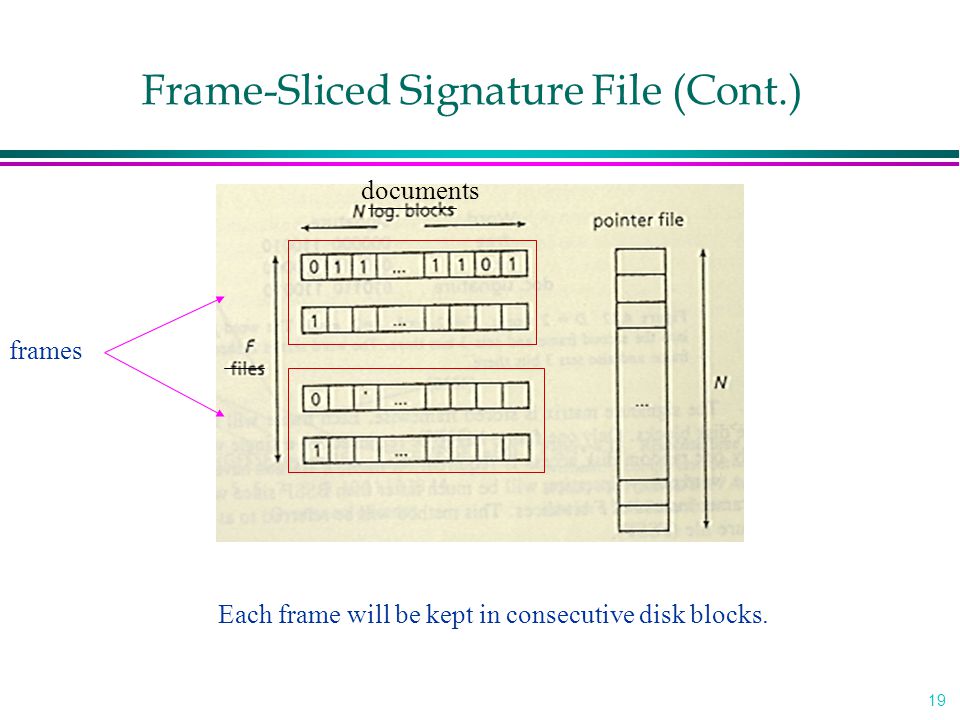

19 19 documents frames Each frame will be kept in consecutive disk blocks. Frame-Sliced Signature File (Cont.)

20 20 FSSF ( Continued ) l Example (n=2, B=12, s=6, f=2, m=3) WordSignature free000000 110010 text010110 000000 doc. signature010110 110010 l Search »Only one frame has to be retrieved for a single word query. I.E., only one random disk access is required. e.g., search documents that contain the word “free” ->because the word signature of “free” is placed in 2nd frame, only the 2nd frame has to be examined. »At most k frames have to be scanned for an k word query. l Insertion »Only f frames have to be accessed instead of F bit-slices.

21 21 Vertical Partitioning with Compression l idea »create a very sparse signature matrix »store it in a bit-sliced form »compress each bit slice by storing the position of the 1s in the slice.

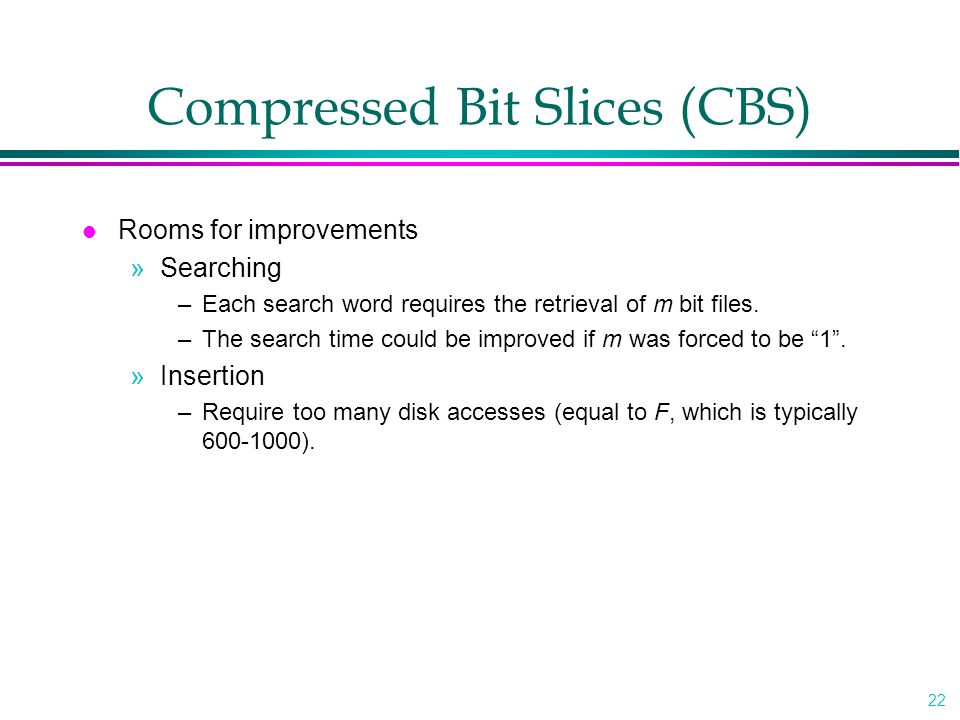

22 22 Compressed Bit Slices (CBS) l Rooms for improvements »Searching –Each search word requires the retrieval of m bit files. –The search time could be improved if m was forced to be “1”. »Insertion –Require too many disk accesses (equal to F, which is typically 600-1000).

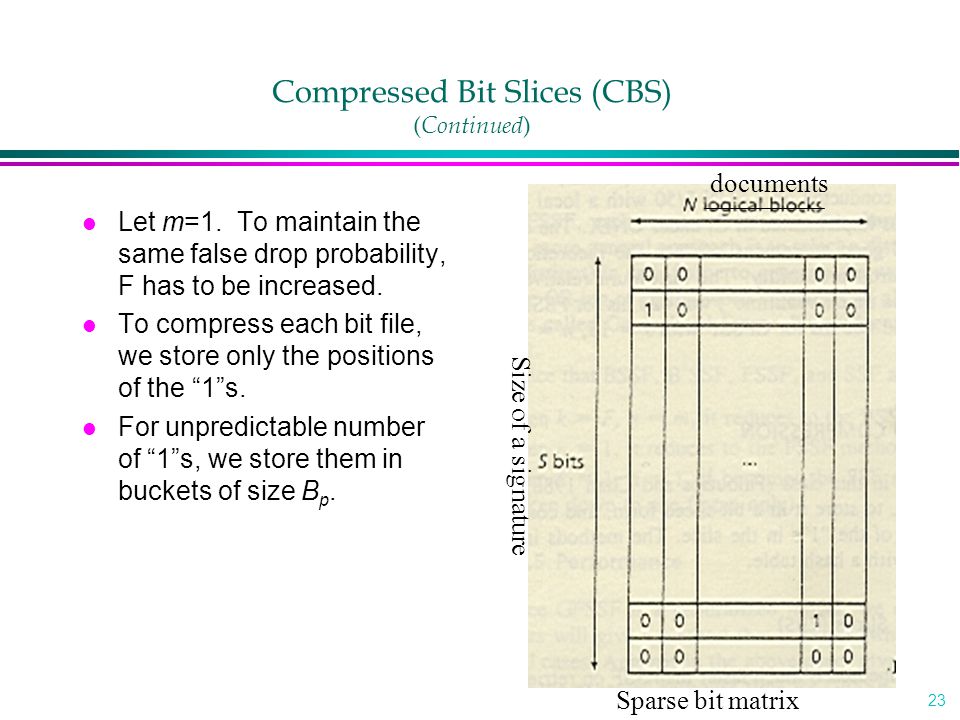

23 23 Compressed Bit Slices (CBS) ( Continued ) l Let m=1. To maintain the same false drop probability, F has to be increased. l To compress each bit file, we store only the positions of the “1”s. l For unpredictable number of “1”s, we store them in buckets of size B p. documents Size of a signature Sparse bit matrix

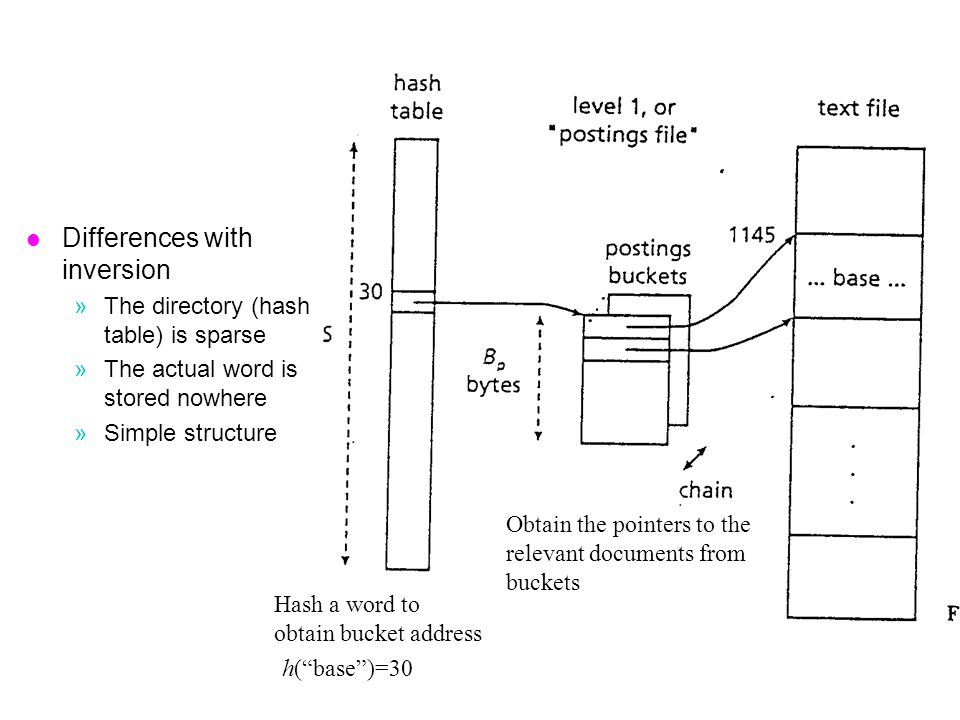

24 h(“base”)=30 Obtain the pointers to the relevant documents from buckets Hash a word to obtain bucket address l Differences with inversion »The directory (hash table) is sparse »The actual word is stored nowhere »Simple structure

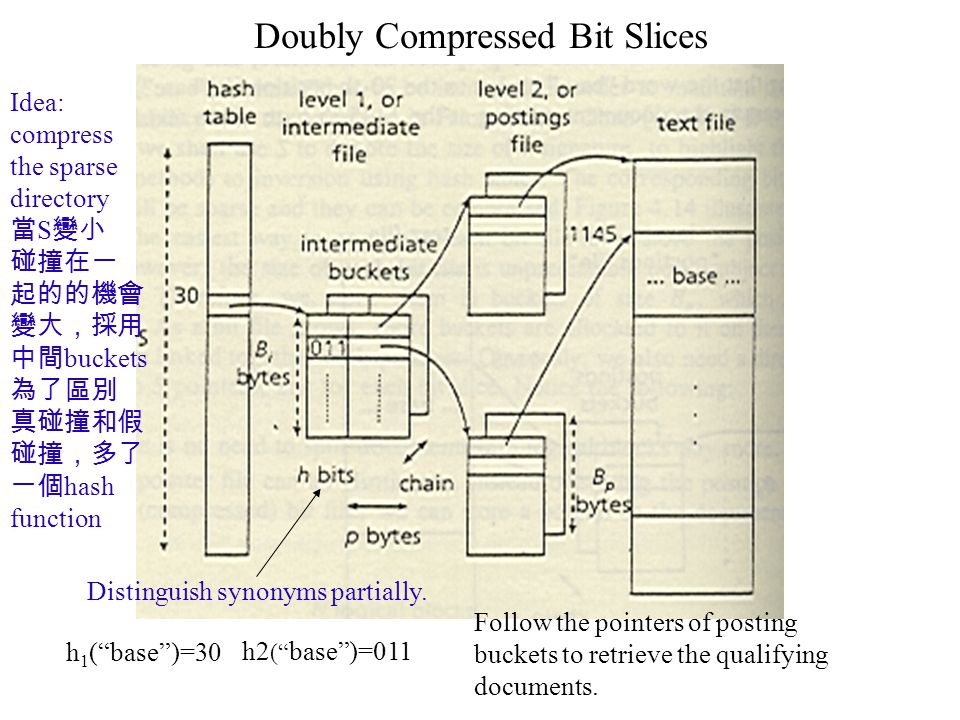

25 Doubly Compressed Bit Slices h 1 (“base”)=30 h2 (“ base”)=011 Follow the pointers of posting buckets to retrieve the qualifying documents. Distinguish synonyms partially. Idea: compress the sparse directory 當 S 變小 碰撞在一 起的的機會 變大,採用 中間 buckets 為了區別 真碰撞和假 碰撞,多了 一個 hash function

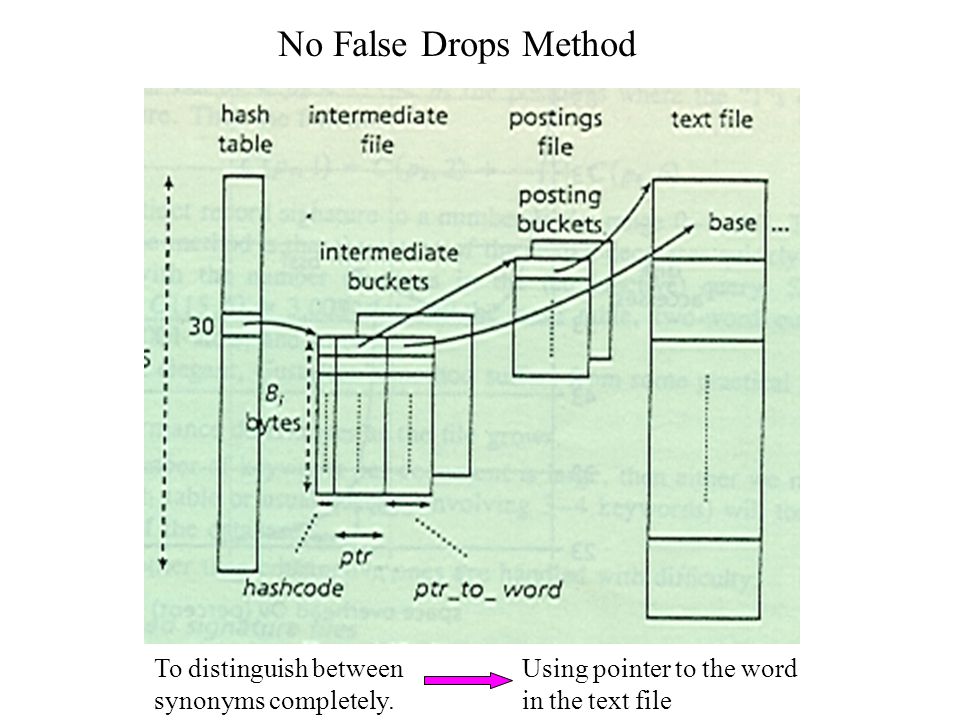

26 No False Drops Method Using pointer to the word in the text file To distinguish between synonyms completely.

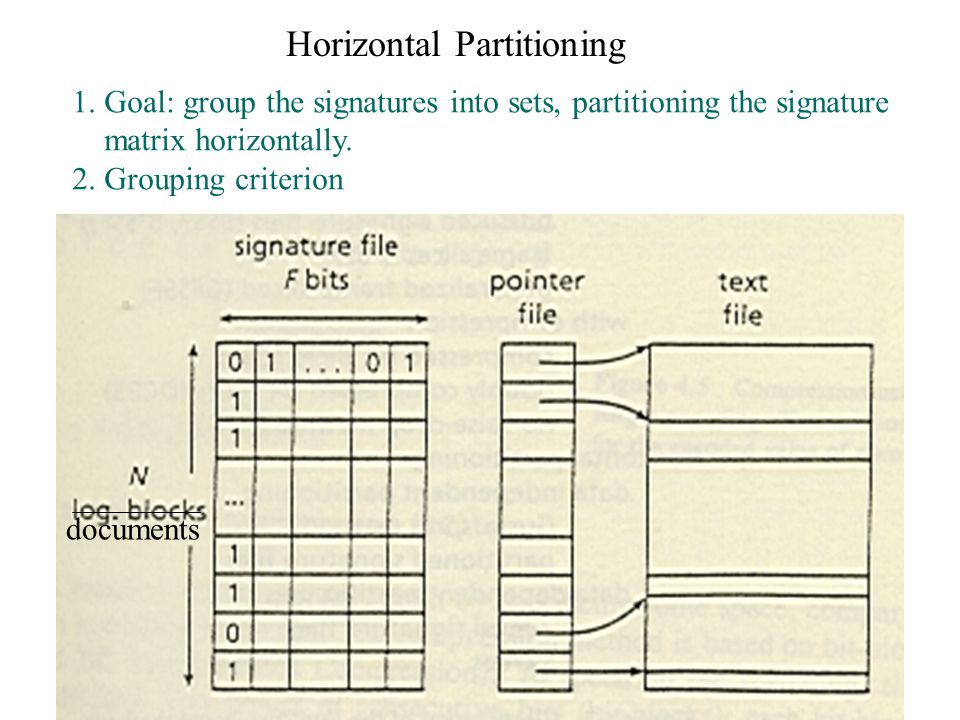

27 Horizontal Partitioning documents 1. Goal: group the signatures into sets, partitioning the signature matrix horizontally. 2. Grouping criterion

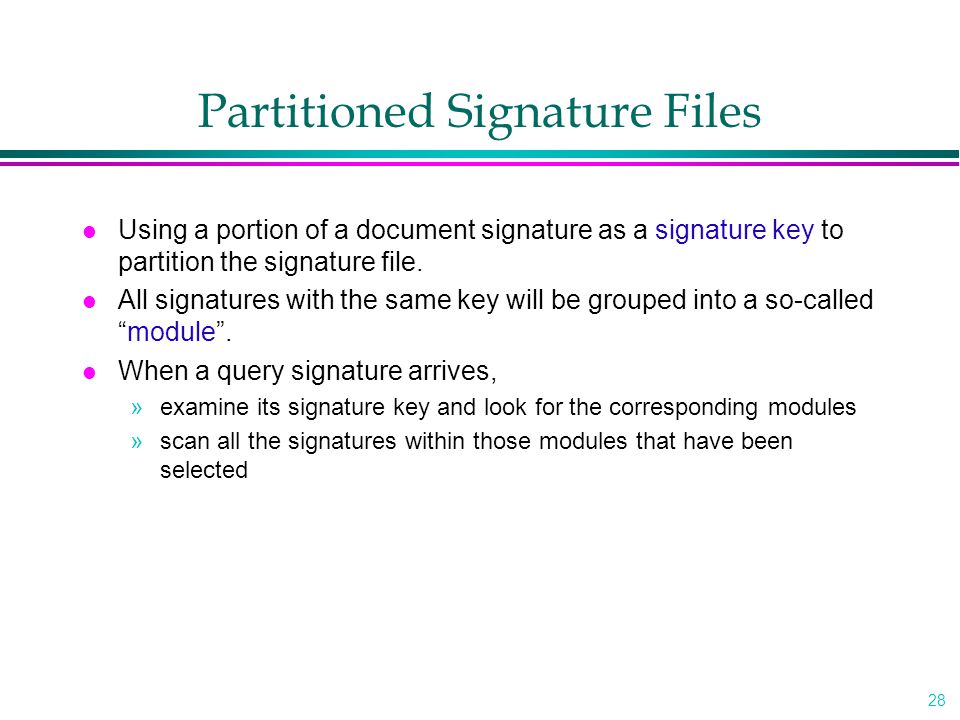

28 28 Partitioned Signature Files l Using a portion of a document signature as a signature key to partition the signature file. l All signatures with the same key will be grouped into a so-called “module”. l When a query signature arrives, »examine its signature key and look for the corresponding modules »scan all the signatures within those modules that have been selected
