1

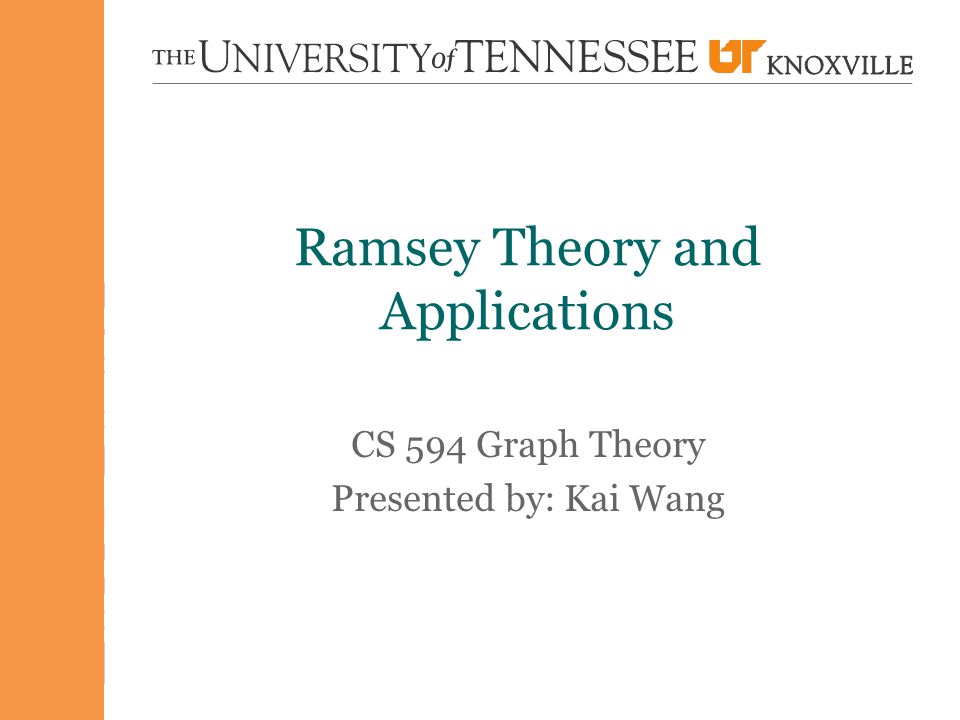

Ramsey Theory and Applications CS 594 Graph Theory Presented by: Kai Wang

2

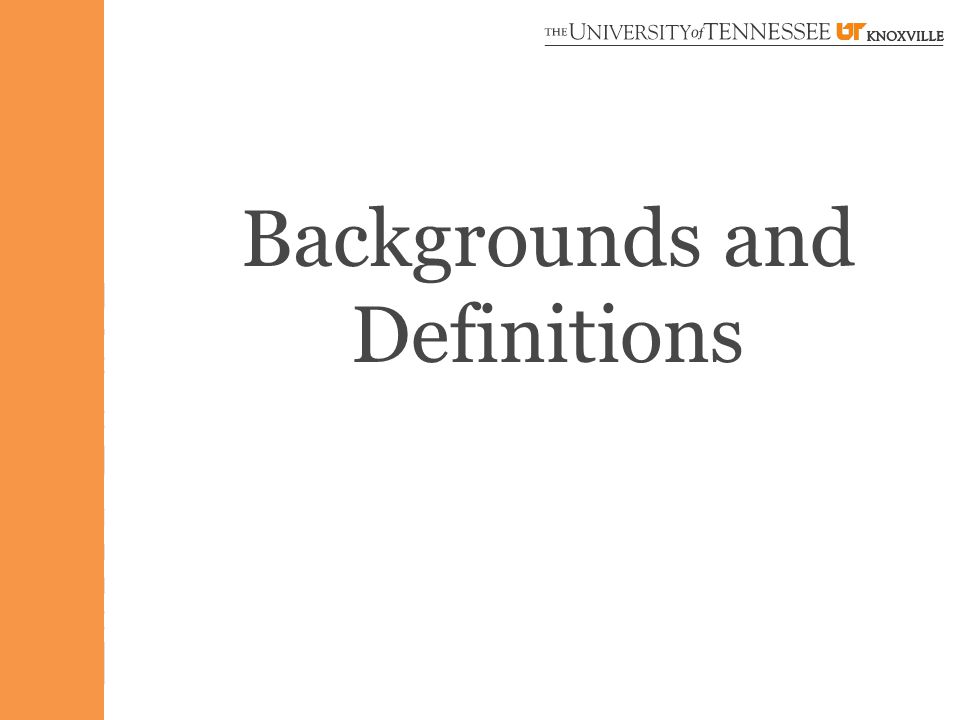

Backgrounds and Definitions

3

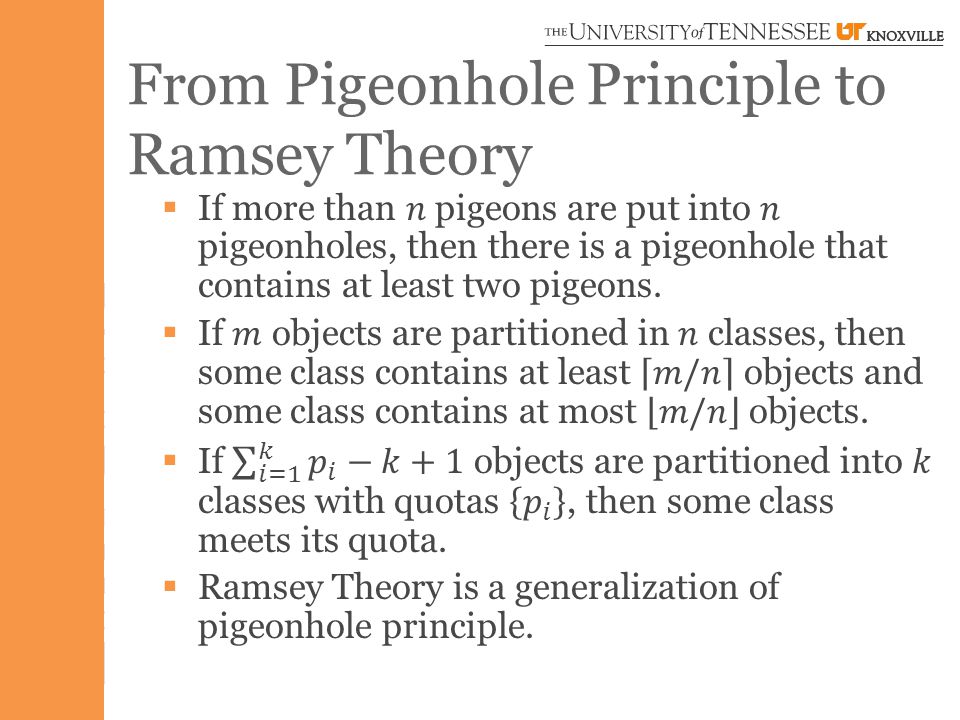

From Pigeonhole Principle to Ramsey Theory

4

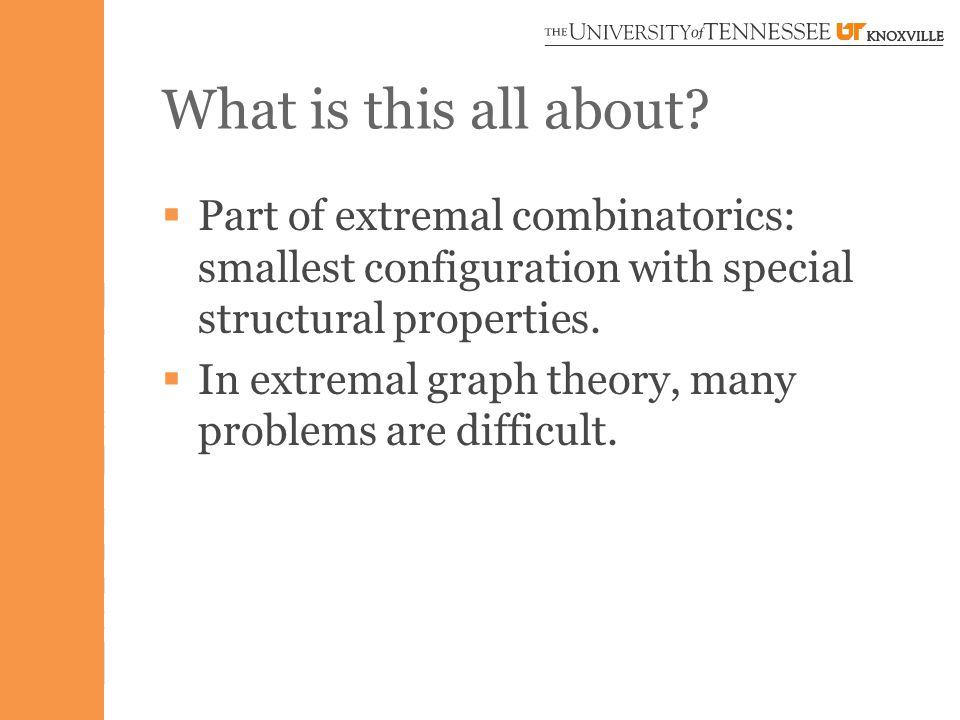

What is this all about? Part of extremal combinatorics: smallest configuration with special structural properties. In extremal graph theory, many problems are difficult.

5

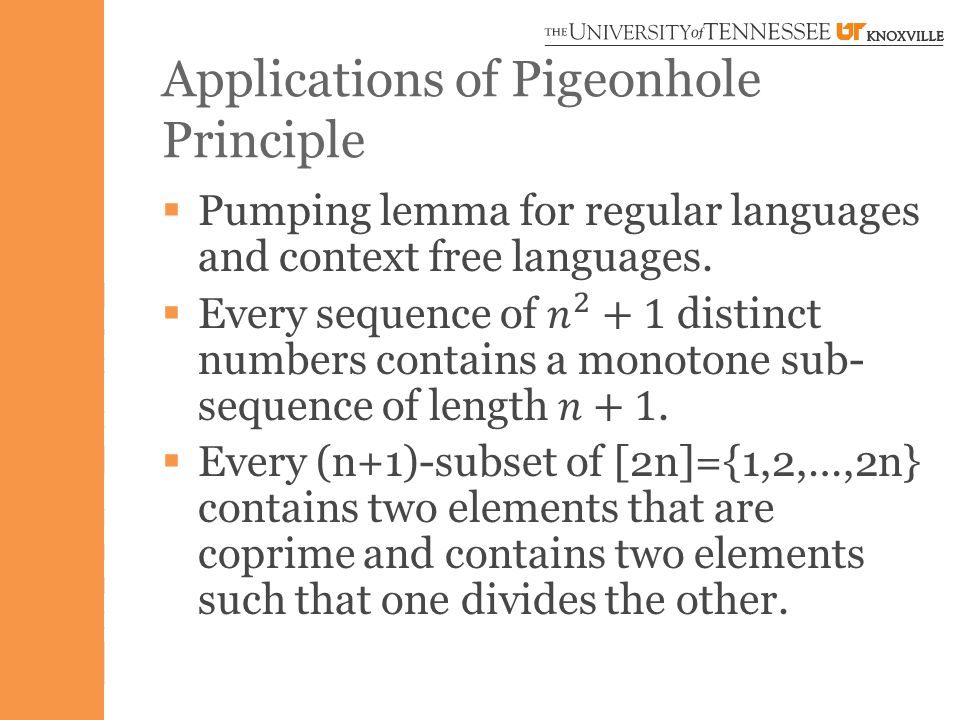

Applications of Pigeonhole Principle

6
History

7
Historical Perspectives Ramsey theory was initially studied in the context of propositional logic (1928) Theodore S. Motzkin: “Complete disorder is impossible”. Become known after Paul Erdos and George Szekeres (1935) applied it in graph theory

8

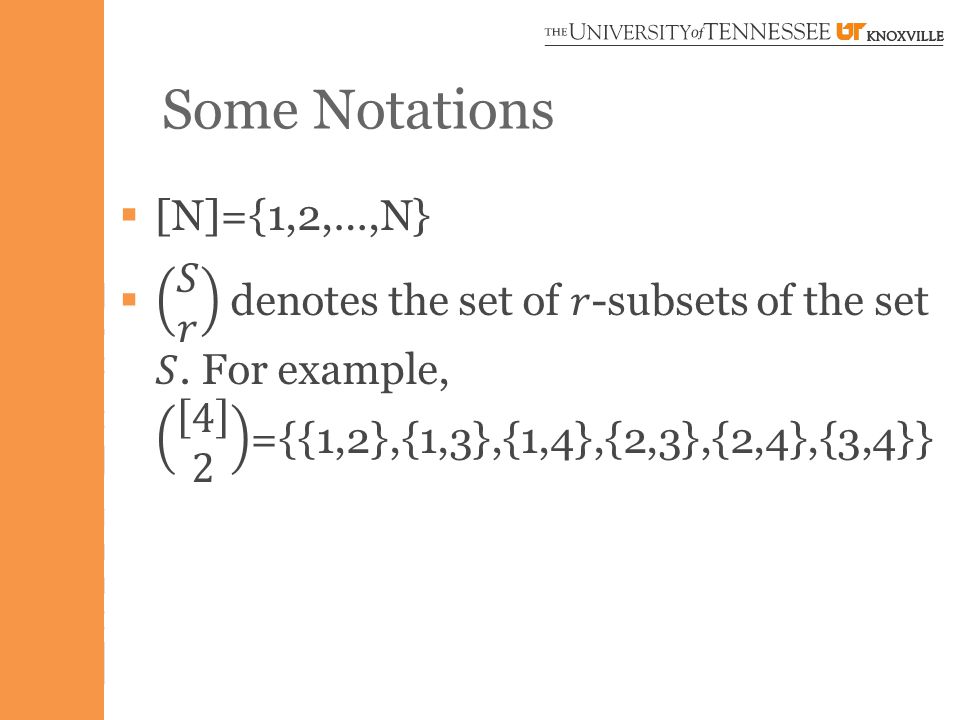

Some Notations

9
Ramsey Theorem

10
Ramsey Number Examples R(3,3;2)=6 R(3,3,3;2)=17 R(4,4;3)=13 We don’t know the exact value of R(5,5;2), although it is between 43 and 49. Little is known about how to calculate the exact value of Ramsey numbers, because currently we only know of the brute-force method, which is impractical.

11

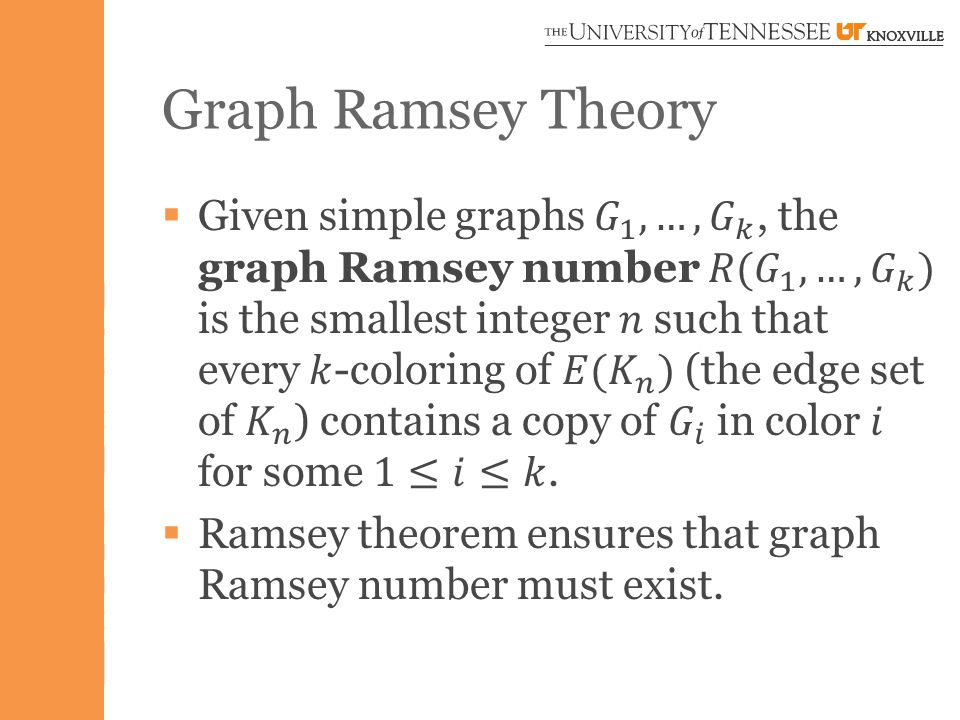

Graph Ramsey Theory

12
Graph Ramsey Number Examples

13
Applications Potential in areas that can apply pigeon hole principles Graph Ramsey theory adds many natural examples to computational complexity classes

14
A decision problem

15
Another decision problem

16
Application in information retrieval problem

17
Part II Edmonds’ maximum matching algorithm

18
Maximum Matching Problem

19
Berge’s Lemma An augmenting path in a graph G with respect to a matching M is an alternating path with the two endpoints exposed (unmatched). A matching M in G is of maximum cardinality if and only if (G,M) does not contain an augmenting path.

20
Key Concepts: Blossom (courtesy of http://en.wikipedia.org/wiki/File:Edmonds_blossom.svg)

21
Blossom Algorithm If the contracted graph is G’, then a maximum matching of G’ corresponds to a maximum matching of G. We first get a maximum matching M’ of G’, then by expanding M’ we get a maximum matching M of G. Complexity: O(n^4)

22
Other Implementations One of the famous is Gabow’s labeling implementation of Edmonds’ algorithm by avoiding expanding M’ in the contracted graph G’. Complexity: O(n^3)

23

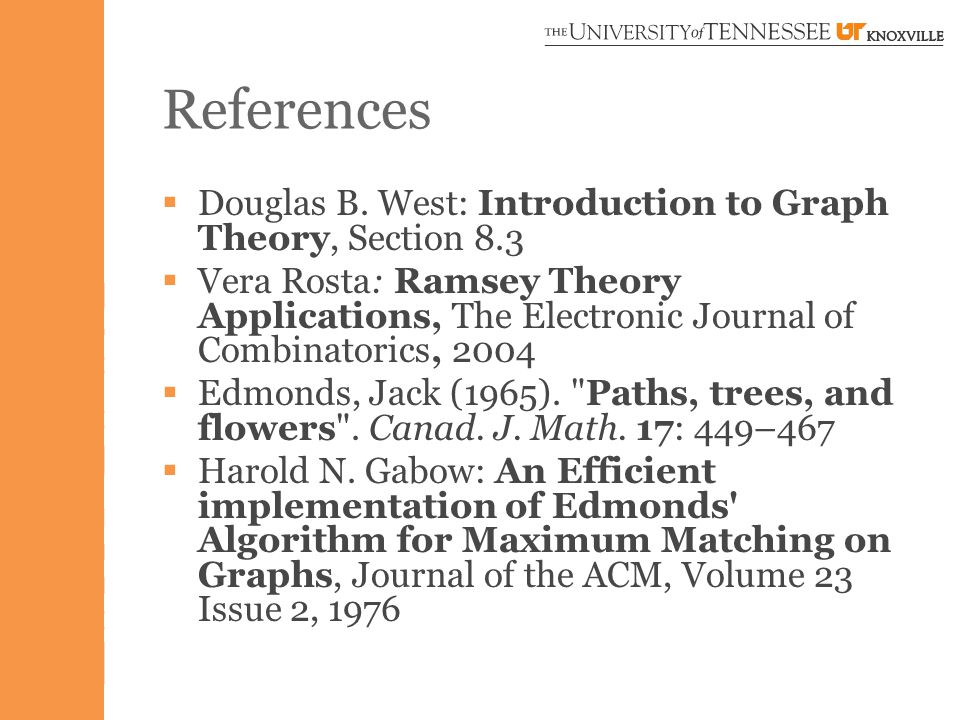

References Douglas B. West: Introduction to Graph Theory, Section 8.3 Vera Rosta: Ramsey Theory Applications, The Electronic Journal of Combinatorics, 2004 Edmonds, Jack (1965). "Paths, trees, and flowers". Canad. J. Math. 17: 449–467 Harold N. Gabow: An Efficient implementation of Edmonds' Algorithm for Maximum Matching on Graphs, Journal of the ACM, Volume 23 Issue 2, 1976

24

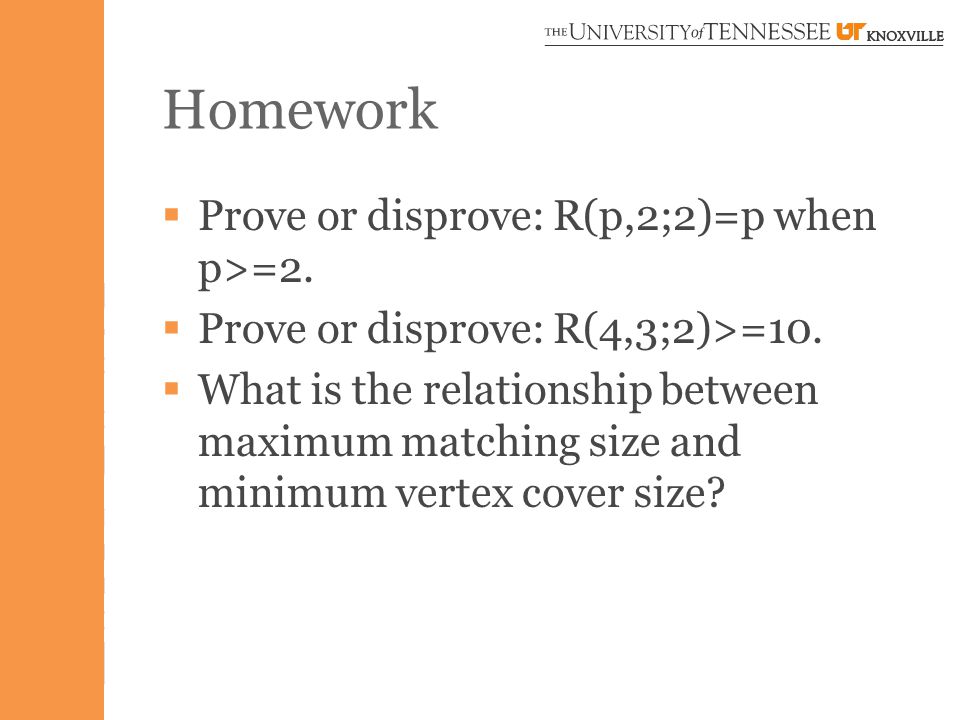

Homework Prove or disprove: R(p,2;2)=p when p>=2. Prove or disprove: R(4,3;2)>=10. What is the relationship between maximum matching size and minimum vertex cover size?

25
Thank You Questions?
