Brain Impractical Uno Compiled by MF Dauzvardis Gross Brain Structures.

Similar presentations


Presentation on theme: "Brain Impractical Uno Compiled by MF Dauzvardis Gross Brain Structures."— Presentation transcript:

1 Brain Impractical Uno Compiled by MF Dauzvardis Gross Brain Structures

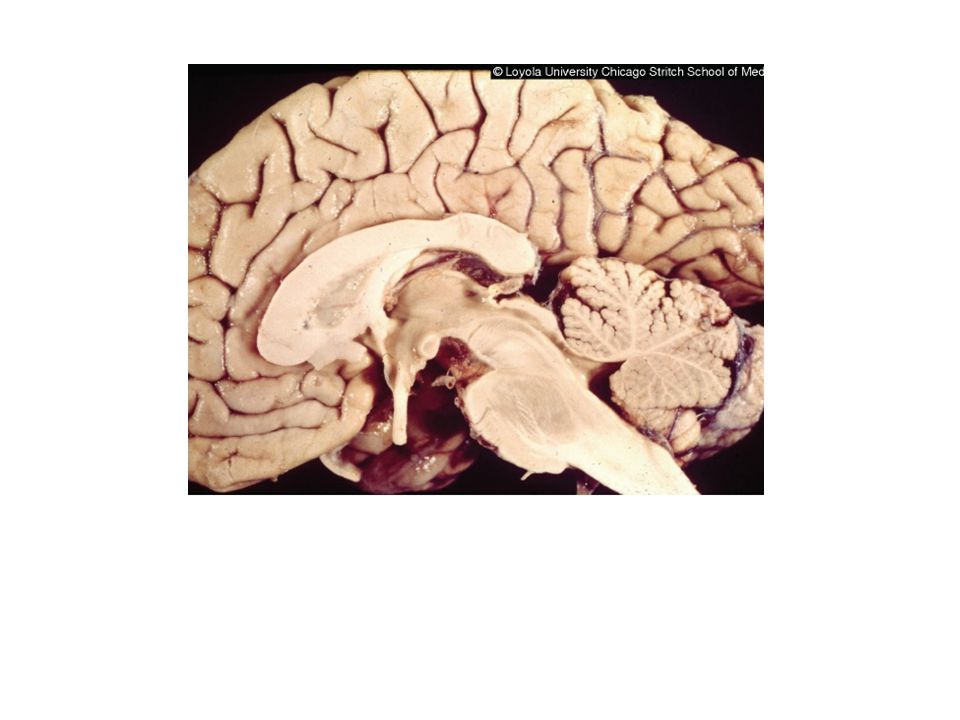

2

3

4 Cerebellum Covers the fourth ventricle, responsible for the initiation and planning of movement, cerebellar signs are ipsilateral, midline lobe is called vermis, highly crenated cortex is called “arbor vitae”, key cells = pyramidal, granular, and molecular

5

6 Pineal Secretes melatonin, seat of the soul, biological clock?, third eye in some fishes and amphibians.

7

8 Medulla Just rostral to cervical cord, contains critical breathing centers, fed by vertebral and pica arteries (lateral wallenberg syndrome when pica is blocked)

9

10 Pons “bridge” Covered largely by the 4 th ventricle and the cerebellum. Fed in part by the basilar artery, Many cortical pontine fibers end in the pontine gray nuclei which in turn project to the cerebellum via the MCP

11

12 Midbrain Key features: cerebral peduncles, aqueduct of Sylvius, substantia nigra, tectum (inferior and superior colliculi) red nucleus, CN III, IV

13

14 Fourth ventricle Contains csf, choroid plexuses, foramen luscka(lateral) and magendie(medial) lead to cisterna magna and subarachnoid space. CSF leaves midbrain via aqueduct of Silvius

15

16 Aqueduct of Silvius Connects 4 th ventricle to 3 rd ventricle, obstruction can lead to hydrocephaly, surrounded by periaqueductal gray (PAG)—related to pain

17

18 3 rd ventricle Filled with CSF, sits between thalami and enters hypothalamus, connects to lateral ventricles via foremen of monroe, contains some choroid and also the stria medullaris thalami which connect habenula to septal nuclei

19

20 Tectum Consists of superior and inferior colliculi, don’t forget SLO-AIM

21

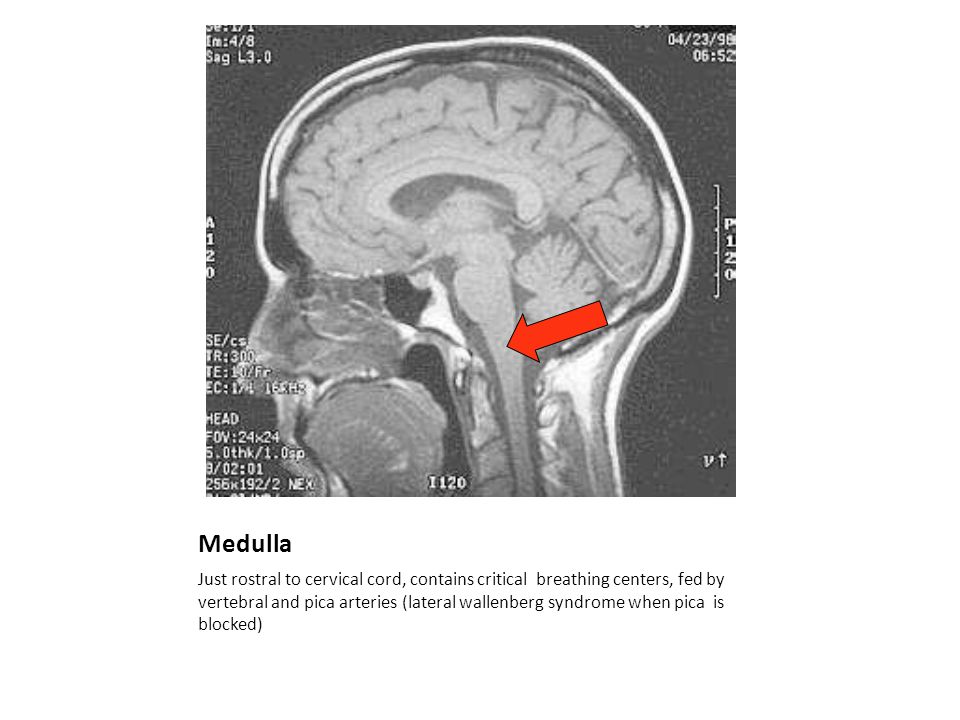

22 Medulla Just rostral to cervical cord, contains critical breathing centers, fed by vertebral and pica arteries (lateral wallenberg syndrome when pica is blocked)

23

24 Pons “bridge” Covered largely by the 4 th ventricle and the cerebellum. Fed in part by the basilar artery, Many cortical pontine fibers end in the pontine gray nuclei which in turn project to the cerebellum via the MCP

25

26 Midbrain Key features: cerebral peduncles, aqueduct of Sylvius, substantia nigra, tectum (inferior and superior colliculi) red nucleus, CN III, IV

27

28 Cerebellum Covers the fourth ventricle, responsible for the initiation and planning of movement, cerebellar sighs are ipsilateral, midline lobe is called vermis, highly lobulated cortex is called “arbor vitae”, key cells = pyramidal, granular, and molecular

29

30 4 th ventricle Contains csf, choroid plexuses, foramen luska(lateral) and magendi(medial) lead to cisterna magna and subarachnoid space. CSF leaves midbrain via aqueduct of Silvius

31

32 Aqueduct Connects 4 th ventricle to 3 rd ventricle, obstruction can lead to hydrocephaly, surrounded by periaqueductal gray (PAG)—related to pain

33

34 3 rd ventricle Filled with CSF, sits between thalami and enters hypothalamus, connects to lateral ventricles via foremen of monroe, contains some choroid and also the stria medullaris thalami which connect habenula to septal nuclei

35

36 Tectum Consists of superior and inferior colliculi, don’t forget SLO-AIM

37

38 Medulla

39

40 Pons

41

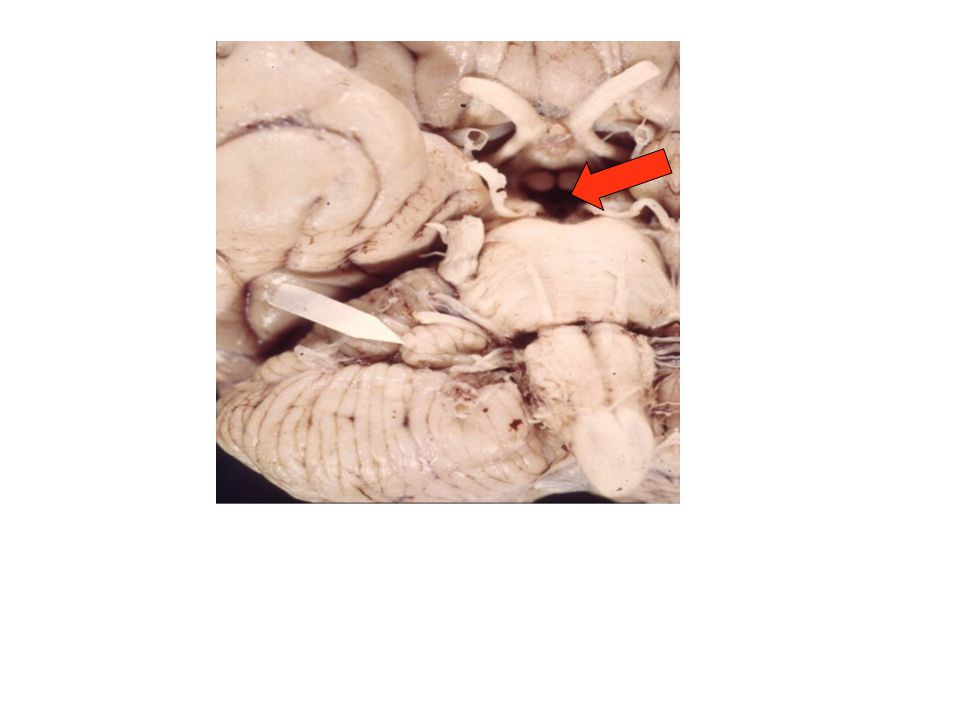

42 Midbrain, interpeducular fossa

43

44 Cerebellum

45

46 Temporal lobe

47

48 mammillary bodies

49

50 optic chiasm

51

52 Pia mater

53

54 I

55

56 II

57

58 III

59

60 IV

61

62 V

63

64 VI

65

66 VII

67

68 VIII

69

70 IX, X, XI

71

72 Location of XII, between pyramid and olive

73

74 Blood vessels, MCA

75

76 Flocculus

77

78

79 Cerebellum (vermis)

80

81 Floor of 4 th ventricle

82

83 Cerebellar peducles Superior (brachium conjunctivum), Middle (brachium pontis), Inferior (restiform body)

84

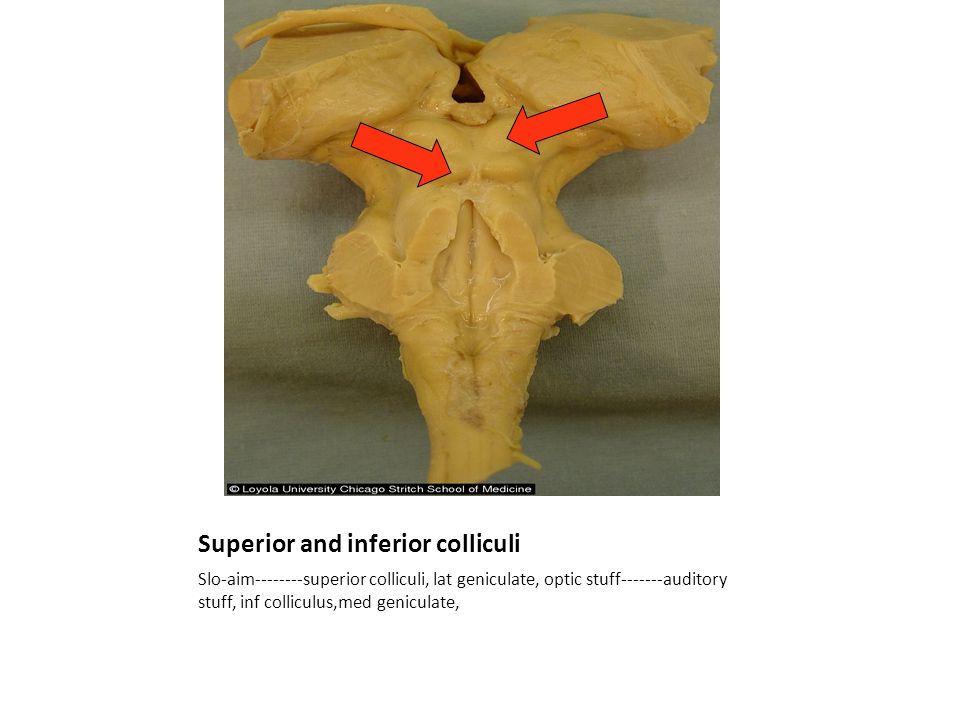

85 Superior and inferior colliculi Slo-aim superior colliculi, lat geniculate, optic stuff auditory stuff, inf colliculus,med geniculate,

86

87 Pineal

88

89 Thalami Major relay station for sensory information

90

91 Lateral geniculate for visual relay

92

93 Area of medial geniculate, relay for audition

94

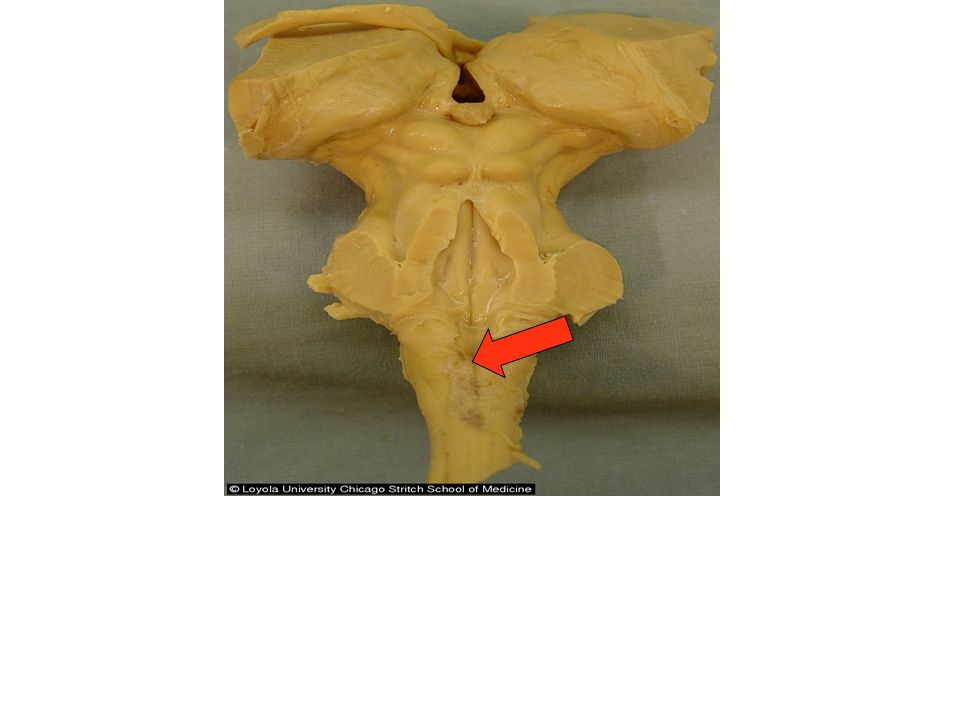

95 Area of vestibular nuclei—remember inferior vestibular nucleus is “peppered”

96

97 Pulvinar nucleus of thalamus

98

99 Obex—opening of central canal into 4 th ventricle

100

101 Cerebral peduncle—connects cerebrum to brainstem—mainly descending motor fibers. Rostrally it turns into the internal capsule

102

103 Brachium(arm) of the superior colliculus

104

105 Brachium of the inferior colliculus

106

107 3 rd ventricle

108

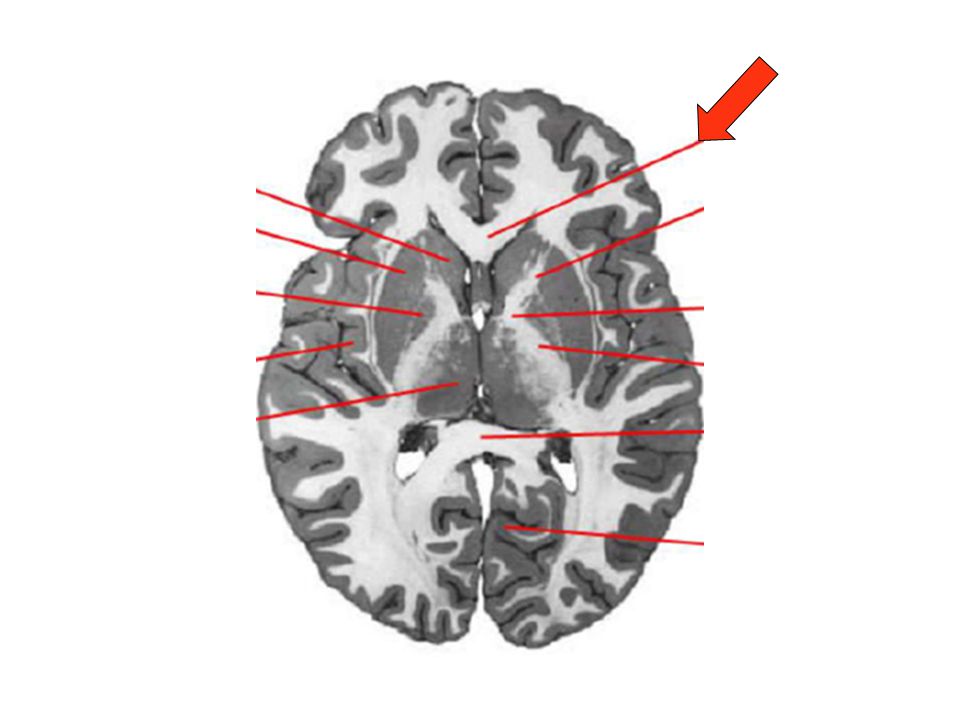

109 Genu of corpus collosum

110

111 Anterior limb of internal capsule

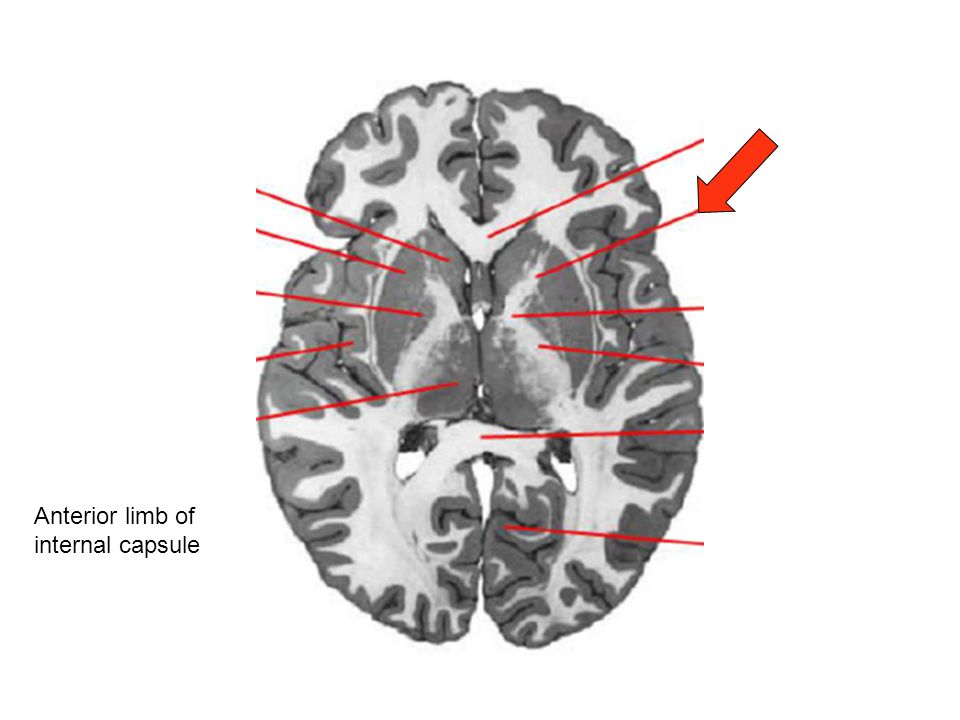

112

113 Genu of internal capsule

114

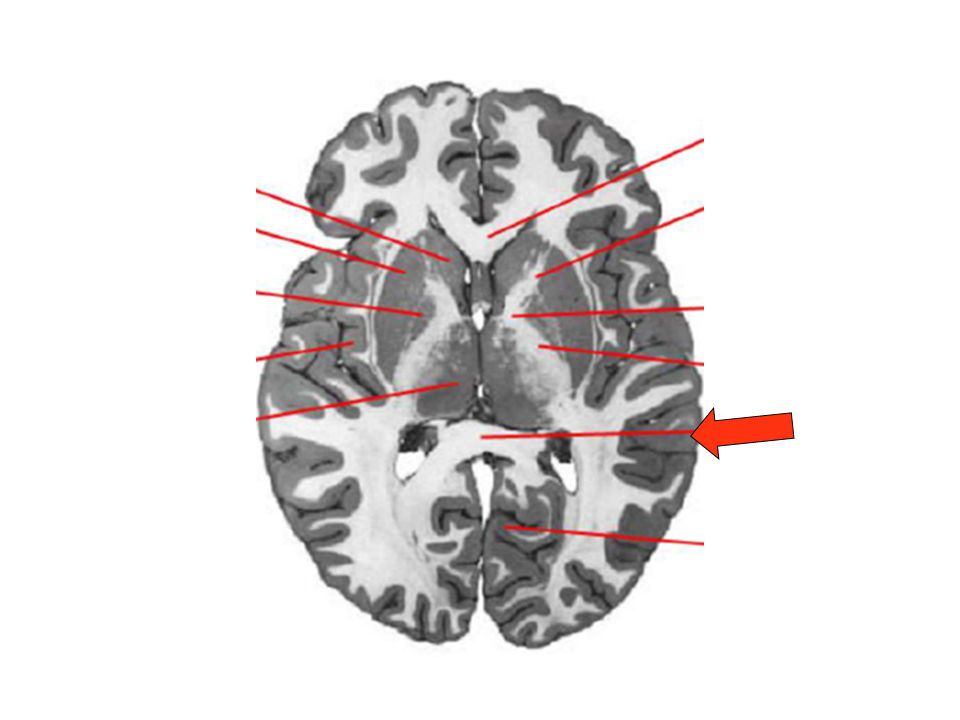

115 Posterior limb of internal capsule

116

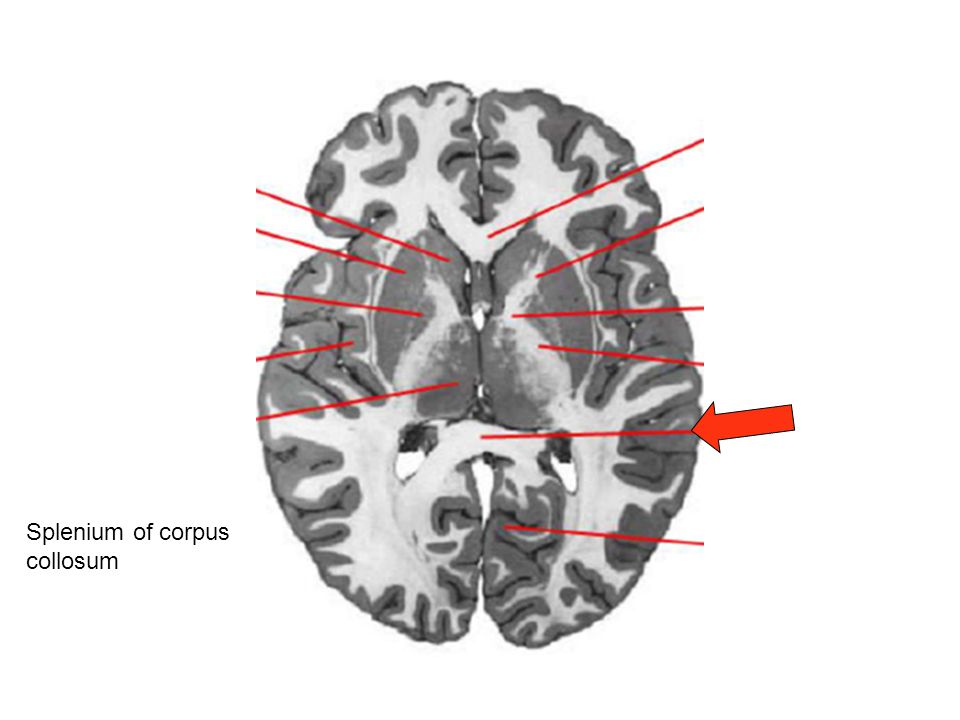

117 Splenium of corpus collosum

118

119 Visual cortex

120

121 Head of caudate

122

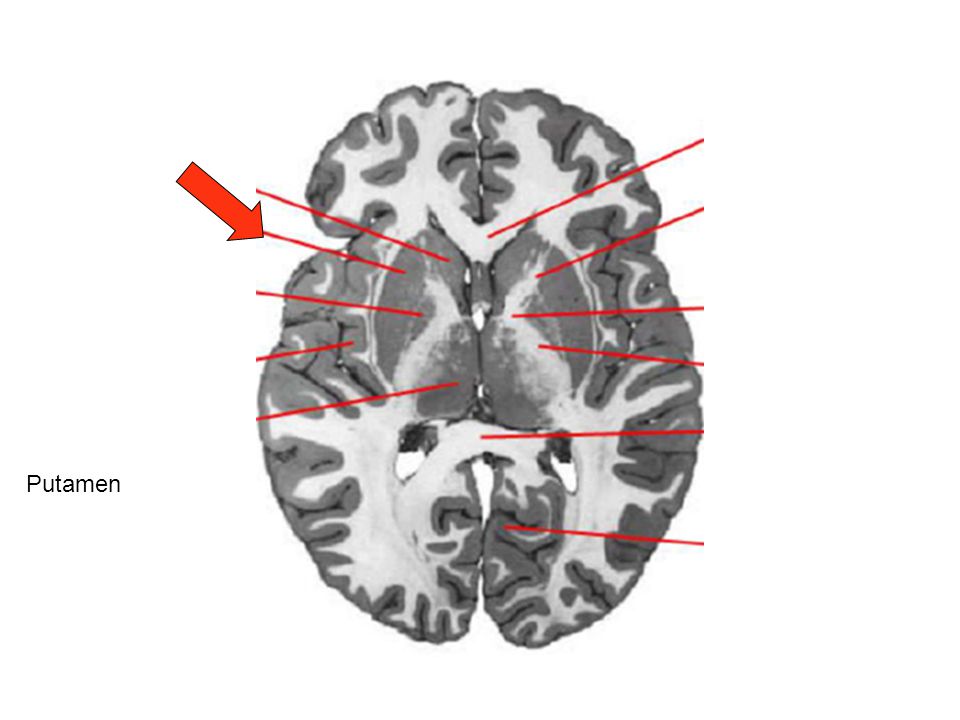

123 Putamen

124

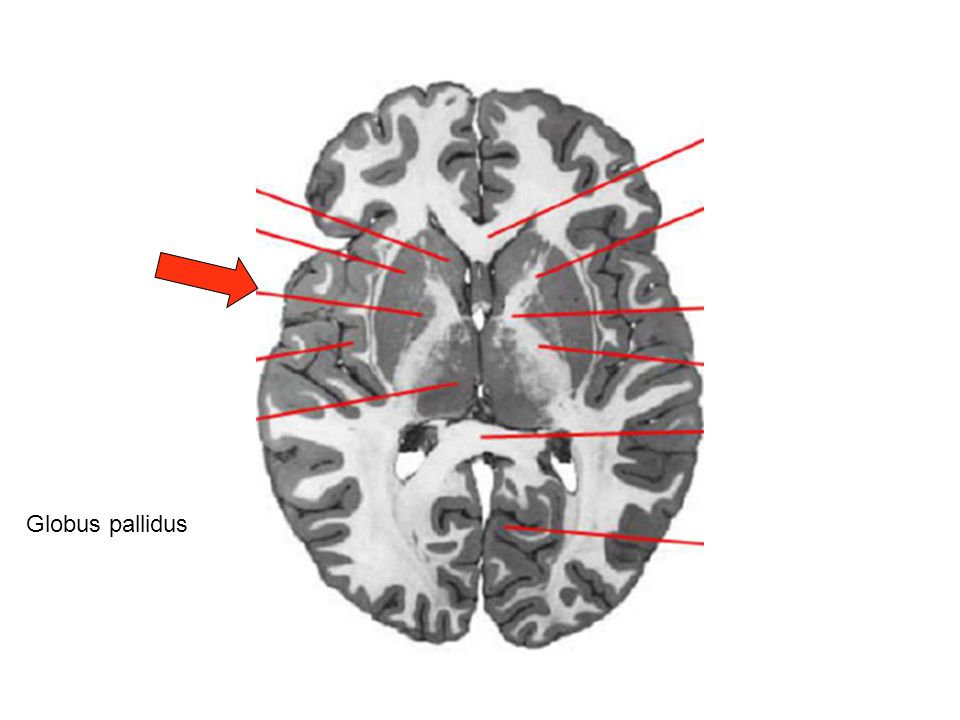

125 Globus pallidus

126

127 Insula

128

129 Thalamus

130

131 Columns of fornix— hippocampus to mammilary bodies
