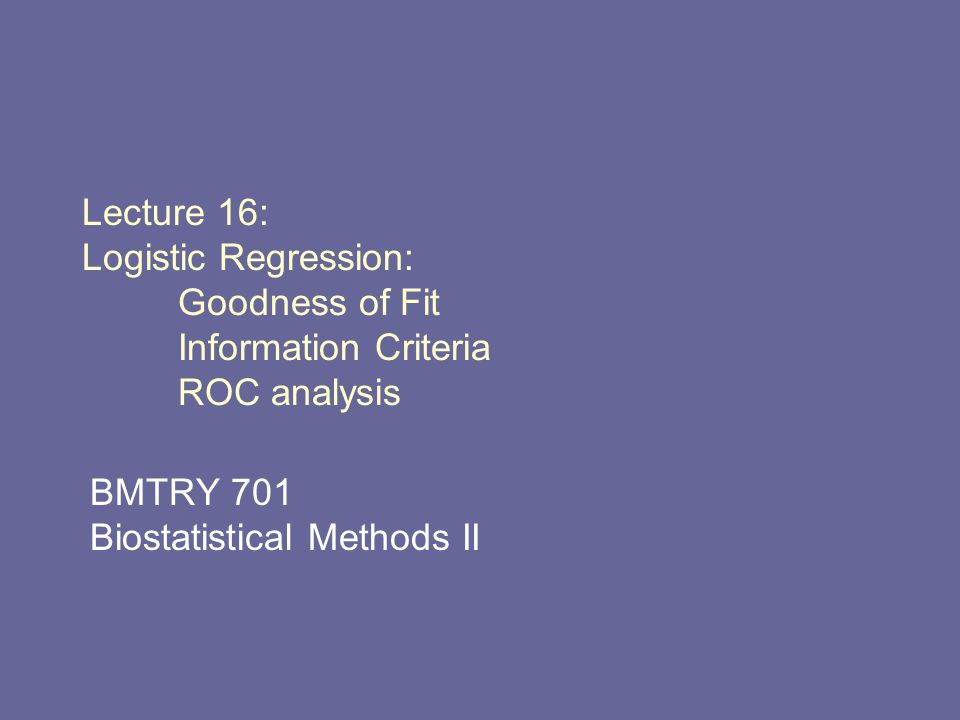

Lecture 16: Logistic Regression: Goodness of Fit Information Criteria ROC analysis BMTRY 701 Biostatistical Methods II

2
Goodness of Fit A test of how well the model explains the data Applies to linear models and generalized linear models How to do it? It is simply a comparison of the “current” model to a perfect model What would the estimated likelihood function be in a perfect model? What would the estimated log-likelihood function be in a perfect model

3
Set up as a hypothesis test Ho: current model H1: perfect model Recall the G 2 statistic comparing models: G 2 = Dev(0) - Dev(1) How many parameters are there in the null model? How many parameters are there in the perfect model?

4
Goodness of Fit test Perfect model: Assumed to be ‘saturated’ in most cases That is, there is a parameter for each combination of predictors In our model? that is likely to be close to N due to the number of continuous variables Define c = number of parameters in saturated model Deviance goodness of fit: Dev(0)

5
Goodness of Fit test Deviance goodness of fit: Dev(0) If Dev(Ho) < χ 2 (c-p),1- α, conclude H0 If Dev(Ho) > χ 2 (c-p),1- α conclude H1 Why arent we subtracting deviances?

6
GoF test for Prostate Cancer Model > mreg1 <- glm(cap.inv ~ gleason + log(psa) + vol + factor(dpros), + family=binomial) > mreg0 <- glm(cap.inv ~ gleason + log(psa) + vol, family=binomial) > mreg1 Coefficients: (Intercept) gleason log(psa) vol -8.31383 0.93147 0.53422 -0.01507 factor(dpros)2 factor(dpros)3 factor(dpros)4 0.76840 1.55109 1.44743 Degrees of Freedom: 378 Total (i.e. Null); 372 Residual (1 observation deleted due to missingness) Null Deviance: 511.3 Residual Deviance: 377.1 AIC: 391.1 Test Statistic: 377.1 ~ χ2(380 - 7) Threshold : χ2(373),1-α, = 419.0339 p-value = 0.43

7
More Goodness of Fit There are a lot of options! Deviance GoF is just one Pearson Chi-square Hosmer-Lemeshow etc Principles, however, are essentially the same GoF is not that commonly seen in medical research because it is rarely very important

8
Information Criteria Information criterion is a measure of the goodness of fit of an estimated statistical model. It is grounded in the concept of entropy, offers a relative measure of the information lost describes the tradeoff precision and complexity of the model. An IC is not a test on the model in the sense of hypothesis testing it is a tool for model selection. Given a data set, several competing models may be ranked according to their IC The model with the lowest IC is chosen as the “best”

9
Information Criteria IC rewards goodness of fit, but also includes a penalty that is an increasing function of the number of estimated parameters. This penalty discourages overfitting.overfitting The IC methodology attempts to find the model that best explains the data with a minimum of free parameters. More traditional approaches such as LRT start from a null hypothesis. null hypothesis IC judges a model by how close its fitted values tend to be to the true values. the AIC value assigned to a model is only meant to rank competing models and tell you which is the best among the given alternatives.

10
Akaike Information Criteria (AIC) Akaike, Hirotugu (1974). "A new look at the statistical model identification". IEEE Transactions on Automatic Control 19 (6): 716–723.. Bayesian Information Criteria Schwarz, Gideon E. (1978). "Estimating the dimension of a model". Annals of Statistics 6 (2): 461–464.

11
AIC versus BIC BIC and AIC are similar Different penalty for number of parameters The BIC penalizes free parameters more strongly than does the AIC. Implications: BIC tends to choose smaller models The larger the N, the more likely that AIC and BIC will disagree on model selection

12
Prostate cancer models We looked at different forms for volume: A: volume as continuous B: volume as binary (detectable vs. undetectable) C: 4 categories of volume D: 3 categories of volume E: linear + squared term for volume

13
AIC vs. BIC (N=380) p-2logLikAICBIC A: continuous8376.0392.0423.5 B: binary8375.2391.2422.7 C: 4 categories10373.6393.6433.0 D: 3 categories9375.2393.2428.6 E: quadratic9376.0394.0429.4

14
AIC vs. BIC if N is multiplied by 10 (N=3800) p-2logLikAICBIC A: continuous83760.03776.03825.9 B: binary83752.03768.03817.9 C: 4 categories103736.03756.03818.4 D: 3 categories93751.93769.93826.1 E: quadratic93760.03778.03834.2

15
ROC curve analysis Receiver Operating Characteristic Curve Analysis Traditionally, looks at the sensitivity and specificity of a ‘model’ for predicting an outcome Question: based on our model, can we accurately predict if a prostate cancer patient has capsular penetration?

16
ROC curve analysis Associations between predictors and outcomes is not enough Need ‘stronger’ relationship Classic interpretation of sens and spec a binary test and a binary outcome sensitivity = P(test + | true disease) specificity = P(test - |true no disease) What is test + in our dataset? What does the model provide for us?

17
ROC curve analysis

18
Fitted probabilities The fitted probabilities are the probability that a NEW patient with the same ‘covariate profile’ will be a “case” (e.g., capsular penetration, disease, etc.) We select a probability ‘threshold’ to determine whether a patient is defined as a case or not Some options: high sensitivity (e.g., cancer screens) high specificity (e.g., PPD skin test for TB) maximize the sum of sens and spec

19
ROC curve. xi: logit capsule i.dpros detected gleason logpsa i.dpros _Idpros_1-4 (naturally coded; _Idpros_1 omitted) Iteration 0: log likelihood = -255.62831 Iteration 1: log likelihood = -193.51543 Iteration 2: log likelihood = -188.23598 Iteration 3: log likelihood = -188.04747 Iteration 4: log likelihood = -188.0471 Logistic regression Number of obs = 379 LR chi2(6) = 135.16 Prob > chi2 = 0.0000 Log likelihood = -188.0471 Pseudo R2 = 0.2644 ------------------------------------------------------------------------------ capsule | Coef. Std. Err. z P>|z| [95% Conf. Interval] -------------+---------------------------------------------------------------- _Idpros_2 |.7801903.3573241 2.18 0.029.079848 1.480533 _Idpros_3 | 1.606646.3744828 4.29 0.000.8726729 2.340618 _Idpros_4 | 1.504732.4495287 3.35 0.001.6236723 2.385793 detected | -.5719155.2570359 -2.23 0.026 -1.075697 -.0681344 gleason |.9418179.1648245 5.71 0.000.6187677 1.264868 logpsa |.5152153.1547649 3.33 0.001.2118817.8185488 _cons | -8.275811 1.056036 -7.84 0.000 -10.3456 -6.206018 ------------------------------------------------------------------------------

20
ROC curve

21
How to interpret? Every point represents a patient(s) in the dataset Question: if we use that person’s fitted probability as the threshold, what are the sens and spec values? Empirically driven based on the fitted probabilities Choosing the threshold: high sens or spec maximize both? the point on ROC curve closest to the upper left corner

22
AUC of ROC curve AUC = Area Under the Curve 0.5 < AUC < 1 AUC = 1 if the model is perfect AUC = 0.50 if the model is no better than chance “Good” AUC? context specific for some outcomes, there are already good diagnostic measures so AUC would need to be very high for others, if there is very little, even an AUC of 0.70 would be useful.

23
Utility in model selection If the goal of the modeling is prediction, AUC can be used to determine the ‘best’ model A variable may be associated with the outcome, but not add much in terms of prediction Example: Model 1: gleason + logPSA + detectable + dpros Model 2: gleason + logPSA + detectable Model 3: gleason + logPSA

24

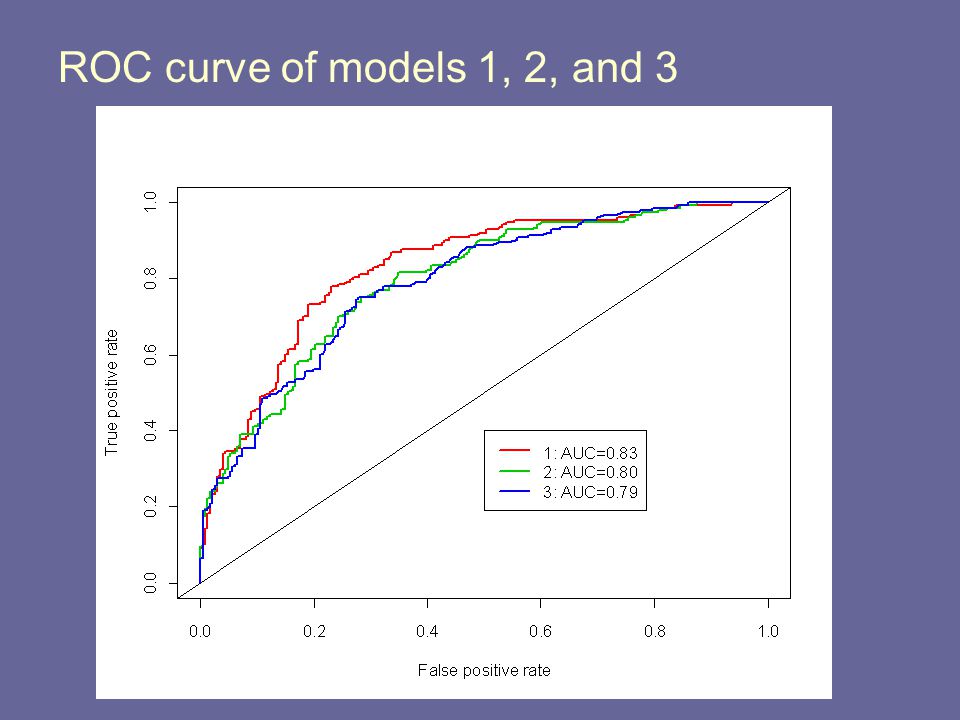

ROC curve of models 1, 2, and 3

25
Sensitivity and Specificity For ‘true’ use, you need to choose a cutoff. The AUC of the ROC curve tells you about prediction of model But, not directly translatable into ‘accuracy’ of a given threshold

26
phat = 0.50 cutoff Logistic model for capsule -------- True -------- Classified | D ~D | Total -----------+--------------------------+----------- + | 100 39 | 139 - | 53 187 | 240 -----------+--------------------------+----------- Total | 153 226 | 379 Classified + if predicted Pr(D) >=.5 True D defined as capsule != 0 -------------------------------------------------- Sensitivity Pr( +| D) 65.36% Specificity Pr( -|~D) 82.74% Positive predictive value Pr( D| +) 71.94% Negative predictive value Pr(~D| -) 77.92% -------------------------------------------------- False + rate for true ~D Pr( +|~D) 17.26% False - rate for true D Pr( -| D) 34.64% False + rate for classified + Pr(~D| +) 28.06% False - rate for classified - Pr( D| -) 22.08% -------------------------------------------------- Correctly classified 75.73% --------------------------------------------------

27
phat = 0.25 cutoff Logistic model for capsule -------- True -------- Classified | D ~D | Total -----------+--------------------------+----------- + | 137 96 | 233 - | 16 130 | 146 -----------+--------------------------+----------- Total | 153 226 | 379 Classified + if predicted Pr(D) >=.25 True D defined as capsule != 0 -------------------------------------------------- Sensitivity Pr( +| D) 89.54% Specificity Pr( -|~D) 57.52% Positive predictive value Pr( D| +) 58.80% Negative predictive value Pr(~D| -) 89.04% -------------------------------------------------- False + rate for true ~D Pr( +|~D) 42.48% False - rate for true D Pr( -| D) 10.46% False + rate for classified + Pr(~D| +) 41.20% False - rate for classified - Pr( D| -) 10.96% -------------------------------------------------- Correctly classified 70.45% --------------------------------------------------
