1 JK Amorosa

2 State of the Art Imaging of Occupational Lung Disease Cox, C et al Radiology 2014, 270:  Team approach: occupational med physician, pulmonologist, radiologist  Exposure hx, PE, Lab, Pulmonary function, imaging, bronchoscopy/Sx

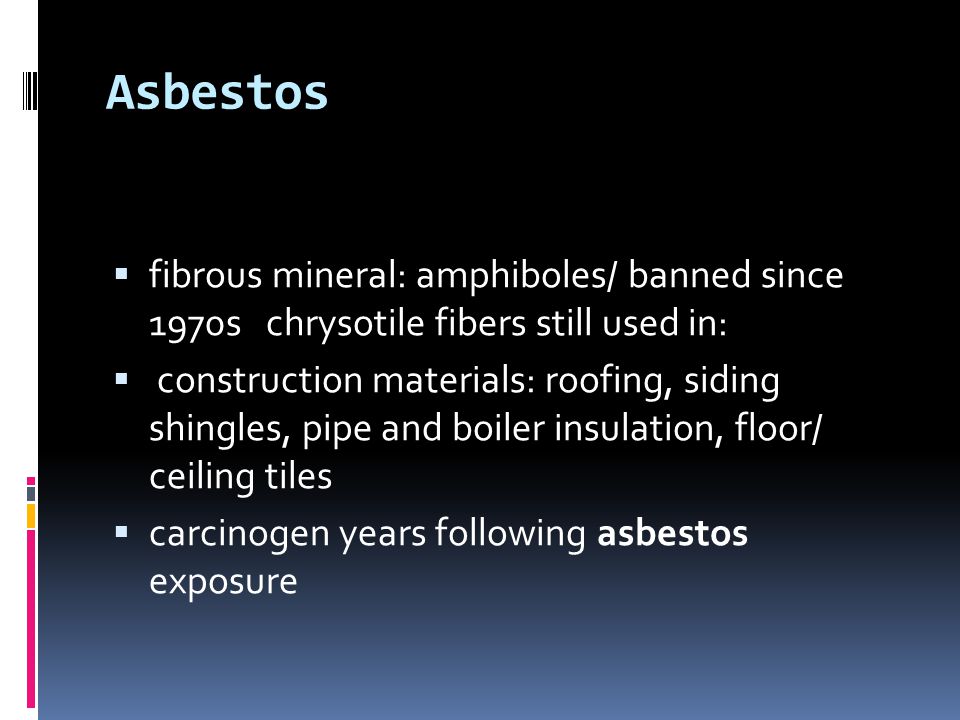

3 Asbestos  fibrous mineral: amphiboles/ banned since 1970s chrysotile fibers still used in:  construction materials: roofing, siding shingles, pipe and boiler insulation, floor/ ceiling tiles  carcinogen years following asbestos exposure

4 Asbestos  undisturbed asbestos-containing materials: no health risk  damaged or disturbed, or deteriorate over time and release asbestos fibers into building air: health risk

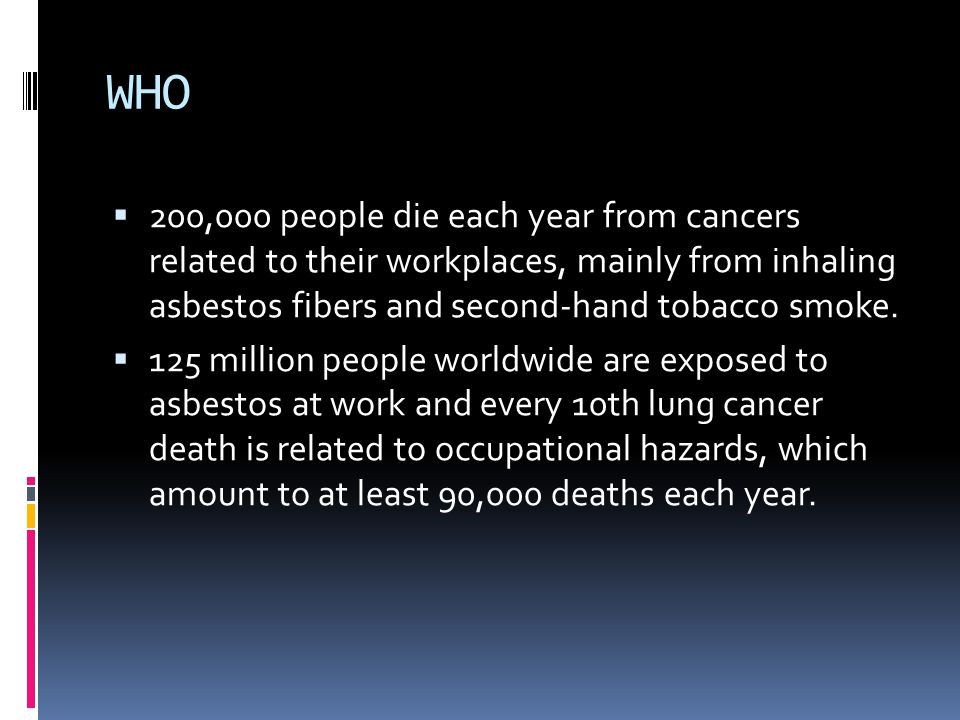

5 WHO  200,000 people die each year from cancers related to their workplaces, mainly from inhaling asbestos fibers and second-hand tobacco smoke.  125 million people worldwide are exposed to asbestos at work and every 10th lung cancer death is related to occupational hazards, which amount to at least 90,000 deaths each year.

6 Occupational Lung Diseases

7 Occupations at Risk

8 Asbestos Exposure

9

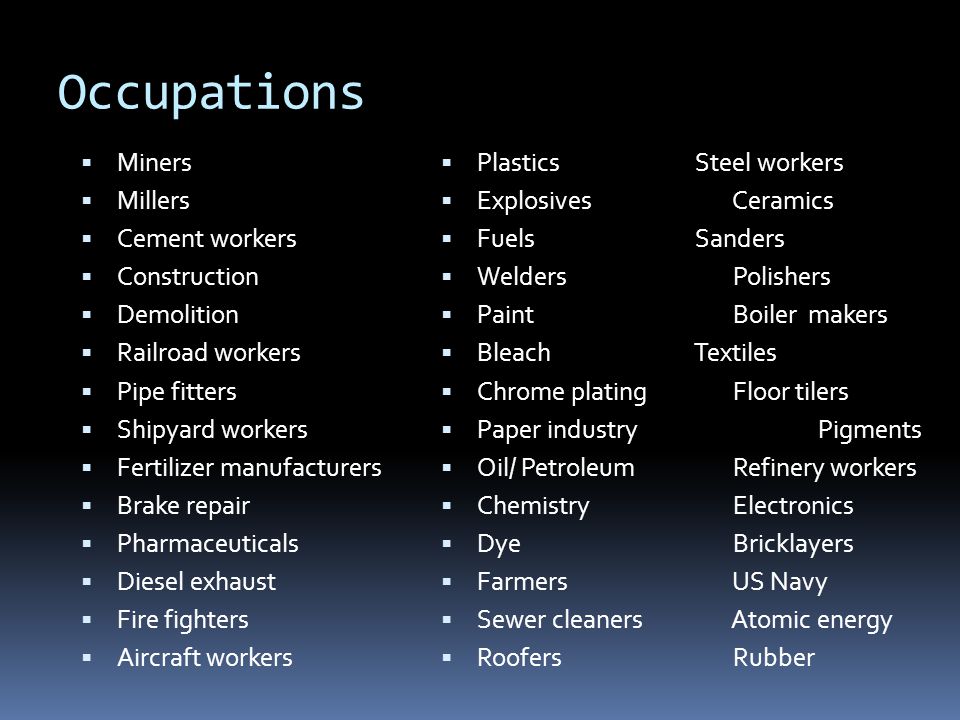

10 Occupations  Miners  Millers  Cement workers  Construction  Demolition  Railroad workers  Pipe fitters  Shipyard workers  Fertilizer manufacturers  Brake repair  Pharmaceuticals  Diesel exhaust  Fire fighters  Aircraft workers  Plastics Steel workers  Explosives Ceramics  Fuels Sanders  Welders Polishers  Paint Boiler makers  Bleach Textiles  Chrome plating Floor tilers  Paper industryPigments  Oil/ Petroleum Refinery workers  Chemistry Electronics  Dye Bricklayers  Farmers US Navy  Sewer cleaners Atomic energy  Roofers Rubber

11 Asbestos: mineral Composition:  Silicon  Oxygen  Hydrogen  Calcium  Sodium  Metals: magnesium, iron Characteristics:  Strength  Flexibility  Low electrical conductivity  Resistant to heat and chemicals  Greek origin means: inextinguishable, or indestructible

12 Occupational Lung Diseases  Occupational lung diseases are caused by inhaled particles,mists, vapors or gases while at work.

13 Asbestos Exposure  in 3000 commercial products  US 27 million people occupational exposure to asbestos  7% were engaged in primary mining, milling, and manufacturing of asbestos products

14 P N E U M O C O N I O S I S  LUNG DUST

15 Asbestos exposure  Pleural manifestations  Pulmonary manifestations

16 ASBESTOS EXPOSURE-Pleural 1. Pleural plaques 2. Pleural effusion, benign 3. Mesothelioma 4. Rounded atelectasis – always associated with chronic pleural process

17 Asbestos Related Lung Disease: Asbestosis  Asbestosis is the term reserved for pulmonary fibrosis caused by the inhalation of asbestos fibers. Subpleural lower lobes areas - mostly  Malignant masses: lung ca  Benign mass: rounded atelectasis, pleural thickening, mass contains low density centrally, has comet tail containing crowded vessels and bronchi

18

19

20 Dx: Asbestos related pleural plaques, marker of exposure, usually asymptomatic Findings:  Calcified pleural plaques

21 Findings: calcified pleural plaques Judith K Amorosa

22 Location of pleural plaque

23

24

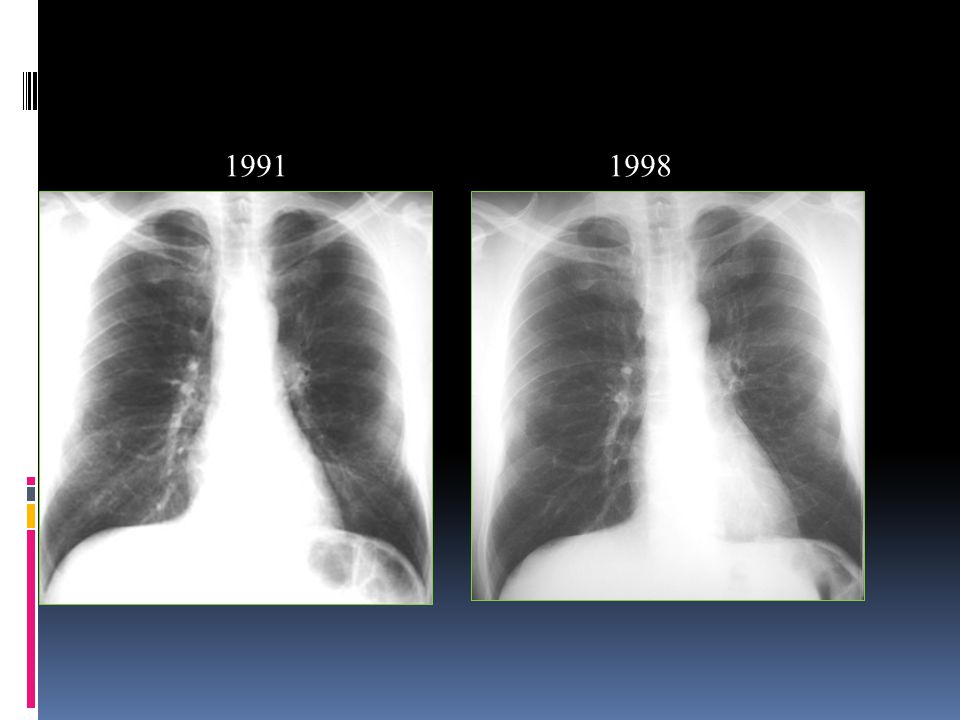

25

26 Pleural effusion

27 55 yo man with R chest pain

28 59 yo man with dull R chest pain

29

30 Mesothelioma

31

32

33 Pleural Based Masses, Ddx: mesothelioma or metastatic lung ca

34 50+ male with shoulder pain

35

36 Dx: mesothelioma

37 Suspect mesothelioma  Chest X-ray  CT  PET  MR chest wall and diaphragmatic involvement

38 Localized malignant mesothelioma (stage I)  Unilateral parietal or visceral pleura and pericardium

39 Advanced malignant mesothelioma (stage II,stage III, and stage IV)  stage II, cancer in ipsilateral pleura, pericardium  In stage III, cancer has spread to any of the following areas:  The chest wall.  The mediastinum.  The heart.  Beyond the diaphragm.  The peritoneum.  Cancer may have also spread to lymph nodes on the other side of the chest or outside the chest.  In stage IV, cancer has spread to distant organs or tissues.

40 49 yo woman with a pelvic mass  Metastatic ovarian ca

41

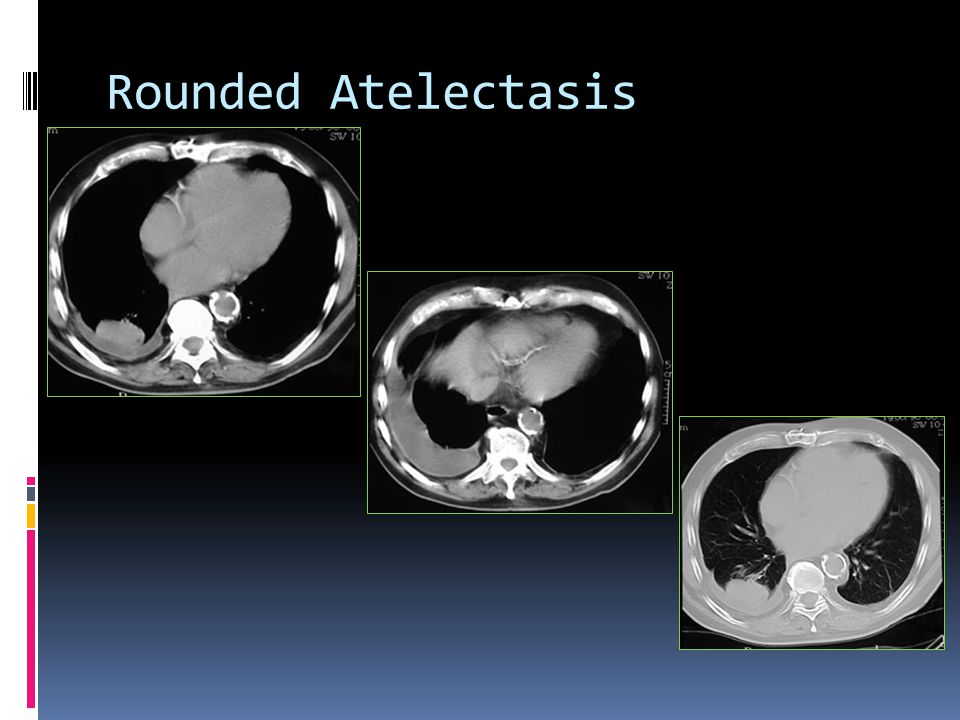

42 Rounded Atelectasis

43

44 Broncho-vascular bundle, “comet sign”

45 Rounded atelectasis

46

47 Asbestos related pleural plaques, rounded atelectasis, fibrosis: asbestosis

48 Asbestos Related Lung Disease: Asbestosis  Asbestosis is the term reserved for pulmonary fibrosis caused by the inhalation of asbestos fibers. Subpleural lower lobes areas - mostly  Malignant masses: lung ca  Benign mass: rounded atelectasis, pleural thickening, mass contains low density centrally, has comet tail containing crowded vessels and bronchi

49

50 Dx: Asbestosis and Pleural plaques

51 Pattern: Rounded atelectasis  Asbestos exposure Atypical  Silicosis

52 83 m

53

54 Emphysema, plaques, asbestosis,Lung ca

55

56 Asbestosis; Ddx:IPF, scleroderma

57 Development of lung disease is dependent on  Intensity of exposure  Duration of exposure  Physiologic and biologic susceptibility of host

58  HRCT: Septal and centrilobular thickening, long scars, parenchymal bands, subpleural lines, honeycombing  Radiograph: lower and mid lung zone reticulo-nodular process, causing “shaggy” heart border, honeycomb Asbestosis

59 Judith K Amorosa

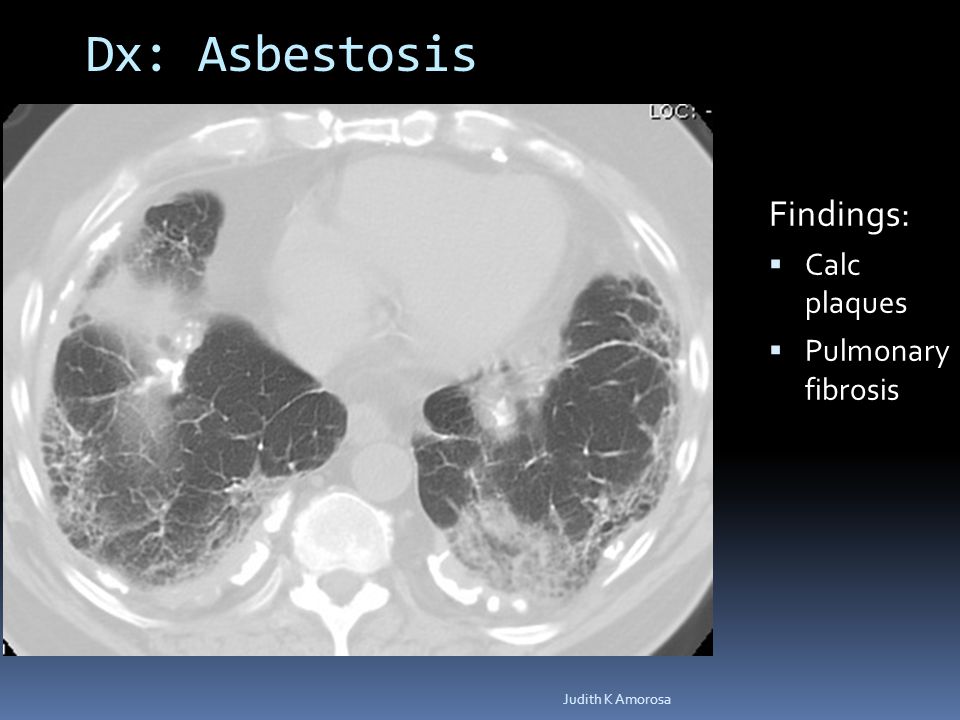

60 Dx: Asbestosis Findings:  Calc plaques  Pulmonary fibrosis Judith K Amorosa

61

62 Lung Cancer

63 NIOSH: National Institute of Occupational Safety and Health

64 Silicosis

65  Small well-defined nodules of 2 to 5mm in diameter in both lungs  Upper lobe predominance Nodules may be calcified Centrilobular and subpleural distribution Sometimes random distribution Irregular conglomerate masses, known as progressive massive fibrosis Often hilar and mediastinal lymphnodes.

66 Miliary pattern: TB, histo, coccydio, mets, silicosis Judith K Amorosa

67 Alveolitis – acute silicosis

68 Dx: Complicated Silicosis, CWP PMF or conglomerate masses Findings:  Upper lobe symmetrical masses  Upper lung nodules

69 Complicated silicosis: PMF

70

71

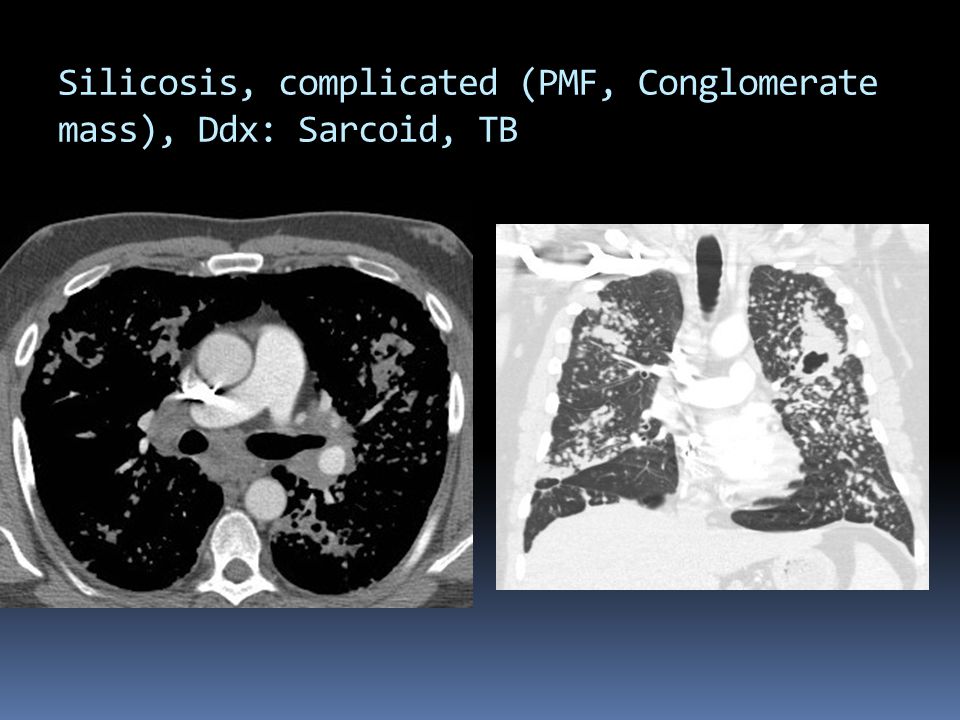

72 Silicosis, complicated (PMF, Conglomerate mass), Ddx: Sarcoid, TB

73

74 Complicated silicosis in a 58-year-old man. Kim K et al. Radiographics 2001;21: ©2001 by Radiological Society of North America

75

76 Pattern  Silicosis- upper lung nodules  Asbestosis -lower lung linear opacities

77 Pattern: Consolidation  Acute silicosis  Hypersensitivity pn  Ardystil syndrome (Spain- printing fabric by spraying with pulverized dyes)  Flockworkers lung disease (Rhode Island car upholstery)

78 radiologyassistant

79 Acute exposure-inhalation to aerosolized (airborne) fibers, fumes, mists, dust – toxins, chemicals

80 Pattern: GG  Acute Silicosis  Hypersensitivity pn  Hard metal  Flockworkers lung  Indium-tin oxide Rarely  Chronic beryllium  Asbestosis  Siderosis  Accelerated silicosis

81

82 HP glassblower

83 60 m GG pattern

84 Pattern: crazy paving  Acute silicosis  Indium-tin oxide (ITO)

85

86

87 Eosinophilic Pneumonia

88 Pattern: centrilobular nodules  Acute silicosis  Hypersensitivity pn  Siderosis  Flock workers lung  Ardyll syndrome  ITO  Byssinosis  Accelerated silicosis Rarely:  Chronic silicosis  CWP(Coal Workers’s P)  Aluminosis  Hard metal lung

89 radiologyassistant

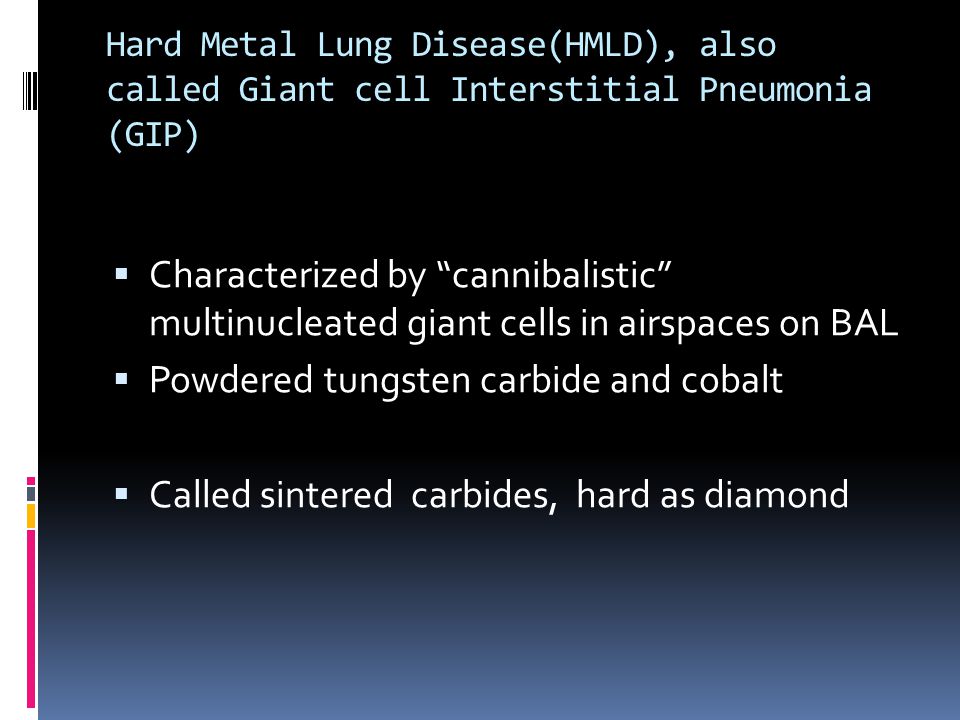

90 Hard Metal Lung Disease(HMLD), also called Giant cell Interstitial Pneumonia (GIP)  Characterized by “cannibalistic” multinucleated giant cells in airspaces on BAL  Powdered tungsten carbide and cobalt  Called sintered carbides, hard as diamond

91 Pattern: Perilymphatic/subpleural nodules  Chronic Silicosis  CWP  Chronic beryllium dis  Talcosis  Calcinosis  Stannosis  HMLD  Aluminosis  Accelerated silicosis  Asbestosis

92 Pattern: Fibrosis (UIP, NSIP patterns)  Asbestosis  Hypersensitivity pn Atypical  Chronic silicosis  CWP  Chronic beryllium  HMLD  Siderosis  Ardystil S  Flock workers lung  ITO  Aluminosis

93 Pattern: Masses  Complicated silicosis (PMF)  CWP  Talcosis  Atypical  Siderosis  Chronic beryllium disease

94 Pleural Plaque

95 Etiologies of Interstitial Pulmonary fibrosis include 1. Scleroderma 2. Idiopathic 3. Asbestosis 4. Silicosis

96

97 Acute Hypersensitivity Pneumonia

98 83 f

99 AIP vs HP

100 In the secondary Pulmonary Lobule the bronchiole is located 1. Along the pulmonary vein 2. Along the interlobular septum 3. Along the pulmonary artery

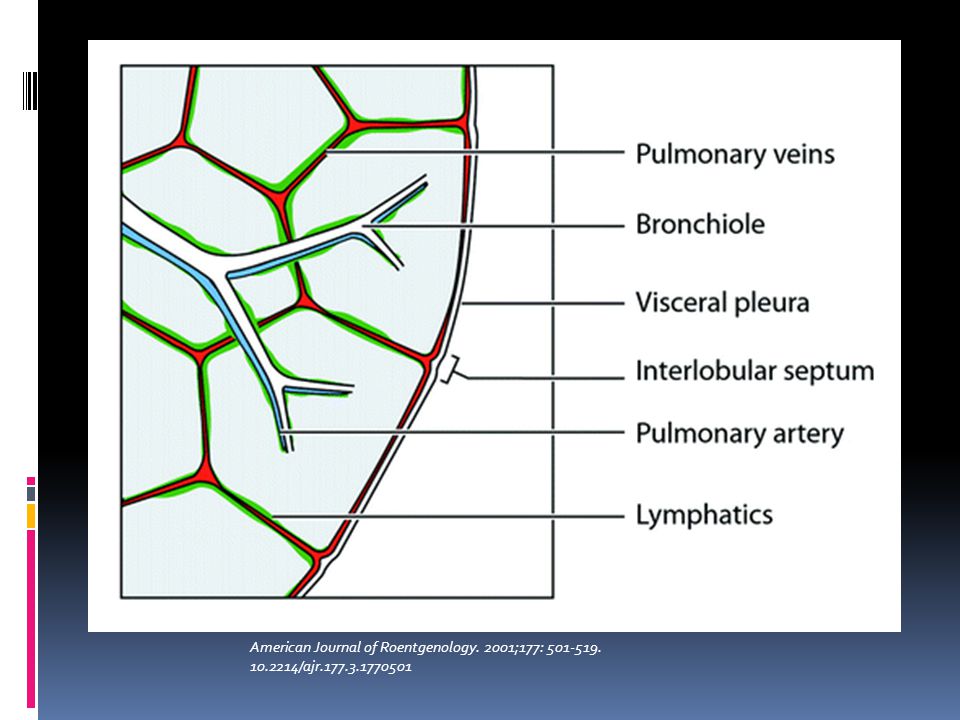

101 American Journal of Roentgenology. 2001;177: /ajr

102 Sequiosis (red wood) Judith K Amorosa

103 Mushroom workers’ pneumoconiosis is organic

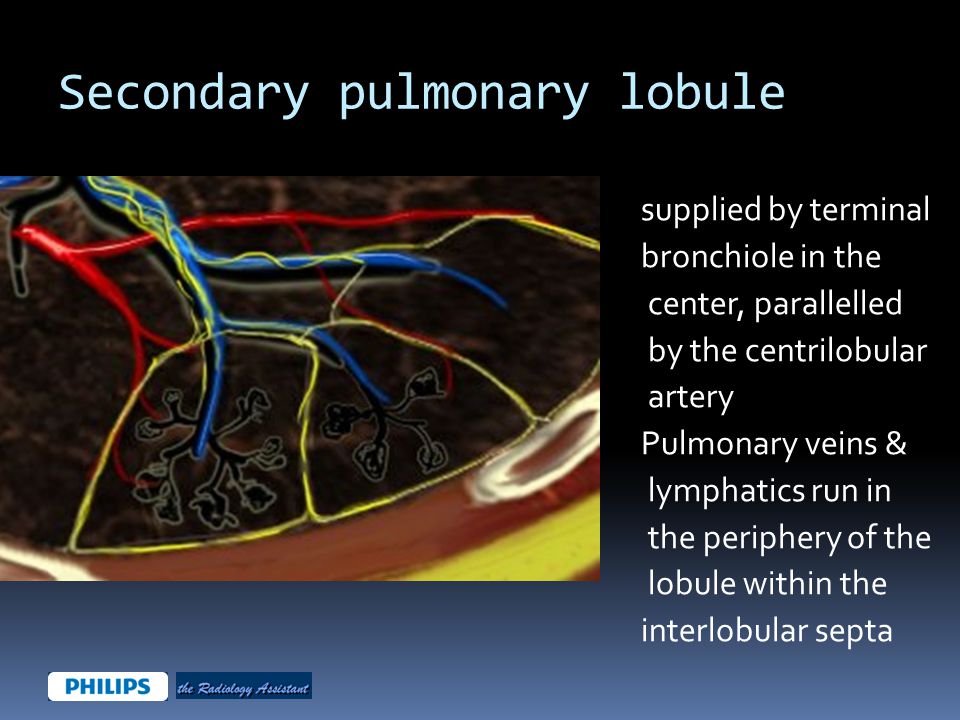

104 Secondary pulmonary lobule supplied by terminal bronchiole in the center, parallelled by the centrilobular artery Pulmonary veins & lymphatics run in the periphery of the lobule within the interlobular septa

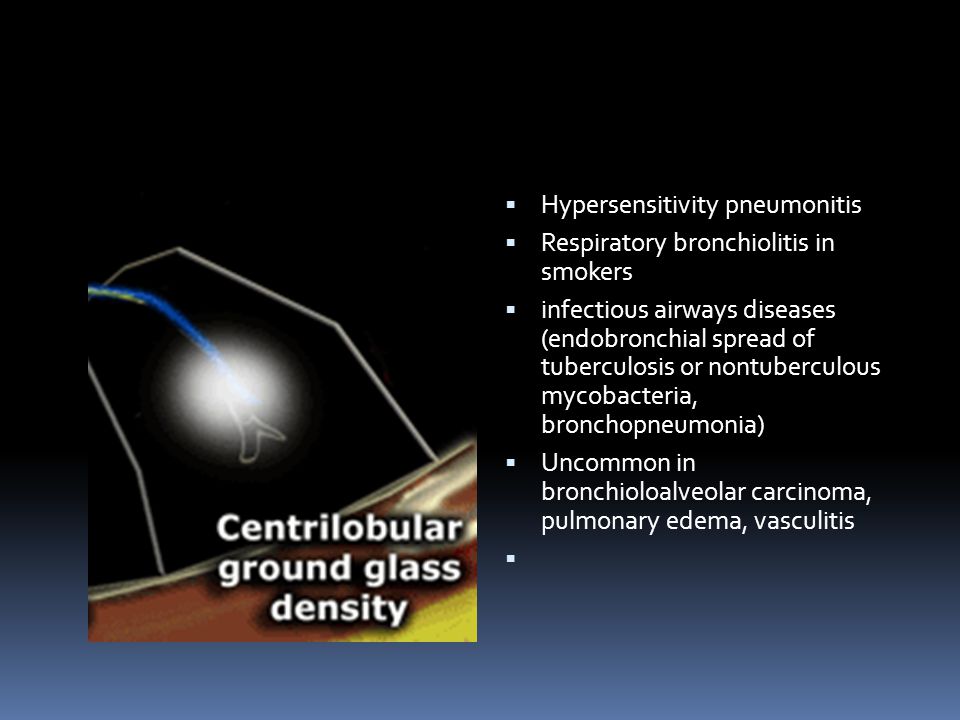

105  Hypersensitivity pneumonitis  Respiratory bronchiolitis in smokers  infectious airways diseases (endobronchial spread of tuberculosis or nontuberculous mycobacteria, bronchopneumonia)  Uncommon in bronchioloalveolar carcinoma, pulmonary edema, vasculitis

106 Organic Pneumoconiosis is 1. Asbestosis 2. Mushroom worker’s disease 3. Silicosis 4. Berylliosis

107 Silicotic nodules 1. Peribronchiolar 2. Upper lobes and perihilar 3. Lower lobes 4. Coalesce: PMF

108 Organic Pneumoconiosis is 1. Asbestosis 2. Mushroom worker’s disease 3. Silicosis 4. Berylliosis

109 Subacute HP  Ill defined centrilobular GGO nodules  Relative sparing c air- trapping  Eur Respir Rev June 1, 2010 vol. 19 no

110 Organic  Hay  Malt  Mushroom  Barley  Cotton (byssinosis)  flax

111 Pneumoconiosis - most common  Asbestosis  Berylliosis  Byssinosis  CWP (Coal Workers Pneumoconiosis)  Silicosis Kun –Kim et al November 2001 RadioGraphics, 21,

112 Reactions  Acute Inflammation Edema  Chronic Fibrosis Granuloma

113 jd.

114 jd

115

116 Jd Ddx: Sarcoidosis, Complex silicosis

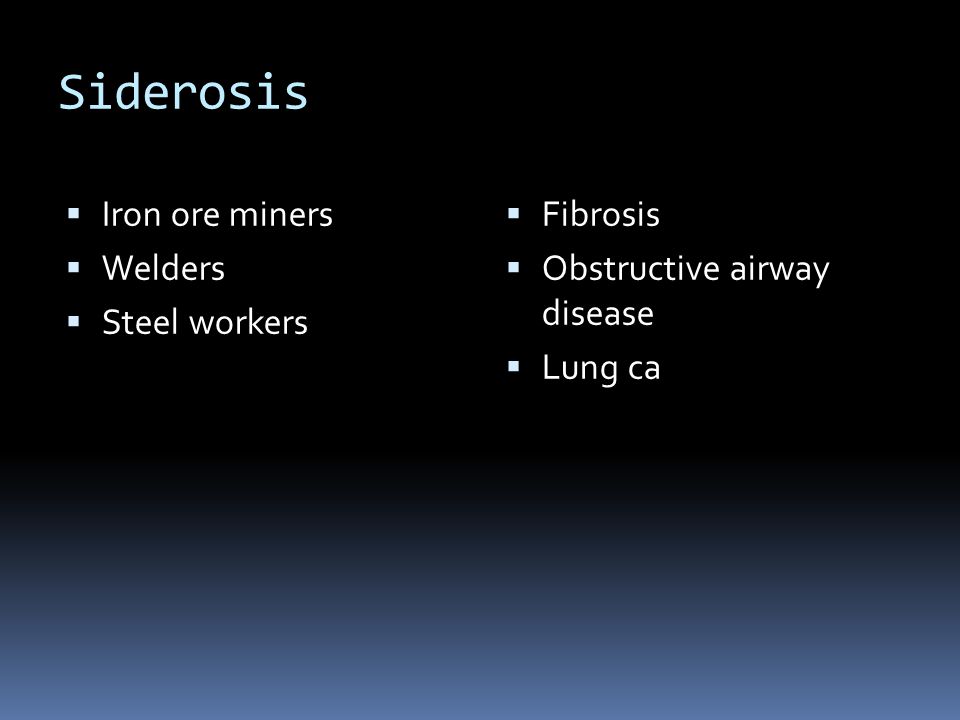

117 Siderosis  Iron ore miners  Welders  Steel workers  Fibrosis  Obstructive airway disease  Lung ca

118 Byssinosis (brown lung)  Exposure to dust from cotton, hemp and flax  Causes blockage of small airways  ?? Endotoxin release from cell walls of Gm- bacteria

119 Flockworkers lung disease  At Microfibres Inc in Rhode Island two young men developed interstitial lung disease  Plant made carpet-like material for car upholstery. Workers cut long nylon strands into short nylon fibers called flock. The fragments were in the respirable size and were inhaled by the workers

120 ITO Indium tin oxide  Transparent, colorless, when deposited as a thin film on glass, it acts as an electrical conductor  Used for display technology: LCD, plasma, electroluminescent, touch screen technology

121 ABR questions about  application, analysis, management
