Stair-convexity Gabriel Nivasch ETH Zürich Joint work with: Boris Bukh (Cambridge U.), Jiří Matoušek (Charles U.)

2
The stretched grid – in the plane The stretched grid is an n x n grid suitably streched in the y-direction: 1 δ1δ1 δ2δ2 δ3δ3 δ4δ4 … δ5δ5 δ 1 << δ 2 << δ 3 << δ 4 << δ 5 << … n = suitable parameter (large enough) n columns n rows

3

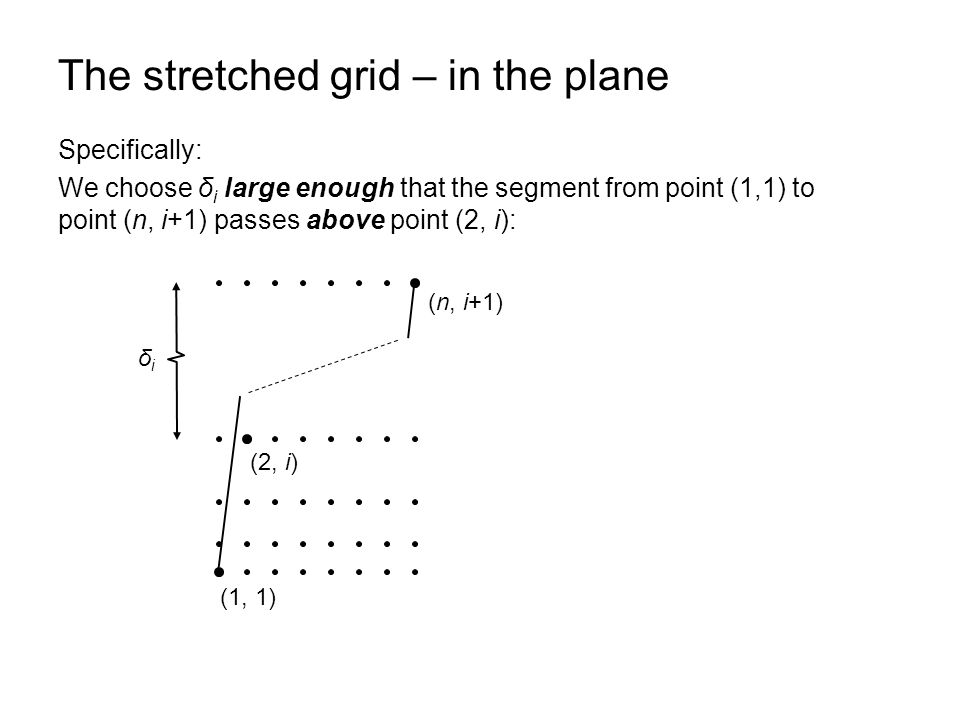

The stretched grid – in the plane δiδi Specifically: We choose δ i large enough that the segment from point (1,1) to point (n, i+1) passes above point (2, i): (1, 1) (n, i+1) (2, i)

4

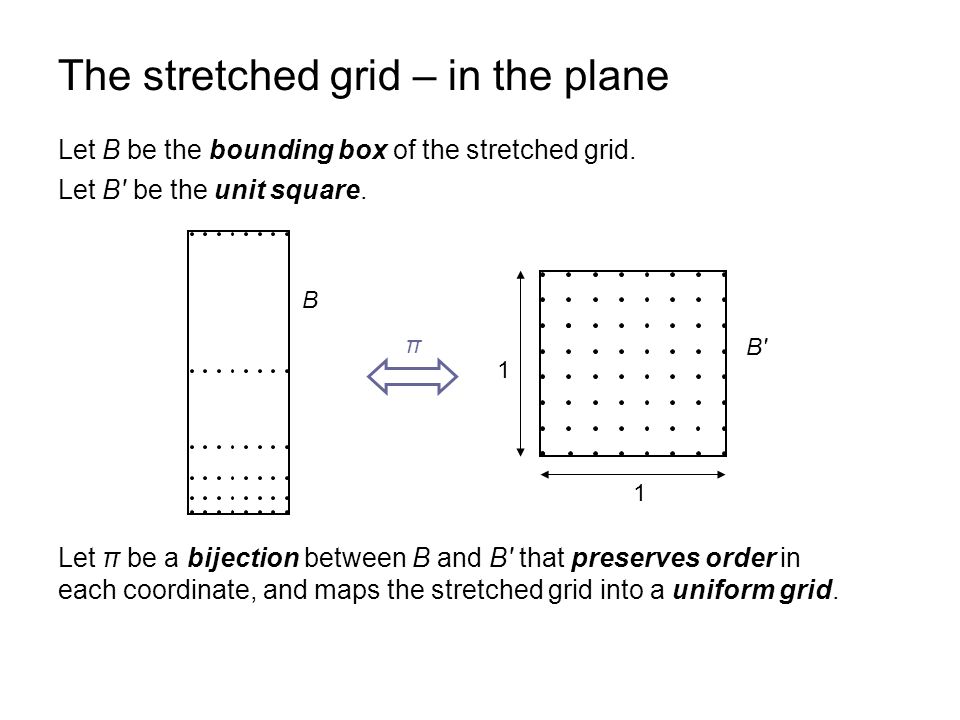

The stretched grid – in the plane Let B be the bounding box of the stretched grid. Let π be a bijection between B and B' that preserves order in each coordinate, and maps the stretched grid into a uniform grid. B 1 1 B' π Let B' be the unit square.

5
The stretched grid – in the plane What happens to straight segments under the bijection π? If the grid is very dense, then they look almost like upside-down L’s. 1 1

6

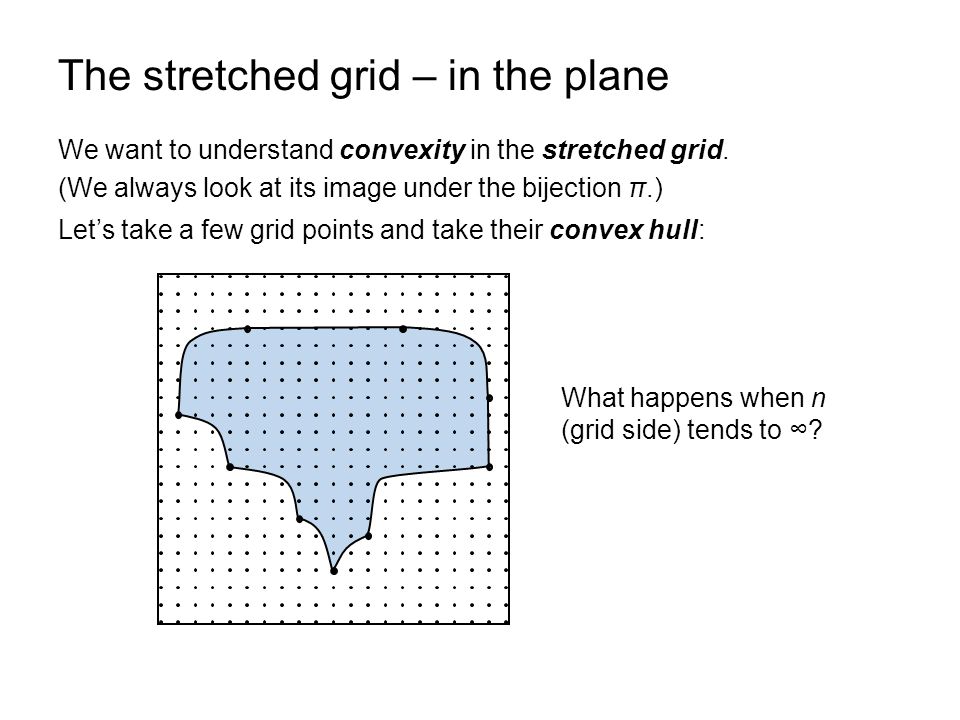

The stretched grid – in the plane We want to understand convexity in the stretched grid. (We always look at its image under the bijection π.) Let’s take a few grid points and take their convex hull: What happens when n (grid side) tends to ∞?

7
Stair-convexity – in the plane We introduce a notion called stair-convexity. Stair-path between two points: If a and b are points in the plane, the stair-path between a and b is an upside- down L, going first up, and then left or right. a b a b We want to understand convexity in the stretched grid, in the limit n ∞. A set S in R 2 is stair-convex if for every pair of points of S, the stair-path between them is entirely contained in S.

8

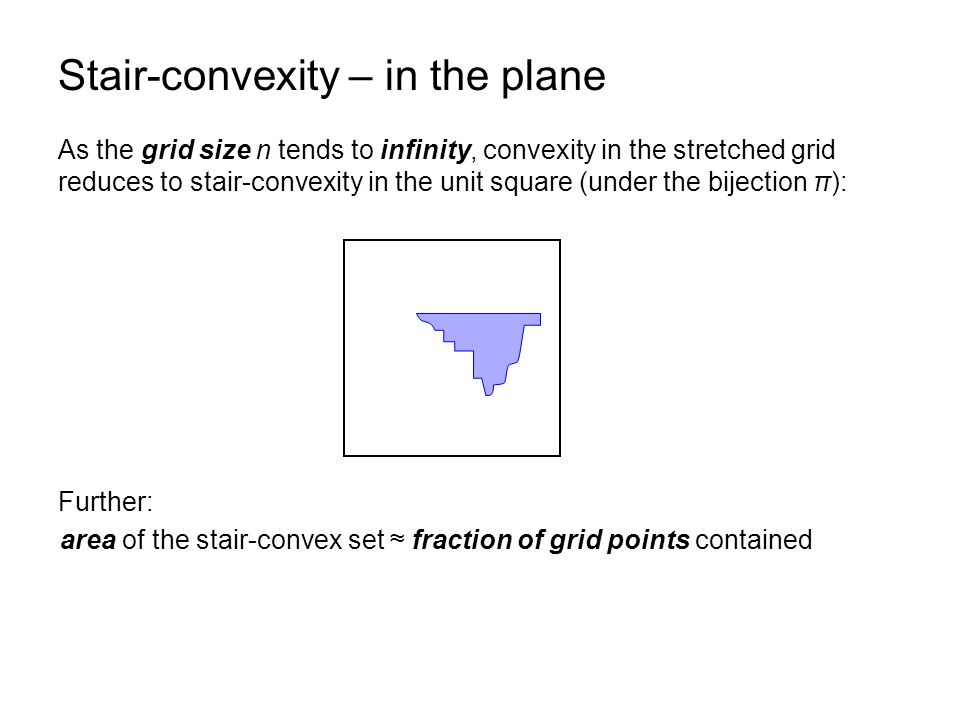

Stair-convexity – in the plane As the grid size n tends to infinity, convexity in the stretched grid reduces to stair-convexity in the unit square (under the bijection π): Further: area of the stair-convex set ≈ fraction of grid points contained

9

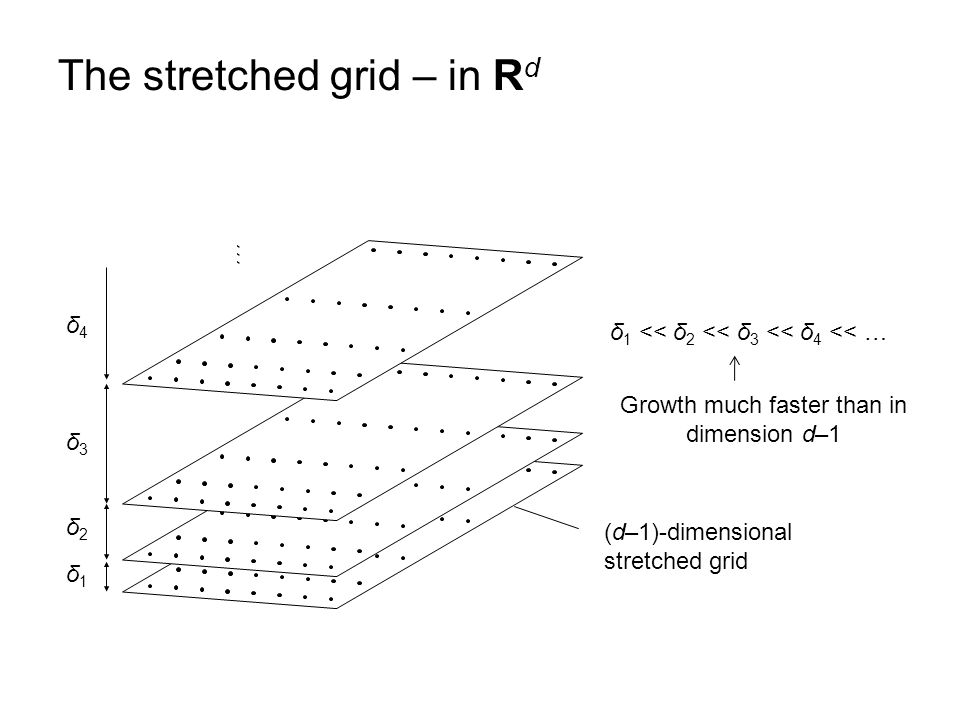

The stretched grid – in R d Growth much faster than in dimension d–1 (d–1)-dimensional stretched grid δ1δ1 δ2δ2 δ3δ3 δ4δ4 … δ 1 << δ 2 << δ 3 << δ 4 << …

10

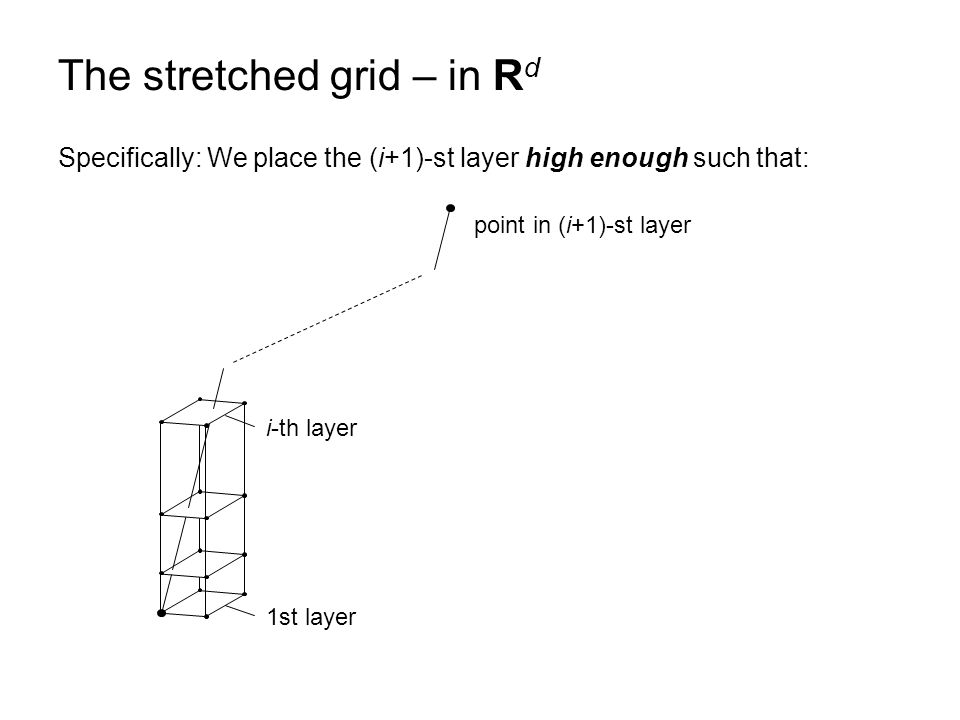

The stretched grid – in R d 1st layer i-th layer point in (i+1)-st layer Specifically: We place the (i+1)-st layer high enough such that:

11

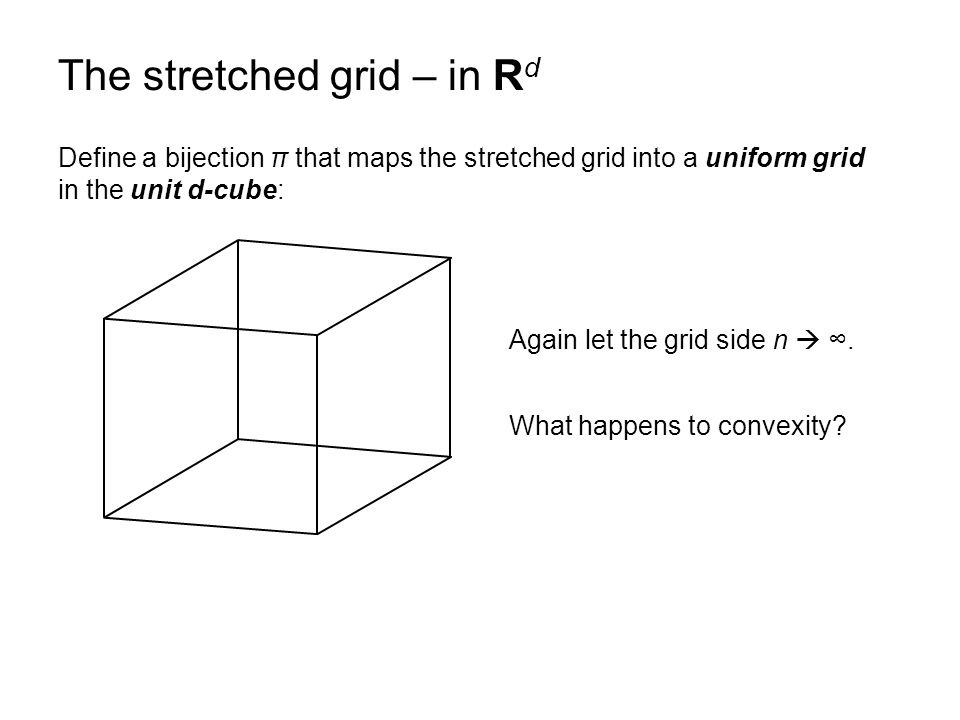

The stretched grid – in R d Define a bijection π that maps the stretched grid into a uniform grid in the unit d-cube: Again let the grid side n ∞. What happens to convexity?

12
Stair-convexity – in R d Stair-path between two points: Let a and b be points in R d, with a lower than b in last coordinate. Let a' be the point directly above a at the same height as b. The stair-path between a and b is the segment aa', followed by the stair-path from a' to b (by induction one dimension lower). a' x y z a b b

13
Stair-convexity – in R d A set S in R d is stair-convex if, for every pair of points of S, the stair-path between them is entirely contained in S. Stair-convex set in R d : Every horizontal slice (by a hyperplane perpendicular to the last axis) is stair- convex in R d–1. The slice grows as we slide the hyperplane up.

14

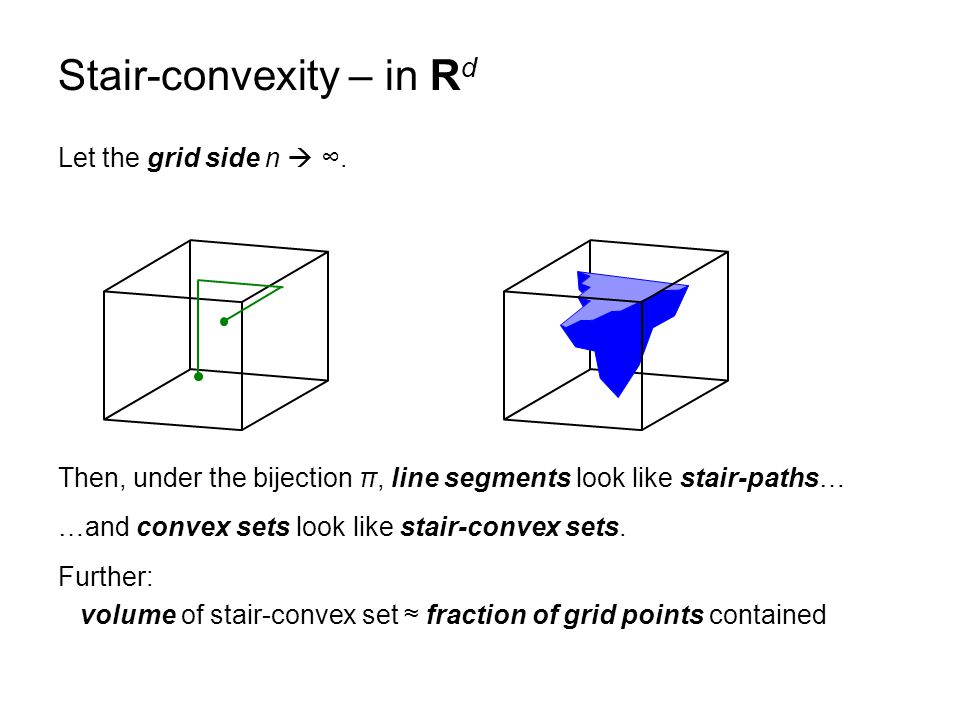

Stair-convexity – in R d Let the grid side n ∞. Then, under the bijection π, line segments look like stair-paths… …and convex sets look like stair-convex sets. Further: volume of stair-convex set ≈ fraction of grid points contained

15

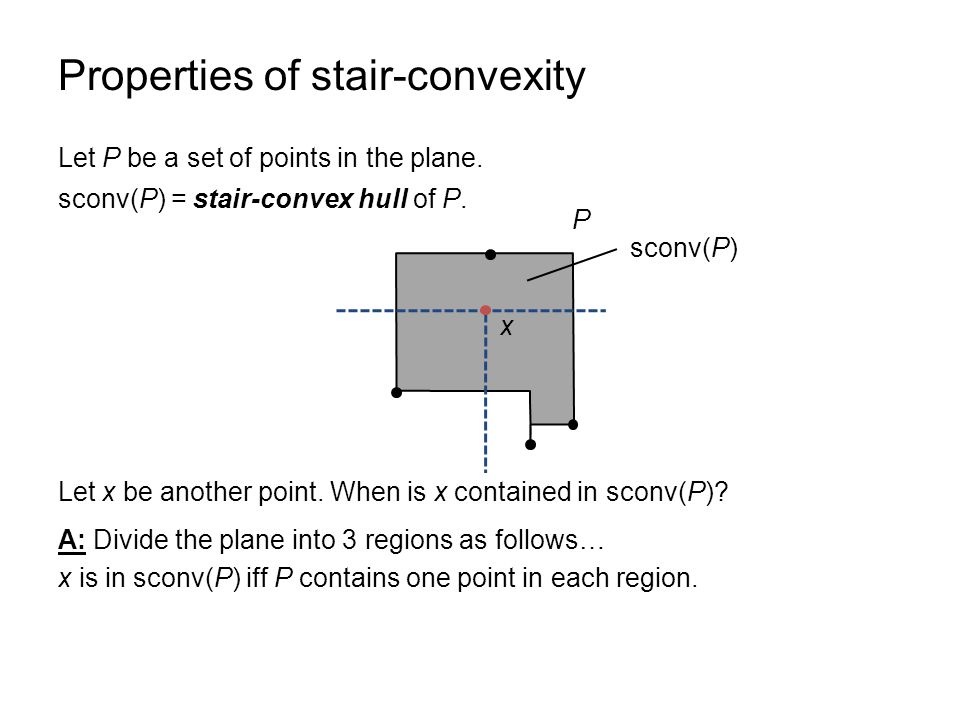

Properties of stair-convexity Let P be a set of points in the plane. sconv(P) = stair-convex hull of P. Let x be another point. When is x contained in sconv(P)? A: Divide the plane into 3 regions as follows… x is in sconv(P) iff P contains one point in each region. sconv(P) x P

16
Properties of stair-convexity Generalization to R d (“stair-convexity lemma”): A: Divide space into d+1 regions as follows: When is point x contained in sconv(P)? Then, x is in sconv(P) iff P contains one point in each region. region 0: (–, –, –, –, …, –, –) region 1: (+, –, –, –, …, –, –) region 2: (?, +, –, –, …, –, –) region 3: (?, ?, +, –, …, –, –) … region d: (?, ?, ?, ?, …, ?, +) – smaller than x in this coord. + greater than x in this coord. ? doesn‘t matter.

17

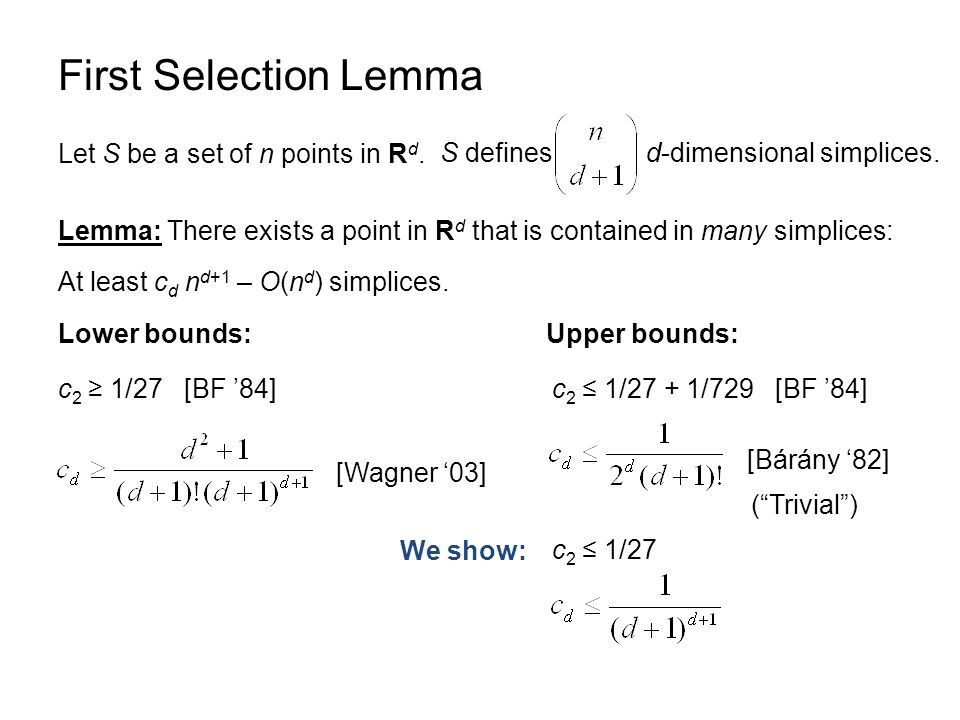

First Selection Lemma Let S be a set of n points in R d. S defines d-dimensional simplices. Lemma: There exists a point in R d that is contained in many simplices: At least c d n d+1 – O(n d ) simplices. Lower bounds:Upper bounds: c 2 ≥ 1/27 [BF ’84]c 2 ≤ 1/27 + 1/729 [BF ’84] [Wagner ‘03] [Bárány ‘82] (“Trivial”) We show: c 2 ≤ 1/27

18
First Selection Lemma Claim: c d ≤ (d+1) –(d+1). Proof: Let S be the stretched grid in R d of side n 1/d. (Then |S| = n.) Map into the unit cube: Then x defines a partition of S into d+1 disjoint subsets (stair-conv lemma). A d-simplex defined by S contains x iff each vertex lies in a different subset. At most (n / (d+1)) d+1 d-simplices.QED Let x be an arbitrary point in R d. In the worst case, all parts have equal size n/(d+1). 1 1 x n/3 S

19

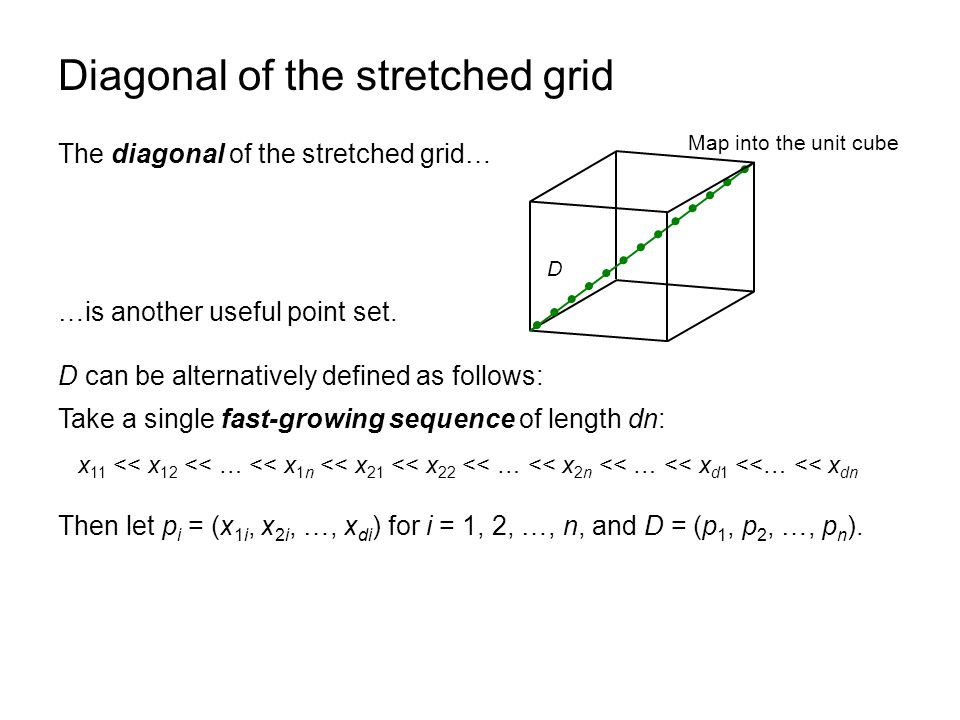

Diagonal of the stretched grid The diagonal of the stretched grid… D Map into the unit cube …is another useful point set. D can be alternatively defined as follows: Take a single fast-growing sequence of length dn: x 11 << x 12 << … << x 1n << x 21 << x 22 << … << x 2n << … << x d1 <<… << x dn Then let p i = (x 1i, x 2i, …, x di ) for i = 1, 2, …, n, and D = (p 1, p 2, …, p n ).

20
Diagonal of the stretched grid Alternative proof of our upper bound for the FSL… D (map into the unit cube) …using the diagonal of the stretched grid. x n/3 Worst case:

21

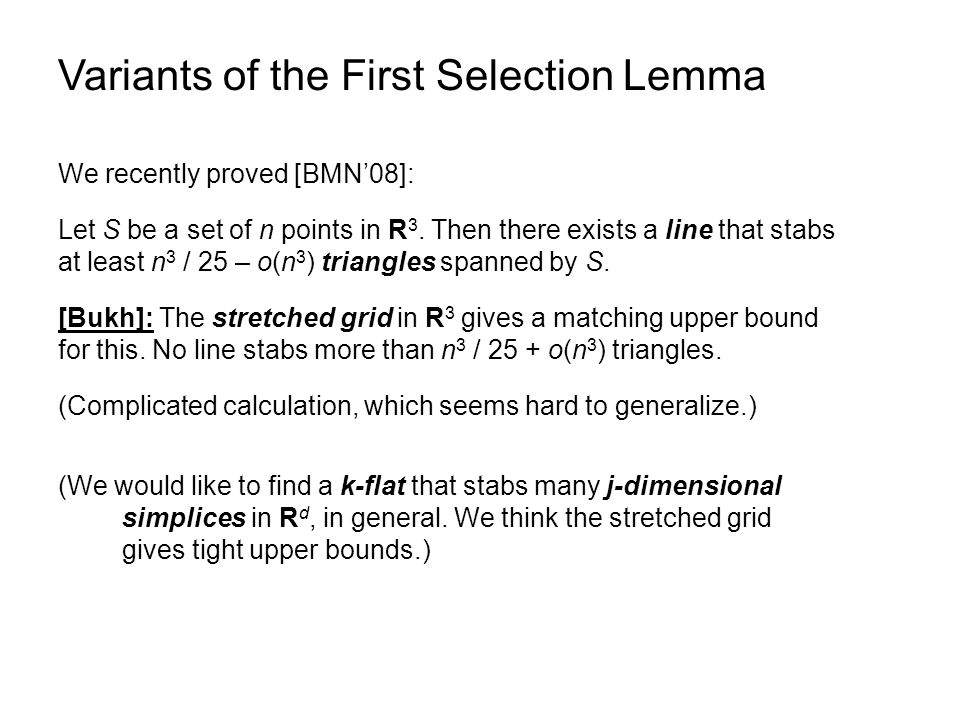

Variants of the First Selection Lemma We recently proved [BMN’08]: Let S be a set of n points in R 3. Then there exists a line that stabs at least n 3 / 25 – o(n 3 ) triangles spanned by S. [Bukh]: The stretched grid in R 3 gives a matching upper bound for this. No line stabs more than n 3 / 25 + o(n 3 ) triangles. (Complicated calculation, which seems hard to generalize.) (We would like to find a k-flat that stabs many j-dimensional simplices in R d, in general. We think the stretched grid gives tight upper bounds.)

22
Second Selection Lemma The stretched grid in the plane yields an improved upper bound for the Second Selection Lemma. Second Selection Lemma: Let S be a set of n points in the plane, and let T be a set of m triangles spanned by S. Then there exists a point in the plane that stabs “many” triangles of T. [NS ‘09, fixing Eppstein ‘93]: Ω(m 3 / (n 6 log 2 n)) triangles. [ACEGSW ’91]: Ω(m 3 / (n 6 log 5 n)) triangles.

23
Second Selection Lemma Upper bound for the Second Selection Lemma in the plane: [Eppstein ‘93]: Sometimes you cannot intersect more than O(m 2 / n 3 ) triangles by any point. (In fact, he showed that for every set S of points, there is a set T of triangles that achieves this upper bound.) We show: There is a set S of n points, and a set T of m triangles, such that no point intersects more than O(m 2 /(n 3 log n)) triangles.

24
Second Selection Lemma Claim: There is a set S of n points, and a set T of m triangles, such that no point intersects more than O(m 2 /(n 3 log n)) triangles. Our set S: The stretched grid. Our set T (roughly speaking): All “increasing” triangles whose area is ≤ δ. 1 1 ≤ δ (δ is chosen so that |T| = m.)

25

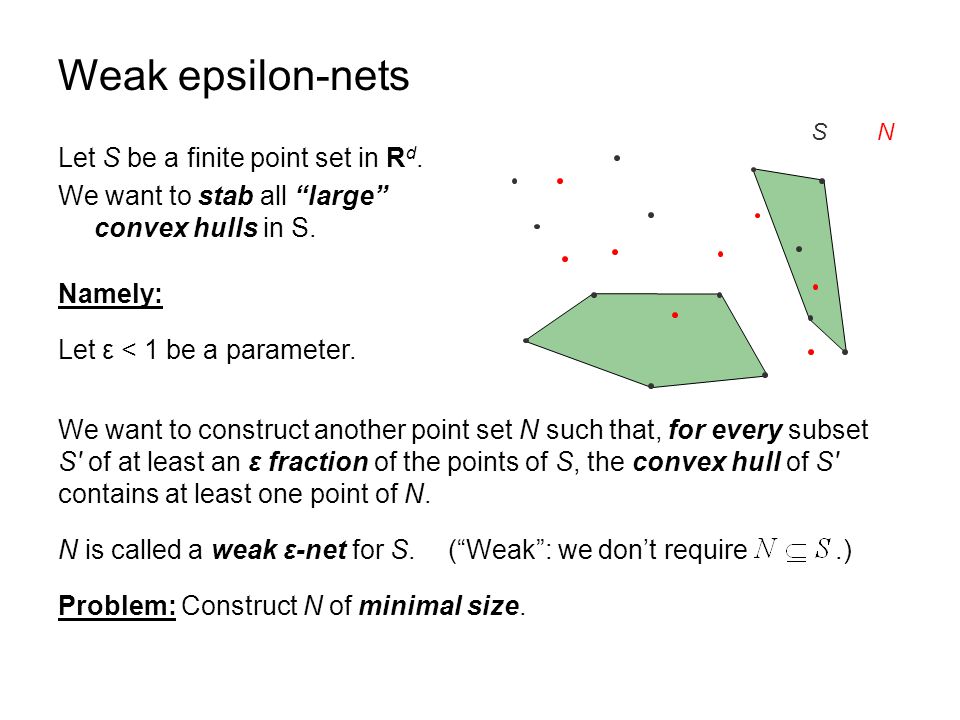

Weak epsilon-nets Let S be a finite point set in R d. We want to stab all “large” convex hulls in S. We want to construct another point set N such that, for every subset S' of at least an ε fraction of the points of S, the convex hull of S' contains at least one point of N. Problem: Construct N of minimal size. Let ε < 1 be a parameter. N is called a weak ε-net for S. Namely: SN (“Weak”: we don’t require.)

26

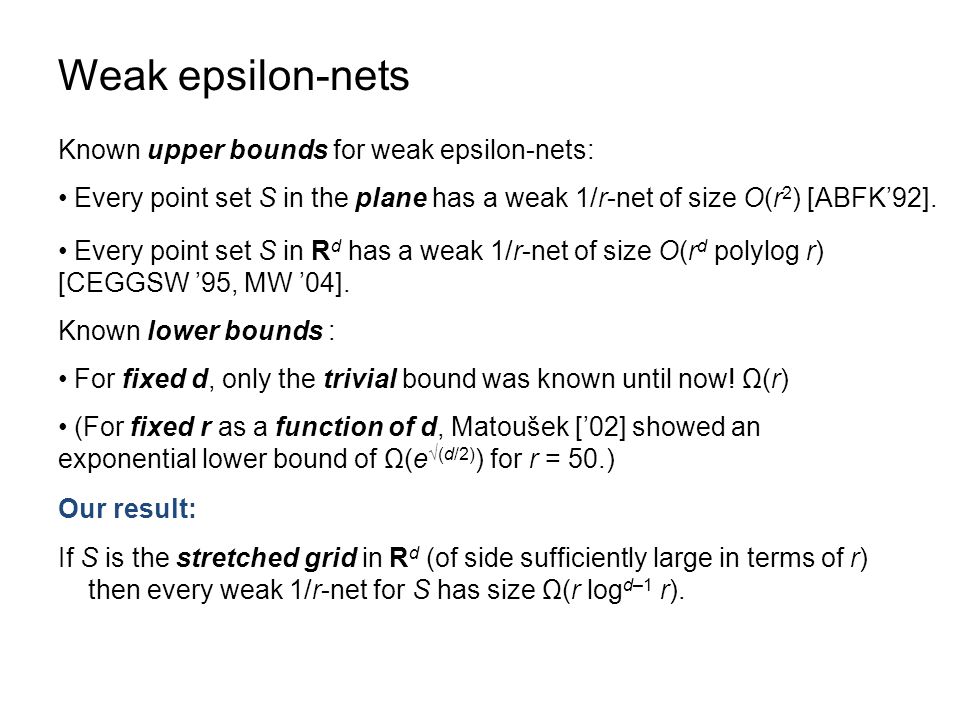

Weak epsilon-nets Known upper bounds for weak epsilon-nets: Every point set S in the plane has a weak 1/r-net of size O(r 2 ) [ABFK’92]. Every point set S in R d has a weak 1/r-net of size O(r d polylog r) [CEGGSW ’95, MW ’04]. Known lower bounds : For fixed d, only the trivial bound was known until now! Ω(r) (For fixed r as a function of d, Matoušek [’02] showed an exponential lower bound of Ω(e √(d/2) ) for r = 50.) Our result: If S is the stretched grid in R d (of side sufficiently large in terms of r) then every weak 1/r-net for S has size Ω(r log d–1 r).

27

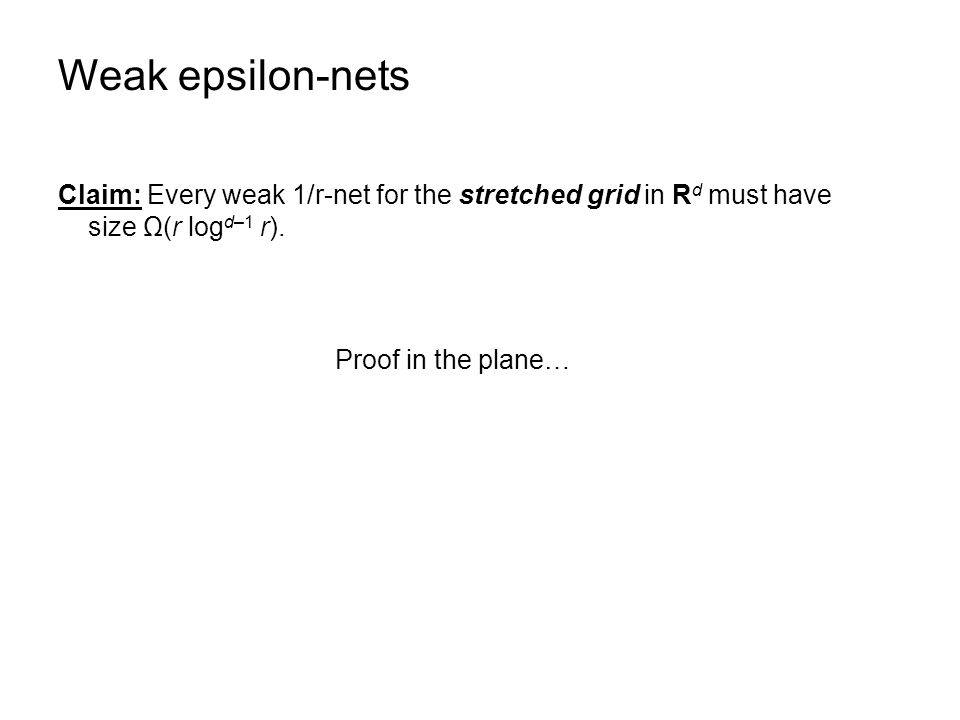

Weak epsilon-nets Claim: Every weak 1/r-net for the stretched grid in R d must have size Ω(r log d–1 r). Proof in the plane…

28
Weak epsilon-nets Equivalent problem: Given ε = 1/r, construct a set of points N that stabs all stair-convex sets of area 1/r in the unit square. Or in other words: Let N be any set of n points in the unit square. Then there’s an unstabbed stair-convex set of area Ω((log n) / n). Claim: Such a set N must have Ω(r log r) points. N

29

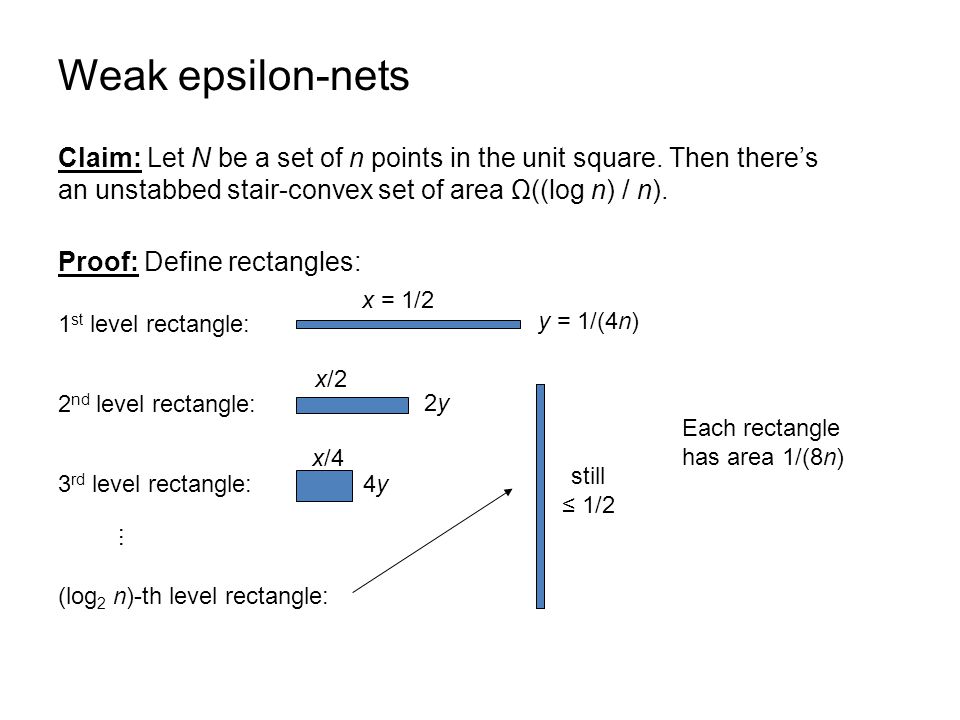

Weak epsilon-nets Claim: Let N be a set of n points in the unit square. Then there’s an unstabbed stair-convex set of area Ω((log n) / n). Proof: Define rectangles: 1 st level rectangle: 2 nd level rectangle: 3 rd level rectangle: (log 2 n)-th level rectangle: … x = 1/2 y = 1/(4n) Each rectangle has area 1/(8n) x/2 2y2y x/4 4y4y still ≤ 1/2

30
Weak epsilon-nets Let Q be the upper-left quarter of the unit square. Q Call a point p in Q k-safe if the k-th level rectangle with p as upper-left corner is not stabbed by any point of N. p N How much of Q is k-safe?

31

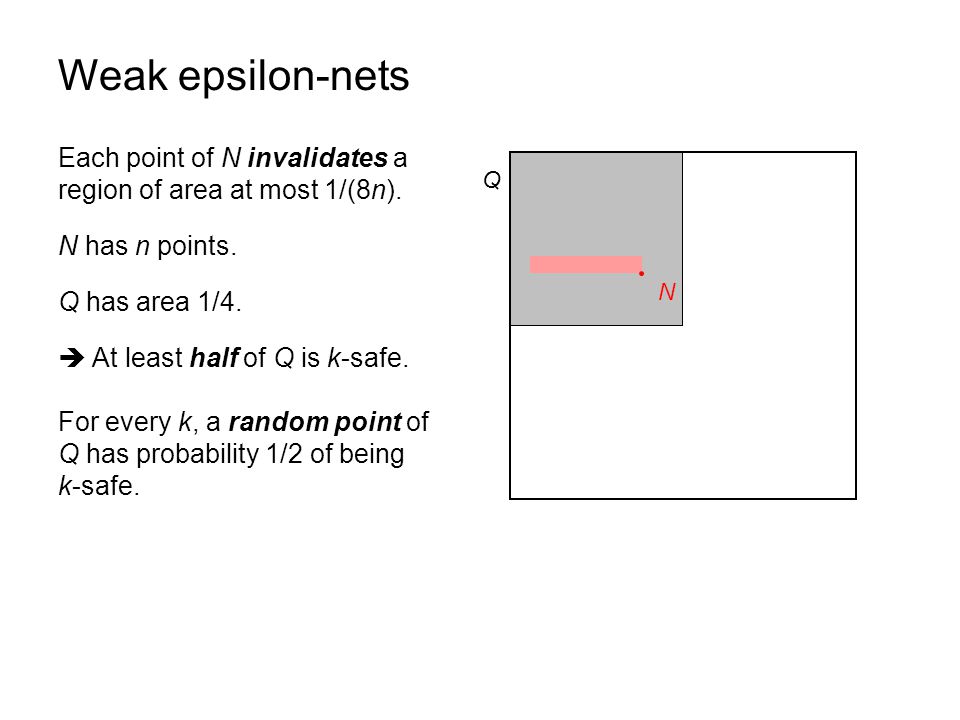

Weak epsilon-nets Each point of N invalidates a region of area at most 1/(8n). Q Q has area 1/4. N At least half of Q is k-safe. N has n points. For every k, a random point of Q has probability 1/2 of being k-safe.

32
Weak epsilon-nets For a point p in Q, the fan of p is the set of rectangles of level 1, 2, 3, …, log 2 n with p as left corner. p If p is randomly chosen, the expected fraction of rectangles in the fan of p that are not stabbed by any point of N is at least 1/2. There is a p that achieves this expectation. Its fan has Ω(log n) non-stabbed rectangles. Their union is a stair-convex set. What is the area of this set?

33

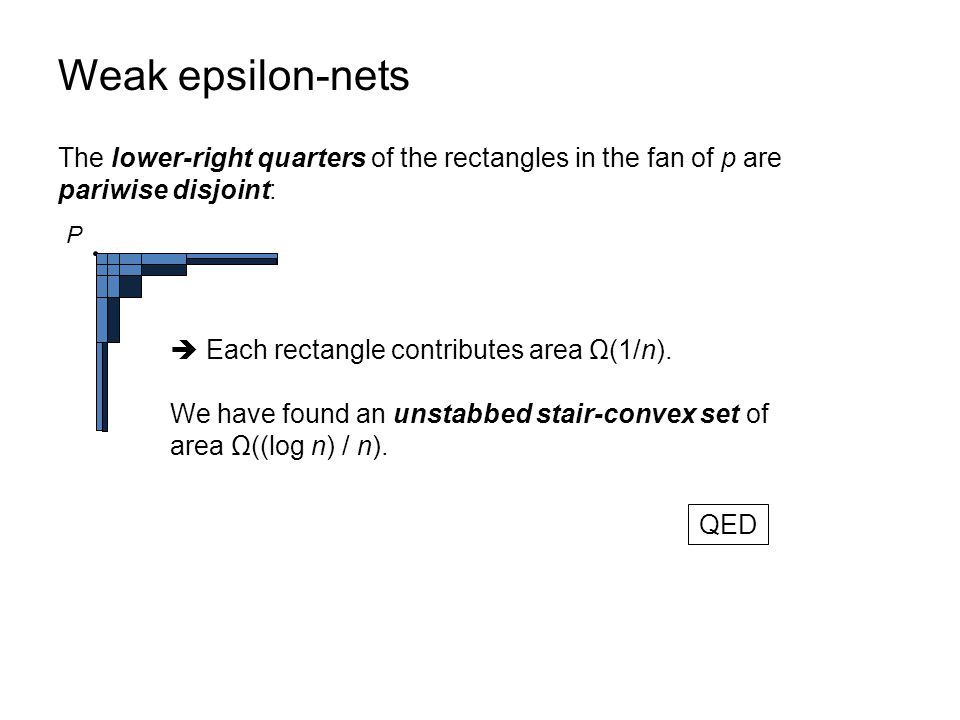

Weak epsilon-nets The lower-right quarters of the rectangles in the fan of p are pariwise disjoint: P Each rectangle contributes area Ω(1/n). We have found an unstabbed stair-convex set of area Ω((log n) / n). QED

34

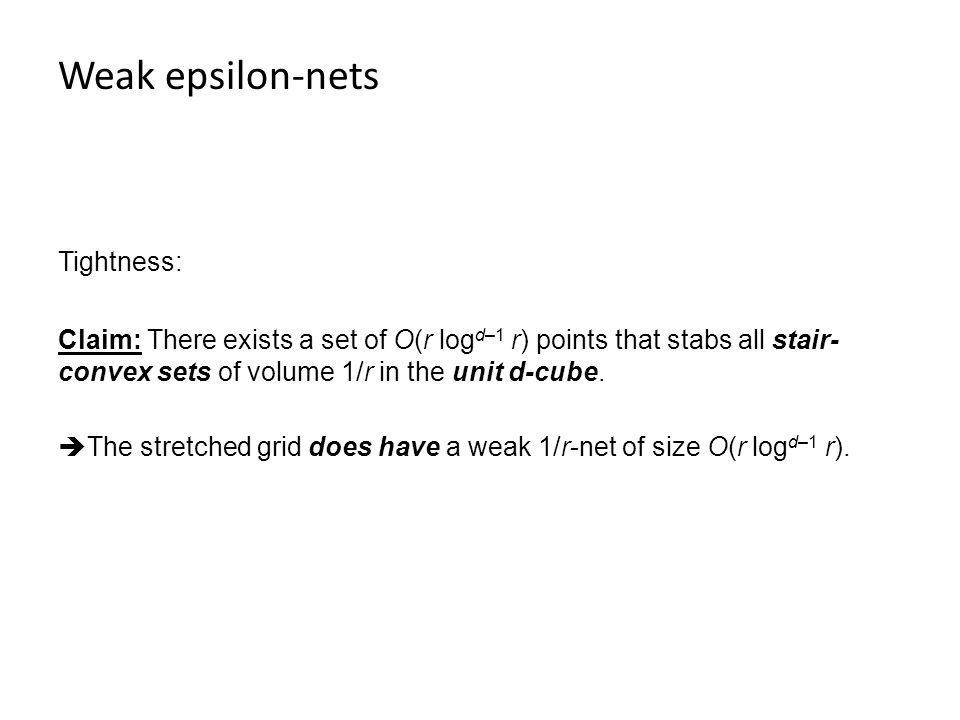

Weak epsilon-nets Tightness: Claim: There exists a set of O(r log d–1 r) points that stabs all stair- convex sets of volume 1/r in the unit d-cube. The stretched grid does have a weak 1/r-net of size O(r log d–1 r).

35

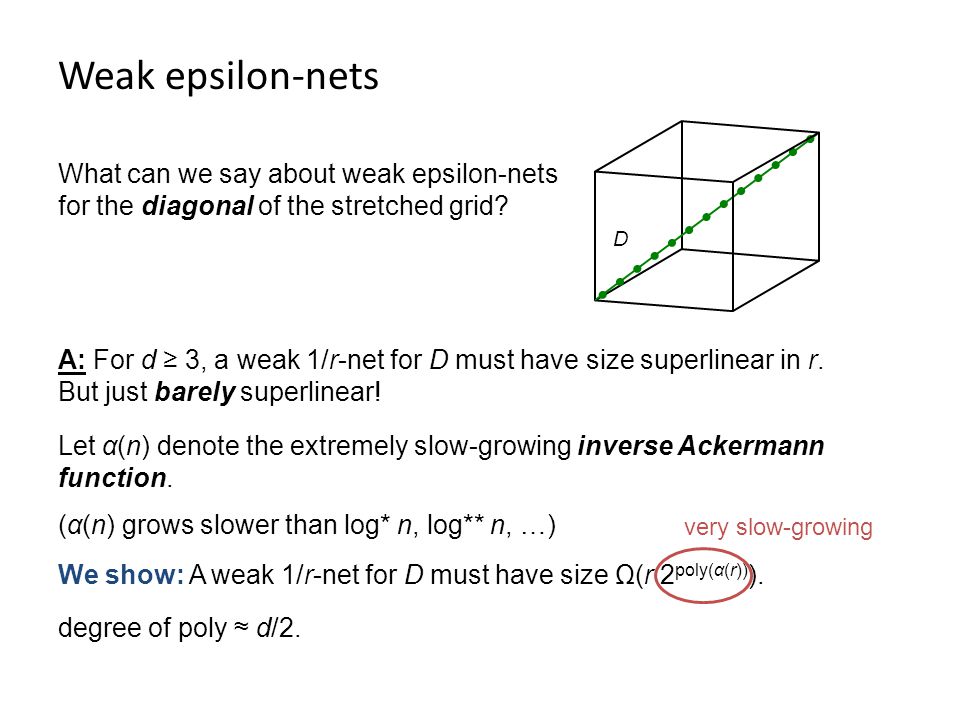

Weak epsilon-nets What can we say about weak epsilon-nets for the diagonal of the stretched grid? A: For d ≥ 3, a weak 1/r-net for D must have size superlinear in r. But just barely superlinear! Let α(n) denote the extremely slow-growing inverse Ackermann function. D (α(n) grows slower than log* n, log** n, …) We show: A weak 1/r-net for D must have size Ω(r 2 poly(α(r)) ). very slow-growing degree of poly ≈ d/2.

36

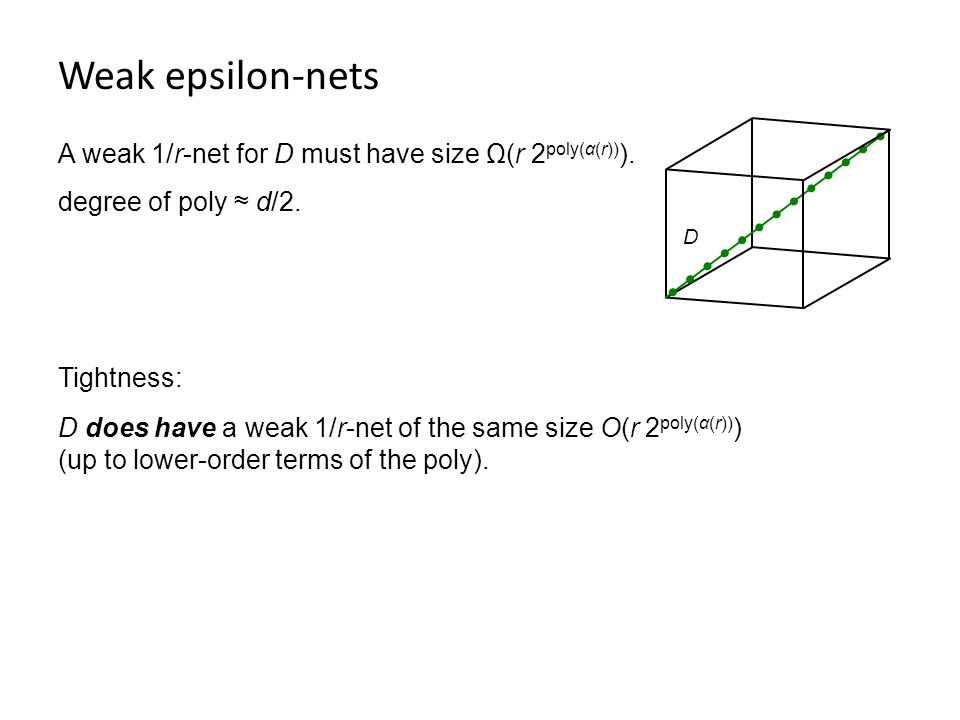

Weak epsilon-nets D A weak 1/r-net for D must have size Ω(r 2 poly(α(r)) ). degree of poly ≈ d/2. Tightness: D does have a weak 1/r-net of the same size O(r 2 poly(α(r)) ) (up to lower-order terms of the poly).

37
Weak epsilon-nets D A weak 1/r-net for D must have size Ω(r 2 poly(α(r)) ). degree of poly ≈ d/2. Why is this interesting? One can show that D lies on a convex curve. (A convex curve is a curve in R d that intersects every hyperplane at most d times.) [AKNSS ‘08] had shown: If a set S in R d lies on a convex curve, then S has a weak 1/r-net of size O(r 2 poly(α(r)) ). degree of poly ≈ d 2 /4. The set D shows that [AKNSS ‘08] are not far from the truth in the worst case.

38
THANKS!
