Copyright © 2014, 2011 Pearson Education, Inc. 1 Chapter 5 Association between Categorical Variables

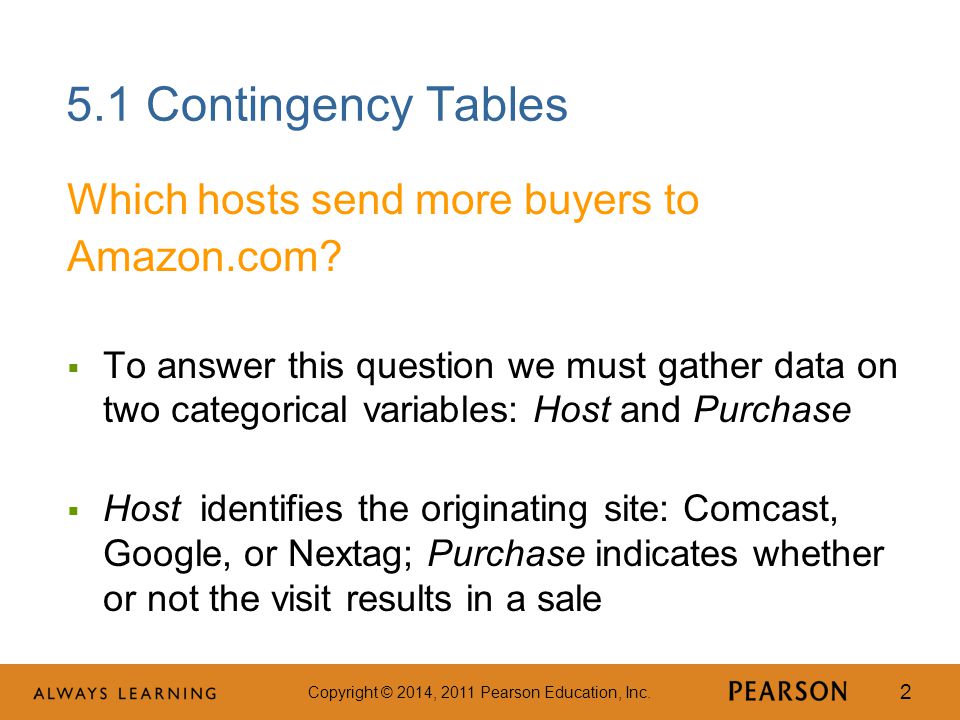

Copyright © 2014, 2011 Pearson Education, Inc. 2 5.1 Contingency Tables Which hosts send more buyers to Amazon.com?  To answer this question we must gather data on two categorical variables: Host and Purchase  Host identifies the originating site: Comcast, Google, or Nextag; Purchase indicates whether or not the visit results in a sale

Copyright © 2014, 2011 Pearson Education, Inc. 3 5.1 Contingency Tables Consider Two Categorical Variables Simultaneously  A table that shows counts of cases on one categorical variable contingent on the value of another (for every combination of both variables)  Cells in a contingency table are mutually exclusive

Copyright © 2014, 2011 Pearson Education, Inc. 4 5.1 Contingency Tables Contingency Table for Web Shopping

Copyright © 2014, 2011 Pearson Education, Inc. 5 5.1 Contingency Tables Marginal and Conditional Distributions Marginal distributions appear in the “margins” of a contingency table and represent the totals (frequencies) for each categorical variable separately Conditional distributions refer to counts within a row or column of a contingency table (restricted to cases satisfying a condition)

Copyright © 2014, 2011 Pearson Education, Inc. 6 5.1 Contingency Tables Conditional Distribution of Purchase for each Host (Column Counts and Percentages)

Copyright © 2014, 2011 Pearson Education, Inc. 7 5.1 Contingency Tables Conditional Distribution Reveals that Comcast has the highest rate of purchases, more than twice that of Nextag Host and Purchase are associated

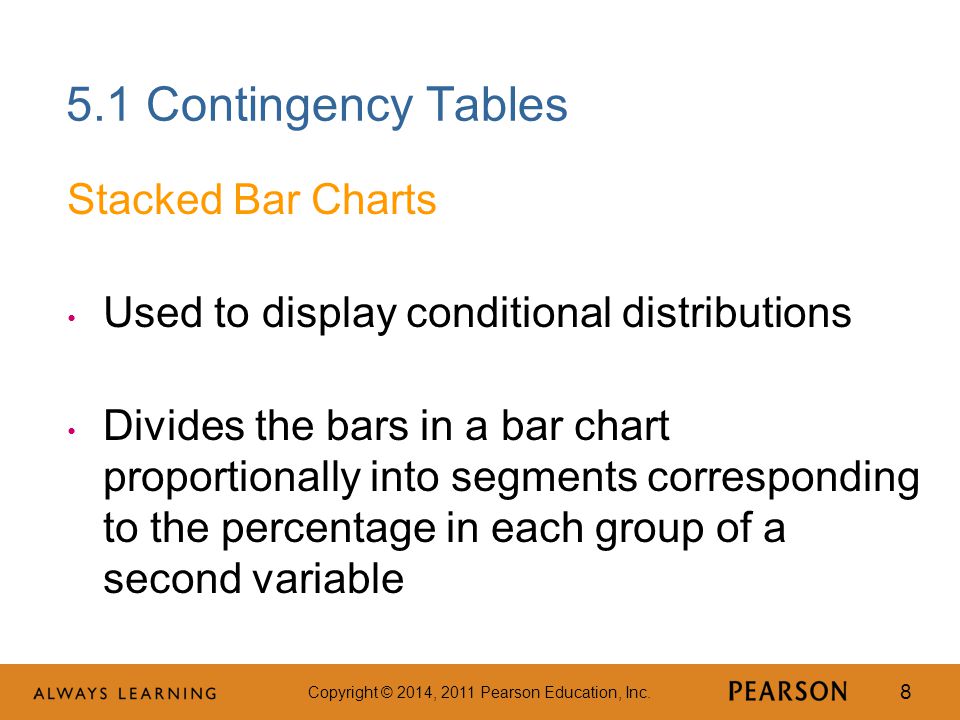

Copyright © 2014, 2011 Pearson Education, Inc. 8 5.1 Contingency Tables Stacked Bar Charts Used to display conditional distributions Divides the bars in a bar chart proportionally into segments corresponding to the percentage in each group of a second variable

Copyright © 2014, 2011 Pearson Education, Inc. 9 5.1 Contingency Tables Contingency Table of Purchase by Region

Copyright © 2014, 2011 Pearson Education, Inc. 10 5.1 Contingency Tables Stacked Bar Chart Shows No Association

Copyright © 2014, 2011 Pearson Education, Inc. 11 5.1 Contingency Tables Mosaic Plots  Alternative to stacked bar chart  A plot in which the size of each “tile” is proportional to the count in a cell of a contingency table

Copyright © 2014, 2011 Pearson Education, Inc. 12 5.1 Contingency Tables Contingency Table of Shirt Size by Style

Copyright © 2014, 2011 Pearson Education, Inc. 13 5.1 Contingency Tables Mosaic Plot Shows Association

Copyright © 2014, 2011 Pearson Education, Inc. 14 4M Example 5.1: CAR THEFT Motivation Should insurance companies vary the premiums for different car models (are some cars more likely to be stolen than others)?

Copyright © 2014, 2011 Pearson Education, Inc. 15 4M Example 5.1: CAR THEFT Method Data obtained from the National Highway Traffic Safety Administration (NHTSA) on car theft for seven popular models (two categorical variables: type of car and whether the car was stolen).

Copyright © 2014, 2011 Pearson Education, Inc. 16 4M Example 5.1: CAR THEFT Mechanics

Copyright © 2014, 2011 Pearson Education, Inc. 17 4M Example 5.1: CAR THEFT Mechanics

Copyright © 2014, 2011 Pearson Education, Inc. 18 4M Example 5.1: CAR THEFT Message The Dodge Intrepid is more likely to be stolen than other popular models. The data suggest that higher premiums for theft insurance should be charged for models that are more likely to be stolen.

Copyright © 2014, 2011 Pearson Education, Inc. 19 5.2 Lurking Variables and Simpson’s Paradox Association Not Necessarily Causation  Lurking Variable: a concealed variable that affects the apparent relationship between two other variables  Simpson’s Paradox: a change in the association between two variables when data are separated into groups defined by a third variable

Copyright © 2014, 2011 Pearson Education, Inc. 20 5.2 Lurking Variables and Simpson’s Paradox Hidden Lurking Variable (Weight)

Copyright © 2014, 2011 Pearson Education, Inc. 22 4M Example 5.2: AIRLINE ARRIVALS Motivation Does it matter which of two airlines a corporate CEO chooses when flying to meetings if he wants to avoid delays?

Copyright © 2014, 2011 Pearson Education, Inc. 23 4M Example 5.2: AIRLINE ARRIVALS Method Data obtained from US Bureau of Transportation Statistics on flight delays for two airlines (two categorical variables: airline and whether the flight arrived on time).

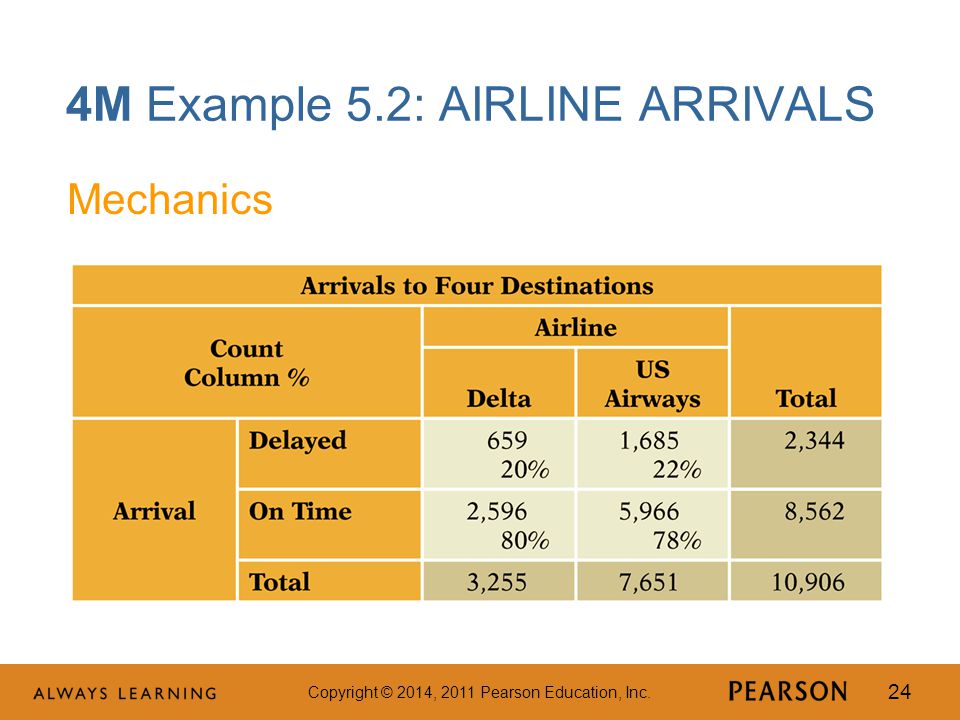

Copyright © 2014, 2011 Pearson Education, Inc. 24 4M Example 5.2: AIRLINE ARRIVALS Mechanics

Copyright © 2014, 2011 Pearson Education, Inc. 25 4M Example 5.2: AIRLINE ARRIVALS Mechanics – Is destination a lurking variable?

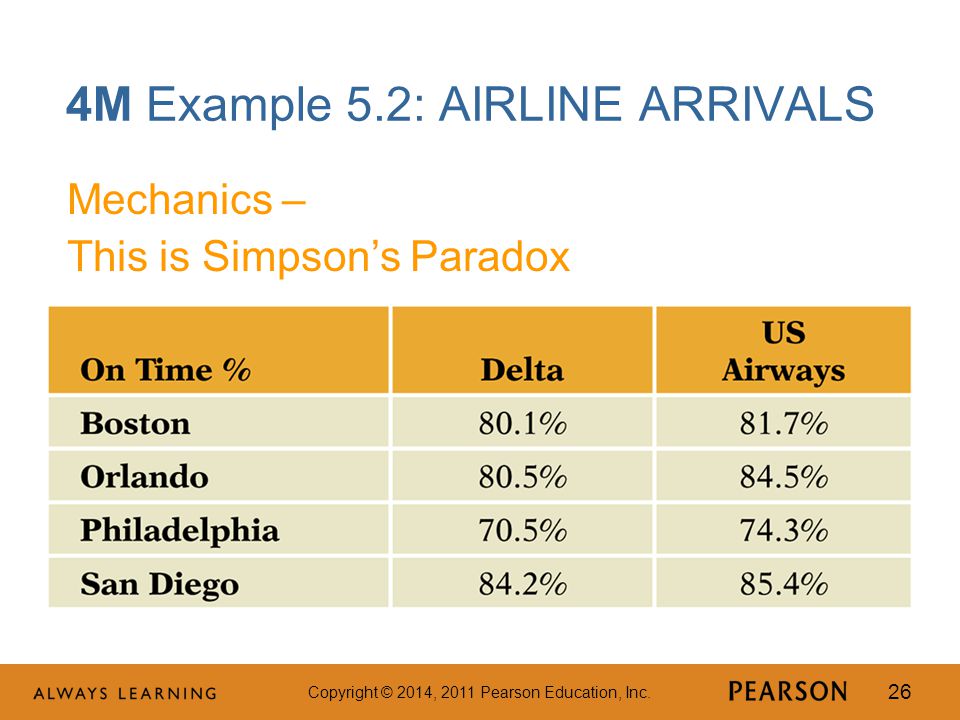

Copyright © 2014, 2011 Pearson Education, Inc. 26 4M Example 5.2: AIRLINE ARRIVALS Mechanics – This is Simpson’s Paradox

Copyright © 2014, 2011 Pearson Education, Inc. 27 4M Example 5.2: AIRLINE ARRIVALS Message The CEO should book on US Airways as it is more likely to arrive on time regardless of destination.

Copyright © 2014, 2011 Pearson Education, Inc. 28 5.3 Strength of Association Chi-Squared Statistic  A measure of association in a contingency table  Calculated based on a comparison of the observed contingency table to an artificial table with the same marginal totals but no association

Copyright © 2014, 2011 Pearson Education, Inc. 29 5.3 Strength of Association Contingency Table

Copyright © 2014, 2011 Pearson Education, Inc. 30 5.3 Strength of Association Calculating the Chi-Squared Statistic

Copyright © 2014, 2011 Pearson Education, Inc. 31 5.3 Strength of Association Calculating the Chi-Squared Statistic

Copyright © 2014, 2011 Pearson Education, Inc. 32 5.3 Strength of Association Cramer’s V  Derived from the Chi-Squared Statistic  Ranges in value from 0 (variables are not associated) to 1(variables are perfectly associated)

Copyright © 2014, 2011 Pearson Education, Inc. 33 5.3 Strength of Association Calculating Cramer’s V ν = 0.20 for our example There is a weak association between group (students or staff) and attitude toward sharing copyrighted music

Copyright © 2014, 2011 Pearson Education, Inc. 34 5.3 Strength of Association Checklist: Chi-Squared and Cramer’s V  Verify that variables are categorical  Verify that there are no obvious lurking variables

Copyright © 2014, 2011 Pearson Education, Inc. 35 4M Example 5.3: REAL ESTATE Motivation Do people who heat their homes with gas prefer to cook with gas as well? What heating systems and appliances should a developer select for newly built homes?

Copyright © 2014, 2011 Pearson Education, Inc. 36 4M Example 5.3: REAL ESTATE Method The developer contacts homeowners to obtain the data. Two categorical variables: type of fuel used for home heating (gas or electric) and type of fuel used for cooking (gas or electric).

Copyright © 2014, 2011 Pearson Education, Inc. 37 4M Example 5.3: REAL ESTATE Mechanics Chi-Squared = 98.62; Cramer’s V = 0.47

Copyright © 2014, 2011 Pearson Education, Inc. 38 4M Example 5.3: REAL ESTATE Message Homeowners prefer gas to electric heat by about 2 to 1. The developer should build about two-thirds of new homes with gas heat. Put electric appliances in all homes with electric heat and in half of the homes with gas heat (assuming that buyers for new homes have the same preferences).

Copyright © 2014, 2011 Pearson Education, Inc. 39 Best Practices  Use contingency tables to find and summarize association between two categorical variables.  Be on the lookout for lurking variables.  Use plots to show association.  Exploit the absence of association.

Copyright © 2014, 2011 Pearson Education, Inc. 40 Pitfalls  Don’t interpret association as causation.  Don’t display too many numbers in a table.
