1. MCKELDIN MALL- Interstitial Spaces Megan Lowry Edwin Espinoza Melissa Lodge Arthur Perez

2. Goals  Creating transitional and interstitial spaces while keeping the character of the mall.  Examining storm water management techniques to reduce the amount of runoff.  Strengthening the North-South and East-West Axes on the mall.

3. Interstitial Spaces University of Maryland Connections of open spaces define the campus. “Permeable bubbles” on campus allow students to gather publicly in spaces that enables privacy

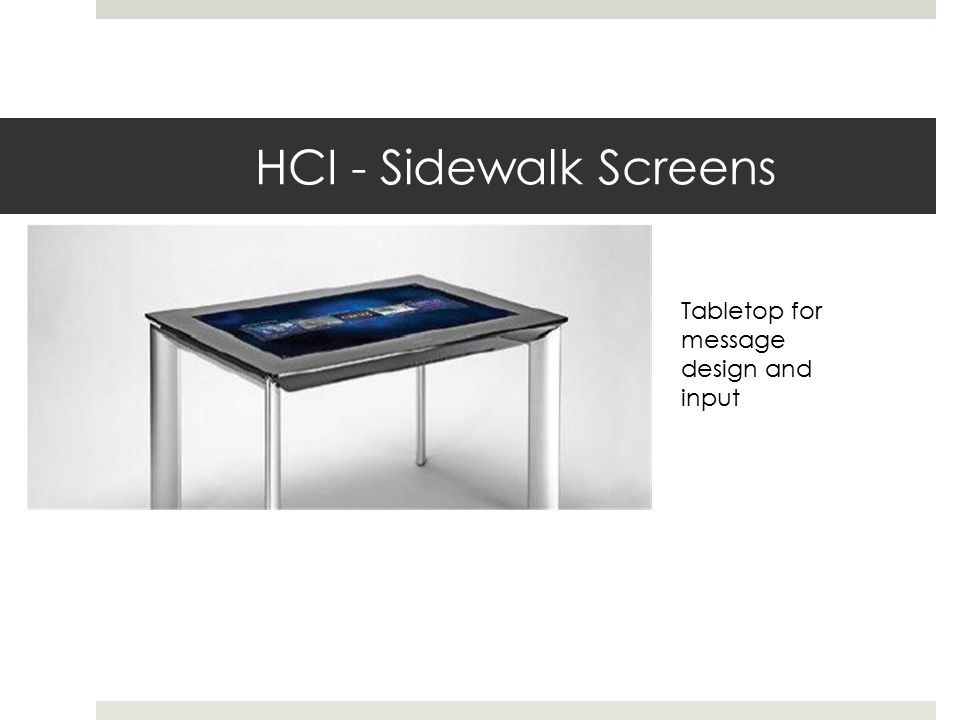

4. HCI - Sidewalk Screens Tabletop for message design and input

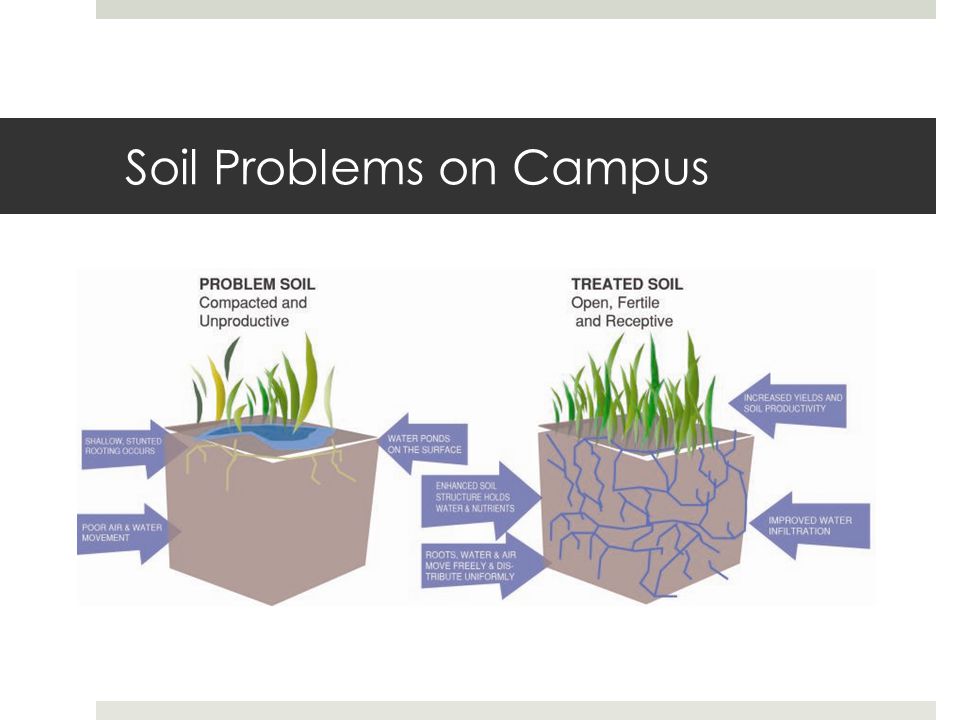

5. Soil Problems on Campus

6. Storm Water Management

7. Proposed Green Roofs -Stamp Student Union -Hornbake Library -Edward St. John -Mckeldin Library Benefits -Green roofs cool and humidify the surrounding air creating a microclimate which has beneficial effects within the immediate area. -Green roofs create biodiversity, encouraging wildlife, such as birds, butterflies and insects, to remain within urban areas. - Increased life expectancy of the roof Areas of interest -Faculty Club -Lefrak Hall -Marie Mount Hall -Visitor’s Center

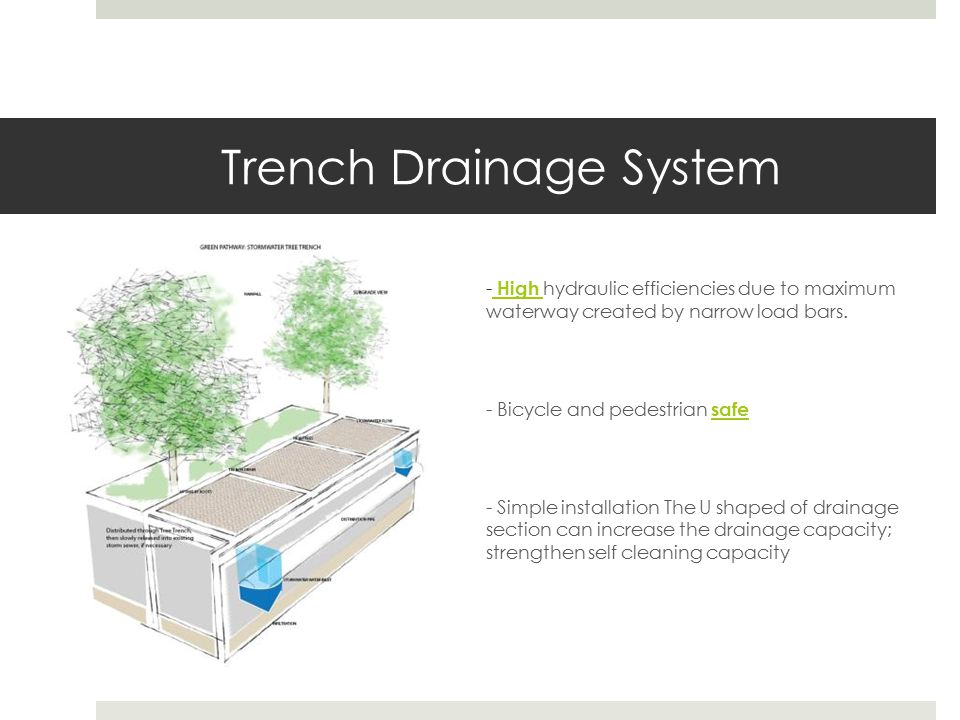

8. Trench Drainage System - High hydraulic efficiencies due to maximum waterway created by narrow load bars. - Bicycle and pedestrian safe - Simple installation The U shaped of drainage section can increase the drainage capacity; strengthen self cleaning capacity

9. Bioretention - Aesthetically pleasing if properly designed and maintained. Reduces amount of runoff from drainage areas. - Effective at removal of sediment loads, nutrients, traces of heavy metals, bacteria (possible) and organics found in stormwater. -Allows for a flexibility of design layout so able to fit this practice into most landscapes. -Relatively low maintenance requirement

10. Proposed Rain Gardens Lot W1 -HJ Patterson - McKeldin Lawn East - Parking Lot W1 - Morrill Quad East Benefits Filter runoff pollution Recharge local groundwater Improve water quality Enhance sidewalk appeal Increase garden enjoyment Areas of interest

11. Rain Garden - After

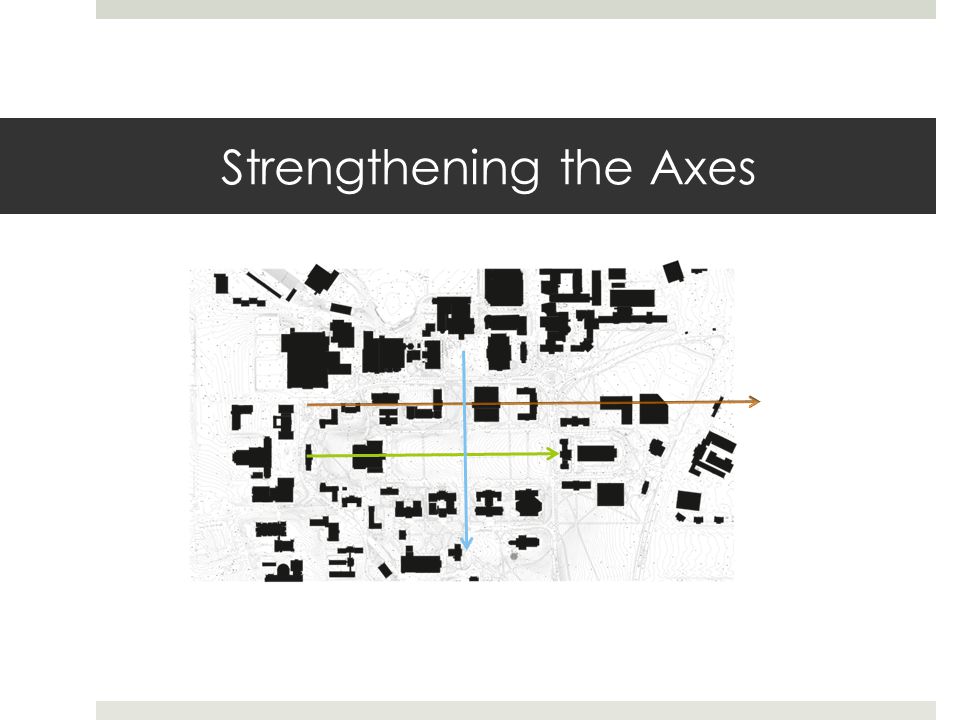

12. Strengthening the Axes

13. Edward St. John’s Teaching and Learning Center - Before

14. Edward St. John’s Teaching and Learning Center - After

15. H.J. Patterson Parking Lot- Before

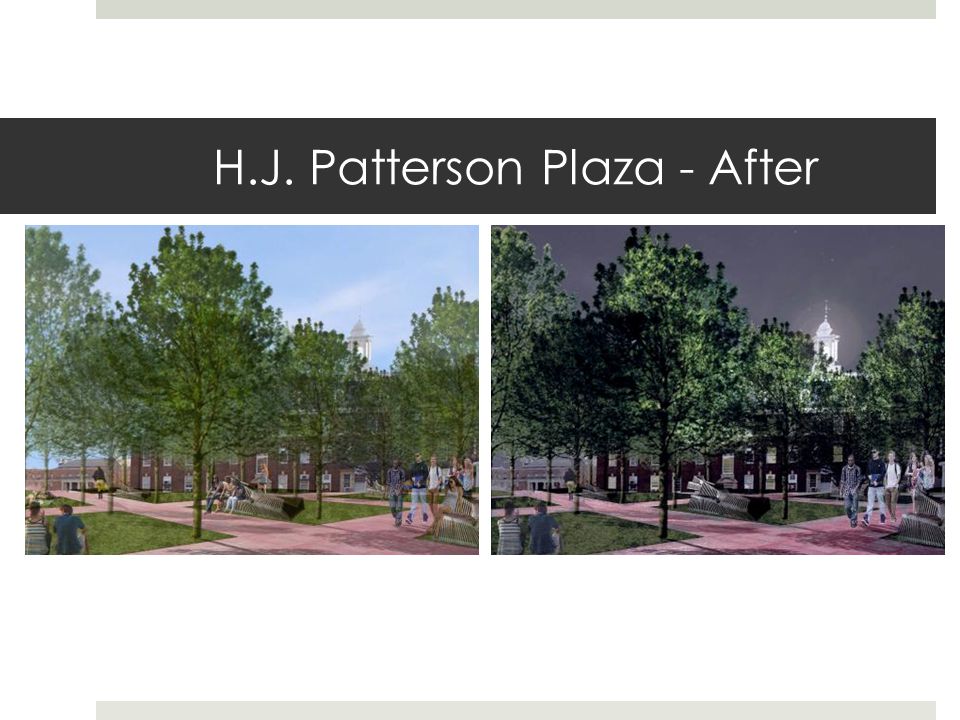

16. H.J. Patterson Plaza - After

17. Anne Arundel Hall

18. Anne Arundel Hall- After

19. Woods and Skinner Plaza - Before

20. Woods and Skinner Plaza - After

21. McKeldin Mall Graduation - Before

22. McKeldin Mall Graduation - After
