1 Riparian Forest Buffers Def. – land adjacent to a waterway is referred to as the “riparian zone.” Other terms used – riparian management zones (RMZ) or streamside management zone (SMZ)

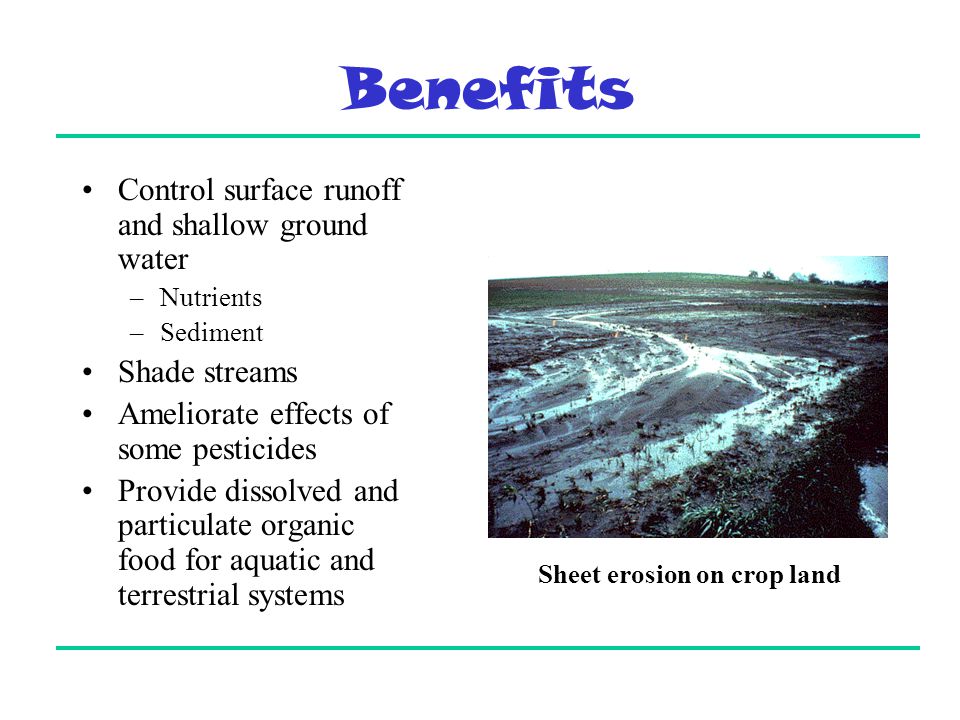

2 Benefits Control surface runoff and shallow ground water –Nutrients –Sediment Shade streams Ameliorate effects of some pesticides Provide dissolved and particulate organic food for aquatic and terrestrial systems Sheet erosion on crop land

3 Shallow Groundwater Frequently occurs in riparian areas Saturated condition which occur near or within the root zone of trees and other woody vegetation and at relatively shallow depths where bacteria, oxygen, and soil contribute to denitrification

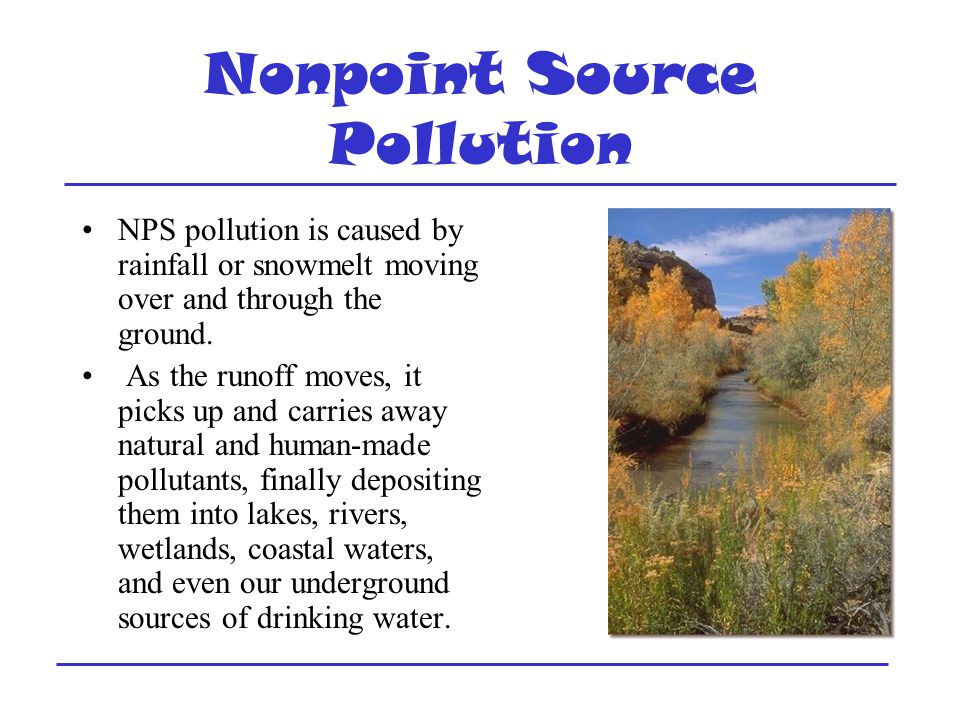

4 Nonpoint Source Pollution NPS pollution is caused by rainfall or snowmelt moving over and through the ground. As the runoff moves, it picks up and carries away natural and human-made pollutants, finally depositing them into lakes, rivers, wetlands, coastal waters, and even our underground sources of drinking water.

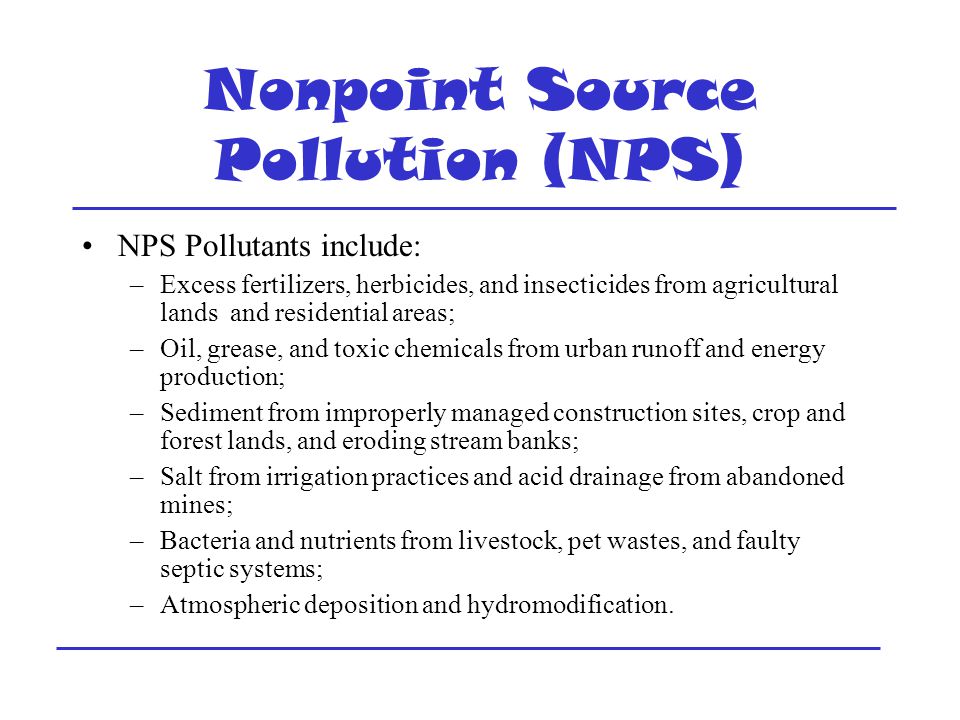

5 Nonpoint Source Pollution (NPS) NPS Pollutants include: –Excess fertilizers, herbicides, and insecticides from agricultural lands and residential areas; –Oil, grease, and toxic chemicals from urban runoff and energy production; –Sediment from improperly managed construction sites, crop and forest lands, and eroding stream banks; –Salt from irrigation practices and acid drainage from abandoned mines; –Bacteria and nutrients from livestock, pet wastes, and faulty septic systems; –Atmospheric deposition and hydromodification.

6 NPS: Hydromodification Hydrography: –Configuration of an underwater surface including its relief, bottom materials, coastal structures, etc. –Description and study of seas, lakes, rivers, and other waters.

7 NPS: Hydromodification Hydrologic modification: – The alteration of the natural circulation or distribution of water by the placement of structures or other activities Bear Creek, Blackfoot River, Montana Before During After

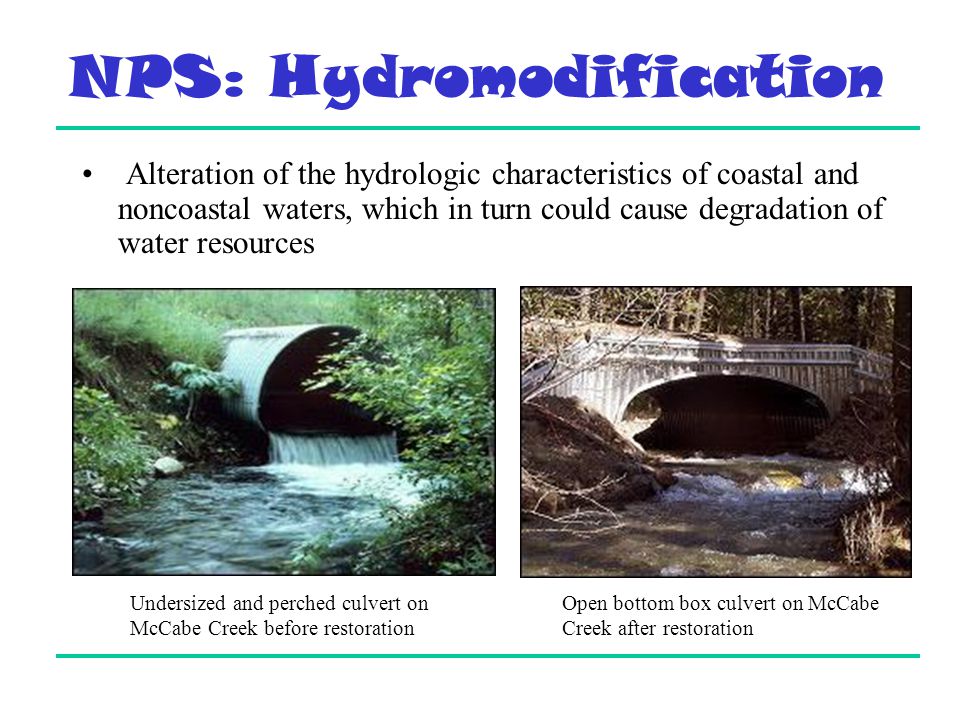

8 NPS: Hydromodification Alteration of the hydrologic characteristics of coastal and noncoastal waters, which in turn could cause degradation of water resources Undersized and perched culvert on McCabe Creek before restoration Open bottom box culvert on McCabe Creek after restoration

9 Example of Hydromodification Streambed scouring and bank erosion resulting from storm surges within urbanized watersheds

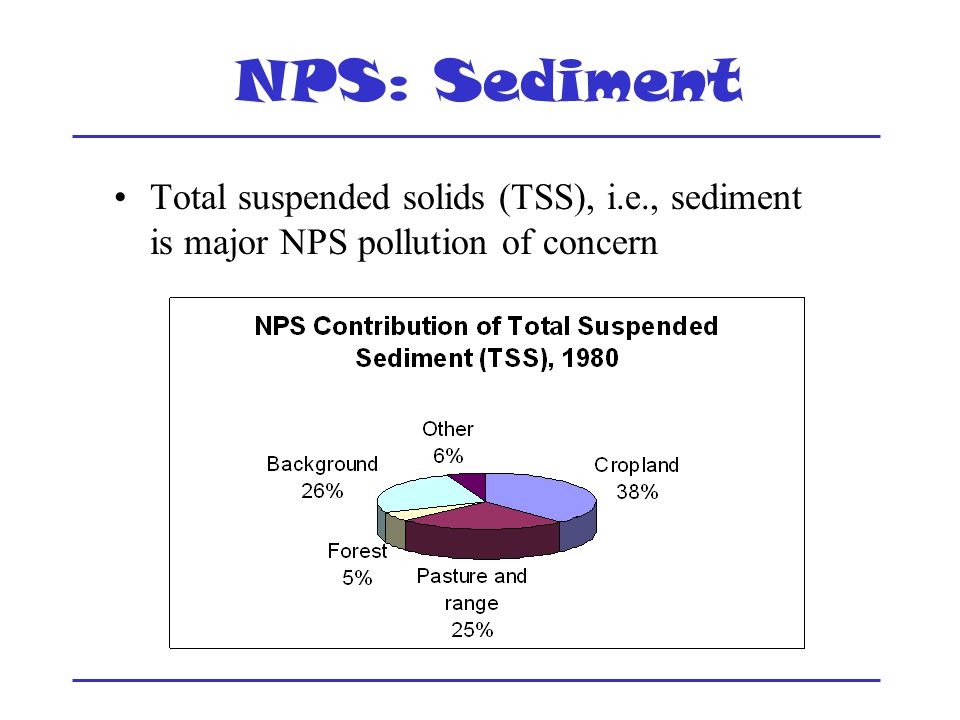

10 NPS: Sediment Total suspended solids (TSS), i.e., sediment is major NPS pollution of concern

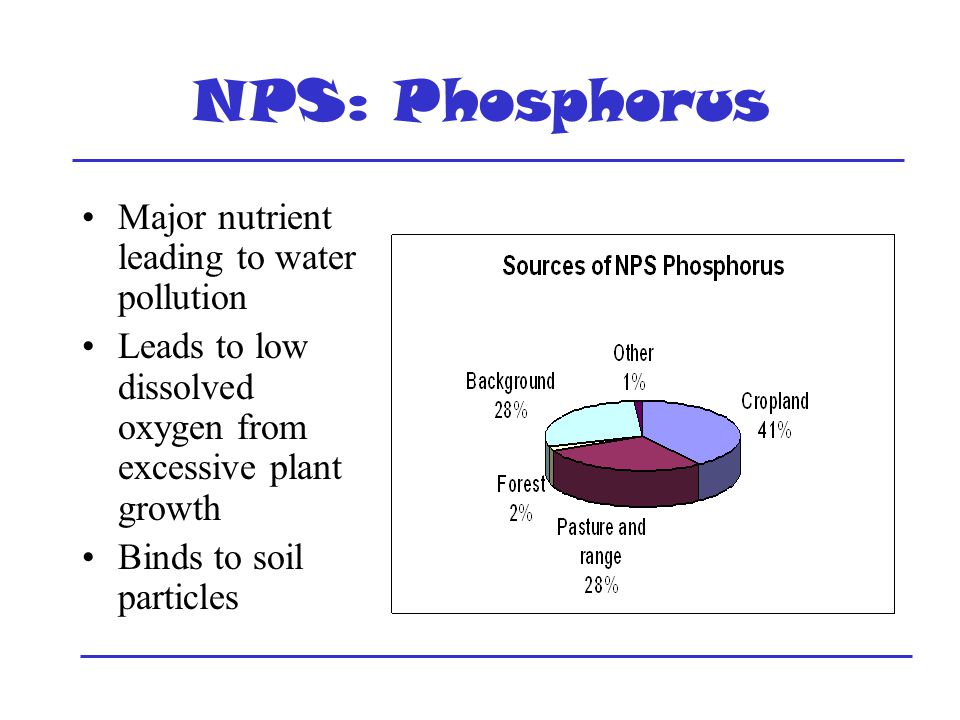

11 NPS: Phosphorus Major nutrient leading to water pollution Leads to low dissolved oxygen from excessive plant growth Binds to soil particles

12 NPS: Nitrogen Water soluble Some converted to gaseous forms by microbial action Enters surface and goundwater

13 Underlying Principles of Buffers Vegetation and soil filters sediments Vegetation takes up nutrients which can be removed from portion of site by harvesting timber and forage. Clearfield Creek in PA, stable structure but polluted by mine drainage

14 Streamside Forest as Sediment Filter Sediment settles as speed of surface flow reduced by forest floor Sediment is filtered out as sediment loaded water percolates into porous forest floor

15 Riparian Forest Buffer Forest dominated landscapes –Leave continuous unharvested forest along waterways Agriculture dominated landscapes –Create 3 zone buffer along waterways

16 Riparian Forest Buffer Where to use –Adjacent to permanent or intermittent streams occurring at lower edge of upslope crop land, grassland or pasture, or harvested forest –Margin of lake or ponds

17 Riparian Forest Buffer Where to use –Margin of intermittent or permanently flooded, environmentally sensitive open water wetlands –On karst formations at margins of sinkholes and other groundwater recharge areas A deep sinkhole

18 Riparian Forest Buffer Use to protect any water body which will not be, –Routed through a natural or artificial wetland serving as an adequate nutrient sink –Where concentrated flows will not otherwise be converted to sheet flow and routed through a forest buffer at a lower point in the watershed. Need to exclude livestock, provide access by piping water to tank, and planting buffer.

19 Riparian Forest Buffer: Design Objective - encourage sheet flow and infiltration and impede concentrated (stream like) flow Consist of 3 zones –Undisturbed forest –Managed forest –Grassland

20 Riparian Forest Buffer: Design

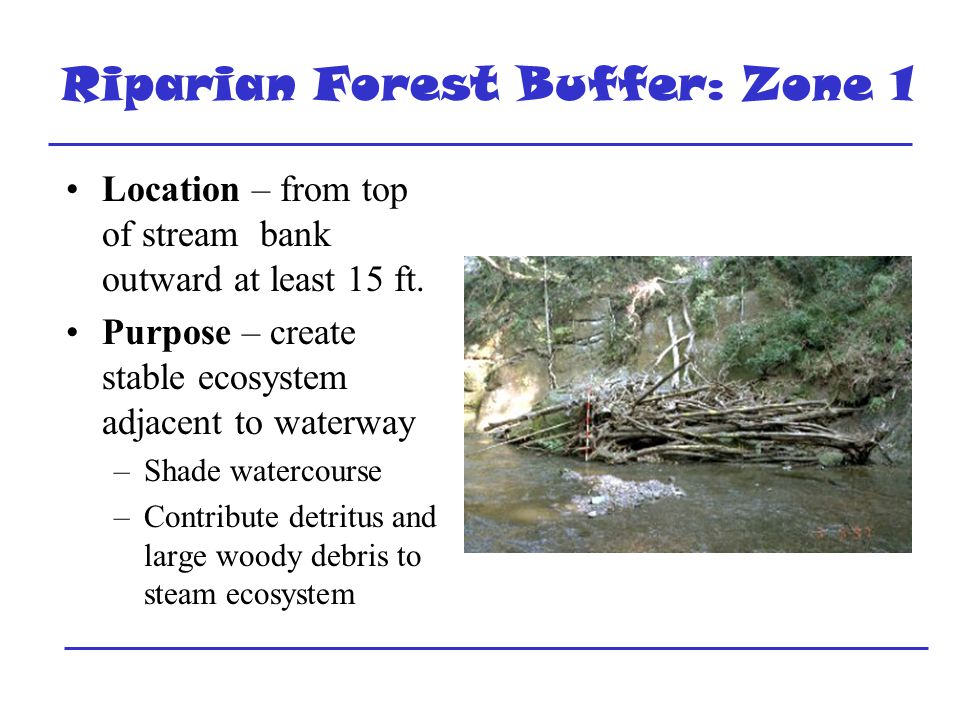

21 Riparian Forest Buffer: Zone 1 Location – from top of stream bank outward at least 15 ft. Purpose – create stable ecosystem adjacent to waterway –Shade watercourse –Contribute detritus and large woody debris to steam ecosystem

22 Riparian Forest Buffer: Zone 1 Function – handle sheet and subsurface flows only Limits – –No subsurface drains that bypass this zone –No grazing but maintained stream crossings allowed Vegetation – mix of native riparian tree and shrub species

23 Riparian Forest Buffer: Zone 1 Management –Large over mature trees left to fall –Occasional removal of high value trees permitted if disturbance is very limited –Equipment excluded except for necessary stream crossing and stabilization work

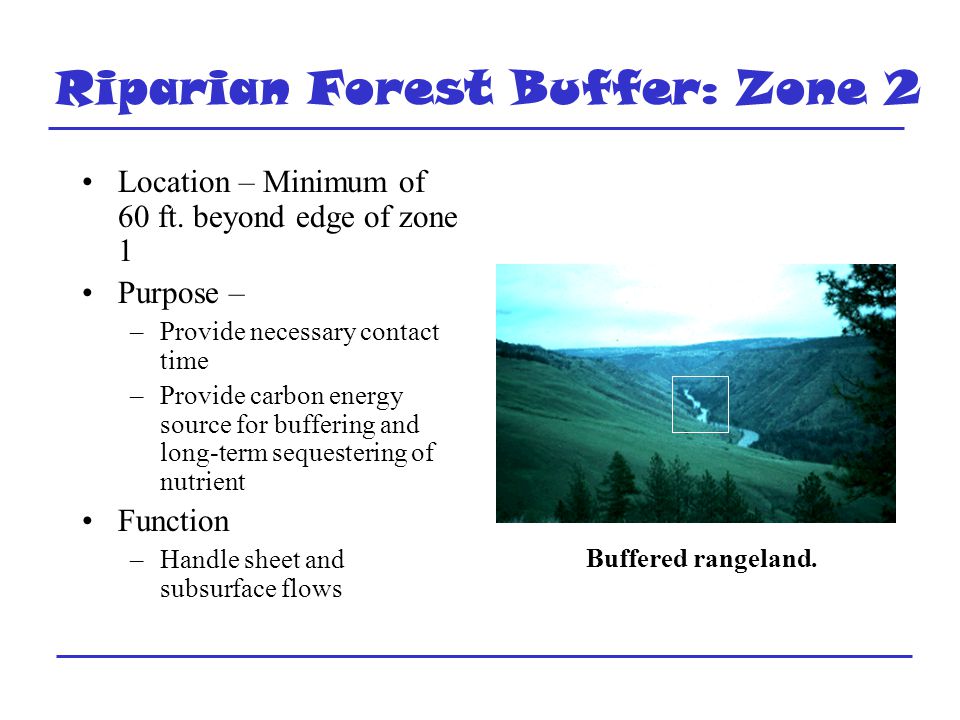

24 Riparian Forest Buffer: Zone 2 Location – Minimum of 60 ft. beyond edge of zone 1 Purpose – –Provide necessary contact time –Provide carbon energy source for buffering and long-term sequestering of nutrient Function –Handle sheet and subsurface flows Buffered rangeland.

25 Riparian Forest Buffer: Zone 2 Limits –Any subsurface drains should be converted to sheet flow in zone 3 –No grazing, but maintained stream crossing allowed Vegetation –Native riparian tree and shrub species –No nitrogen fixers if nitrogen buffering is needed

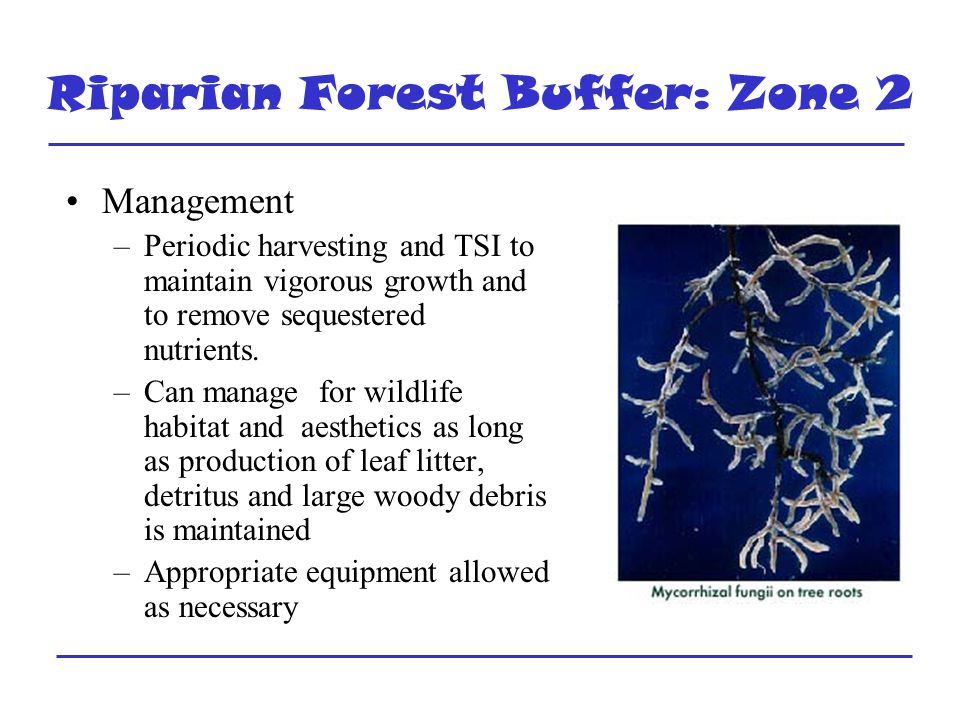

26 Riparian Forest Buffer: Zone 2 Management –Periodic harvesting and TSI to maintain vigorous growth and to remove sequestered nutrients. –Can manage for wildlife habitat and aesthetics as long as production of leaf litter, detritus and large woody debris is maintained –Appropriate equipment allowed as necessary

27 Riparian Forest Buffer: Zone 3 Location – –Minimum of 20 ft. beyond edge of zone 2, or wider to accommodate whatever mowing equipment is to be used Purpose – –Sediment filtering –Nutrient uptake Function – –Convert concentrated flow to uniform shallow, sheet flow using grading, shaping, diversions basins and level lip spreaders Well vegetated buffer in southwest US.

28 Riparian Forest Buffer: Zone 3 Limits –Activities that would damage earthworks Vegetation –Dense grass and forbs for structure stabilization, sediment control and nutrient uptake. Management –Mow and remove, or use controlled intensive grazing, to maintain vigorous growth and remove nutrients –As necessary reshape earthworks, remove accumulated sediment and reestablish vegetation

29 Total Buffer Width: Streamside Determine based on –Soil hydrographic group –Total area of source –Soil capability class

30 GroupGroup TypeType Infiltration capacity/permeabilityInfiltration capacity/permeability Leaching potential Leaching potential Runoff potential Runoff potential Adeep, well-drained sands and gravelsdeep, well-drained sands and gravels highhigh HighHigh lowlow Bmoderately deep to deep, moderately drained, moderately fine to moderately coarse texturemoderately deep to deep, moderately drained, moderately fine to moderately coarse texture moderatemoderate moderatemoderate moderatemoderate Cimpeding layer, or moderately tine to fine textureimpeding layer, or moderately tine to fine texture lowlow lowlow lowlow Dclay soils, soils with high water table, shallow soils over impervious layerclay soils, soils with high water table, shallow soils over impervious layer very lowvery low very lowvery low very highvery high GroupGroup TypeType Infiltration capacity/permeabilityInfiltration capacity/permeability Leaching potential Leaching potential Runoff potential Runoff potential Adeep, well-drained sands and gravelsdeep, well-drained sands and gravels highhigh HighHigh lowlow Bmoderately deep to deep, moderately drained, moderately fine to moderately coarse texturemoderately deep to deep, moderately drained, moderately fine to moderately coarse texture moderatemoderate moderatemoderate moderatemoderate Cimpeding layer, or moderately tine to fine textureimpeding layer, or moderately tine to fine texture lowlow lowlow lowlow Dclay soils, soils with high water table, shallow soils over impervious layerclay soils, soils with high water table, shallow soils over impervious layer very lowvery low very lowvery low very highvery high GroupGroup TypeType Infiltration capacity/permeabilityInfiltration capacity/permeability Leaching potential Leaching potential Runoff potential Runoff potential Adeep, well-drained sands and gravelsdeep, well-drained sands and gravels highhigh HighHigh lowlow Bmoderately deep to deep, moderately drained, moderately fine to moderately coarse texturemoderately deep to deep, moderately drained, moderately fine to moderately coarse texture moderatemoderate moderatemoderate moderatemoderate Cimpeding layer, or moderately tine to fine textureimpeding layer, or moderately tine to fine texture lowlow lowlow lowlow Dclay soils, soils with high water table, shallow soils over impervious layerclay soils, soils with high water table, shallow soils over impervious layer very lowvery low very lowvery low very highvery high Hydrologic Group TypeInfiltration capacity/perm- eability Leaching potential Runoff potential ADeep, well drained sands and gravels High Low BModerately deep to deep, moderately drained, moderate fine to moderately coarse texture Moderate CImpeding layer, or moderately fine to fine texture Low High DClay soils, soils with high water table, shallow soils over impervious layer Very low Very high Soil Hydrologic Groups

31

32 Total Buffer Width: Streamside Soil Hydrologic Group –Widen zone 2 to include all group C and D soils subject to frequent flooding –75 ft. minimum for zones 1 and 2 applies to group A or B soils adjacent to intermittent or perennial streams

33 Total Buffer Width: Streamside Source area –Increase zone 2 for combined zone 1 and 2 width of 1/3 of slope distance from stream bank to top of pollution source area, i.e. –Total buffer between field and forest will be 1/3 of source area Incomplete streamside buffer

34 Total Buffer Width: Streamside Soil capability class –Increase width of zone 2 to provide combined width of zone 1 and 2 of, Soil Capability Class Buffer Width Cap. I, II e/s, V75 ft. Cap. III e/s, IV e/s100 ft. Cap. VI e/s, VII e/s150 ft.

35 Soil Capability Classes Indicates the suitability of soils for agriculture. The soils are grouped primarily by their capability for sustained production of cultivated crops and pasture plants. They are grouped by 2 levels, class and subclass, to indicate the degree and kind of major soil limitations. Classes -- the broadest groups (typically designated by Roman numerals I to VIII); the numeral indicate progressively greater limitations and narrower choices for agriculture.

36 Soil Capability Classes Subclasses Groups of (soil) capability units within classes of the land capability classification that have the same kinds of dominant limitations for agricultural use as a result of soil and climate. The four kinds of limitations recognized are: – risks of erosion (e); – wetness, drainage, or overflow (w); –other root zone limitations (s); and –climatic limitations (c).

37 Total Buffer Width: Pond and Like-Side Buffer area should be at least 1/5 drainage area of cropland and pastureland source area. Width determined by creating uniform width buffer of total required area Hydrologic and capability class methods for streamside buffers applies. Houses, not cropland, are major source of lake pollution in midwest.

38 Total Buffer Width: Wetlands Focus –Wetlands adjacent to open water and subject to flushing, not those functioning as nutrient sinks Buffers should have zones 1, 2 and 3 on sides receiving runoff

39 Indiana BMP RMZ Width Recommendations Watercourse Chara. 0-5% slope 5-10% slope 10-20% slope 20-40% slope 40% + slope Primary RMZ Perenial 40’ wide200 Perenial ’ wide Perenial 20’ wide Intermittent Sinkhole openings Water supply Other lakes and ponds Total RMZ Width* * Width in feet on each side of watercourse

40 Midwest Issue Field drain tiles empty into drainage ditches that flow directly to waterways. Methods need to buffer tile water before it enters ditches.

41 Midwest Issue A solution being studied –Run ditch water through constructed or natural wetland before entering waterway –Use these wetlands for production of hydrophytic crops and for-fee waterfowl hunting Forest wetlands can also function as nutrient sinks.
