Digital Control Systems Controllability&Observability

2
CONTROLLABILITY Complete State Controllability for a Linear Time Invariant Discrete-Time Control System

3
CONTROLLABILITY Complete State Controllability for a Linear Time Invariant Discrete-Time Control System Controllability matrix

4
CONTROLLABILITY Complete State Controllability for a Linear Time Invariant Discrete-Time Control System

5
CONTROLLABILITY Complete State Controllability for a Linear Time Invariant Discrete-Time Control System Condition for complete state controllability

6
CONTROLLABILITY Complete State Controllability for a Linear Time Invariant Discrete-Time Control System Condition for complete state controllability

7

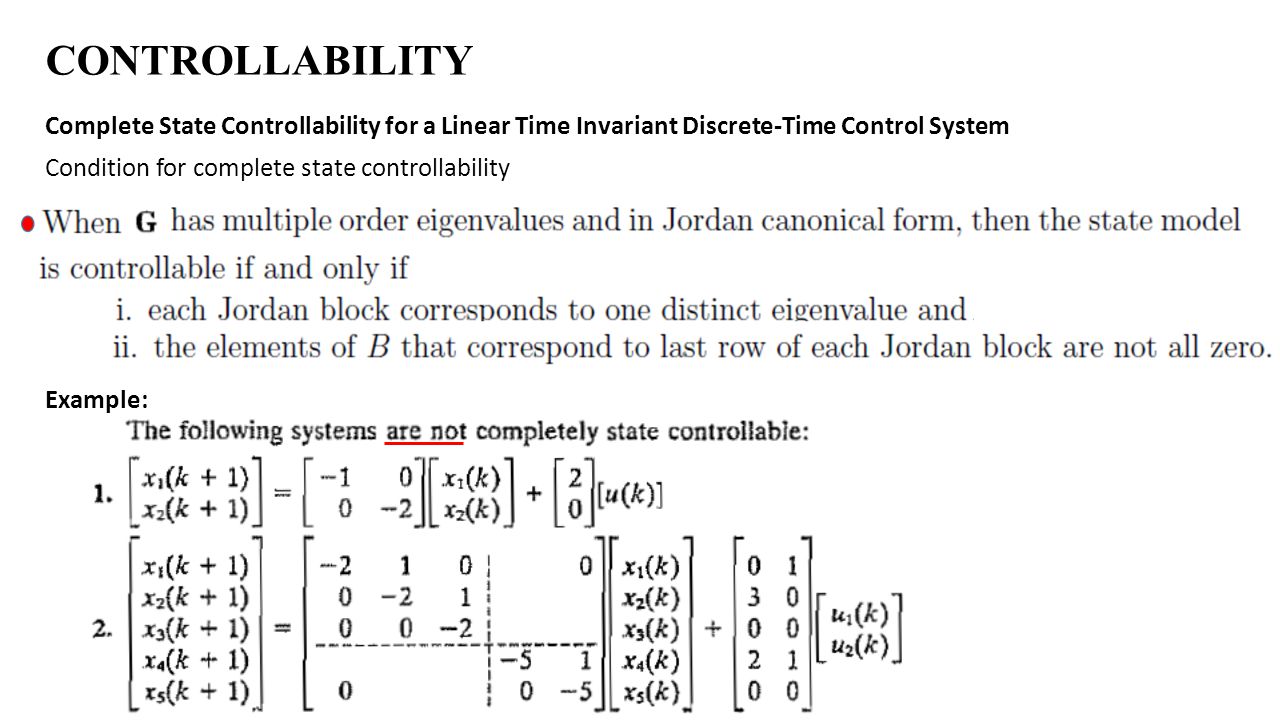

CONTROLLABILITY Complete State Controllability for a Linear Time Invariant Discrete-Time Control System Condition for complete state controllability Example:

8
CONTROLLABILITY Complete State Controllability for a Linear Time Invariant Discrete-Time Control System Condition for complete state controllability Example:

9
CONTROLLABILITY Determination of Control Sequence to Bring the Initial State to a Desired State

10
CONTROLLABILITY Condition for Complete State Controllability in the z-Plane Example:

11
CONTROLLABILITY Complete Output Controllability

12
CONTROLLABILITY Complete Output Controllability

13
CONTROLLABILITY Complete Output Controllability

14
CONTROLLABILITY Controllability from the origin : controllability : reachability

15
OBSERVABILITY

17
Complete Observability of Discrete-Time Systems

18
OBSERVABILITY Complete Observability of Discrete-Time Systems

19
OBSERVABILITY Complete Observability of Discrete-Time Systems Observability matrix

20
OBSERVABILITY Complete Observability of Discrete-Time Systems

21
OBSERVABILITY Complete Observability of Discrete-Time Systems Example:

22
OBSERVABILITY Complete Observability of Discrete-Time Systems Example:

23

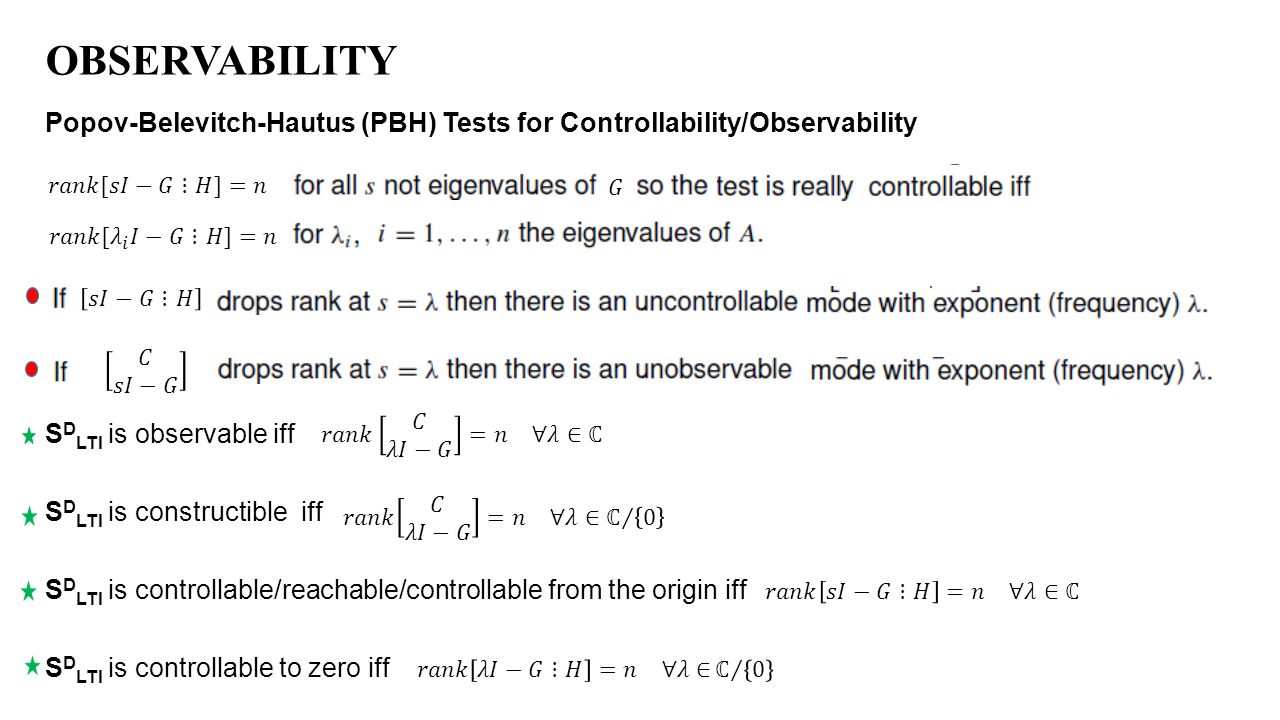

OBSERVABILITY Popov-Belevitch-Hautus (PBH) Tests for Controllability/Observability S D LTI is observable iff S D LTI is constructible iff S D LTI is controllable/reachable/controllable from the origin iff S D LTI is controllable to zero iff

24
OBSERVABILITY Popov-Belevitch-Hautus (PBH) Tests for Controllability/Observability S D LTI is observable iff S D LTI is constructible iff S D LTI is controllable/reachable/controllable from the origin iff S D LTI is controllable to zero iff

25
OBSERVABILITY Condition for Complete Observability in the z-Plane Example: Since, det ( ), rank ( ) is less than 3. Note: A square matrix A n×n is non-singular only if its rank is equal to n.

26
OBSERVABILITY Condition for Complete Observability in the z-Plane Example: Since, det ( )=0, rank ( ) is less than 3.

27
OBSERVABILITY Principle of Duality S1:S1: S2:S2:

28
OBSERVABILITY Principle of Duality

29
OBSERVABILITY Principle of Duality S 1 is completely state controllabe S 2 is completely observable. S 1 is completely observable S 2 is completely state controllable.

30
USEFUL TRANSFORMATION IN STATE-SPACE ANALYSIS AND DESIGN Transforming State-Space Equations Into Canonical forms:

31
USEFUL TRANSFORMATION IN STATE-SPACE ANALYSIS AND DESIGN Transforming State-Space Equations Into Canonical forms:

32
USEFUL TRANSFORMATION IN STATE-SPACE ANALYSIS AND DESIGN Transforming State-Space Equations Into Canonical forms:

33
USEFUL TRANSFORMATION IN STATE-SPACE ANALYSIS AND DESIGN Transforming State-Space Equations Into Canonical forms:

34
USEFUL TRANSFORMATION IN STATE-SPACE ANALYSIS AND DESIGN Transforming State-Space Equations Into Canonical forms:

35
USEFUL TRANSFORMATION IN STATE-SPACE ANALYSIS AND DESIGN Transforming State-Space Equations Into Canonical forms:

36
USEFUL TRANSFORMATION IN STATE-SPACE ANALYSIS AND DESIGN Invariance Property of the Rank Conditions for the Controllability Matrix and Observability Matrix

37
USEFUL TRANSFORMATION IN STATE-SPACE ANALYSIS AND DESIGN Kalman’s Controllability Decomposition Kalman Decomposition:

38
USEFUL TRANSFORMATION IN STATE-SPACE ANALYSIS AND DESIGN Kalman Decomposition Kalman Decomposition:

39
USEFUL TRANSFORMATION IN STATE-SPACE ANALYSIS AND DESIGN Kalman’s Controllability Decomposition

40
USEFUL TRANSFORMATION IN STATE-SPACE ANALYSIS AND DESIGN Kalman’s Controllability Decomposition Partition the transformed into

41
USEFUL TRANSFORMATION IN STATE-SPACE ANALYSIS AND DESIGN Kalman’s Controllability Decomposition Example: x(k+1)= x(k) + u(k)

42
USEFUL TRANSFORMATION IN STATE-SPACE ANALYSIS AND DESIGN Kalman’s Observability Decomposition

43
USEFUL TRANSFORMATION IN STATE-SPACE ANALYSIS AND DESIGN Kalman’s Controllability and Observability Decomposition

44
USEFUL TRANSFORMATION IN STATE-SPACE ANALYSIS AND DESIGN Kalman’s Controllability and Observability Decomposition
